Snow Series 50' x 100' Dual Truss Storage Shelter with 32 oz PVC Cover, 35 PSF Snow Load, Engineering Drawings, TMG-DT50100-SR35

Snow Series 50' x 100' dual truss storage shelter with 35 PSF snow load, TMG-DT50100-SR35
CURRENTLY OUT OF STOCK
SKU TMG-DT50100-SR35
$89,999.00 CAD - $89,999.00 CAD
$89,999.00 CAD
$89,999.00 CAD - $89,999.00 CAD
$89,999.00 CAD
$89,999.00 CAD

FREE

shipping to most locations in

Canada
CALL TO ORDER 1-877-761-2819
1-877-761-2819
Find Parts

Features

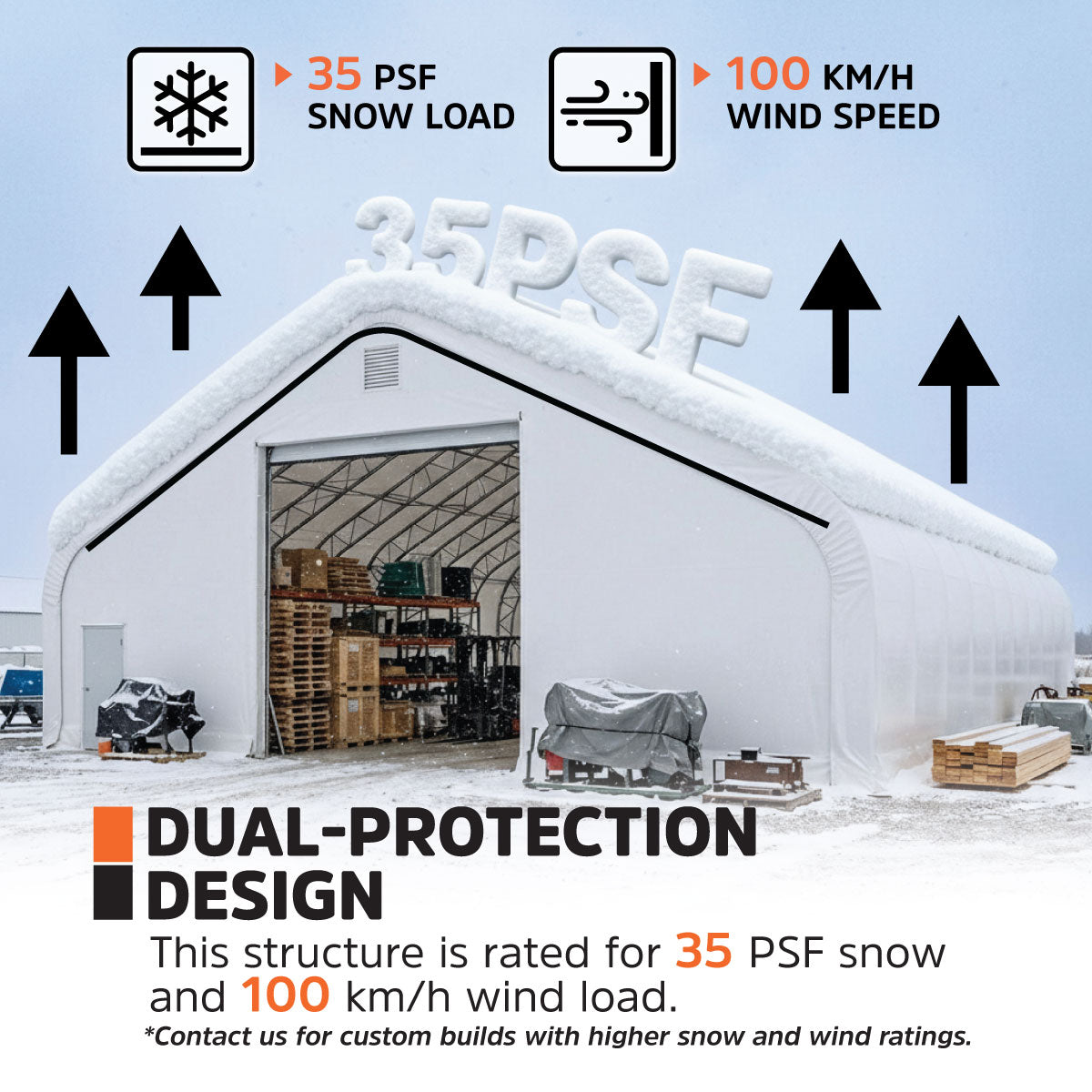

  • 35 PSF Snow Load: This structure is rated for 35 PSF snow load and 100 km/h wind load. Contact us for a custom build if your region has higher snow and wind ratings.

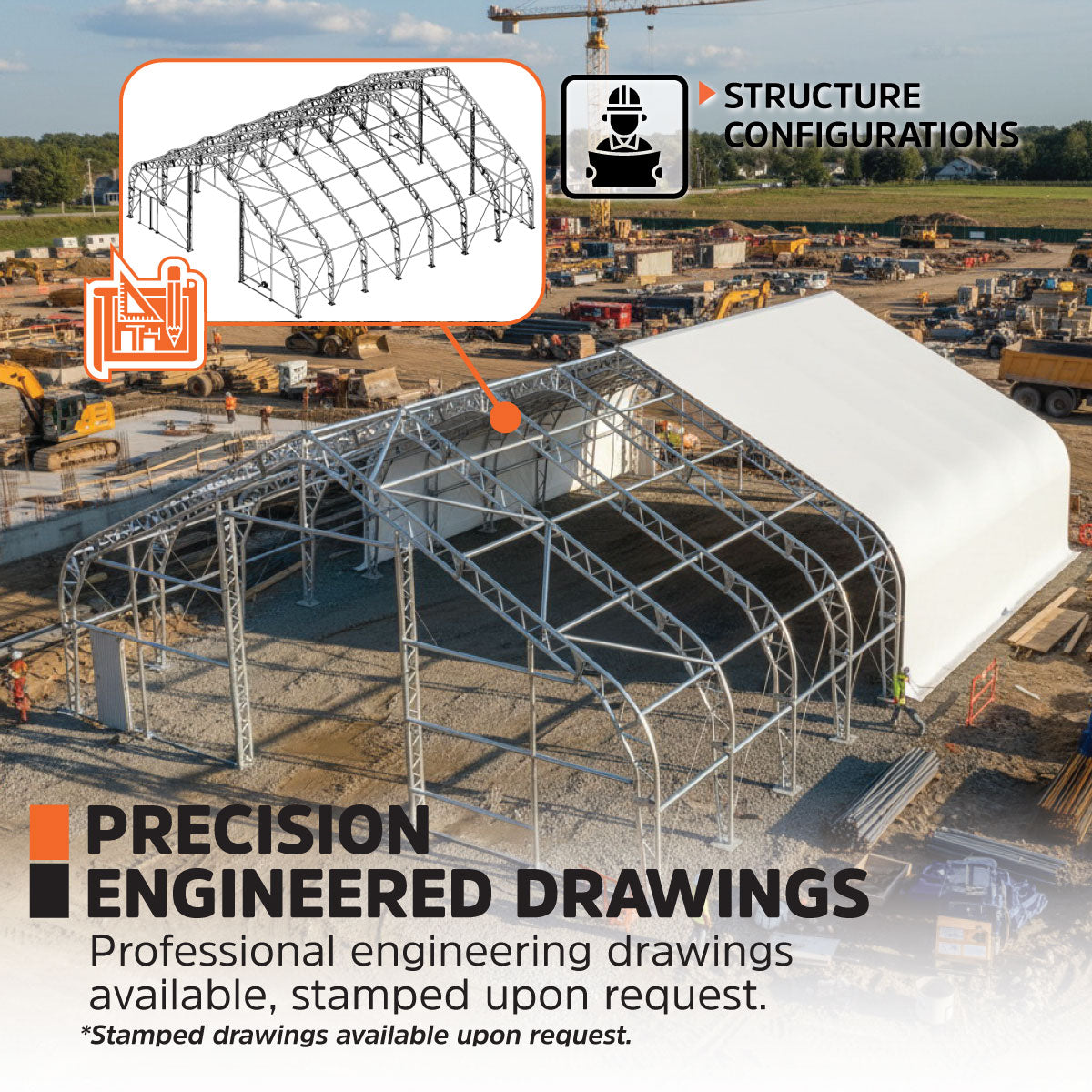

  • Engineering Drawings: Engineering drawings are prepared by a registered engineer after structural design and review, with stamped drawings available upon request.

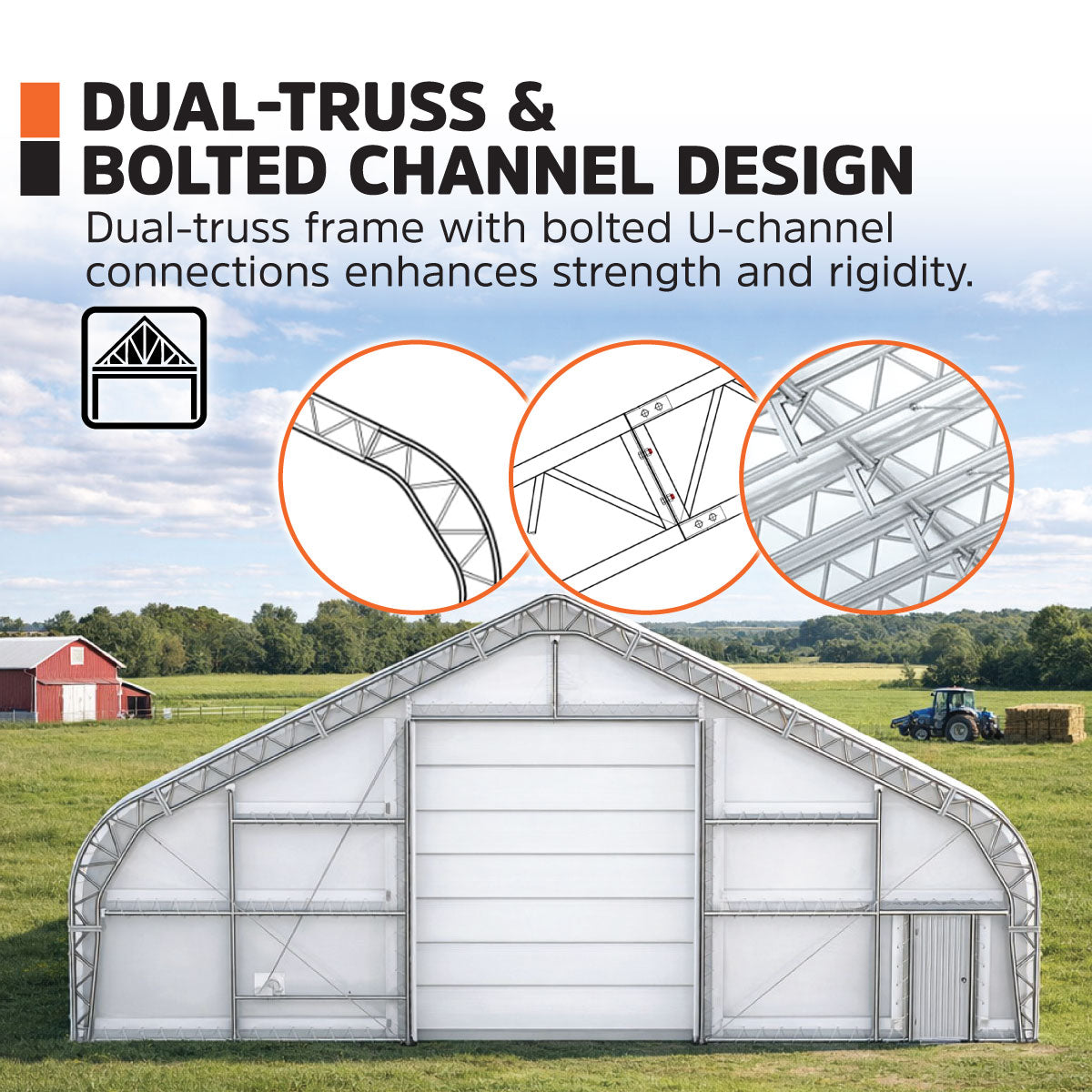

  • Dual Truss Structure: Double truss frame and solid bolted, U-shaped channel connections on every truss significantly increase support strength and structural rigidity.

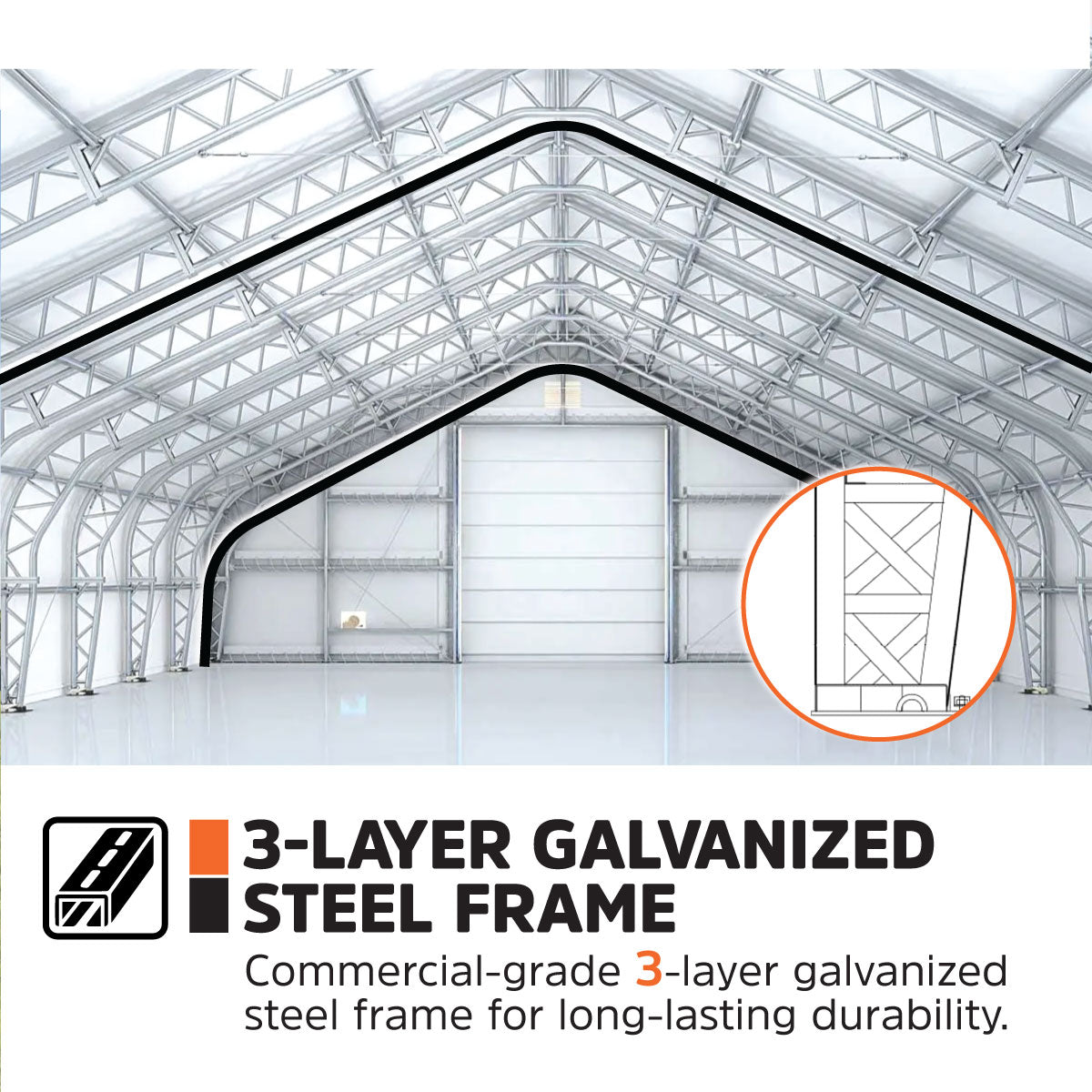

  • Commercial Grade Steel Frame: The durable structure utilizes a commercial grade, 3-layer galvanized steel frame that is long-lasting and highly resistant to corrosion and wear.

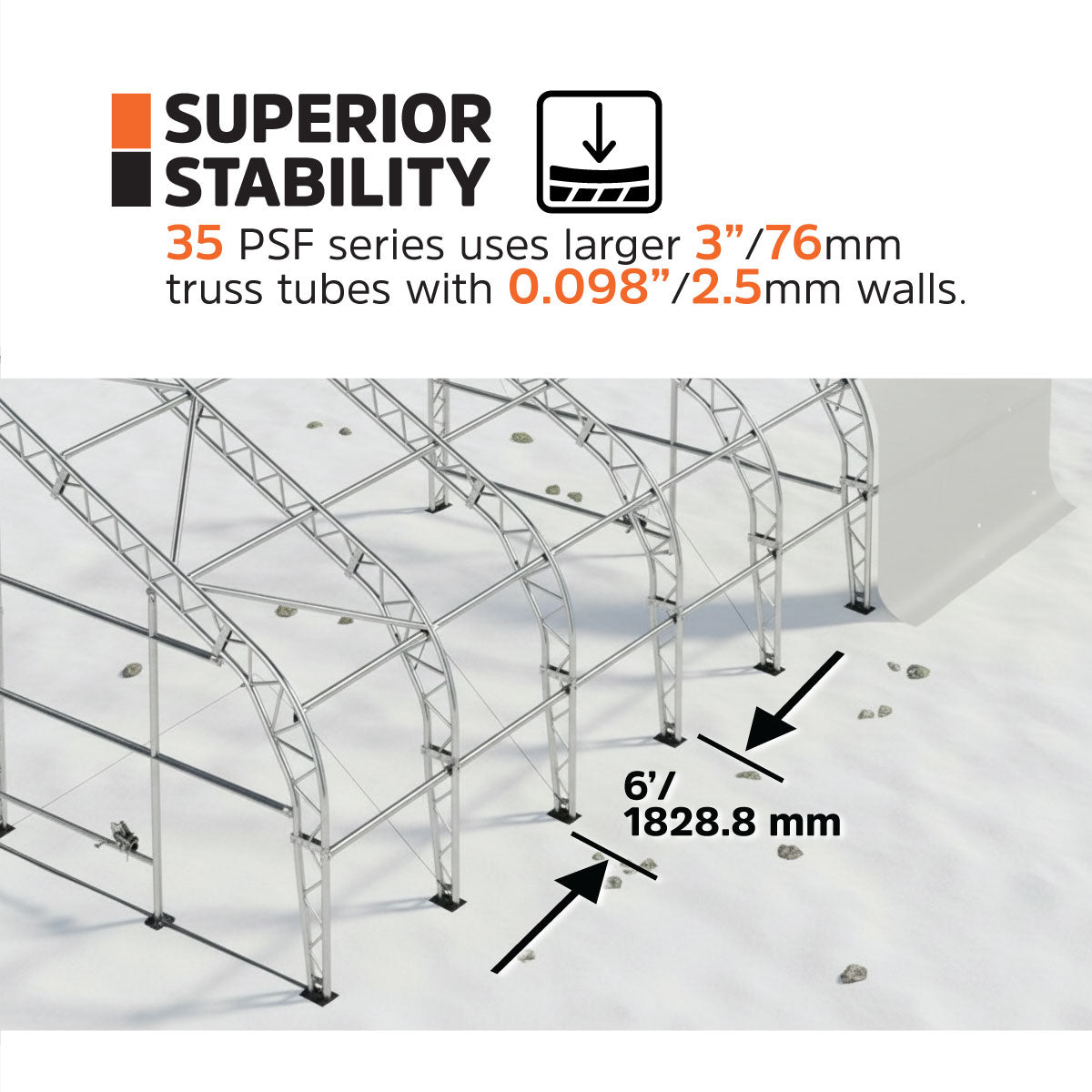

  • Bigger and Thicker Frame: The 35 PSF rated series use bigger 3" truss frame tubes with 2.5 mm wall thickness, providing maximum strength and stability.
  • 6' Truss Spacing: Reduced 6' truss frame spacing enhances the integrity of the structure and makes it better at handling heavy snow and wind load.
  • Peaked Roof Design: Proven straight wall and peaked roof design prevents heavy snow from building up and efficiently guides weight and moisture off the sides.

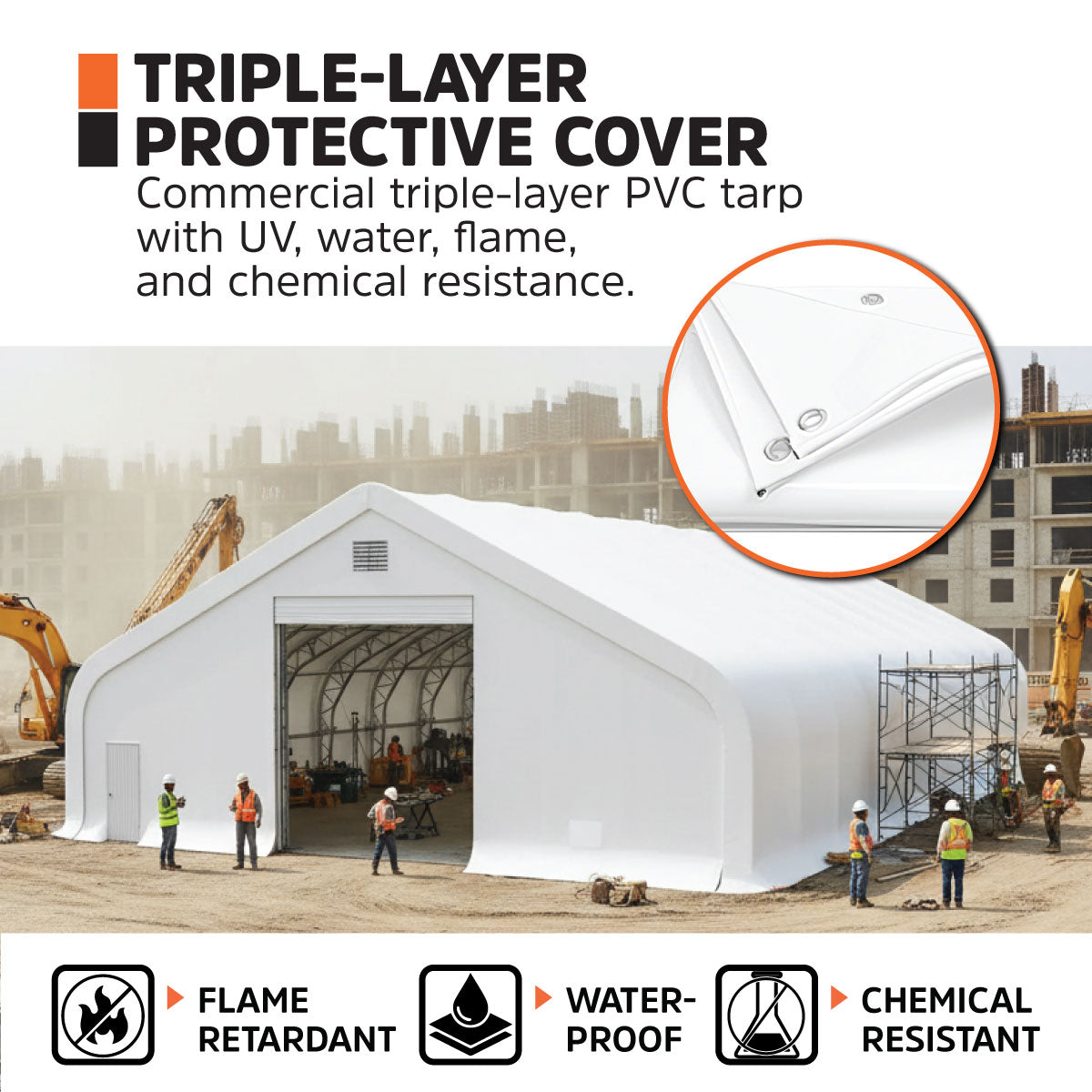

  • Durable Ripstop PVC Cover: Commercial grade, triple-layer ripstop PVC tarpaulin cover is UV protected, waterproof, naturally flame retardant, and chemical resistant.
  • Dual Roll-up Entry Doors: 15' wide and 15' tall mechanic roll-up doors on both endwalls enable easy access or parking of large size equipment and facilitate efficient workflow.
  • Dual Steel Man Doors: Included steel man door on each endwall for convenient, house-like entrance instead of constantly operating the large main roll-up doors.

Specifications

  • Foundation Size Required: 15320 mm (W) x 31460 mm (L)
  • Width: 50'4" (outer), 47'5" (inner)
  • Peak Ceiling Height: 23' (outer), 21' (inner)
  • Side-wall Height: 9'
  • Truss Tubes: 76 mm – 2.5 mm
  • Purlin Tubes: 58 mm – 1.7 mm
  • Truss Spacing: 6' (1.88 m)
  • Number of Truss Frames: 17
  • Cover Material: 32 oz Ripstop PVC fabric (white color)
  • Mechanic Roll-up Doors on Both Ends: 15' (W) x 15' (H)
  • Man Doors: 3' x 6'6" (W x H)
  • Air Vents: on both ends
  • Footplates with Pre-drilled Holes (anchor bolts not included)
  • Foundation Prep Required: Concrete slabs or equivalent
  • Snow Load Rating: 35 PSF (1.676 kPa)
  • Wind Load Rating: 100 km/h
  • Engineering Drawing: available upon request

Product Description

The TMG-DT50100-SR35 Snow Series PVC Fabric Peak Ceiling Storage Shelter offers an engineer-approved, durable outdoor workshop or storage solution for farms, construction sites, and equipment dealerships. With approximately 5,000 square feet of covered space, it is ideal for stockpiling materials or parking vehicles. The structure allows for versatile installation on any concrete pad or equivalent surface, making it effective for remote, rural, or industrial locations.

Built from heavy-duty commercial-grade polyvinyl chloride (PVC), the triple-layered fabric prevents tearing and ensures long-lasting protection. This natural flame-retardant material is frequently used in large commercial structures like event halls and sports stadiums. To maximize interior capacity, the first 9 feet of each side features a straight wall design that increases storage space along the edges. Double trusses with reduced 6’ spacing reinforce the Snow Series, providing exceptional structural stability.

The shelter features 15-foot wide mechanical roll-up doors on both endwalls, creating massive openings to facilitate efficient workflow. For added security, steel man doors offer a house-like entry superior to standard fabric cut-outs. The vibrant white PVC fabric reflects UV rays while allowing natural light to permeate the interior. This illuminating quality provides high visibility even on cloudy days, helping users reduce utility costs during daytime operations.

Reviewed by registered engineers, the TMG-DT50100-SR35 has a snow load rating of 35 PSF and a wind speed rating of 100 km/hour. Stamped drawings are available upon request.

TMG Industrial also offers the TMG-DT50100-SR25, a 25 PSF-rated version, along with length options of 55, 80, and 150 feet. Contact us if you require a different size or higher snow load rating. We can build a shelter customized to your specific requirements.

Shipping Information

The order will ship from one of our warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 8 to 12 weeks for the order to get to you, based on where you are located and how accessible the location is.

  • This product is packed in five metal crate shipping boxes
  • Box A shipping dimension: 115" x 45" x 49"
  • Box B shipping dimension: 115" x 45" x 49"
  • Box C shipping dimension: 115" x 45" x 49"
  • Box D shipping dimension: 115" x 45" x 49"
  • Box E shipping dimension: 115" x 45" x 49"
  • Shipping weight: 13,950 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
