TMG Industrial 34 Ton ATV/UTV Tow-Behind Log Splitter, 7 HP Kohler Gasoline Engine, 28” Log Diameter Capacity, 3-Sec Cycle Time, TMG-GLS34

Original price $3,499.00 - Original price $3,499.00
Original price $3,499.00
$3,499.00 - $3,499.00
Current price $3,499.00
In-Store Pickup Price
$3,324.05 SAVE $174.95
Available at Richmond/Mississauga
Call 1-877-761-2819

530.0 lb
68 x 34 x 19 inches
More Shipping Info

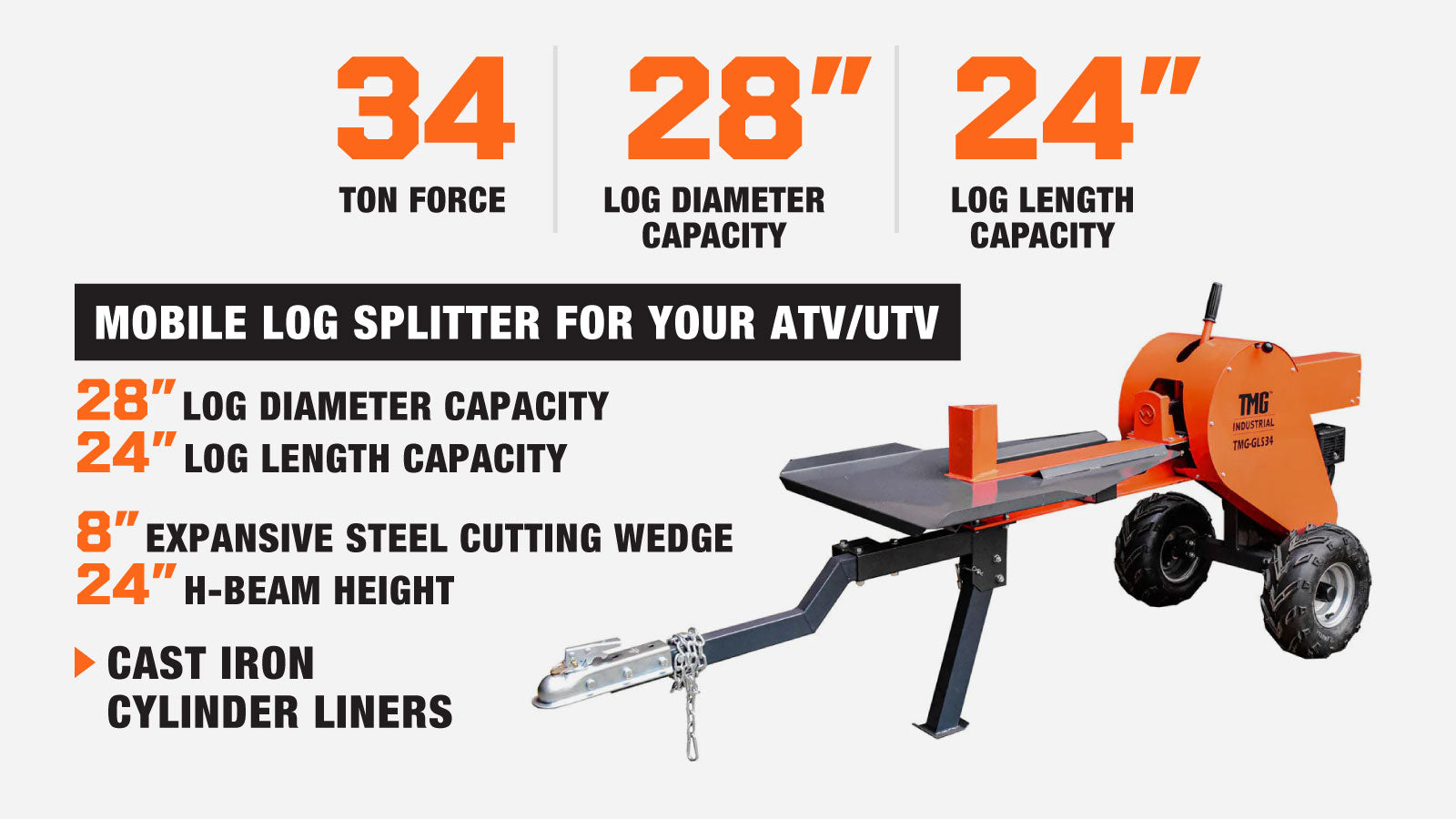

  • Mobile log splitter for your ATV/UTV
  • 28” log diameter capacity & 24” log length capacity
  • Powered by a reliable 7 HP Kohler Command Pro Series gasoline engine
  • Capable of producing up to 34 tons of splitting force

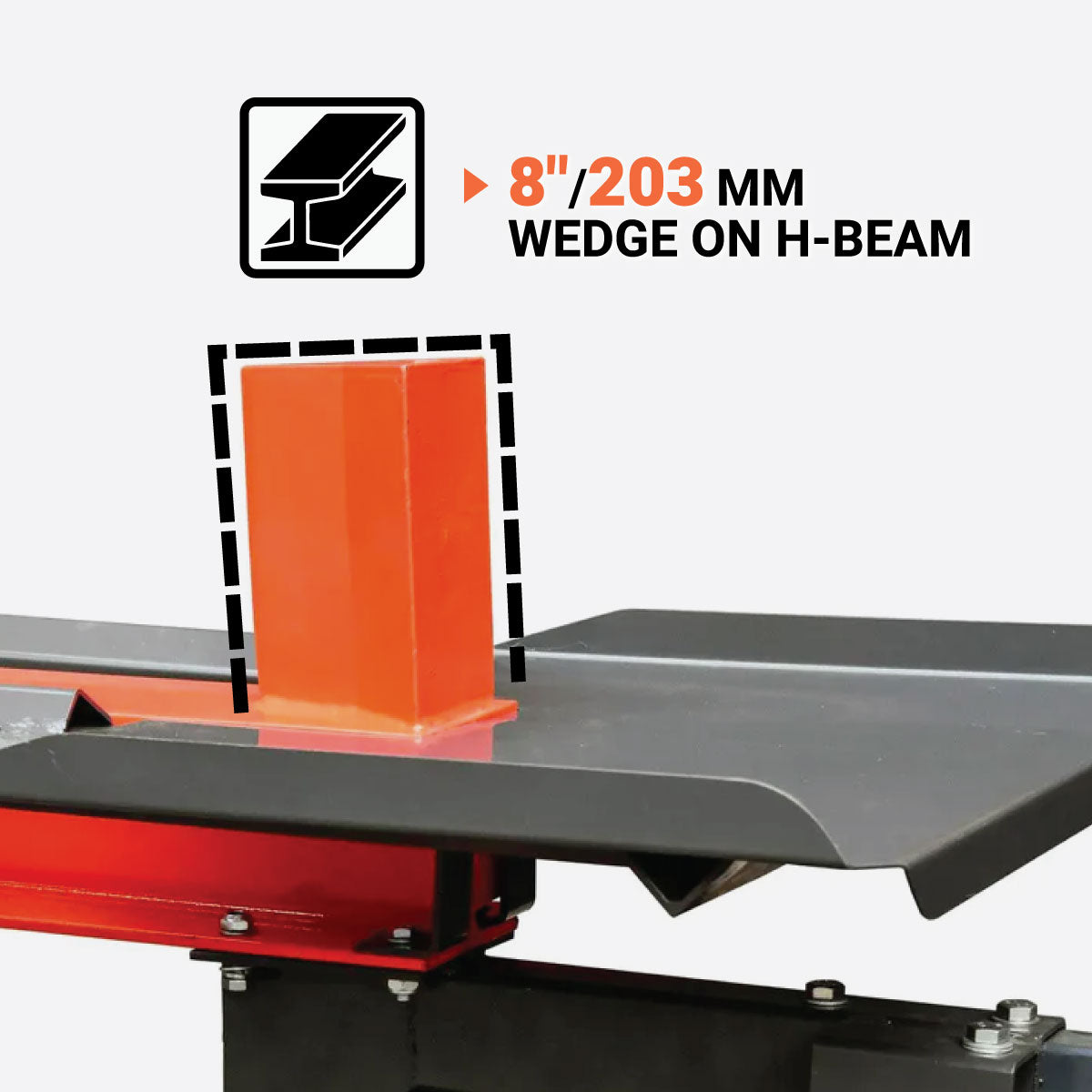

  • 8” expansive steel cutting wedge & 28” H-beam height
Product Manual

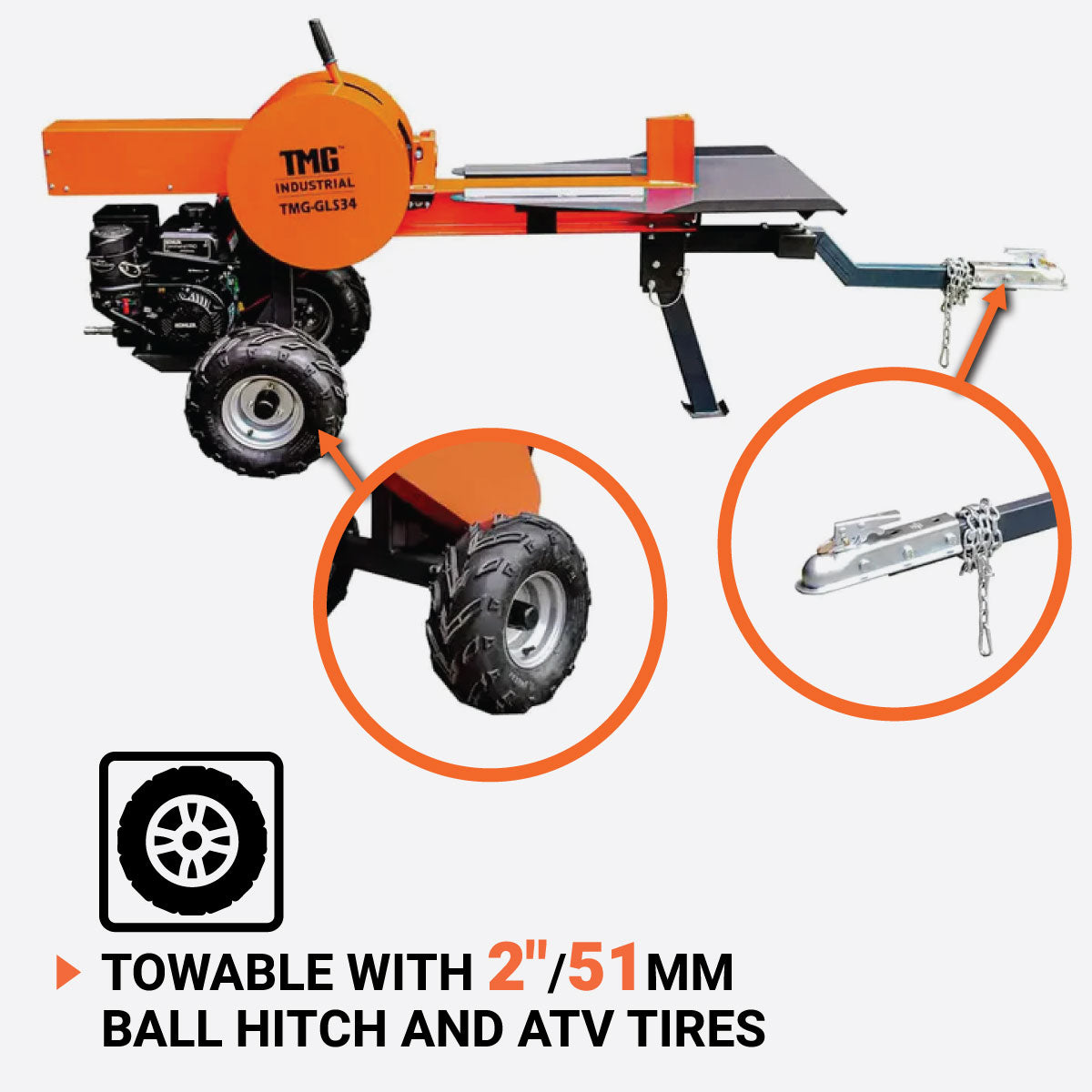

  • Dynamic and mobile log splitting capabilities for your ATV or UTV; easy hookup to the 2” ball receiver and supported by two all-terrain rubber tires

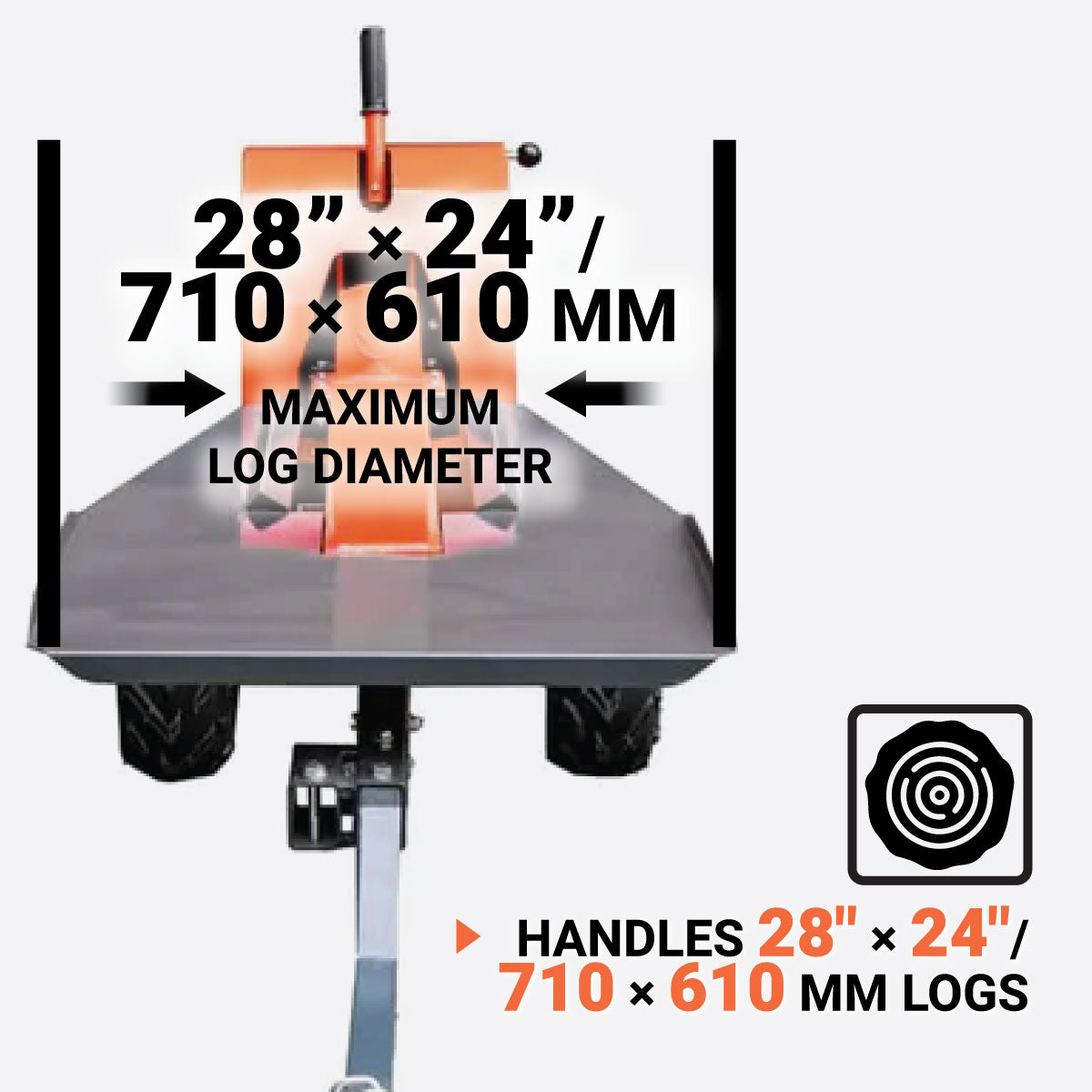

  • This splitter can handle logs up to 28” in diameter and 24” in length to produce conveniently sized firewood for you and your family

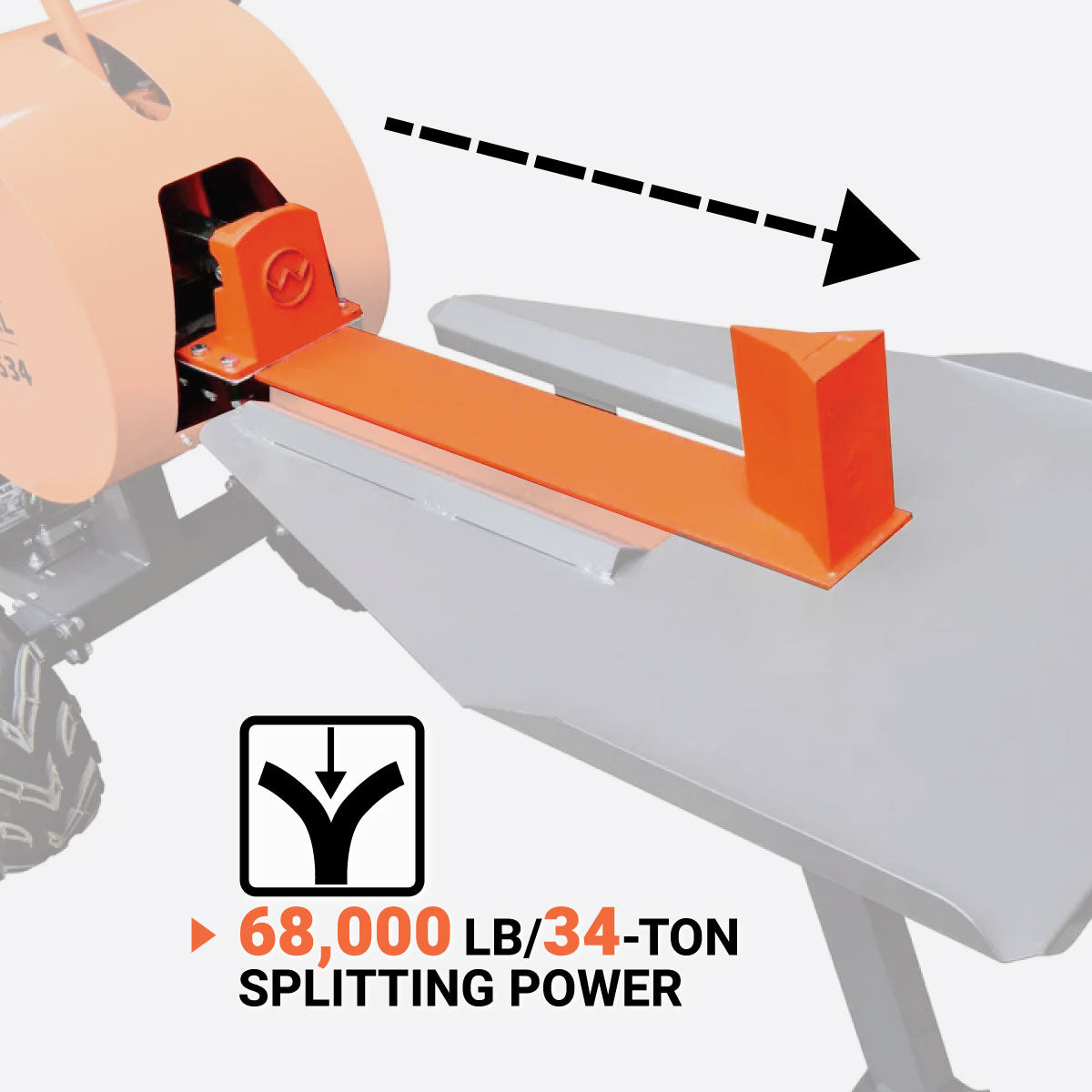

  • 8” expansive steel cutting wedge splits logs with ease under the 34 tons of force produced by a 7 HP Kohler Command Pro Series gasoline engine
  • H-beam and heavy-duty steel worktable sit 28” off the ground, minimizing the distance you have to bend over to add logs or remove splitted wood
  • Cast iron cylinder liners provide long lasting durability; this splitter makes hardly any mess and requires very little overall maintenance

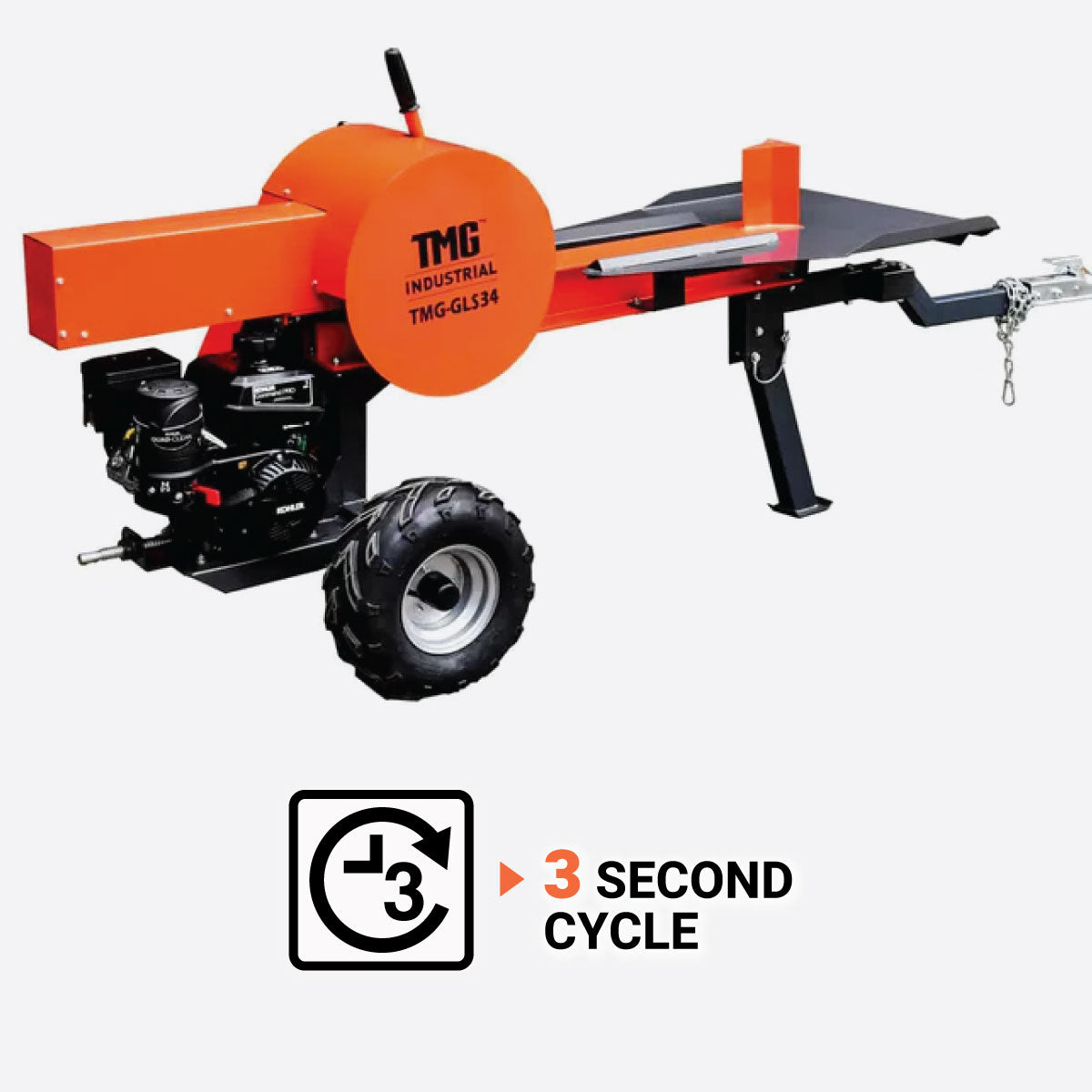

  • 3 second cycle time keeps the workflow moving smoothly so you can process large amounts of logs in no time at all
  • Kohler engine features an Oil Sentry™ that automatically shuts the engine down in low-oil conditions to maximize engine life


  • Force: 34 ton (68,000 lb)
  • Wedge height: 8”
  • Log diameter capacity: 28”
  • Log length capacity: 24”
  • Tire:16 x 8.0-7
  • Cycle time: 3 seconds
  • H-beam height: 28”
  • Overall size: 83” x 33” x 38” (L x W x H)
  • 2” ball receiver

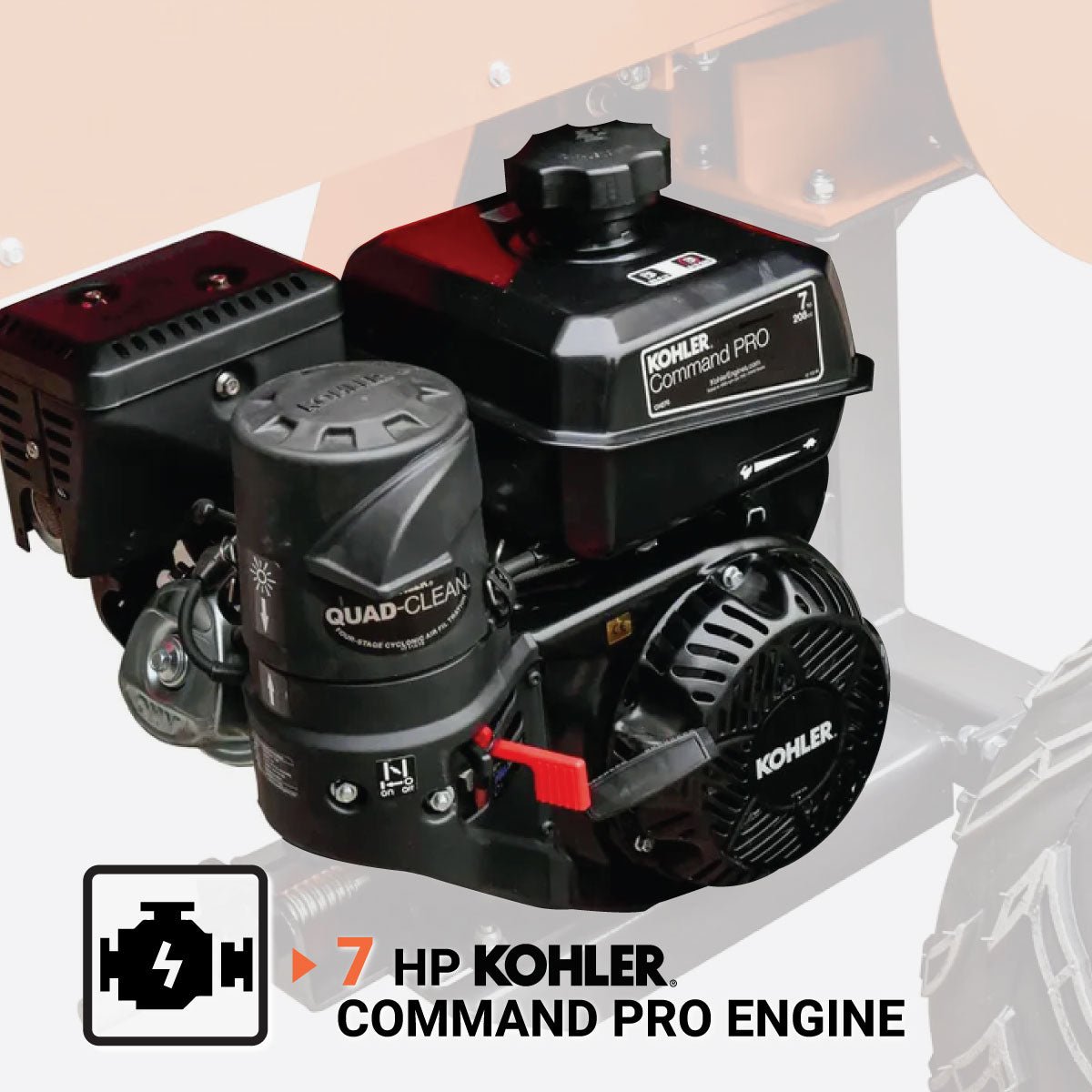

  • Model: Kohler® CH270
  • Type: Four-cycle, tri-fuel conversion, OHV, aluminum head and crankcase
  • Power: 7 HP
  • Displacement: 208 cc
  • Start type: Recoil
  • Oil capacity: 0.6 L
  • Cast iron cylinder liners provide lasting durability
  • Oil Sentry™ automatically shuts the engine down in low-oil condition

Shipping Information

The order will ship FREE from our main warehouse in Richmond, British Columbia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 68” x 34” x 19” (L x W x H)
  • Shipping weight: 530 lb
Shipping from Richmond BC or Mississauga ON
In-store pickup is available
What happens after you place your order?

Product Description

The TMG-GLS34 ATV/UTV Tow-Behind Log Splitter delivers dynamic and mobile log splitting power around your home, acreage, farm or commercial property. Powered by a reliable 7 HP Command Pro Series Kohler gasoline engine that ruptures lumber with up to 34 tons of devastating force with just the push of a lever. You’ll save time and exhausting labour with this handy add-on to your four wheeler.

This splitter can handle logs up to 28” in diameter and 24” in length. The H-beam and steel worktable sit 28” off the ground so you barely have to bend over to add logs or remove splitted wood, making what used to be hard work into a simple and efficient task. Equipped with 8” cutting wedge for easy splitting, and also has cast iron cylinder liners to provide long lasting durability.

Easy hookup to your ATV or UTV with a 2” ball receiver attached to the heavy-duty steel frame that is ready for any rugged or rural environment. You can get as remote as you want thanks to the gasoline engine that doesn’t depend on having electricity nearby, and two off-road all-terrain tires will get you where you need to go.


We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
