SKU TMG-RSV70G

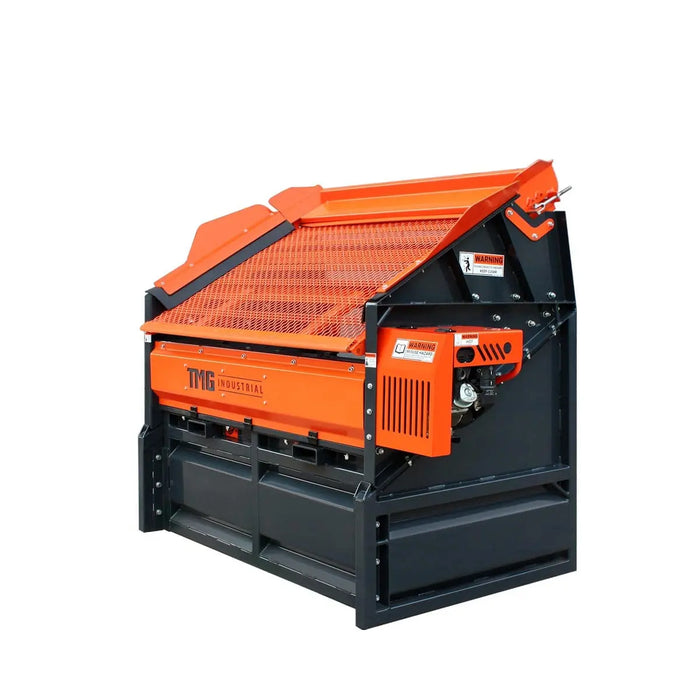

TMG Industrial 70" Tamis vibrant pour terre végétale, moteur Kohler de 5,5 HP, ressorts à lames en porte-à-faux, plate-forme de criblage à 30°, TMG-RSV70G

Original price $9,499.00 CAD - Original price $9,499.00 CAD
Original price
$9,499.00 CAD
$9,499.00 CAD - $9,499.00 CAD
Current price $9,499.00 CAD
CURRENTLY IN STOCK
LIVRAISON GRATUITE AU CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS

Other financial option:

1850.0 lb
88 x 67 x 33 inches
More Shipping Info
  • Used in industries like open-pit mining, demolition, landscaping & more
  • Powered by a reliable 5.5 HP Kohler gasoline engine
  • 30° slope adjusts to 25° to absorb impacts before returning to original angle
  • No AC power required; can use in any remote working conditions
  • Two lift pockets that fit standard pallet forks for easy loading/unloading
Product Manual

Features

  • Compatible for use with compact tractors, small to medium excavators and skid steers to accommodate most commercial inventories
  • Ideal for jobsite and remote screening of sand, topsoil, compost, gravel, rock, crushed concrete, fine materials and more
  • Industrial strength structural frame with a 750 lb capacity will accommodate tough working conditions and significant impacts
  • No power supply required: Operated with a reliable 5.5 HP Kohler gasoline engine that can get the job done even in remote areas

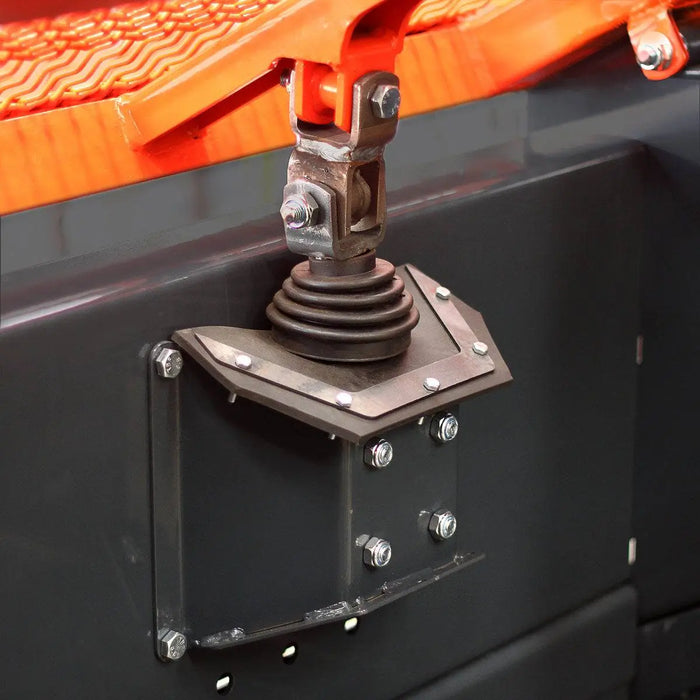

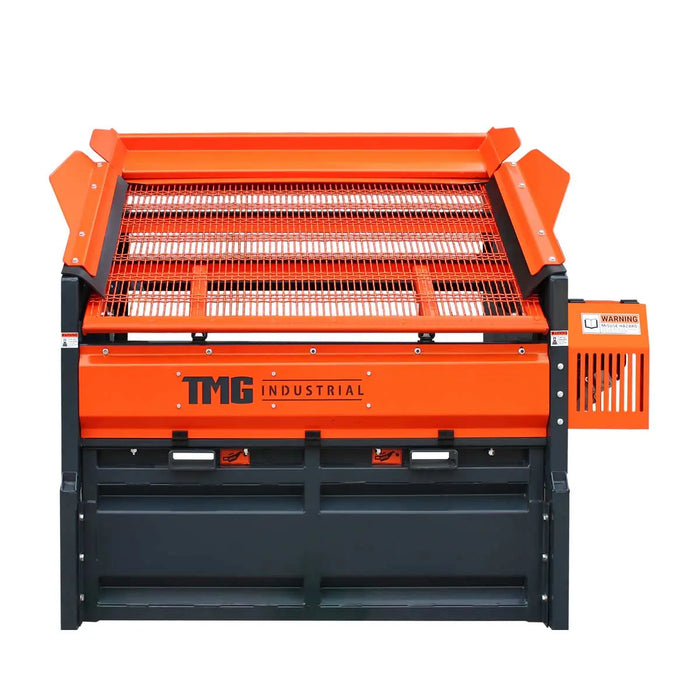

  • Heavy gauge, 30° sloped screen mesh and cantilever leaf-spring vibration system offers optimal screening movement

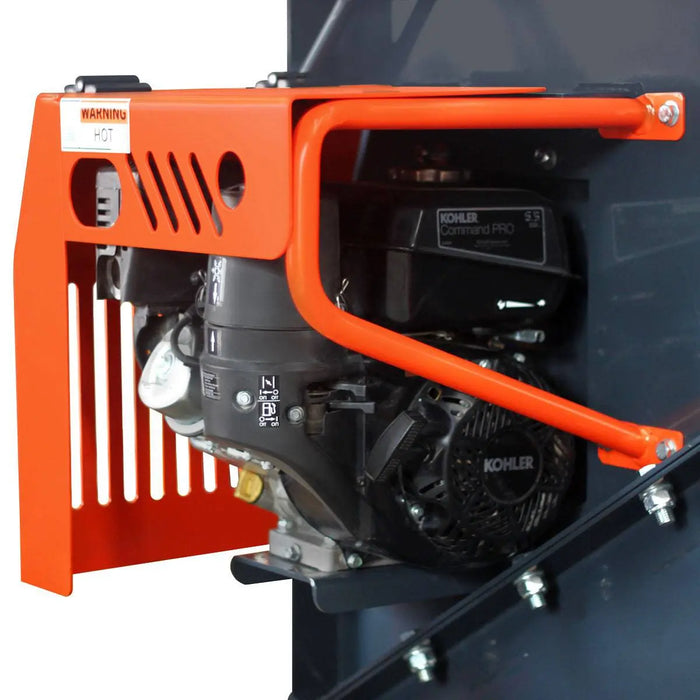

  • Fully enclosed protective engine compartment and a baked-on powder coated finish will keep this screener free of rust and corrosion

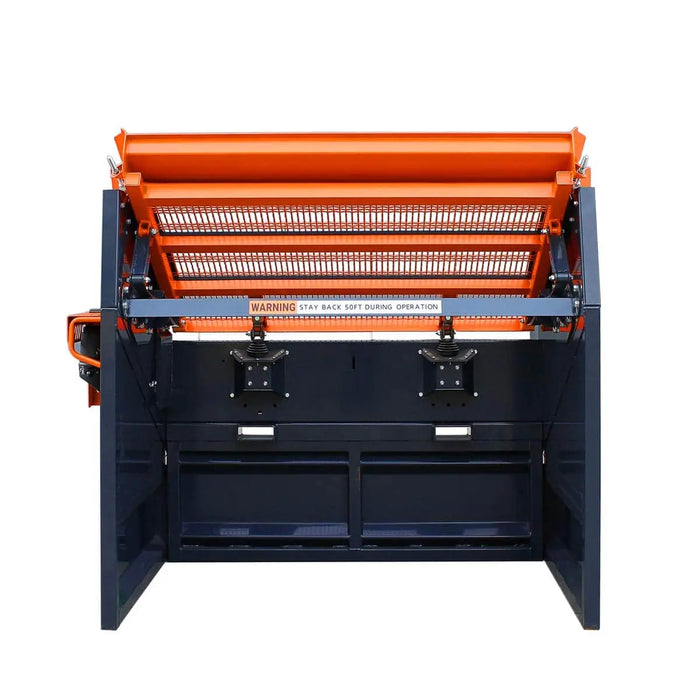

  • Approximately 70” screen deck with added side swings to feed and contain materials efficiently while processing
TMG Industrial 70

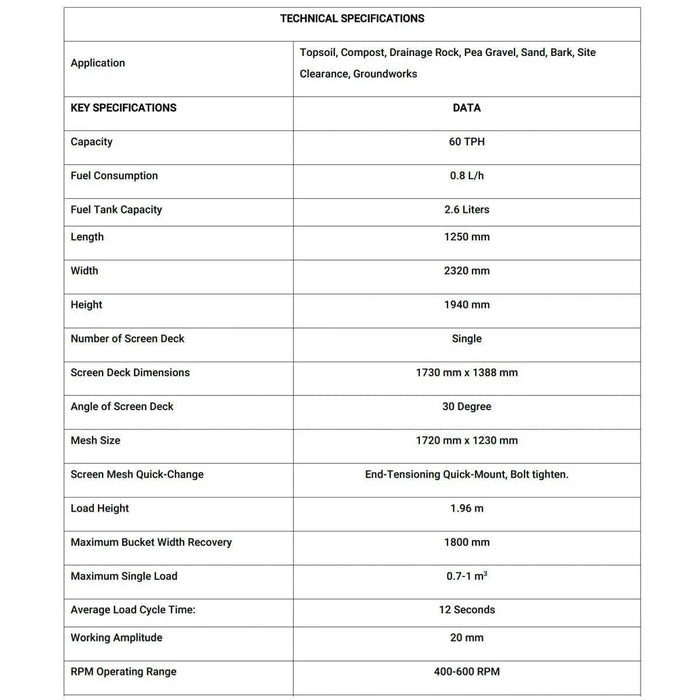

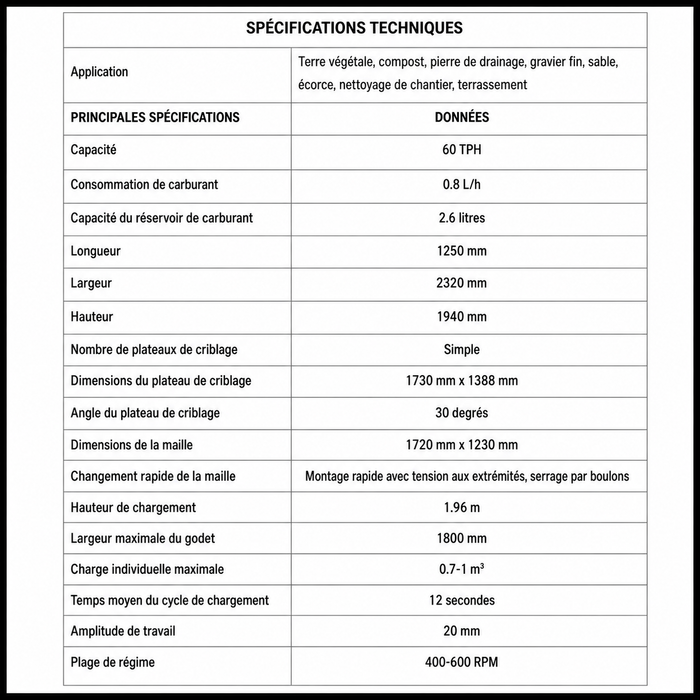

Specifications

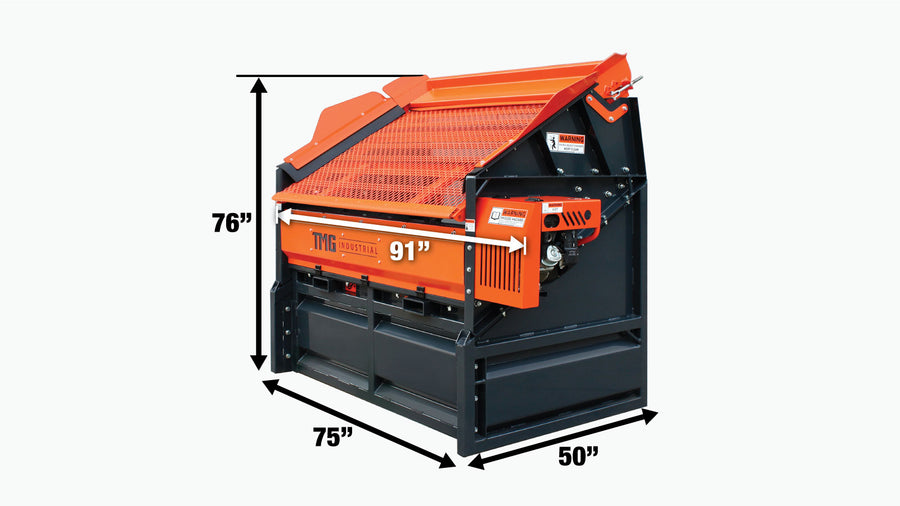

  • Overall dimension: 91” (L) x 50” (W) x 76” (H)
  • Screen mesh size: 68” (L) x 48” (W)
  • Screen slope: 30°

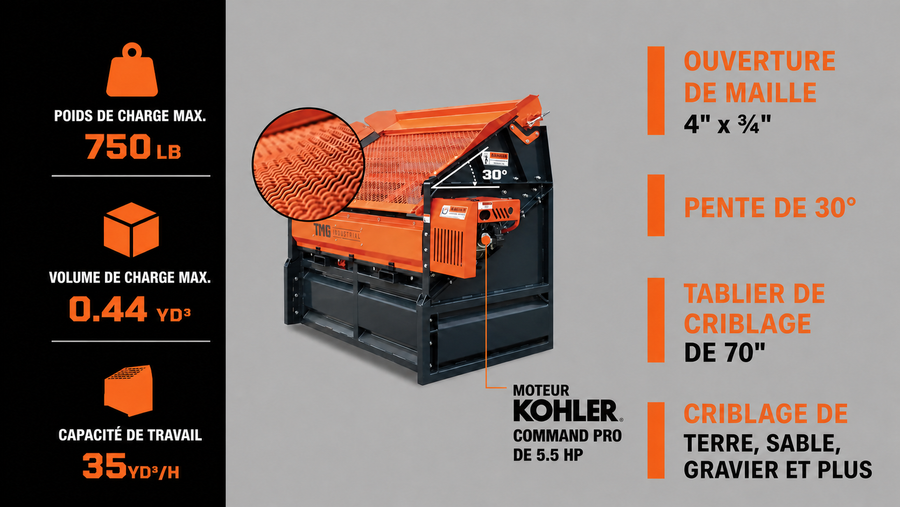

  • Mesh opening: 4” x ¾”
  • Operation capacity on deck:
    • Max load weight: 750 lb
    • Max load volume: 0.44 yd³ (one bucket)
    • Load tipping flow recommended: 45 sec. (one bucket)
  • Hopper feed height: 78”
  • Inside access height: 57”
  • Inside access width: 60”
  • Workload capacity: 35 yd³/h
  • Product weight: 1760 lb
  • Two lift pockets for standard pallet forks
  • Assembly level: sectional component assembly required

Engine:

  • Model: Kohler CH255 Command Pro Series
  • Power: 5.5 HP
  • Displacement: 177 cc
  • Gross Torque: 11-¼ ft-lb
  • Oil capacity: 0.63 US qt
  • Shaft output: 3600 RPM
  • Start type: Recoil
  • Cast iron cylinder liners
  • Oil Sentry automatic shutdown
  • Emissions Compliance: EPA Phase III
TMG Industrial 70

Shipping Information

The order will ship FREE from our main warehouse in Richmond, British Columbia. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a wood crate shipping box

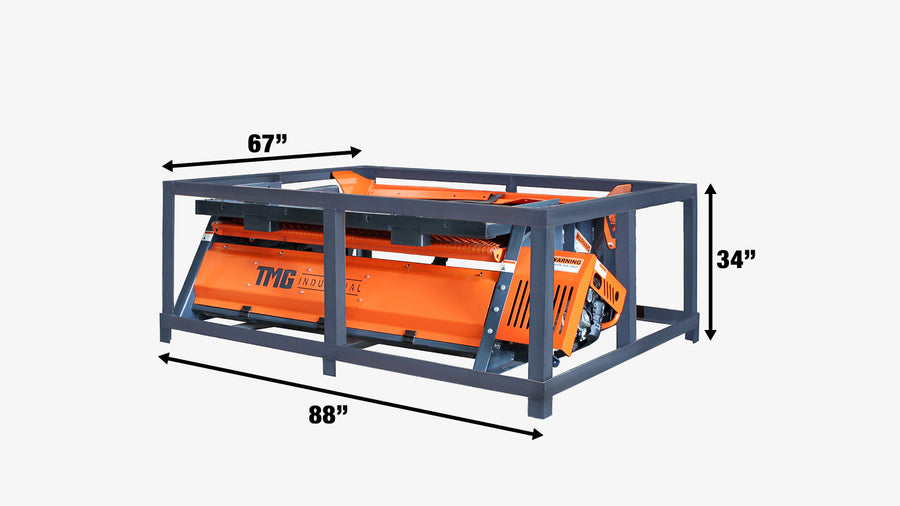

  • Shipping dimension: 88” x 67” x 33” (L x W x H)
  • Shipping weight: 1850 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Richmond BC, Mississauga ON or Montreal QC
In-store pickup is available
What happens after you place your order?
TMG Industrial 70

Product Description

Le crible vibrant TMG-RSV70G rend le criblage de charges volumineuses et mixtes simple et efficace. Triez facilement les matériaux en ayant toujours cet écran disponible sur votre chantier ou sur votre chantier. Largement utilisé dans un certain nombre d'industries, notamment l'exploitation minière à ciel ouvert, le recyclage, le concassage, les agrégats, l'aménagement de sites, la démolition et l'aménagement paysager. Ce crible est construit pour durer, fait pour durer et supportera tout ce que vous pouvez lui lancer.

Équipé d'un moteur à essence Kohler fiable de 5,5 HP, ce qui signifie que vous pouvez faire fonctionner ce crible même sur les chantiers les plus éloignés. Deux poches de levage adaptées aux fourches de chariot élévateur standard vous permettent de charger facilement ce crible sur et hors d'une remorque. Couramment utilisé pour trier les matériaux surdimensionnés avant de cribler ou de broyer ou de séparer les matériaux d'aménagement paysager rentables des débris et des déchets.

Ce crible est compatible avec les tracteurs compacts, les petites et moyennes excavatrices et les chargeuses compactes. 70" de platelage de crible vous permet de traiter de grandes quantités en une seule fois, et la pente a une capacité d'inclinaison flexible de 30° à 25° lorsqu'elle doit absorber un impact de poids important. La conception de construction de résistance industrielle a une capacité de travail de 750 lb pour vos travaux les plus dynamiques et polyvalents.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
