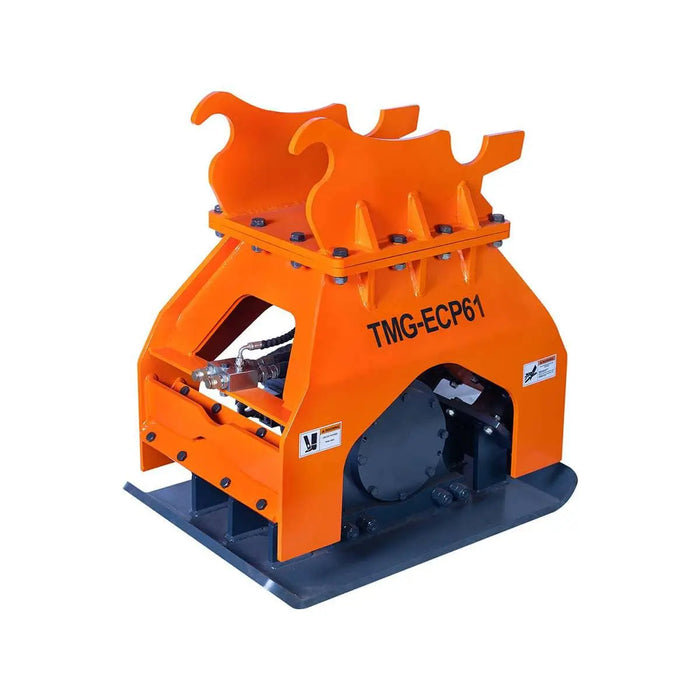

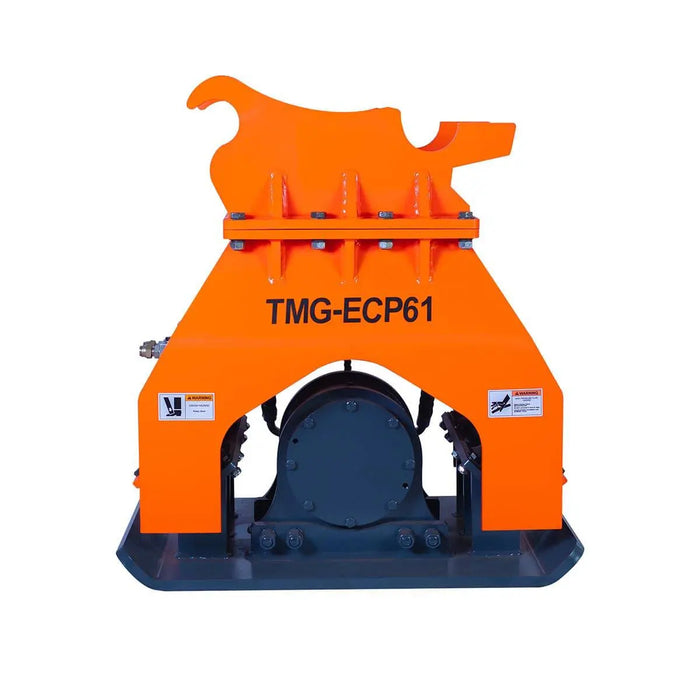

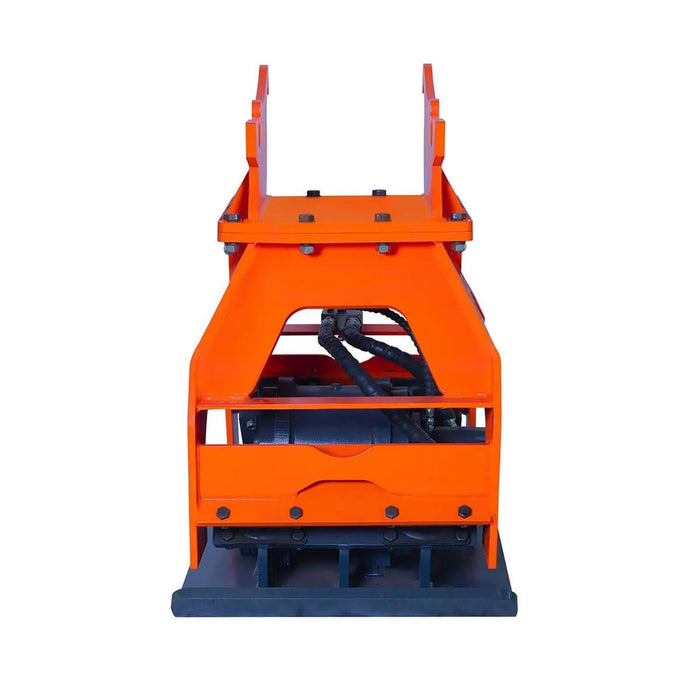

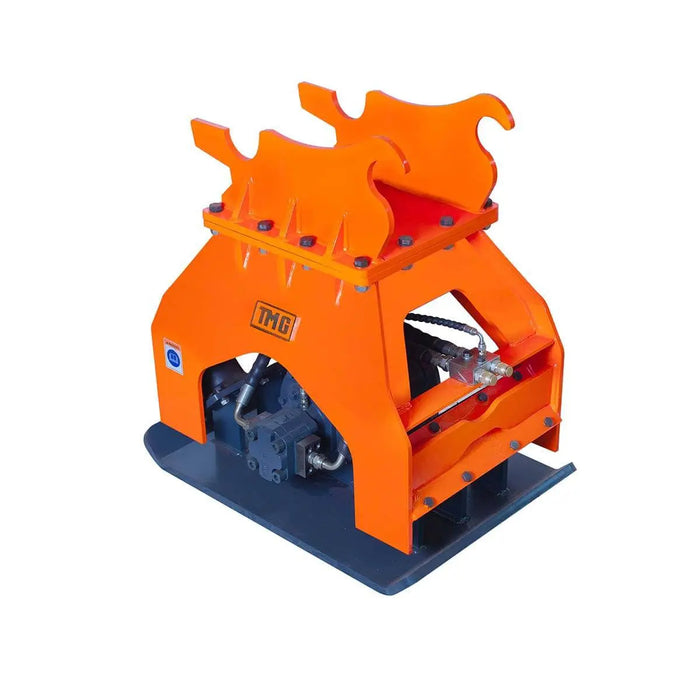

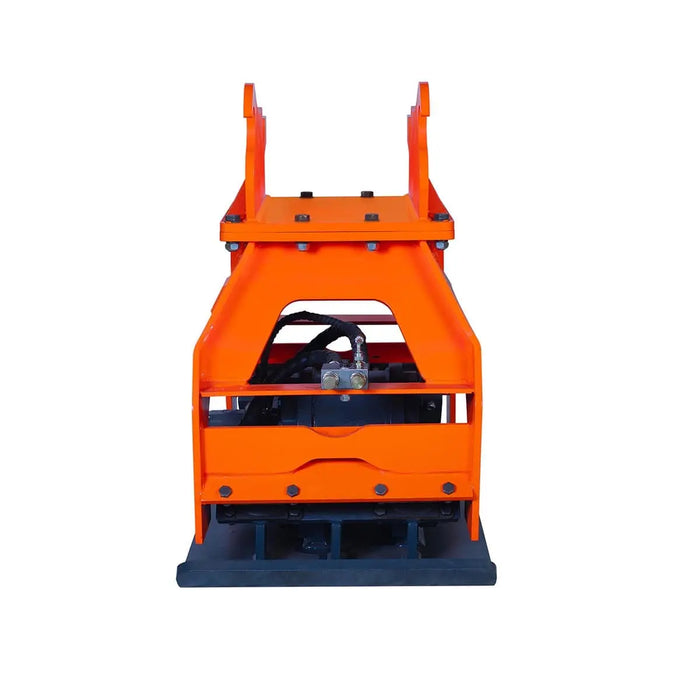

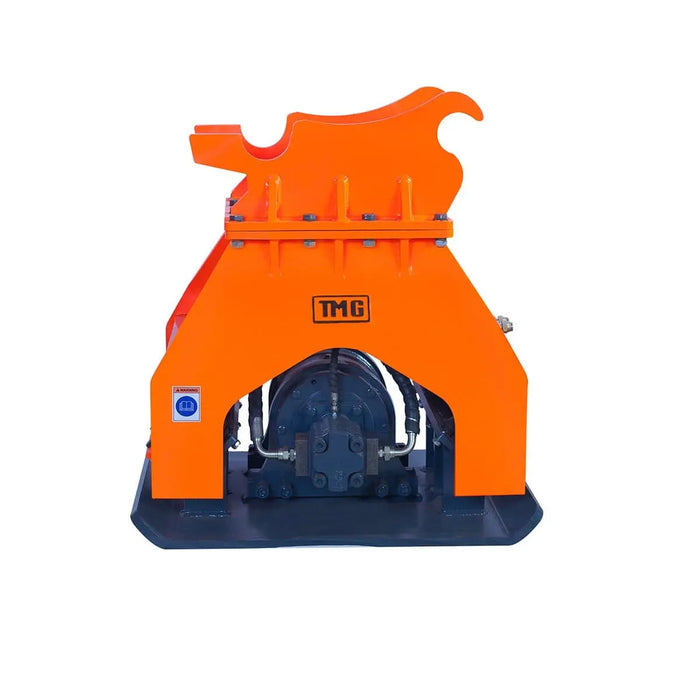

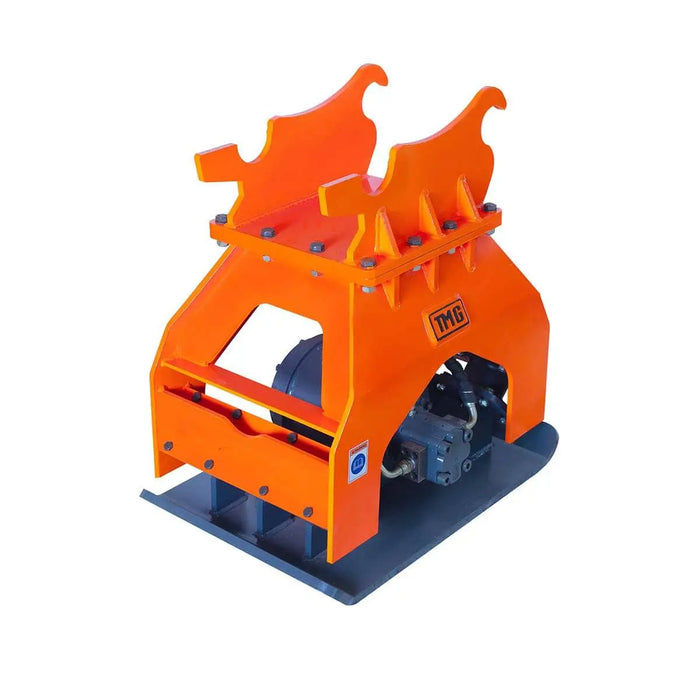

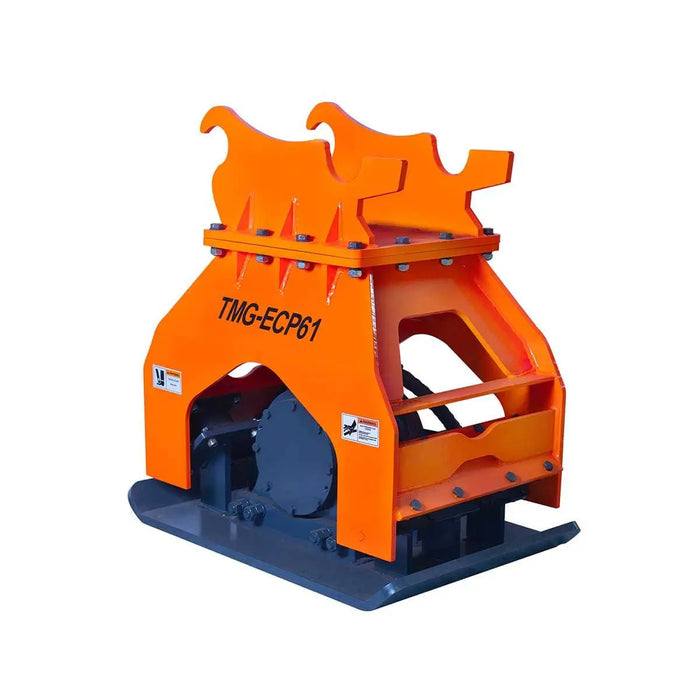

TMG Industrial 22,000-lb Hydraulic Plate Compactor, 10-16 Ton Excavator Weight, 48” Compact Capacity, TMG-ECP61
SKU TMG-ECP61

TMG Industrial 22,000-lb Hydraulic Plate Compactor, 10-16 Ton Excavator Weight, 48” Compact Capacity, TMG-ECP61

$7,999.00 CAD
$7,999.00 CAD - $7,999.00 CAD
$7,999.00 CAD
$6,999.00 CAD
$6,999.00 CAD - $6,999.00 CAD
$6,999.00 CAD
Save $1,000.00 CAD Save $1,000.00 CAD CURRENTLY IN STOCK
FREE SHIPPING IN CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS
In-Store Pickup Price
$6,649.05 CAD SAVE $349.95 CAD
Call to check availability
Call 1-877-761-2819
VIEW IN-STORE PICKUP POLICY

1680.0 lb
45 x 32 x 48 inches
More Shipping Info
1-877-761-2819
find parts
  • Compatible with 10 to 16-ton carriers
  • Easy to use quick change design for constant workflow between jobs
  • 22,000 lbs of impulsive force for a compaction depth of 37”-48”
  • Overload shutoff valve to keep motor within its working range
  • Fully sealed motor and bearings are protected from harsh working environments
More Information
Product Manual
Features Specs Shipping Info Description Warranty Reviews

Features

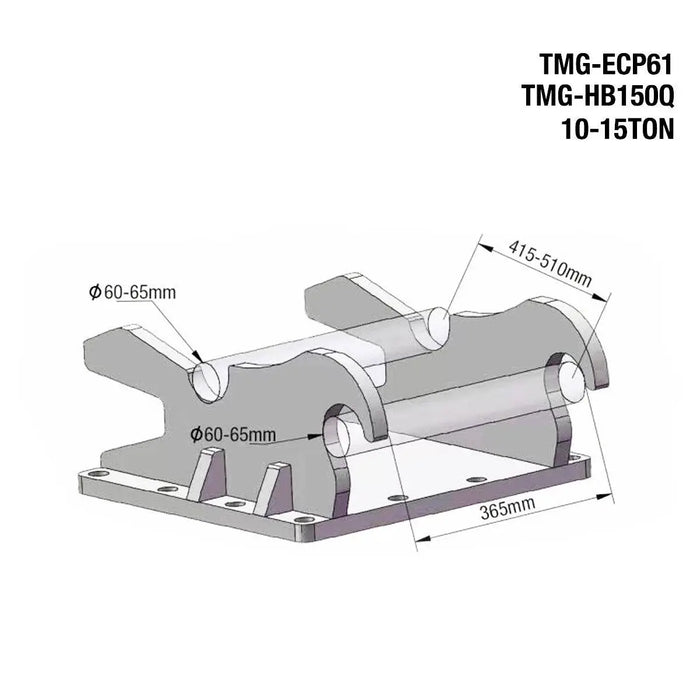

  • Compatible with 10-to-16-ton carriers and equipped with an easy to use quick change design system that maintains workflow between job types
  • Motor is housed in a heavy gauge steel, semi-open box frame that provides easy maintenance access and overall motor protection
  • Eccentric weight vibration engineered for optimal soil compaction that translates to an 85% compaction density at 30” depth
  • Industrial grade rubber cushion isolates vibrations from being extended to the boom, motor and bearings of your carrier

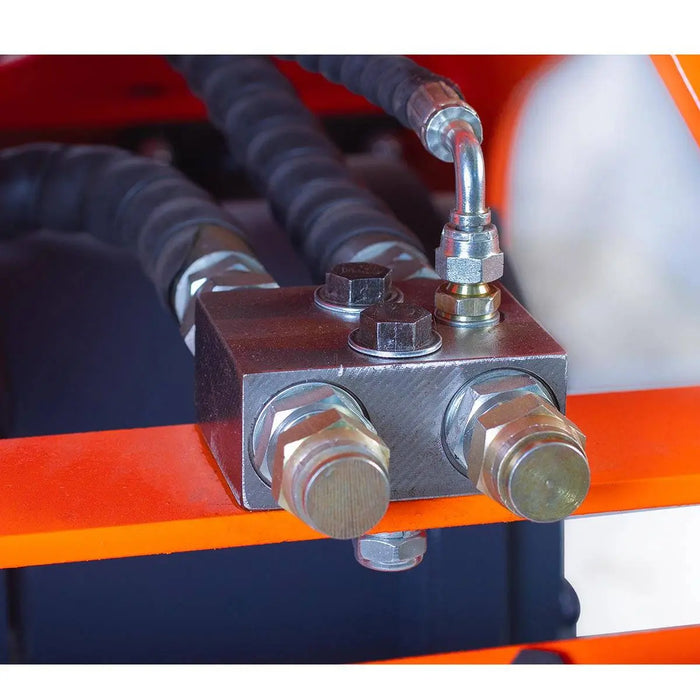

  • Overload valve shutoff enables the motor to operate within its range capacity and maximize its working ability over time

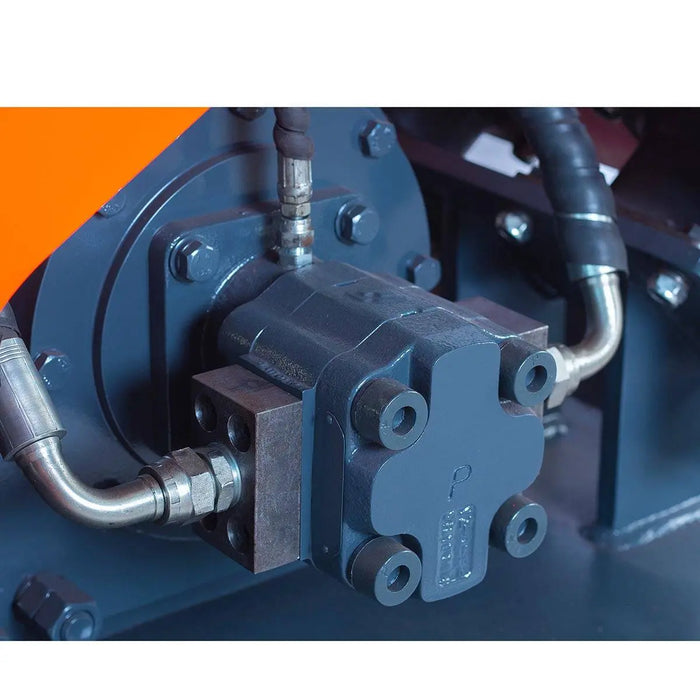

  • Fully sealed motor and bearings keep moisture, dust, dirt, rocks and other debris out when using in harsh working environments
  • 22,000 lbs of impulsive force created through almost 2200 PSI and 28 GPM hydraulic flow offer a potential compaction depth of 37”-48”

Specifications

  • Compaction force: 22,000 lb
  • Compaction depth: 37"-48"
  • Exciter frequency: 2000 RPM
  • Hydraulic flow: 23-28 GPM
  • Working pressure: 1450-2175 PSI
  • Bottom plate: 39” x 28”
  • Carrier weight: 22,000 -32,000 lb, 10-16 ton
  • Soil compaction effective depth: 37”–48”
  • Compaction density: 85% at 30”
  • (2) ¾" NPT thread high-pressure hydraulic hoses include

Shipping Information

The order will ship FREE from our warehouse in Richmond BC or Mississauga ON. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 45” x 32” x 48” (L x W x H)
  • Shipping weight: 1680 lb
Shipping from Richmond BC, Mississauga ON or Montreal QC
In-store pickup is available
What happens after you place your order?
TMG Industrial 22,000-lb Hydraulic Plate Compactor, 10-16 Ton Excavator Weight, 48” Compact Capacity, TMG-ECP61-shipping-info-image

Product Description

The TMG-ECP61 is a powerhouse capable of compacting soils, gravels and sands for projects needing stable, solid grounds to work and build on. Any sort of bituminous or granular materials are simply no match for the 22,000 lbs of impulse force and effective compaction depth up to 48”. The ideal solution for construction sites, roads, foundations and any other tight footing and road preparatory needs.

Compatible with 10-to-16-ton carriers and fitted with an easy-to-use quick change lugging design that keeps workflow running smoothly and efficiently. Motor is housed in a heavy-duty steel frame that is semi-open to allow for easy maintenance while still providing superior protection of its vital components. Included high pressure hydraulic hoses offer a simple hookup and disconnect as well as efficient energy transfer from your excavator to the compactor.

Eccentric weight vibration has been engineered for optimal soil compaction that translates to an 85% compaction density at 30” depth. Industrial grade rubber cushion isolates reverberations from reaching the boom, motor and bearings of the carrier ensuring minimal wear and tear and maximum force into the ground. An overload valve shutoff keeps the motor within its working range to prevent damage and extend the compactors lifespan.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
