TMG-ECP41

11,000-lb Hydraulic Plate Compactor for 4-7 Ton Mini Excavators – 39" Compaction Capacity TMG-ECP41

TMG Industrial 11,000-lbf Hydraulic Plate Compactor, 4-7 Ton Excavator Weight, 39” Compact Capacity, TMG-ECP41
CURRENTLY IN STOCK
SKU TMG-ECP41
$0.00 CAD - $0.00 CAD
$0.00 CAD
$4,499.00 CAD
$4,499.00 CAD - $4,499.00 CAD
$4,499.00 CAD
$4,499.00 CAD

FREE

shipping to most locations in

Canada
Delivered in 10 to 15 business days Learn More
1-877-761-2819
Product Image 1 Product Image 2 Product Image 3
Product Manual
Find Parts

Features

Feature Image

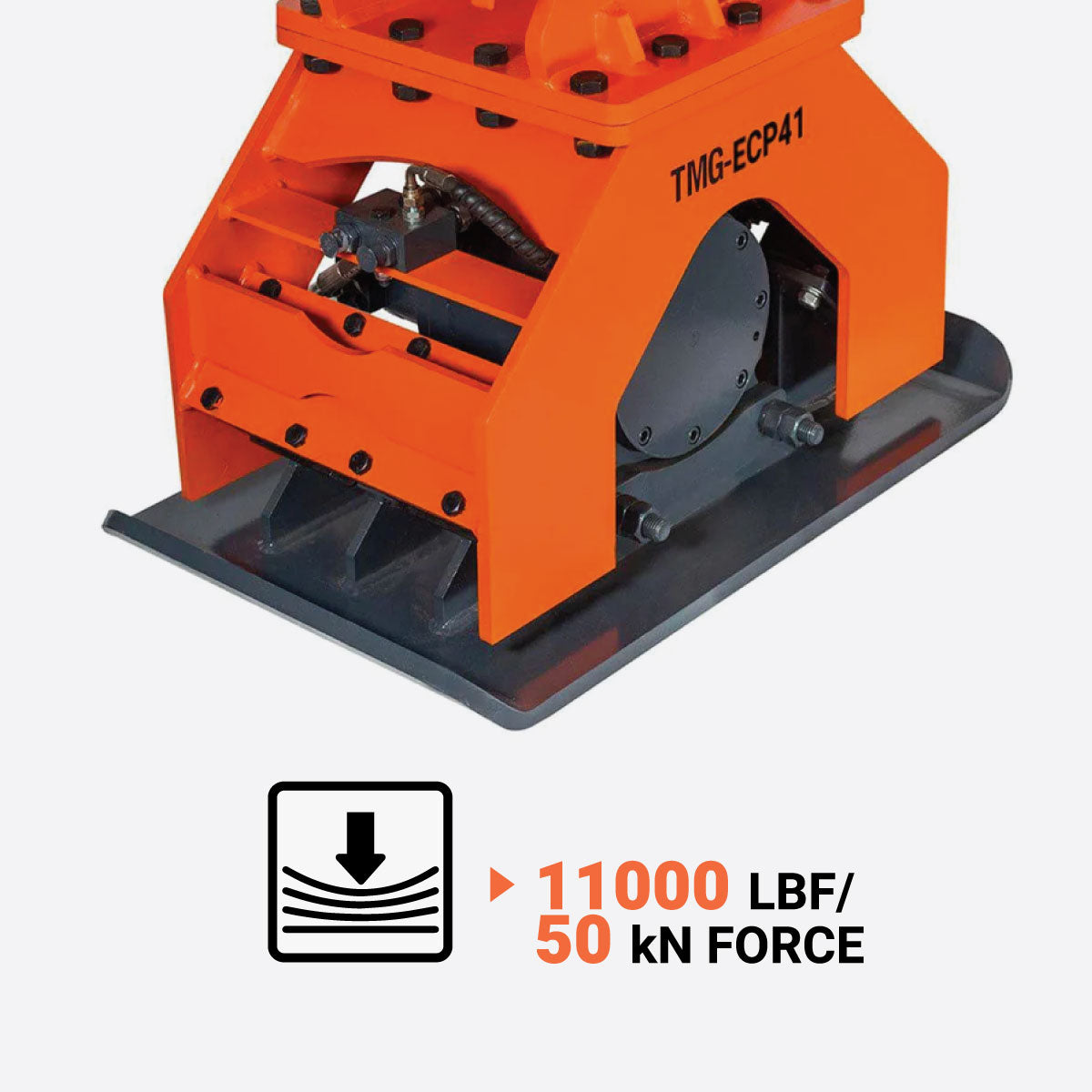

Delivers 11,000 lbf (50 kN) of impulse force for effective soil compaction
Feature Image

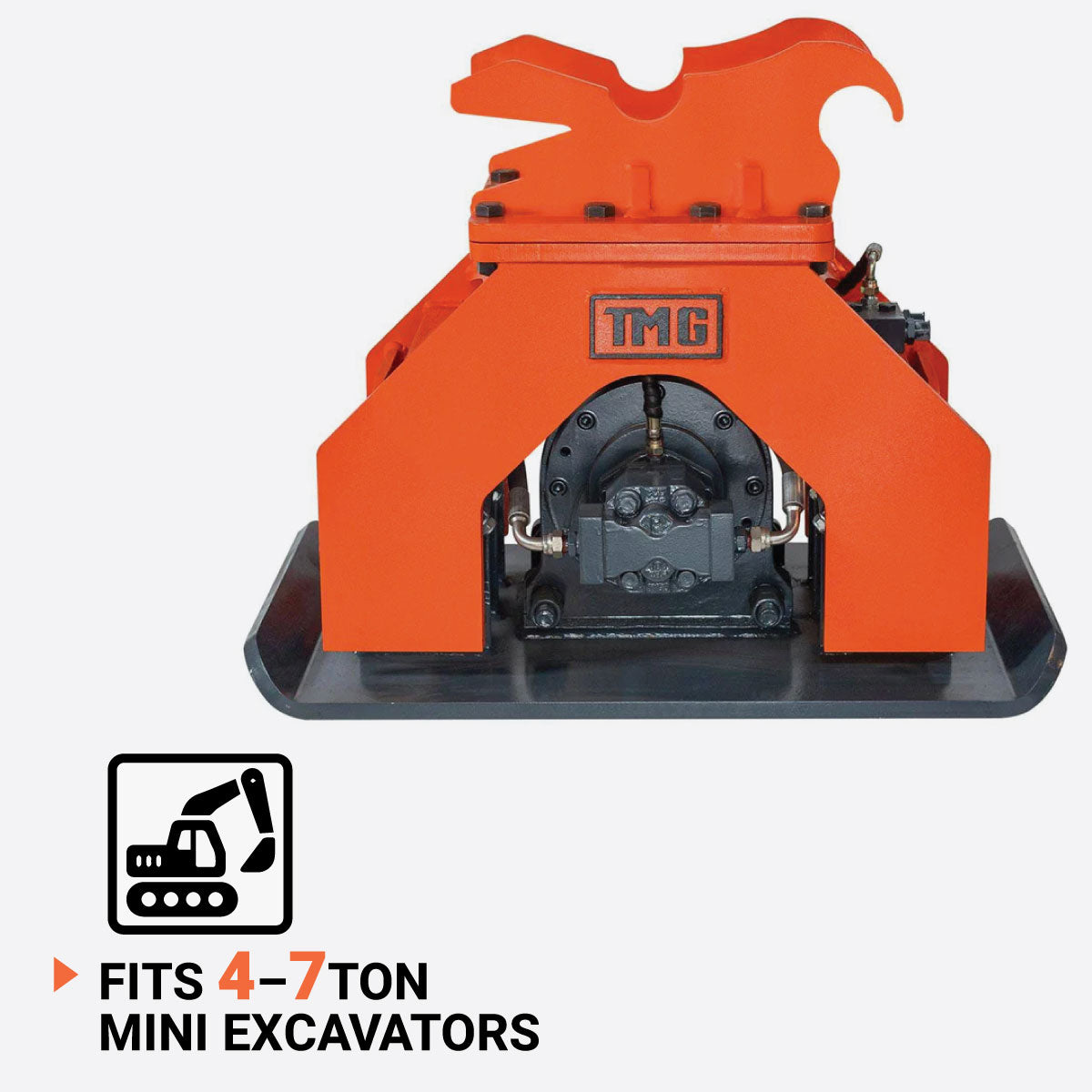

Designed for 4–7 ton excavators
Feature Image

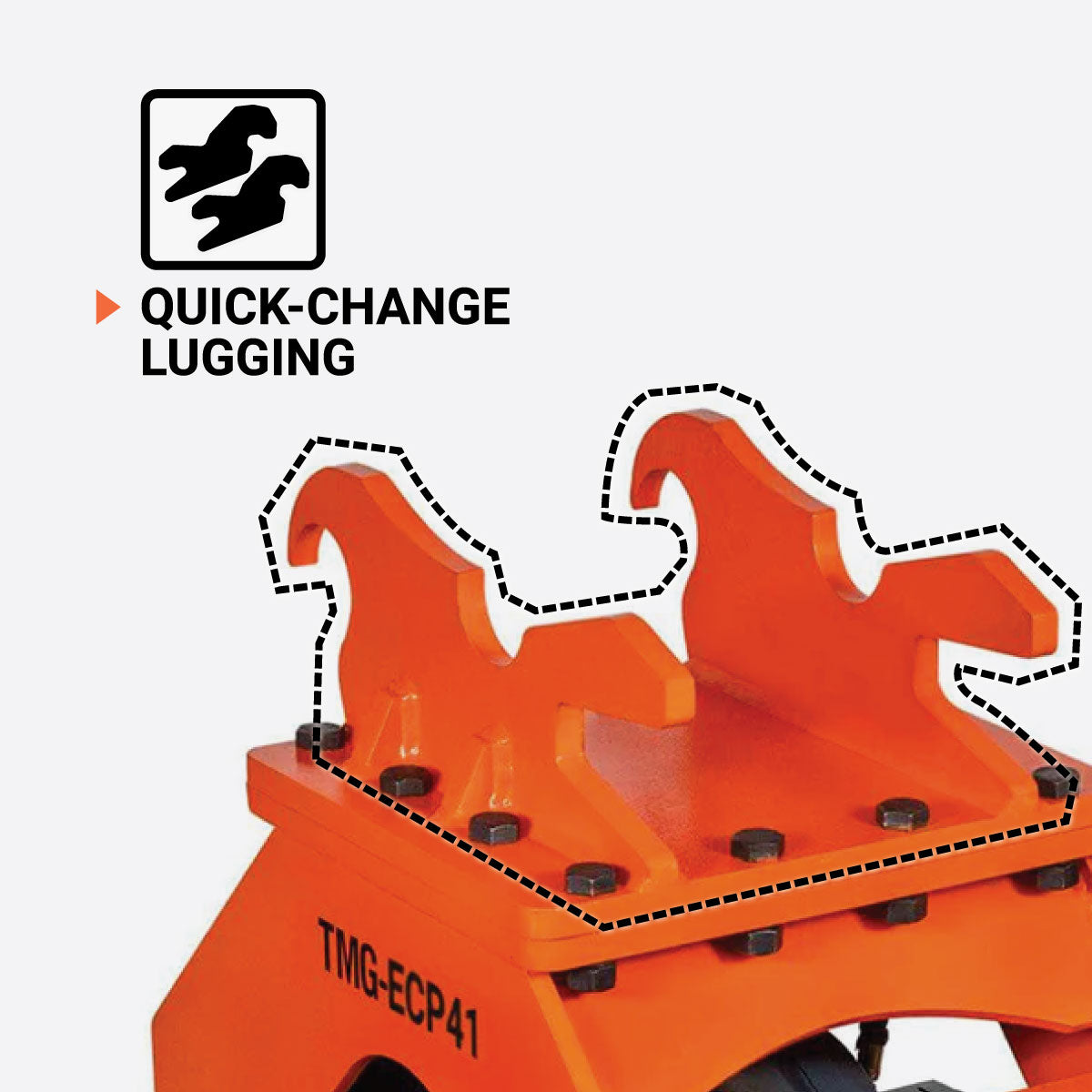

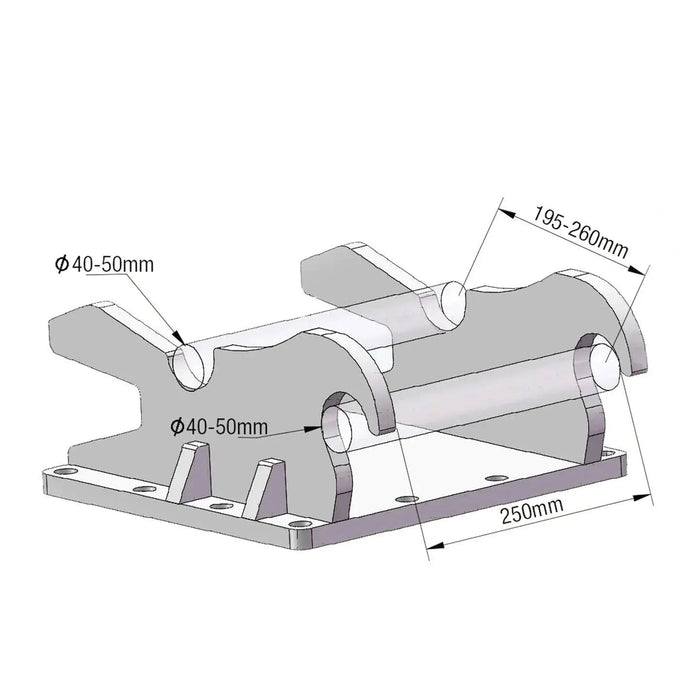

Quick-change Lugging Mount works with couplers for easy attachment change 
Feature Image

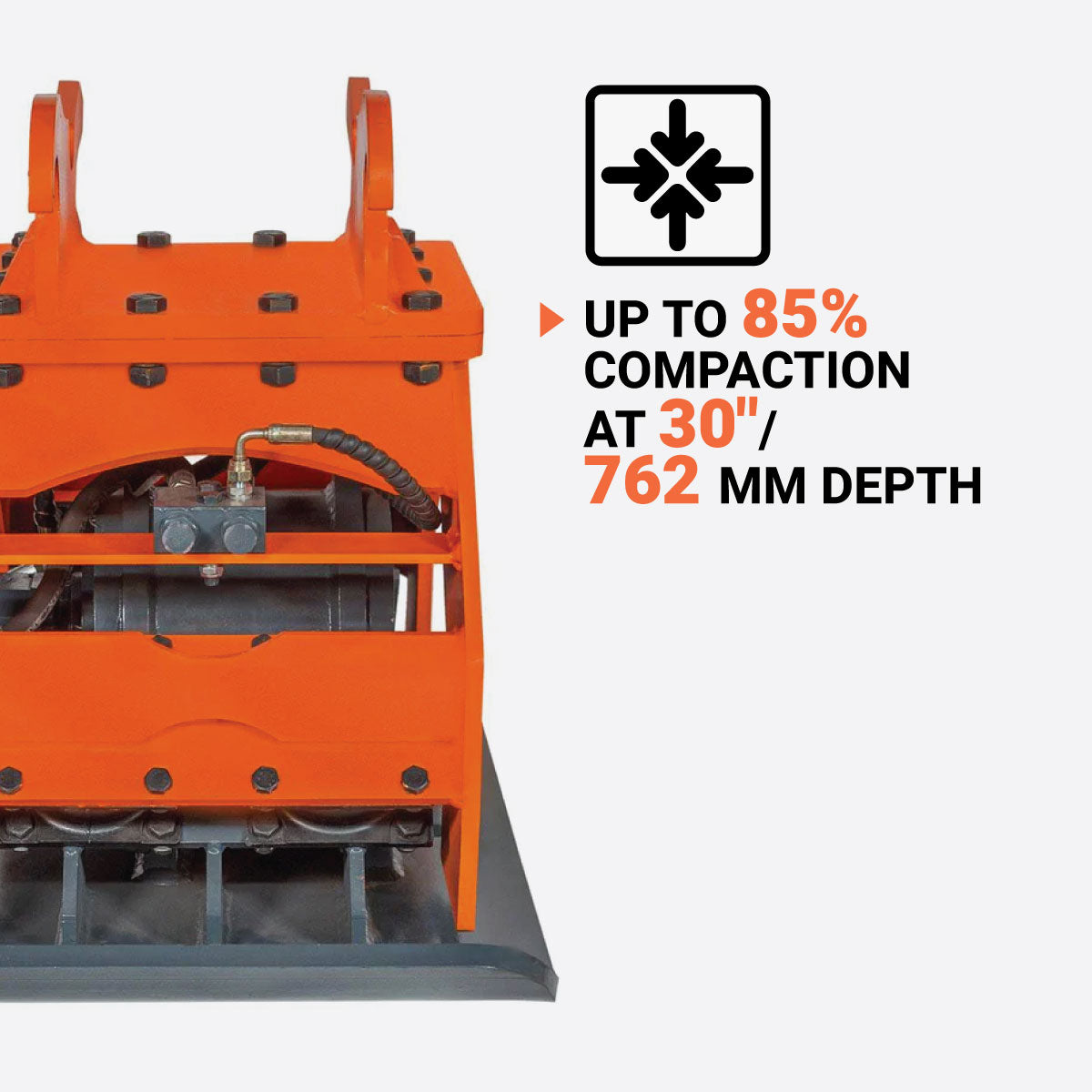

Achieves up to 85% compaction density at 30" / 762 mm depth
Feature Image

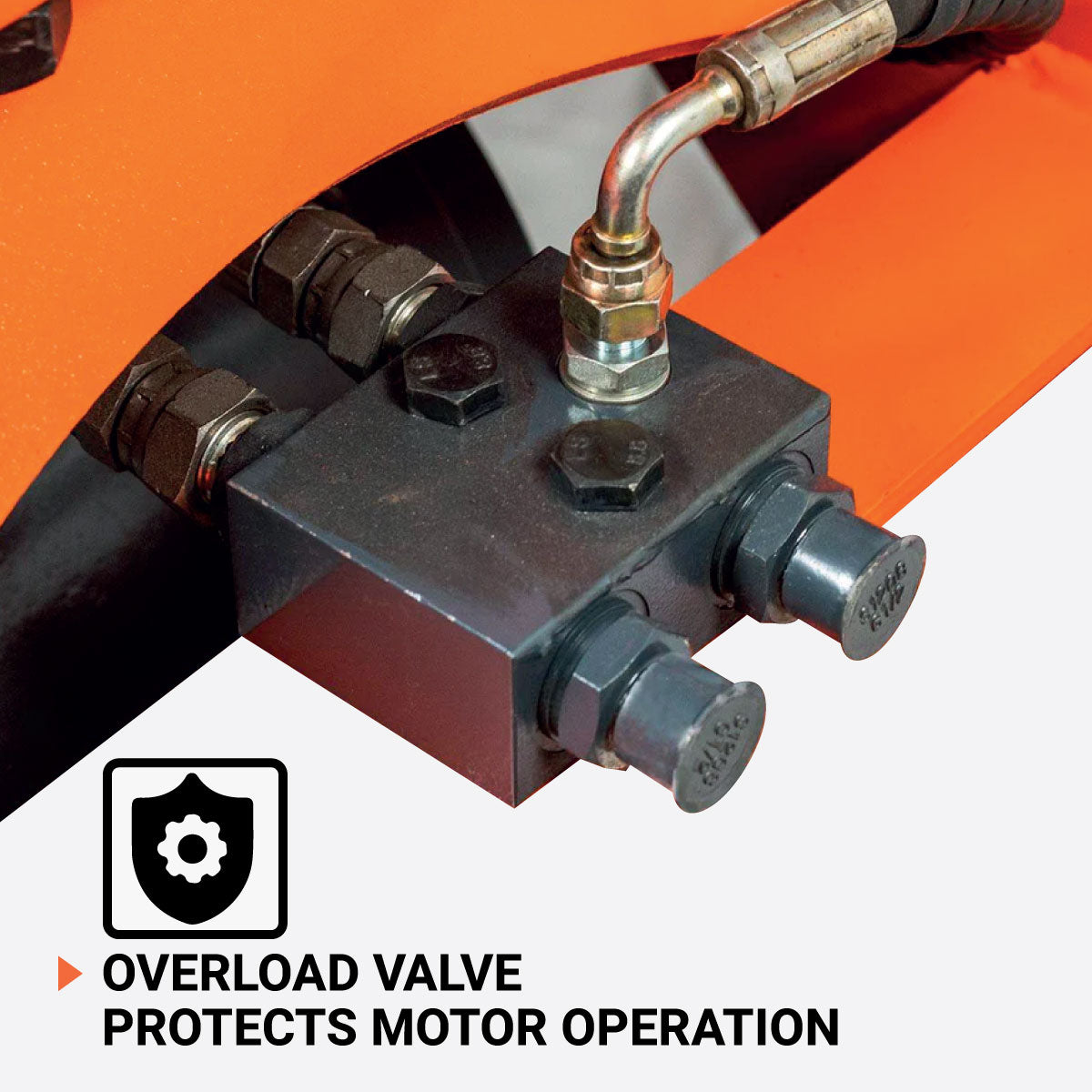

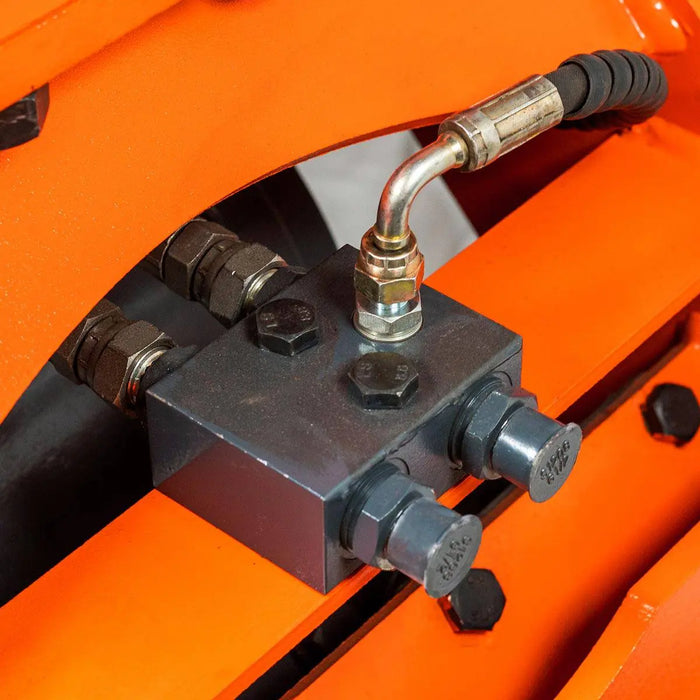

Overload shutoff valve maintains motor within safe operating range
Feature Image

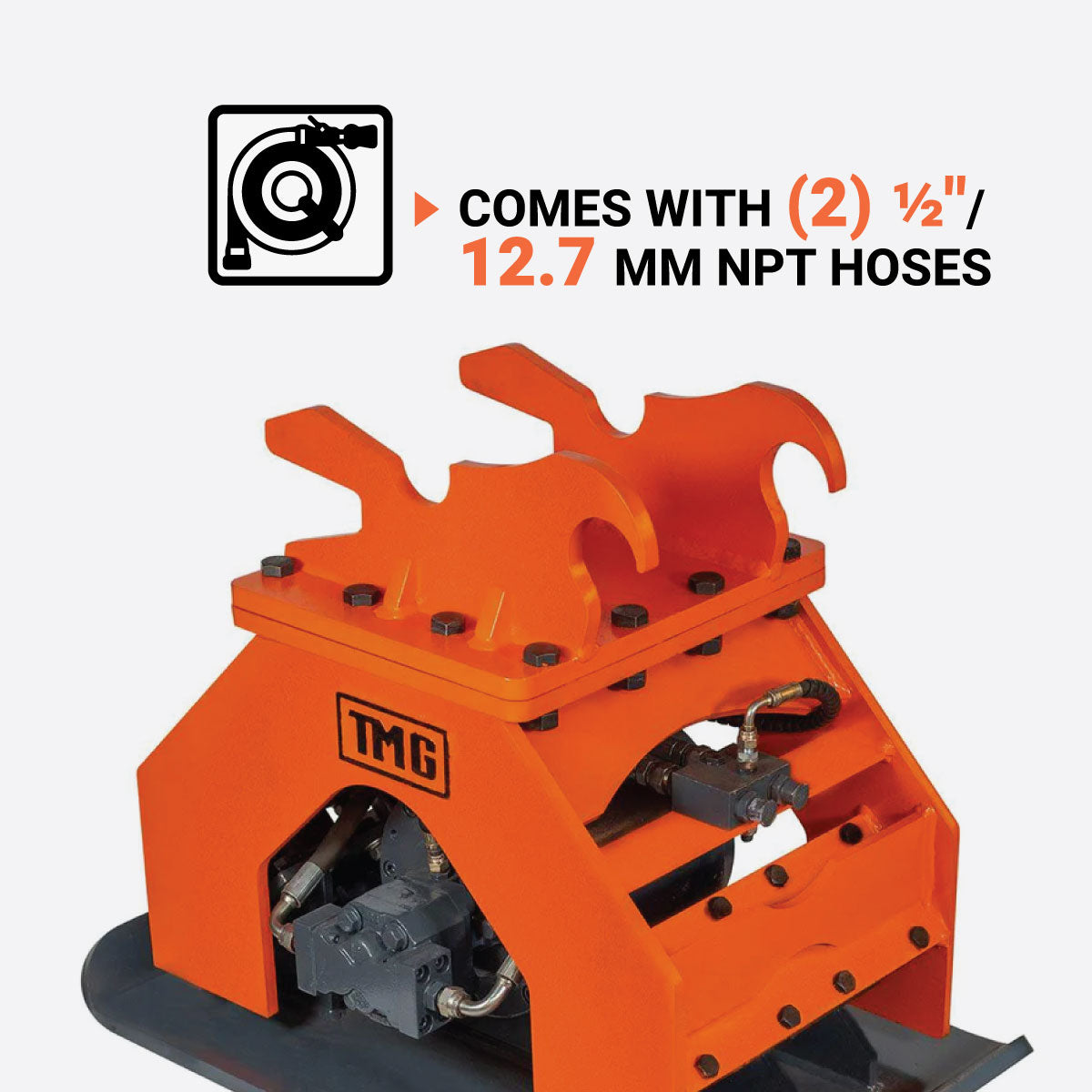

Includes two ½” / 12.7 mm NPT high-pressure hydraulic hoses for easy connection

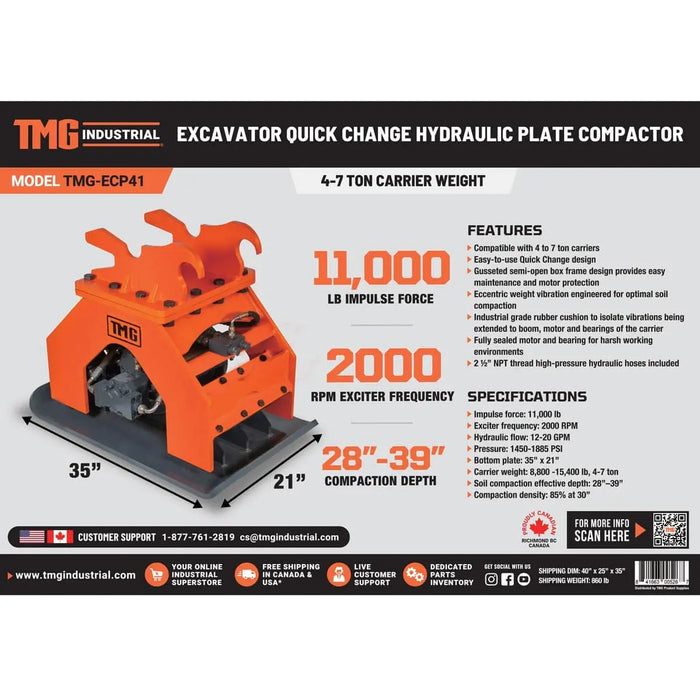

Specifications

  • Impulse force: 11,000 lbf
  • Exciter frequency: 2000 RPM
  • Hydraulic flow: 12-20 GPM
  • Pressure: 1450-1885 PSI

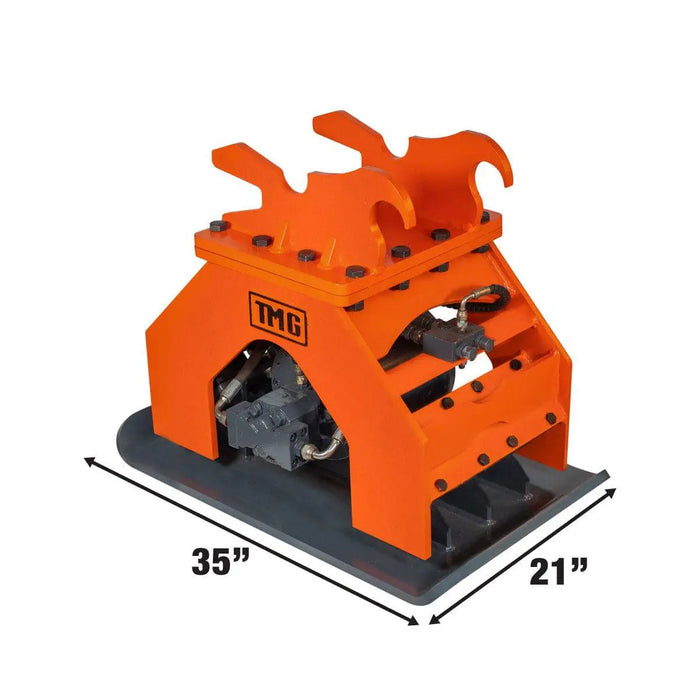

  • Bottom plate: 35” x 21”
  • Carrier weight: 8,800 -15,400 lb, 4-7 ton
  • Soil compaction effective depth: 28”–39”
  • Compaction density: 85% at 30”
  • (2) ½” NPT thread high-pressure hydraulic hoses included
11,000-lb Hydraulic Plate Compactor for 4-7 Ton Mini Excavators – 39

Product Description

The TMG-ECP41 is a powerhouse capable of compacting soils, gravels and sands for projects needing stable, solid grounds to work and build on. Any sort of bituminous or granular materials are simply no match for the 11000 lbf of impulse force and effective compaction depth up to 39". The ideal solution for construction sites, roads, foundations and any other tight footing and road preparatory needs.

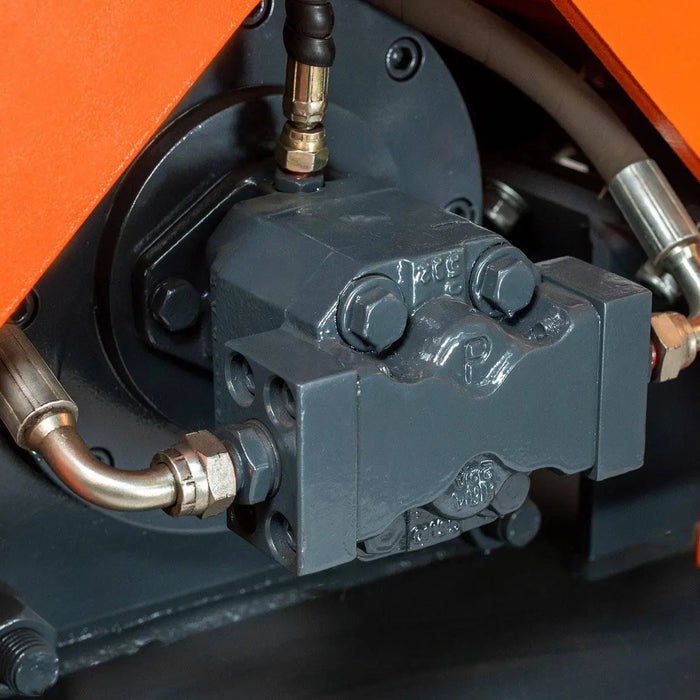

Compatible with 4 to 7 ton carriers and fitted with an easy to use quick change lugging design that keeps workflow running smoothly and efficiently. Motor is housed in a heavy-duty steel frame that is semi-open to allow for easy maintenance while still providing superior protection of its vital components. Included high pressure hydraulic hoses offer a simple hookup and disconnect as well as efficient energy transfer from your excavator to the compactor.

Eccentric weight vibration has been engineered for optimal soil compaction that translates to an 85% compaction density at 30" depth. Industrial grade rubber cushion isolates reverberations from reaching the boom, motor and bearings of the carrier ensuring minimal wear and tear and maximum force into the ground. An overload valve shutoff keeps the motor within its working range to prevent damage and extend the compactors lifespan.

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 40” x 27” x 34” (L x W x H)
  • Shipping weight: 810 lb
Shipping from Richmond, BC, or Mississauga, ON
