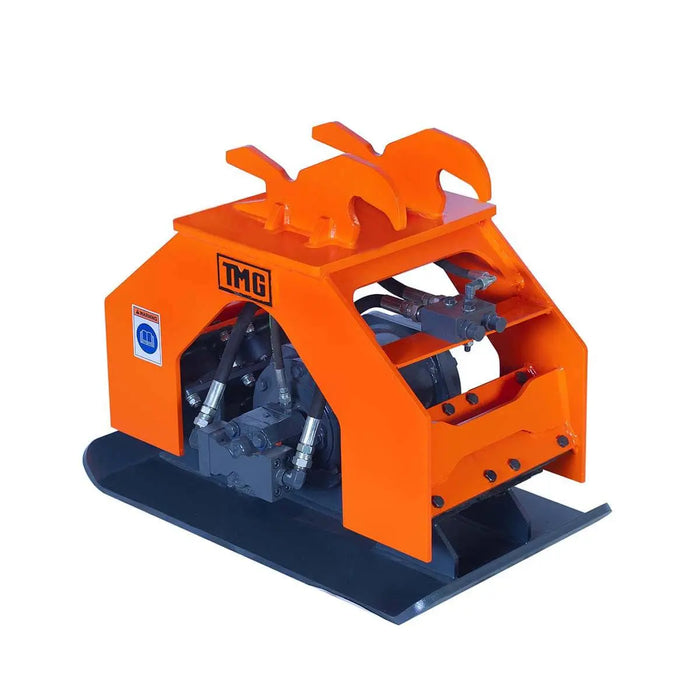

TMG Industrial 8,800-lb Hydraulic Plate Compactor, 2-4 Ton Excavator Weight, 19” Compact Capacity, TMG-ECP21

Original price $3,999.00 - Original price $3,999.00
Original price
$3,999.00 - $3,999.00
Current price $3,999.00
In-Store Pickup Price
$3,799.05 SAVE $199.95
Available at Richmond/Mississauga
Call 1-877-761-2819

550.0 lb
36 x 24 x 32 inches
More Shipping Info

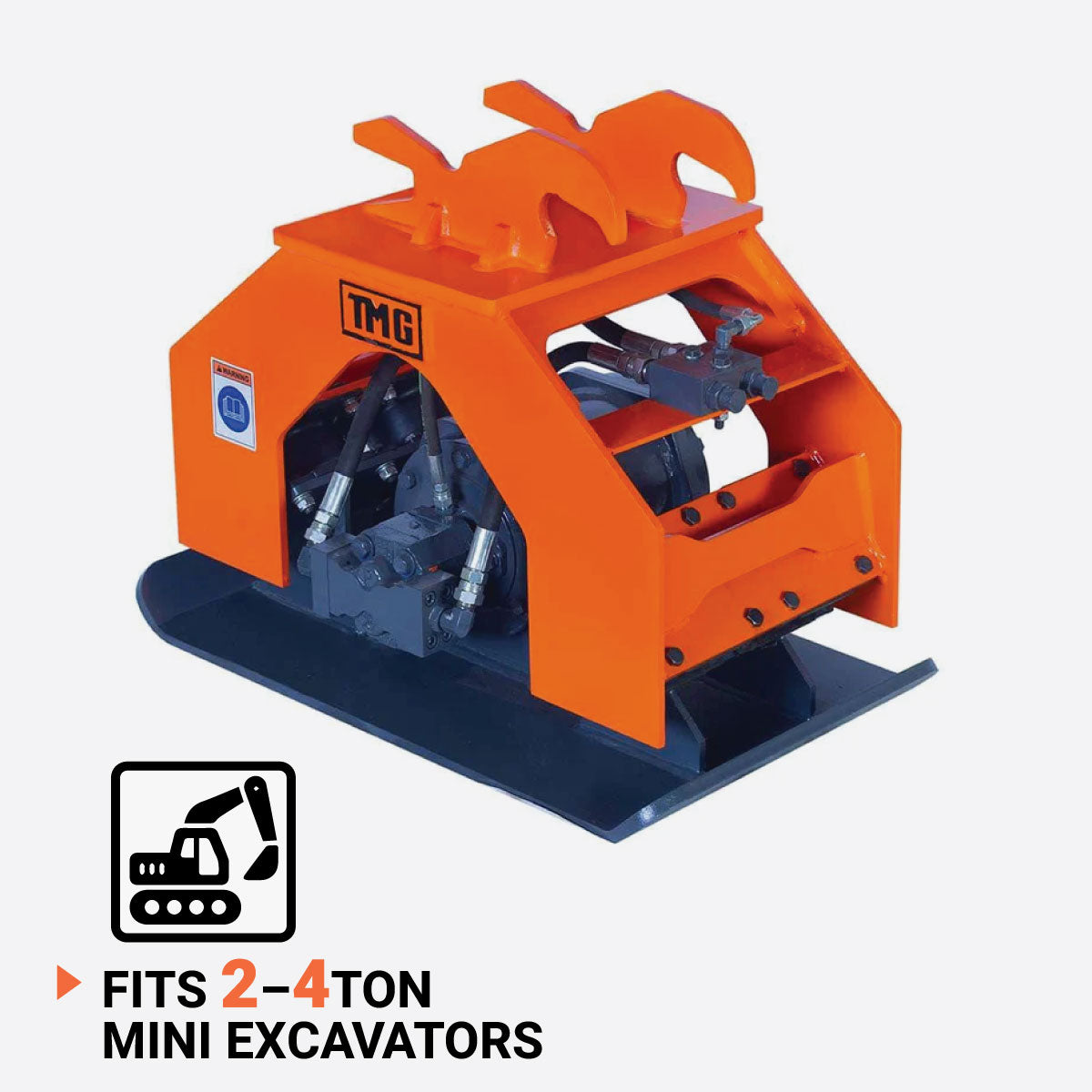

  • Compatible with 2 to 4 ton carriers

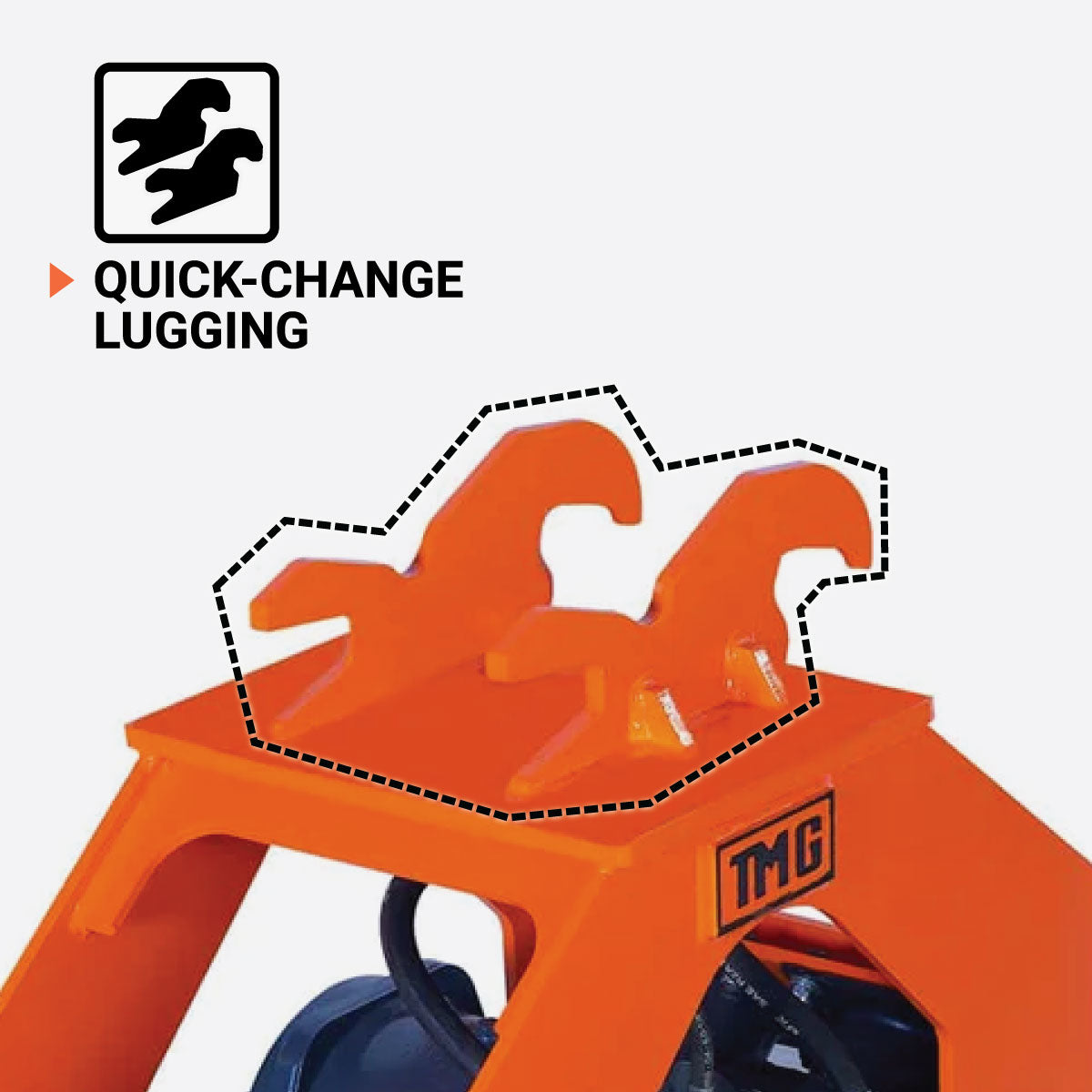

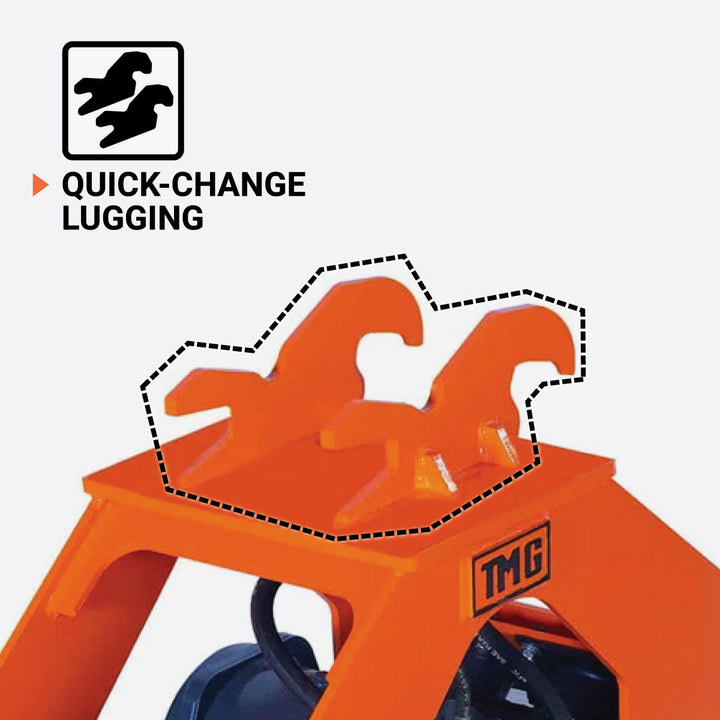

  • Easy to use quick change design for constant workflow between jobs
  • 8800 lbs of impulsive force for a compaction depth of 15”-19”

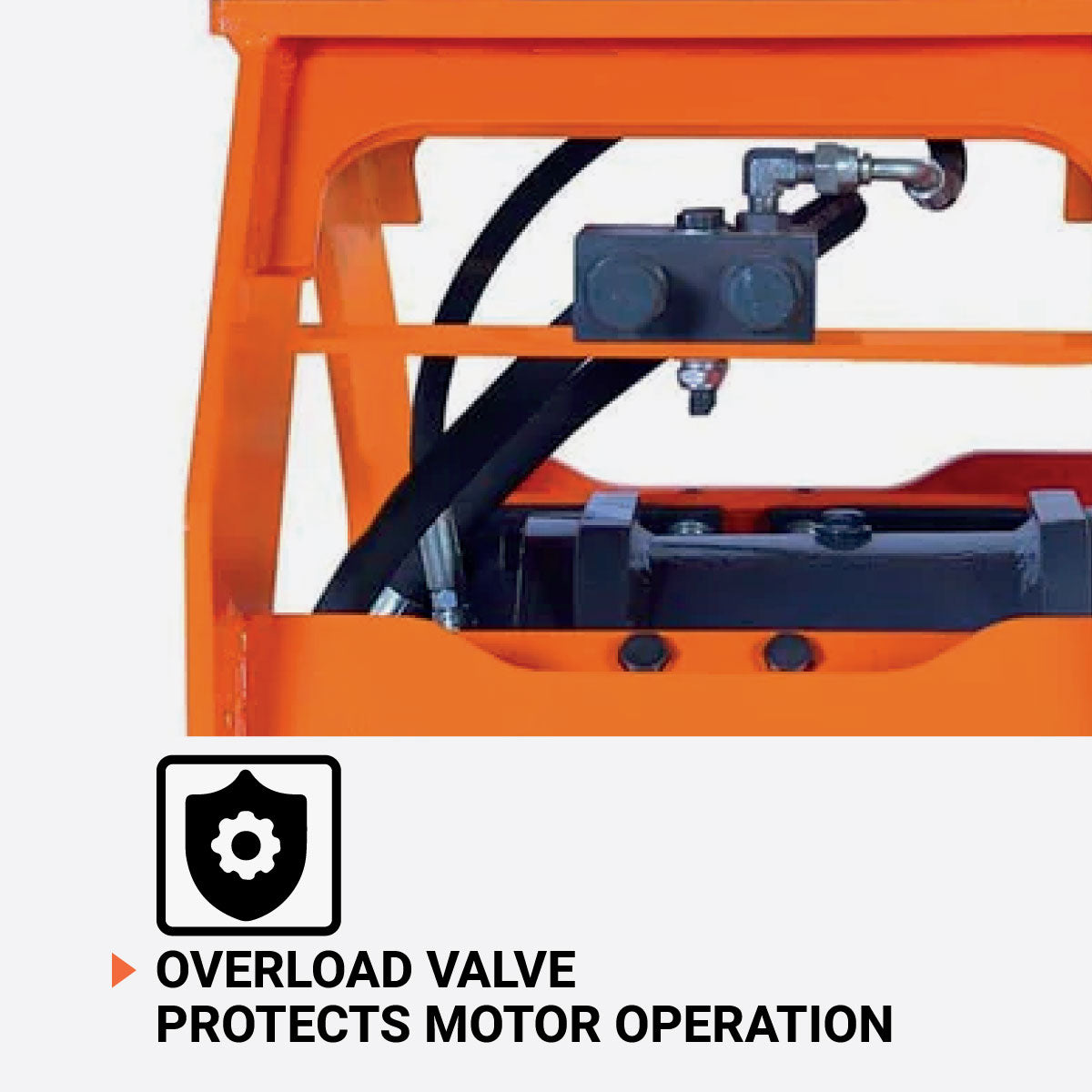

  • Overload shutoff valve to keep motor within its working range
  • Fully sealed motor and bearings are protected from harsh working environments
Product Manual


  • Compatible with 2 to 4 ton carriers and equipped with an easy to use quick change design system that maintains workflow between job types
  • Motor is housed in a heavy gauge steel, semi-open box frame that provides easy maintenance access and overall motor protection
  • Eccentric weight vibration engineered for optimal soil compaction that translates to an 85% compaction density at 30” depth
  • Industrial grade rubber cushion isolates vibrations from being extended to the boom, motor and bearings of your carrier
  • Overload valve shutoff enables the motor to operate within its range capacity and maximize its working ability over time
  • Fully sealed motor and bearings keep moisture, dust, dirt, rocks and other debris out when using in harsh working environments
  • 6600 lbs of impulsive force created through almost 1900 PSI and 11 GPM hydraulic flow offer a potential compaction depth of 15”-19”

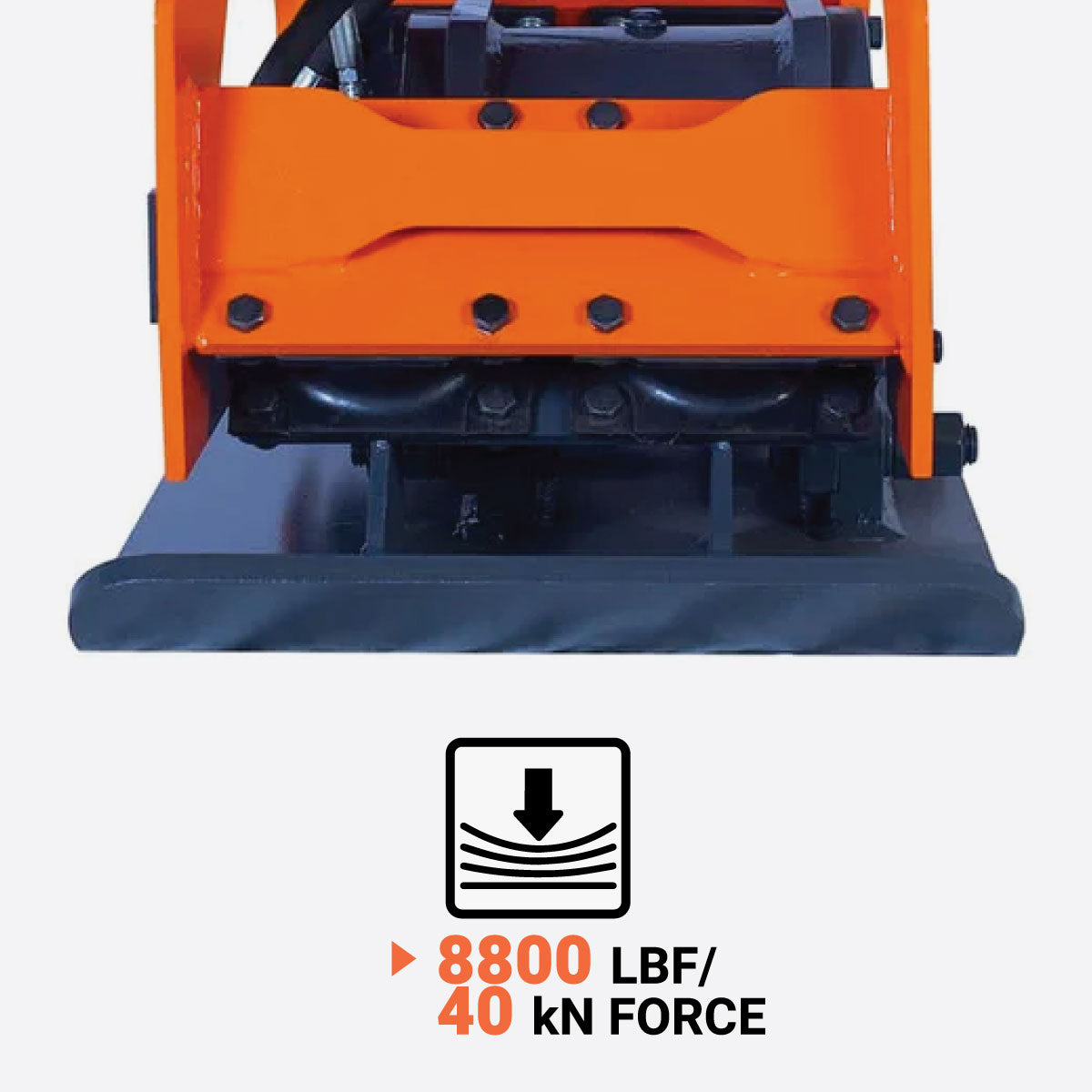

  • Impulse force: 8800 lb
  • Exciter frequency: 2000 RPM
  • Hydraulic flow: 6.6-11 GPM
  • Working pressure: 1420-1850 PSI

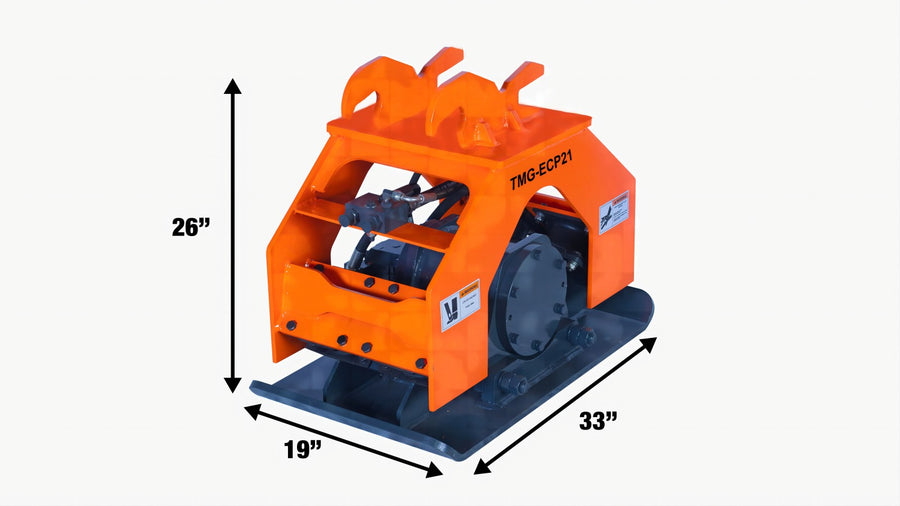

  • Bottom plate: 33” x 19”
  • Carrier weight: 4400 -8800 lb, 2-4 ton
  • Soil compaction effective depth: 15”–19”

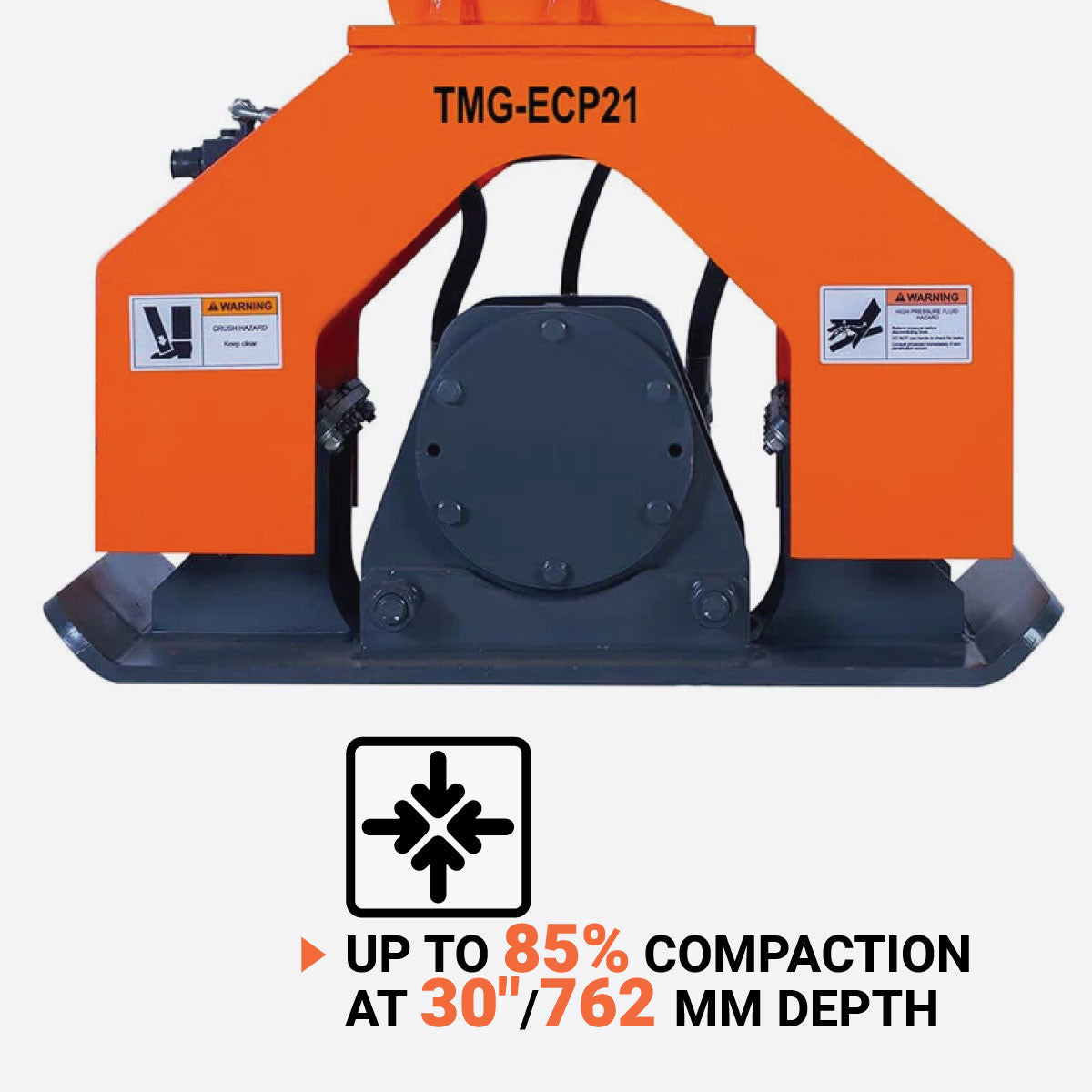

  • Compaction density: 85% at 30”

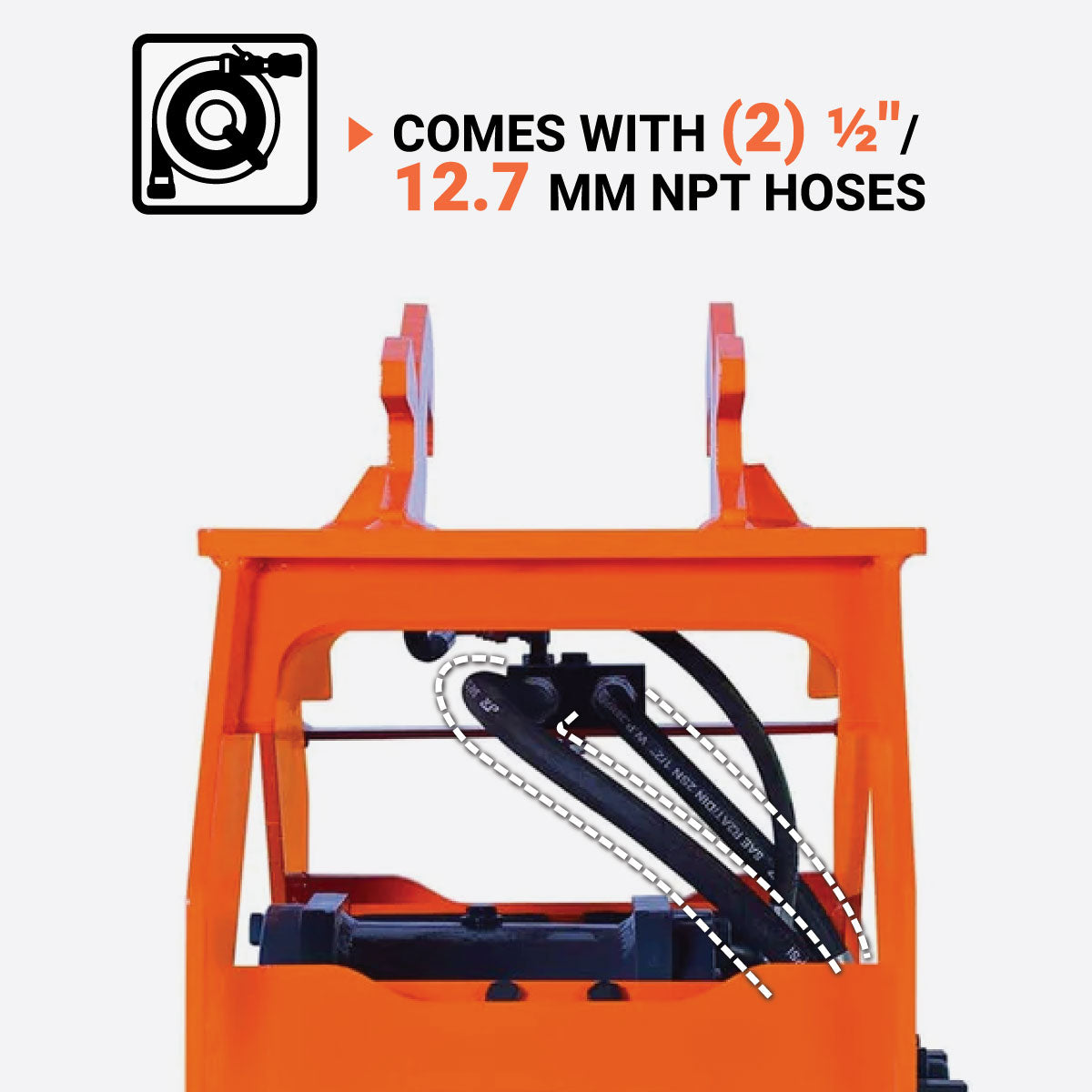

  • (2) ½” NPT thread high-pressure hydraulic hoses included

Shipping Information

The order will ship FREE from our warehouse in Richmond BC or Mississauga ON. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

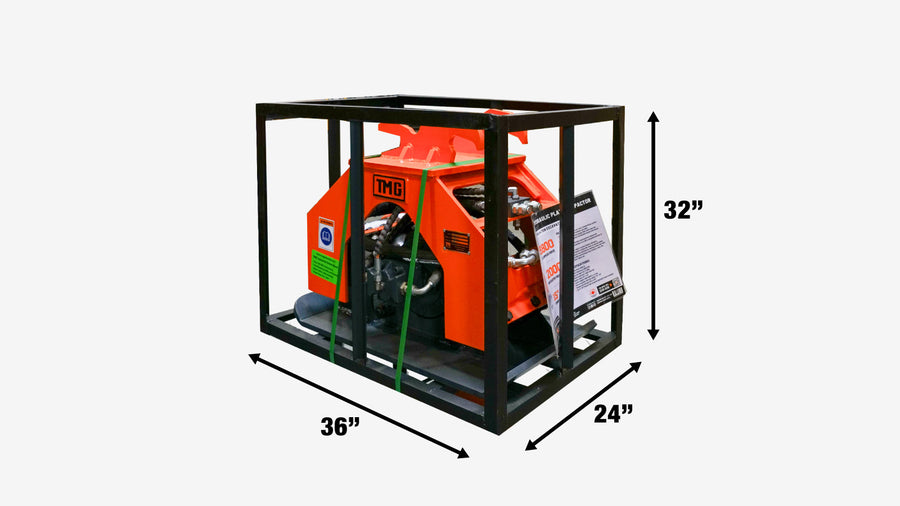

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 36” x 24” x 32” (L x W x H)
  • Shipping weight: 550 lb
Shipping from Richmond BC or Mississauga ON
In-store pickup is available
What happens after you place your order?

Product Description

The TMG-ECP21 is a powerhouse capable of compacting soils, gravels and sands for projects needing stable, solid grounds to work and build on. Any sort of bituminous or granular materials are simply no match for the 8800 lbs of impulse force and effective compaction depth up to 19”. The ideal solution for construction sites, roads, foundations and any other tight footing and road preparatory needs.

Compatible with 2 to 4 ton carriers and fitted with an easy to use quick change lugging design that keeps workflow running smoothly and efficiently. Motor is housed in a heavy-duty steel frame that is semi-open to allow for easy maintenance while still providing superior protection of its vital components. Included high pressure hydraulic hoses offer a simple hookup and disconnect as well as efficient energy transfer from your excavator to the compactor.

Eccentric weight vibration has been engineered for optimal soil compaction that translates to an 85% compaction density at 30” depth. Industrial grade rubber cushion isolates reverberations from reaching the boom, motor and bearings of the carrier ensuring minimal wear and tear and maximum force into the ground. An overload valve shutoff keeps the motor within its working range to prevent damage and extend the compactors lifespan.


We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
