SKU TMG-RS10

TMG Industrial 10' Heavy Duty Static Grizzly Rock Screen, Barres de pont boulonnées réglables, Poutres en I de 4" x 4", Capacité de charge de 5000 lb, TMG-RS10

Original price $0.00 CAD - Original price $0.00 CAD
Original price $0.00 CAD
$6,999.00 CAD
$6,999.00 CAD - $6,999.00 CAD
Current price $6,999.00 CAD
CURRENTLY IN STOCK
LIVRAISON GRATUITE AU CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS

Other financial option:

2405.0 lb
126 x 34 x 31 inches
More Shipping Info
  • Used in industries like open-pit mining, demolition, landscaping topsoil & more

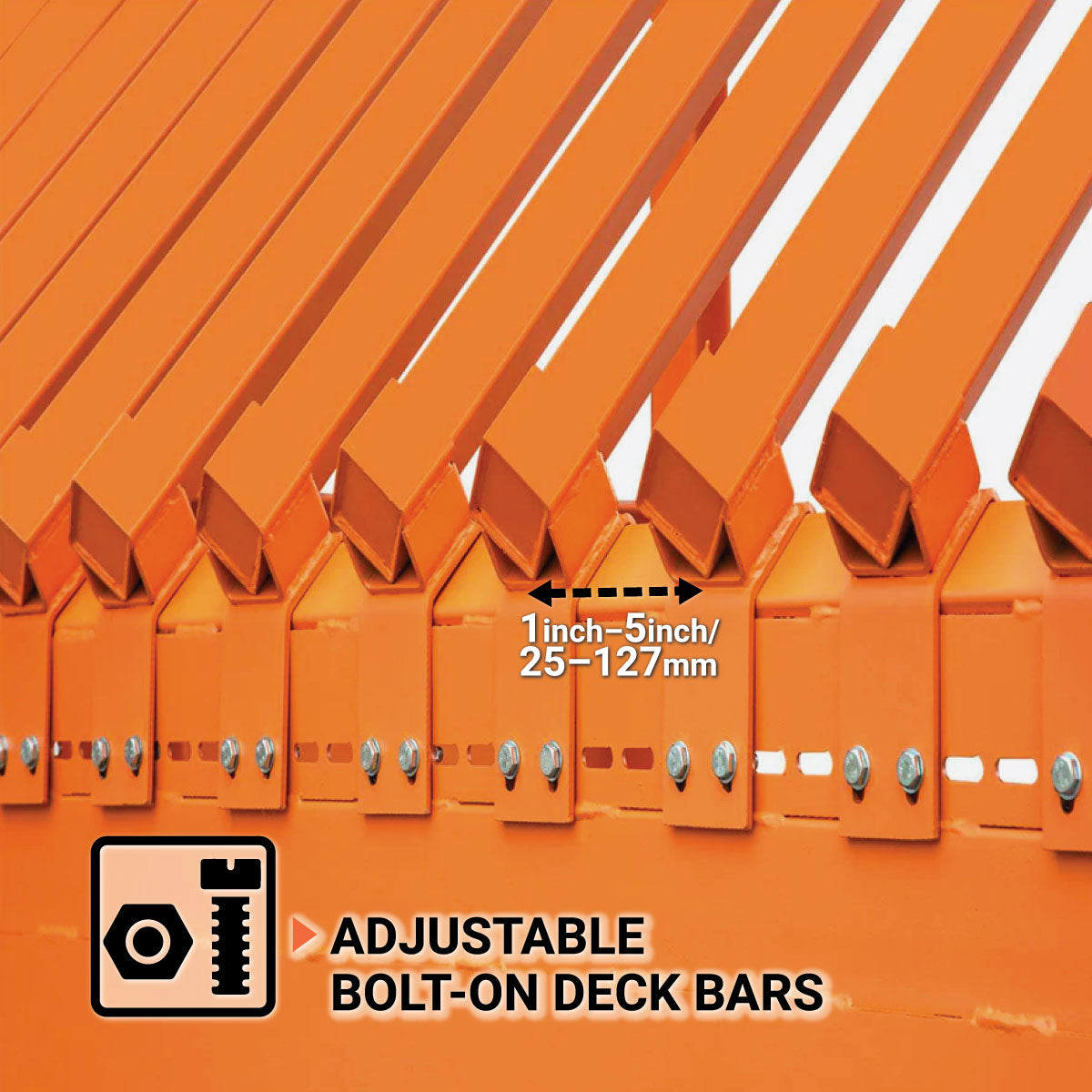

  • Adjustable bolt-on deck bars can be added for spacing down to 1” apart (3" standard)

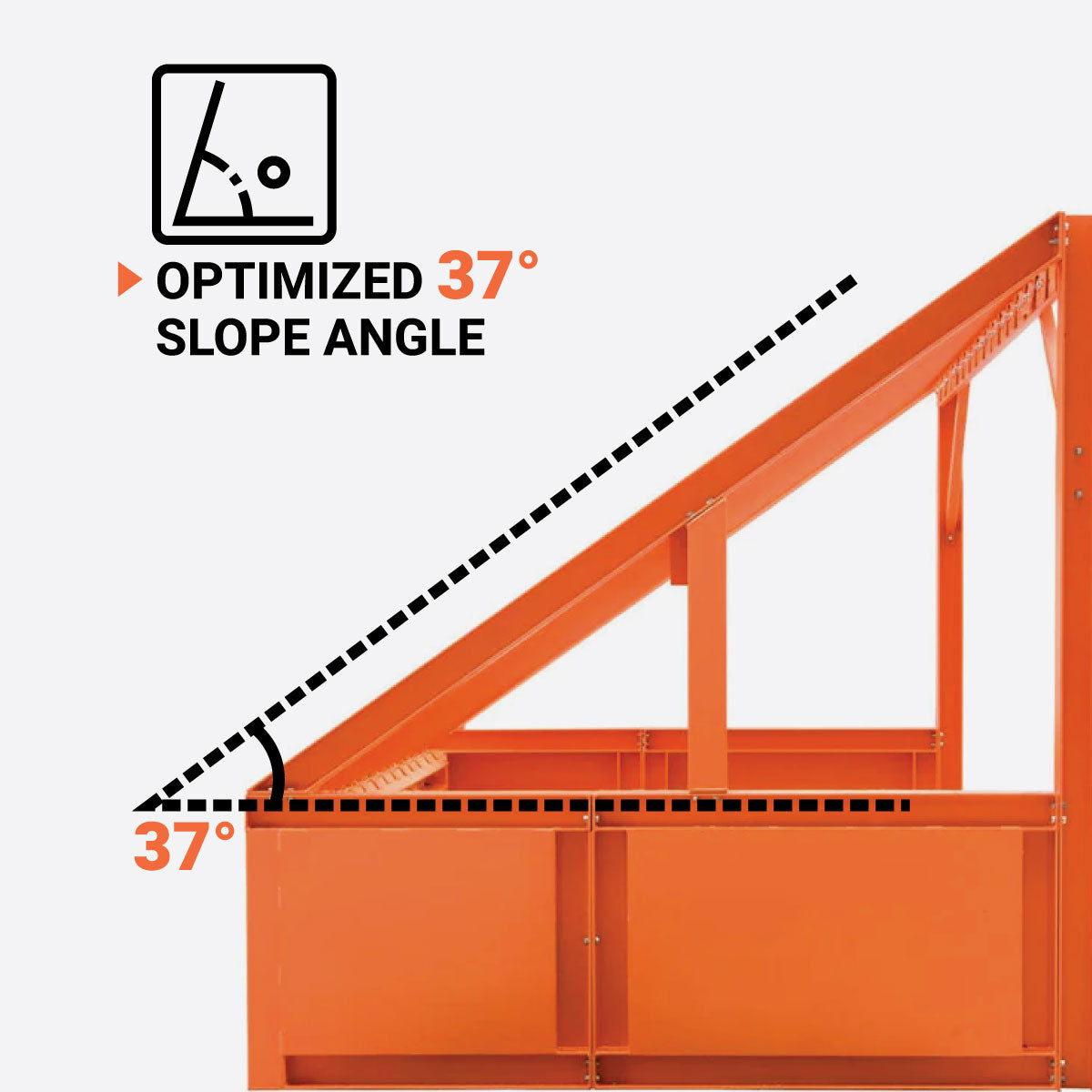

  • 37° slope allows rocks and debris to fall away from the work area

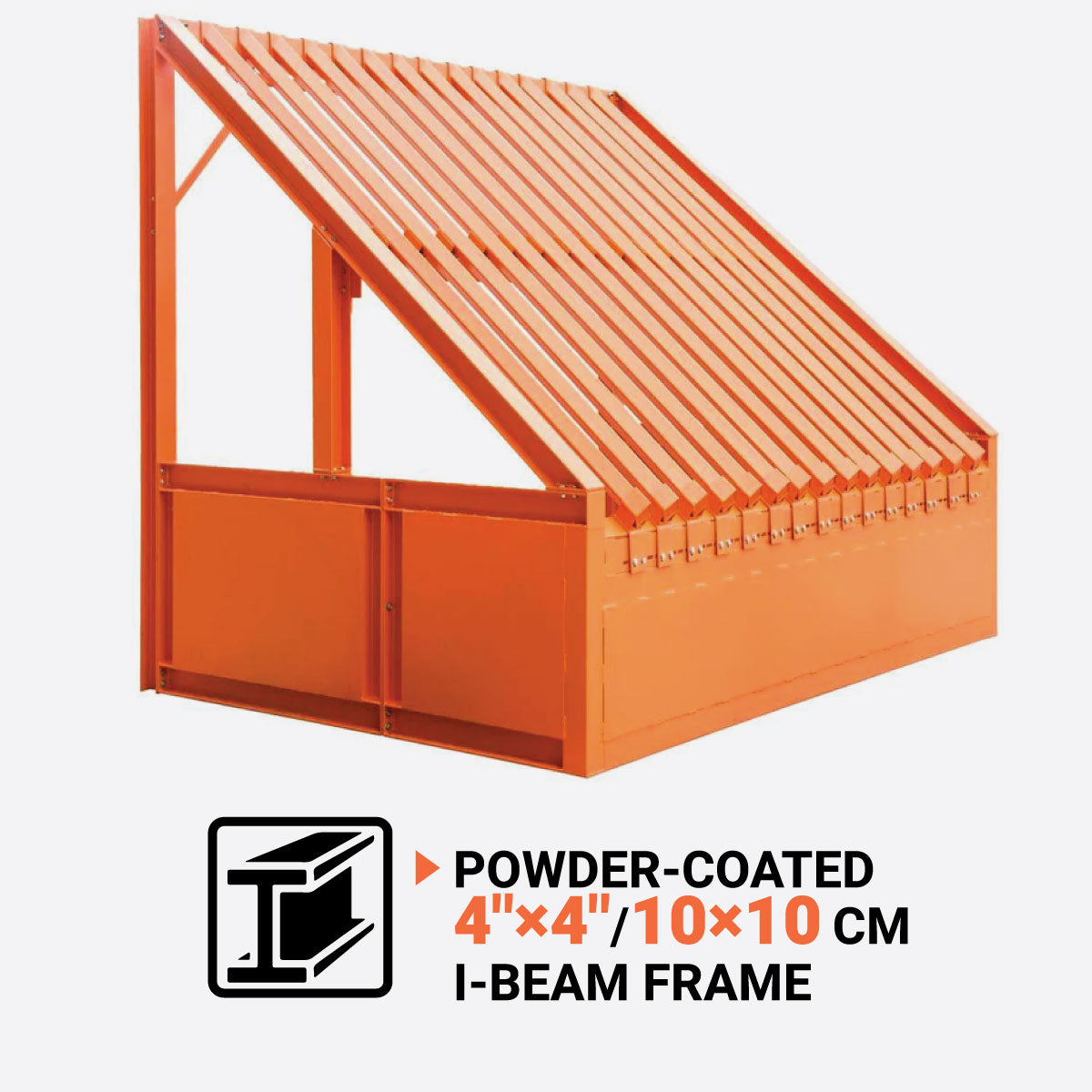

  • 4” x 4” I-beams & square tubing main frame

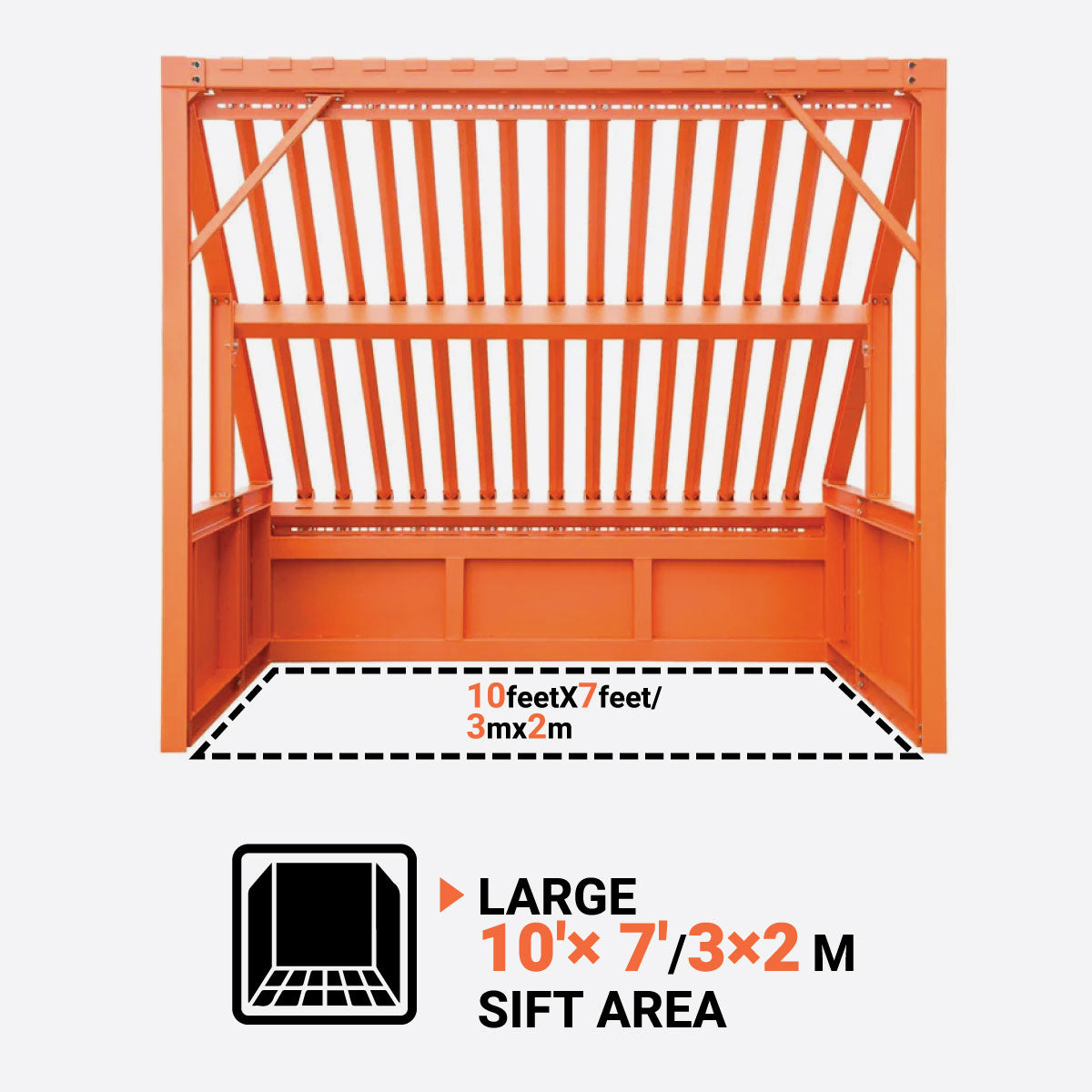

  • 10’ x 7’ sift accepting area isolates the final product from the waste

Features

  • Ideal for a variety of industries and applications including open-pit mining, recycling, crushing, demolition and landscaping

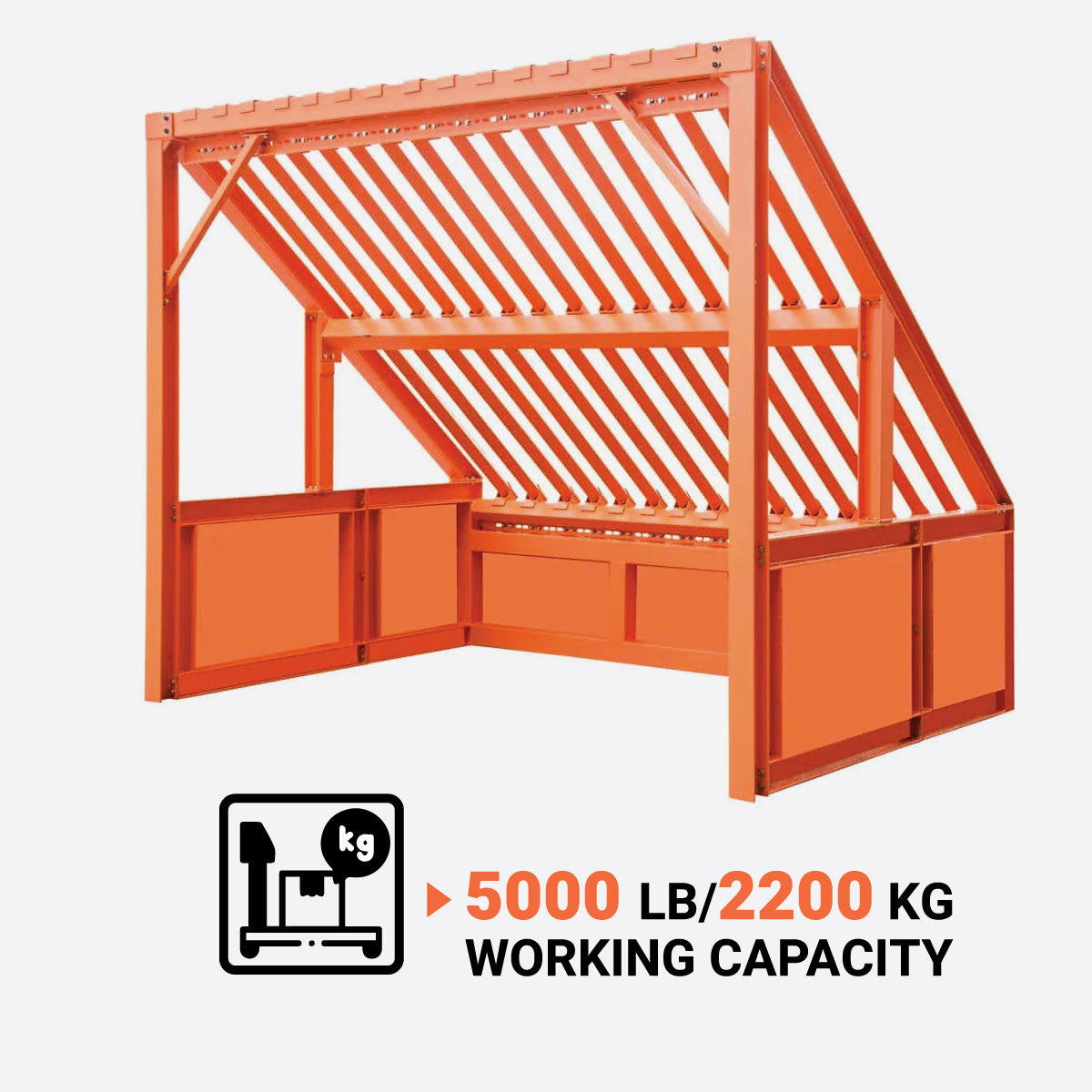

  • 4” x 4” heavy gauge I-beam structural design with a 5000 lb working capacity will handle any and all extreme working conditions

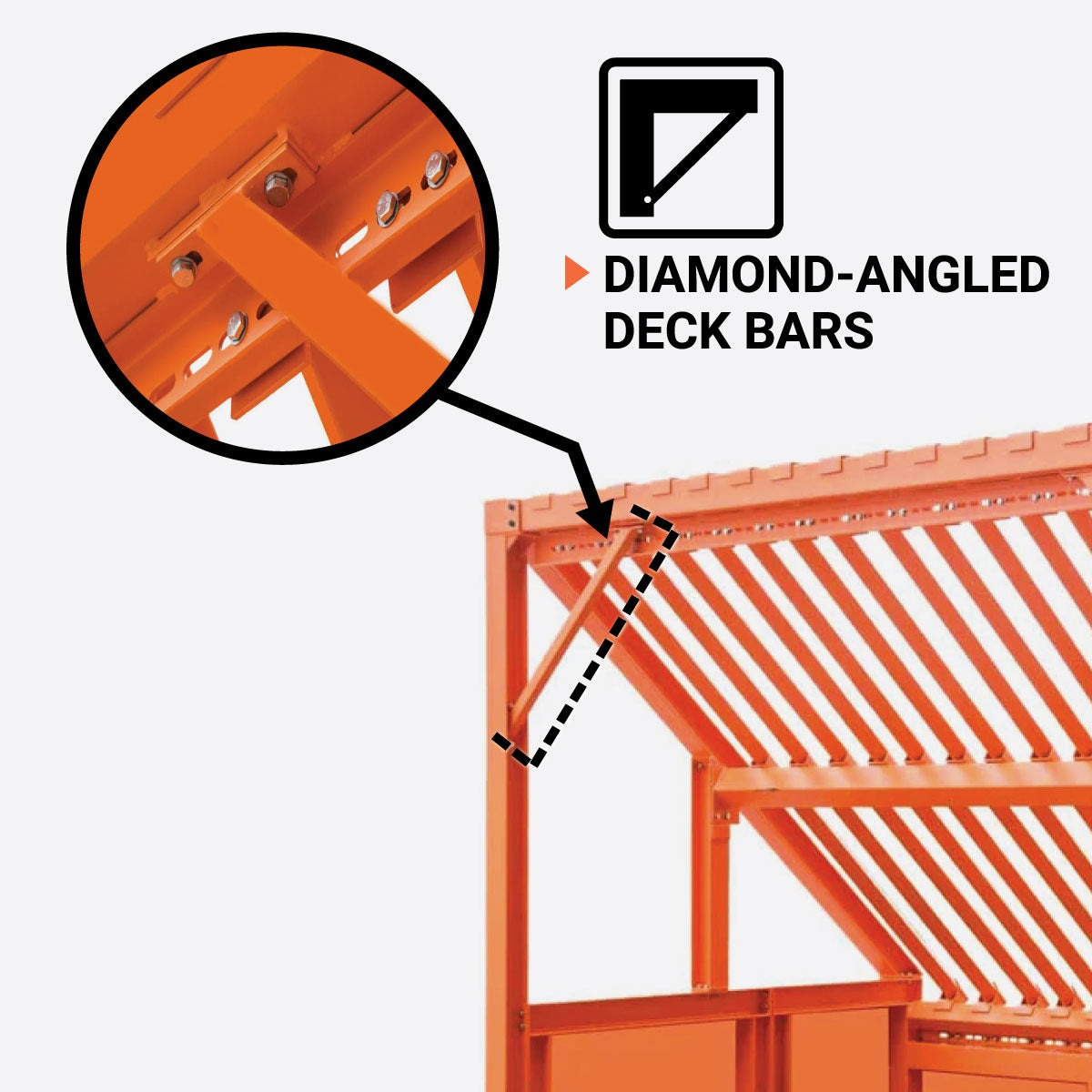

  • Self-cleaning deck bars installed in a diamond shape angle with a tapered opening for long-term maintenance free screening
  • Square tubing main frame is quick to assemble and can serve as a staple in your job site or work yard to be used whenever necessary
  • Large 10’ x 7’ sift accepting area underneath isolates the clean product from your waste and keeps a tidy inventory of your materials
  • Bolt-on adjustable deck bars have versatile minimum to maximum 1” (extra deck bars required) to 5” bar spacing options to fit your every need
  • Industrial strength construction with a powdered coated finish that makes this screener resistant to rust, wear and corrosion
TMG Industrial 10' Heavy Duty Static Grizzly Rock Screen, Barres de pont boulonnées réglables, Poutres en I de 4

Specifications

  • Structure size: 10’ (L) x 7-¼’ (W) x 7-½’ (H)
  • Average load capacity: 5000 lb
  • Primary frame:
    • 4” x 4” I-beam posts
    • 4” x 4” crossing square tubing
  • Sidewall and front wall steel plate: 10 GA
  • Deck bar: 1-¾” x 1-¾” square tubing, 9’ in length, 8 GA
  • Standard bar spacing: 3”
  • Standard bar quantity: 18 (3” spacing)
  • Minimum bar spacing: 1” (extra deck bars required)
  • Maximum bar quantity: 26 (1” spacing)
  • Maximum bar spacing capacity: 5”
  • First and the last deck bar opening: 2-¾”
  • Slope angle: 37°
  • Spare deck bars sold separately
  • Assembly required
TMG Industrial 10' Heavy Duty Static Grizzly Rock Screen, Barres de pont boulonnées réglables, Poutres en I de 4

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal shipping crate
  • Shipping dimension: 126” x 34” x 31” (L x W x H)
  • Shipping weight: 2405 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
TMG Industrial 10' Heavy Duty Static Grizzly Rock Screen, Barres de pont boulonnées réglables, Poutres en I de 4

Product Description

Le crible à grizzly statique robuste TMG-RS10 rend le criblage de charges volumineuses et mixtes simple et efficace. Triez facilement les matériaux en ayant toujours cet écran disponible sur votre chantier ou sur votre chantier. Largement utilisé dans un certain nombre d'industries, notamment l'exploitation minière à ciel ouvert, le recyclage, le concassage, les agrégats, l'aménagement de sites, la démolition et l'aménagement paysager. Ce crible est construit pour durer, fait pour durer et supportera tout ce que vous pouvez lui lancer.

Les barres de terrasse boulonnées réglables avec une option d'espacement minimum de 1" (barres de terrasse supplémentaires requises) et un maximum de 5" sont adaptables pour répondre à vos besoins, avec un espacement standard de 3". Ces barres ont une forme de diamant, auto- conception de nettoyage qui nécessite peu ou pas d'entretien. Couramment utilisé pour trier les matériaux surdimensionnés avant le criblage ou le concassage, et la pente de 37 ° permet aux roches et aux débris de tomber directement sur le sol au lieu d'encombrer votre zone de travail.

Les poutres en I de 4" x 4" et le cadre principal en tubes carrés sont revêtus de poudre et résistants à la rouille, à l'usure et à la corrosion. La grande zone de tamisage de 10' x 7' sépare vos profits de vos déchets et fait le travail plus rapidement. Rapide à assembler, la conception de construction de résistance industrielle a une capacité de travail de 5000 lb pour vos travaux les plus gros et les plus difficiles.

Nous proposons également un modèle plus grand de cet écran : TMG-RS12
