TMG 12' Grizzly Rock Screen with Adjustable Deck Bars, Heavy I-Beam Frame Aller au contenu
CURRENTLY IN STOCK
TMG-RS12

TMG Industrial 12' Heavy Duty Static Grizzly Rock Screen, Barres de pont boulonnées réglables, Poutres en I de 4" x 4", Capacité de charge de 5000 lb, TMG-RS12

TMG Industrial 12’ Heavy Duty Static Grizzly Rock Screen, Adjustable Bolt-On Deck Bars, 4” x 4” I-Beams, 5000 lb Load Capacity, TMG-RS12
CURRENTLY IN STOCK
SKU TMG-RS12
$0.00 CAD - $0.00 CAD
$0.00 CAD
$7,899.00 CAD
$7,899.00 CAD - $7,899.00 CAD
$7,899.00 CAD
$7,899.00 CAD

FREE

shipping to most locations in

Canada
Delivered in 10 to 15 business days Learn More
1-877-761-2819
Product Image 1 Product Image 2 Product Image 3
Product Manual
Find Parts

Features

Feature Image

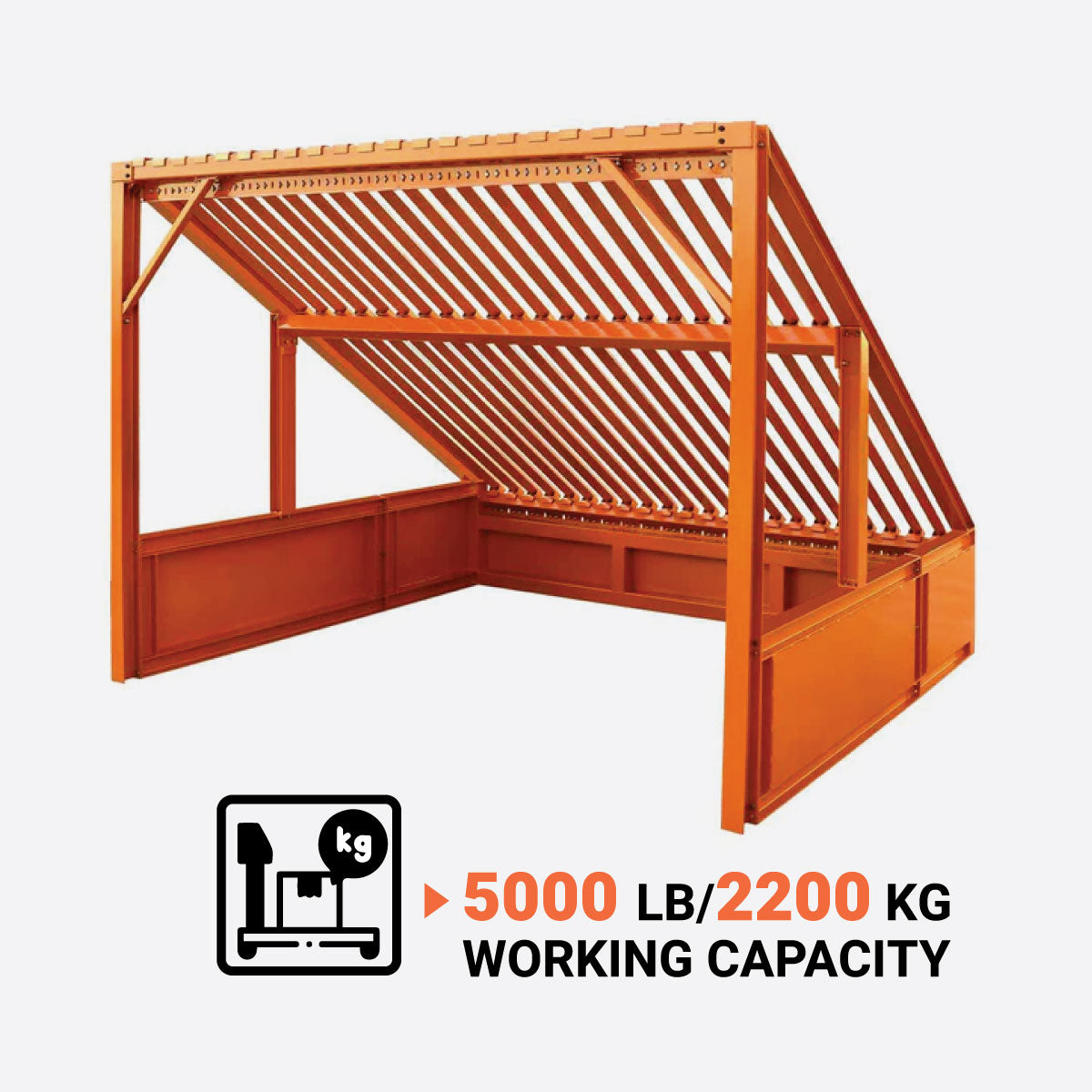

5000 lbs / 2200 kg working capacity will handle any material sorting tasks
Feature Image

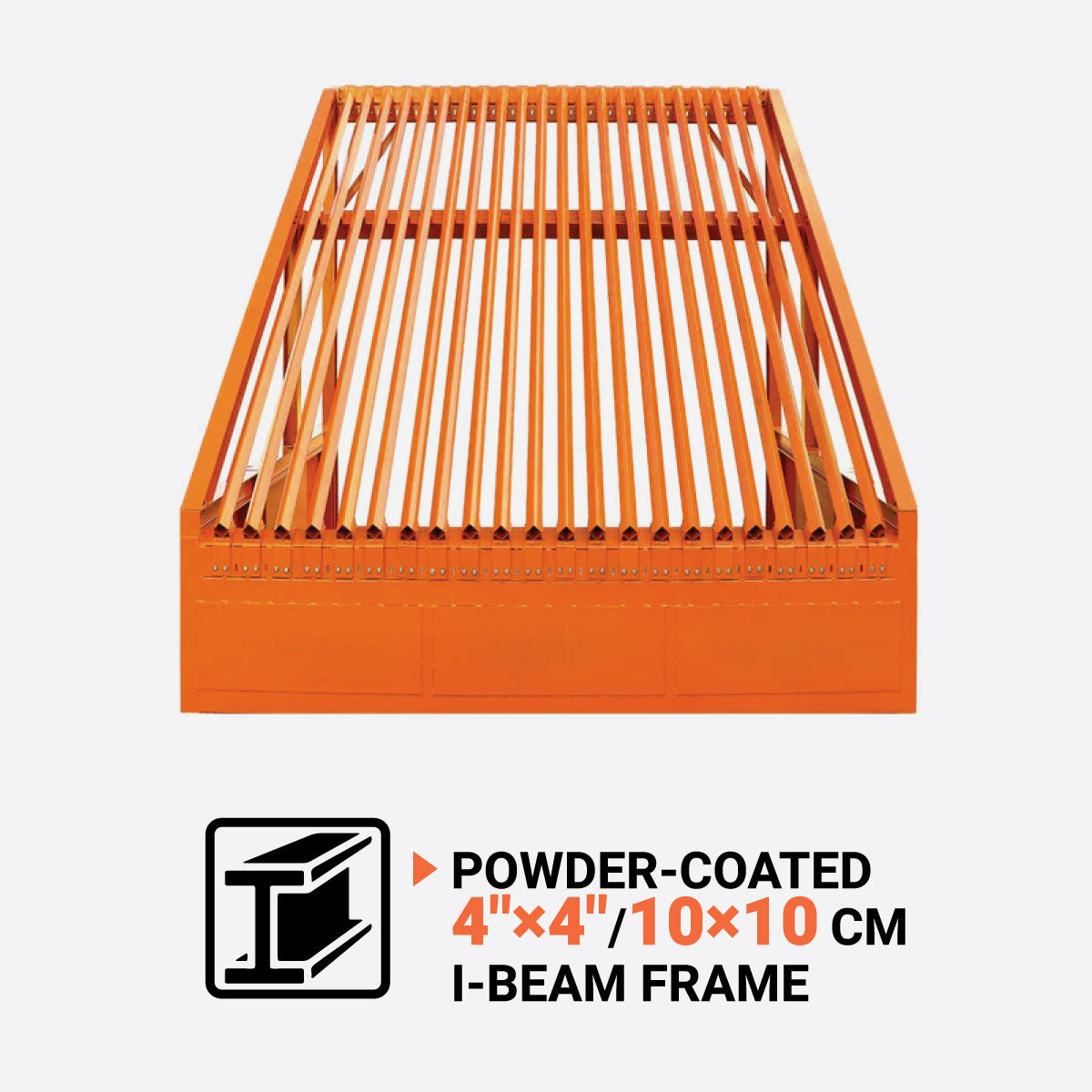

Robust 4" x 4" / 10 cm x 10 cm I-beam frame with powder-coating for enhanced durability
Feature Image

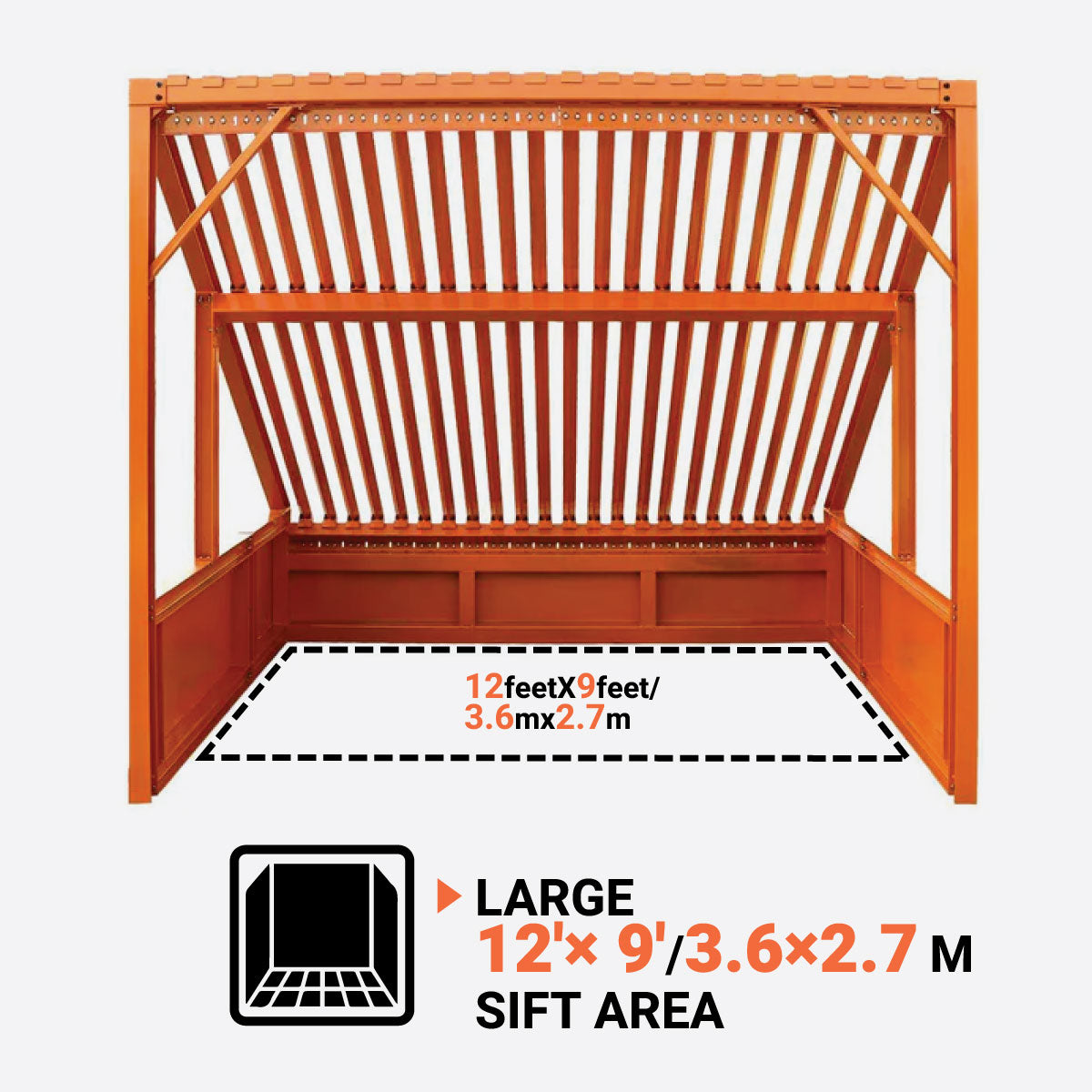

Features a large 12' x 9' / 3.6 m x 2.7 m sift accepting area suitable for handling mixed loads
Feature Image

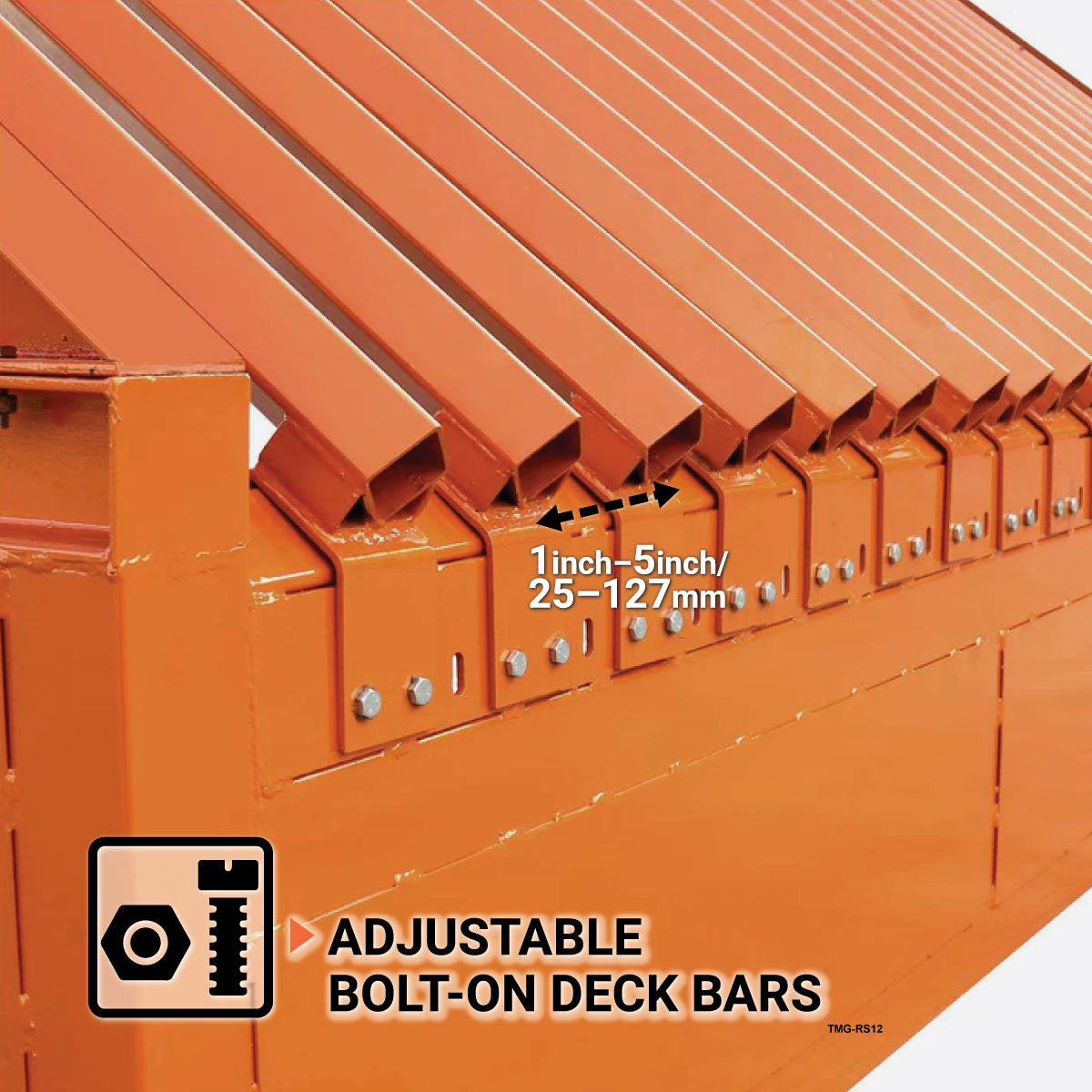

Equipped with adjustable bolt-on deck bars, with spacing options from 1" to 5" / 25 mm to 127 mm
Feature Image

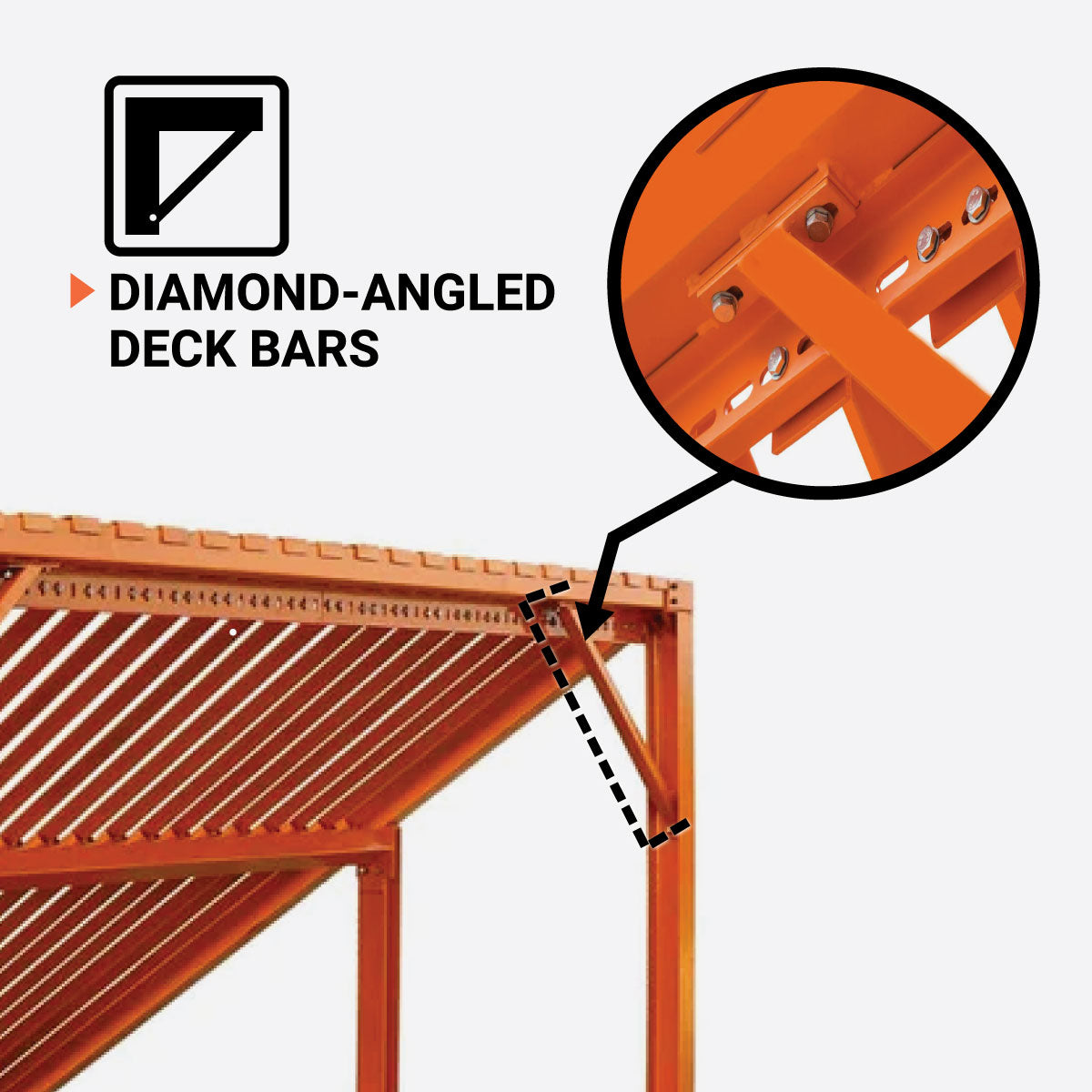

Deck bars installed in a diamond shape angle with a tapered opening for long-term maintenance free screening
Feature Image

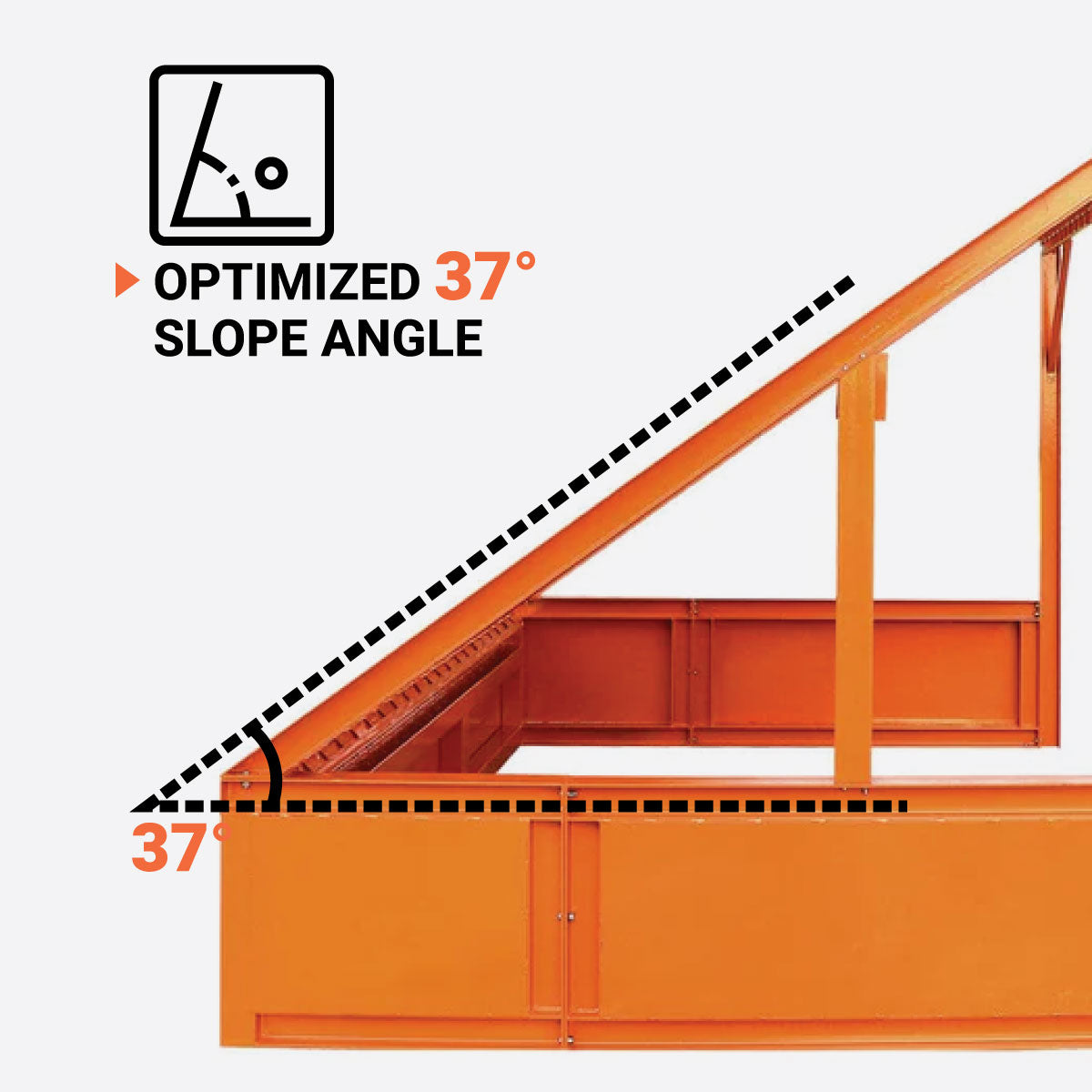

Optimized 37° slope angle for efficient debris removal and material separation

Specifications

  • Structure size: 12’(L) x 9’ (W) x 8.9’ (H)
  • Average load capacity: 5000 lb
  • Primary frame:
    • 4” x 4” I-beam posts
    • 4” x 4” crossing square tubing
  • Sidewall and front wall steel plate: 10-gauge
  • Deck bars: 1.6" x 1.6" square tubing, 11' in length, 8-gauge
  • Standard bar spacing: 3"
  • Standard bar quantity: 22 (3" spacing)
  • Minimum bar spacing: 1" (extra deck bars required)
  • Maximum bar quantity: 32  (1" spacing)
  • Maximum bar spacing capacity: 5"
  • First and the last deck bar opening: 2.75"
  • Slope angle: 37°
  • Spare deck bars sold separately
  • Assembly required
  • Assembly time: 2-3 hours for two handymen
TMG Industrial 12' Heavy Duty Static Grizzly Rock Screen, Barres de pont boulonnées réglables, Poutres en I de 4

Product Description

Le crible à grizzly statique robuste TMG-RS12 rend le criblage de charges volumineuses et mixtes simple et efficace. Triez facilement les matériaux en ayant toujours cet écran disponible sur votre chantier ou sur votre chantier. Largement utilisé dans un certain nombre d'industries, notamment l'exploitation minière à ciel ouvert, le recyclage, le concassage, les agrégats, l'aménagement de sites, la démolition et l'aménagement paysager. Ce crible est construit pour durer, fait pour durer et supportera tout ce que vous pouvez lui lancer.

Les barres de terrasse boulonnées réglables avec une option d'espacement minimum de 1" (barres de terrasse supplémentaires requises) et un maximum de 5" sont adaptables pour répondre à vos besoins, avec un espacement standard de 3". Ces Les barres ont une conception autonettoyante en forme de losange qui nécessite peu ou pas d'entretien.Couramment utilisé pour trier les matériaux surdimensionnés avant le criblage ou le concassage, et la pente de 37° permet aux roches et aux débris de tomber directement sur le sol au lieu d'encombrer votre zone de travail.

Les poutres en I de 4" x 4" et le cadre principal en tubes carrés sont revêtus de poudre et résistants à la rouille, à l'usure et à la corrosion. La grande zone de tamisage de 12' x 9' sépare vos profits de vos déchets et fait le travail plus rapidement. Rapide à assembler, la conception de construction de résistance industrielle a une capacité de travail de 5000 lb pour vos travaux les plus gros et les plus difficiles.

Nous proposons également un modèle plus petit de cet écran : TMG-RS10

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal shipping crate
  • Shipping dimension: 144” x 30” x 42” (L x W x H)
  • Shipping weight: 3075 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Richmond, BC, or Mississauga, ON
