SKU TMG-HB150Q

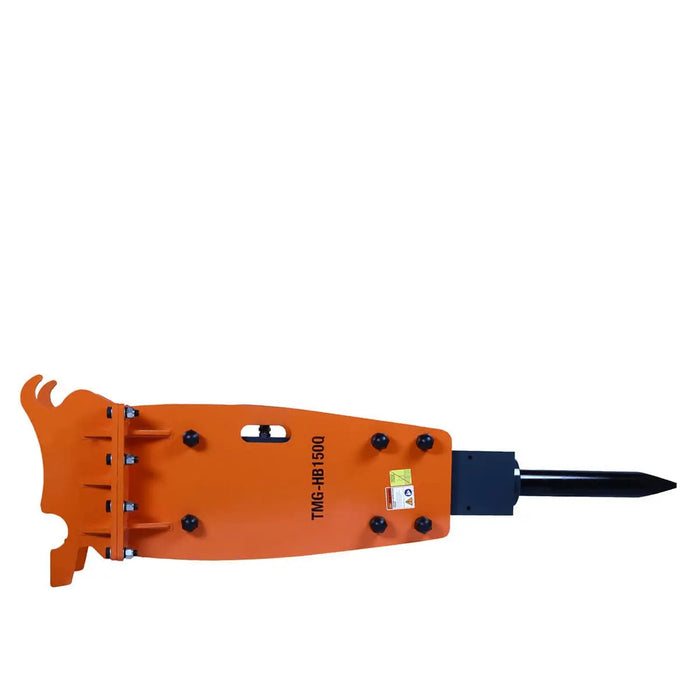

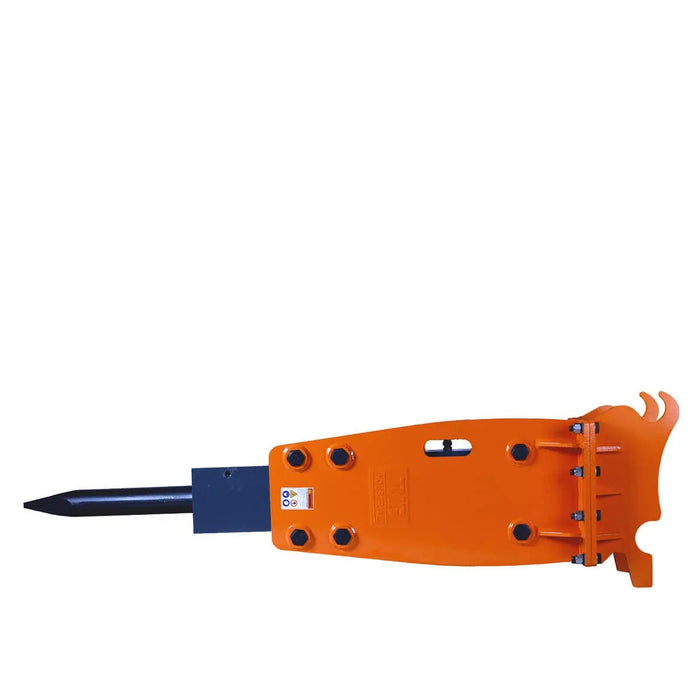

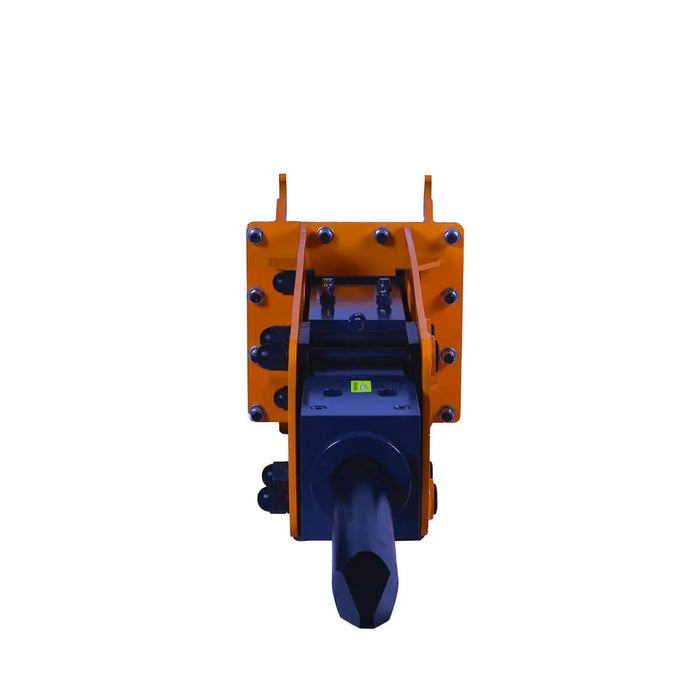

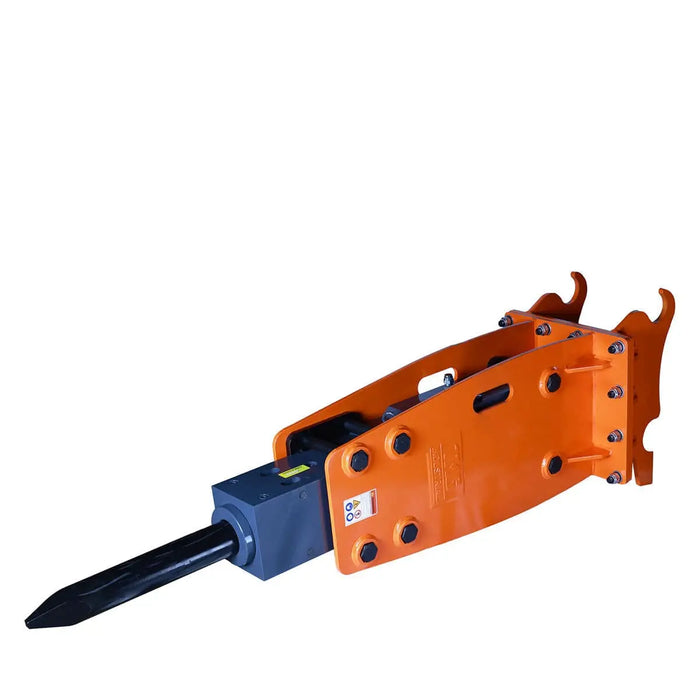

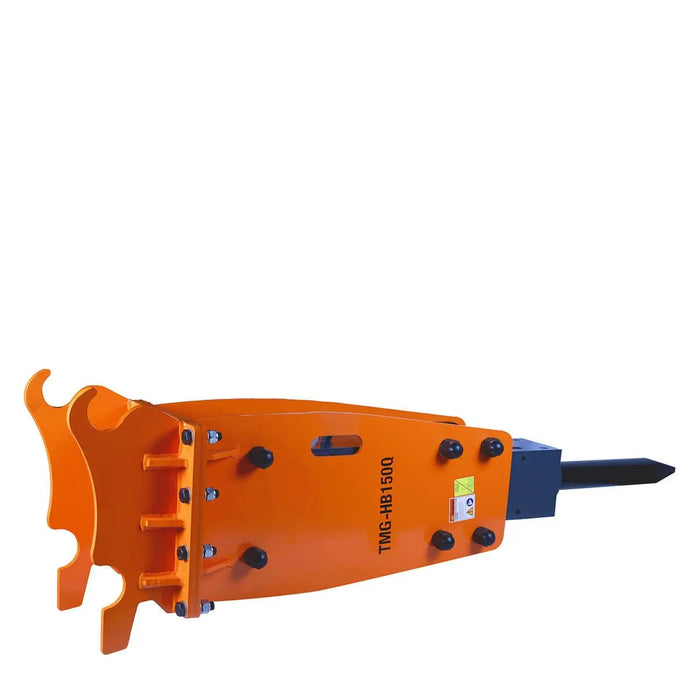

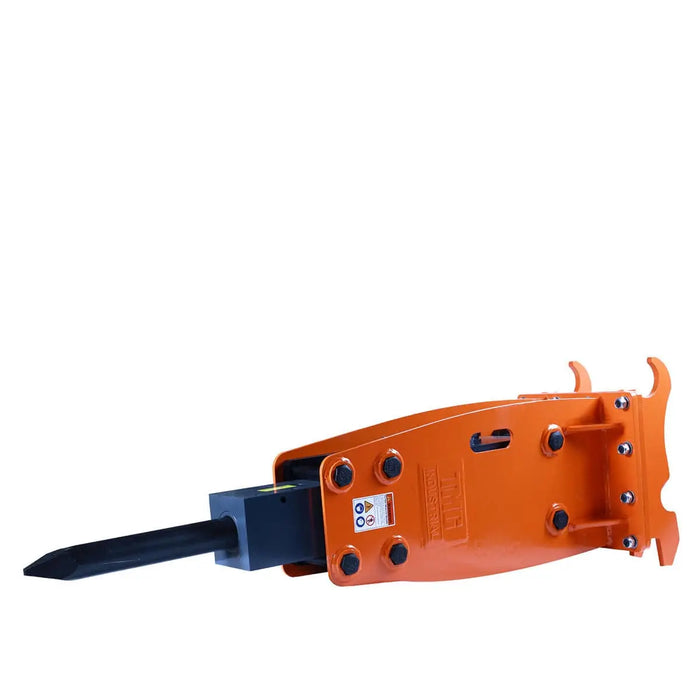

TMG-HB150Q 10 to 15 Ton Q/C Excavator Hydraulic Hammer Breaker, 4'' (100mm) Moil Point Chisel, 1960 Joules Impact Energy, 400-700BPM

Original price $6,450.00 - Original price $6,450.00
Original price
$6,450.00
$6,450.00 - $6,450.00
Current price $6,450.00
CURRENTLY IN STOCK
FREE SHIPPING IN CANADA* Learn More
1860.0 lb
73 x 29 x 27 inches
More Shipping Info
  • Maximized power-to-weight ratio breaking strength
  • The nitrogen-charged operation provides superior breaking efficiency
  • Bottom tie rod bolted design offers easy maintenance
  • Tool bushing for quick, easy replacement

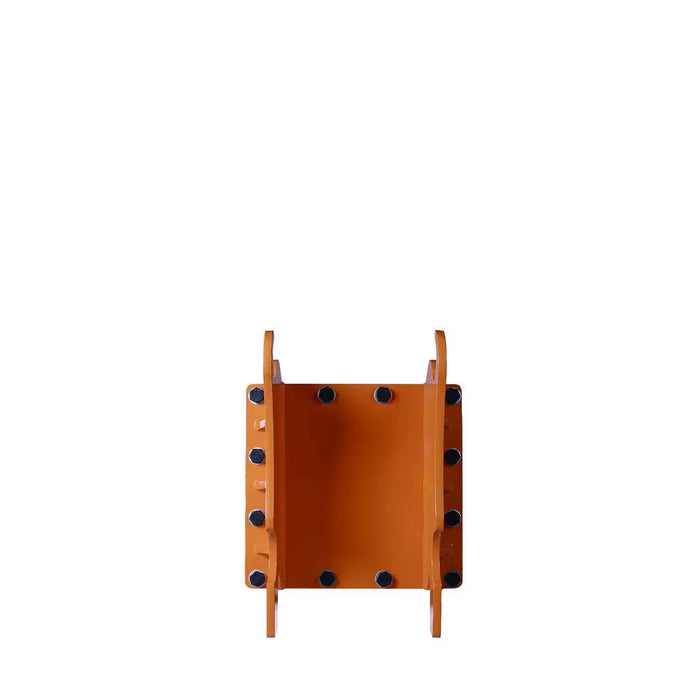

  • Quick-change (Q/C) lugging profile
Product Manual

Features + Benefits

  • Maximized power-to-weight ratio breaking strength
  • The nitrogen-charged operation provides superior breaking efficiency
  • Bottom tie rod bolted design offers easy maintenance
  • Tool bushing for quick, easy replacement
  • Quick-change (Q/C) lugging profile

Specifications

  • Operating weight: 1600 lb
  • Working pressure: 2200-2500 PSI
  • Working flow: 21-32 GPM
  • Impact rate: 400-700 BPM
  • Impact energy: 1960 joules
  • Chisel diameter: 4''
  • Hydraulic hose diameter: 3/4”

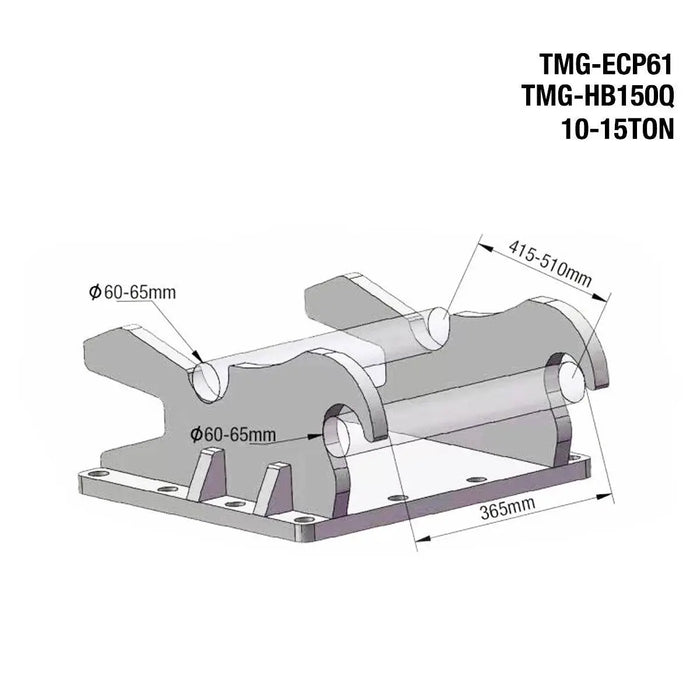

  • Ear spacing - inside: 13.9''
  • Ear spacing - outside: 15.9''
  • Pin center to center: 18.3''

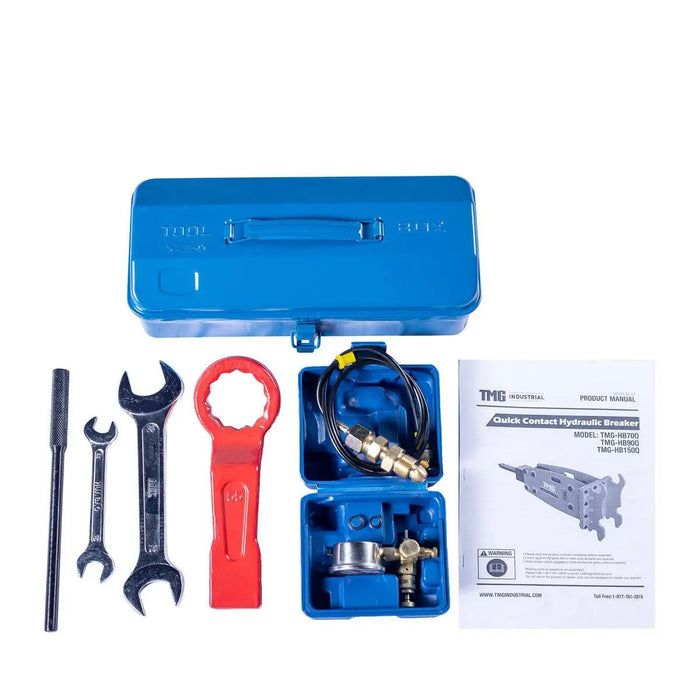

Includes:

  • (1) 4'' (100mm) moil point chisel
  • (2) 3/4” hydraulic hose with NPT fitting
  • (1) nitrogen charge kit with CGA580 cylinder adaptor
  • (1) service tool kit

Shipping Information

  • Packed in one metal shipping crate
  • Shipping dimension: 73” x 29” x 27”
  • Shipping weight: 1860 lb
Shipping from Richmond, BC

Product Description

The TMG Industrial 10 to 15-ton quick-change (Q/C) excavator hydraulic hammer breaker is designed for heavy-duty use. The 4'' (100mm) moil point chisel can handle both medium and heavy jobs and is widely used for demolition, landscaping, and excavation sites. An impact rate of 400-700 BPM combined with 2200-2500 psi working flow pressure makes this a versatile and efficient breaking hammer.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
