8-ft Tractor Swing Backhoe Attachment, 180° Boom and Bucket Rotation, 12" Bucket Included TMG-TBH88

TMG Industrial 8-ft Tractor Swing Backhoe Attachment, Category 1 Hookup, 180° Boom and Bucket Rotation, 12” Bucket Included, TMG-TBH88
CURRENTLY IN STOCK
SKU TMG-TBH88
$7,599.00 CAD
$7,599.00 CAD - $7,599.00 CAD
$7,599.00 CAD
$6,199.00 CAD
$6,199.00 CAD - $6,199.00 CAD
$6,199.00 CAD
$7,599.00 CAD Save $1,400.00 CAD
$6,199.00 CAD

FREE

shipping to most locations in

Canada
Delivered in 10 to 15 business days Learn More
1-877-761-2819
Product Image 1 Product Image 2 Product Image 3
Product Manual
Find Parts

Features

Feature Image

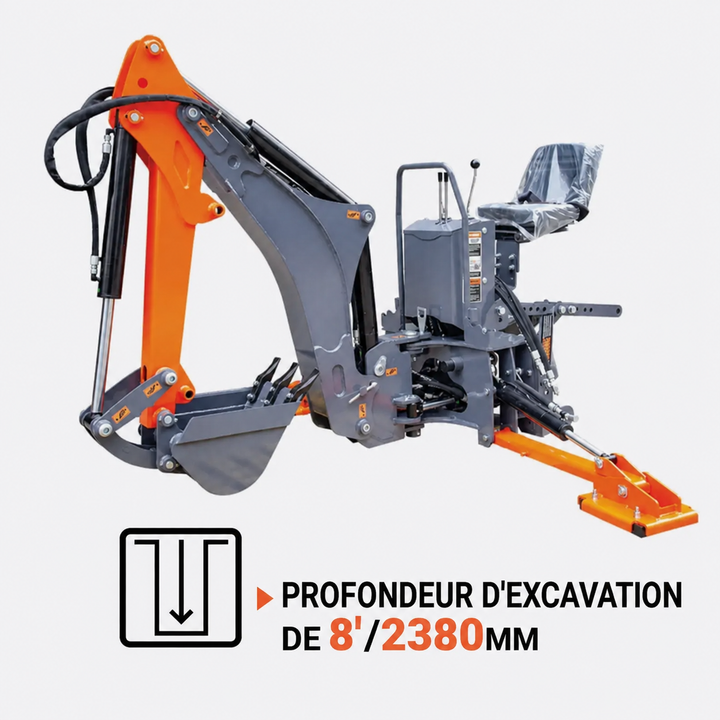

2380 mm (8’) of digging depth for easy access to hard-to-reach areas
Feature Image

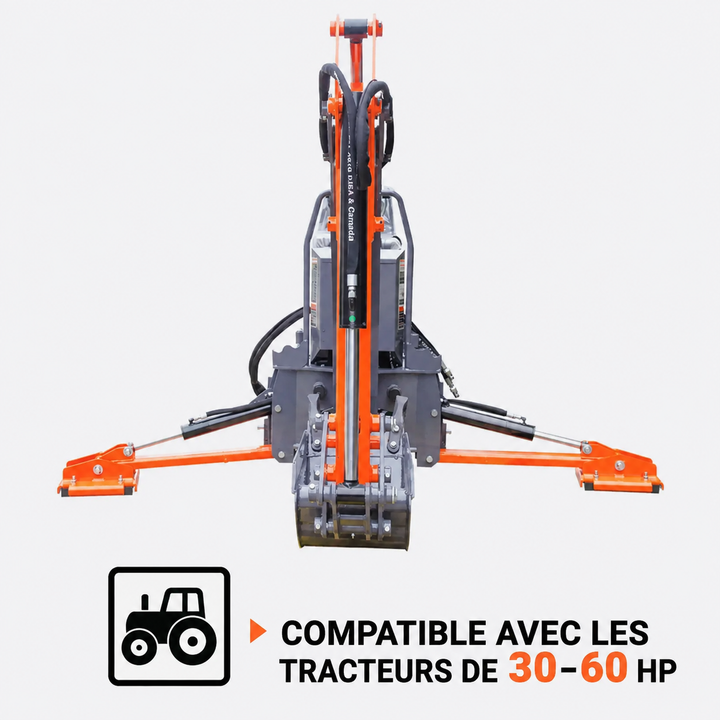

Compatible with 30 – 60 HP tractors and includes 305 mm (12") digging bucket
Feature Image

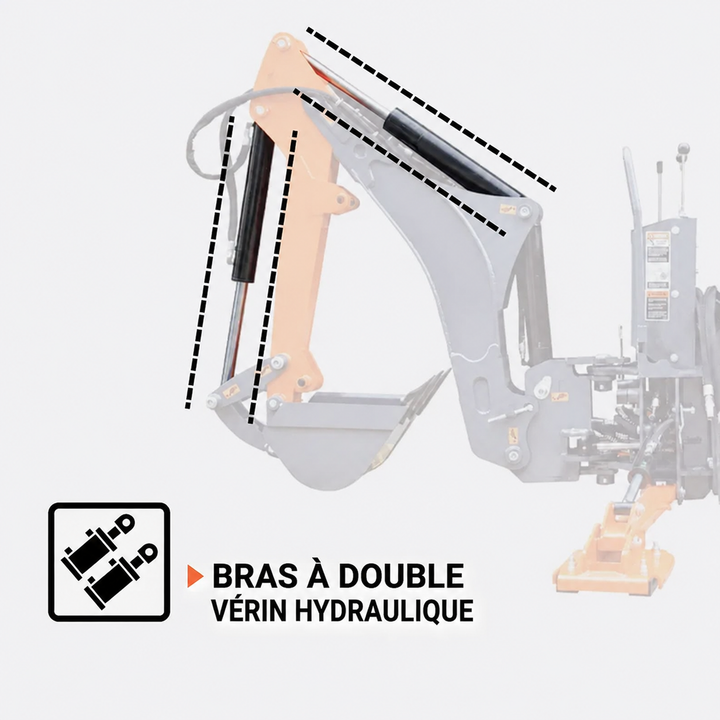

Dual hydraulic cylinder arm provides 180° bucket rotation and high force
Feature Image

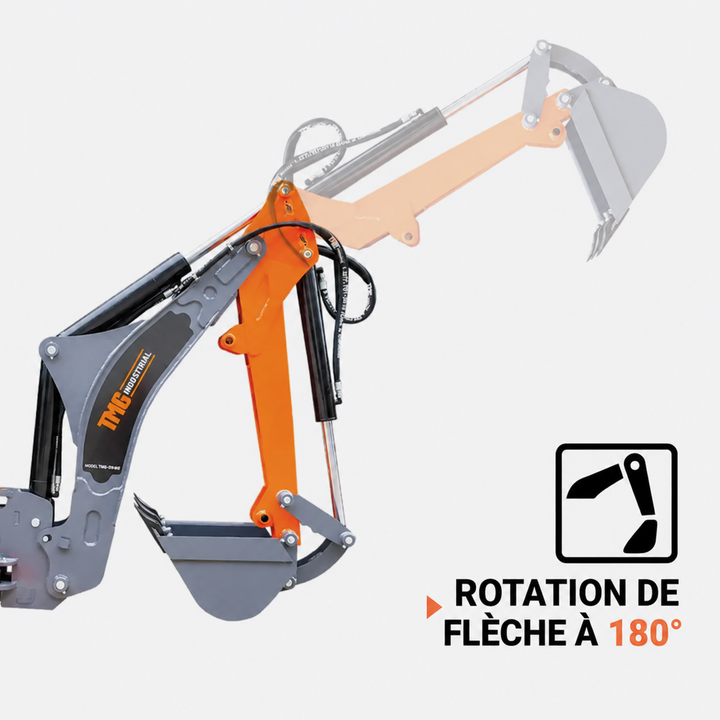

Extensive reach capacity in all directions with 180° of boom swing
Feature Image

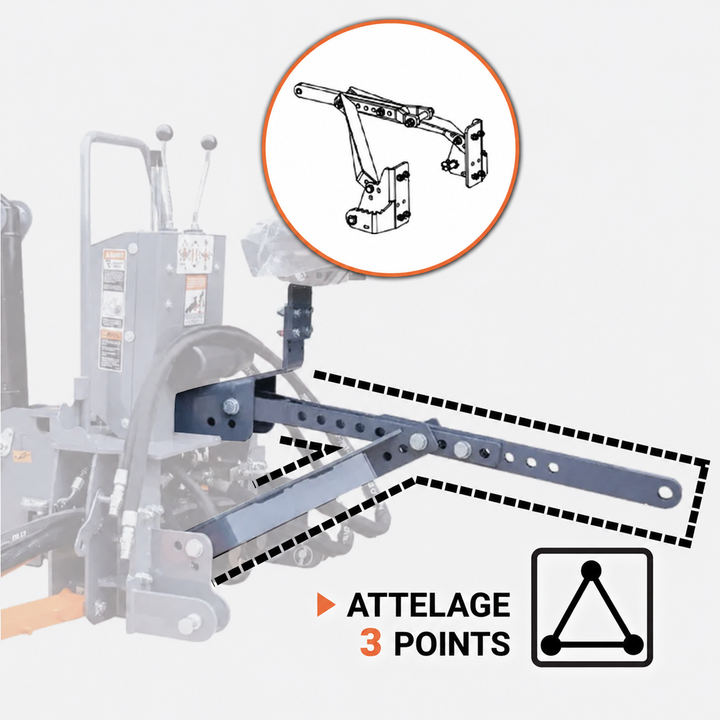

3-point hitch fits most Category 1 tractors for easy attachment
Feature Image

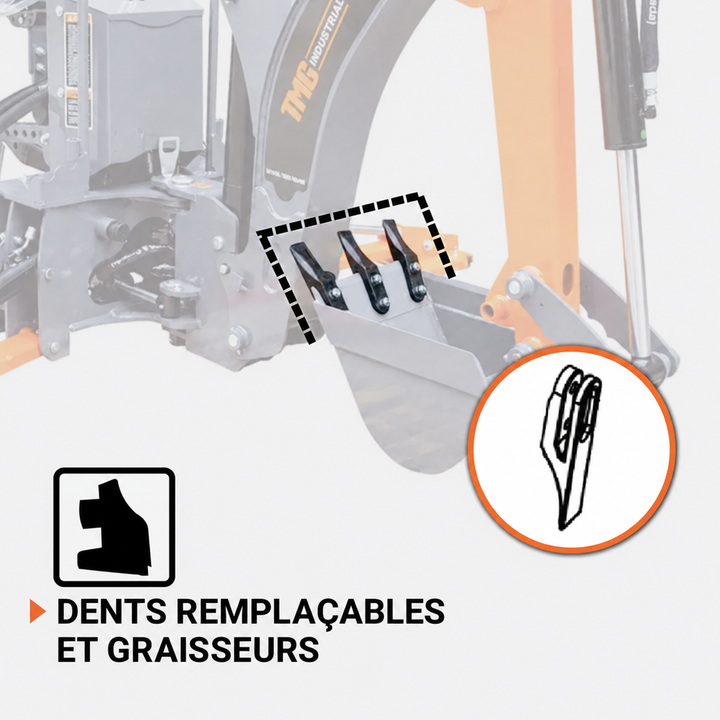

Replaceable teeth and grease fittings allow durable, low-maintenance operation

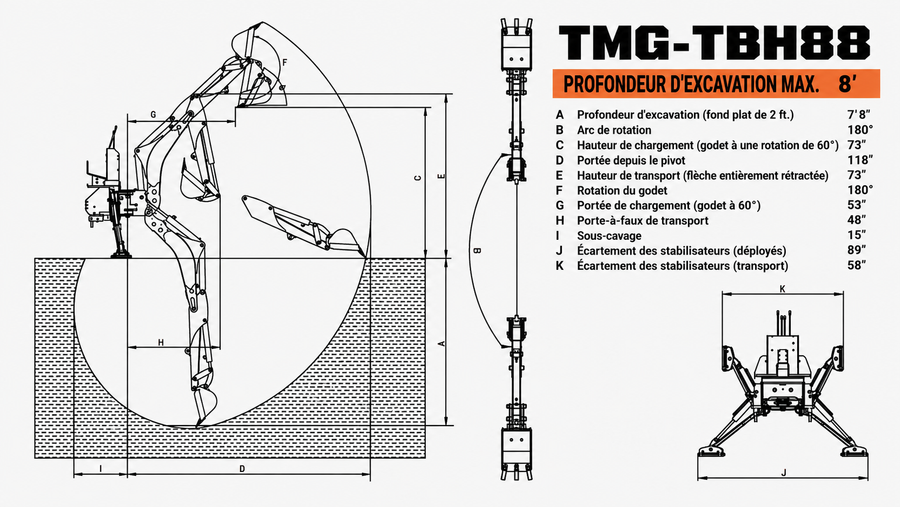

Specifications

  • Digging depth (2 ft. flat bottom): 7’8”
  • Overall operating height (fully raised): 112”
  • Reach from swing post: 118”
  • Loading height(bucket at 60° rotation) 72”
  • Dipper boom digging force: 2054 lb
  • Bucket digging force: 3187 lb
  • Transport height (with boom fully retracted): 72”
  • Transport width (with stabilizers up): 58”
  • Transport length: 71”
  • Ground clearance: 10”-12”
  • Transport Weight (base unit only-no bucket or mounts): 820 lb
  • Bucket rotation: 180°
  • Swing arc: 180°
  • Stabilizer width (Spread): 88”
  • Stabilizer width (Transport): 58”
  • Operating pressure: 2320 PSI
  • Hydraulic volume requirements: 5-14 GPM
  • Recommended tractor requirements: 30-60HP
  • Flow divider included: Yes
  • Bucket sizes available: 12”
  • 3-point hitch
  • Category 1 hookup
  • Self-contained gear pump (TMG-TBH90-J): sold separately
8-ft Tractor Swing Backhoe Attachment, 180° Boom and Bucket Rotation, 12

Product Description

The TMG-TBH88 Tractor Swing Backhoe Attachment is a great tool for all your digging and excavation needs. With a digging depth of 7’8", it is designed to truly revolutionize your productivity and efficiency on the job. It has a dynamic reach capacity in all directions, allowing you to cover a large area without the hassle of constantly relocating your setup. Compatible with 30-60 HP tractors, it comes complete with a 12" bucket, making it perfect for tasks like digging ditches, installing sprinkler systems, and landscaping projects.

What sets the TMG-TBH88 apart is its precision-engineered Italian hydraulic control valves, which optimize hydraulic distribution for impeccable timing and work performance. The well-gusseted dual hydraulic cylinder arm and bucket linkage provide high breakout force, burrowing power, and a full 180° of bucket rotation.

Maintenance is made easy with replaceable bushings, replaceable bolt-on cast teeth, and grease fittings on all pivot points. The stabilizer legs are designed with removable/replaceable rubber street pads to prevent damage to lawns, blacktop and concrete. For tractors not equipped with hydraulic auxiliary system, an optional external self-contained hydraulic pump is also available for efficient energy transmission and to maximize digging force (sold separately).

Shipping Information

The order will ship from one of our warehouses in Canada or the United states. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 75” x 29” x 49” (L x W x H)
  • Shipping weight: 1,150 lb
