TMG 40mm Electric Rebar Bender, PLC Controlled Dual Speed High Capacity with Foot Pedal Aller au contenu
CURRENTLY IN STOCK
TMG-FRB40E

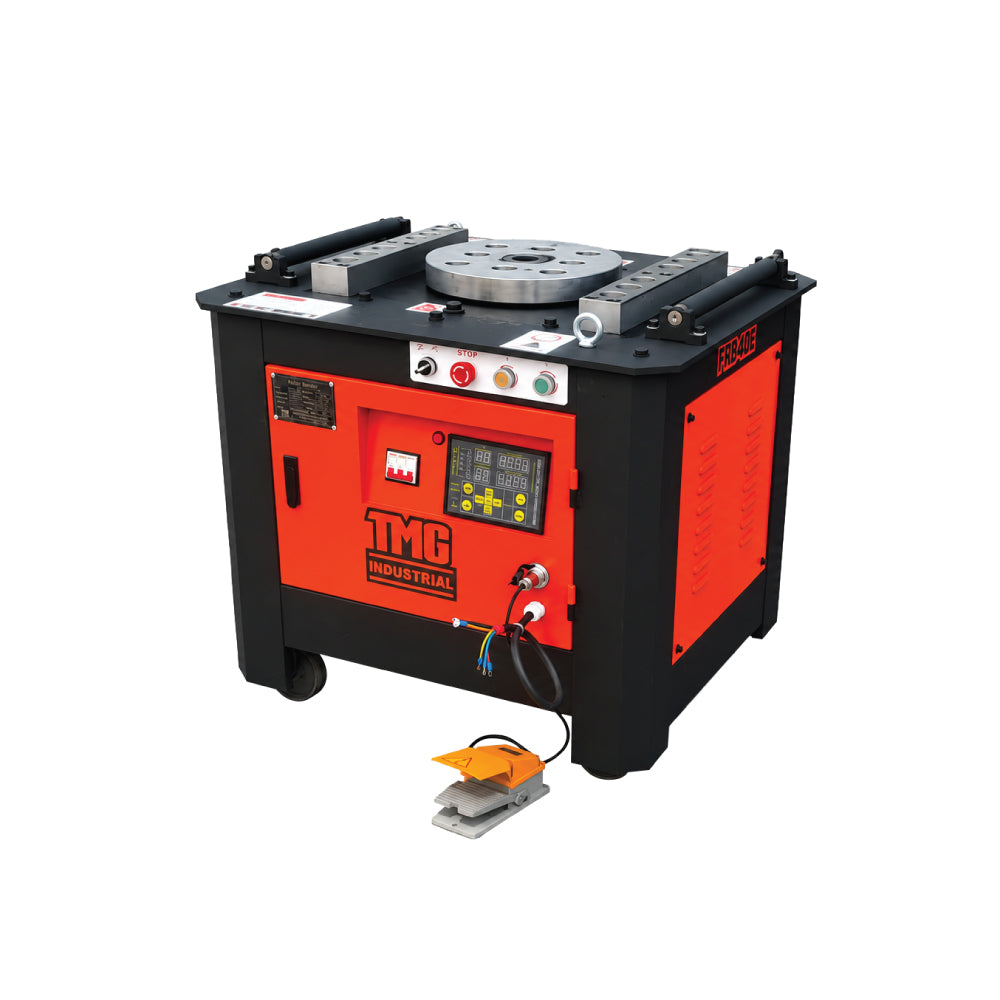

40mm Electric Rebar Bender, PLC Controlled Dual Speed High Capacity with Foot Pedal TMG-FRB40E

40mm Electric Rebar Bender, PLC Controlled Dual Speed High Capacity with Foot Pedal TMG-FRB40E
CURRENTLY IN STOCK
SKU TMG-FRB40E
$3,299.00 CAD - $3,299.00 CAD
$3,299.00 CAD
$3,299.00 CAD - $3,299.00 CAD
$3,299.00 CAD
$3,299.00 CAD

FREE

shipping to most locations in

Canada
Delivered in 10 to 15 business days Learn More
1-877-761-2819
Product Manual
Find Parts

Features

  • Precision PLC Control: The integrated numerical control system allows for automated bending at 90 and 135 degrees with accuracy.
  • High-Capacity Bending: Effortlessly handle rebar up to 40mm, providing versatile support for heavy-duty industrial and construction projects.
  • Dual Speed Operation: Switch between 5 and 10 RPM to balance high-speed production with precision for complex structural shapes.
  • Convenient Foot Pedal: Hands-free operation via the included foot pedal enhances onsite safety and allows for better material handling.
  • Rugged Metal Construction: Built with an 8mm thick metal desktop and durable housing to withstand demanding jobsites and shops.
  • Comprehensive Accessory Kit: Comes complete with central fingers, peripheral fingers, and winding rollers to suit various radius bending needs.

Specifications

  • Maximum Bending Capacity (Grade 240): 40mm (1.57")
  • Maximum Bending Capacity (Grade 400): 32mm (1.26")
  • Minimum Bending Diameter: 6mm (0.24")
  • Bending Speed: 60° /sec
  • Range of Bending Angles: 0 – 180°
  • Bending Angle Error Range: ±1°
  • Disk Rotation Speed: 5 – 10 RPM
  • Motor Certification: UL (U.S. & Canada)
  • Motor Rated Power: 3.0 kW (4.0 HP)
  • Rated Voltage: 220V 60Hz (Three Phase)
  • Desktop Thickness: 8mm (0.31")
  • Lubricating Oil Capacity: 14 – 16L (3.7 – 4.2 Gallons)
  • Peripheral Finger Diameter (Min/Max): 40 / 43mm (1.57"/1.69")
  • Central Finger Diameters: 25/40mm (0.98"/1.57"), 30/40mm (1.18"/1.57"), 35/40mm (1.38"/1.57")
  • Rolling Roller ID / OD: 43/60mm (1.69"/2.36"), 43/70mm (1.69"/2.76"), 43/80mm (1.69"/3.15"), 43/98mm (1.69"/3.86")
  • Included Parts / Accessories:
    Foot Pedal
    Peripheral Fingers: 3
    Central Fingers: 3
    Winding Rollers: 4
    Encoder and PLC panel for angle setting: 1

Product Description

The TMG-FRB40E 40mm Electric Rebar Bender is a powerhouse designed for efficiency and precision in modern construction. Equipped with an advanced PLC control system, this machine simplifies the complex task of shaping steel reinforcement bars. Whether you are creating standard 90-degree stirrups or custom 180-degree hooks, the numerical control interface ensures a consistent bending angle error range of only ±1°. Its dual-speed motor and belt-drive system provide the reliability needed for high-volume fabrication shops and large-scale infrastructure projects.

Safety and versatility are at the core of this bender's design. The unit features an emergency stop button, leakage protection, and a foot pedal for hands-free control, allowing operators to maintain focus on the material. The heavy-duty metal desktop and high-hardness bending components ensure longevity even when processing high-strength HRB400 rebar. With a complete set of peripheral and central fingers included, the TMG-FRB40E is ready to tackle a wide variety of diameters and radii right out of the box, making it an essential tool for any professional contractor.

Shipping Information

The order will ship from one of our main warehouses in Canada. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a wood crate shipping box.
  • Shipping Dimensions: 39" x 36" x 32"
  • Shipping Weight: 365 kg (805 lbs)
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
40mm Electric Rebar Bender, PLC Controlled Dual Speed High Capacity with Foot Pedal TMG-FRB40E-shipping-info-image

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
