CURRENTLY OUT OF STOCK
SF-SP100A

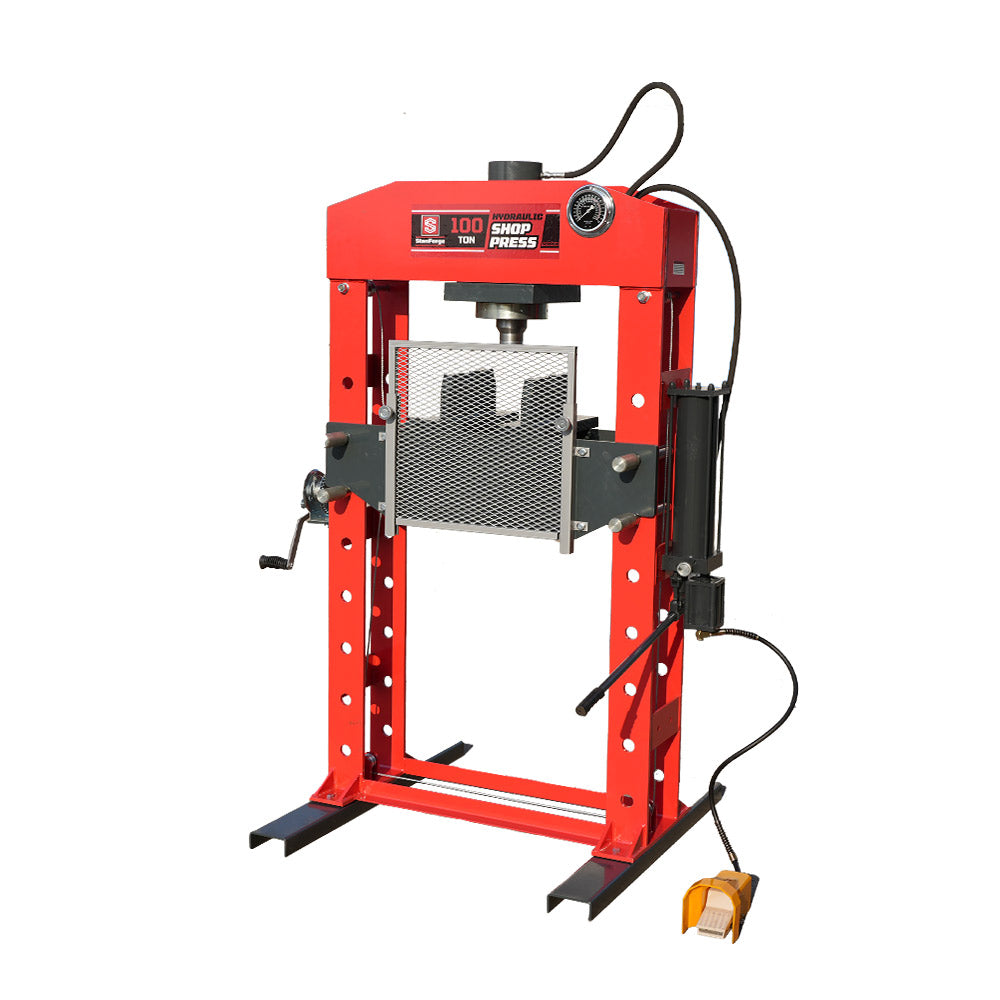

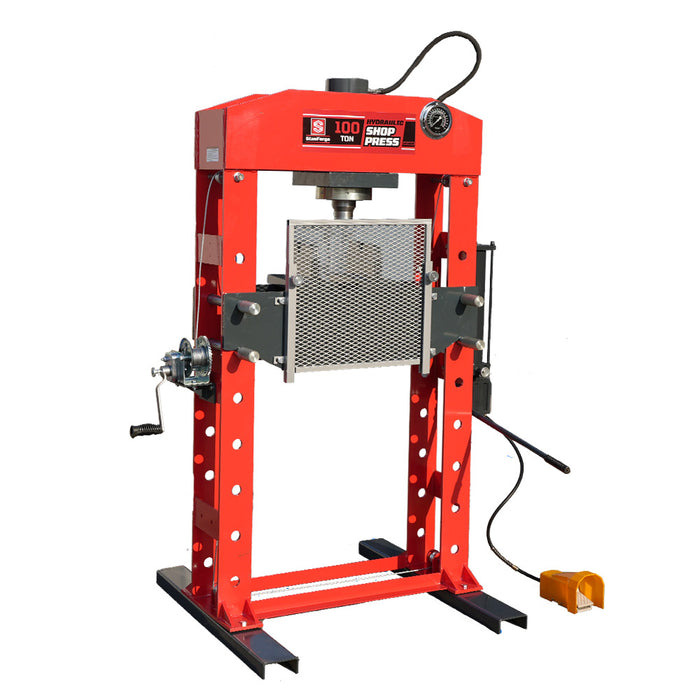

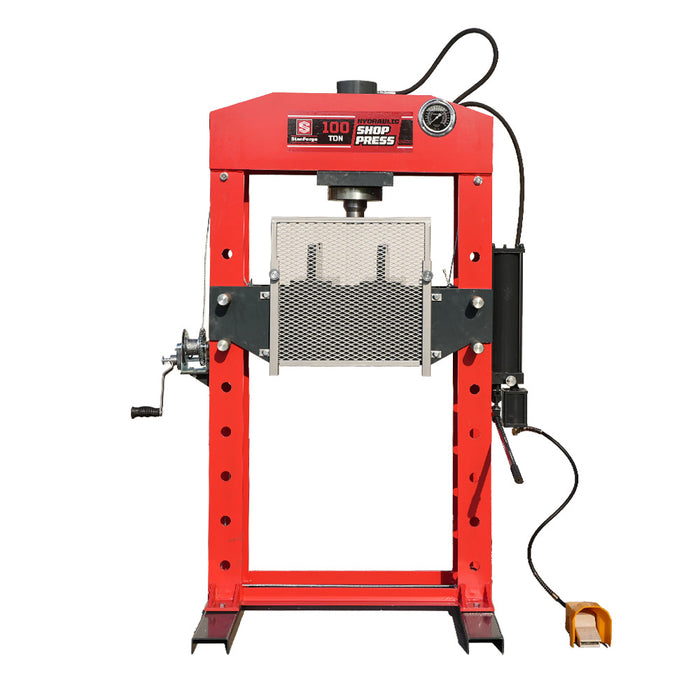

100 Ton Capacity Hydraulic Shop Press, Heavy Duty Pressing, Protective Grid Guard, Fully Welded H-Frame, Air & Manual Dual Operation, SF-SP100A

100 Ton Capacity Hydraulic Shop Press, Heavy Duty Pressing, Protective Grid Guard, Fully Welded H-Frame, Air & Manual Dual Operation, SF-SP100A
CURRENTLY OUT OF STOCK
SKU SF-SP100A
$0.00 CAD - $0.00 CAD
$0.00 CAD
$7,359.00 CAD
$7,359.00 CAD - $7,359.00 CAD
$7,359.00 CAD
$7,359.00 CAD

FREE

shipping to most locations in

Canada
Delivered in 10 to 15 business days Learn More
1-877-761-2819
Find Parts

Features

  • Enhanced Pressing Power: Driven by a 100-ton capacity, the TMG-SP100 delivers exceptional power for demanding heavy-duty pressing applications.
  • Versatile Operation: The dual hydraulic cylinder supports both pneumatic (air-powered, 110-125 PSI) and manual operation, offering flexibility and precise control.
  • Robust Construction: Fully welded heavy-duty H-frame construction ensures superior rigidity, durability, and long service life in demanding shop environments.
  • Precise Monitoring: An oil-filled pressure gauge is clearly readable in both US and metric tons, allowing accurate force monitoring during operation.
  • Shortened Press Cycles: The air and hydraulic pump, activated by the included foot pedal, reduces cycle time and improves efficiency.
  • Ergonomic Adjustments: Features a steel cable crank winch with a safety clutch for easy and precise adjustment of the press bed.
  • Adjustable Working Range: Seven height positions provide flexibility to accommodate various pressing tasks and workpiece sizes.
  • Safety Enhancements: Equipped with an overload press valve and a protective grid guard for enhanced operational safety.
  • Included Accessories: Comes with robust pressing V-blocks for versatile use across different pressing applications.

Specifications

  • Assembled size: 59" (L) x 40" (W) x 79" (H)
  • Pressing force capacity: 100 ton
  • Air pressure: 110–125 PSI
  • Cylinder bore: 5"
  • Ram stroke: 11"
  • Side stroke: 9" each side
  • Bed depth: 11-3/4"
  • Bed width: 32"
  • Upright opening: 43-1/2"
  • Oil-filled pressure gauge: 4"
  • Protective grid guard
  • Pressing V-block: Included

Product Description

The SF-SP100A Hydraulic Shop Press is an essential piece of equipment for automotive shops, machining, metalworking, fabrication, and assembly operations. With an impressive 100-ton pressing capacity, it makes tasks such as pressing bearings onto shafts, stamping work, bending, and flattening metal safe, efficient, and easy.

This press features a fully welded heavy-duty H-frame construction and a protective grid guard, delivering excellent rigidity, durability, and long-term reliability in demanding shop environments.

A dual-operating hydraulic cylinder functions both pneumatically and manually, providing total operator control, steady ram speed, and smooth workflow. The steel cable crank winch reduces strain by eliminating excessive bending, allowing you to easily adjust the pressing bed up and down. Seven adjustable height positions provide flexibility to accommodate various workpiece sizes and job requirements.

Designed for heavy-duty applications such as gear and bushing removal, the press includes an overload valve to prevent operation beyond its rated capacity and twin springs to assist with piston rod retraction. The oil-filled gauge displays both US and metric tons, enabling accurate monitoring of pressing force during operation.

Shipping Information

  • This product is packed in a wooden crate shipping box.
  • Shipping dimensions: 77" x 45" x 24" (L x W x H), 196 x 114 x 61 cm
  • Gross weight: 1330 lb (602 kg)
Shipping from Richmond, BC, or Mississauga, ON
