CURRENTLY IN STOCK
TMG-ST2041PV

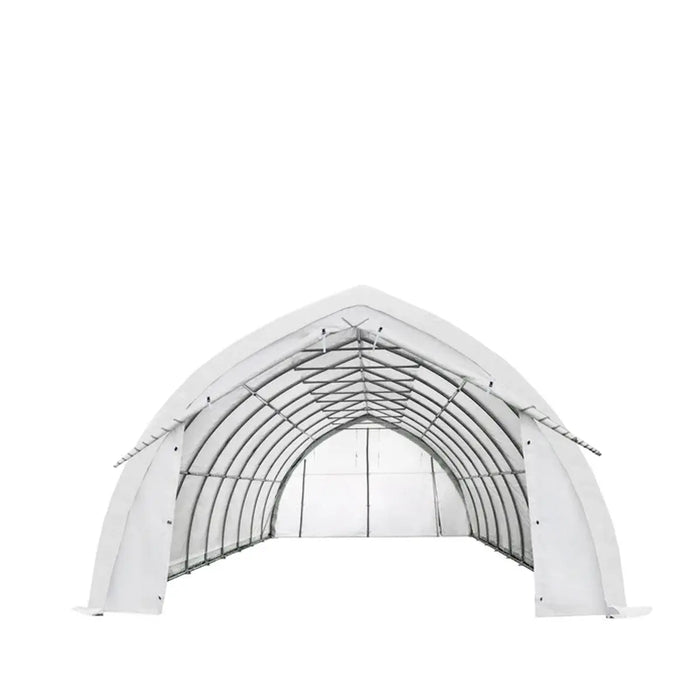

20' x 40' Arch Wall Peak Ceiling Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors, TMG-ST2041PV(Previously(ST2040PV)

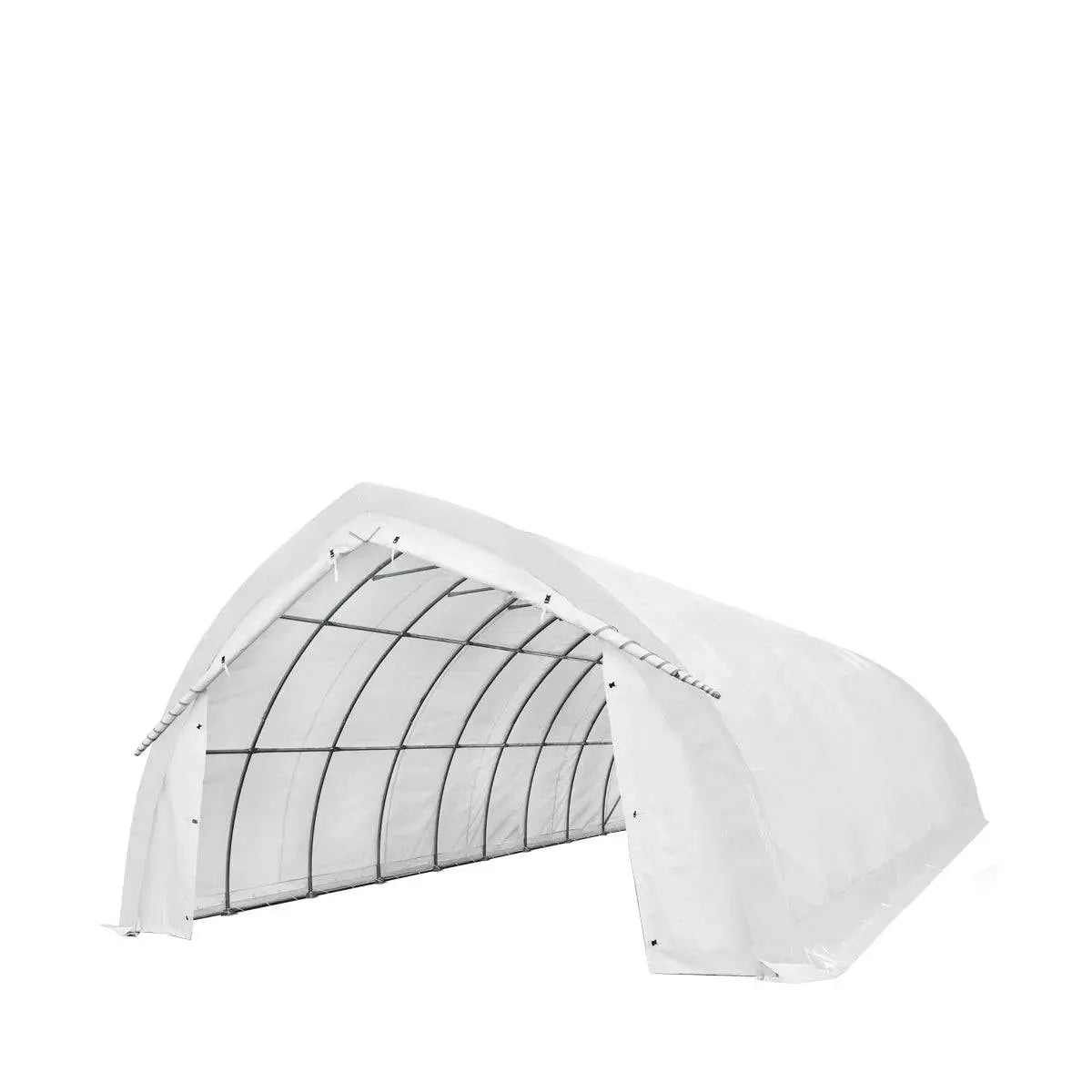

TMG Industrial 20' x 40' Arch Wall Peak Ceiling Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors, TMG-ST2041PV(Previously(ST2040PV)
CURRENTLY IN STOCK
SKU TMG-ST2041PV
$0.00 CAD - $0.00 CAD
$0.00 CAD
$4,499.00 CAD
$4,499.00 CAD - $4,499.00 CAD
$4,499.00 CAD
$4,499.00 CAD

FREE

shipping to most locations in

Canada
Delivered in 10 to 15 business days Learn More
1-877-761-2819
Product Image 1 Product Image 2 Product Image 3
Product Manual
Find Parts

Features

Feature Image

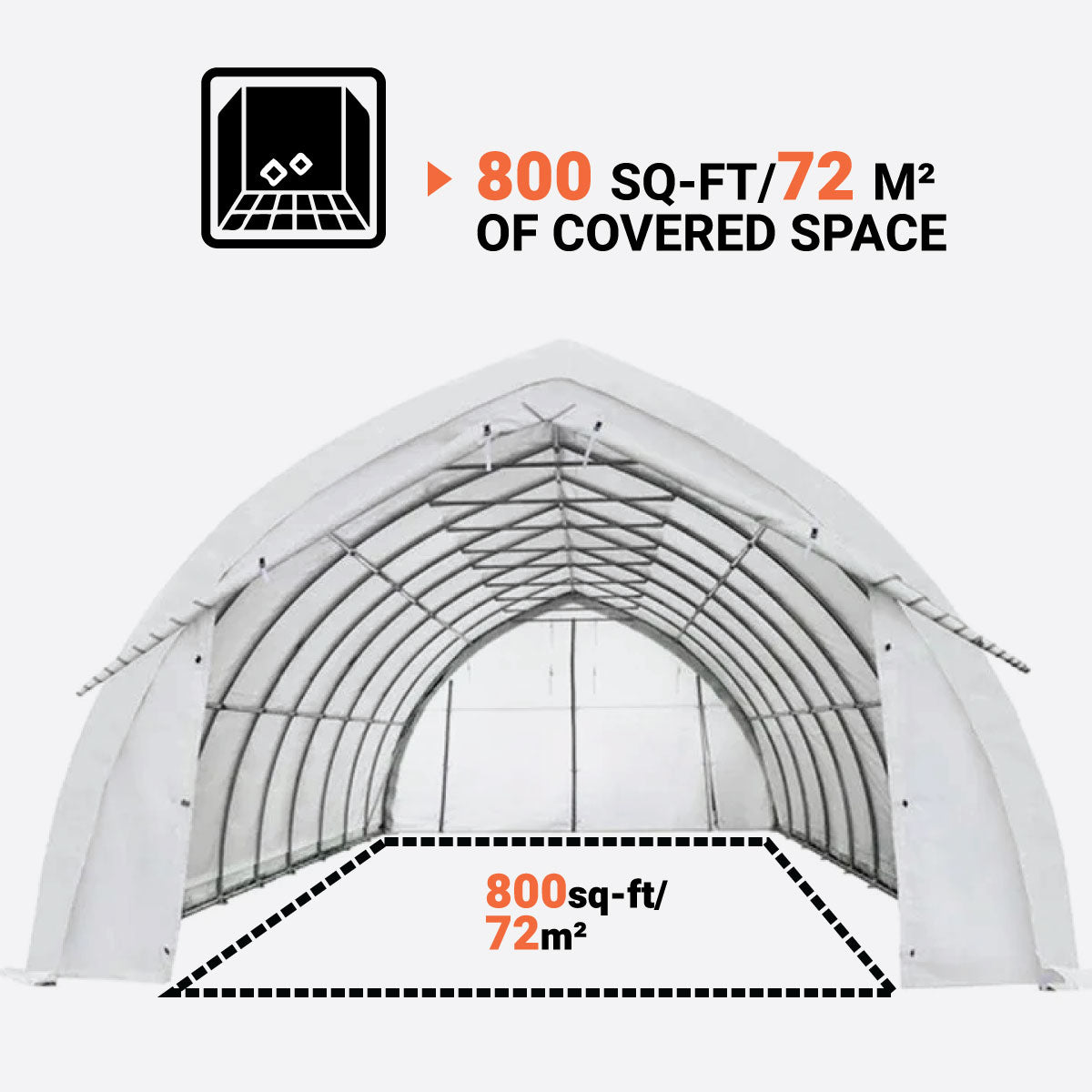

800 sq-ft (72 m²) of covered space for equipment, vehicles, and materials
Feature Image

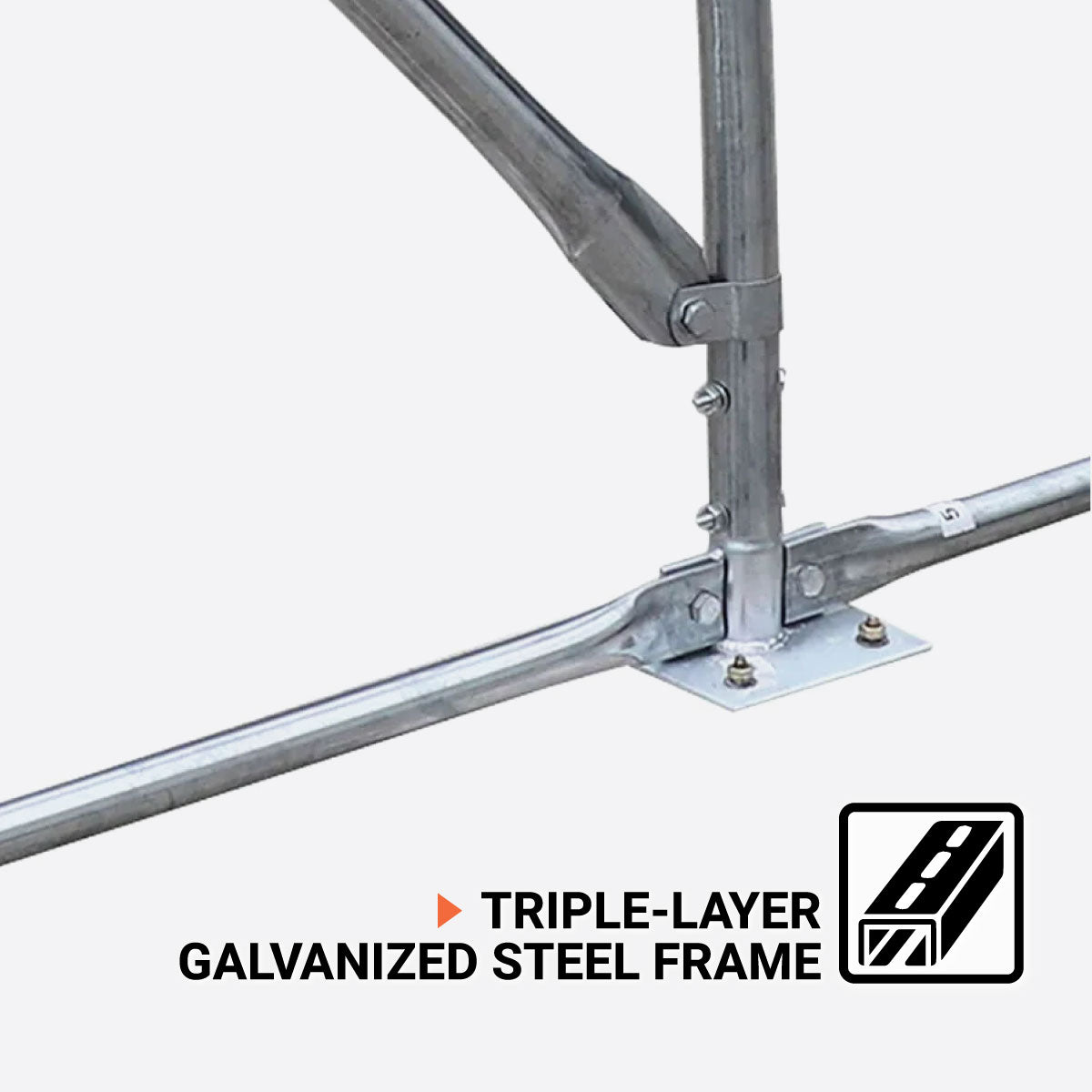

Triple-layer galvanized steel frame resists corrosion and harsh conditions
Feature Image

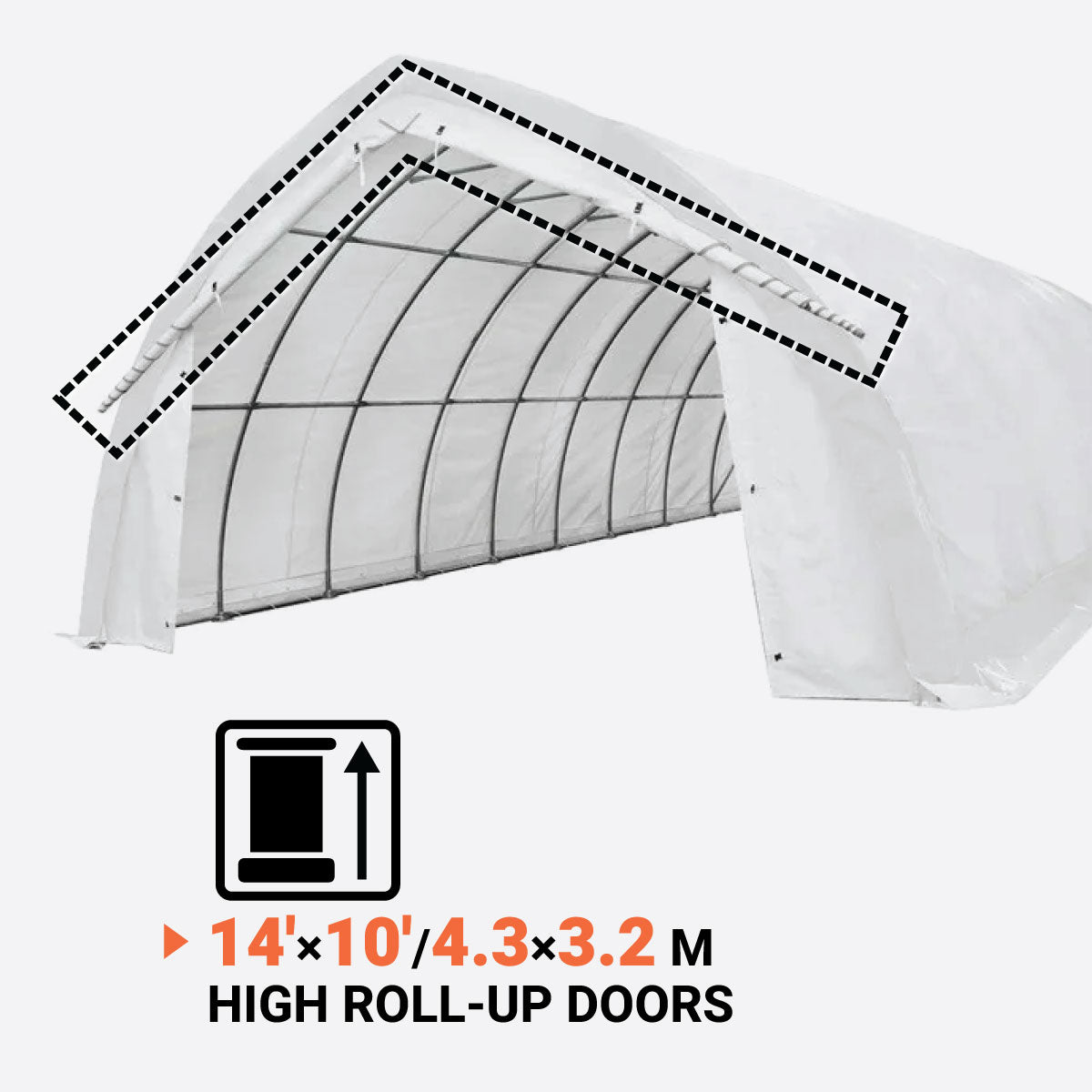

Large 14 ft (4.3 m) wide by 10 ft (3.2 m) high roll-up doors on both ends for drive-through access
Feature Image

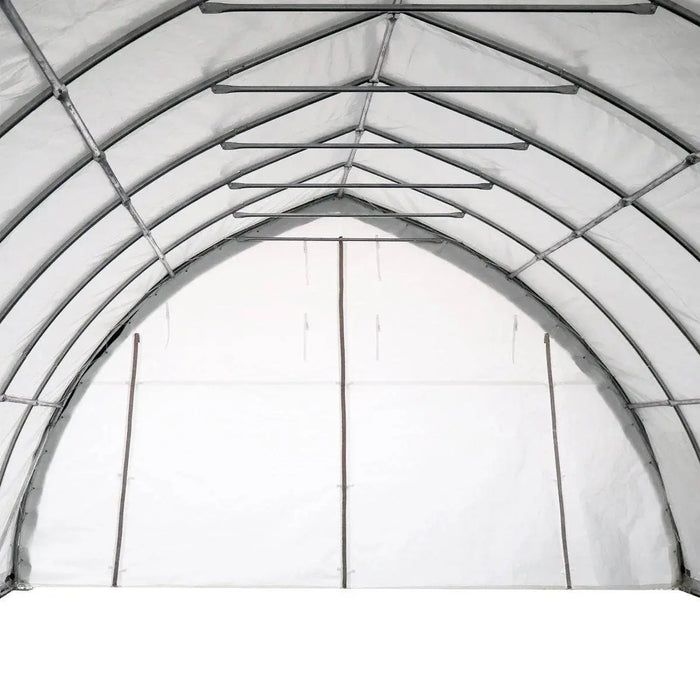

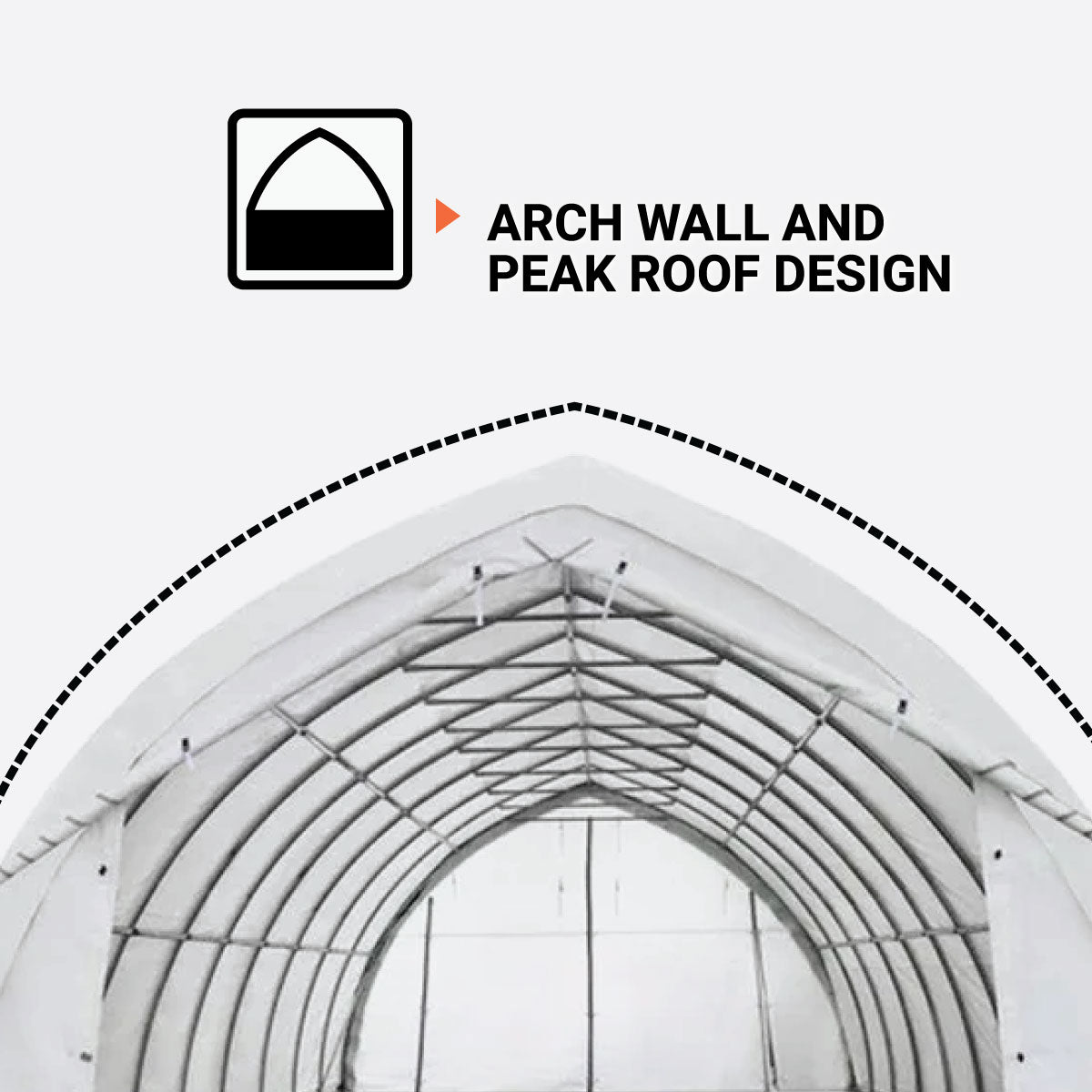

Arch wall and peak roof design with dirt skirts enhances stability and weather protection
Feature Image

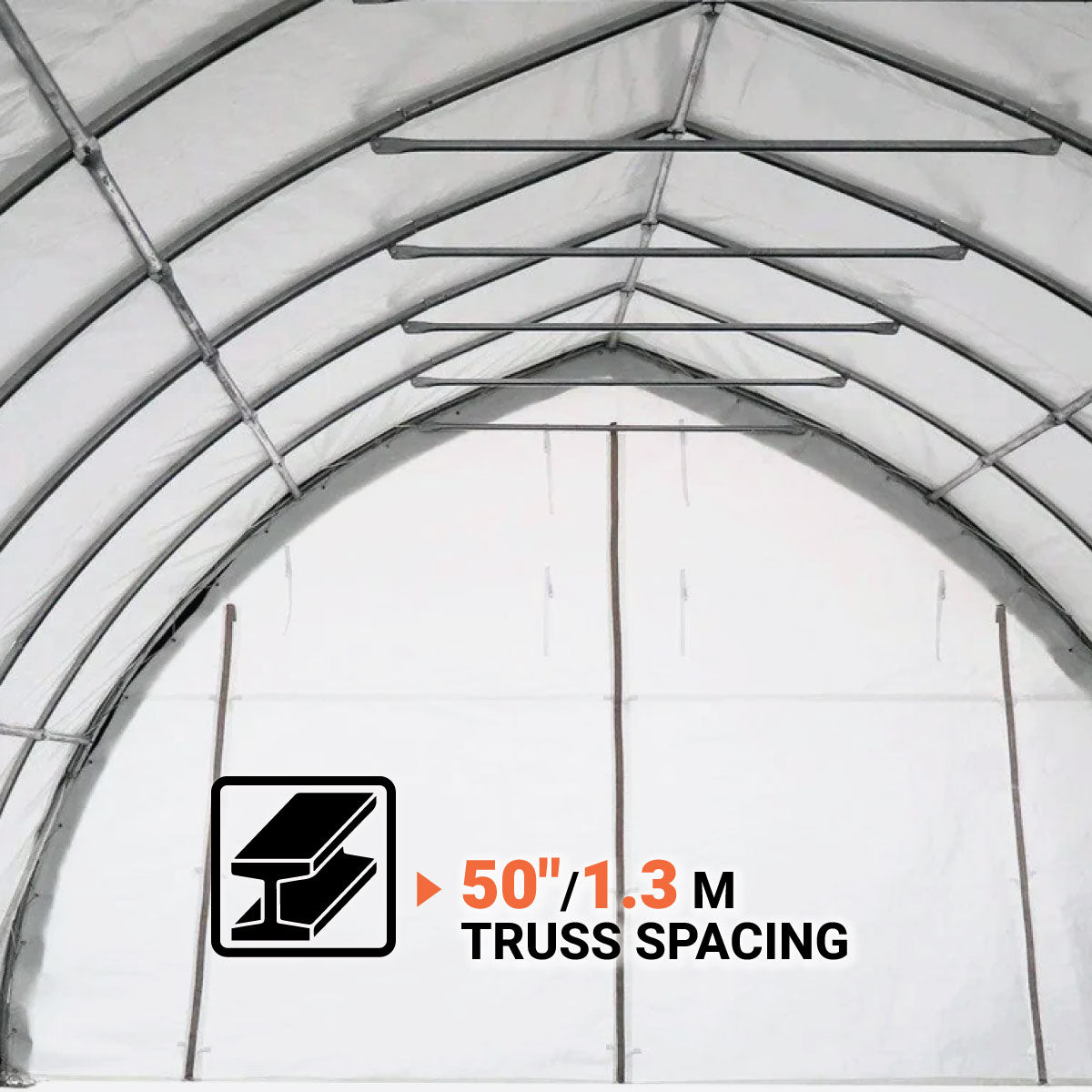

50” (1.3 m) truss spacing for maximum strength and stability
Feature Image

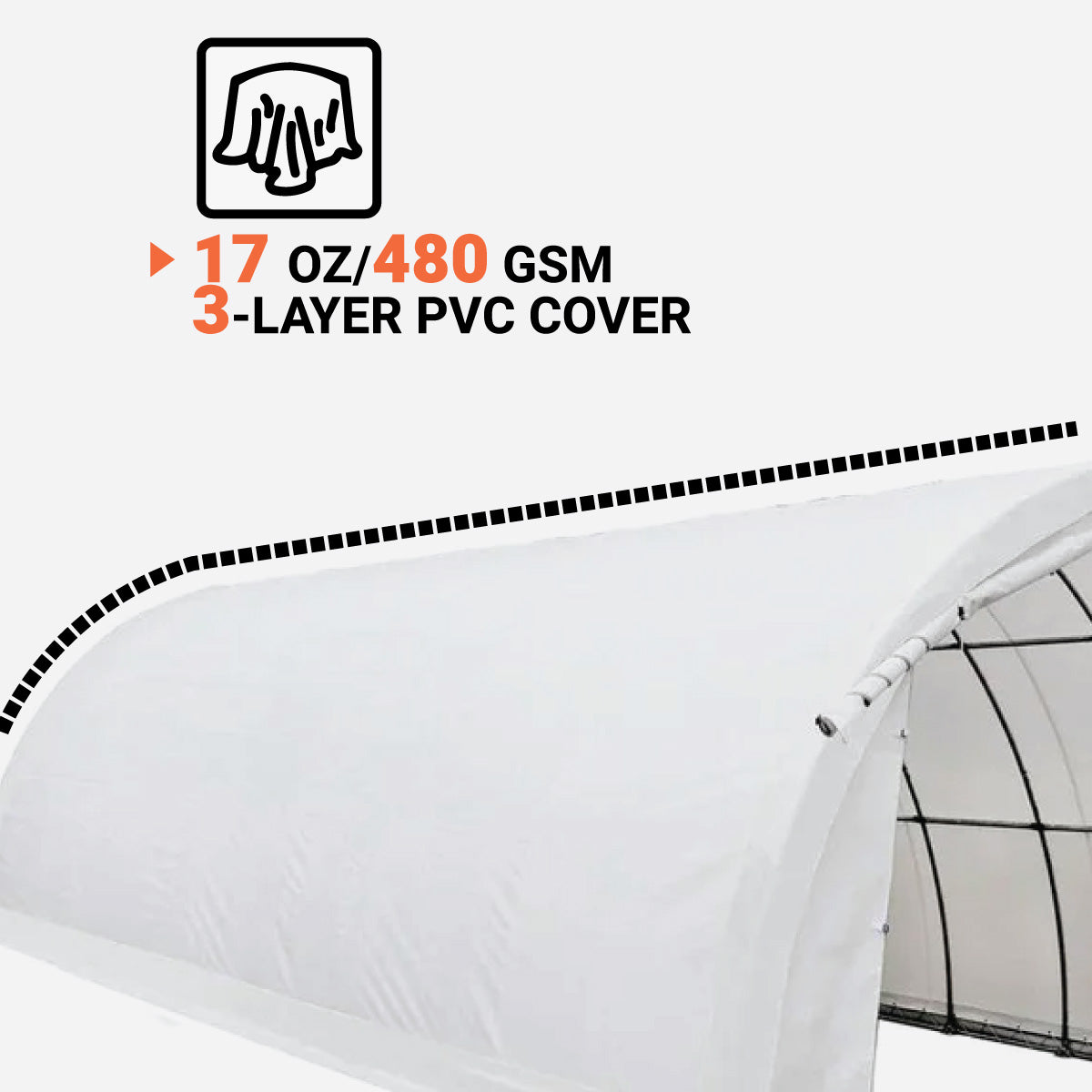

480 gsm heavy-duty 3-layer ripstop PVC cover is UV stabilized and flame-retardant.

Specifications

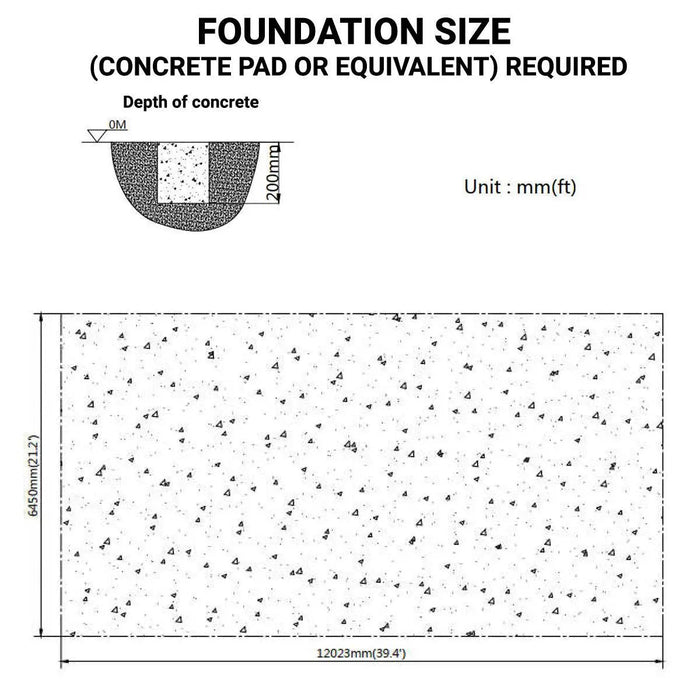

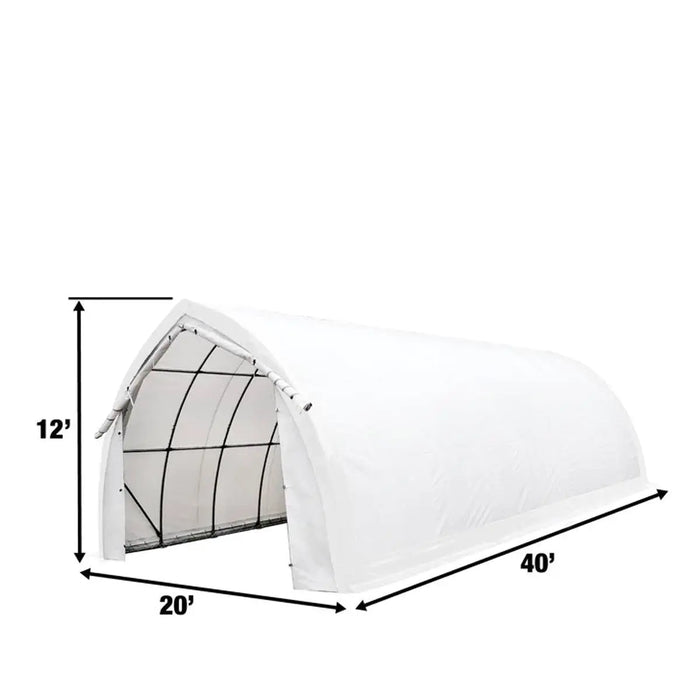

  • Foundation size required: 6450mm(21.2')(W) x 12023mm(39.4')(L)
  • Truss spacing: 50"
  • Truss quantity: 10 groups
  • Peak ceiling height: 12'
  • Truss and purlin tubes: 1.65” – 17 gauge (approx.)
  • Purlins on rafter: 45 of 5 rows
  • Door entry/exit clearance on both endwalls: 14’ wide at base and 10’ high
  • Cover material: 17 oz PVC fabric

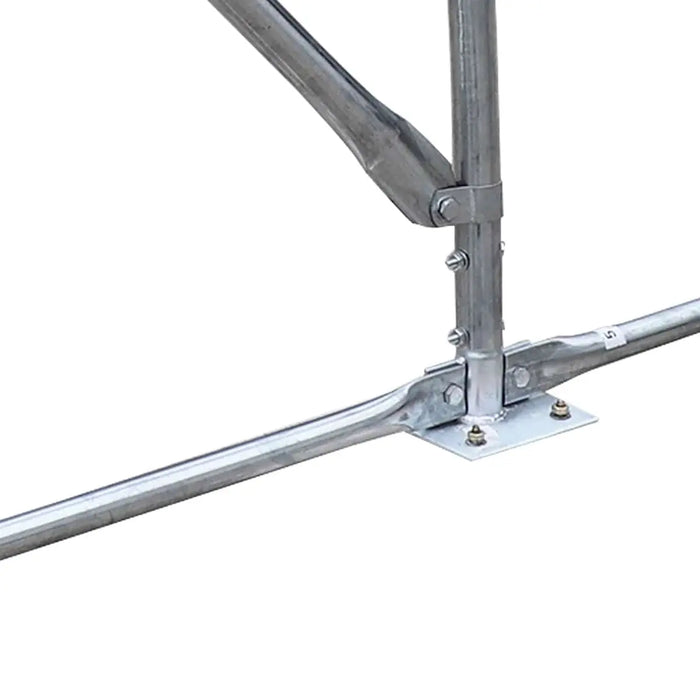

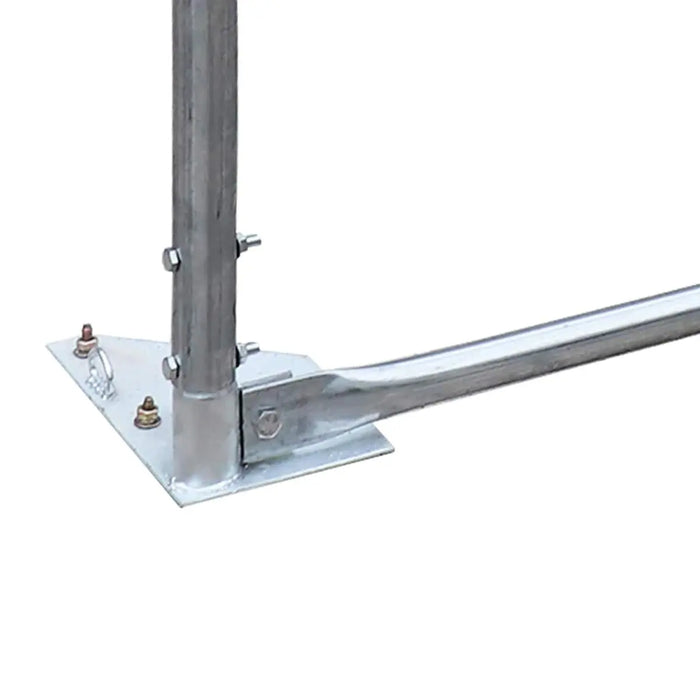

  • Footplates with pre-drilled holes (anchor bolts not included)
  • Solid and durable assembly foundation required: Concrete slabs or equivalent

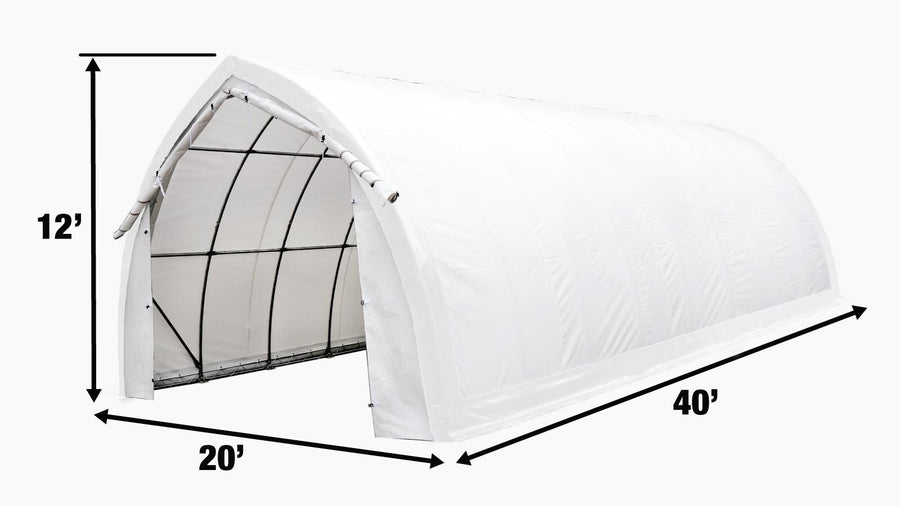

20' x 40' Arch Wall Peak Ceiling Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors, TMG-ST2041PV(Previously(ST2040PV)-specifications-image

Product Description

The TMG-ST2041PV PVC Fabric Peak Ceiling Storage Shelter provides an easy to assemble, durable outdoor storage solution or workshop for your farm, construction site, equipment dealership and more.

Approximately 800 square feet of covered space to stockpile materials, work on projects, park vehicles and accommodate all other needs big or small. Able to install on any concrete pad or equivalent for versatile useability whether you’re working in remote, rural or industrial locations.

Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing and provide a long lasting shelter covering for many years to come. This fabric is a natural flame retardant, commonly used in large commercial structures such as sports stadiums and event halls. Known for its thickness, superior safety and protection, PVC fabric is a reliable outdoor storage cover solution.

Wide open entry and exit space on both endwalls provides a huge opening to allow workflow coming in and out. Use this shelter as storage for tools, large equipment, ongoing jobs, maintenance and mechanical labour. The PVC fabric is very tough and comes in a vibrant white colour that reflects UV rays but allows light to permeate through. The natural illuminating quality will help you save on utility costs and provide all day use even when it’s cloudy.

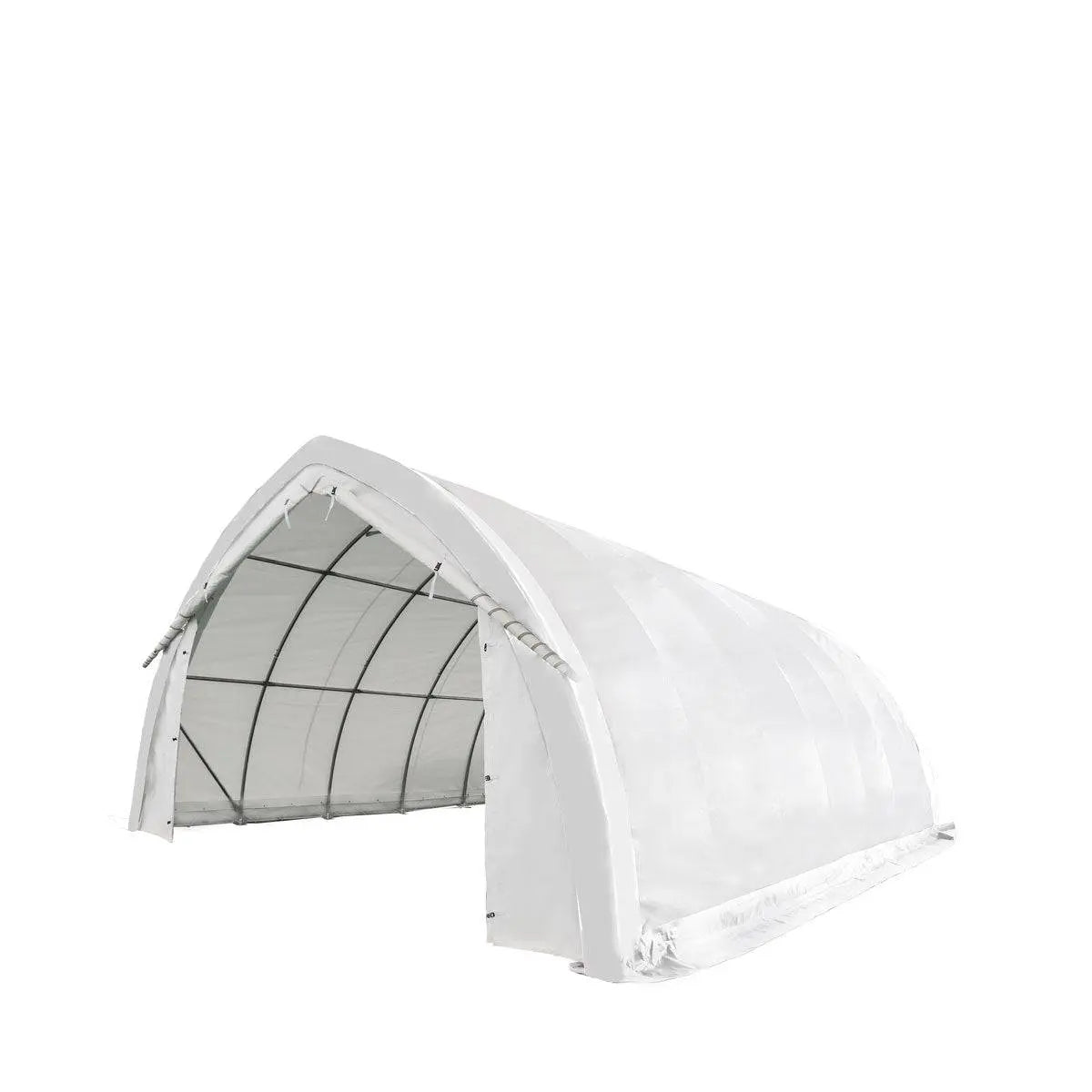

We also carry a smaller model of this storage shelter: TMG-ST2031PV.

Additional Info

TMG Industrial is a proud supplier of storage sheds, shelters, garages, and other portable structures around North America. These units are all sold as DIY installations. Due to varying regulations required by individual municipalities, TMG Industrial is not able to provide engineered drawings, or any snow and wind load certifications. It is up to the purchaser to determine any local requirements before purchasing.

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

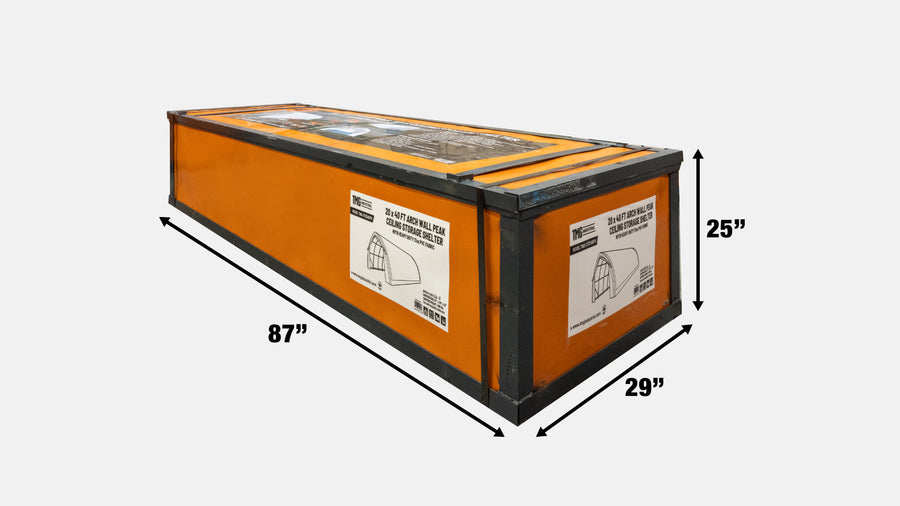

  • The product is packed in a metal crate shipping box
  • Shipping dimension: 87” x 29” x 25” (L x W x H)
  • Shipping weight: 995 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
20' x 40' Arch Wall Peak Ceiling Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors, TMG-ST2041PV(Previously(ST2040PV)-shipping-info-image

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
