72” Notched Disc Harrow
SKU TMG-TDH06

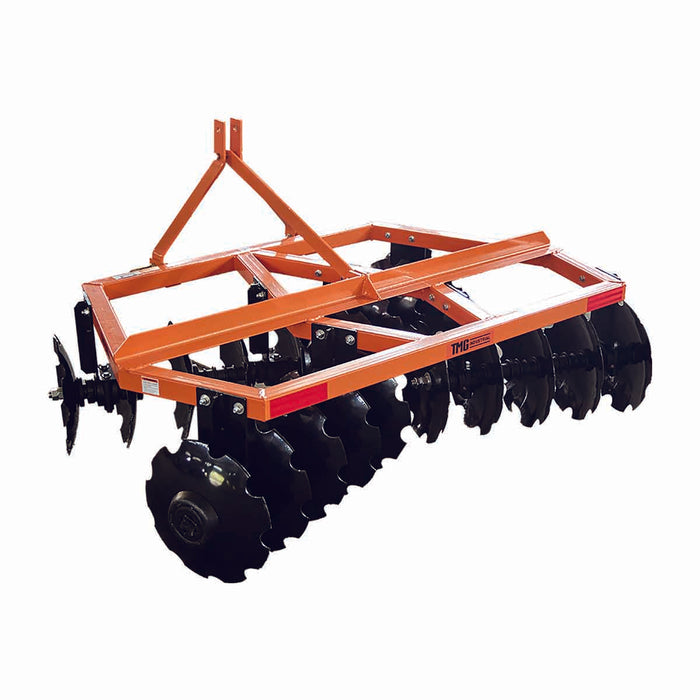

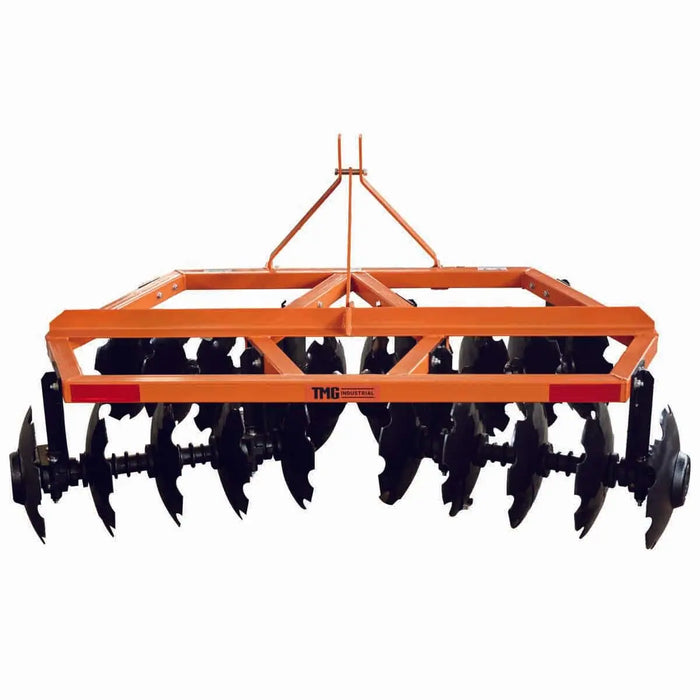

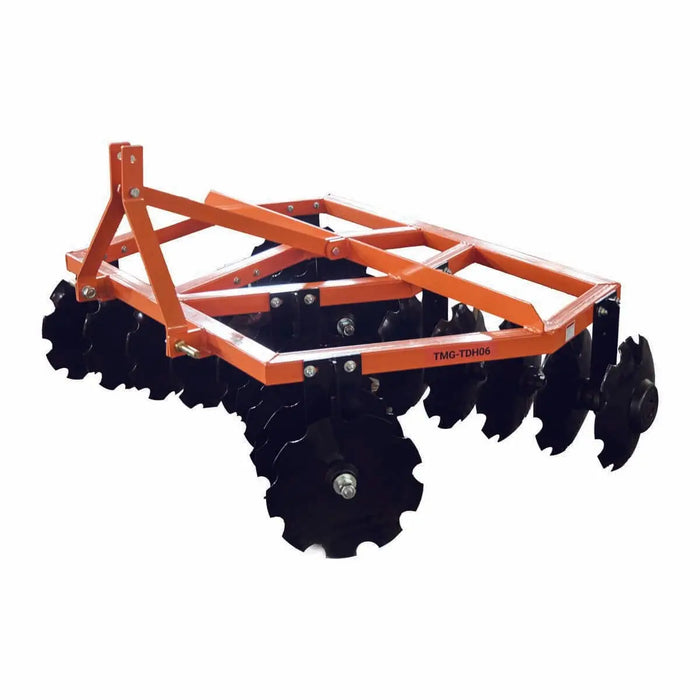

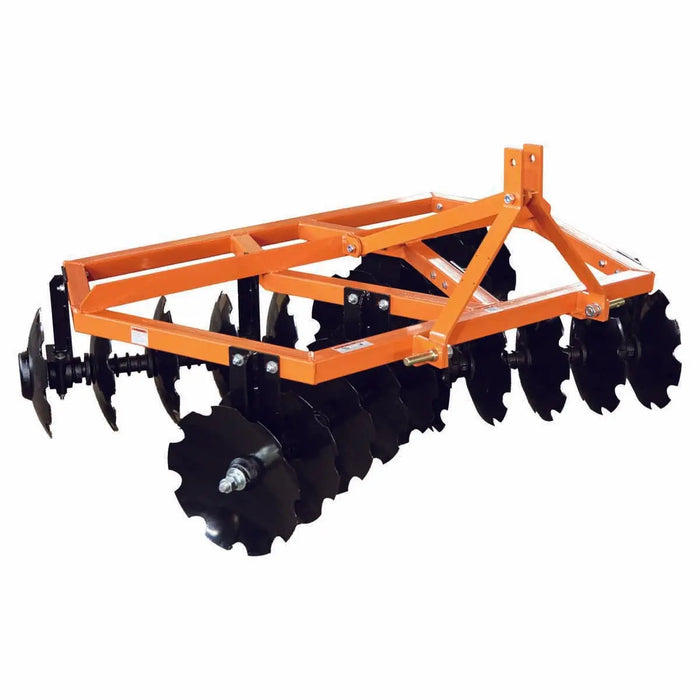

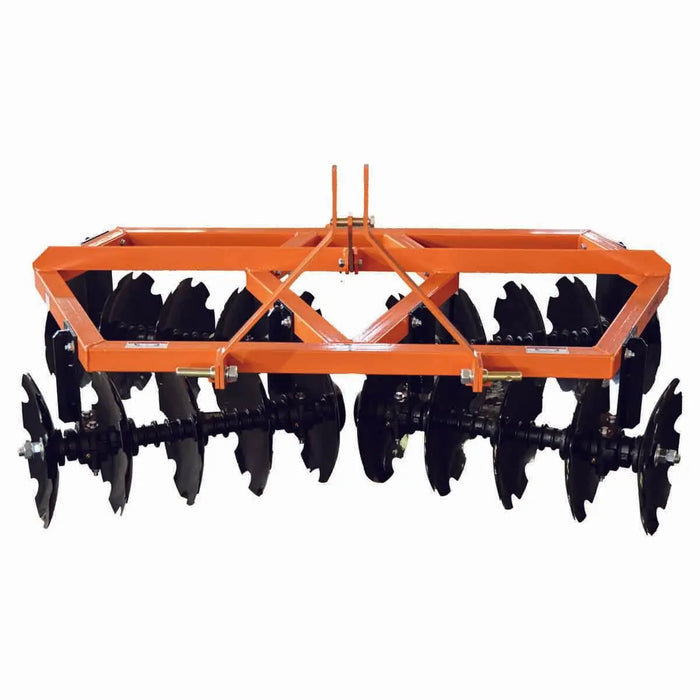

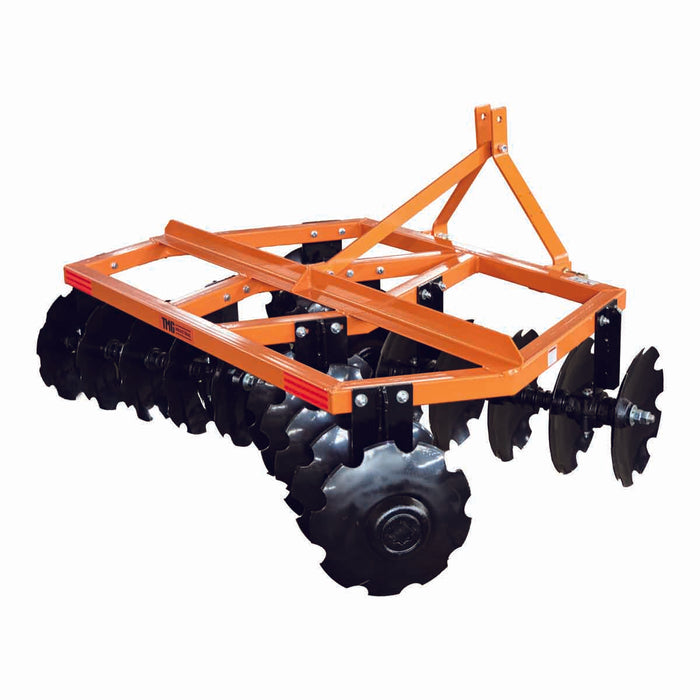

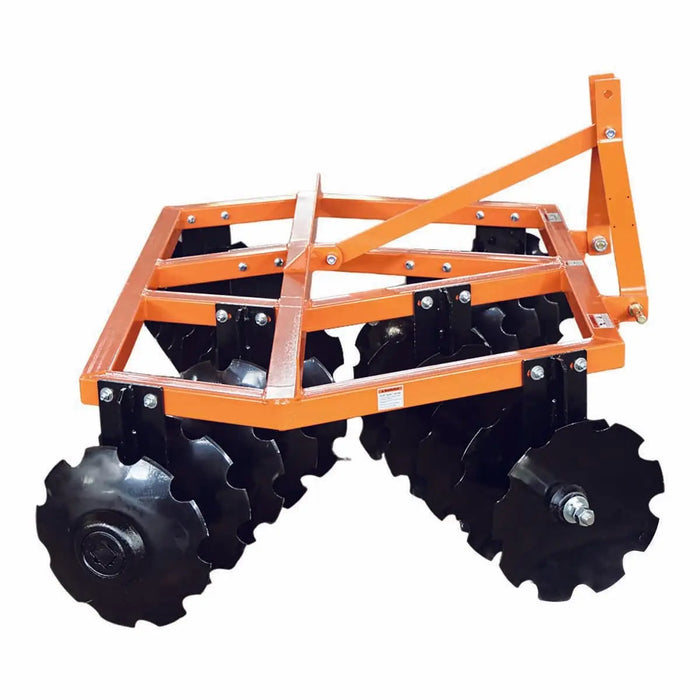

TMG Industrial 72” Notched Disc Harrow, 3-Point Hitch, Cat 1 Hook-up, 25-45 HP Tractors, TMG-TDH06

$2,499.00 CAD - $2,499.00 CAD
$2,499.00 CAD
$2,499.00 CAD - $2,499.00 CAD
$2,499.00 CAD
CURRENTLY IN STOCK
FREE SHIPPING TO MOST LOCATIONS IN CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS

Other financial option:

1-877-761-2819
650.0 lb
77 x 54 x 24 inches
More Shipping Info
  • Compatible with 3-Point Cat 1 tractor with 25-45 HP
  • Features (20) 16” notched discs made from durable 65Mn alloy steel
  • Built with a powder-coated steel tube frame to resist rust & corrosion
  • Fixed 22° cutting angle for effective soil penetration
  • Equipped with cast iron caps & greaseable spools for seamless disc rotation
More Information
Product Manual
Find Parts
Features Specs Shipping Info Description Warranty Reviews

Features

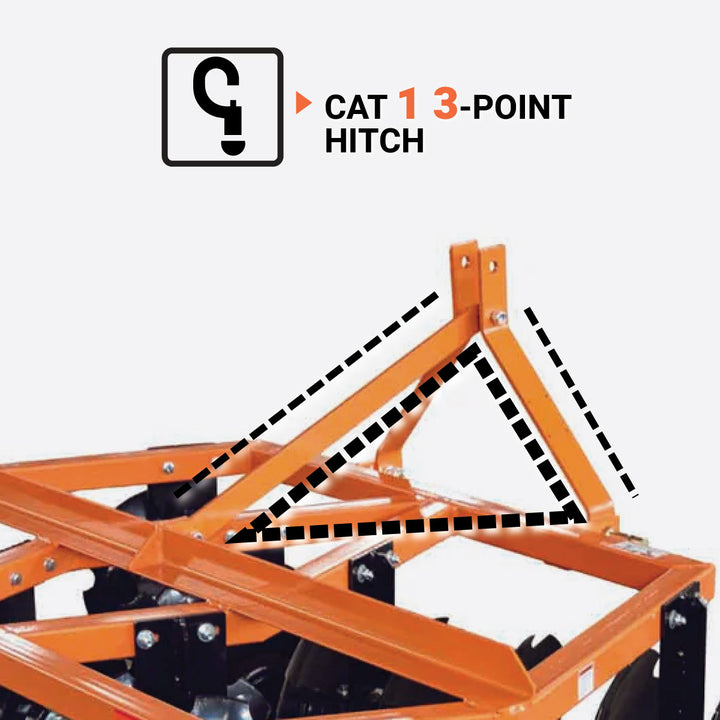

  • Versatile design allows it to fit most 3-Point Category 1 tractors with 25-45 HP

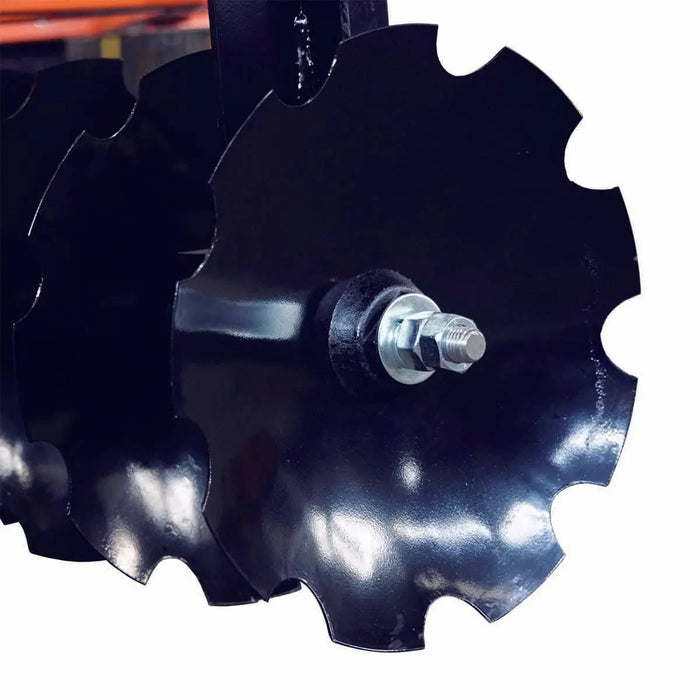

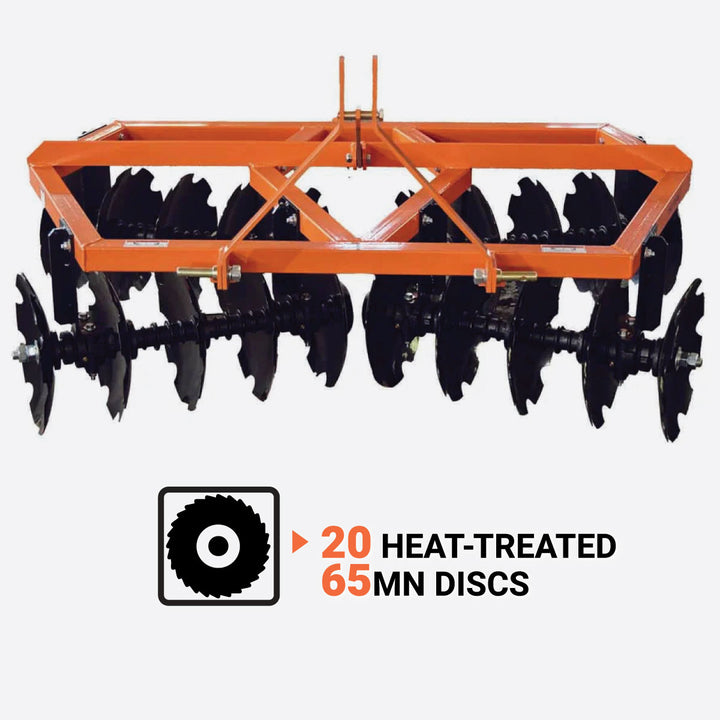

  • Equipped with (20) 16” notched discs made from heat-treated 65Mn alloy steel

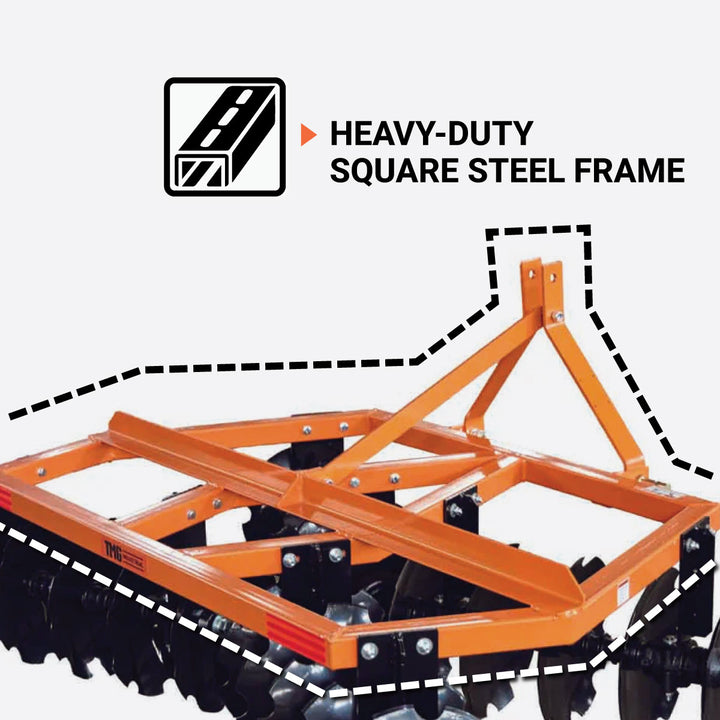

  • Constructed with a durable, powder-coated steel tube frame to prevent rust and corrosion

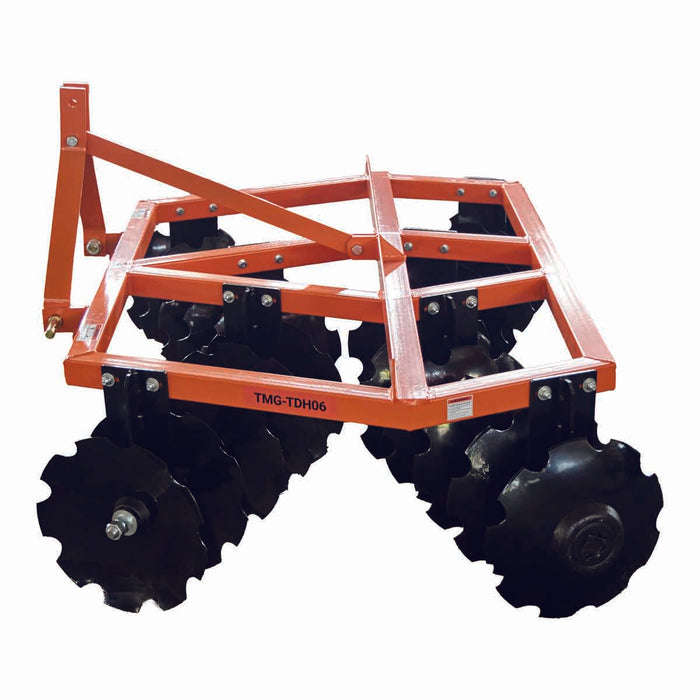

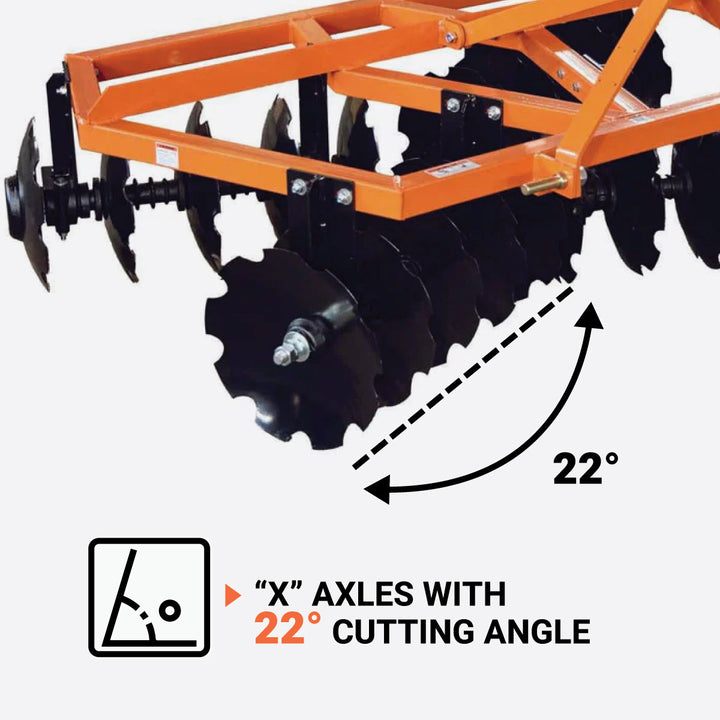

  • Fixed 22° cutting angle with “X” shaped gang axles for aggressive soil penetration

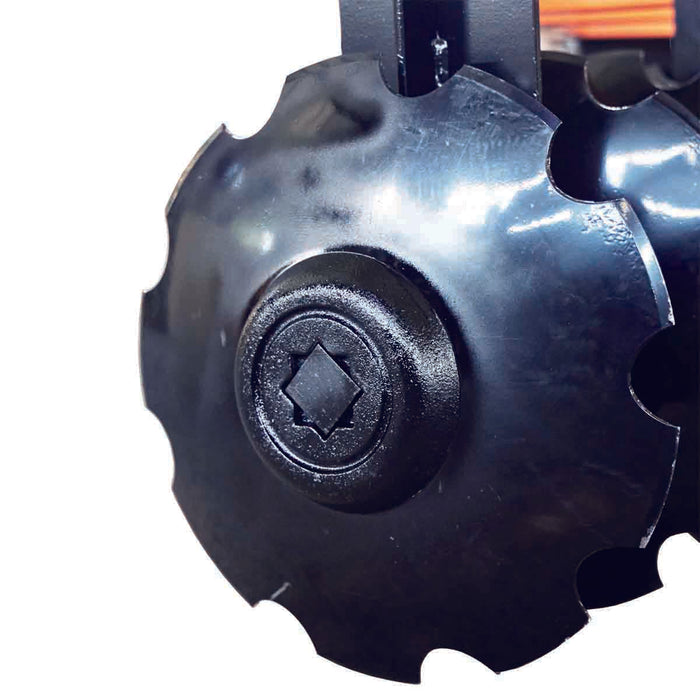

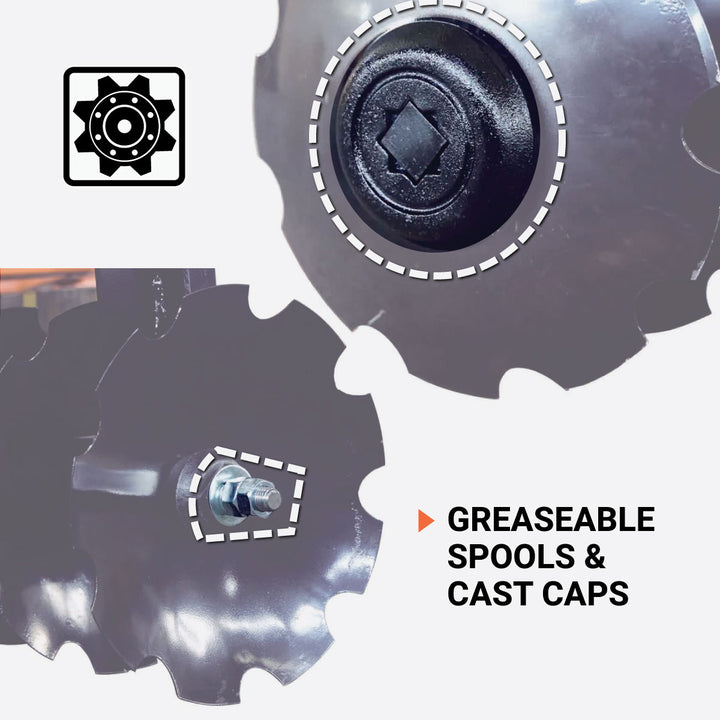

  • Sealed cast iron caps and 8 greaseable spools for seamless rotation of the harrow discs
TMG Industrial 72” Notched Disc Harrow, 3-Point Hitch, Cat 1 Hook-up, 25-45 HP Tractors, TMG-TDH06-description-image

Specifications

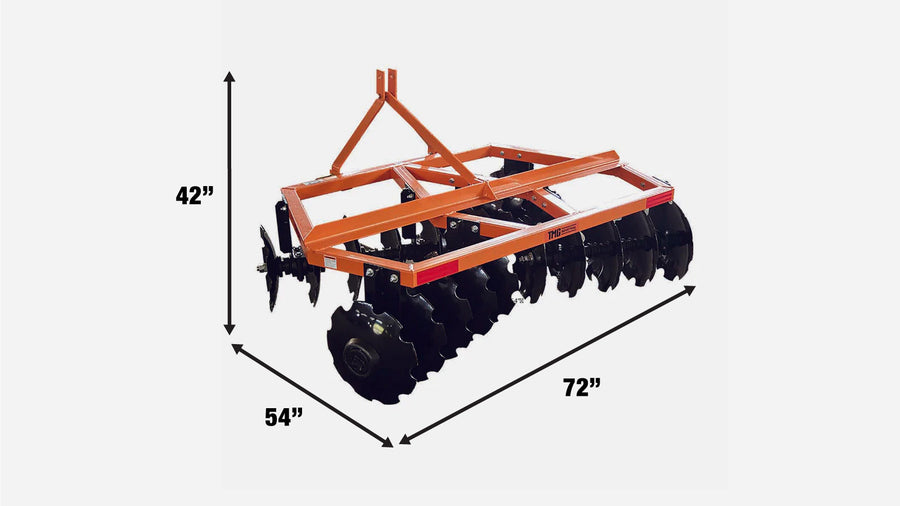

  • Product overall size: 72” x 54” x 42” (L x W x H )
  • Product net weight: 594 lb
  • Required horsepower: 25-45 HP
  • Hitch type: Standard 3-PT, Category 1
  • Cutting width: 72”
  • Fixed cutting angle: 22°

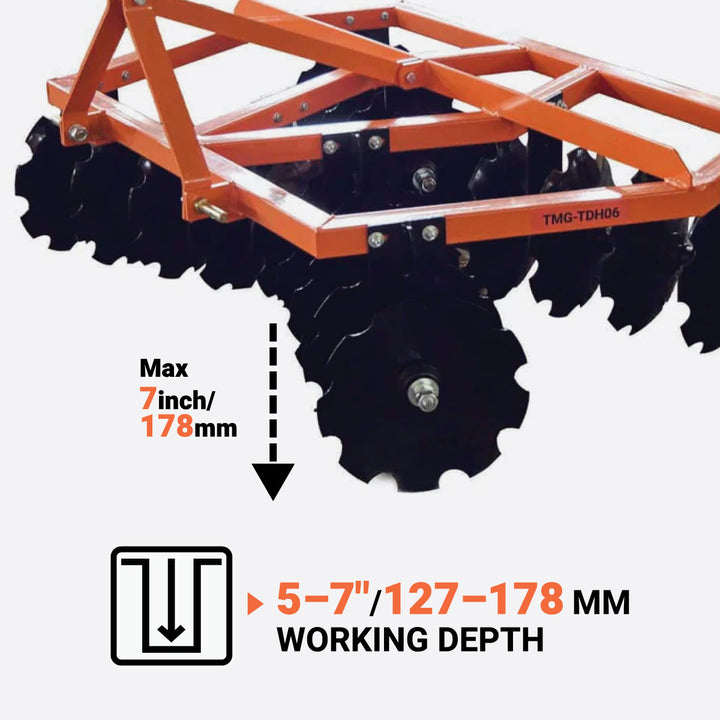

  • Cutting depth: 5”-7”
  • Frame material: 2-½” x 2-½” x ⅛” square tube steel
  • Square gang axle size: 33-¾” x 1” x 1” x 4pcs
  • Notched blades material: 65Mn hard alloy steel
  • Notched blades size: 16” x 3 mm/11 ga (dia. x thickness)
  • Notched blades quantity: 5 blades per gang, total 20 blades for 4 gangs
  • Disc blade spacing: 7-½”
TMG Industrial 72” Notched Disc Harrow, 3-Point Hitch, Cat 1 Hook-up, 25-45 HP Tractors, TMG-TDH06-specifications-image

Shipping Information

The order will be shipped from one of our main warehouses in North America. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

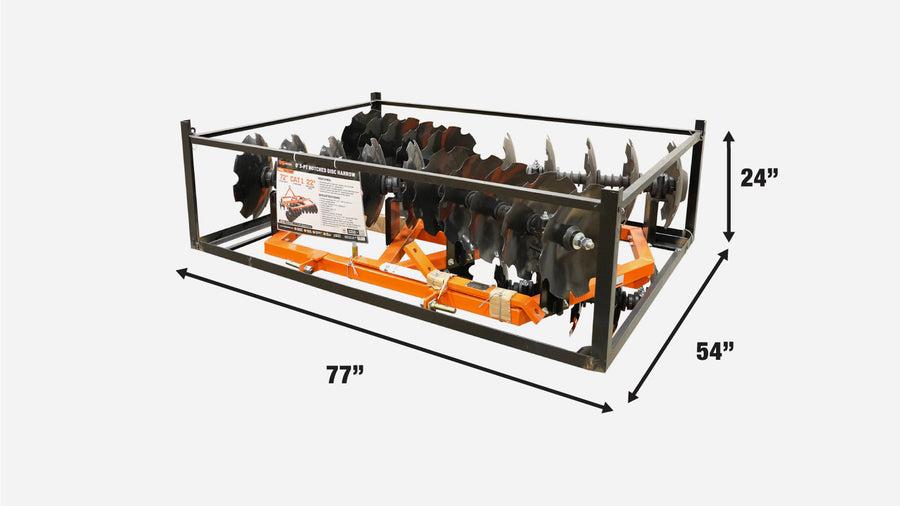

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 77” x 54” x 24” (L x W x H)
  • Shipping weight: 650 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
TMG Industrial 72” Notched Disc Harrow, 3-Point Hitch, Cat 1 Hook-up, 25-45 HP Tractors, TMG-TDH06-shipping-info-image

Product Description

The TMG-TDH06 Notched Disc Harrow is the perfect tool for efficient and effective soil preparation. Designed for 3 PT Cat 1 tractors with 25-45 HP, it offers a 72” cutting width and (20) 16” notched discs.

Each disc is made from durable alloy steel, heat-treated and powder-coated for long-term durability and performance. With a robust steel tube frame, this harrow is also built to resist rust and corrosion.

Its fixed 22° cutting angle and “X” shaped gang axles ensure deep and thorough soil cultivation, making it ideal for preparing small food plots for composting and planting.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
