TMG-TDH04

48" Notched Disc Harrow, 3-Point Hitch, Cat 1 Hook-up, 20-30 HP Tractors, TMG-TDH04

Click to expand Tap to zoom

CURRENTLY IN STOCK

SKU TMG-TDH04

Original price $2,199.00 CAD

Original price $2,199.00 CAD - Original price $2,199.00 CAD

Original price $2,199.00 CAD

Current price $1,799.00 CAD

$1,799.00 CAD - $1,799.00 CAD

Current price $1,799.00 CAD

| /

$2,199.00 CAD Save $400.00 CAD

$1,799.00 CAD

Total: $1,799.00 CAD $1,799.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days Learn More

1 2 3 4 5 6 7 8 9 10+ Quantity

Quantity

Add to Cart

1-877-761-2819

cs@tmgindustrial.ca

Product Manual

Find Parts

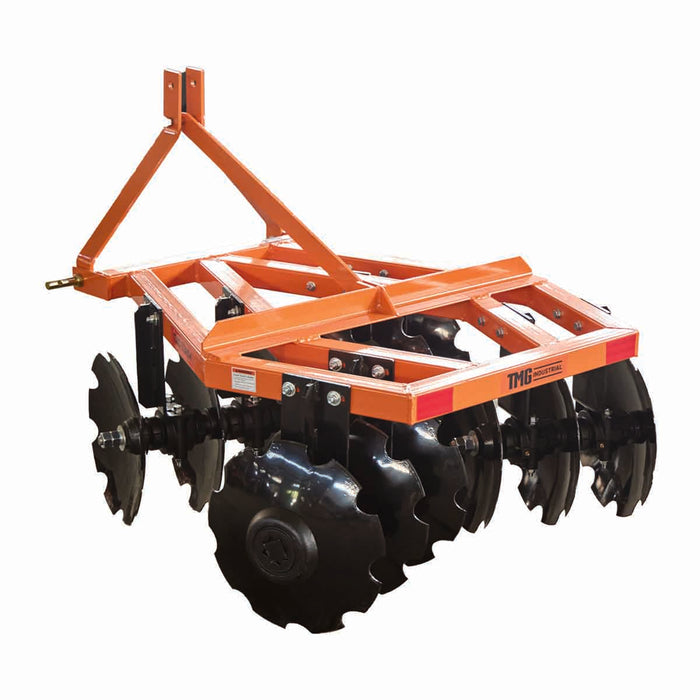

48" Notched Disc Harrow, 3-Point Hitch, Cat 1 Hook-up, 20-30 HP Tractors, TMG-TDH04

(Accessories Incl.)

1 2 3 4 5 6 7 8 9 10+ Quantity

Quantity

Add to Cart

Features Specs Description Shipping Info Warranty Reviews

Features

← →

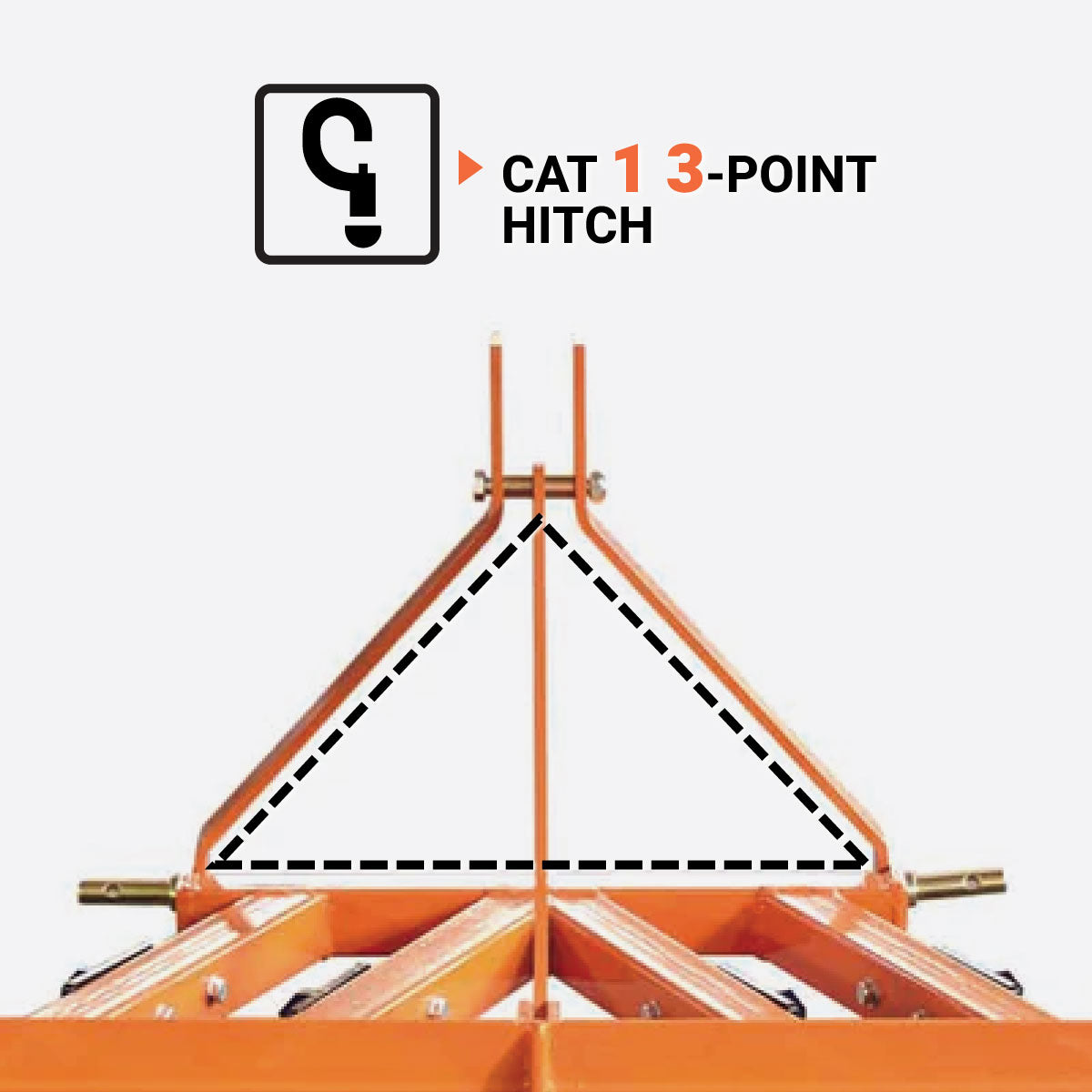

CAT 1 3-Point Hitch for standard compact tractors

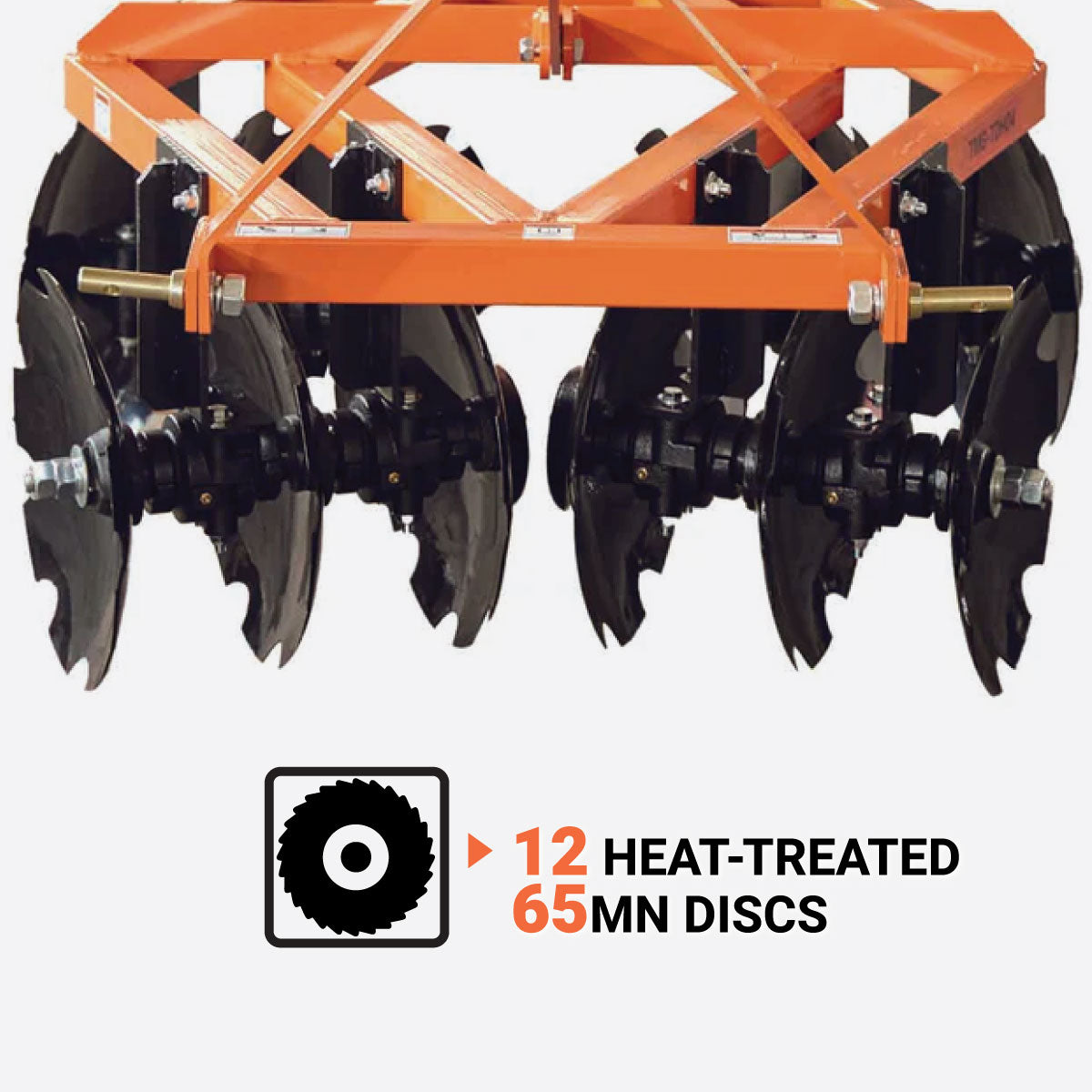

12 heat treated notched cutting discs made of 65Mn alloy steel

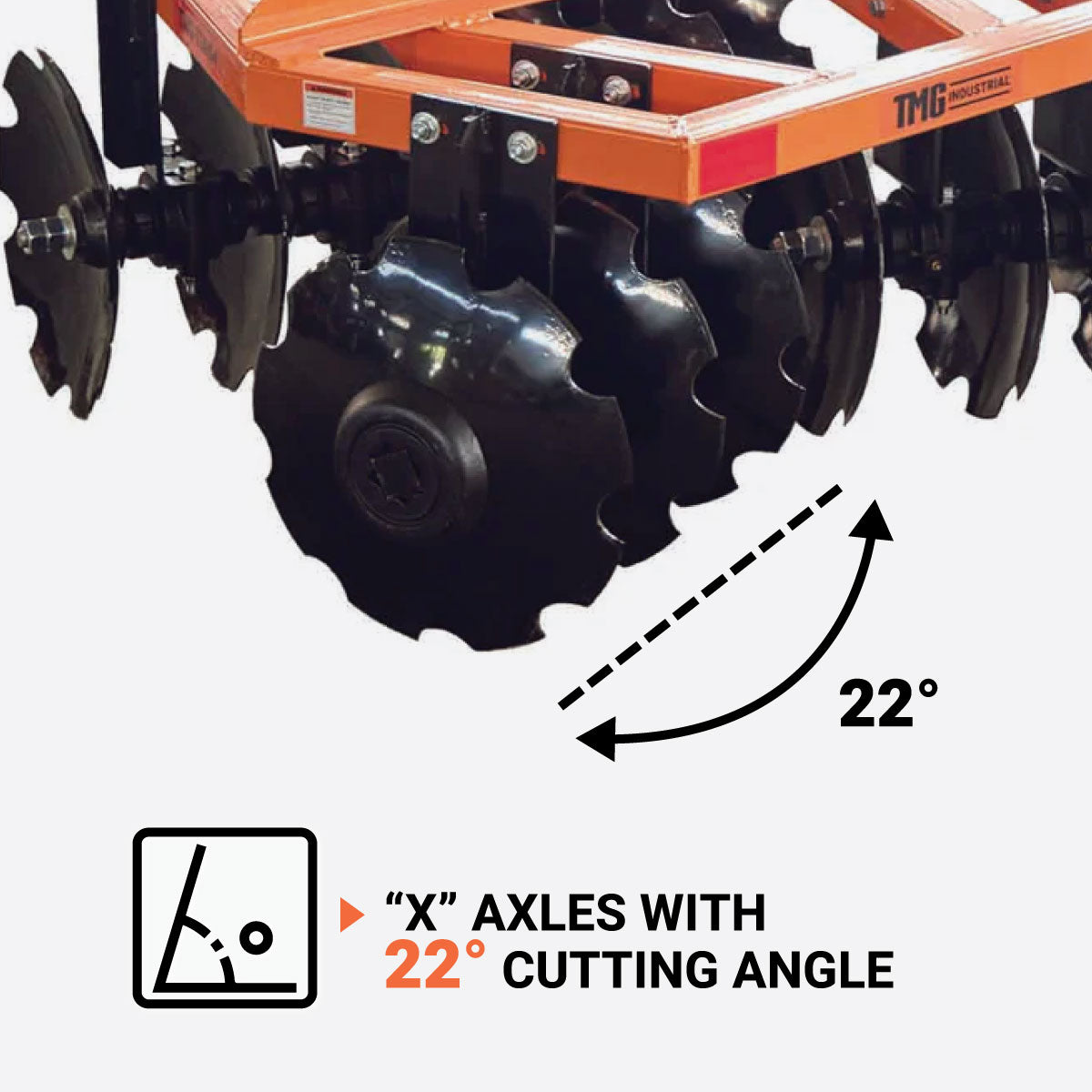

Optimized soil penetration with “X” shaped gang axles and fixed 22° Cutting Angle

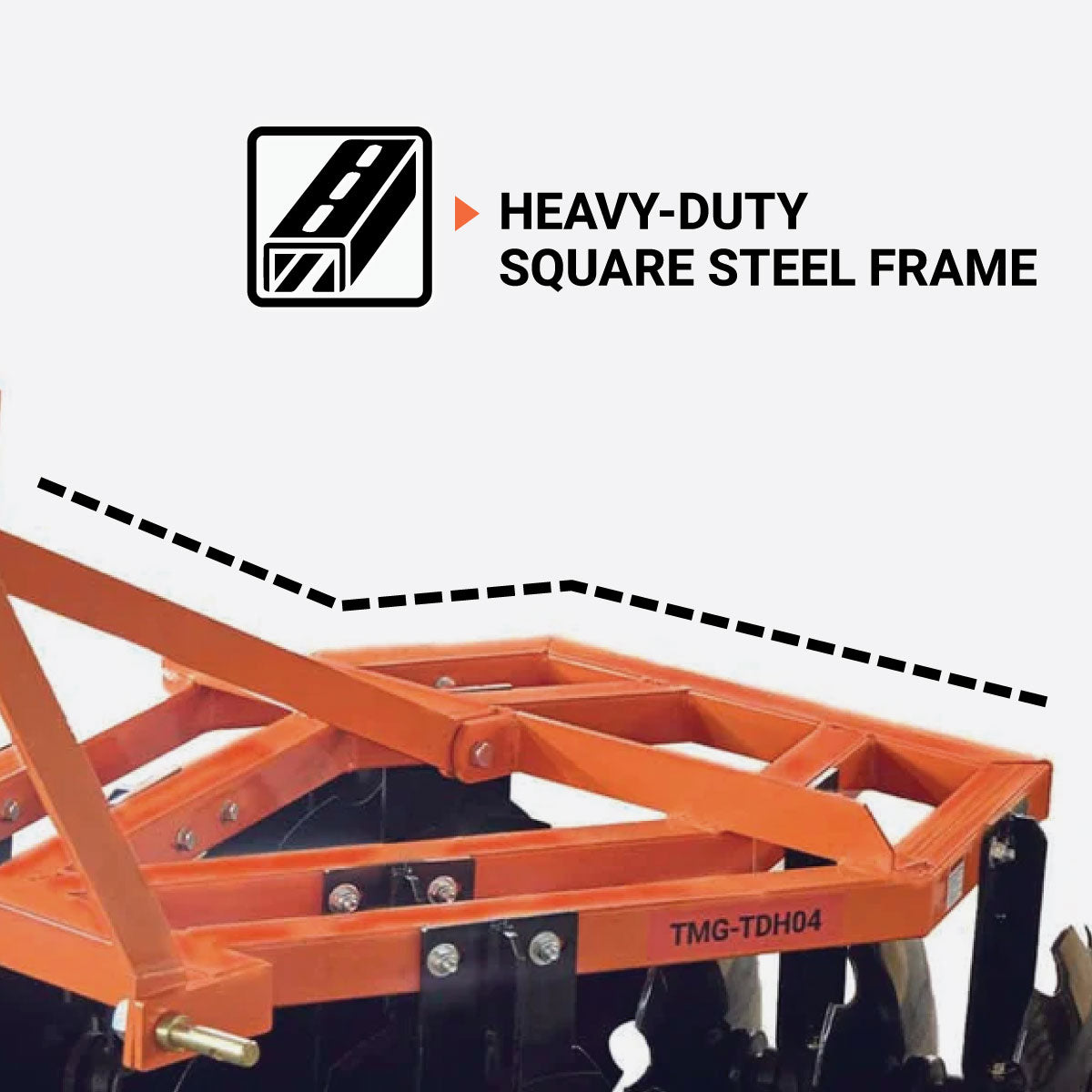

HeavyDuty powder coated square steel tube frame

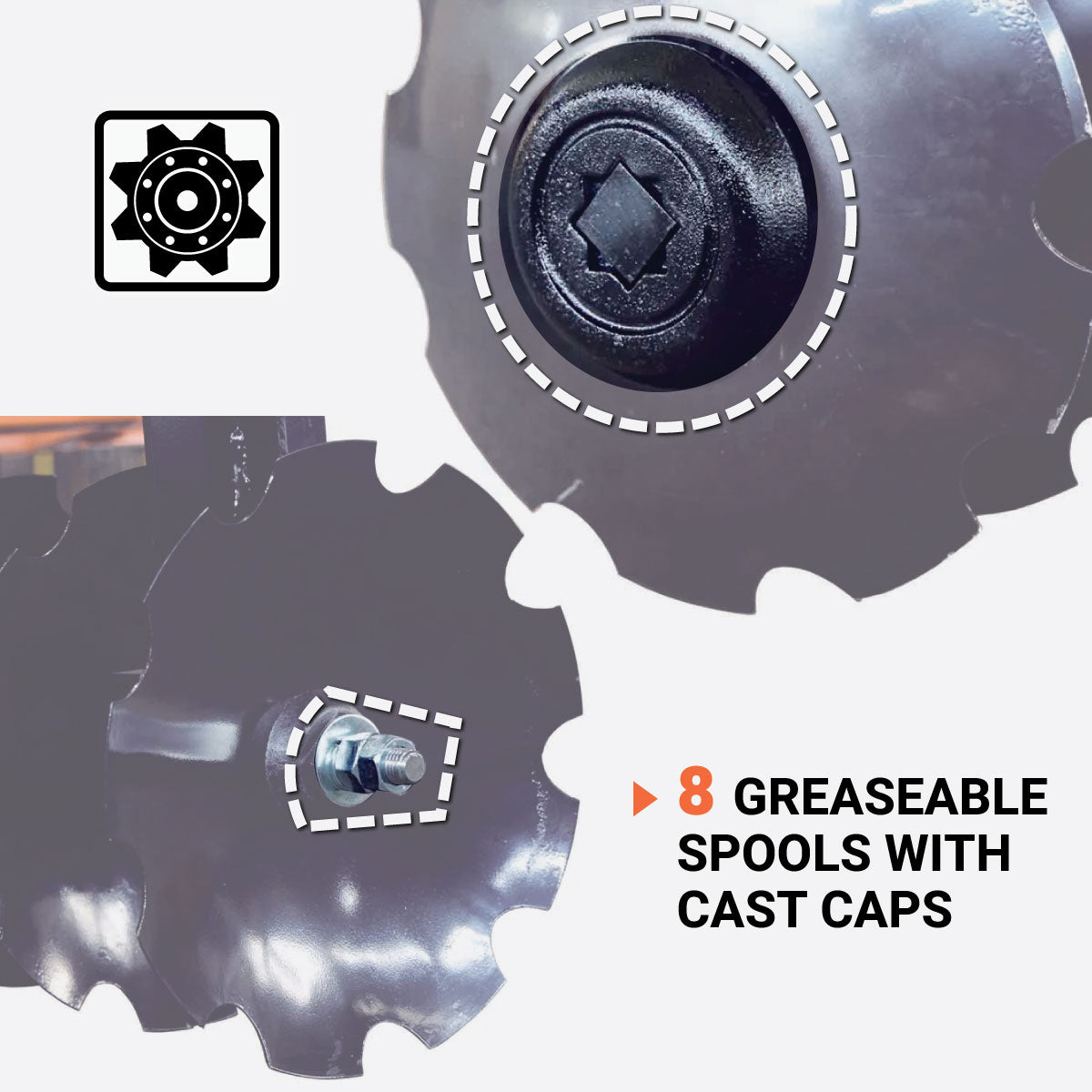

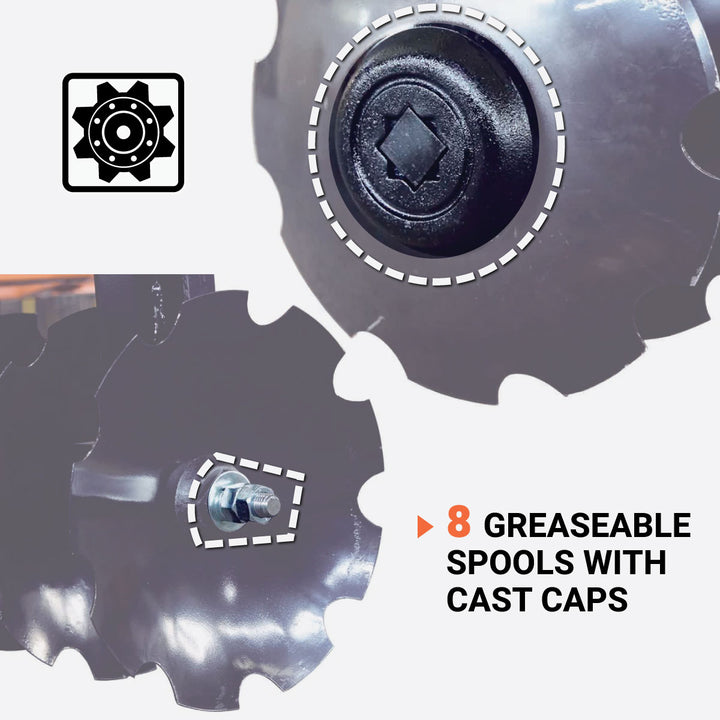

Sealed cast iron caps and 8 greaseable spools for seamless disc rotation

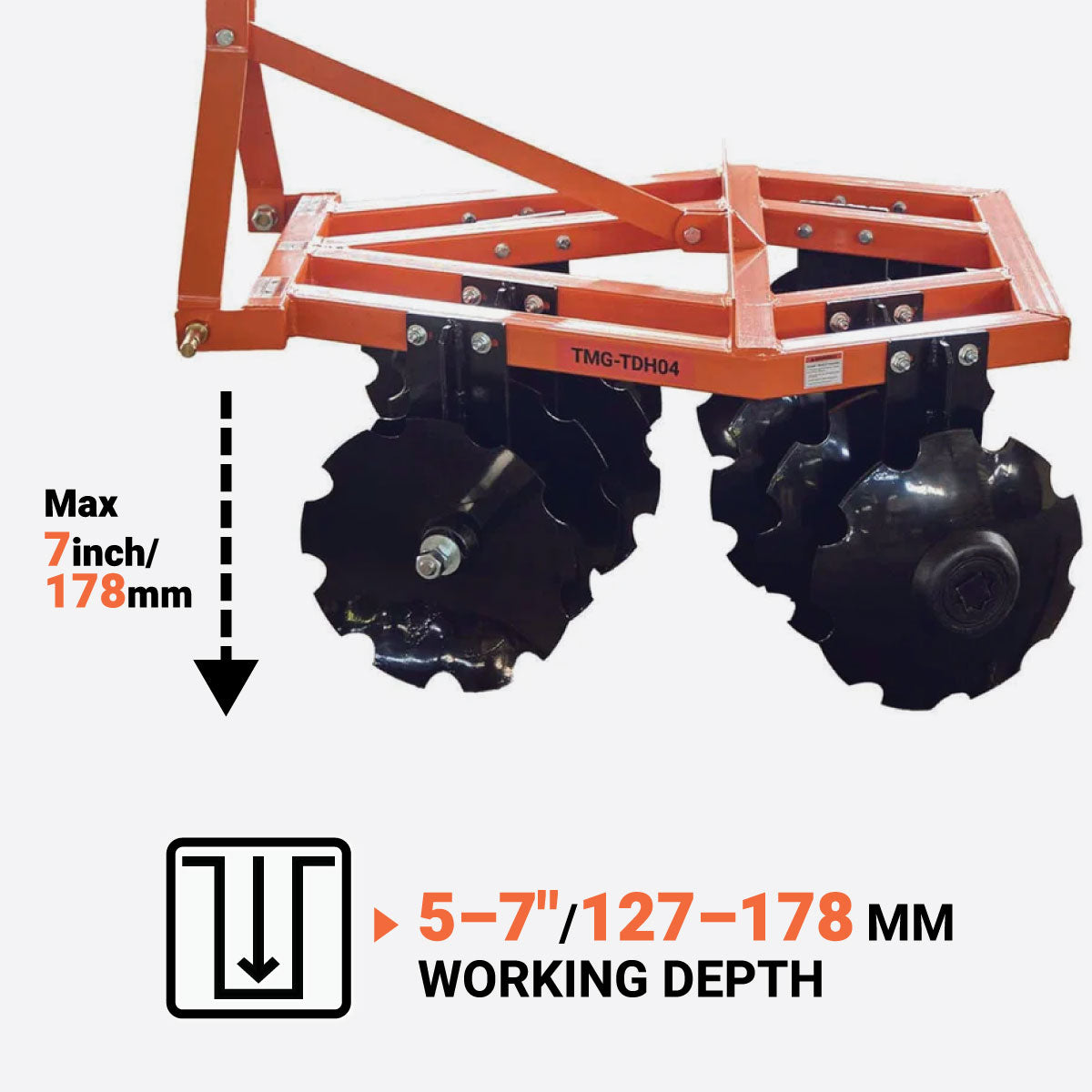

5–7" (127–178 mm) Working Depth for seedbed prep and residue mixing

See less

Specifications

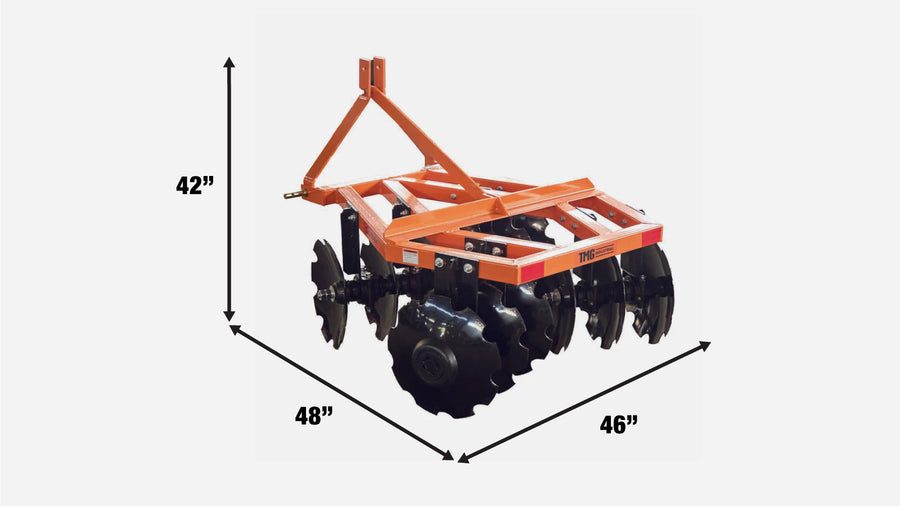

• Product overall size: 46” x 48” x 42” (L x W x H)
• Product net weight: 418 lb
• Required horsepower: 20-30 HP
• Hitch type: Standard 3-PT, Category 1
• Cutting width: 48”
• Fixed cutting angle: 22°
• Cutting depth: 5”-7”
• Frame material: 2-½” x 2-½” x ⅛” square tube steel
• Square gang axle size: 18-¼” x 1” x 1” x 4pcs
• Notched blades material: 65Mn hard alloy steel
• Notched blades size: 16” x 3 mm/11 ga (dia. x thickness)
• Notched blades quantity: 3 blades per gang, total 12 blades for 4 gangs
• Disc blade spacing: 7-½”

See less ⌃

Product Description

The TMG-TDH04 Notched Disc Harrow is the perfect tool for efficient and effective soil preparation. Designed for 3-point hitch Cat 1 tractors with 20-30 HP, it offers a 48" cutting width and (12) 16" notched discs.

Each disc is made from durable alloy steel, heat-treated and powder-coated for long-term durability and performance. With a robust steel tube frame, this harrow is also built to resist rust and corrosion.

Its fixed 22° cutting angle and “X" shaped gang axles ensure deep and thorough soil cultivation, making it ideal for preparing small food plots for composting and planting.

See less ⌃

Shipping Information

The order will be shipped from one of our main warehouses in North America. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

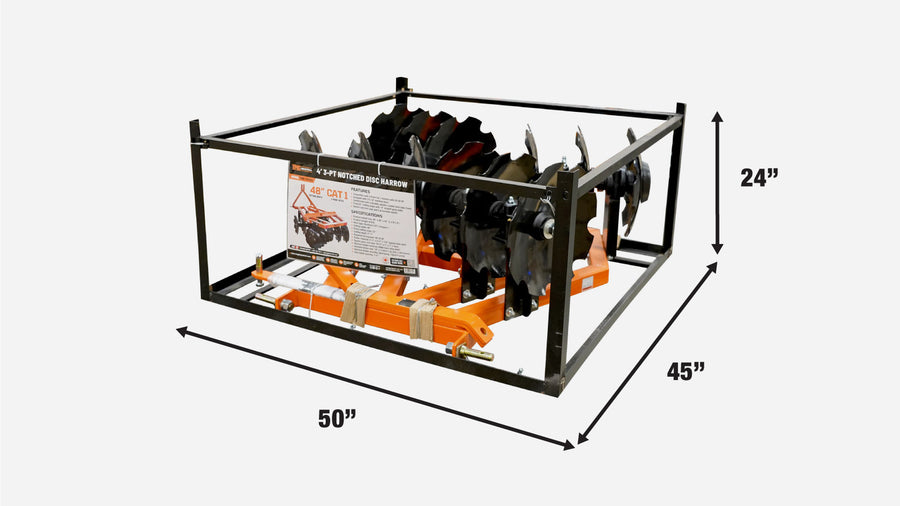

• This product is packed in a metal crate shipping box
• Shipping dimension: 50” x 45” x 24” (L x W x H)
• Shipping weight: 470 lb

Shipping from Richmond, BC, or Mississauga, ON

What happens after you place your order?

See less ⌃

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
