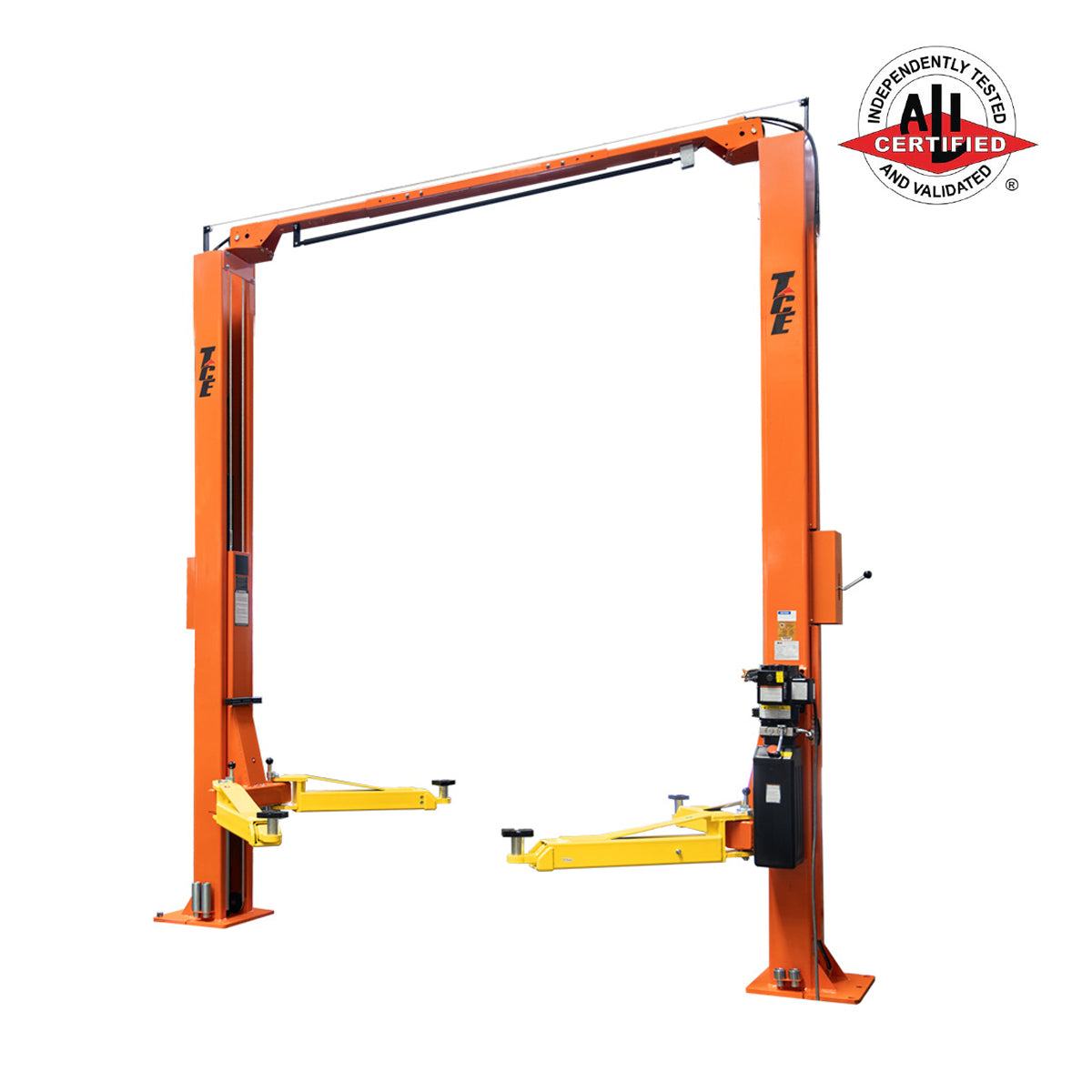

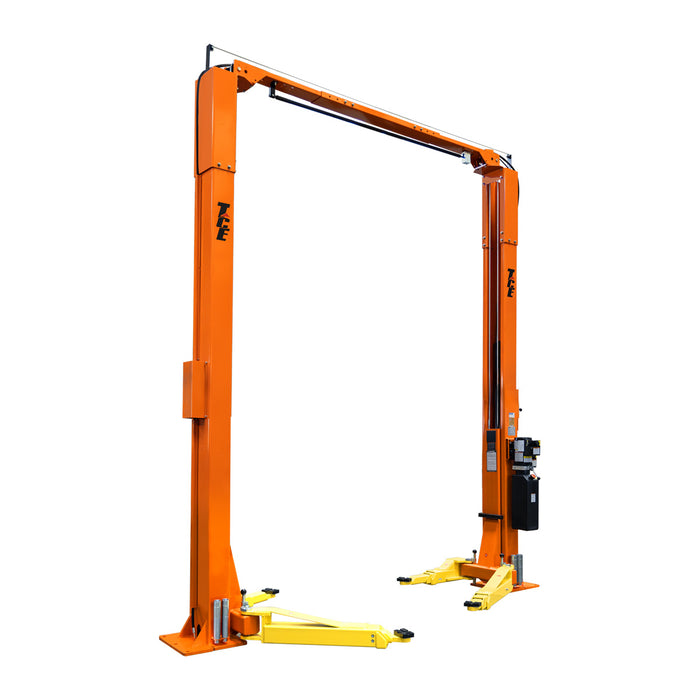

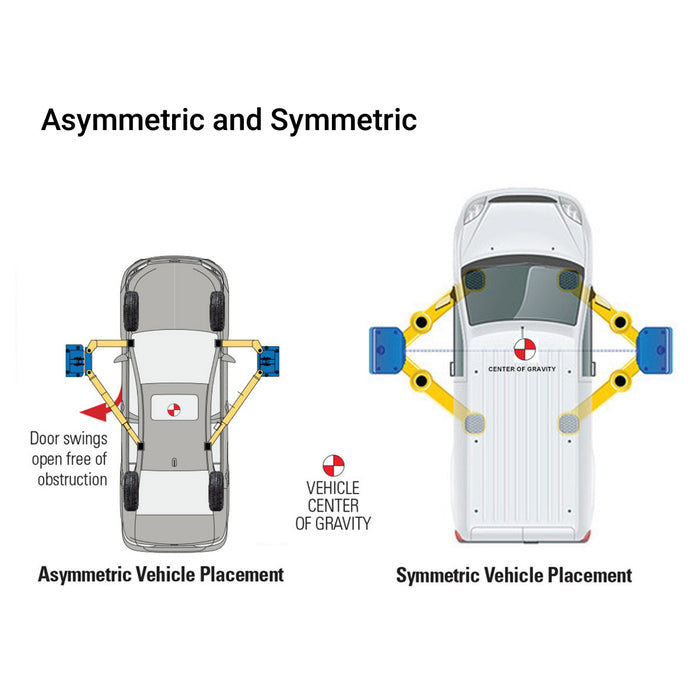

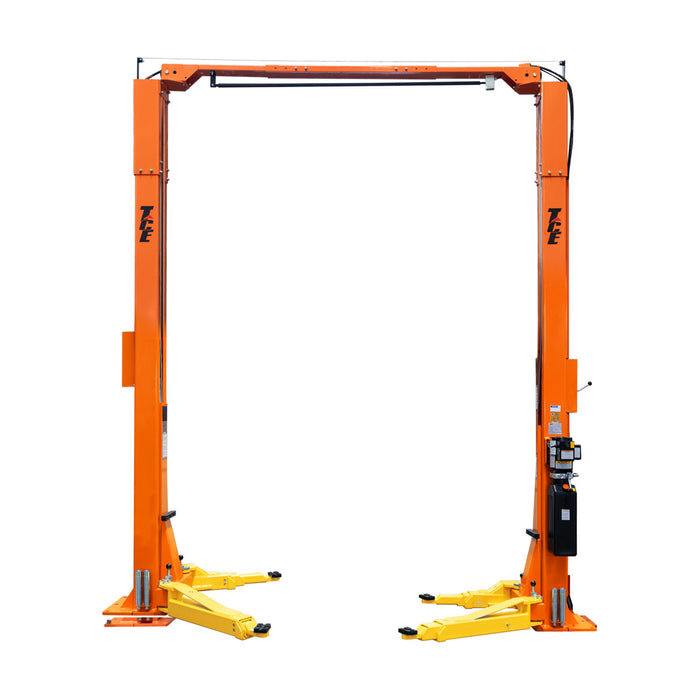

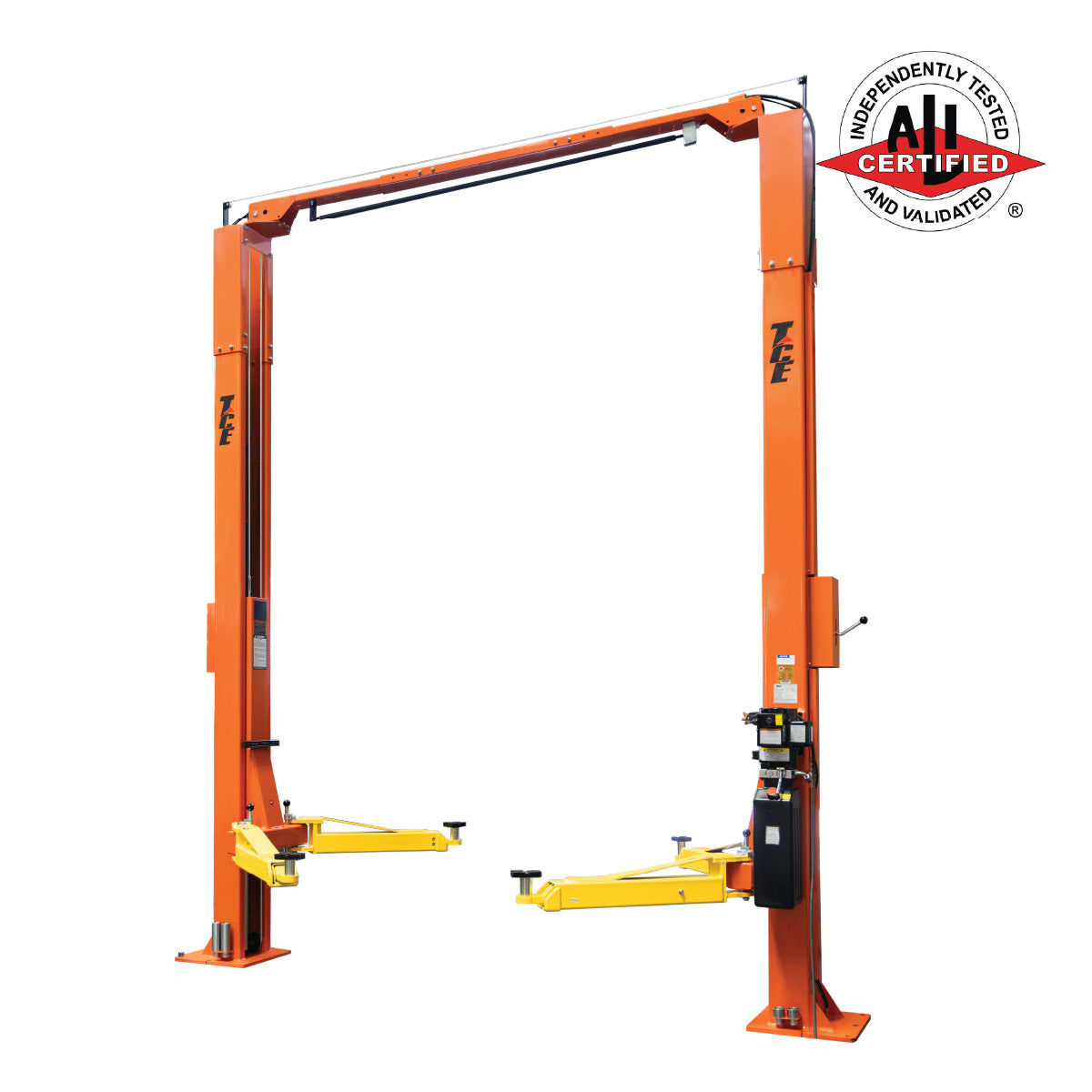

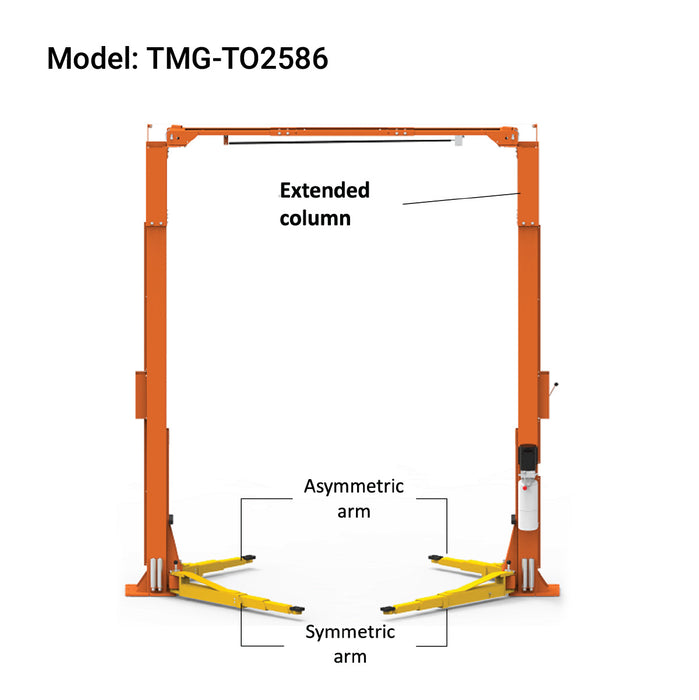

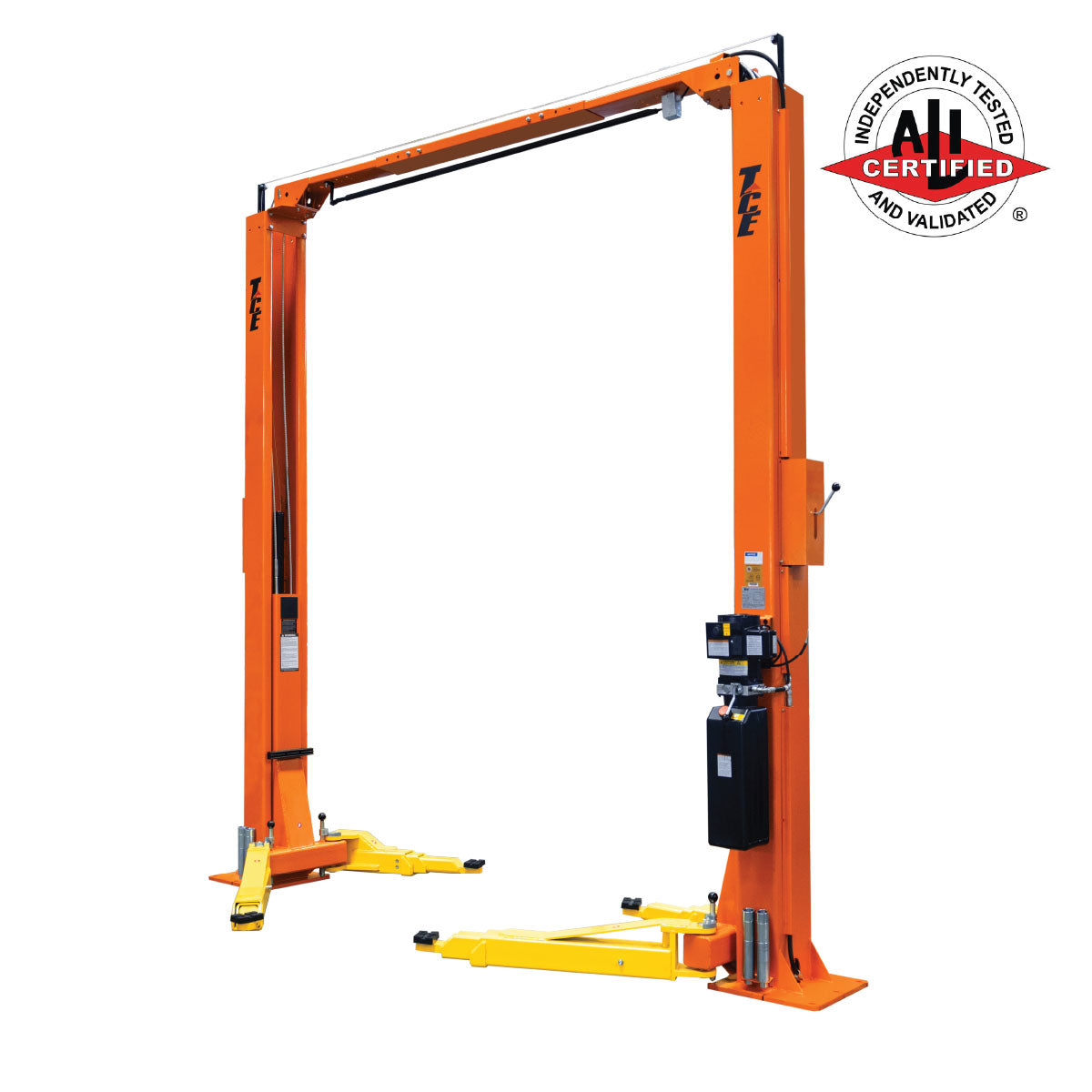

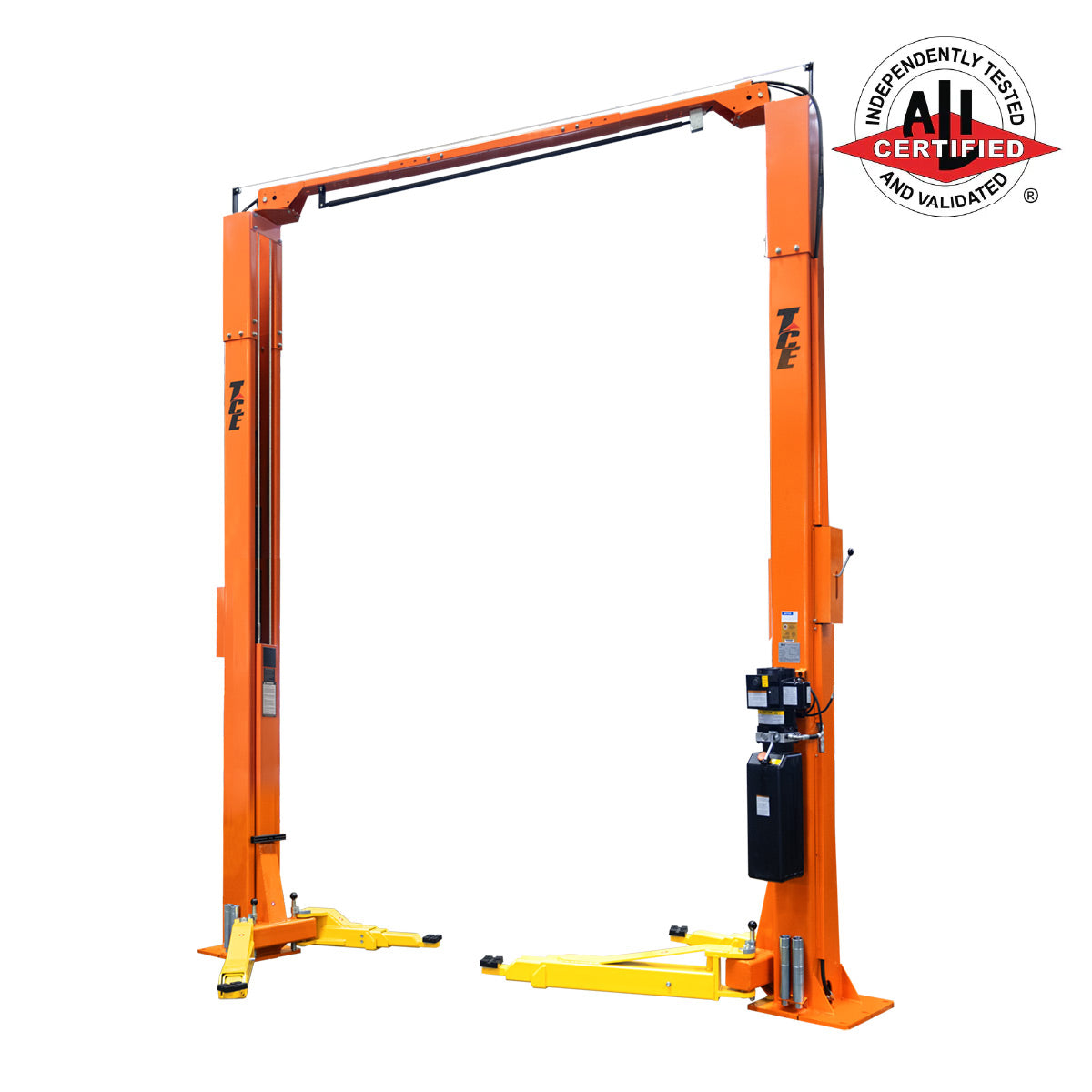

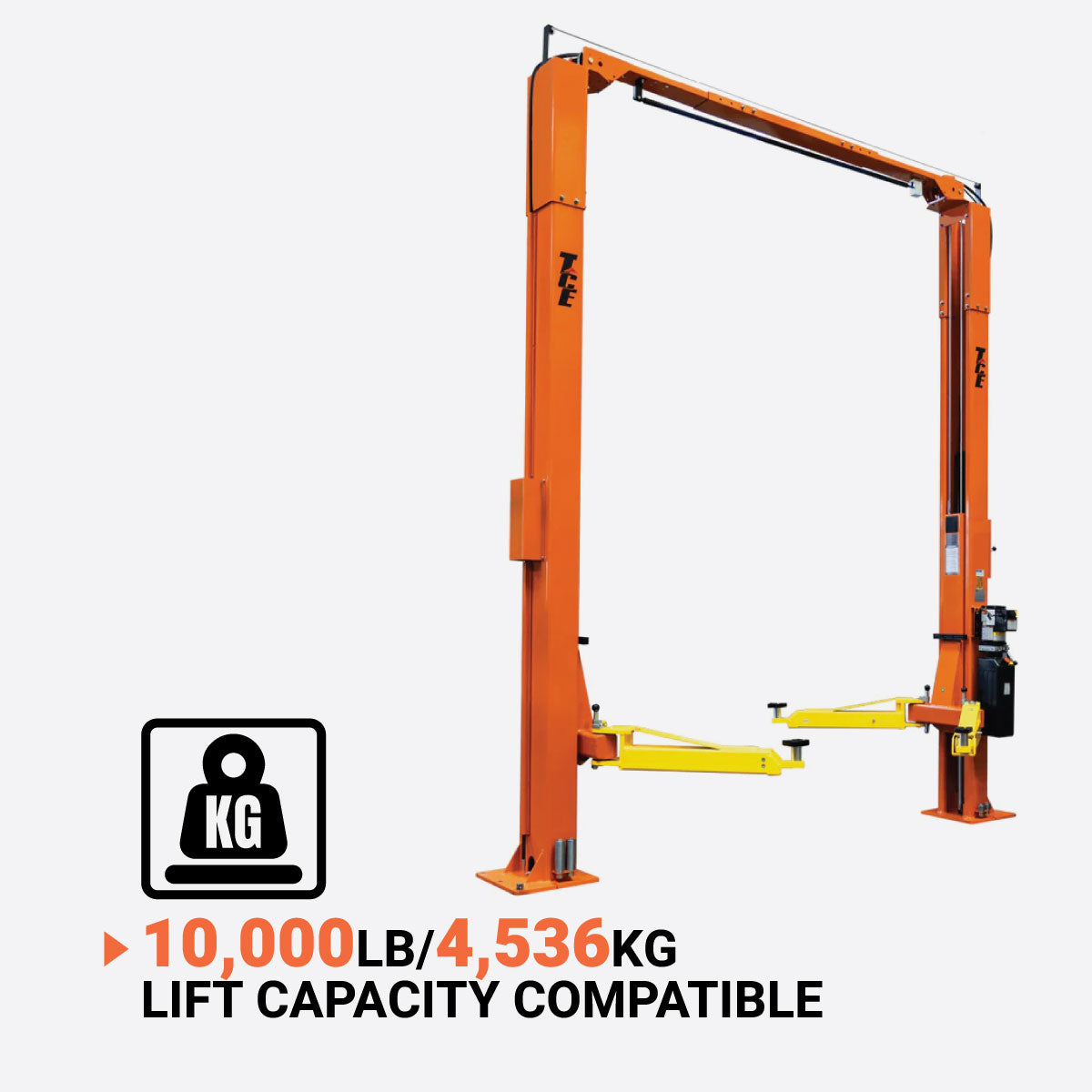

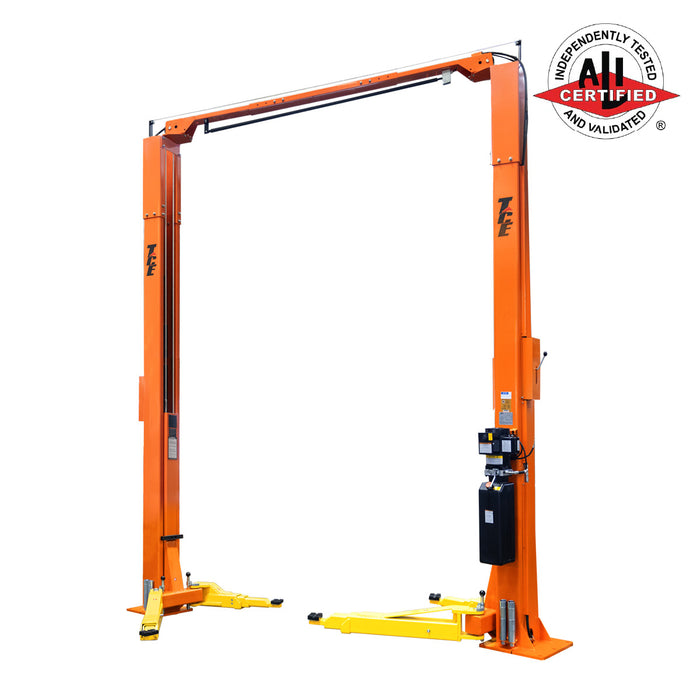

ALI Certified 10,000 lb Two-Post Overhead Auto Lift, Asymmetric/Symmetric Arms, 79" Lift Height, 166" Cross Beam TMG-TO2586

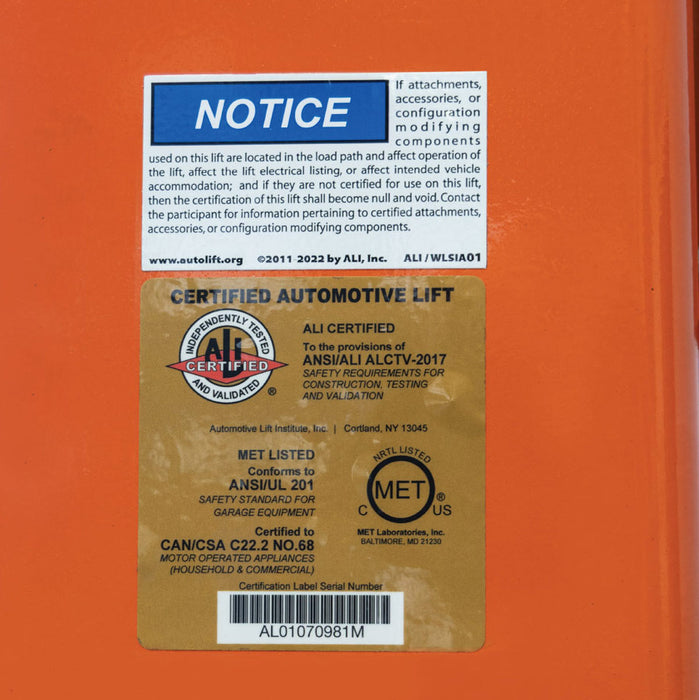

• ALI Certified: Yes
• Load Capacity (lb): 10,000 lb

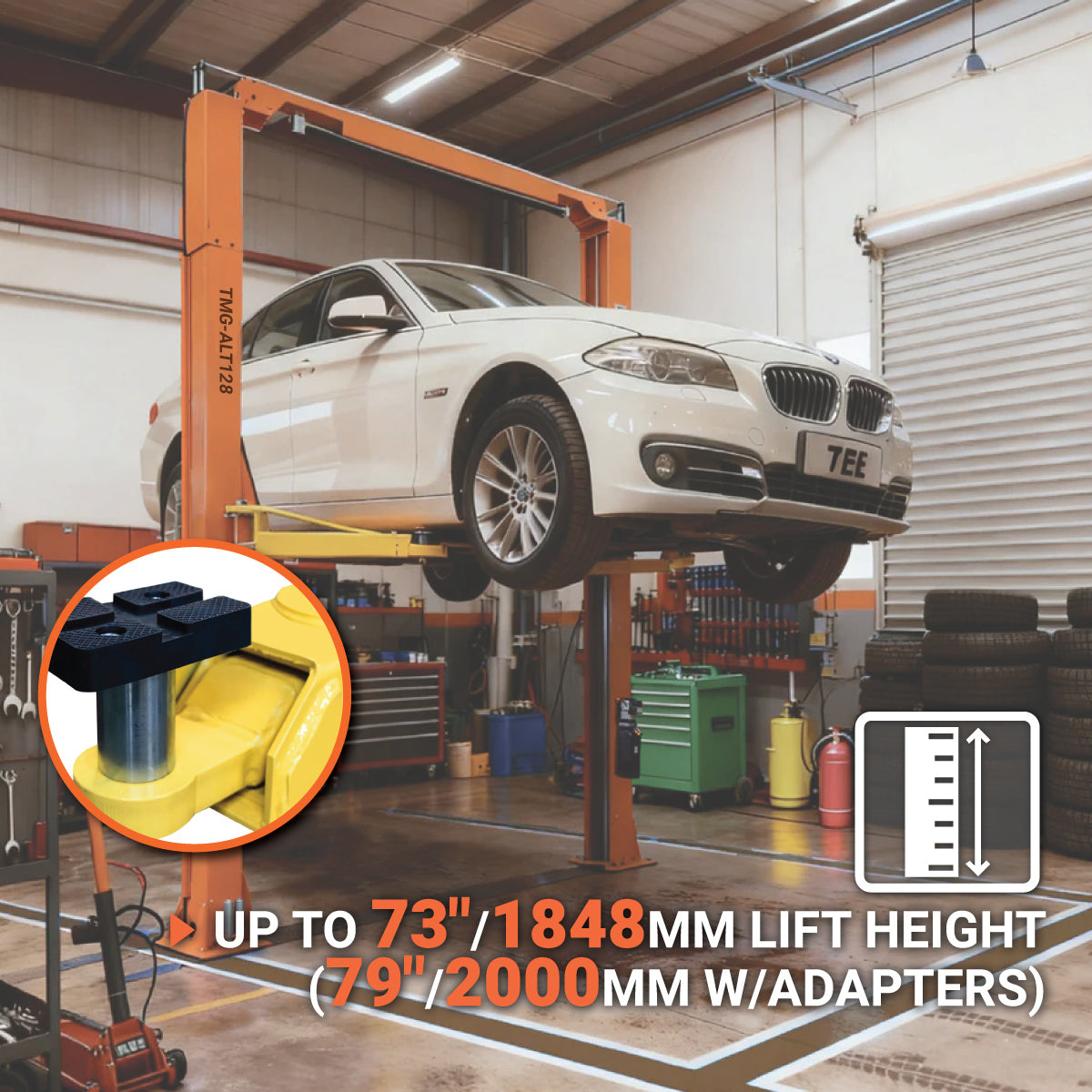

• Maximum Lift Height: 73" (Without Adapters), 79" (With 6" Adapters)
• Minimum Height from Ground: 4"
• Number of Adapter: 4 x 3 sets

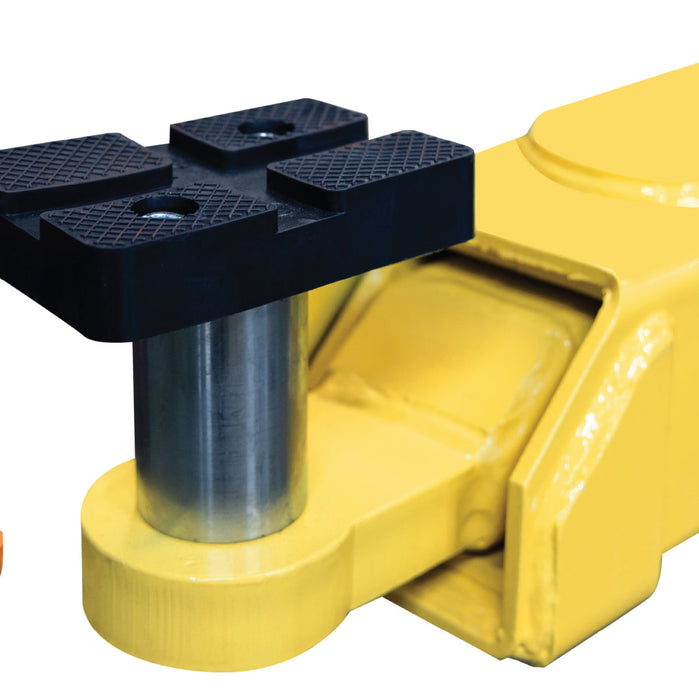

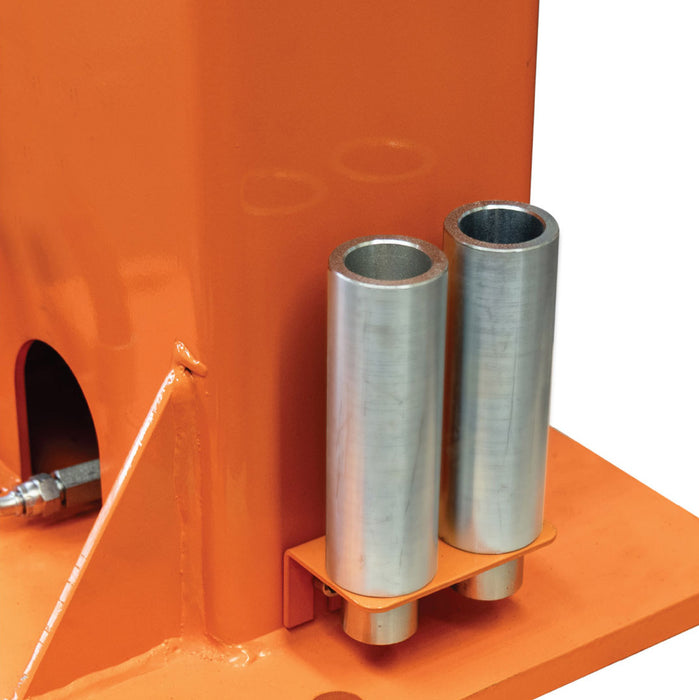

• Adapter Height (inch): 1.5", 3", 6"

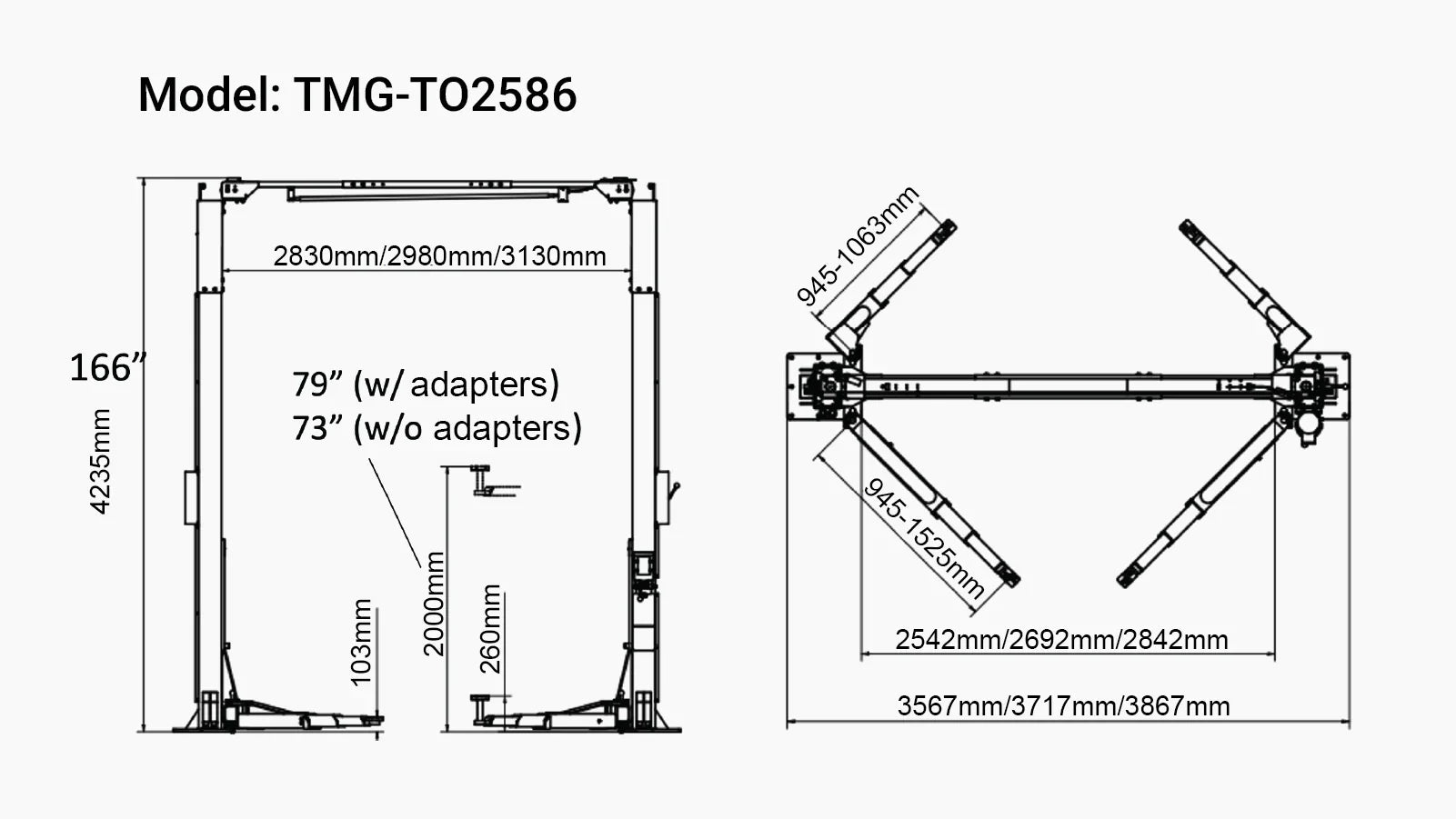

• Overall Height (inch): 166"
• Overall Width (inch):
  140" (Narrow Spacing), 146" (Medium Spacing), 152" (Wide Spacing)

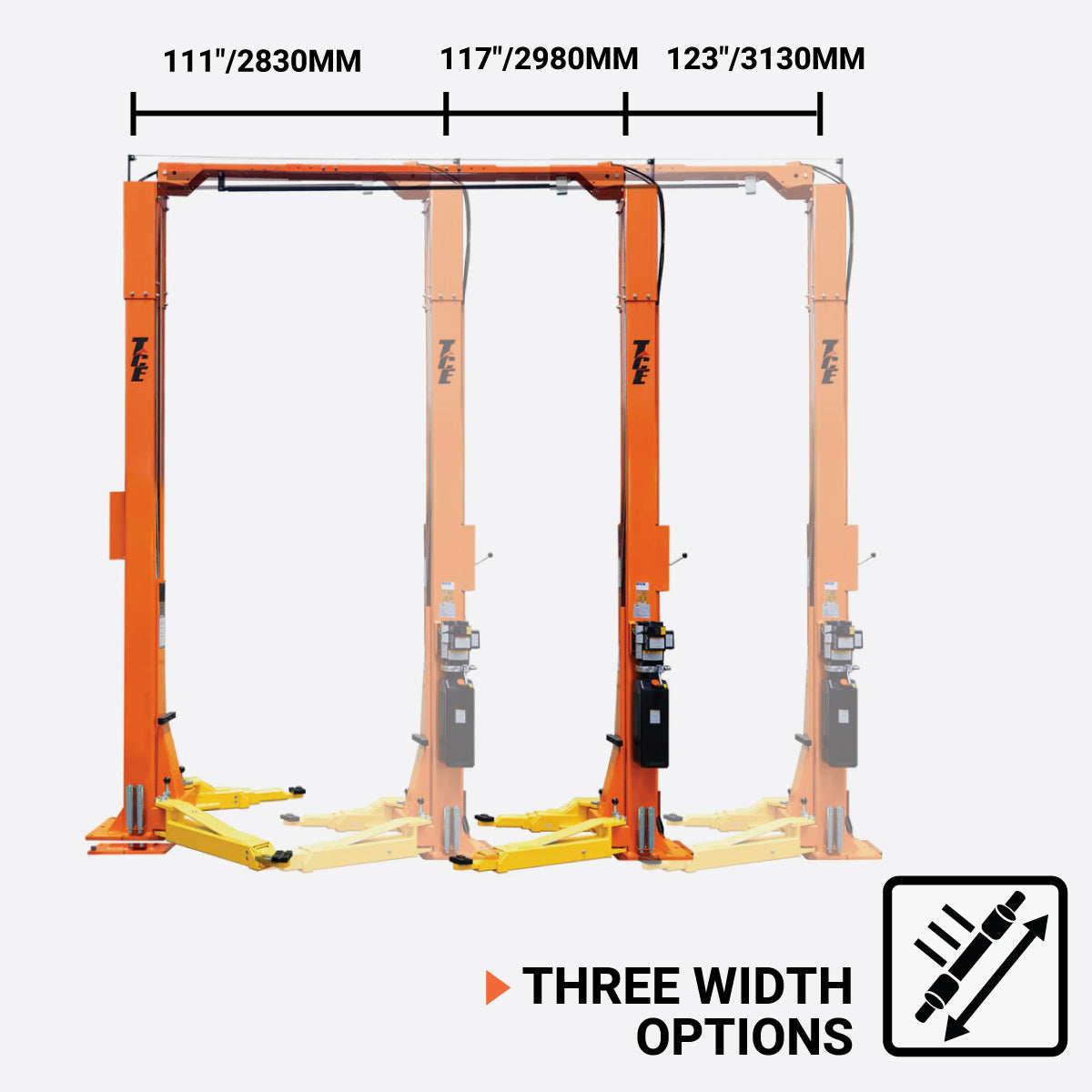

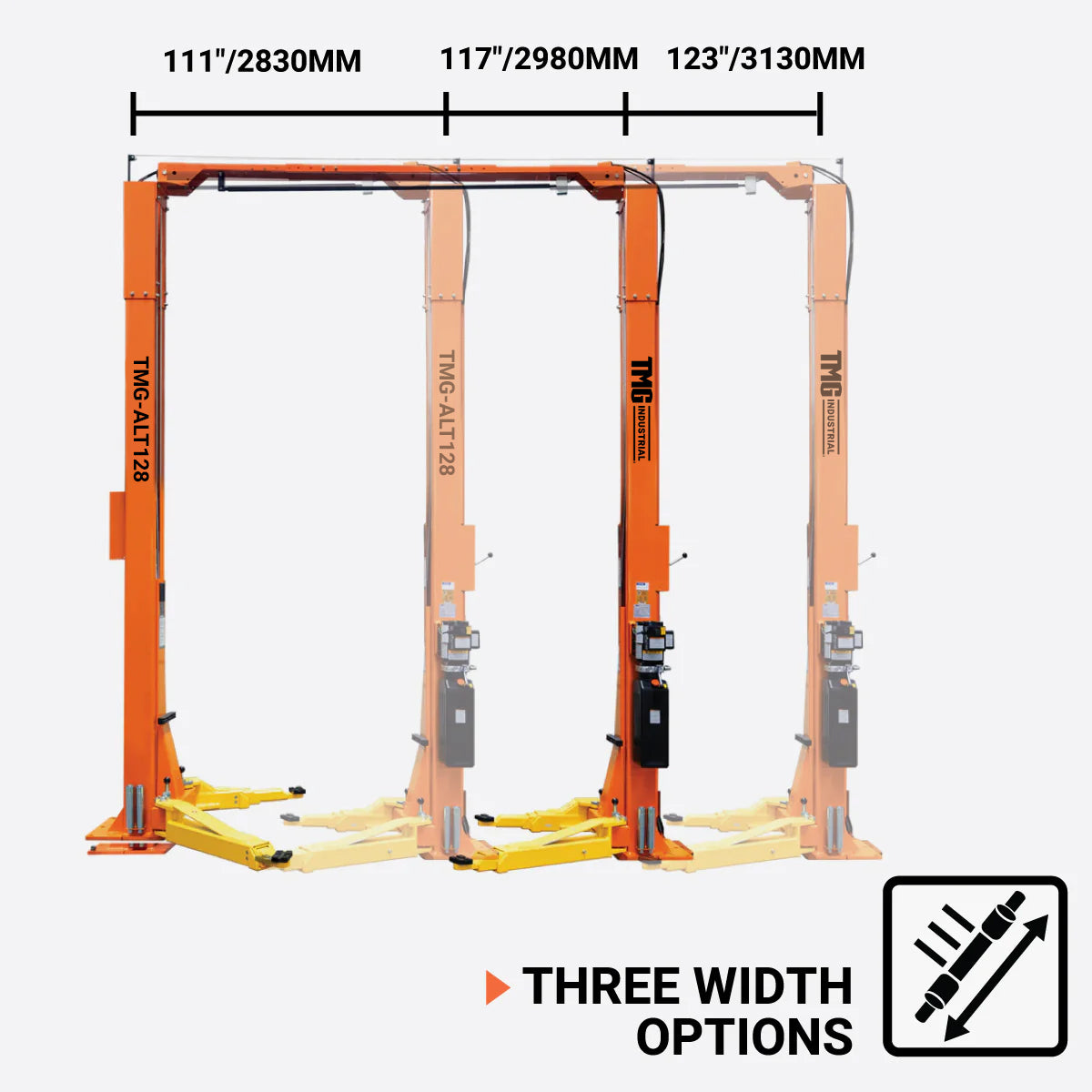

• Column to Column Width:
  111" (Narrow Spacing), 117" (Medium Spacing), 123" (Wide Spacing)
• Drive Thru Clearance:
  100" (Narrow Spacing), 106" (Medium Spacing), 112" (Wide Spacing)

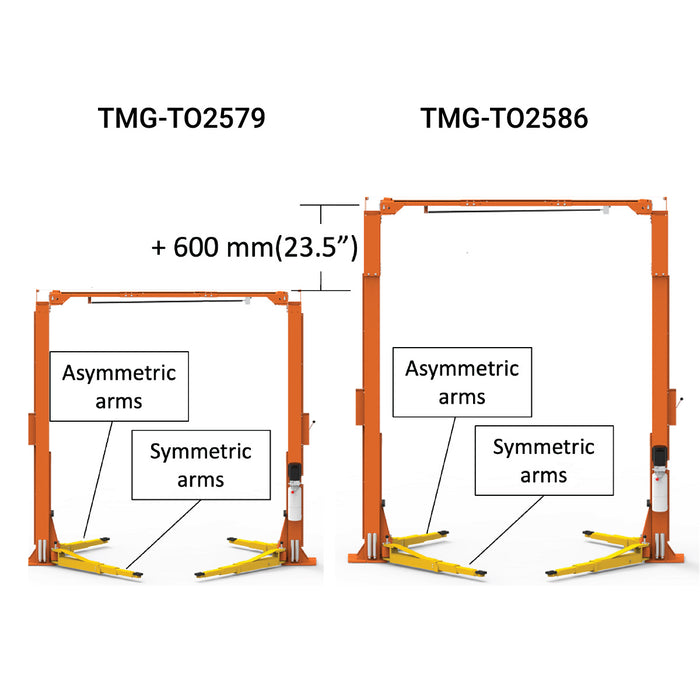

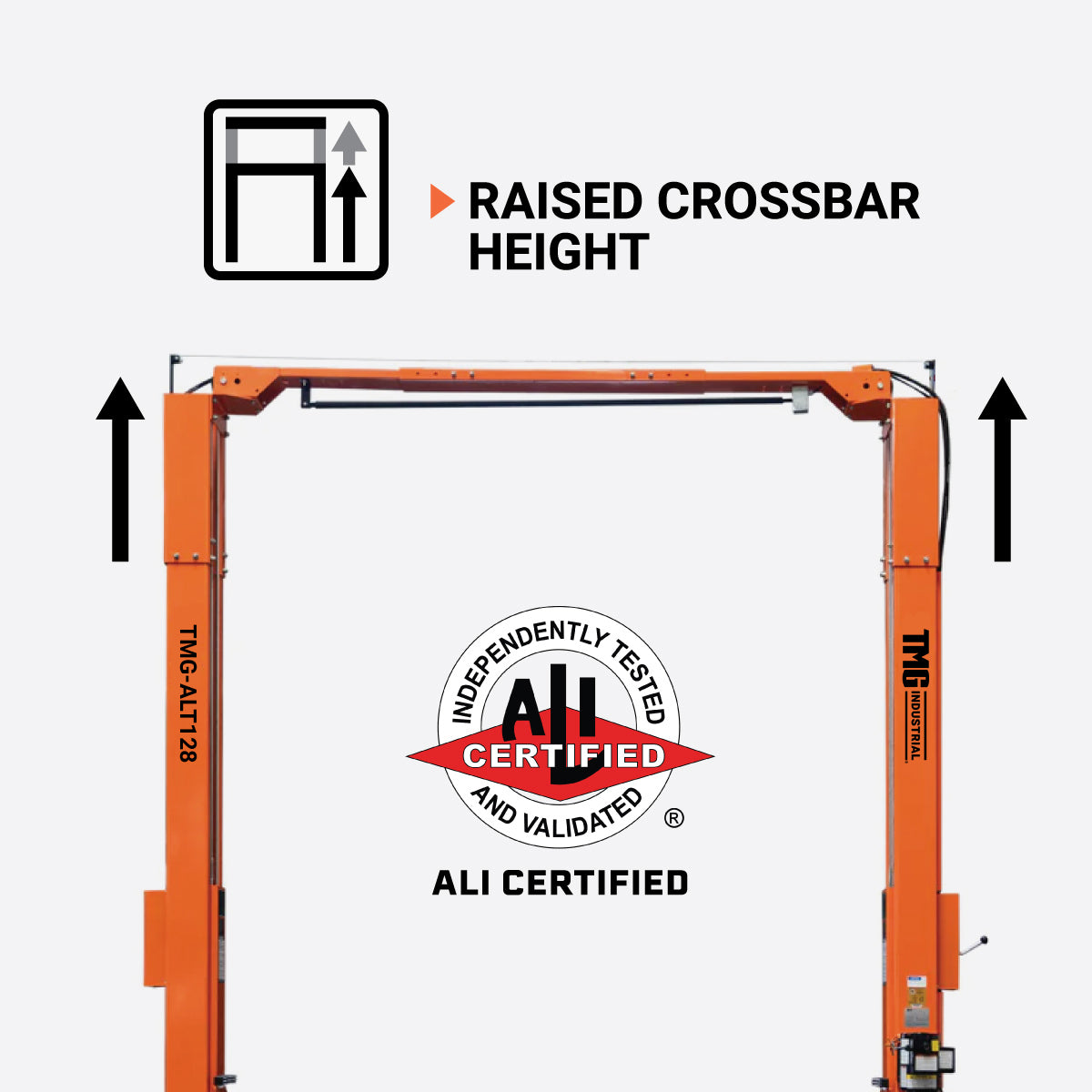

• Overhead Stop Height: 158"

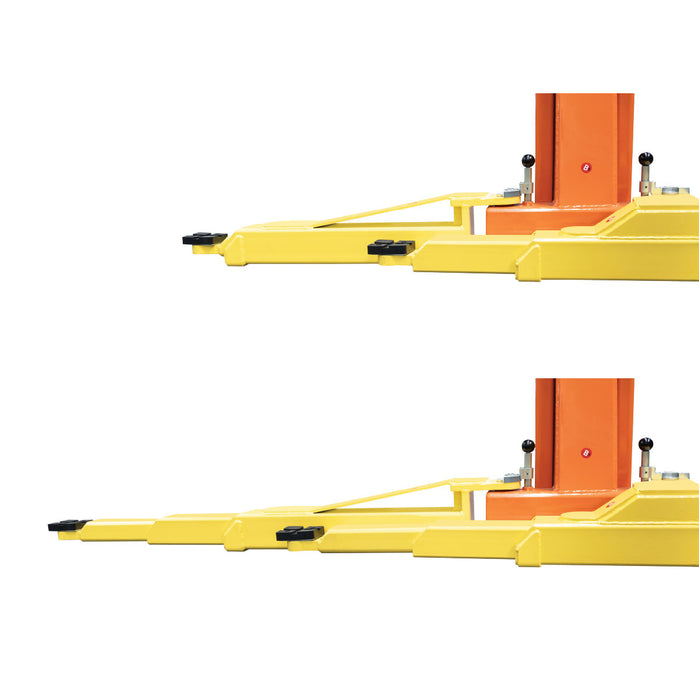

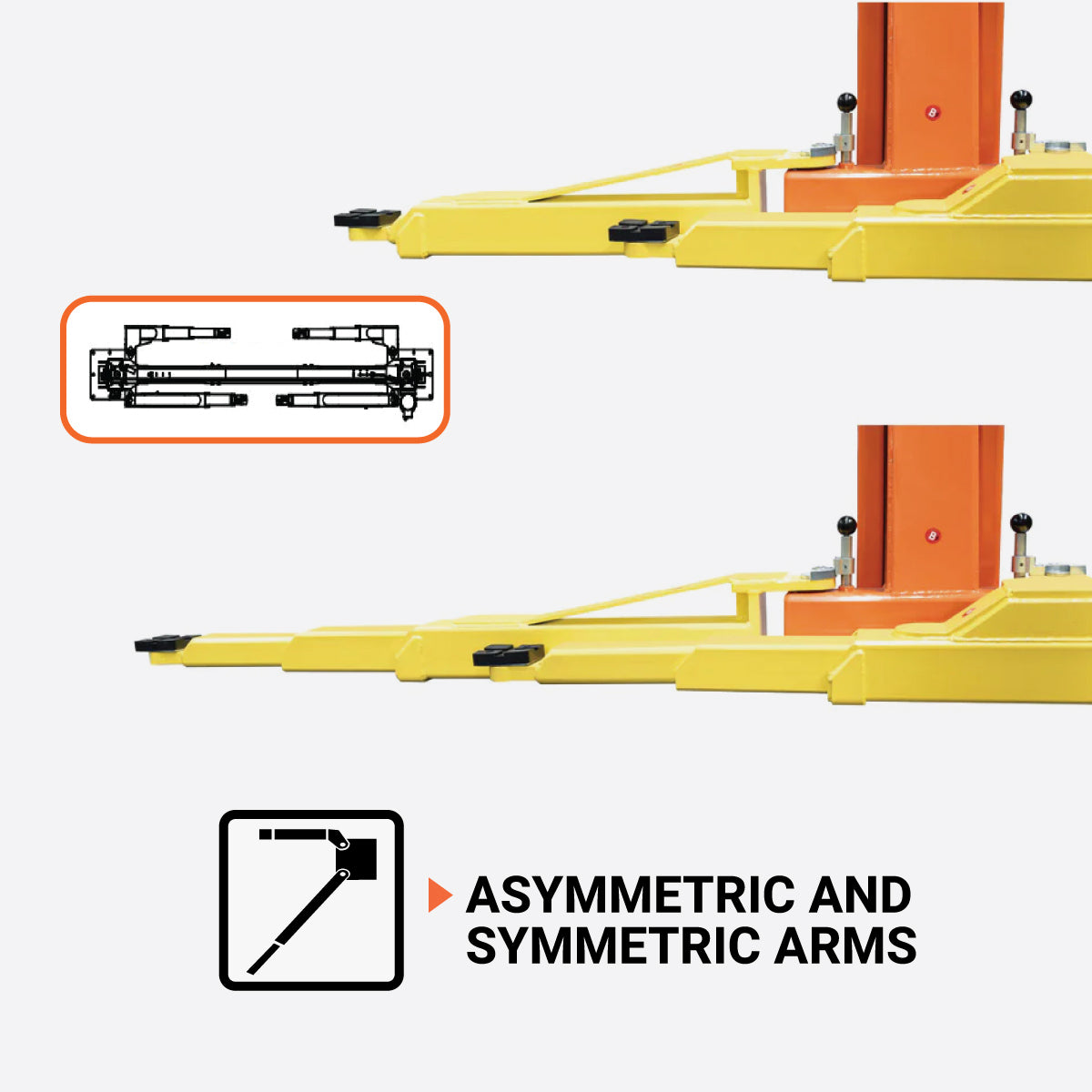

• Front Arm Reach: 19" - 42"
• Rear Arm Reach: 37" - 60"
• Arm Spec:
  Rear Section: 120 x 110 x 6 mm, Middle Section: 100 x 90 x 8 mm, Front Section: 80 x 70 x 8 mm
• Column Spec: 288 x 175 x 6 mm
• Column Material: Heavy-duty Carbon Steel

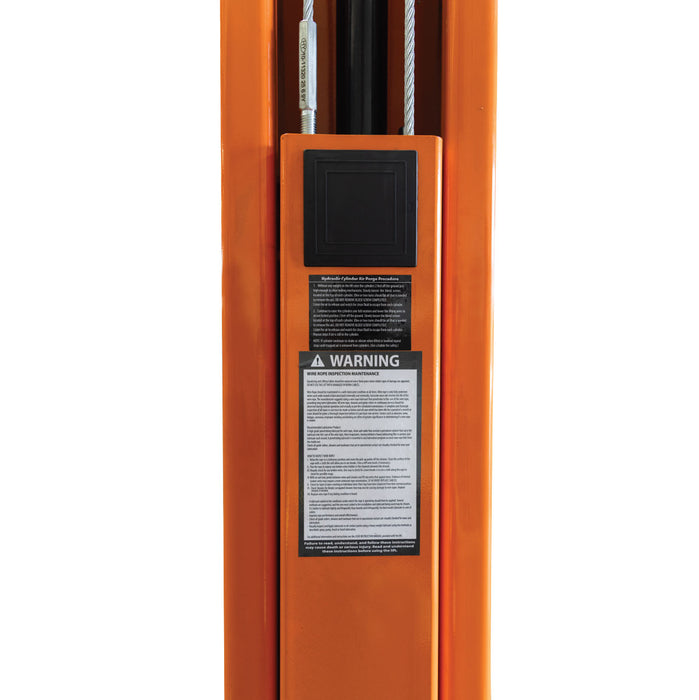

• Safety Cable Spec:
  10 NAT 6 x 19s + IWS 1870 (Dia. 10 mm, Steel Core Wire, Tensile Strength 1870 MPa)
• Safety Cable Length: 11.3 m
• Travel Time: Lift in 60 Sec; Lower in 45 Sec

Hydraulic Power Unit:

• Power: 208 - 240V AC, 3 HP, Single Phase
• Rated Current: 16 A
• CIPR (Cubic Inches Per Revolution): 0.1288
• Pump RPM: 2880 / 3450
• Hydraulic Pressure: 2450 PSI
• Hydraulic Port: 9/16 - 18UNF
• Tank Capacity: 3.17 Gal
• Hydraulic Oil: AW32, AW46
• CETL Certified: Yes

The order will ship from one of our warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you, based on where you are located and how accessible the location is.

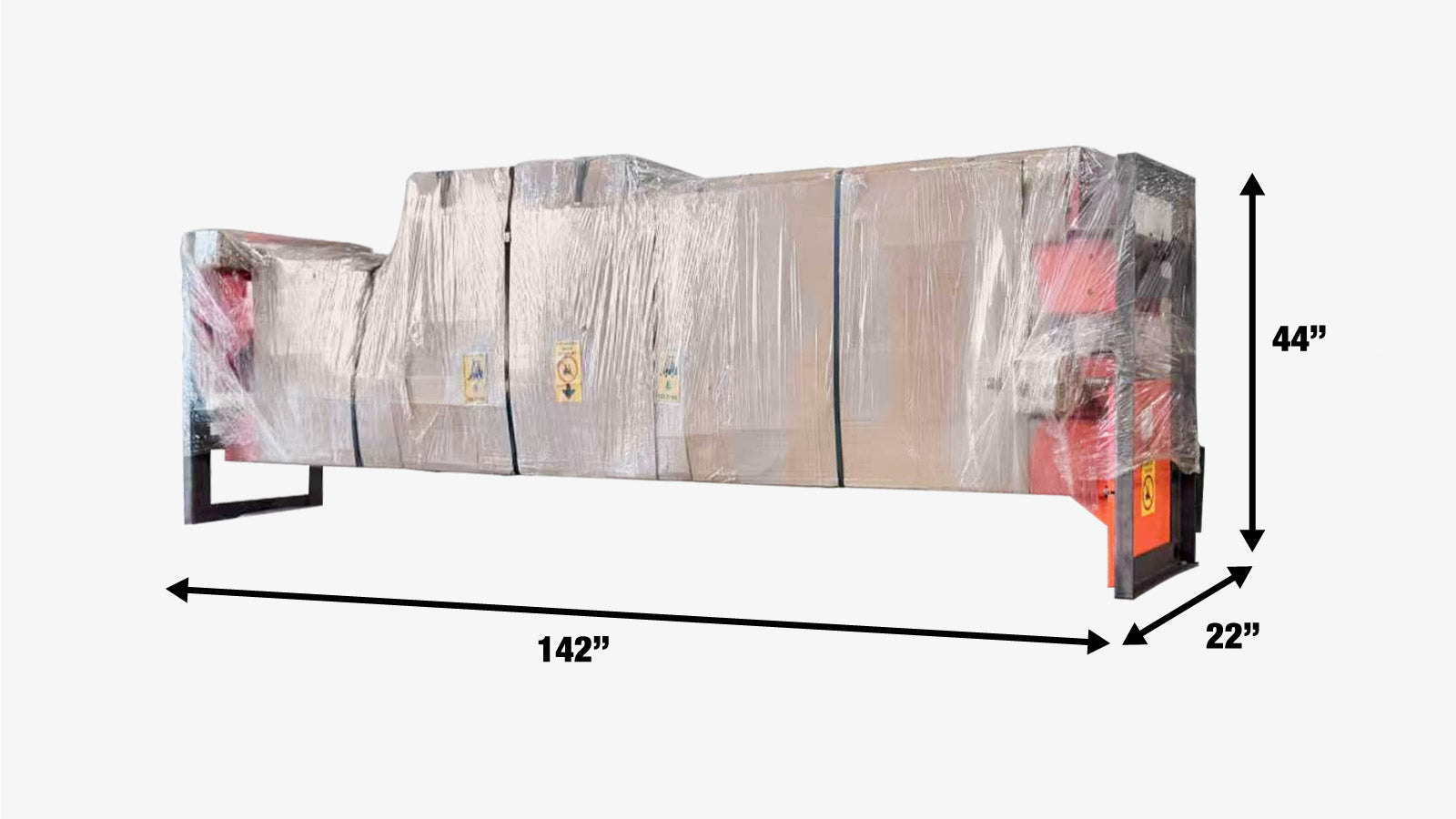

• This product is packed in 2 shipping boxes
• Box A shipping dimensions: 142" x 22" x 38" (L x W x H)/360 x 57 x 96 cm
• Box B shipping dimensions: 35" x 11" x 13" (L x W x H)/90 x 28 x 32 cm
• Total shipping weight: 2065 lb (936 kg)

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
