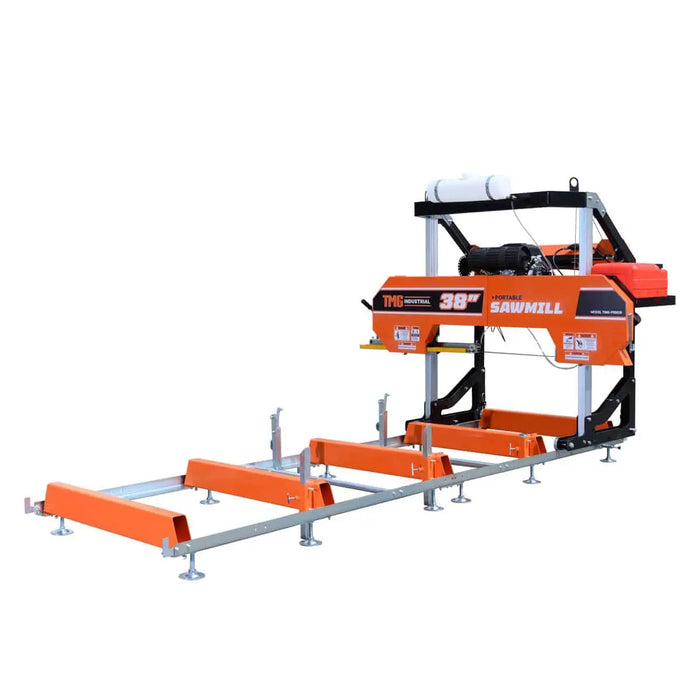

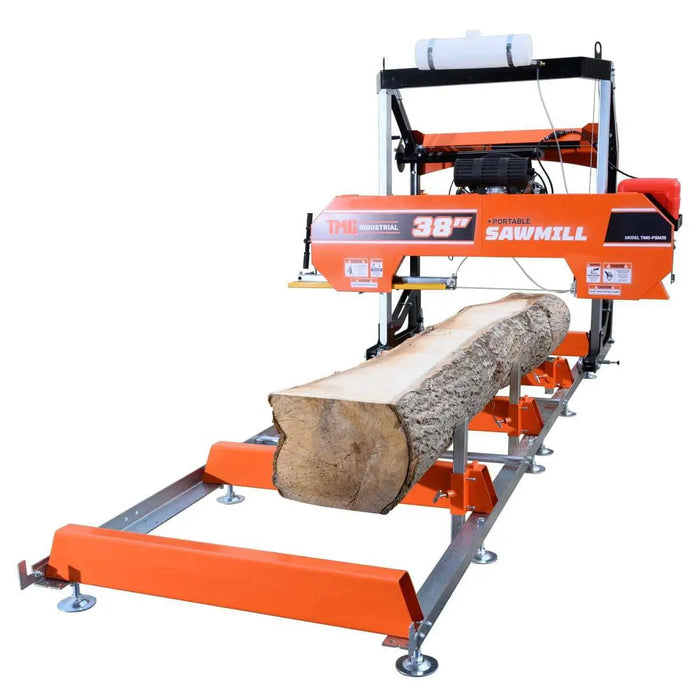

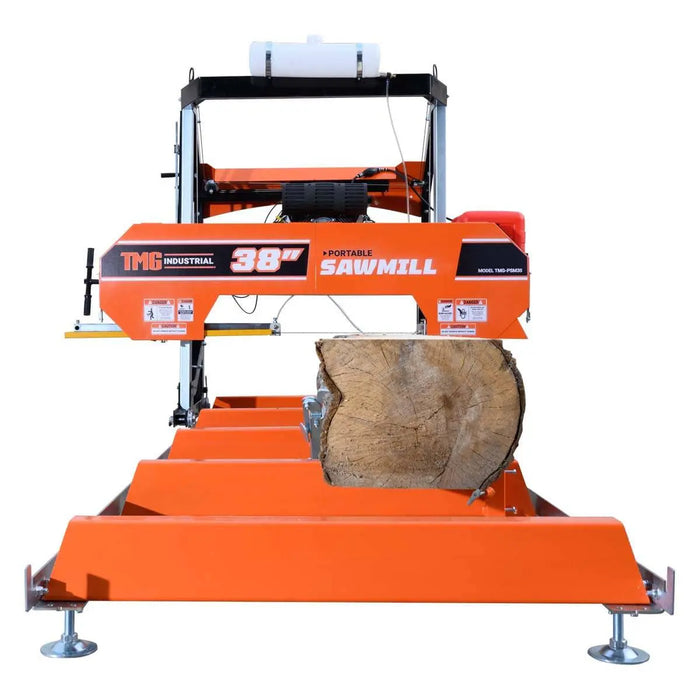

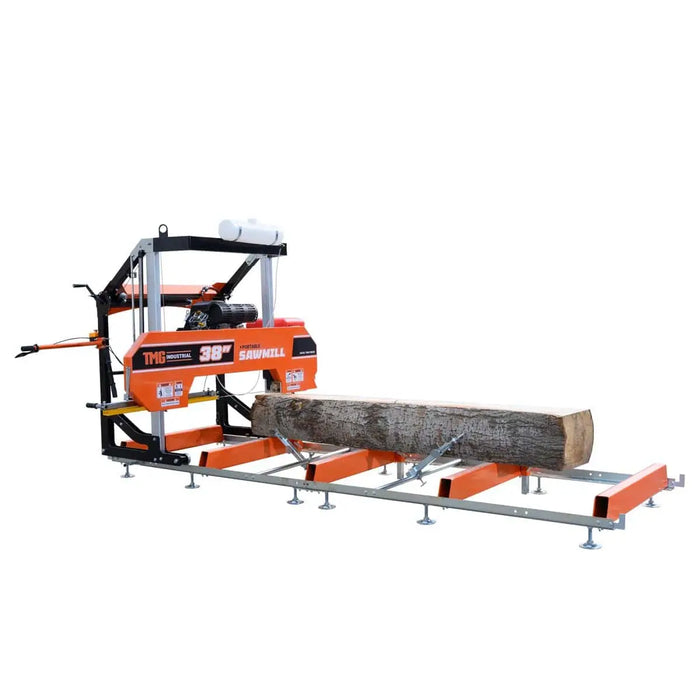

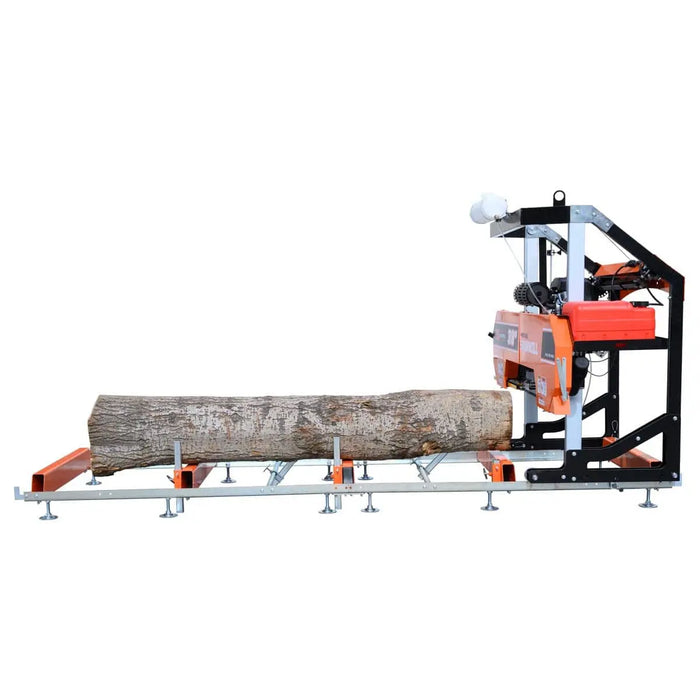

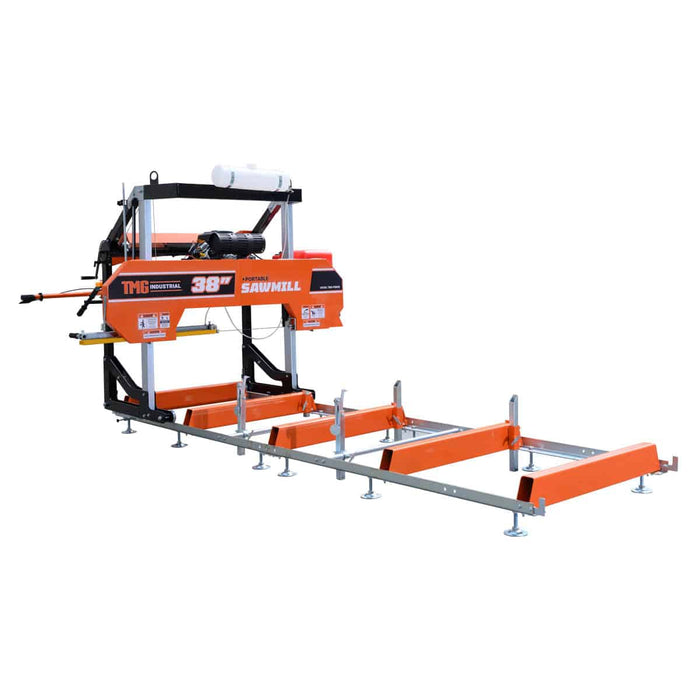

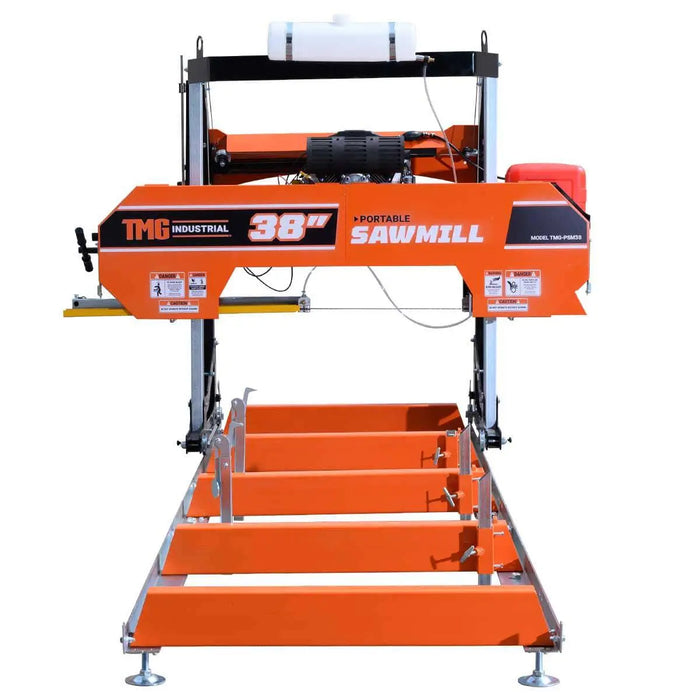

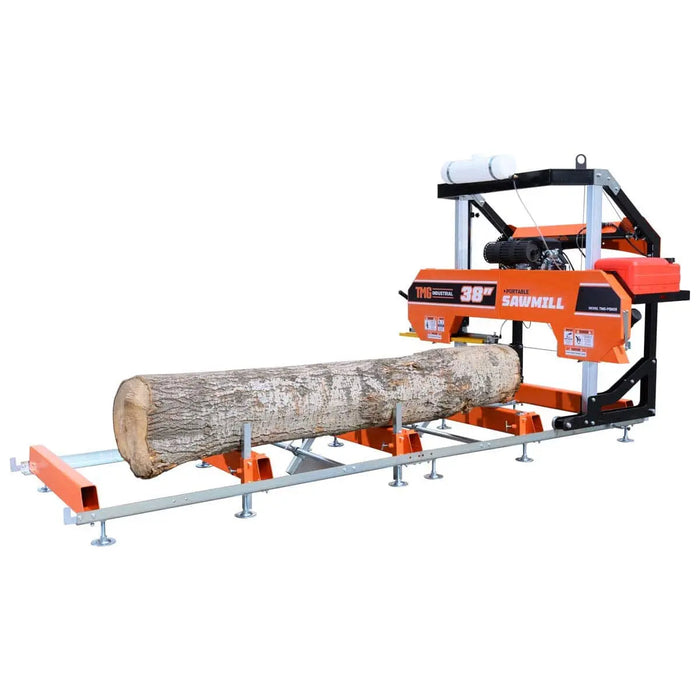

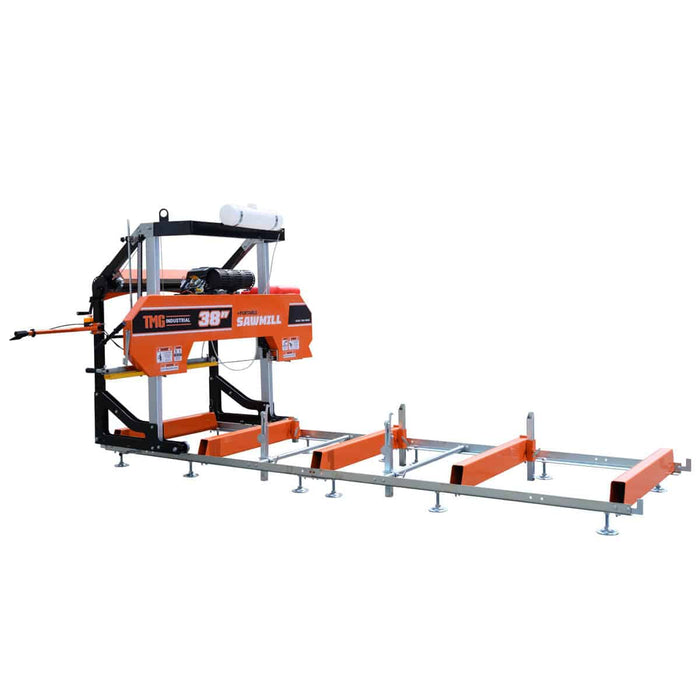

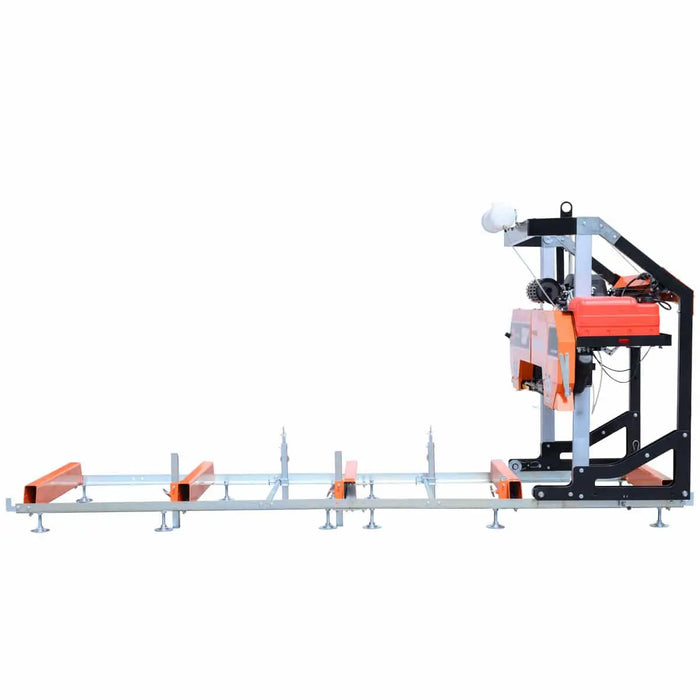

38" Portable Sawmill, 13’ Track Length, 24 HP V-Twin Engine, 4-Post Carriage, 10 L Water Tank, EPA Certified Fuel Tank, TMG-PSM38
FREE
shipping to most locations in
Canada
Features
Features
- 24 HP V-twin engines offer high horsepower, great adaptability, quiet operation, and excellent fuel efficiency
- EPA-certified 3-gallon portable marine boat fuel tank with connector fuel hose line

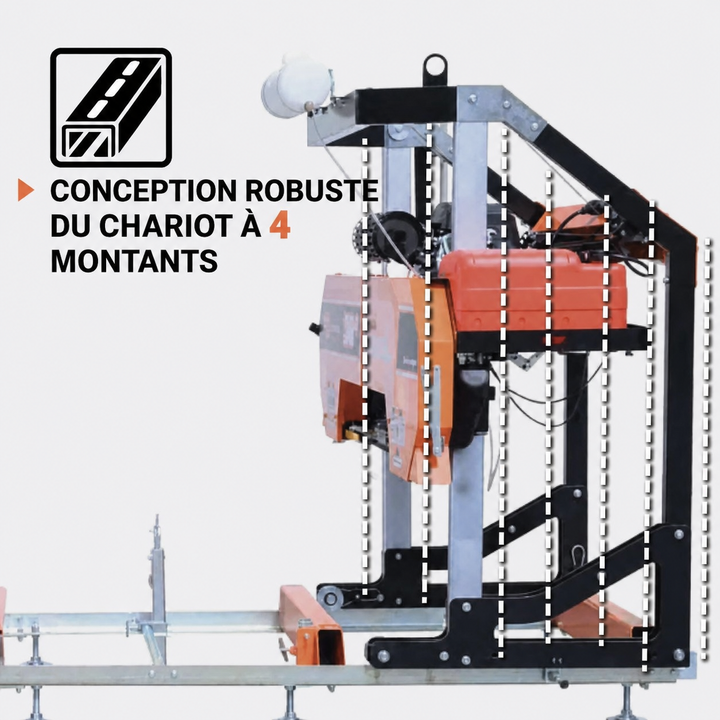

- Built with a 4-post carriage/saw head design
- Waist-height saw head lift crank mechanism
- 10-liter translucent water tank
- Saw head locking design for safe transport
- Dual quick log clamps and two types of limit tubes for handling different sizes of wood
Specifications
Specifications

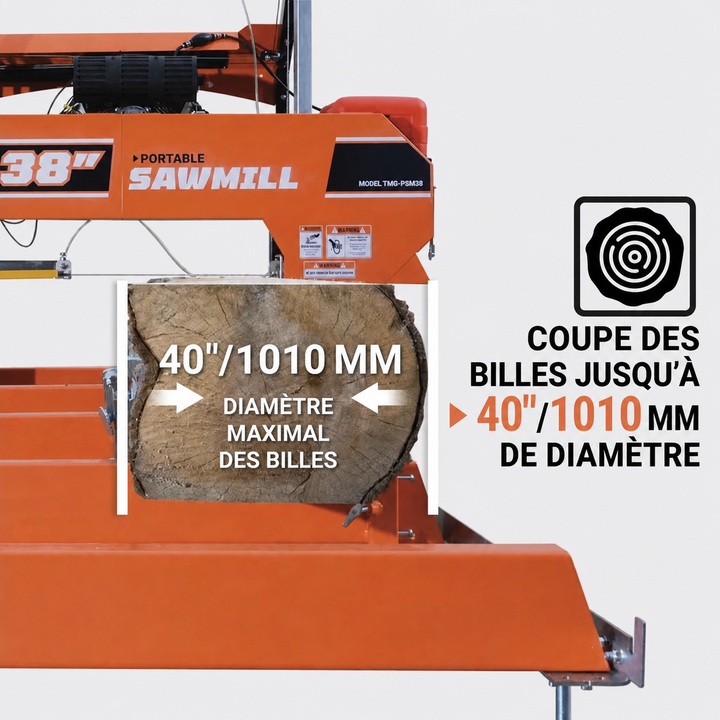

- Max. log diameter: 40” (1016 mm)
- Max. log length: 9-3/4’ (2980 mm)

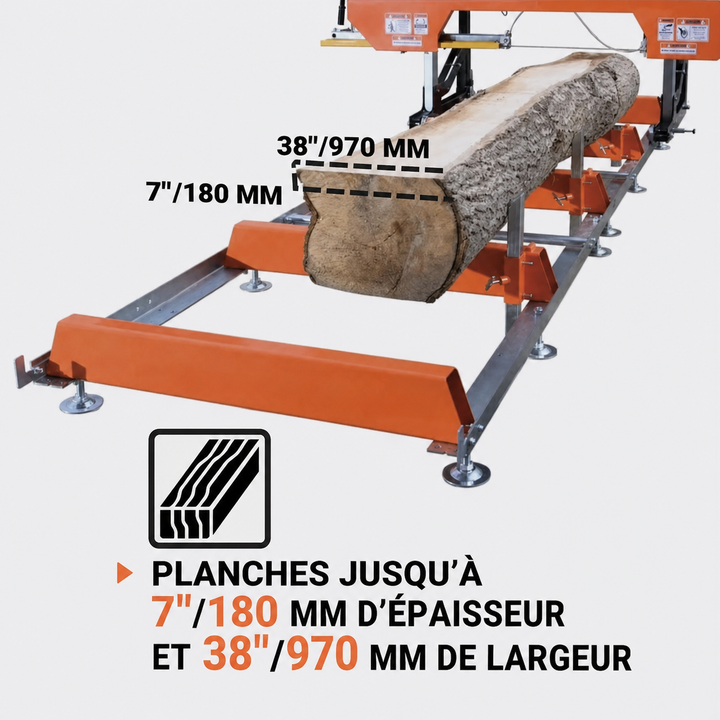

- Max. board width: 38” (970 mm)
- Max. board thickness: 7” (180 mm)
- Max. cutting length: 9-3/4’ (2980 mm)
- Track length: 12-3/4’ (3900 mm)
- Track width: 45-1/4” (1150 mm)
- Saw blade (not included):
- Blade length: 175” (4440 mm)
- Blade width: 1.25”-1.34” (32-34 mm)
- Blade thickness: 0.43” (1.1 mm)
- Engine: 24 HP V-twin EPA engine
Engine Specifications
Model: RATO R740
Type: Air-cooled, 4-stroke OHV
Net Power Output: 24 HP
Displacement: 740 cc
Starting System: Electric
Oil Capacity: 1.6 L
Engine Features
Low Vibration: V-twin cylinder and dynamically balanced crankshaft design ensure smoother engine operation.
High Power, Low Emissions, Stable Performance: Equipped with a semi-spherical combustion chamber and overhead V-valve technology for optimal combustion and reduced emissions.
Efficient Cooling: Full-pressure lubrication and forced air-oil cooling system provide maximum lubrication and reduce operating temperature.
Two-Stage Oil Filtration: Helps maintain engine cleanliness, enhances durability, and improves resistance to wear for long-term performance.
Shipping Information
Shipping Information
The order will be shipped from one of our main warehouses in North America. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a wood crate shipping box
- Shipping dimension: 90” x 32” x 34” (L x W x H)
- Shipping weight: 1080 lb
Product Description
Product Description

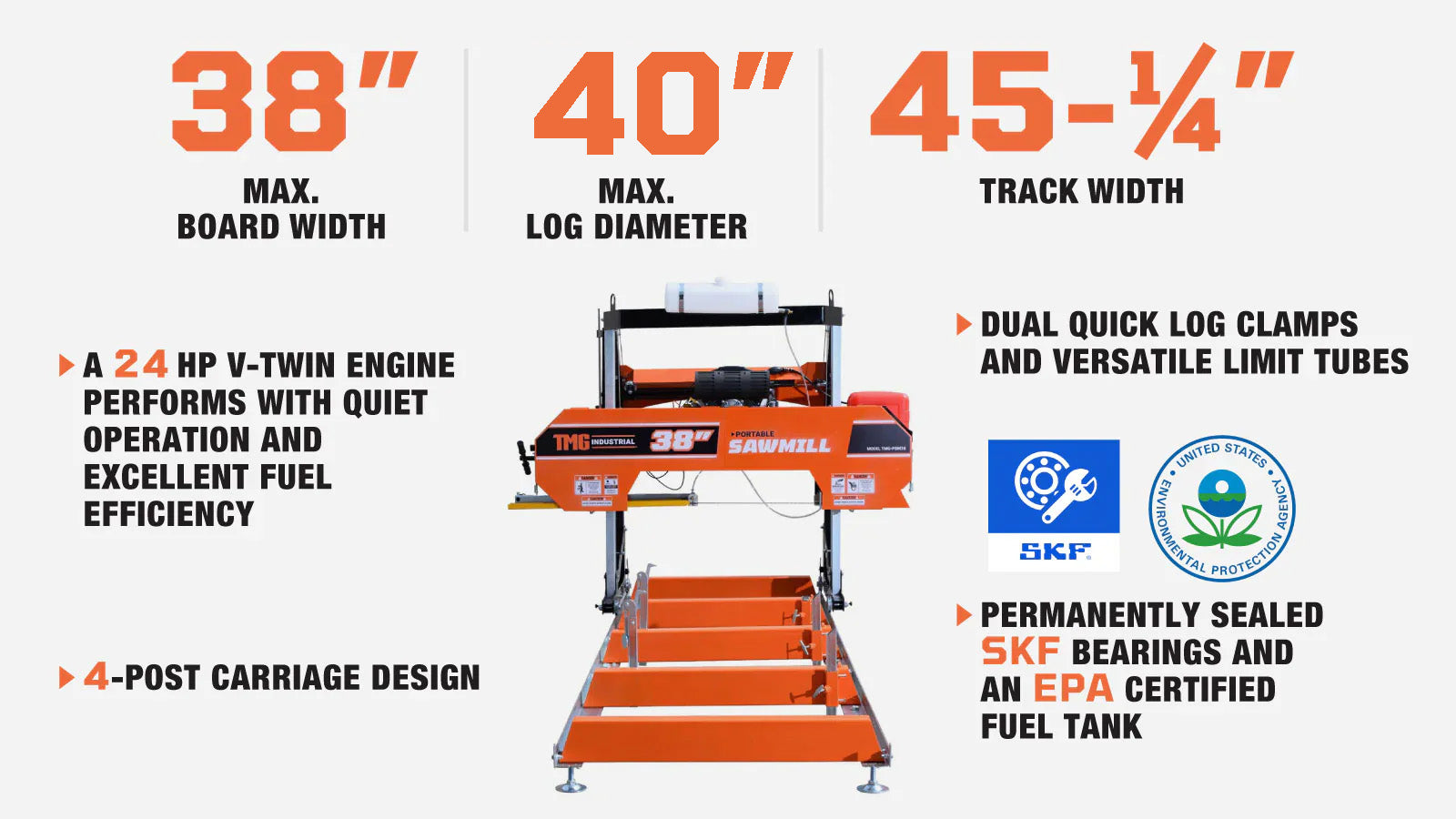

The TMG-PSM38 Portable Sawmill is powered by a robust 24 HP V-twin engine, delivering high performance, quiet operation, and impressive fuel efficiency. Designed for serious woodworking, it features a 38” cutting capacity, making it ideal for handling a wide range of tasks with ease.
Built with a 4-post carriage and a convenient waist-height saw head lift crank, this sawmill ensures smooth and effortless operation. The inclusion of dual quick log clamps and two types of limit tubes allows for versatile material handling, while the saw head locking design guarantees safe and secure transport.

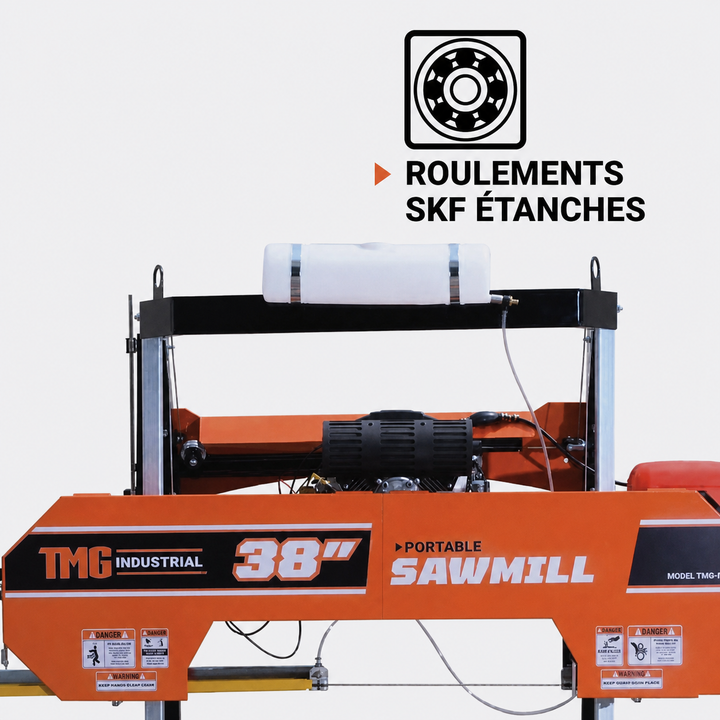

Engineered for durability and precision, the TMG-PSM38 comes equipped with an EPA certified fuel tank, permanently sealed SKF bearings, and a 10 L water tank for long-term, reliable performance.
