SKU TMG-PSM22

TMG Industrial 22” Portable Sawmill, 7 HP Kohler Command Pro Series Engine, 12’ Log Length, 4-Post Carriage with Saw Head Anti-tip Locking, TMG-PSM22

SKU TMG-PSM22

TMG Industrial 22” Portable Sawmill, 7 HP Kohler Command Pro Series Engine, 12’ Log Length, 4-Post Carriage with Saw Head Anti-tip Locking, TMG-PSM22

Prix d'origine $3,499.00 CAD
Prix d'origine $3,499.00 CAD - Prix d'origine $3,499.00 CAD
Prix d'origine $3,499.00 CAD
Prix actuel $3,299.00 CAD
$3,299.00 CAD - $3,299.00 CAD
Prix actuel $3,299.00 CAD
Économisez $200.00 CAD Économisez $200.00 CAD CURRENTLY IN STOCK
FREE SHIPPING TO MOST LOCATIONS IN CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS
Selection will add $0.00 CAD to the price

Other financial options:

À partir de 107 $/mois avec . En savoir plus
750.0 lb
89 x 17 x 31 inches
More Shipping Info
  • Reliable 7 HP Kohler Command Pro Series Engine
  • Sturdy 4-post carriage design with anti-tip self locking design for enhanced stability
  • Quick adjustments w/waist-height lift crank
  • 10 L translucent water tank to keep your blade sharp & protected
  • Oil Sentry™ shutoff protects your engine when low oil is detected

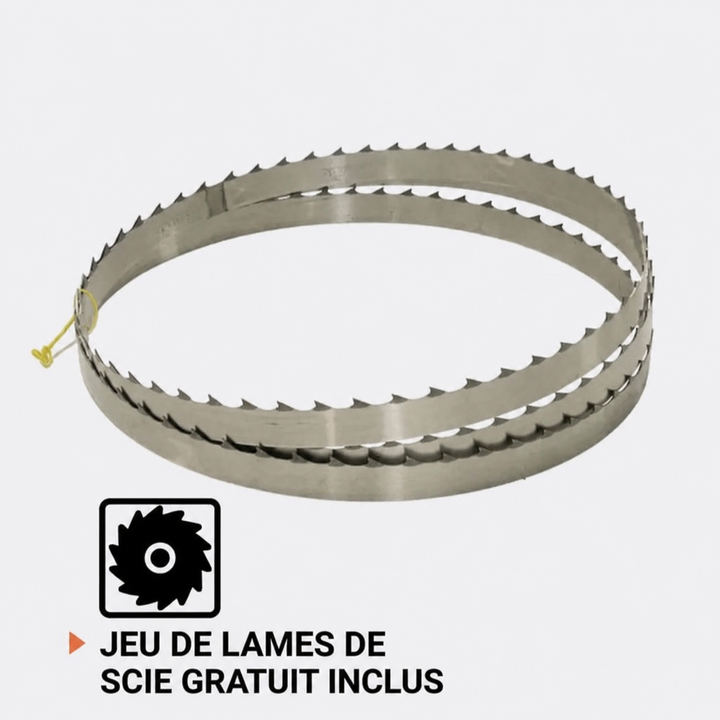

  • Comes with one free blade for all online orders
Product Manual

Features

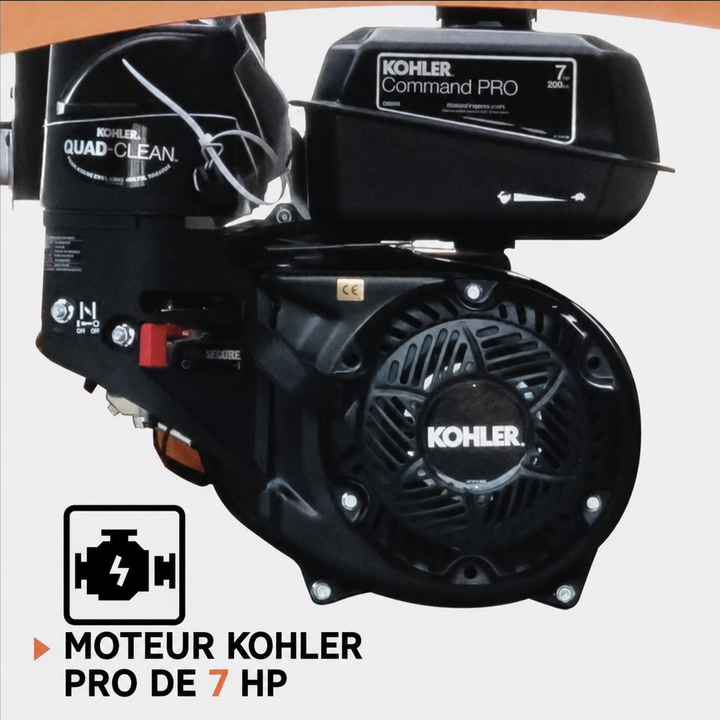

  • The 7 HP Kohler Command Pro Series Engine is known for its reliability, and offers consistent and efficient cutting for effortless workflow

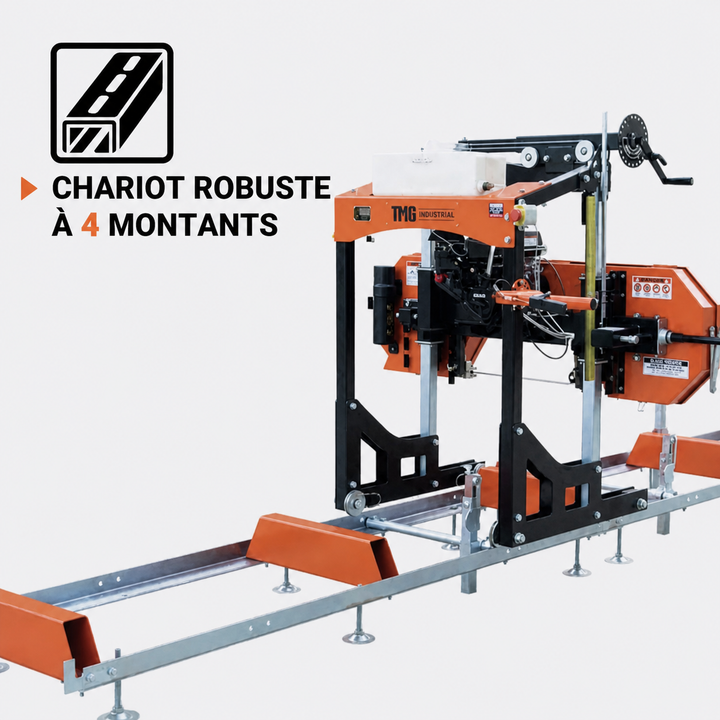

  • Built with a sturdy 4-post carriage and saw head locking design, this sawmill offers durability and stability during all operations
  • A waist-height saw head lift crank mechanism allows hassle-free adjustments, letting you switch between cuts swiftly and comfortably without strain

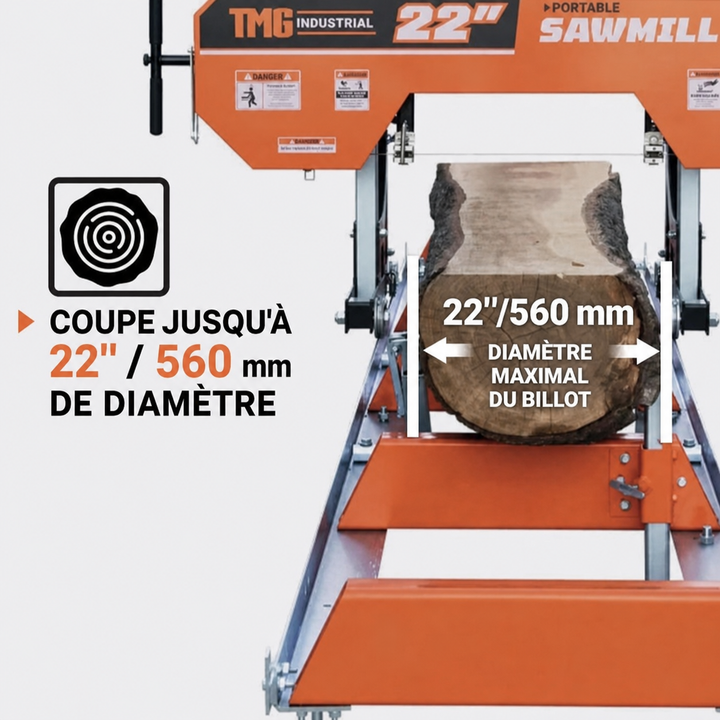

  • With a remarkable 22” max. log diameter and 12’ max log length, you can tackle a wide range of projects, from small planks to more substantial boards
  • Secure transportation is made possible by the saw head locking design which enhances safety during transportation and prevents mishaps while moving
  • Dual quick log clamps, combined with adjustable limit tubes, accommodate various wood sizes, enhancing your flexibility and creative options

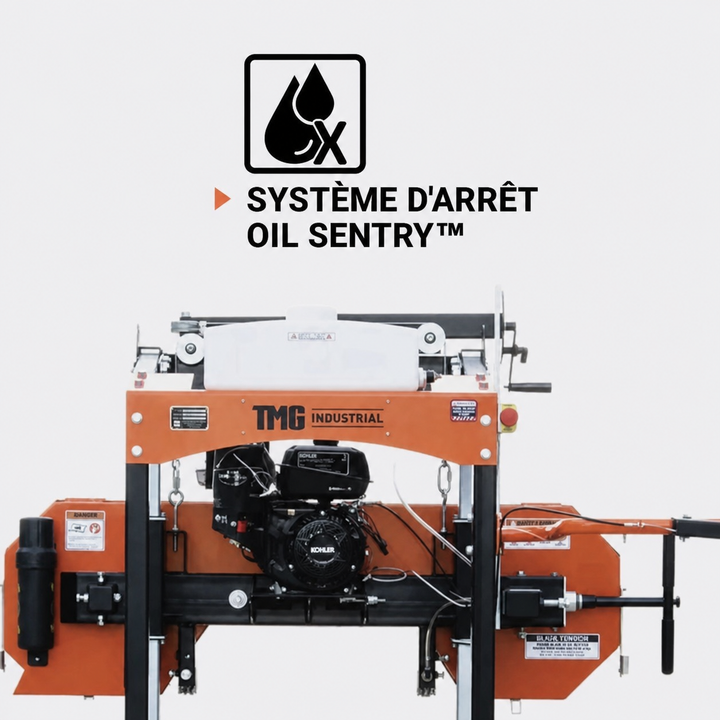

  • Oil Sentry™ function provides automatic low-oil shutdown, safeguarding the engine and prolonging its lifespan for extended heavy-duty use
TMG Industrial 22” Portable Sawmill, 7 HP Kohler Command Pro Series Engine, 12’ Log Length, 4-Post Carriage with Saw Head Anti-tip Locking, TMG-PSM22-description-image

Specifications

  • Maximum log diameter: 22”
  • Maximum log length: 12’

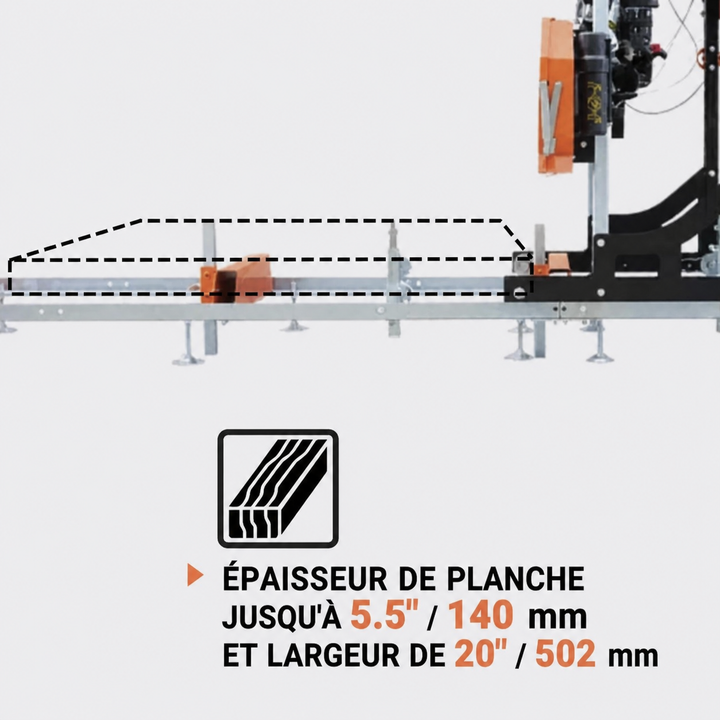

  • Maximum board width: 20”
  • Maximum board thickness: 5-½”
  • Track length: 14-½’
  • Saw blade (*sold separately):
    • Blade length: 128” (3251mm)
    • Blade width:1-¼”-1-⅜” (32-34mm)
    • Blade thickness: 0.035”-0.043” (0.9-1.1mm)
  • 10 L translucent water tank
  • Dual quick log clamps
  • Saw head locking design
  • Waist-height lift crank
  • Engine

  • Model: Kohler® CH270
  • Type: Four-cycle, tri-fuel conversion, OHV, aluminum head & crankcase
  • Power: 7 HP
  • Displacement: 208 cc
  • Start type: Recoil
  • Fuel capacity: 4.0 L
  • Oil capacity: 0.6 L
  • Cast iron cylinder liners provide lasting durability
  • Oil Sentry™ automatically shuts the engine down in low-oil condition
TMG Industrial 22” Portable Sawmill, 7 HP Kohler Command Pro Series Engine, 12’ Log Length, 4-Post Carriage with Saw Head Anti-tip Locking, TMG-PSM22-specifications-image

Shipping Information

The order will ship FREE from one of our main warehouses in Canada. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a wood crate shipping box
  • Shipping dimension: 89” x 17” x 31” (L x W x H)
  • Shipping weight: 750 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
TMG Industrial 22” Portable Sawmill, 7 HP Kohler Command Pro Series Engine, 12’ Log Length, 4-Post Carriage with Saw Head Anti-tip Locking, TMG-PSM22-shipping-info-image

Product Description

The TMG-PSM22 Portable Sawmill is designed for efficiency and precision. With its 7 HP Kohler Command Pro Series Engine delivering consistent power, this sawmill lets you effortlessly transform logs into a wide range of custom boards. It has a 22” max. log diameter and 12’ max log length capacity that will cater to various projects. Built with a sturdy 4-post carriage with saw head anti-tip self-locking design, along with a waist-height lift crank, which make adjustments simple and easy-to-do no matter where your setup is.

Equipped with a 10 L translucent water tank to keep the blade cool while cutting, reducing wear on the teeth and extending their lifespan. Dual quick log clamps and adjustable limit tubes accommodate different wood sizes for enhanced versatility, and you can easily craft boards up to 20” wide and 5-½” thick.

A tri-fuel conversion system in the engine provides exceptional performance to the user and makes this sawmill adaptable and ready for any environment you put it in. Its durable aluminum build and Oil Sentry™ function, which protects against low oil levels, add to its heavy-duty and robust design. Get ready to change the game and upgrade your woodworking with this high quality and cost-effective saw.

We also carry other sawmill models: TMG Portable Sawmills

Warranty

Customer Reviews
4.7 Based on 108 Reviews
5 ★
75%
81
4 ★
24%
26
3 ★
1%
1
2 ★
0%
0
1 ★
0%
0
Customer Photos
Write a Review Ask a Question

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
12/21/2024

Saw mill

To purchase the saw mill was easy , will not...read moreTo purchase the saw mill was easy , will not assemble till next spring , look all in there. Will know this spring when assembled

AC
Andre C.
Canada
03/26/2024

Great deal. Has features that come standard that other companies...read moreGreat deal. Has features that come standard that other companies charge extra. Highly recommend.

K
Keith SVG verified by SHOP
United States
02/21/2024

Great saw mill

Easy to put together. Fast shipping and great friendly customer...read moreEasy to put together. Fast shipping and great friendly customer service. Even a follow up phone call.

B
Brock
Canada
02/15/2024

TMG 26"

Smooth transaction. Quick shipping. Mill looks awesome all set up...read moreSmooth transaction. Quick shipping. Mill looks awesome all set up and ready to go. Set-up time (2 people) was under 6 hours. A very sturdy well built mill. Going to by the bed extension and some bandsaw blades to be ready for spring operation.

BB
B. Berube
Canada
02/11/2024

TMG-psm22

Dealing with TMG was great, upon order was contact about...read moreDealing with TMG was great, upon order was contact about shipping which had several options, shipping was quick and packaged well. Set up and I rial use took a bit but it does exactly as I intended it to do and imagined, the structure is sturdy and cuts true, very pleased with my sawmill

SG
Schuyler G.
Canada
02/09/2024

27 inch sawmill

Over all the shipping was fast and it was not...read moreOver all the shipping was fast and it was not hard to put together so far with the sawmill everything is going well

BS
Bradley S.
Canada
02/09/2024

Definitely recommend

Very easy to assemble and is a work horse. No...read moreVery easy to assemble and is a work horse. No issues at all. Customer service is top notch and they took care of everything and made it easy. Instructions are some of the best I've ever seen. I will be purchasing again from this company.

BV
Brock V.
Canada
09/12/2023

Great saw, okay instructions

Overall, the setup experience went alright. Assuming you have some...read moreOverall, the setup experience went alright. Assuming you have some mechanical aptitude you should be able to decipher your way through the instructions. I did find the instructions very confusing at times, with some steps towards the end saying you needed a greater number of nuts/bolts than what were left, which left us wondering if we would be missing any. After continuing on past those parts just hoping we would be okay, we were. There were a couple of parts that had paint chipped/rubbed off right out of the crate, obviously not packaged with enough wrap to protect them (and of course they're parts that have to be the most noticeable). I do think the instructions should also provide a little more depth to the process of aligning the drive wheel and the follower wheel, had to turn to youtube to figure out how to get that part right so the blade would actually stay on. Once all of the hard stuff was figured out the saw ran really well, cut really well and didn't leave me desiring any more, other than possibly an electric start. Remember to watch out for your log supports once you're cutting ;)

J
Jeremy
Canada

You may also like

  • Ripper³⁷ 128” Sawmill Bandsaw Blade (Made in UK) For TMG-PSM22 Sawmill, TMG-PSM22-SB11
    Ripper³⁷ 128” Sawmill Bandsaw Blade (Made in UK) For TMG-PSM22 Sawmill, TMG-PSM22-SB11
    Prix d'origine $199.00 CAD - Prix d'origine $299.00 CAD
    Prix d'origine
    $199.00 CAD - $299.00 CAD
    $199.00 CAD - $299.00 CAD
    Prix actuel $199.00 CAD
    TMG-PSM22-SB11-P3

    Ripper³⁷ 128” Sawmill Bandsaw Blade (Made in UK) For TMG-PSM22...

    The Sawmill Ripper³⁷ Bandsaw Blade is a 128” replacement blade for the TMG-PSM22 Portable Sawmill. These high-quality sawmill blades are manufactur...

    Voir tous les détails
  • TMG Industrial 27" Portable Sawmill, 14 HP Kohler Gas Engine, 21" Board Width, 12' Log Length, 14-1/2' Track Bed, TMG-PSM27
    TMG Industrial 27" Portable Sawmill, 14 HP Kohler Gas Engine, 21" Board Width, 12' Log Length, 14-1/2' Track Bed, TMG-PSM27
    Prix d'origine $4,499.00 CAD - Prix d'origine $4,499.00 CAD
    Prix d'origine $4,499.00 CAD
    $4,499.00 CAD
    $4,499.00 CAD - $4,499.00 CAD
    Prix actuel $4,499.00 CAD
    TMG-PSM27

    TMG Industrial 27" Scierie portable, moteur à essence Kohler 14...

    La scierie portative TMG-PSM27 met la puissance et la précision d'une installation de transformation du bois à grande échelle entre vos deux mains....

    Voir tous les détails
  • Residential/Farm/Construction Site Delivery
    Prix d'origine $50.00 CAD - Prix d'origine $50.00 CAD
    Prix d'origine
    $50.00 CAD
    $50.00 CAD - $50.00 CAD
    Prix actuel $50.00 CAD

    Residential/Farm/Construction Site Handling Fee

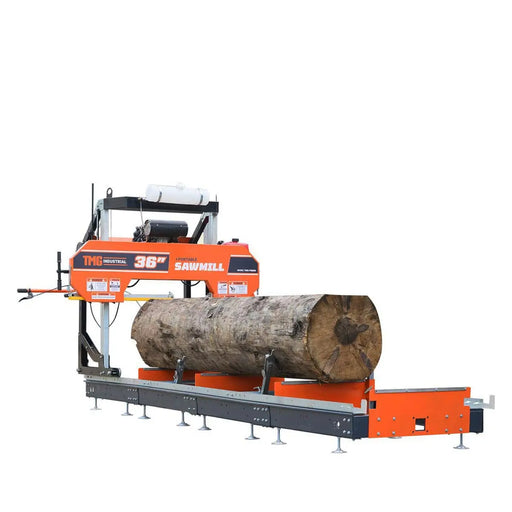

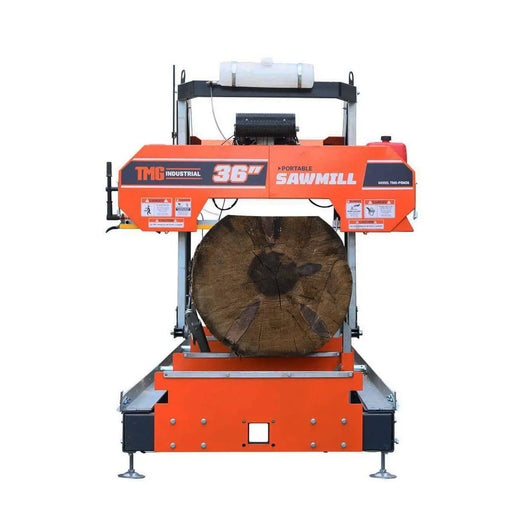

  • TMG Industrial 36” Portable Sawmill, 21 HP Honda V-Twin Engine, 13’ Log Length, 4-Post Carriage with Saw Head Anti-tip Self-locking, TMG-PSM36
