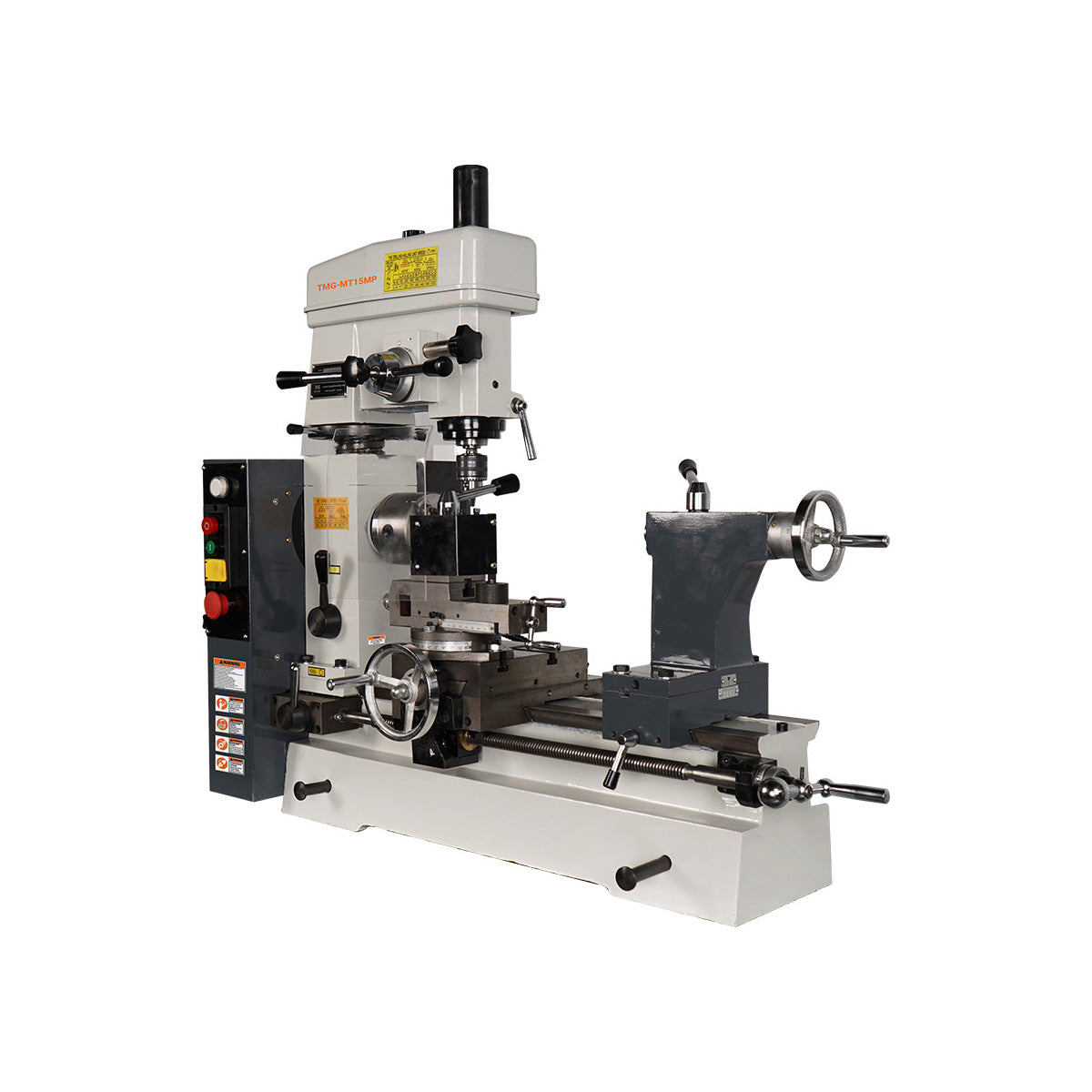

16" x 15" Lathe Milling Combo Machine with Metric & Imperial Threading, Turning and Drilling, TMG-MT15MP

• All-in-One Capability: This single robust unit seamlessly combines turning, precise milling, drilling, and essential thread cutting functions for comprehensive metalworking.
• Integrated Motor: A powerful 0.74 hp (0.55 kW) motor delivers reliable and integrated power for turning, milling and drilling, ensuring smooth and efficient operation.
• Adjustable Mill Head: The head swivels +/- 360 degrees and has a 0-degree tilt, allowing the headstock to be set up easily for a vast range of complex milling and drilling tasks.
• Swing Over Bed: 16-1/2" (420 mm) swing over bed provides generous clearance, allowing you to comfortably mount and machine larger diameter workpieces.
• Imperial / Metric Threading: Capable of accurately cutting both imperial 8–120 TPI and metric 0.2–3 mm threads, offering maximum versatility for diverse threading requirements.
• Spindle Bore: The 3/4" (20 mm) spindle bore is designed to accept a wide variety of different tool bits and securely hold various sizes of workpieces.
• Carriage Travel: A generous 15" (380 mm) carriage travel ensures high versatility and stability, particularly when working on and finishing longer or larger components.
• Precision Speed Control: Equipped with a 7-step spindle ranging from 160 to 1360 RPM, allowing precise speed matching for various turning tasks.
• Milling Capacity: Supports 3/4" (20 mm) end milling and 2-1/2" (63 mm) face milling for high material removal capacity and efficiency.
• Drilling Capability: Capable of drilling holes up to 19/32" (15 mm) in diameter for precise hole-making and pilot boring across various materials.
• Vertical Travel: Provides 3-5/32" (80 mm) of vertical Z-axis travel, offering excellent depth control and consistent milling and drilling results.
• Safety and Control: Features manual and automatic feed options, along with an emergency stop/reset button for maximum safety and operational control.

Electric Motor:

• Motor power (Lathe/Mill): 0.74 hp (0.55 kW)
• Voltage/Frequency/Phase: 110 V / 60 Hz / Single phase

Lathe:

• Swing over bed: 16-1/2" (420 mm)
• Distance between centers: 15-3/4" (400 mm)
• Max. longitudinal travel (Z-axis): 15" (380 mm)
• Max. cross travel (X-axis): 4-3/4" (120 mm)
• Lathe spindle bore (hole): 3/4" (20 mm)
• Lathe spindle taper: M.T.3
• Lathe spindle speeds (steps): 7 steps
• Lathe spindle speed range: 160–1360 RPM
• Tailstock quill travel: 2-3/4" (70 mm)
• Tailstock taper (center): M.T.3
• Metric thread range: 0.2–3 mm
• Imperial thread range: 8–120 TPI
• Longitudinal auto feed range: 0.002–0.007"/rev (0.05–0.175 mm/rev)

Drill and Mill:

• Max. drilling capacity: 19/32" (15 mm)
• Mill worktable size (L x W): 8" x 6" (200 x 150 mm)
• Max. end mill capacity: 3/4" (20 mm)
• Max. face mill capacity: 2-1/2" (63 mm)
• Mill spindle travel: 3-1/4" (85 mm)
• Mill headstock vertical travel: 3-5/32" (80 mm)
• Mill spindle taper: M.T.3
• Mill spindle speeds (steps): 14 steps
• Mill spindle speed range: 117–1300 RPM
• Mill head swivel range: +/- 360 degrees

Size and Weight:

• Dimensions (L x W x H): 42" x 23" x 42" (1060 × 560 × 1060 mm)
• Net weight: 400 lb (180 kg)
• Gross weight: 480 lb (215 kg)

Included Accessories:

• SANOU 3-jaw chuck w/ wrench
• Drill chuck
• Tool post & tool post wrench
• Protective shield
• Allen wrenches
• Wedge & tie rod
• Adjustable tailstock
• Workpiece holder w/ rotation
• Steady rest & follow rest

Optional Accessories (sold separately):

• Machine stand
• 4-jaw chuck & backplate
• Mill cutter holder
• Lathe tools set (5pcs)

The order will be shipped from one of our main warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you, based on where you are located and how accessible the location is.

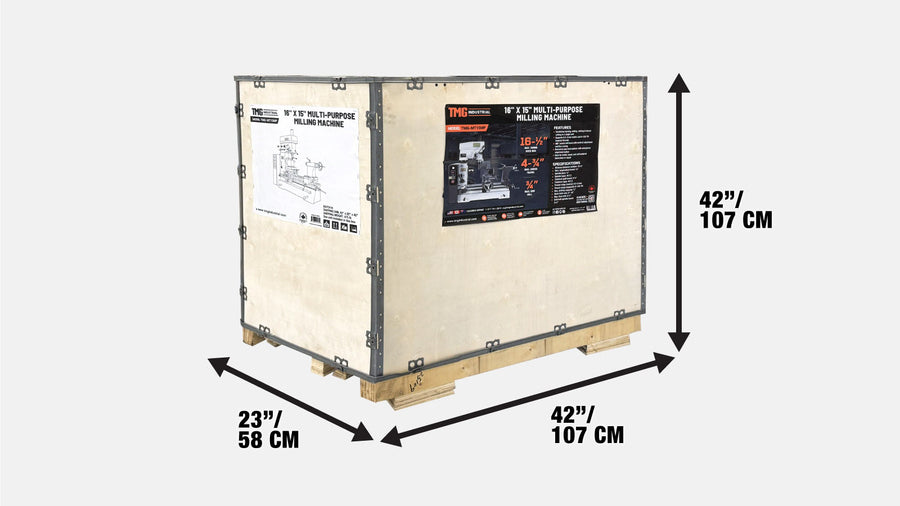

• This product is packed in a wood crate shipping box
• Shipping dimension: 42" x 23" x 42" (L x W x H)
• Shipping weight: 480 lb
