16" x 32" Lathe Milling Combo Machine with Metric & Imperial Threading, Turning, Drilling, TMG-MT32MP

• Powerful Motor: The 0.74 hp (0.55 kW) motor provides integrated and reliable power, ensuring efficient operation for both turning and milling applications.
• Swing Over Bed: The lathe features a wide 16-8/15" (420 mm) swing, providing generous capacity allowing you to effectively work with larger workpieces.
• Swing Over Cross Slide: The machine offers a 7.87" (200 mm) swing over the cross slide, which provides necessary clearance when working with complex parts.
• Threading Capacity: Capable of cutting threads from 4–120 TPI imperial and 0.2–6 mm metric, ensuring flexibility for various threading applications.
• Spindle Bore: With a generous 1-1/10" (28 mm) spindle bore, the machine accommodates a wide range of tool bits and different sizes of stock material.
• Carriage Travel: The extended 29-1/8" (740 mm) carriage travel ensures excellent stability and flexibility, making it ideal for long and intricate turning operations.
• Spindle Speed Range: The lathe's 7-step spindle operates from 160 to 1360 RPM, allowing the operator precise control over the turning speed for various materials.
• Speed Range: With a 16-step spindle speed range from 120 RPM to 3000 RPM, the machine adapts to all milling operations, ensuring high efficiency.
• Drill and Milling Capacities: The maximum drill capacity is 7/8" (22 mm), allowing for deep penetration and accurate hole-making in materials.
• End Milling Capacity: Provides an impressive 1-1/8" (28 mm) capacity for end milling, suitable for material removal and creating precise slots or contours.
• Face Milling Capacity: Handles up to 3-5/32" (80 mm) for face milling, perfectly suited for achieving high-precision flat surfaces.
• Vertical and Horizontal Milling: Features a +/- 360° swiveling headstock with 0° head tilt, providing flexibility for complex milling tasks in multiple orientations.
• Spindle Travel: The 4-5/16" (110 mm) spindle travel offers sufficient depth control for various drilling, boring, and milling tasks.
• Headstock Height: The 3-1/8" (79.4 mm) headstock height provides sufficient clearance, allowing for easy setup and accommodation of different workpieces and tooling.

Electric Motor:

• Motor power (Lathe/Mill): 0.74 hp (0.55 kW)
• Voltage/Frequency/Phase: 110 V / 60 Hz / Single phase

Lathe:

• Swing over bed: 16-1/2" (420 mm)
• Distance between centers: 31.5" (800 mm)
• Max. longitudinal travel: 29.13" (740 mm)
• Max. cross travel: 7.87" (200 mm)
• Lathe spindle taper: M.T.4
• Lathe spindle hole (bore): 1.10" (28 mm)
• Lathe spindle speed steps: 7 steps
• Lathe spindle speed range: 160–1360 RPM
• Tailstock quill travel: 2.76" (70 mm)
• Tailstock taper (center): M.T.3
• Metric thread range: 0.2–6 mm
• Imperial thread range: 4–120 TPI
• Longitudinal auto feed range: 0.002–0.014"/rev (0.05–0.35 mm/rev)
• Cross auto feed range: 0.002–0.014"/rev (0.05–0.35 mm/rev)

Drill and Mill:

• Max. drilling capacity: 0.866" (22 mm)
• Worktable size (L x W): 18.7" x 6.3" (475 x 160 mm)
• Max. end mill diameter: 1.10" (28 mm)
• Max. face mill diameter: 3.15" (80 mm)
• Mill spindle center to column distance: 11.22" (285 mm)
• Mill spindle to worktable distance: 12.05" (306 mm)
• Mill headstock vertical travel (up/down): 4.33" (110 mm)
• Mill spindle taper: M.T.3
• Mill spindle speed steps: 16 steps
• Mill spindle speed range: 120–3000 RPM
• Mill head swivel degree: +/- 360 degrees

Size and Weight:

• Dimensions (L x W x H): 58" x 22" x 44" (1430 x 560 x 1120 mm)
• Net weight: 551 lbs (250 kg)
• Gross weight: 645 lbs (292 kg)

Included Accessories:

• Change gears
• Tool post & wrench
• Chuck wrench
• Wedge tool
• Allen wrenches
• 3-jaw chuck
• Tie rod
• Steady rest & follow rest
• Faceplate
• Leadscrew guard
• Drill/mill chuck guard
• Toolpost guard

Optional Accessories (sold separately):

• Machine stand
• 4-jaw chuck & backplate
• Lathe tools set (5pcs)
• Mill cutter holder

The order will be shipped from one of our main warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you, based on where you are located and how accessible the location is.

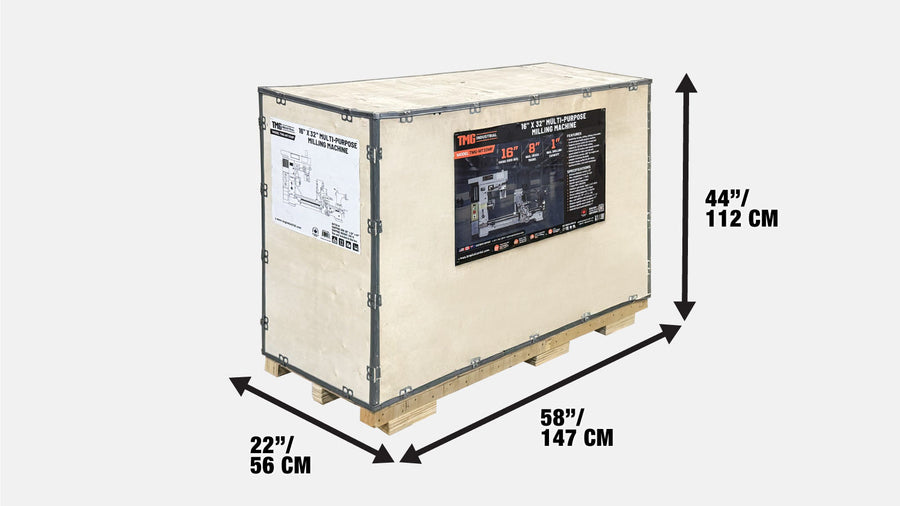

• This product is packed in a wood crate shipping box
• Shipping dimension: 58" x 22" x 44" (L x W x H)
• Shipping weight: 645 lb
