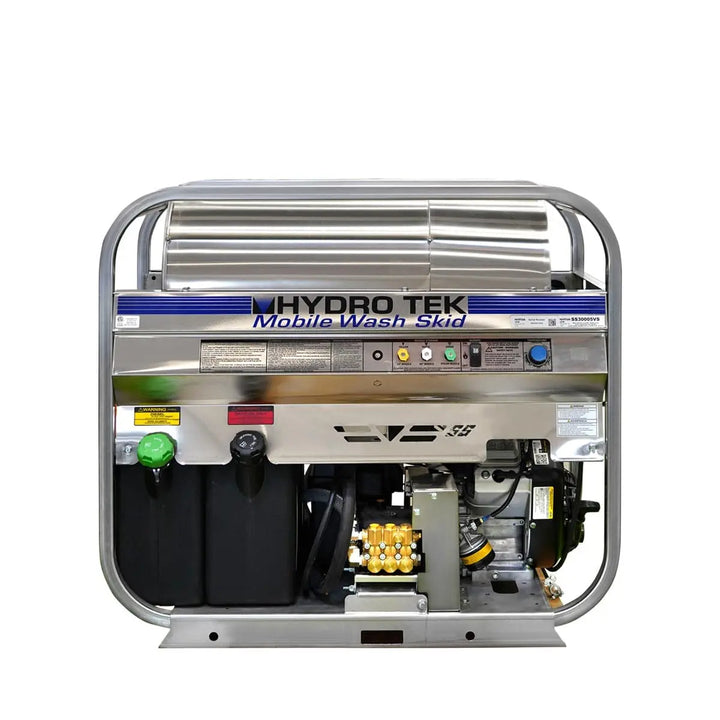

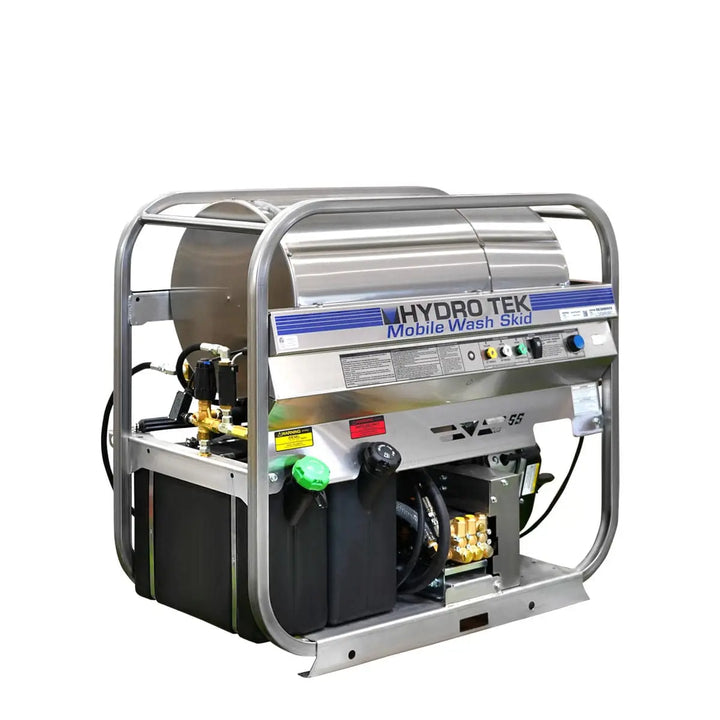

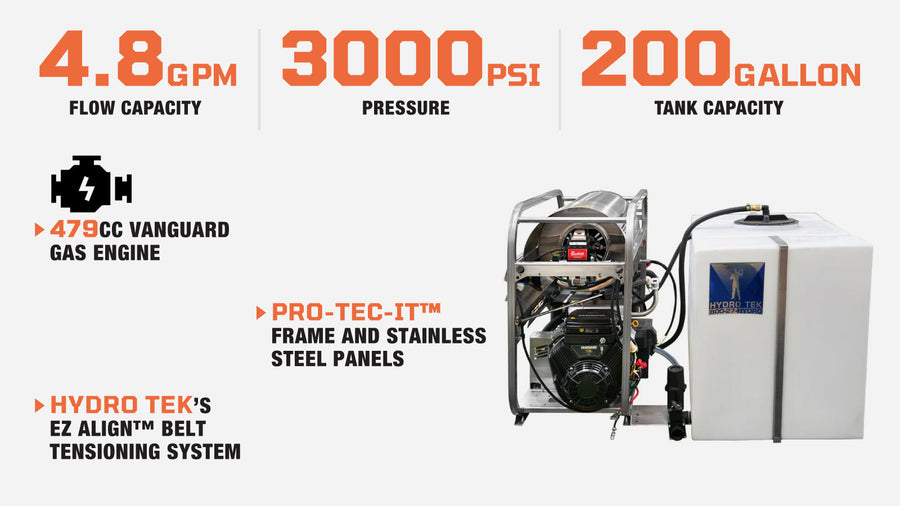

• 479cc Vanguard gas engine offers powerful cleaning w/out the need for electricity

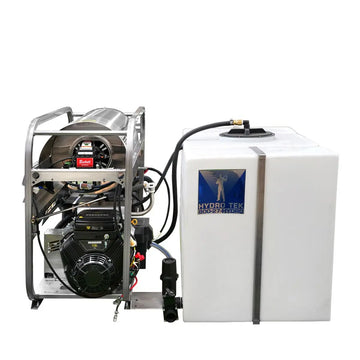

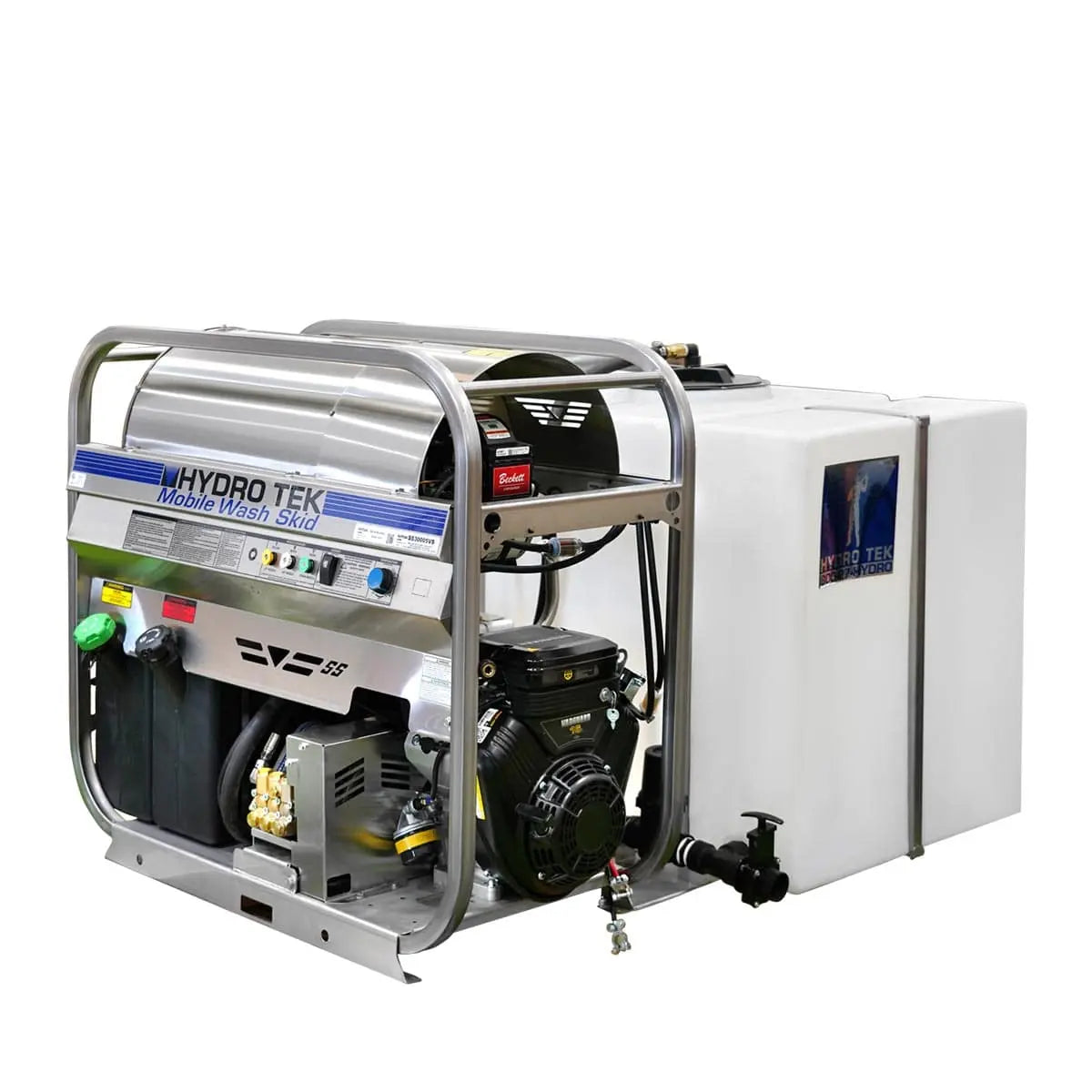

• 200-gallon tank allows for remote or mobile cleaning where no water is available
• Hydro Tek’s EZ Align™ belt tensioning system simplifies and reduces maintenance
• Rugged Pro-Tec-It™ frame and stainless steel panels ensure corrosion resistance
• Compact design allows for versatile mounting options on floors or pick-up trucks

• Pressure: 3000 PSI
• Flow capacity: 4.8 GPM
• Outlet temperature: Adjustable to 250°F (120°F rise)

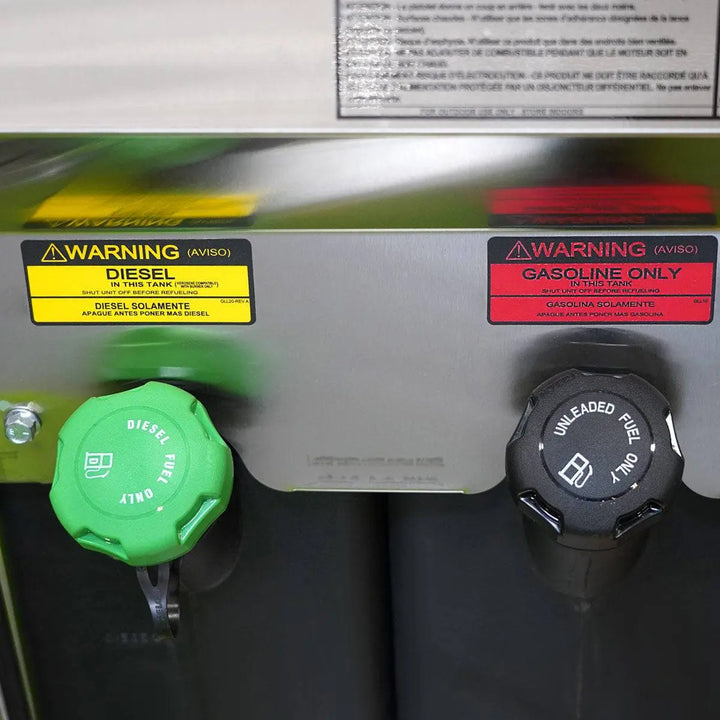

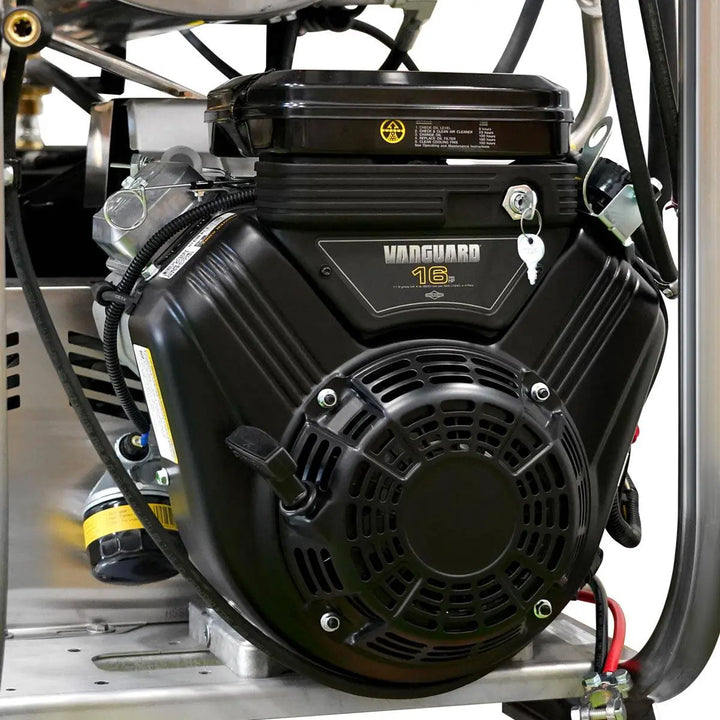

• Power/engine: 479cc Vanguard, twin cylinder, electric key start, unleaded, 8 gal

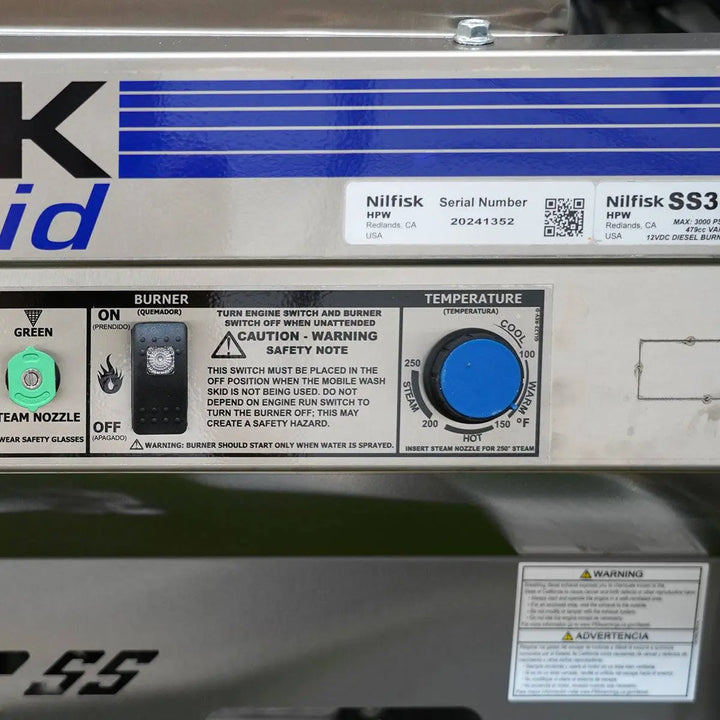

• Controls/switches: Adjustable thermostat, lighted control switch
• Pump: AR Pump, Triplex Ceramic Plunger
• Power drive: V-Belt Drive with EZ Align™ pump rail, stainless belt guard
• Pressure control: Unloader valve, industrial fittings, safety burst disc, pressure relief valve
• Water supply: Pressure feed from garden hose with convenient frame-mounted fitting, tank available

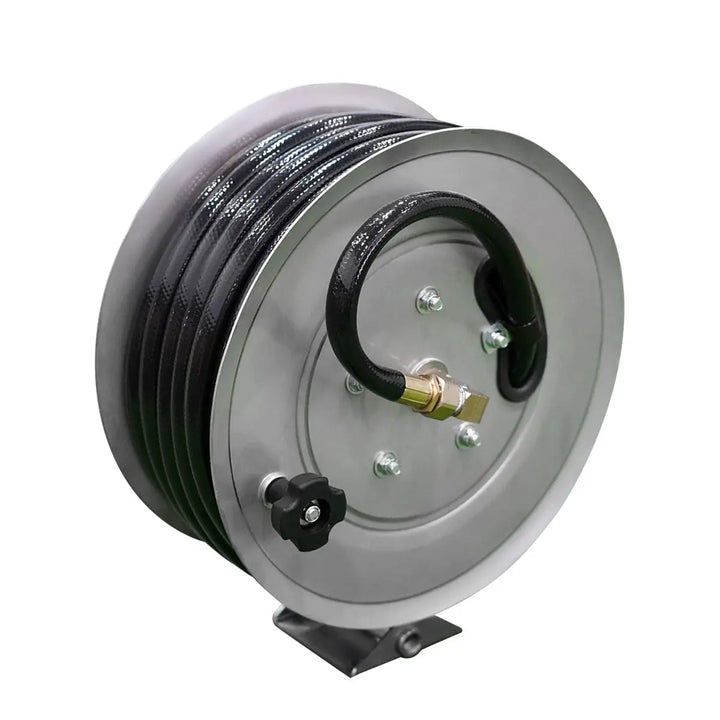

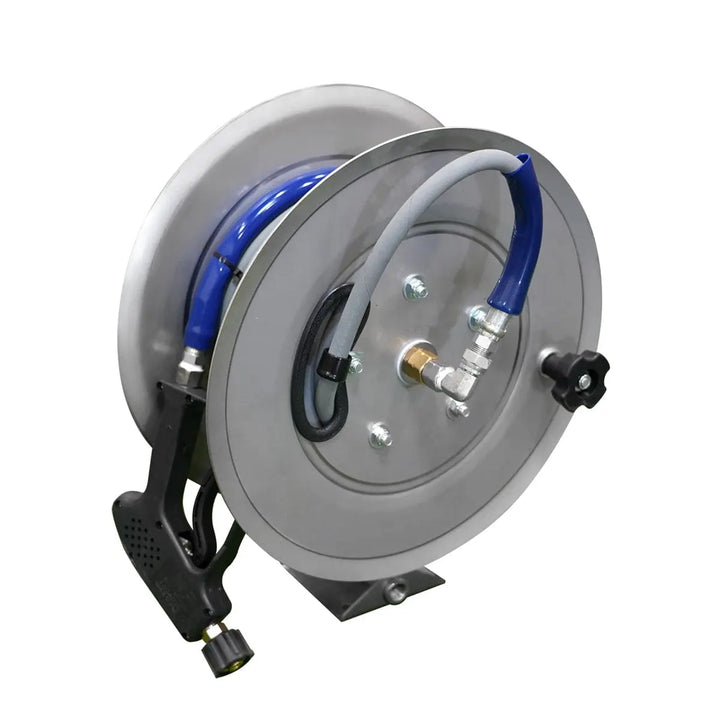

• Pressure hose: 3/8” x 50’, 3000 PSI
• Soap injection: Optional soap injection available

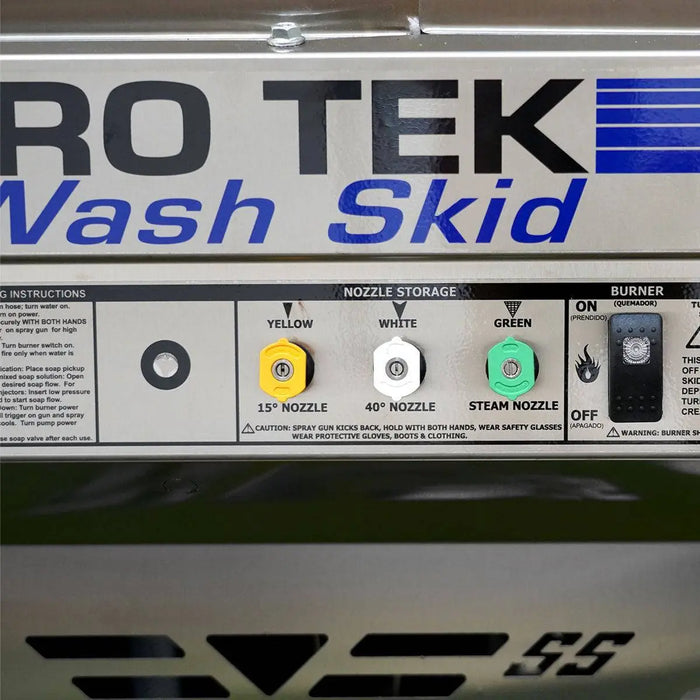

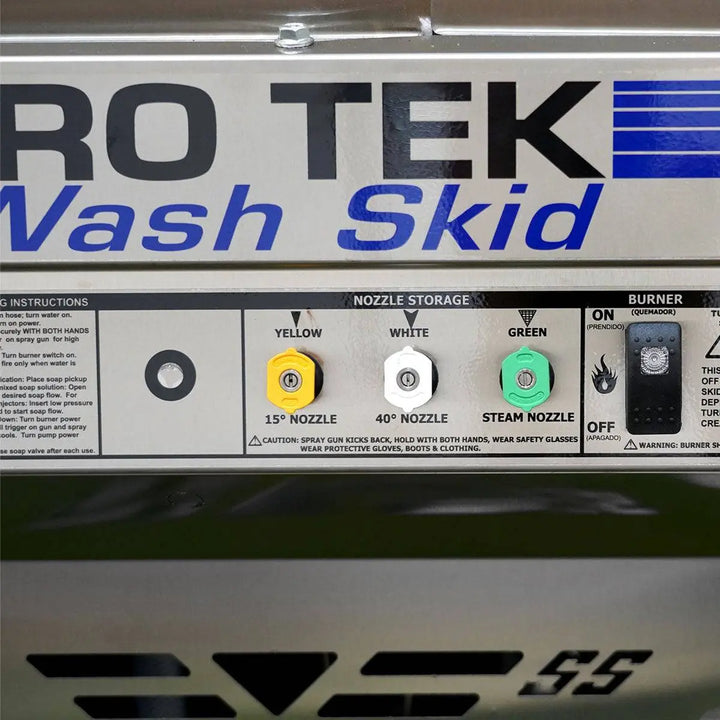

• Nozzle: Size 5.5 (15°, 40°) and 4.5 (25° steam)
• Burner coil: Spiralast™ robotically fused ½” sch. 80 steel pipe, cold rolled 4 spiral, ceramic insulation

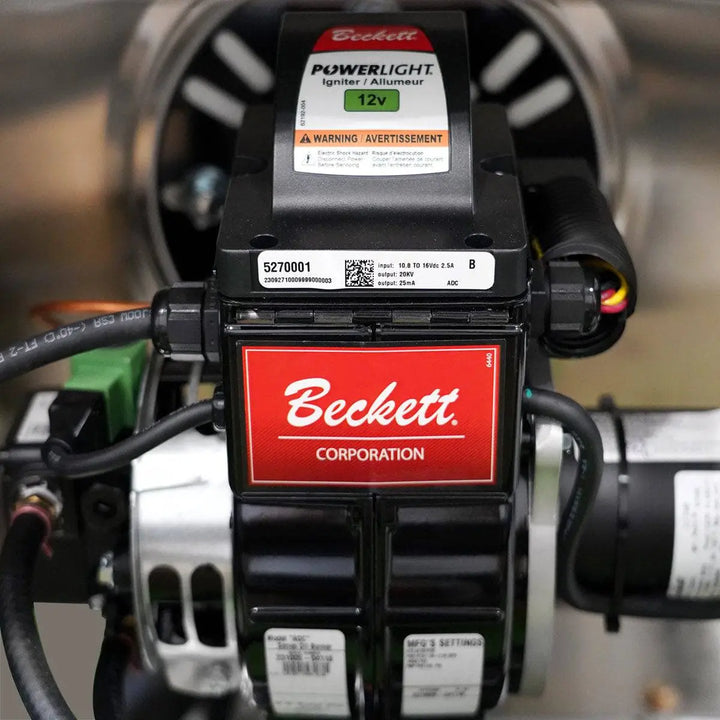

• Burner/power: Oil fired, 12V, 20 amp fuse protected, auto ignition, in-line fuel filter, flow switch burner control

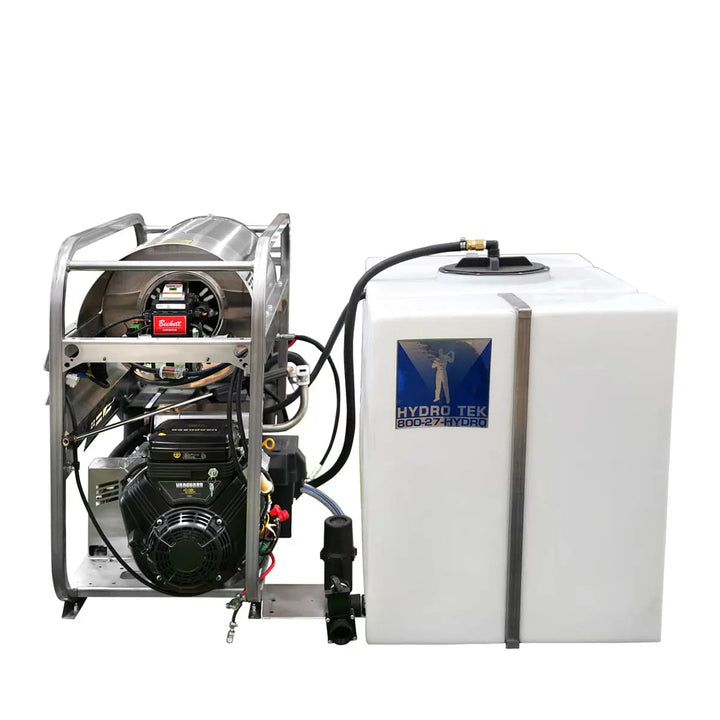

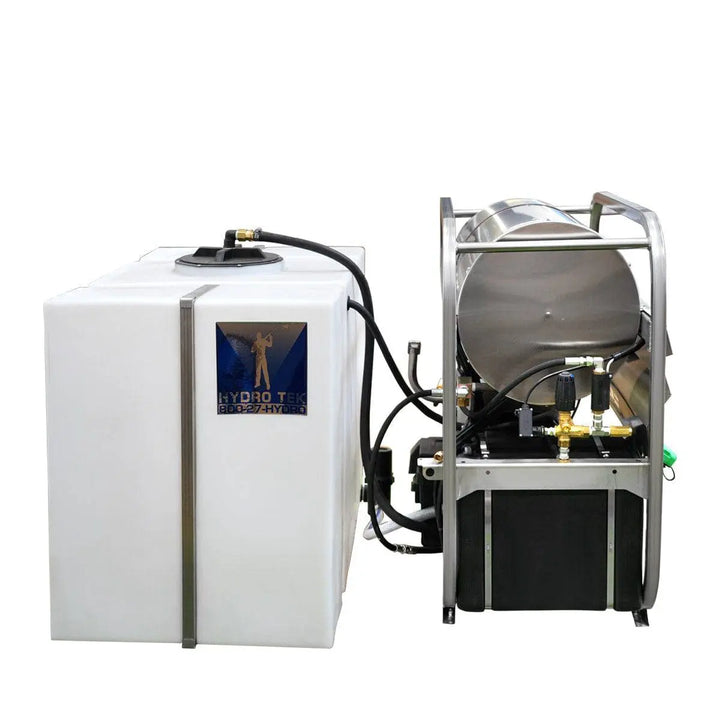

Tank Skid
• Mounting: (8) ½” bolts or tie down slots
• Lifting: Easy access forklift slots
• Tank capacity: 200 gal/1676 lb
• Tank material: Polyethylene, 10” lid, garden hose fill fitting
• Tank draw/filter: 1-½” 80 mesh strainer w/drain, 1-½” fast drain valve
• Frame construction: Powder coated 12 GA frame w/structural tube spine
Note
• Battery requirement: Standard group 24 battery
• Black battery box is installed with cables
• *Battery not included due to shipment regulation

The order will ship from one of our main warehouses in North America. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

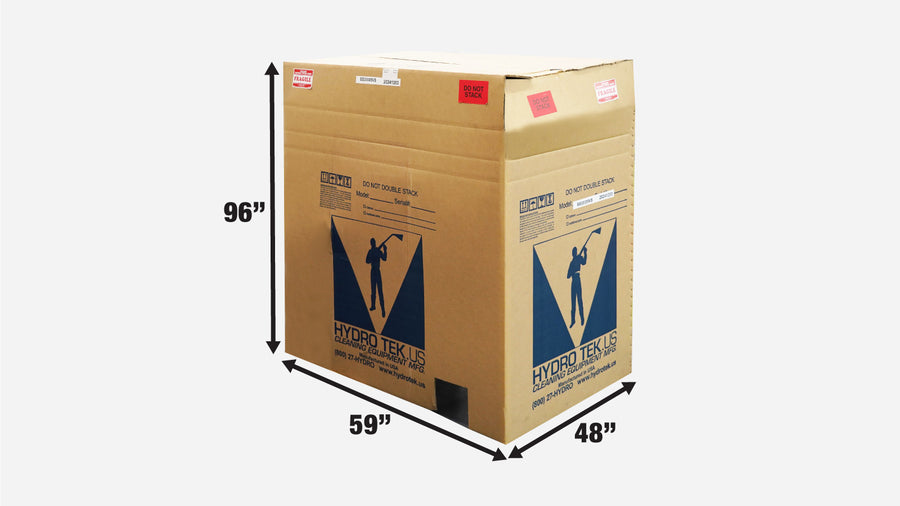

• This product is packed in cardboard and shrink-wrapped
• Shipping dimension: 59” x 48” x 96” (L x W x H)
• Shipping weight: 800 lb
