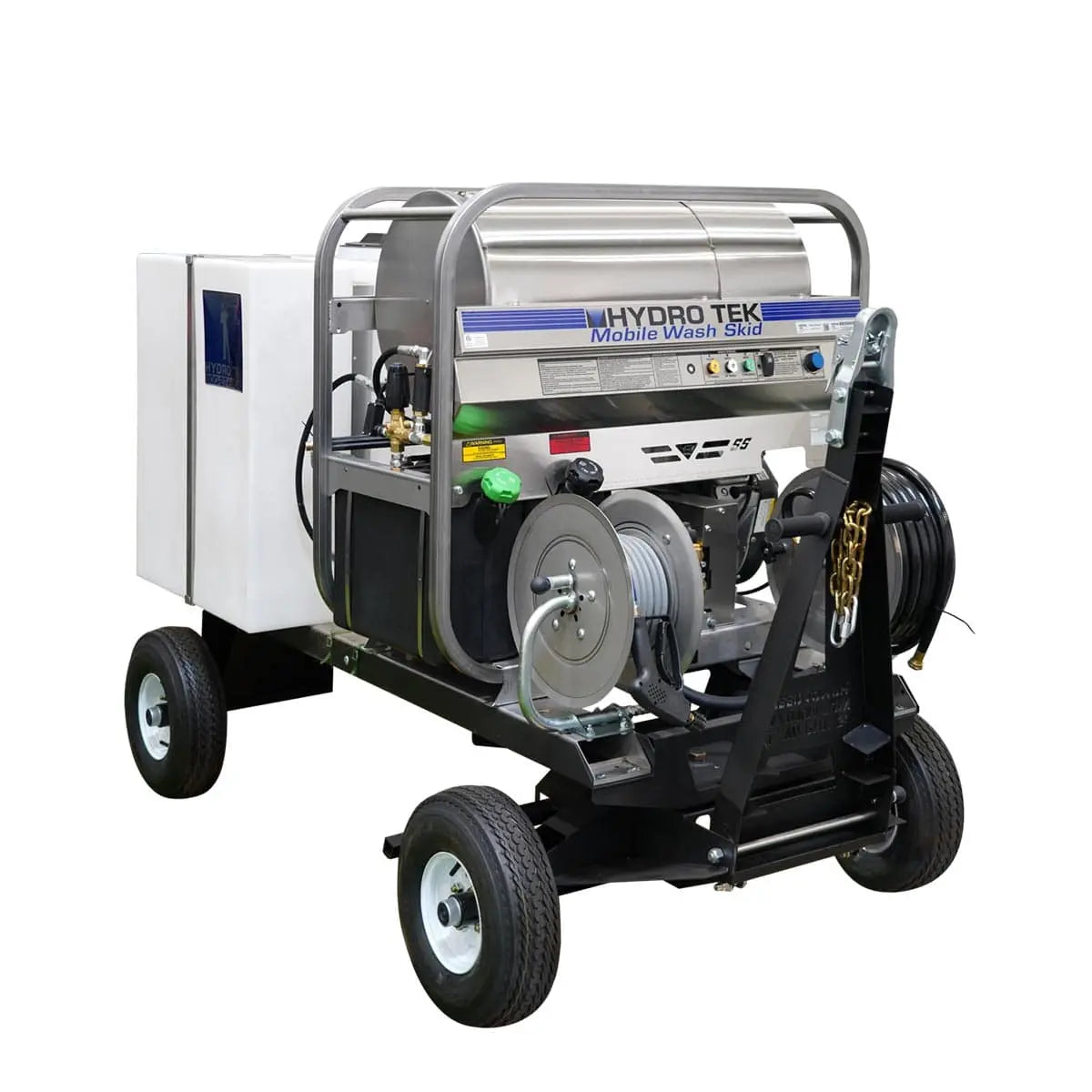

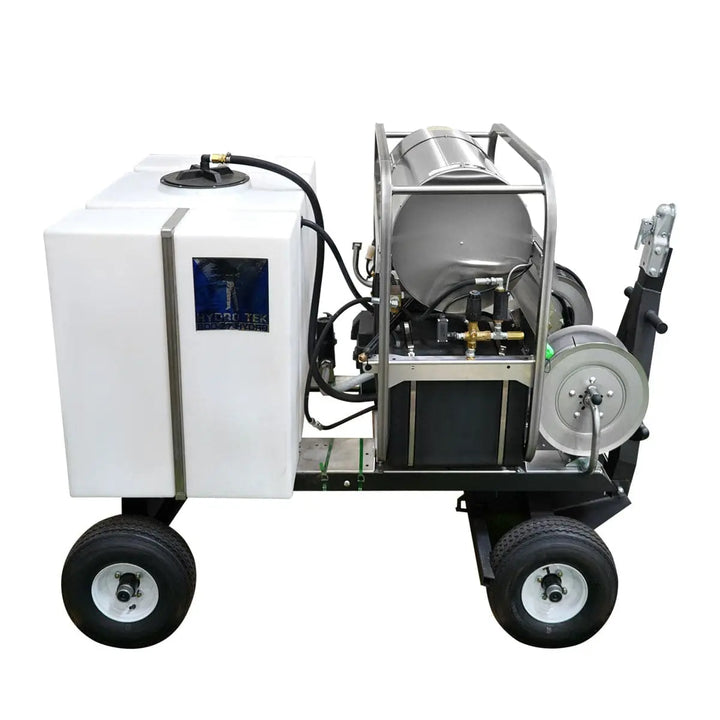

• Fits into tight spaces with a small footprint of 7’ x 4’ and compact Tow & Stow™ design
• 479cc Vanguard engine and diesel-heated 12V burner delivers hot water up to 3000 PSI
• Built with a rugged Pro-Tec-It™ frame and stainless steel panels for long-term durability
• Simplified belt adjustments and pump maintenance with a single-bolt design
• Mobile, efficient, and versatile across various applications and industries

• Pressure: 3000 PSI
• Flow capacity: 4.8 GPM
• Outlet temp: Adjustable to 250°F (120°F rise)

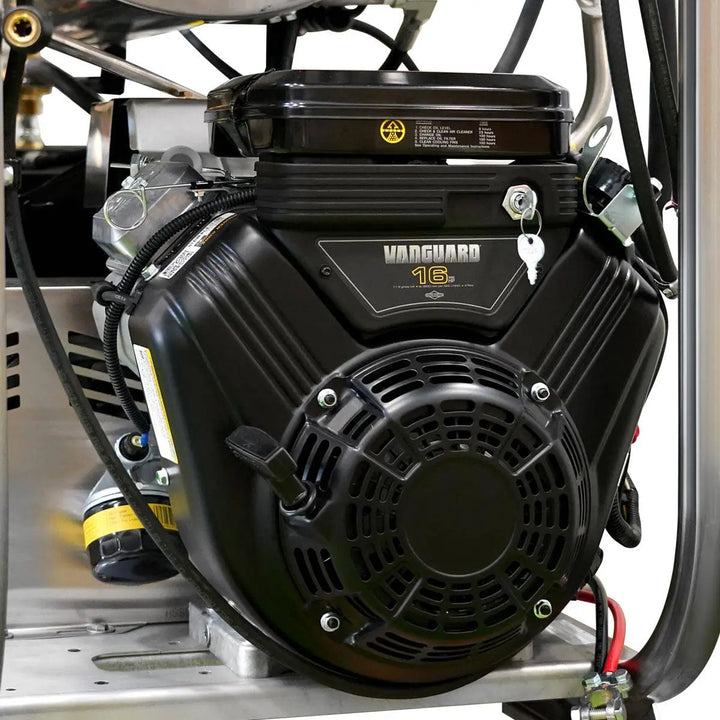

• Power/engine: 479 cc Vanguard, twin cylinder, electric key start
• Engine fuel/cap: Unleaded, 8 gal

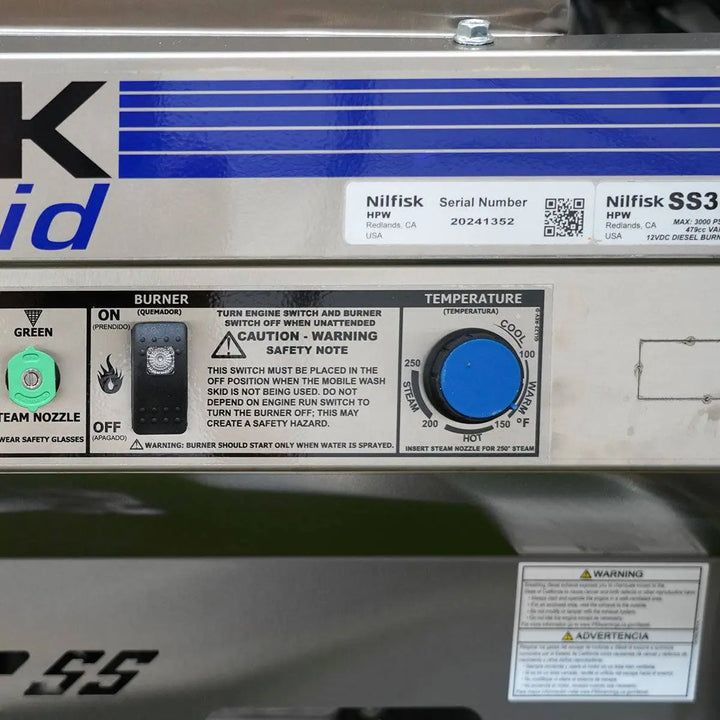

• Controls/switches: Adjustable thermostat, lighted control switch
• Pump: AR Pump, triplex ceramic plunger
• Power drive: V-belt drive w/EZ Align™ pump rail, stainless belt guard
• Pressure control: Unloader valve, industrial fittings, safety burst disc, pressure relief valve
• Water supply: Pressure feed from garden hose with convenient frame-mounted fitting (tank available)

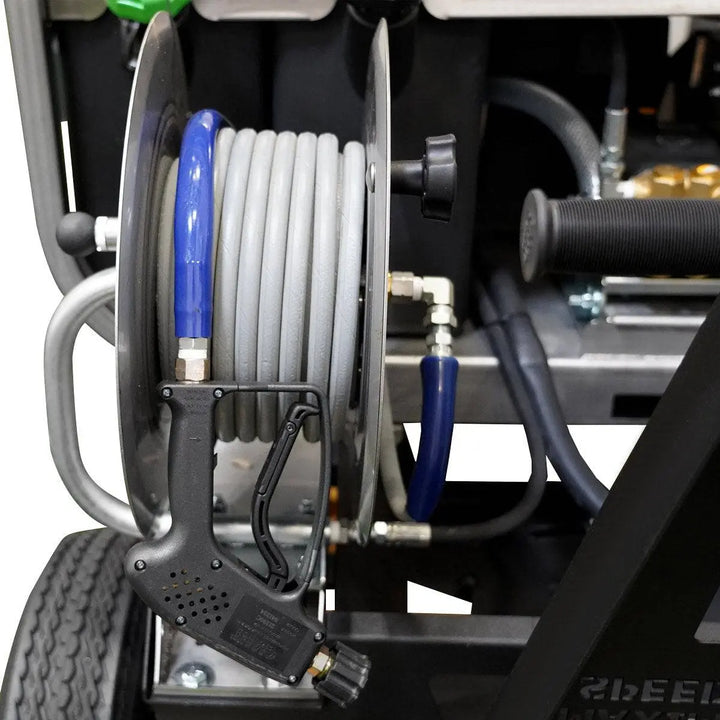

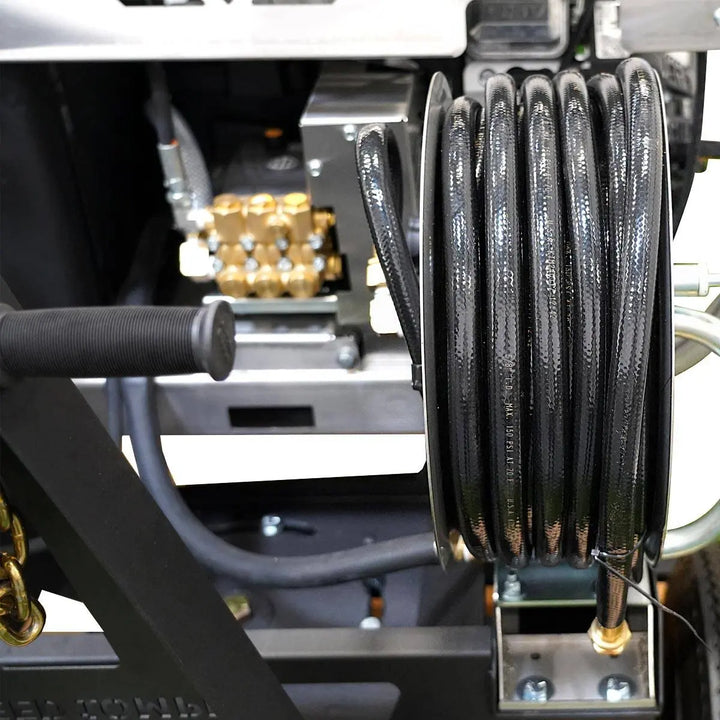

• Pressure hose: 3/8” x 50’, 3000 PSI
• Gun/wand: 48” molded insulator wand with multi-nozzle holder and quick coupler
• Soap injection: Optional soap injection available

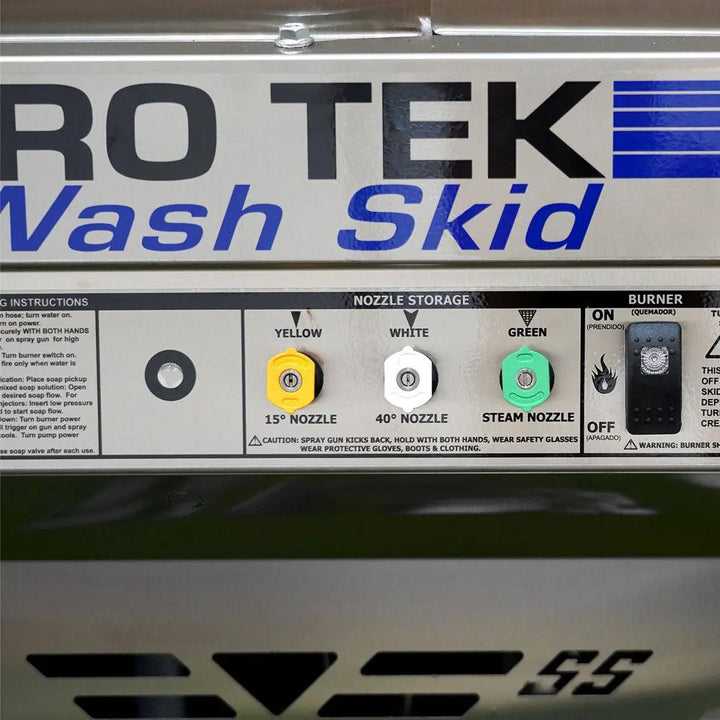

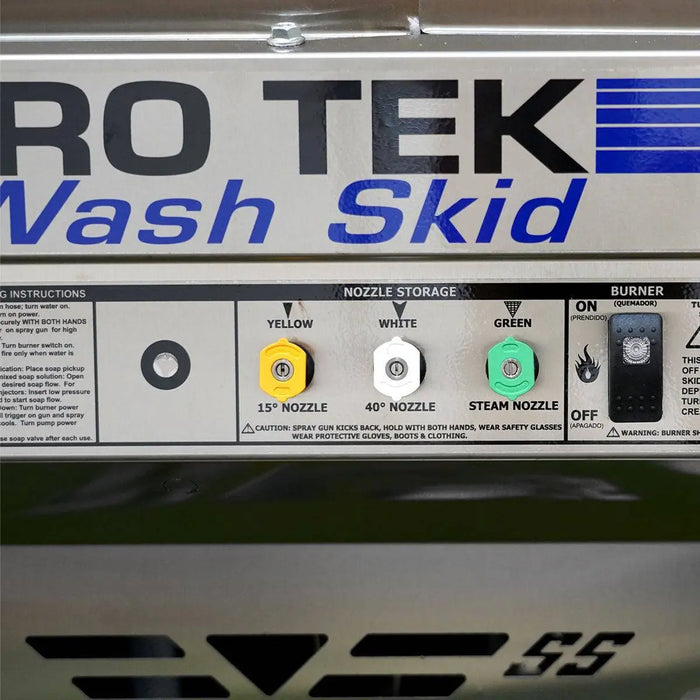

• Nozzle: Size 5.5 (15°, 40°) and 4.5 (25° steam)
• Burner coil: Spiralast™ robotically fused ½” sch. 80 steel pipe, cold rolled 4 spiral, ceramic insulation

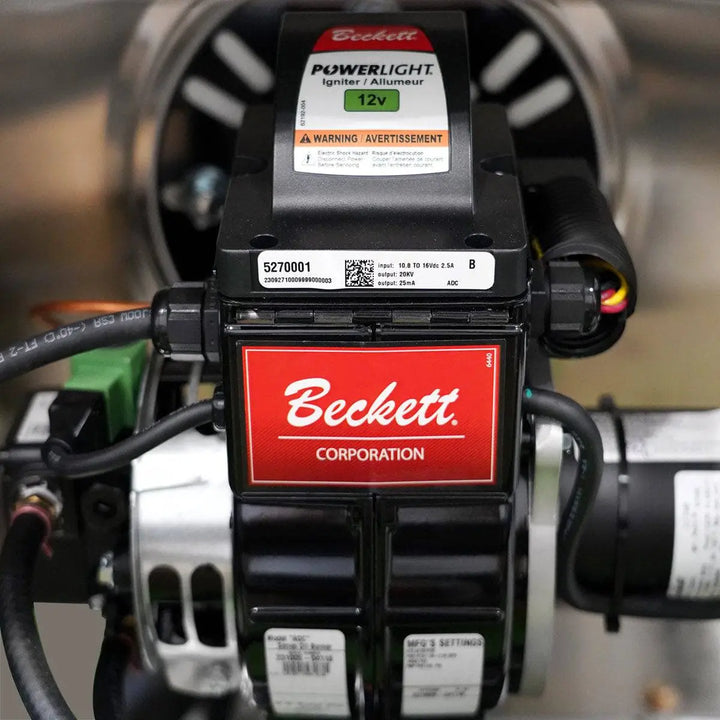

• Burner/power: Oil fired, 12V, 20 AMP fuse protected, auto ignition, in-line fuel filter, flow switch burner control

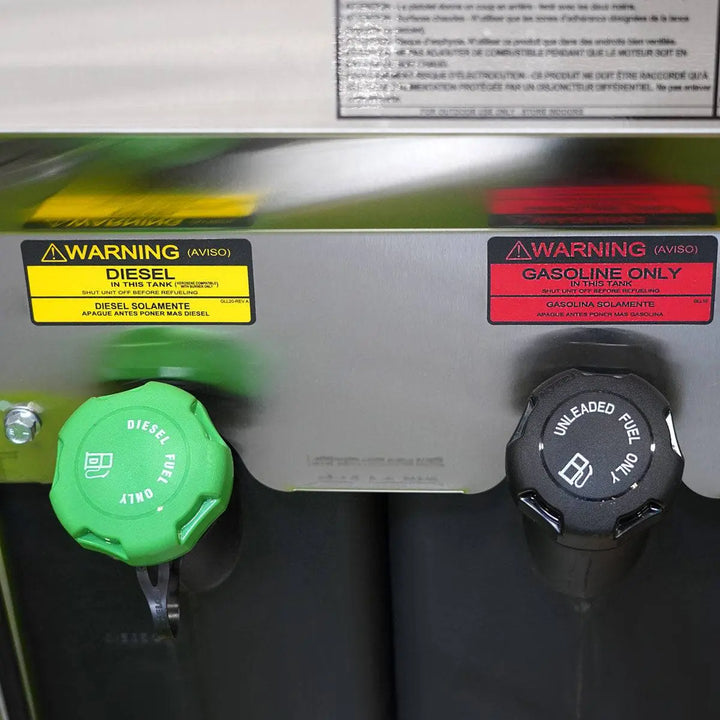

• Burner fuel/cap: Diesel fuel, kerosene, or fuel oil, 8 gal – 388,000 BTU input
• Construction: Rugged, powder coated Pro-Tect-It™ frame, stainless panels, coil wrap, and double-wall coil end caps
• Weight/dimension: 612 lb, 74” x 48” x 40.25” (L x W x H)

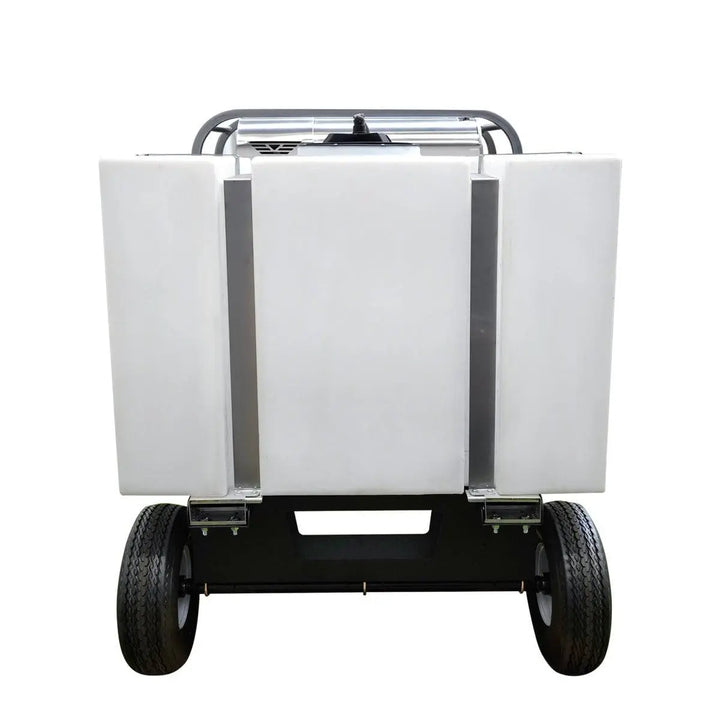

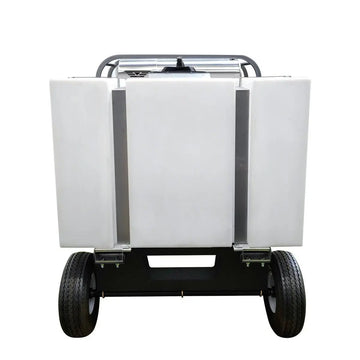

Tank Skid
• Mounting: (8) ½” bolts or tie down slots
• Lifting: Easy access forklift slots
• Tank capacity: 200 gal/1676 lbs
• Tank material: Polyethylene, 10” lid, garden hose fill fitting
• Tank draw/filter: 1-½” 80 mesh strainer w/drain, 1-½” fast drain valve
• Frame construction: Powder coated 12 GA frame w/structural tube spine

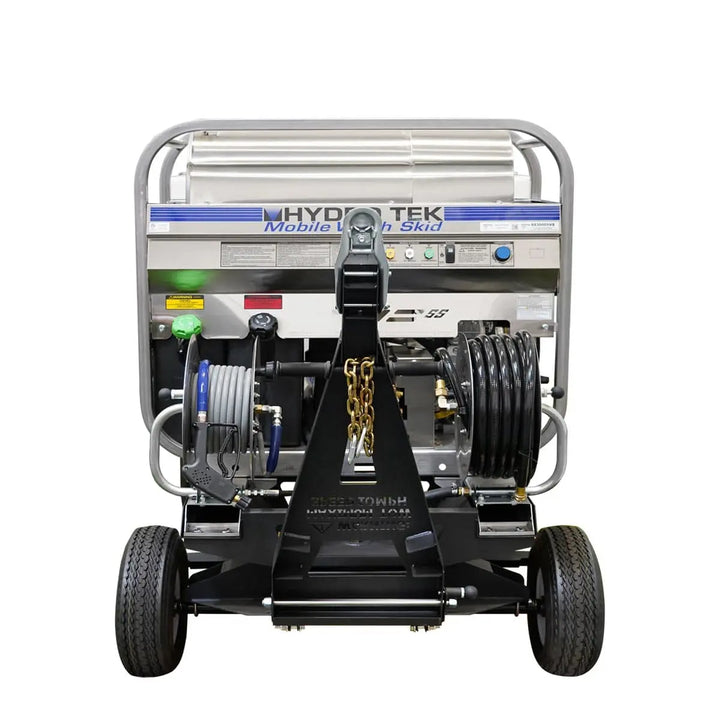

Tow & Stow Cart
• Suspension/axle: (2) 2000 lb axles
• Brakes: Wheel lock activated when hitch is locked in storage position
• Wheel/tire: (4) 4-lug pattern
• Coupler: Standard 2” ball coupler
• Fenders: None
• Lights: None
• Wiring: None
• Tongue: Includes a pop-pin to lock into upright storage position
• Frame construction: Powder coated 12 GA frame w/structural tube spine
• Weight/dimension: 140 lb (cart only, add tank skid & machine), 74” x 48” x 36” (L x W x H)
Note
• Battery requirement: Standard group 24 battery
• Black Battery box is installed w/cables
• *Battery not included due to shipment regulation

The order will ship from one of our main warehouses in North America. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

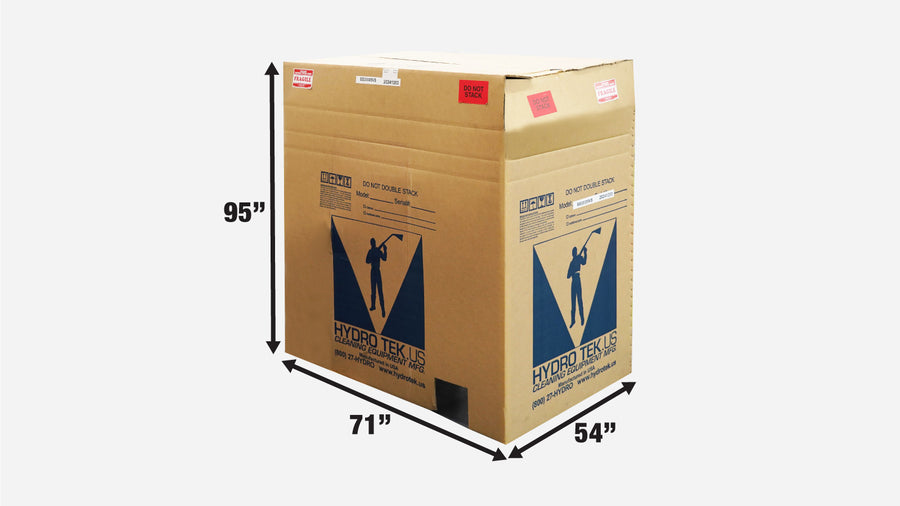

• This product is packed in cardboard and shrink-wrapped
• Shipping dimension: 71” x 54” x 95” (L x W x H)
• Shipping weight: 1370 lb
