30' x 20' Dual Truss Container Shelter with Heavy Duty 17 oz PVC Aller au contenu
CURRENTLY IN STOCK
TMG-DT3020CF

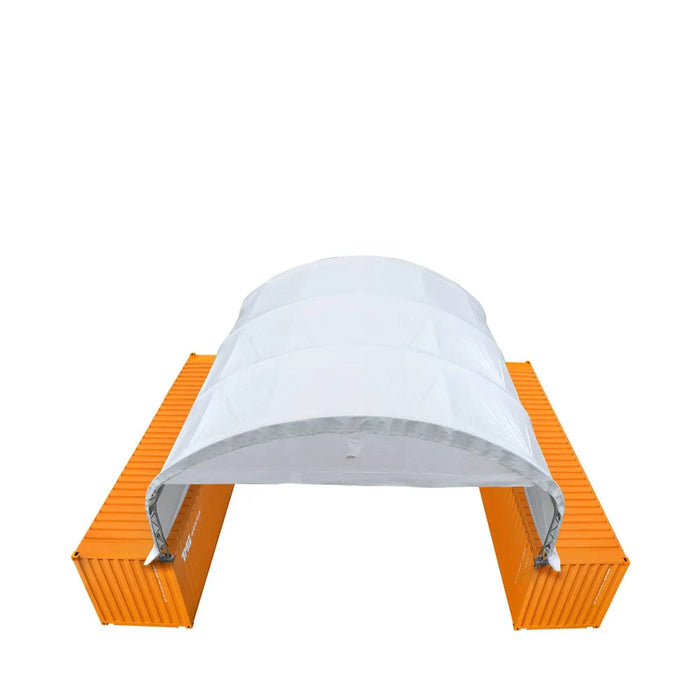

30' x 20' Dual Truss Container Shelter with Heavy Duty 17 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT3020CF

TMG Industrial 30' x 20' Dual Truss Container Shelter with Heavy Duty 17 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT3020CF
CURRENTLY IN STOCK
SKU TMG-DT3020CF
$6,699.00 CAD
$6,699.00 CAD - $6,699.00 CAD
$6,699.00 CAD
$5,499.00 CAD
$5,499.00 CAD - $5,499.00 CAD
$5,499.00 CAD
$6,699.00 CAD Save $1,200.00 CAD
$5,499.00 CAD

FREE

shipping to most locations in

Canada
Delivered in 10 to 15 business days Learn More
1-877-761-2819
Product Manual
Find Parts

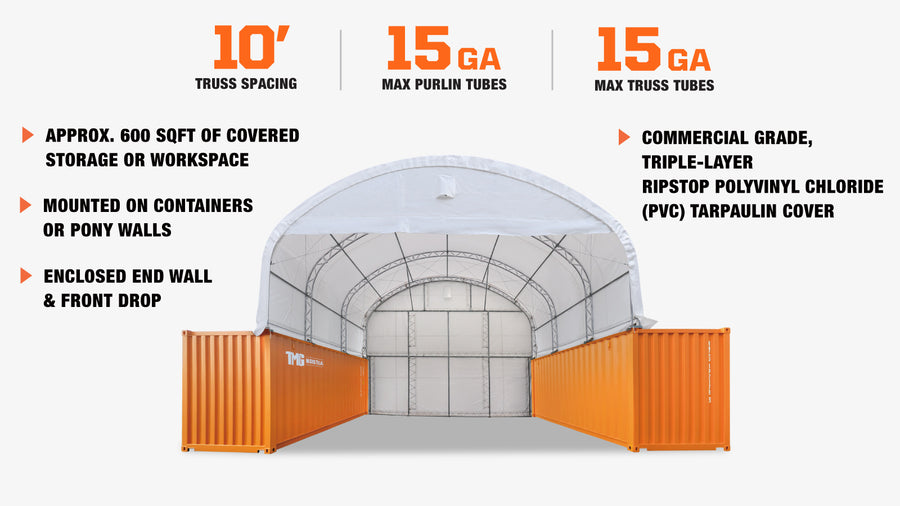

Features

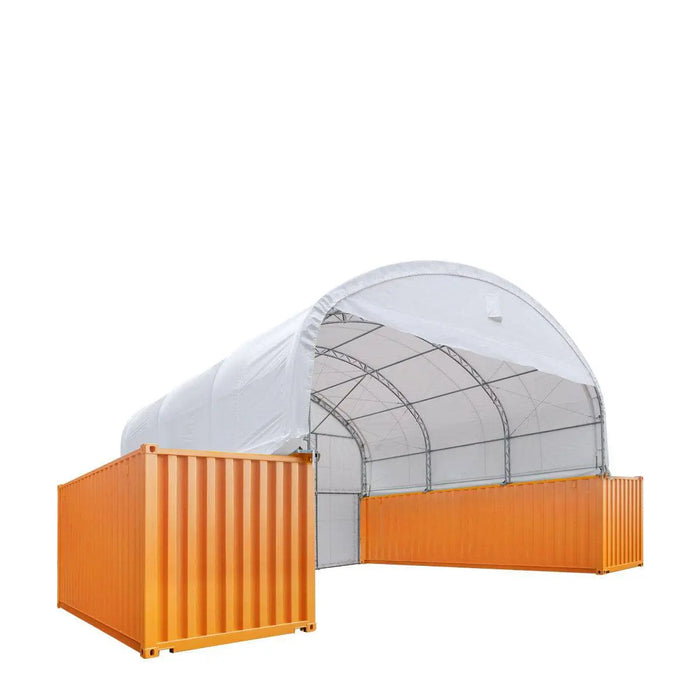

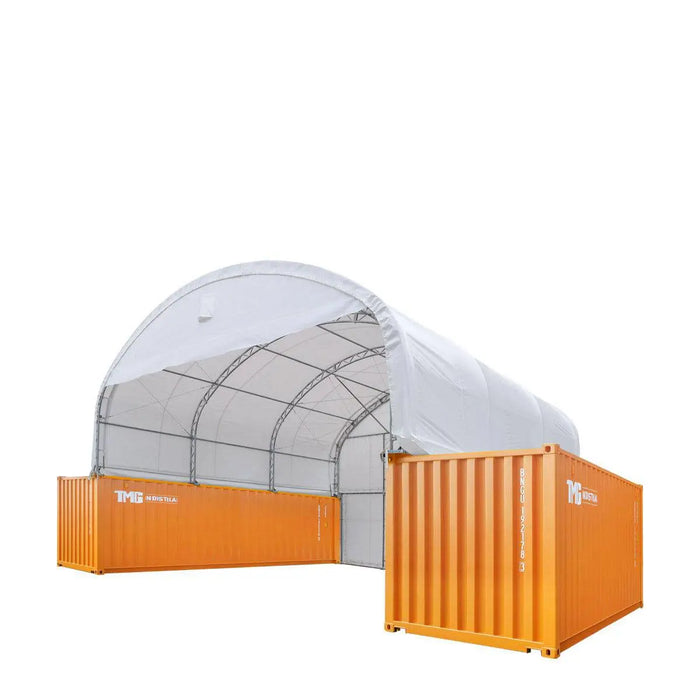

  • Mounted on containers or pony walls for maximum height, versatility and useability so that it can accommodate most job sites

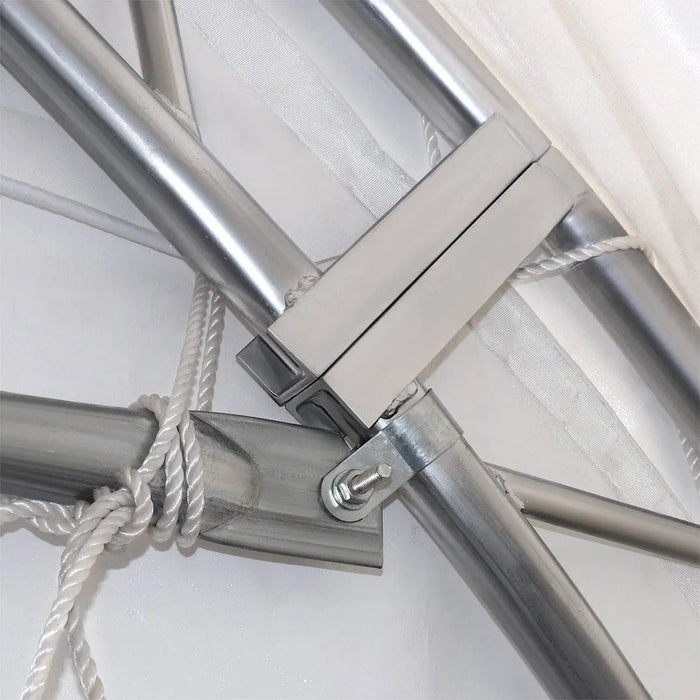

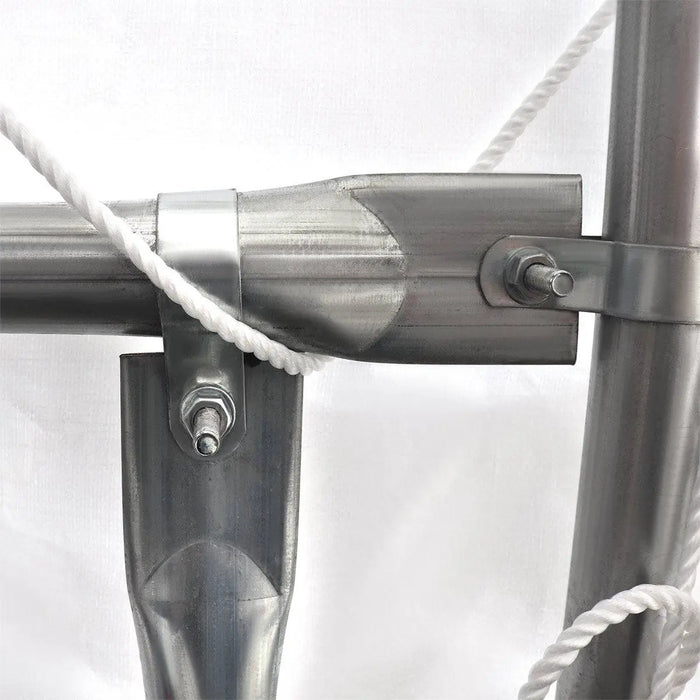

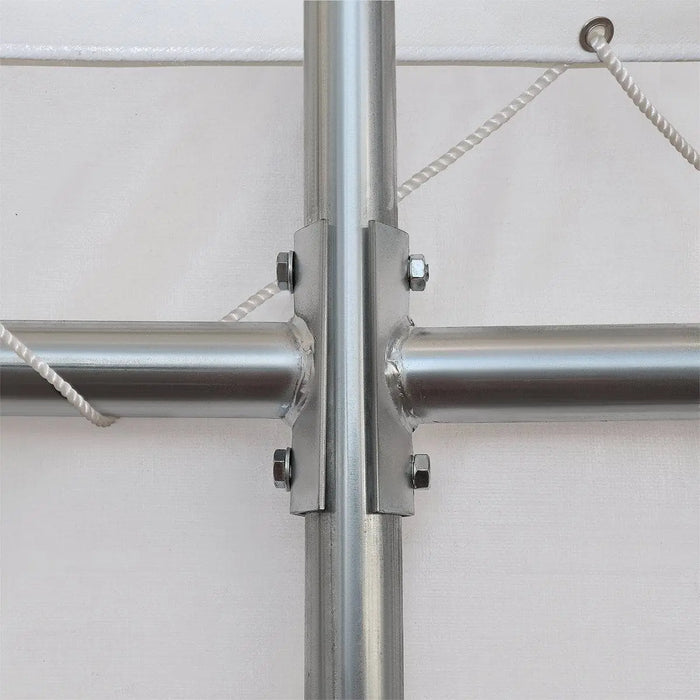

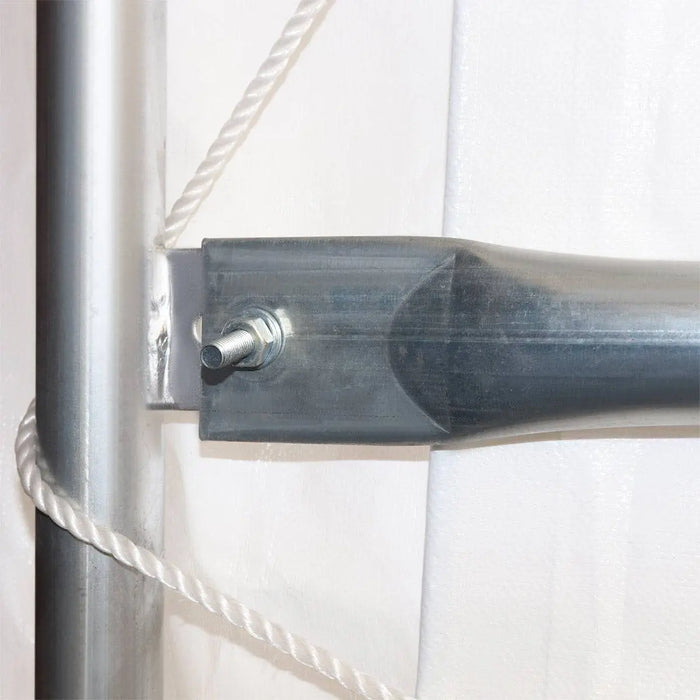

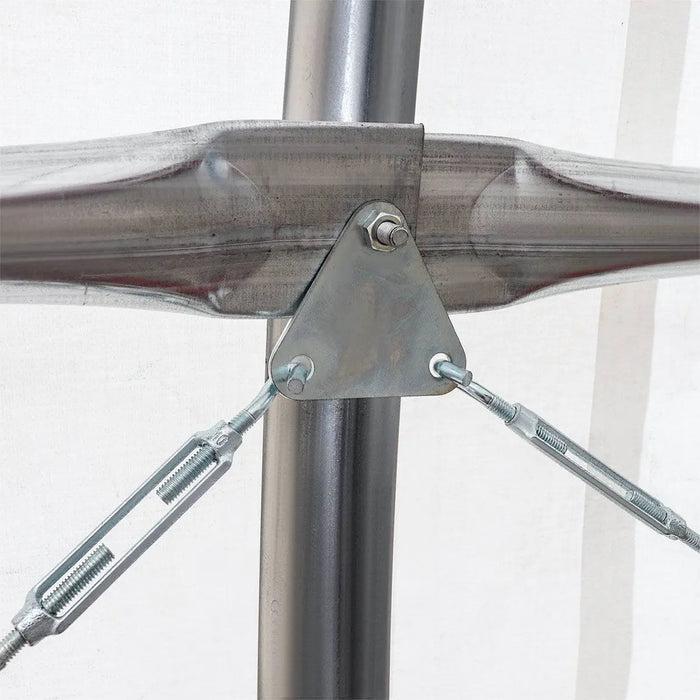

  • Double truss frame and solid bolted connection on all trusses which help to reinforce the structure by increasing the support strength and rigidity

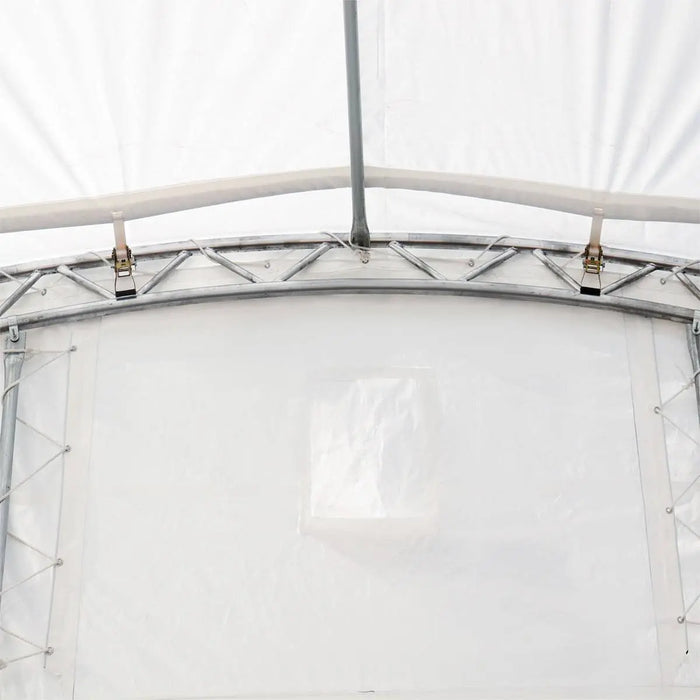

  • Enclosed end wall & front drop provides an extra layer of protection for your machinery, tools, materials and other weather sensitive cargo
  • Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
  • Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
    • Stands strong against tearing, leaking, and chemical corrosion
    • Natural flame retardant, resistant to chemicals and oil
    • UV protected and waterproof
    • Fabric color: White

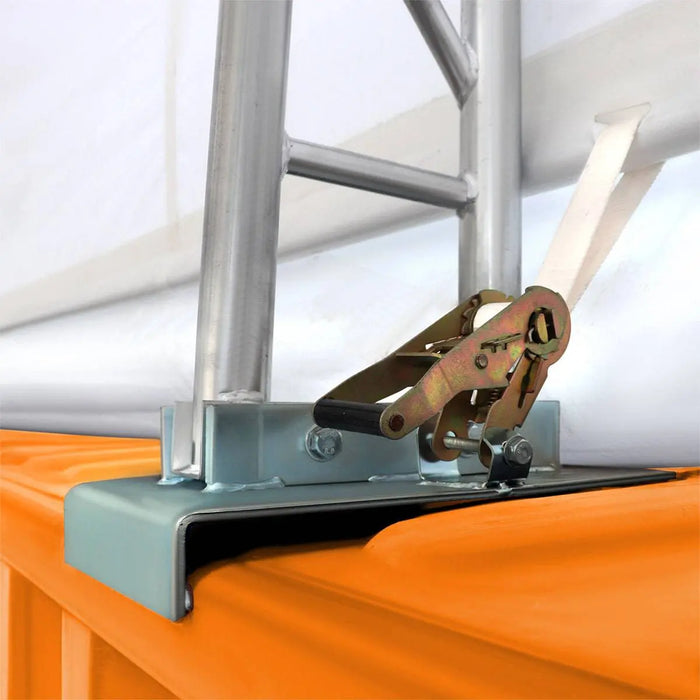

  • Designed with 10’ truss spacing, steel tubing and a quad tension cable system for maximum stability and reliability on your worksite
  • Approx. 30’ wide entry/exit space on both ends that allows for easy parking, machine operation and dynamic workflow to run throughout
  • Easy to assemble and dismantle for efficient setup/tear down if moving from one job to another: low cost storage solution all around
  • PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability
30' x 20' Dual Truss Container Shelter with Heavy Duty 17 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT3020CF-description-image

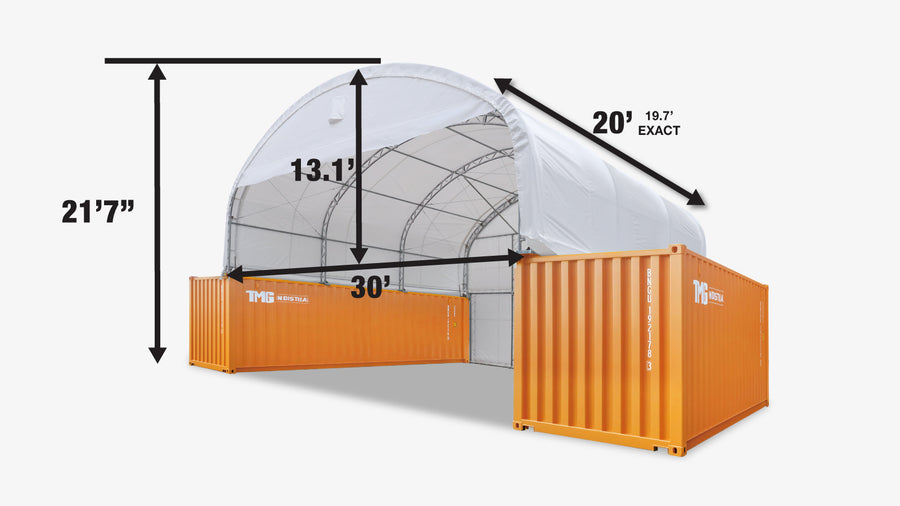

Specifications

  • Exact floor footprint: 30’ (W) x 19’8” (L)
  • Truss spacing: 10’
  • Peak ceiling height from the container top: 13’
  • Peak ceiling height from the ground: 21’7” (with standard container height)
  • Front drop height clearance: 16’
  • Sidewall rises above container top: 4’ (approx.)
  • Truss tubes: 2.0” – 15 GA (approx.)
  • Purlin tubes: 2.0” – 15 GA (approx.)
  • Cover material: 17 oz PVC fabric (white colour)

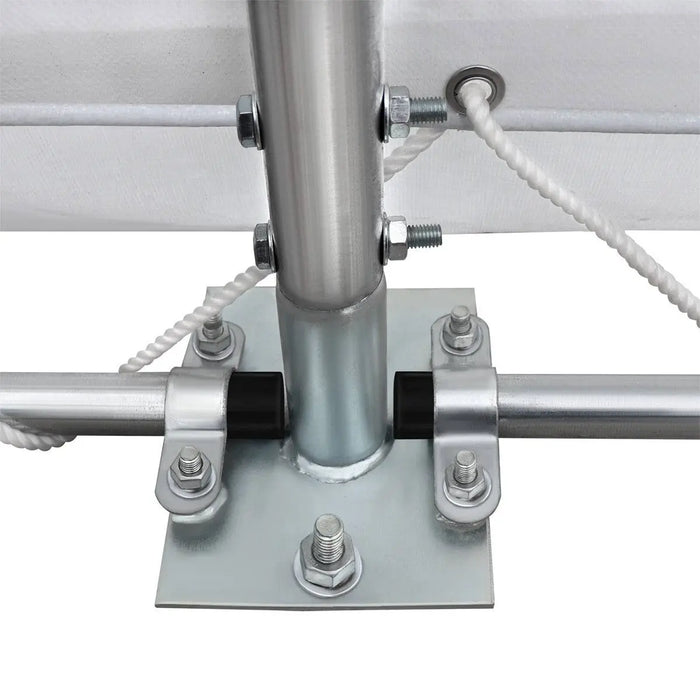

  • Welding is required for all footplates
  • Containers not included
    •
30' x 20' Dual Truss Container Shelter with Heavy Duty 17 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT3020CF-specifications-image

Product Description

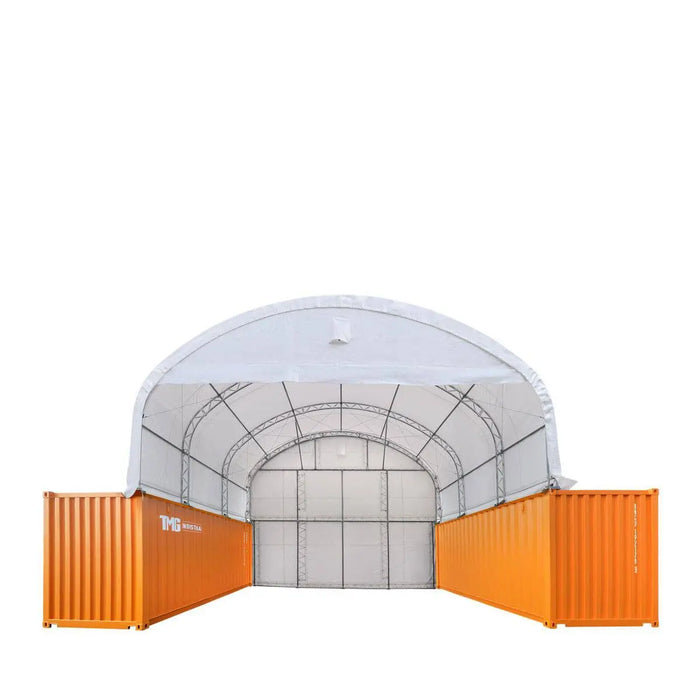

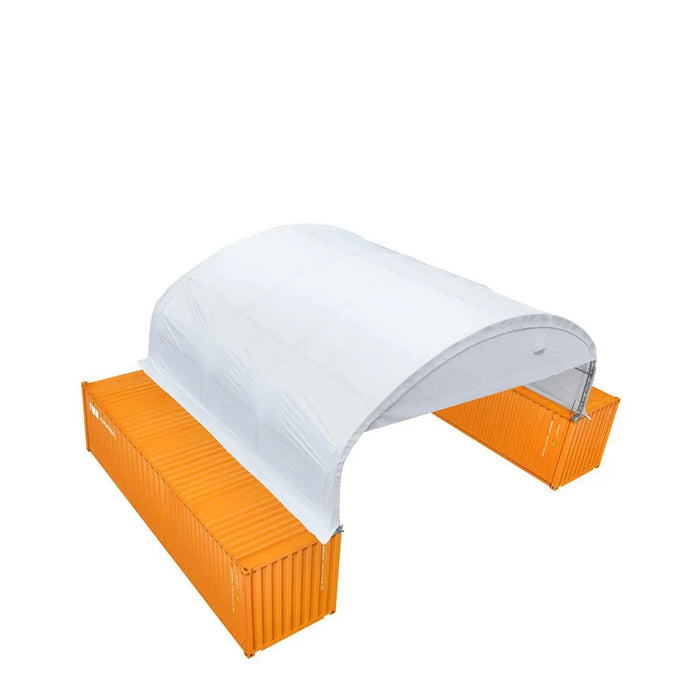

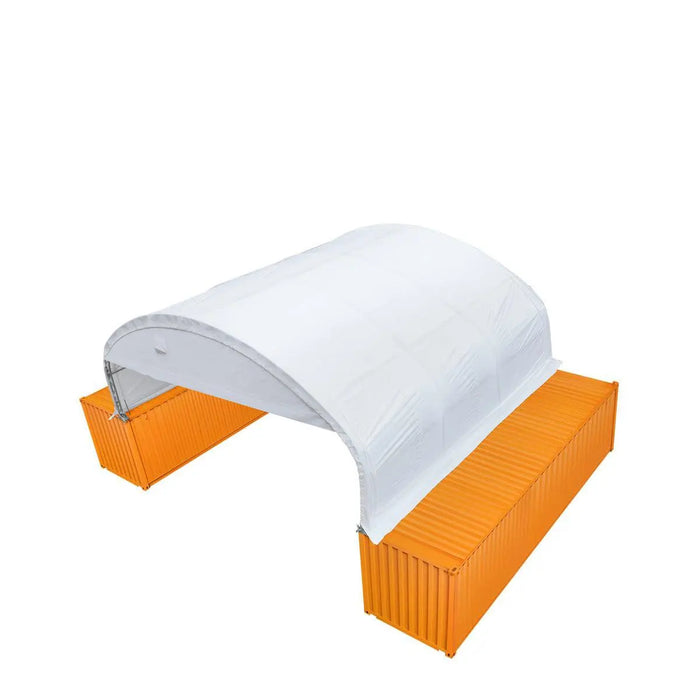

The TMG-DT3020CF Dual Truss PVC Fabric Container Storage Shelter provides an easy to assemble, durable outdoor storage solution or workshop for your farm, construction site, equipment dealership and more. Approximately 600 square feet of covered space to stockpile materials, work on projects, park vehicles and accommodate all other needs big or small. Able to install on any standard containers for versatile usability whether you’re working in remote, rural or industrial locations.

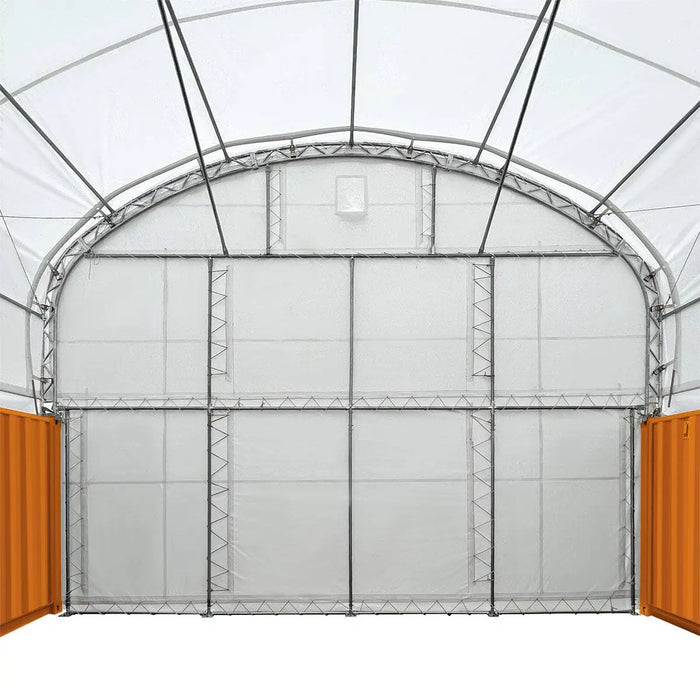

Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing and provide a long-lasting shelter covering for many years to come. This fabric is a natural flame retardant, commonly used in large commercial structures such as sports stadiums and event halls. The enclosed end wall and front drop provide an extra layer of protection for your machinery and weather sensitive cargo. Endwall is designed for standard 40’ GP containers; a 14" base will need to be added if using HC containers.

Double trusses also run throughout the whole interior which reinforces it for exceptional durability and stability. This structure is designed for installation on the outer or inner edges of your containers. For harsh weather areas or places with insufficient space, it’s recommended to use the outer edges of the container (so it is fully enclosed) to prevent snow buildup outside the structure.

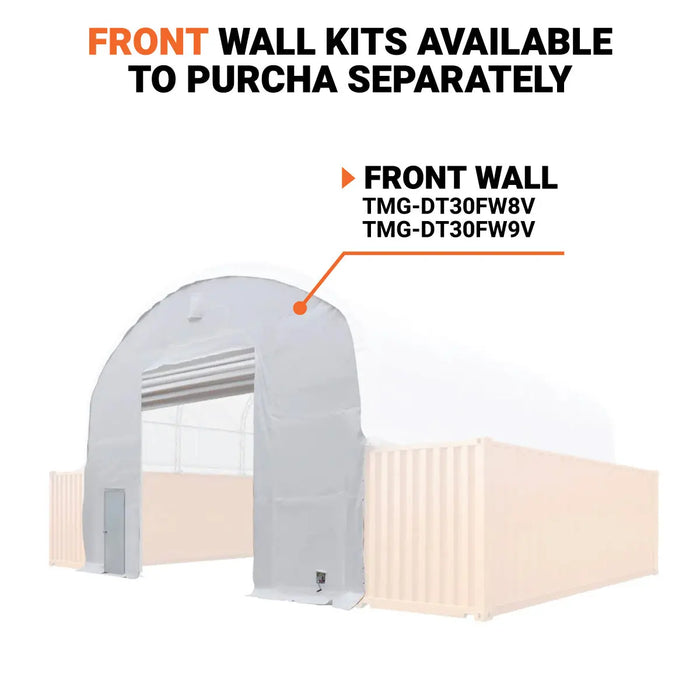

Custom-made front wall kits for the TMG-DT3020CF container shelter are available for separate purchase: TMG-DT30FW8V, TMG-DT30FW9V.

Shipping Information

The order will be shipped from one of our main warehouses in North America. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

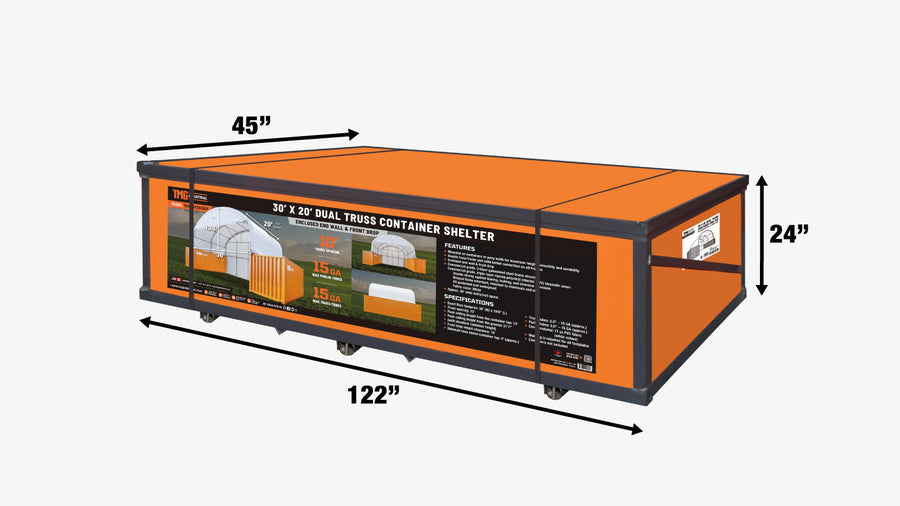

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 122” x 45” x 24”(L x W x H)
  • Shipping weight: 1570 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Richmond, BC, or Mississauga, ON
