CURRENTLY IN STOCK

TMG-DT5040CG

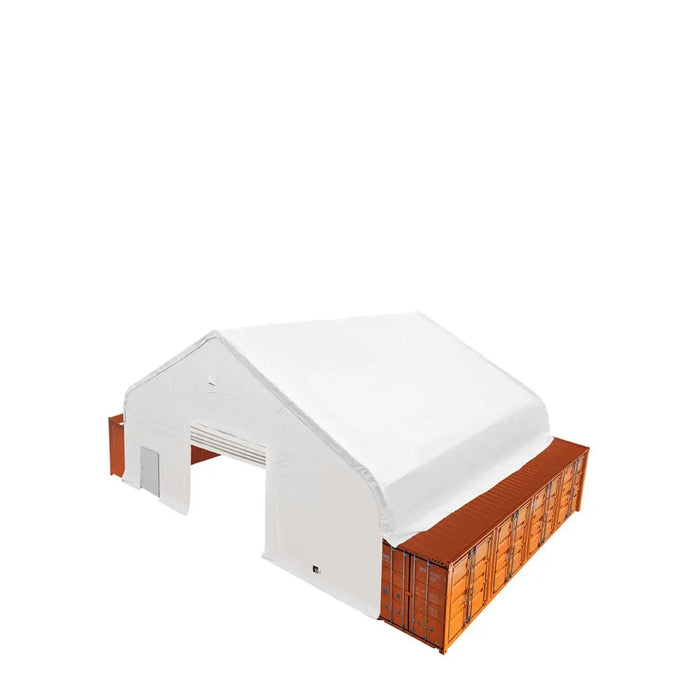

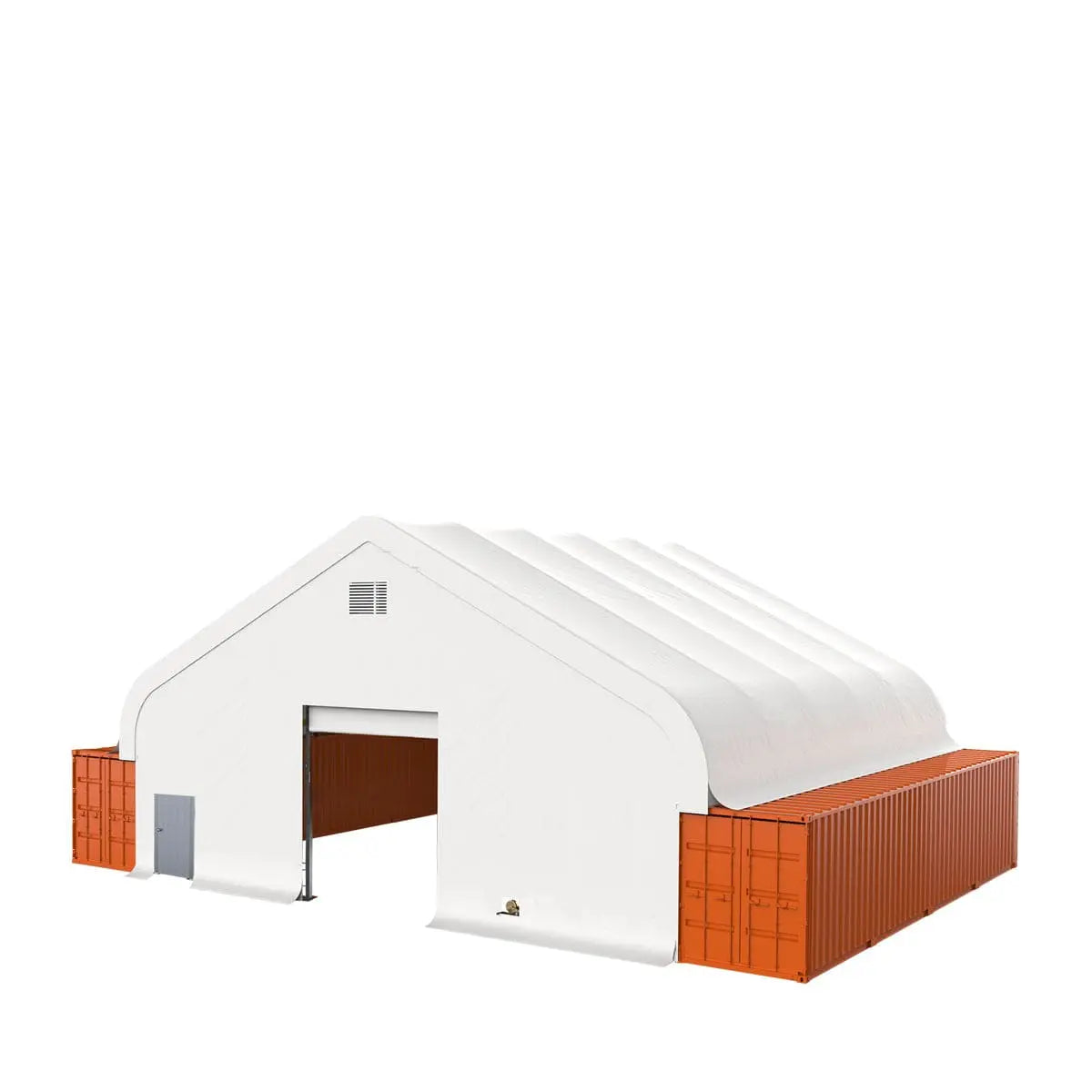

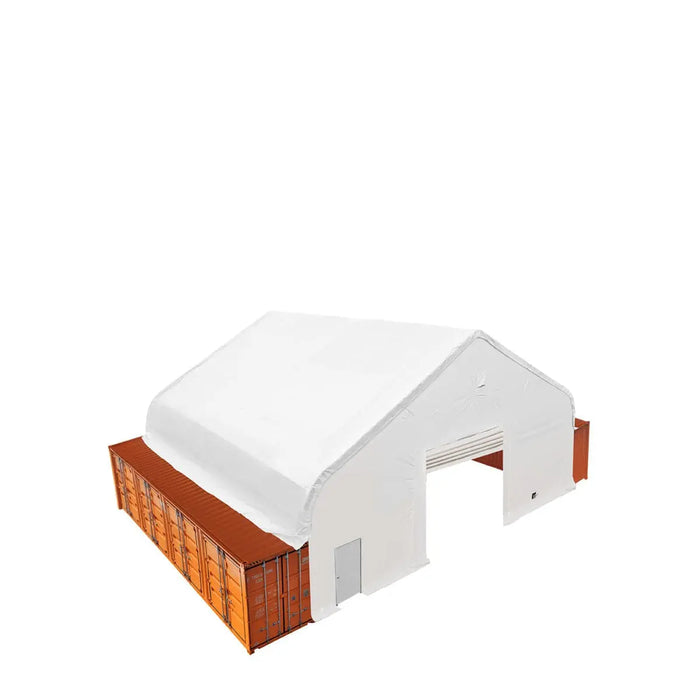

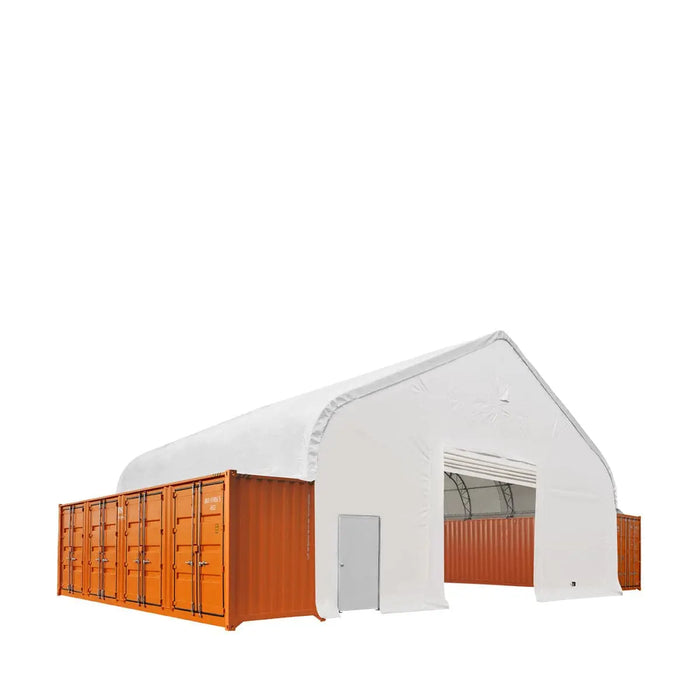

TMG Heavy Series™ 50' x 40' Fully Enclosed Dual Truss Container Shelter with Heavy Duty 32 oz PVC Cover, Front Wall and Back Wall, TMG-DT5040CG

Name: TMG Heavy Series™ 50' x 40' Fully Enclosed Dual Truss Container Shelter with Heavy Duty 32 oz PVC Cover, Front Wall and Back Wall, TMG-DT5040CG
Brand: TMG Industrial
SKU: TMG-DT5040CG
Price: 29998.0 CAD
Availability: InStock
Rating: 4.9 (10 reviews)

TMG Industrial Pro Series 50' x 40' Fully Enclosed Dual Truss Container Shelter with Heavy Duty 32 oz PVC Cover, Front Wall and Back Wall, TMG-DT5040CG

CURRENTLY IN STOCK

SKU TMG-DT5040CG

$29,998.00 CAD - $29,998.00 CAD

MSRP: $29,998.00 CAD

$29,998.00 CAD - $29,998.00 CAD

$29,998.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days

Learn More

Quantity

1-877-761-2819

cs@tmgindustrial.ca

Product Manual

Find Parts

TMG Heavy Series™ 50' x 40' Fully Enclosed Dual Truss Container Shelter with Heavy Duty 32 oz PVC Cover, Front Wall and Back Wall, TMG-DT5040CG

Quantity

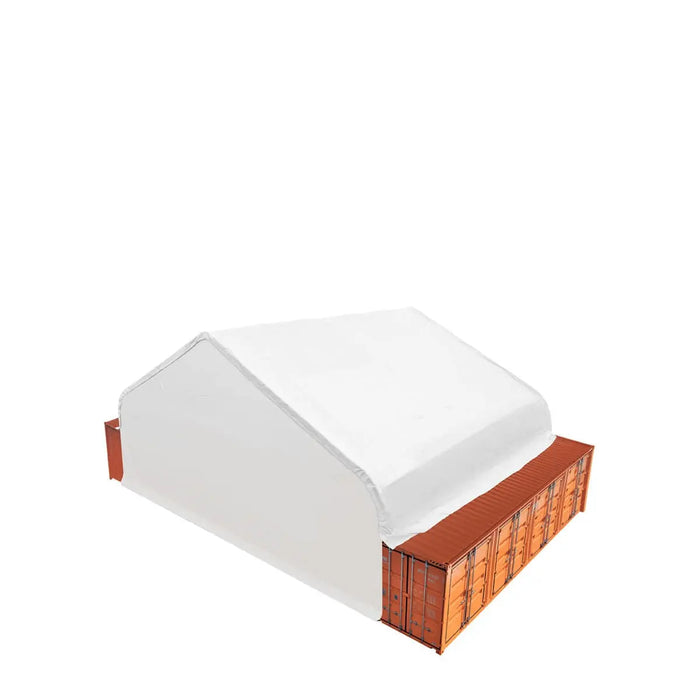

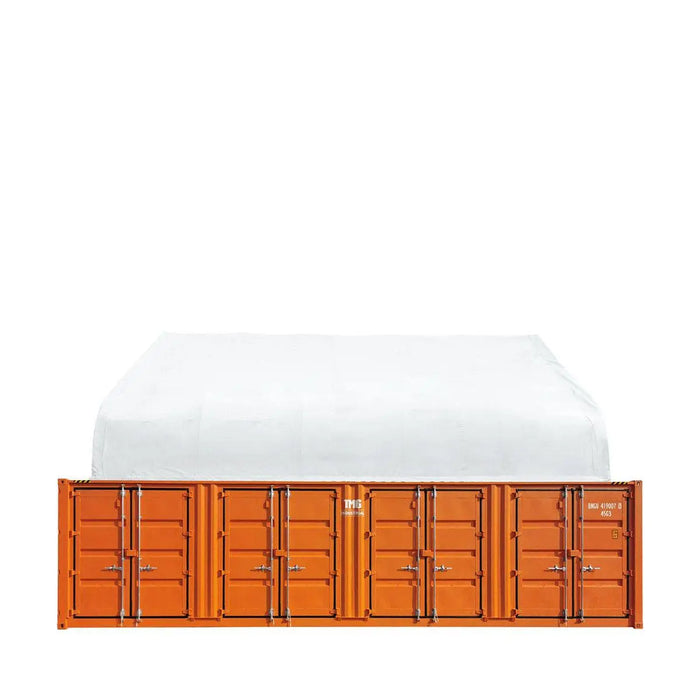

Mounted on containers or concrete pony walls for maximum height, versatility and useability so that it can accommodate most job sites

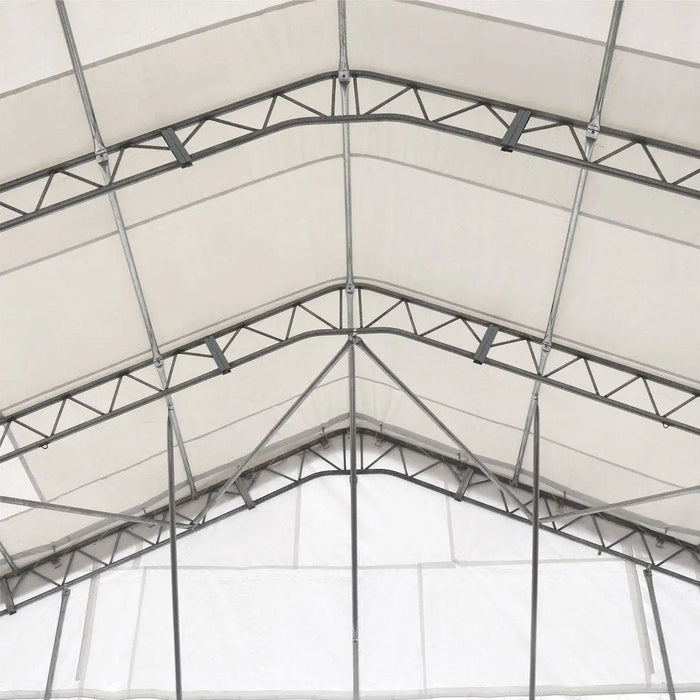

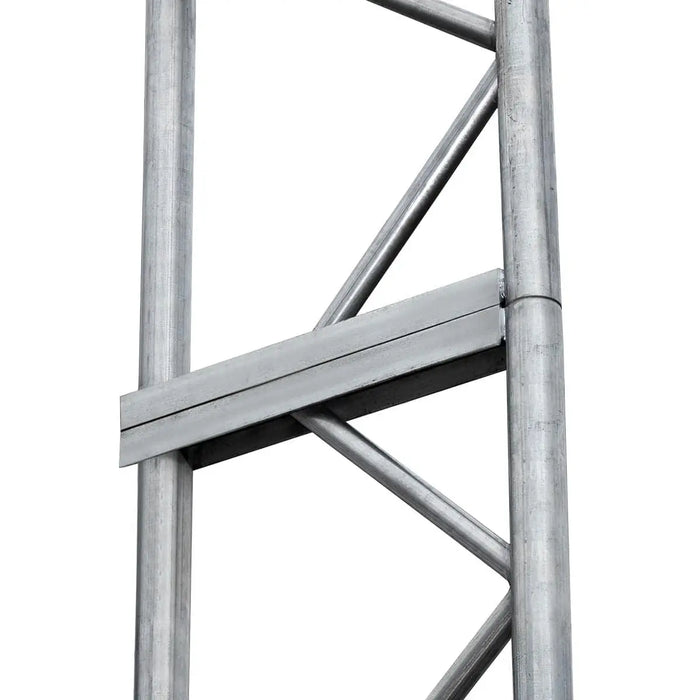

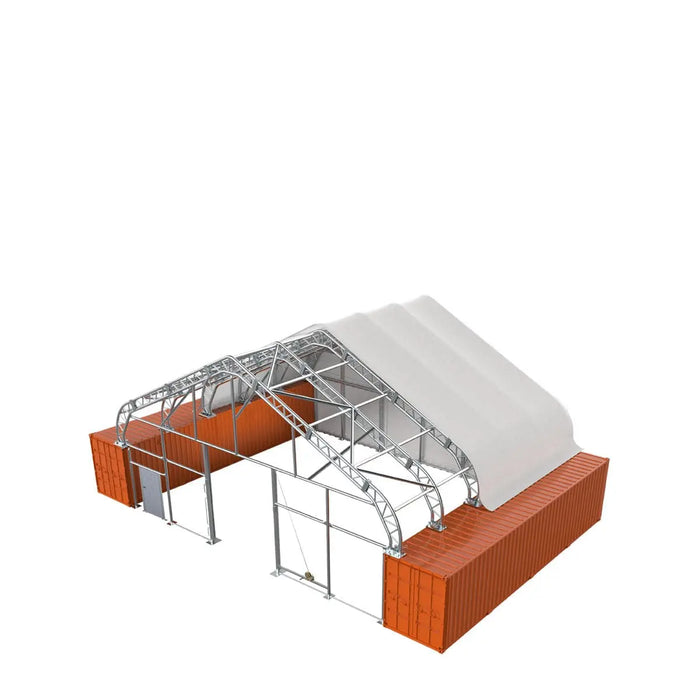

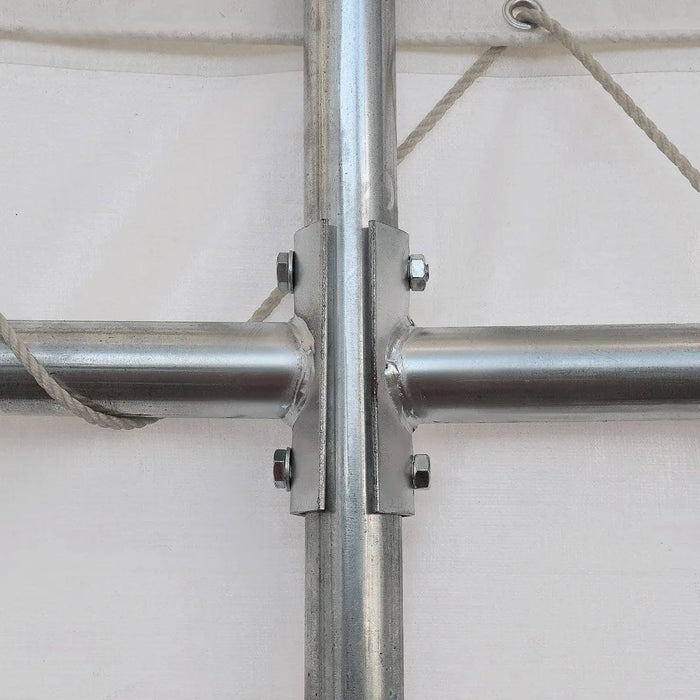

Double truss frame and solid bolted connection on all trusses which help to reinforce the structure by increasing the support strength and rigidity
Both front and back walls provide an extra layer of protection for your machinery, tools, materials and other weather sensitive cargo
Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
Use for large equipment, materials and vehicle storage; adaptable to any kind of covered outdoor needs

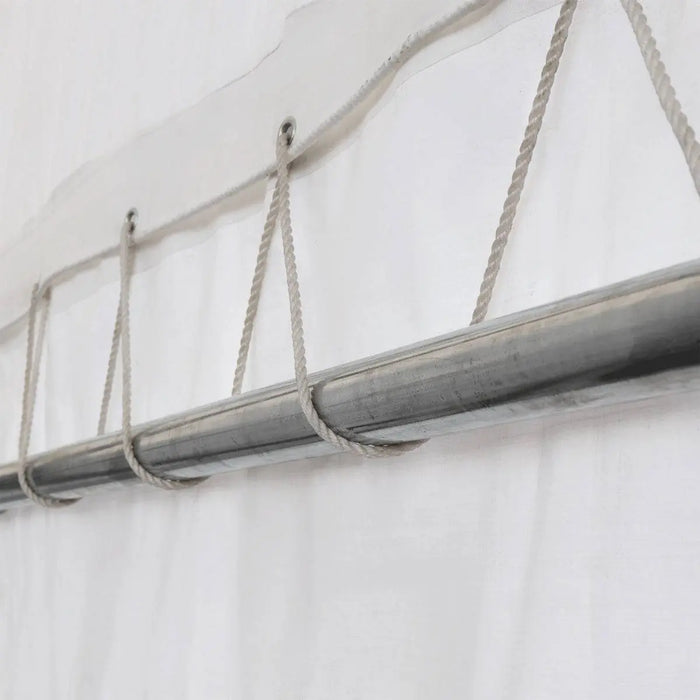

Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
- Stands strong against tearing, leaking, and chemical corrosion
- Natural flame retardant, resistant to chemicals and oil
- UV protected and waterproof
- Fabric color: White
DT TMG Heavy Series™ is reinforced with a specially designed reduced truss spacing of 8’ for maximum strength and stability
Easy to assemble and dismantle for efficient set up/tear down if moving from one job to another; low cost storage solution all around

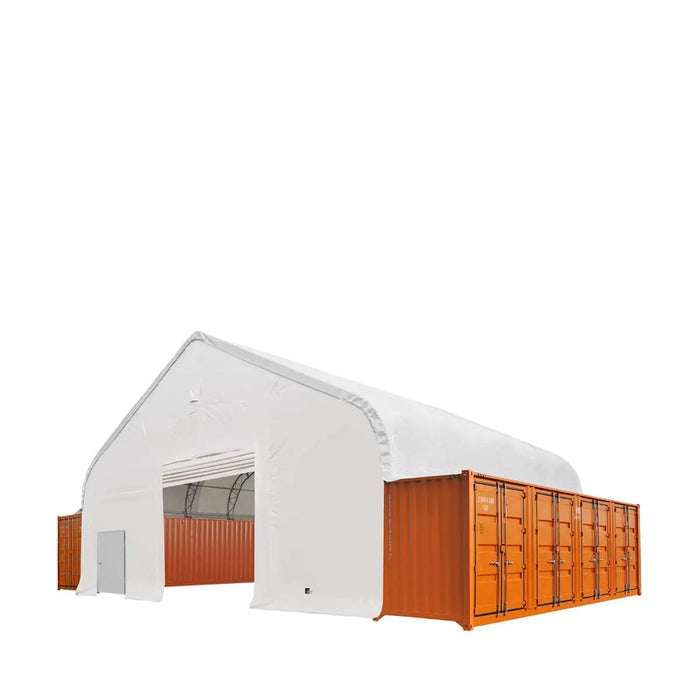

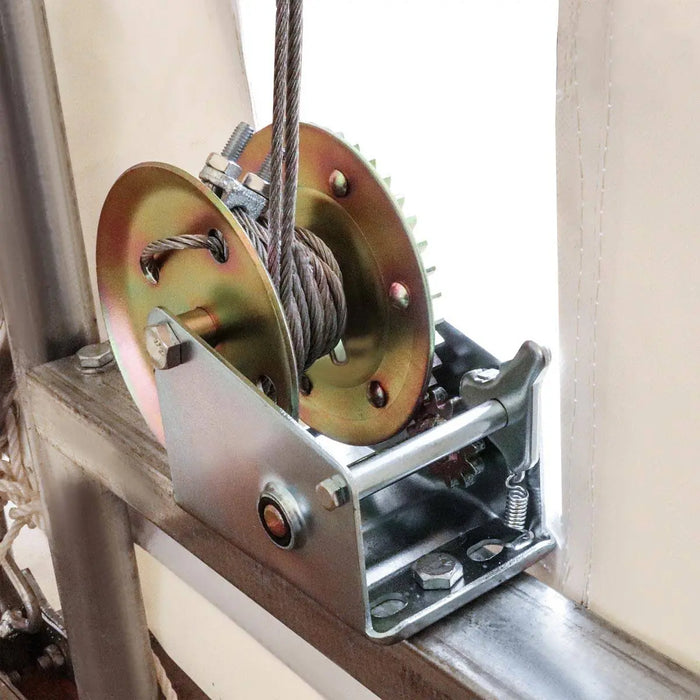

Wide open winch roll up door on front wall allows for easy parking, oversized machinery and dynamic workflow to run throughout
Steel man door offers convenient side entry, similar to the entrance of a house, that you can use instead of constantly opening the main door

Exact floor footprint: 50’4” (W) x 40’ (L)
Truss spacing: 8’
Peak ceiling height from the container top: 17’
Peak ceiling height from the ground: 26' (with standard container height)
Truss tubes: 2-½” – 15 GA (approx.)
Purlin tubes: 2-½” – 15 GA (approx.)
Front wall kit TMG-DT50FW8V
- Designed for 40’ standard container with 8’6’’ height

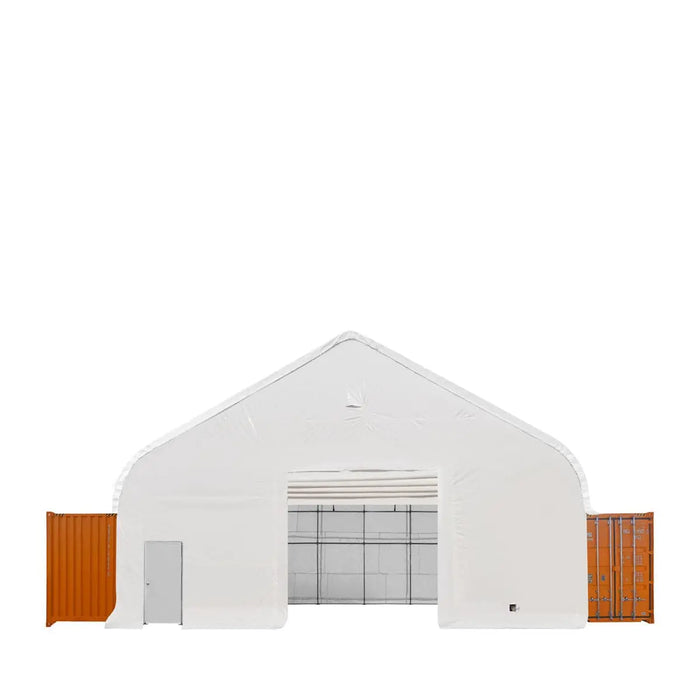

- Complete frame built and covered front wall with a steel man door and a wide open winch roll up door
Man door: 3’ x 6’6” (W x H)
Winch roll-up door with drive through clearance: 15’ x 13’ (W x H)

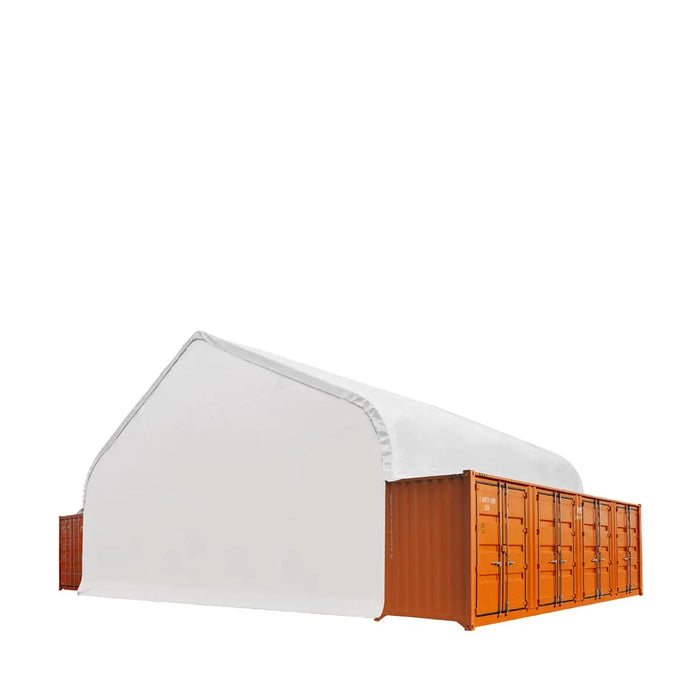

Back wall is designed with tubing frame structure and fully covered
Cover material: 32 oz PVC fabric (white color)

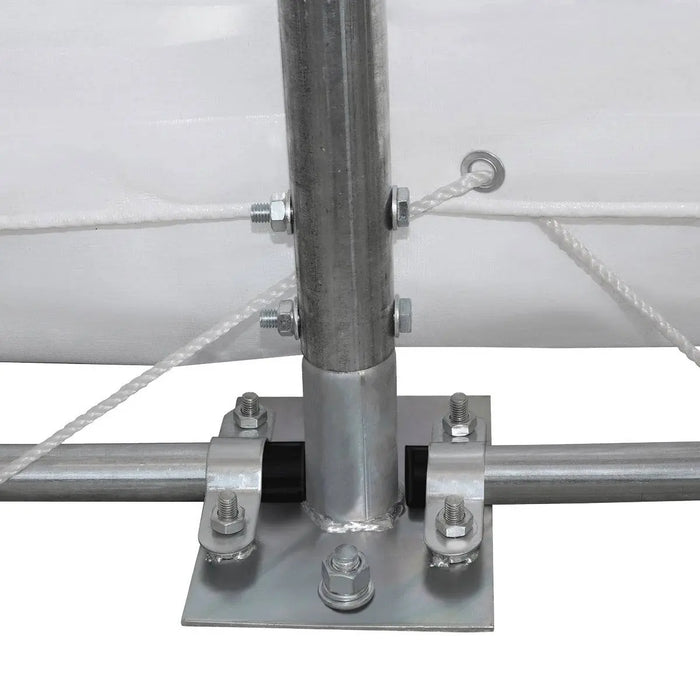

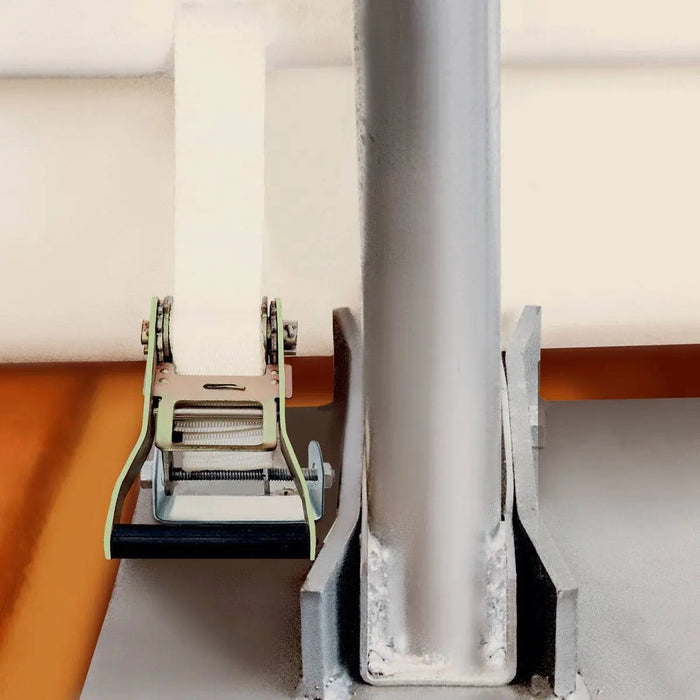

Welding required for all footplates
Containers not included

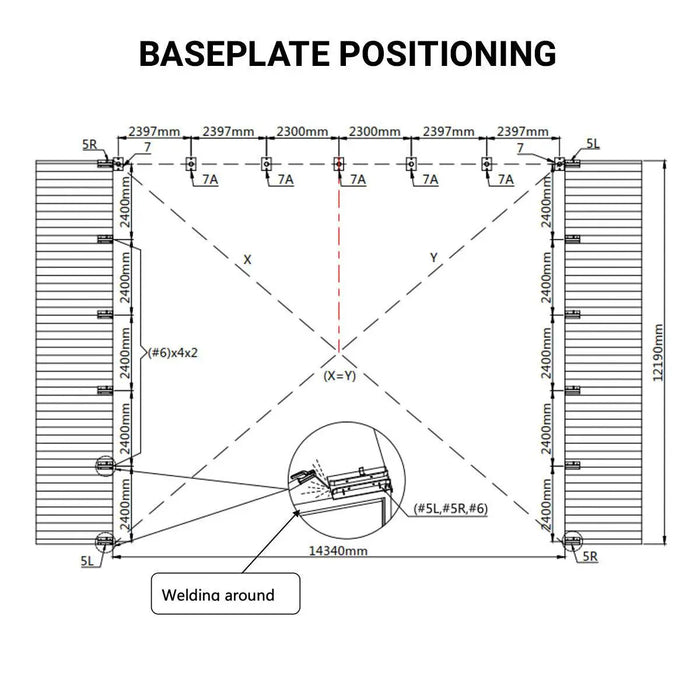

Baseplate Installation Positions (plan ahead for width):

Inner container edges to maximize interior clearance and usable square footage.
Outer container edges to allow snow runoff and prevent accumulation in high-load regions.

The TMG-DT5040CG TMG Heavy Series™ Fully Enclosed Dual Truss Container Shelter provides an easy to assemble, durable outdoor storage solution for your farm, construction site, oilfield equipment and more. Approximately 2000 square feet of covered space to stockpile materials for onsite projects and accommodate all other needs big or small. Able to install on any standard containers or concrete pony walls for versatile useability whether you're working in remote, rural or industrial locations. Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing and provide a long-lasting shelter covering for many years to come. Both front and back walls included providing an extra layer of protection for your machinery and weather sensitive cargo. They are designed for standard 40' GP containers; a 14" base will need to add for installed on HC containers with 9'6" height. Double trusses also run throughout the whole interior which reinforces its exceptional durability and stability. This structure is designed for installation on the outer or inner edges of your containers. For harsh weather areas or places with insufficient space, it's recommended to use the outer edges of the container (so it is fully enclosed) to prevent snow buildup outside the structure. TMG-DT5040CG is a combination of putting together TMG-DT5040CF and the front wall kit TMG-DT50CD. If you had purchased our TMG-DT5040CF before, you only need to purchase the front wall kit TMG-DT50CD to make a complete enclosed unit.

Additional Info

TMG Industrial is a proud supplier of storage sheds, shelters, garages, and other portable structures around North America. These units are all sold as DIY installations. Due to varying regulations required by individual municipalities, TMG Industrial is not able to provide engineered drawings or any snow and wind load certifications. It is up to the purchaser to determine any local requirements before purchasing.

The order will ship from one of our warehouses in North America. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

TMG-DT5040CG = TMG-DT5040C + TMG-DT50BW8V + TMG-DT50FCF + TMG-DT50FW8V

TMG-DT5040C: 2 metal crate shipping boxes (Box A and Box B), each 115" x 45" x 49" (L x W x H); combined shipping weight: 4,285 lb.
TMG-DT50BW8V: 1 wooden shipping box, 115" x 45" x 16" (L x W x H); shipping weight: 645 lb.
TMG-DT50FCF: 1 wooden shipping box, 115" x 45" x 16" (L x W x H); shipping weight: 200 lb.
TMG-DT50FW8V: 1 wooden shipping box, 115" x 45" x 16" (L x W x H); shipping weight: 835 lb.
Total: 5 packages; total shipping weight: 5,965 lb.

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Richmond, BC, or Mississauga, ON

What happens after you place your order?

1. Steel Frame — 10-Year Limited Warranty

The steel frame of TMG Industrial Dual Truss shelters is covered by a 10-year limited warranty against defects in materials and manufacturing workmanship.

This warranty does not cover:

Normal wear and tear, rust, oxidation or corrosion.
Bending, deformation or damage caused by wind, snow, ice accumulation or other weather conditions.
Damage caused by improper assembly, inadequate foundations or anchoring, overloading, impacts, misuse, unauthorized modifications or insufficient maintenance.

2. PVC Fabric — 3-Year Limited Warranty

The PVC fabric supplied with TMG Industrial Dual Truss shelters is covered by a 3-year limited warranty against defects in materials and manufacturing workmanship.

This warranty does not cover:

Normal wear and tear, aging, fading, discoloration or UV deterioration.
Tears, punctures, abrasion or seam damage that do not result from a covered material or manufacturing defect.
Damage caused by wind, rain, snow, ice, hail, flooding or other weather conditions.
Damage caused by improper installation, incorrect fabric tension, contact with sharp objects, misuse, unauthorized modifications or insufficient maintenance.

3. Other Components — 1-Year Limited Warranty

All other components are covered by TMG Industrial’s standard 1-year limited warranty against defects in materials and manufacturing workmanship, subject to its applicable terms and exclusions.

4. Installation & Maintenance

Shelters must be assembled, anchored, used and maintained in accordance with the applicable TMG Industrial instructions. Damage resulting from failure to follow these instructions is not covered.

5. Additional Terms

These warranty periods do not guarantee product service life or protection against weather damage. Additional terms and conditions apply. Please refer to our full warranty policy.

Dimensions and capacity
	TMG Heavy Series™ 50' x 40' Fully Enclosed Dual Truss Container Shelter with Heavy Duty 32 oz PVC Cover, Front Wall and Back Wall, TMG-DT5040CG$29,998.00 CAD	TMG Heavy Series™ 50' x 40' Dual Truss Container Shelter with Heavy Duty 32 oz PVC Cover, Enclosed End Wall and Front Drop, TMG-DT5040CF-PRO$24,999.00 CAD	Heavy Series™ 50' x 40' Dual Truss Container Shelter with Heavy Duty 32 oz PVC Cover, 17' Height with Peak Roof, TMG-DT5040C$19,999.00 CAD	40' x 40' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Fully Enclosed front and back endwalls, TMG-DT4041CG$19,499.00 CAD	40' x 40' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT4041CF (Previously DT4040CF)$15,899.00 CAD	30' x 40' Dual Truss Container Shelter with Heavy Duty 17 oz PVC Cover, Enclosed End Wall & Front Drop TMG-DT3040CF$10,299.00 CAD	60' x 70' Dual Truss Container Shelter with Heavy Duty 28oz PVC Cover, Enclosed End Wall and Front Drop, TMG-DT6070CF$48,999.00 CAD	40' x 20' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Fully Enclosed Front & Back Walls, TMG-DT4022CG8$12,599.00 CAD	40' x 20' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT4022CF8$9,499.00 CAD	40' x 20' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, TMG-DT4022C-V2$5,999.00 CAD	TMG Heavy Series™ 20' x 40' Dual Truss Container Shelter with Heavy Duty 17 oz PVC Cover, TMG-DT2041CV (Previously DT2040CV)$5,699.00 CAD	40' x 20' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, TMG-DT4022C$5,399.00 CAD	30' x 20' Dual Truss Container Shelter with Heavy Duty 17 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT3020CF$6,498.00 CAD
Exact Floor Footprint	50'4" (15.34 m) (W) x 40' (12.00 m) (L)	50'4" (15.34 m) (W) x 40' (12.00 m) (L)	50'4" (15.34 m) (W) x 40' (12.00 m) (L)	39'5" (12.01 m) (W) x 39'5" (12.01 m) (L)	39'5" (12.01 m) (W) x 39'5" (12.01 m) (L)	30' (W) x 39'5" (L) (9.14 m x 12.01 m)	60' (18.29 m) (W) x 70' (21.34 m) (L)	40' (12.00 m) (W) x 20' (6.00 m) (L)	12 m (40') (W) x 6 m (20') (L)	12 m (40') (W) x 6 m (20') (L)	19'8" (5.99 m) (W) x 39'5" (12.01 m) (L)	12 m (40') (W) x 6 m (20') (L)	30' (W) x 19'8" (L) (9.14 m x 5.99 m)
Covered Area	2,000 sq-ft	2,000 sq-ft	2,000 sq-ft	1,600 sq-ft	1,600 sq-ft	1,200 sq-ft	4,200 sq-ft	800 sq-ft	800 sq-ft	800 sq-ft	800 sq-ft	800 sq-ft	600 sq-ft
Truss Spacing	8' (2.40 m)	8' (2.40 m)	8' (2.40 m)	10' (3.05 m)	10' (3.05 m)	10' (3.05 m)	9.8' (3.00 m)	10' (3.05 m)	10' (3.05 m)	6' 7" (2 m)	8' (2.40 m)	10' (3 m)	10' (3.05 m)
Construction and materials
Cover Material	32 oz PVC fabric	32 oz PVC fabric	32 oz PVC fabric	21 oz PVC fabric	21 oz PVC fabric	17 oz PVC fabric	28 oz PVC fabric	triple-layer 21 oz PVC fabric	triple-layer 21 oz PVC fabric	Triple-layer 21 oz (610 GSM) PVC fabric	17 oz PVC fabric	Triple-layer 21 oz (610 GSM) PVC fabric	17 oz PVC fabric
