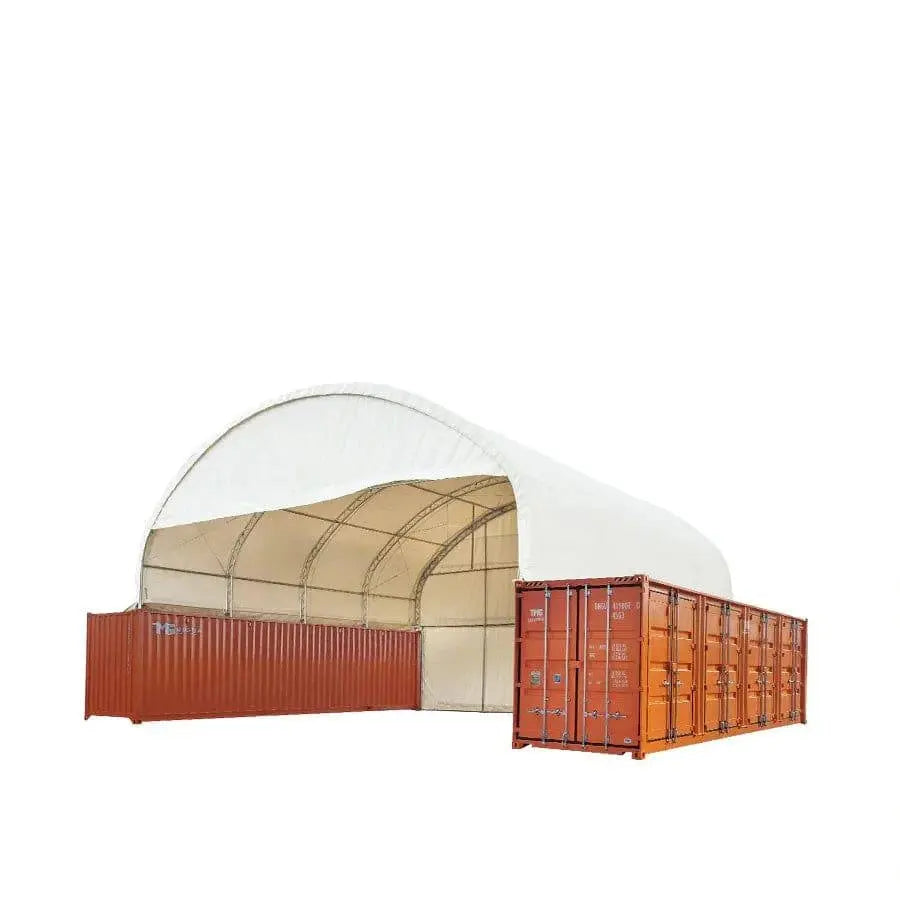

40' x 40' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT4041CF (Previously DT4040CF)

Name: 40' x 40' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT4041CF (Previously DT4040CF)
Uploaded: 2020-10-01T09:19:04-07:00
Description: 40' x 40' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT4041CF (Previously DT4040CF)

CURRENTLY IN STOCK

SKU TMG-DT4041CF

MSRP: $17,199.00 CAD

$17,199.00 CAD - $17,199.00 CAD

$17,199.00 CAD

$15,899.00 CAD

$15,899.00 CAD - $15,899.00 CAD

$15,899.00 CAD

$17,199.00 CAD Save $1,300.00 CAD

$15,899.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days

Learn More

Quantity

1-877-761-2819

cs@tmgindustrial.ca

Product Manual

Find Parts

Product Video

40' x 40' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT4041CF (Previously DT4040CF)

Quantity

Mounted on containers or pony walls for maximum height, versatility and useability so that it can accommodate most job sites

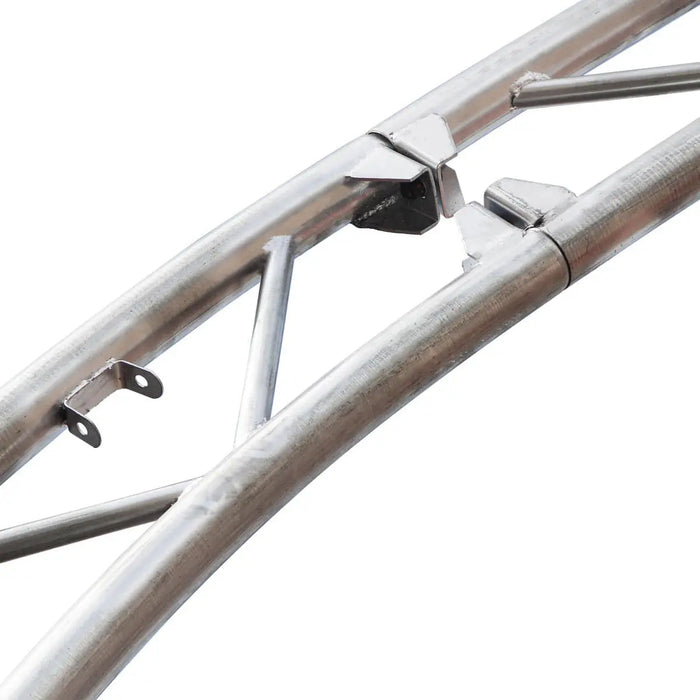

Double truss frame and solid bolted connection on all trusses which help to reinforce the structure by increasing the support strength and rigidity

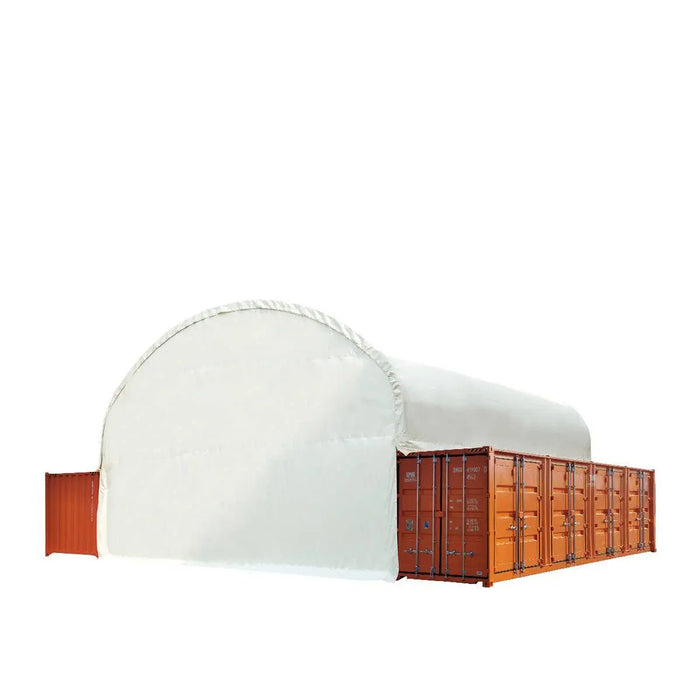

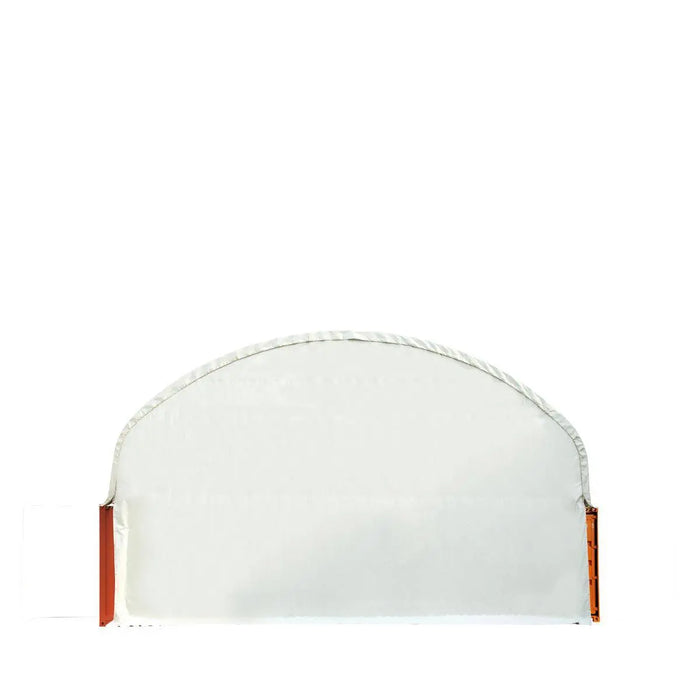

Enclosed endwall & front drop provide an extra layer of protection for your machinery, tools, materials and other weather sensitive cargo
Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
- Stands strong against tearing, leaking, and chemical corrosion
- Natural flame retardant, resistant to chemicals and oil
- UV protected and waterproof
- Fabric color: White

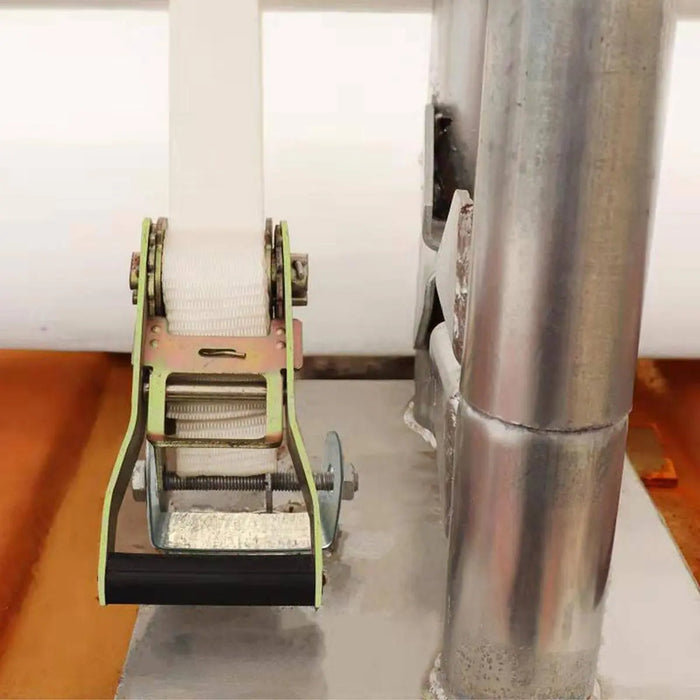

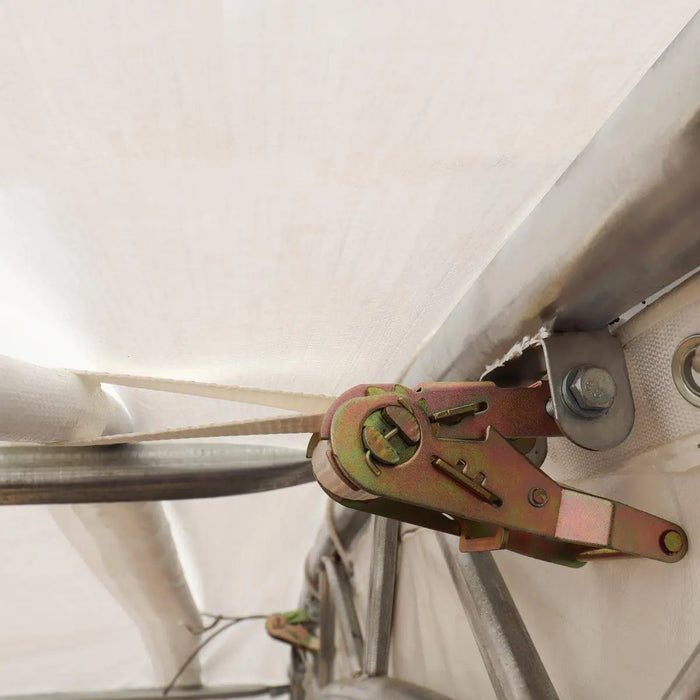

Designed with 10’ truss spacing, steel tubing and a quad tension cable system for maximum stability and reliability on your worksite

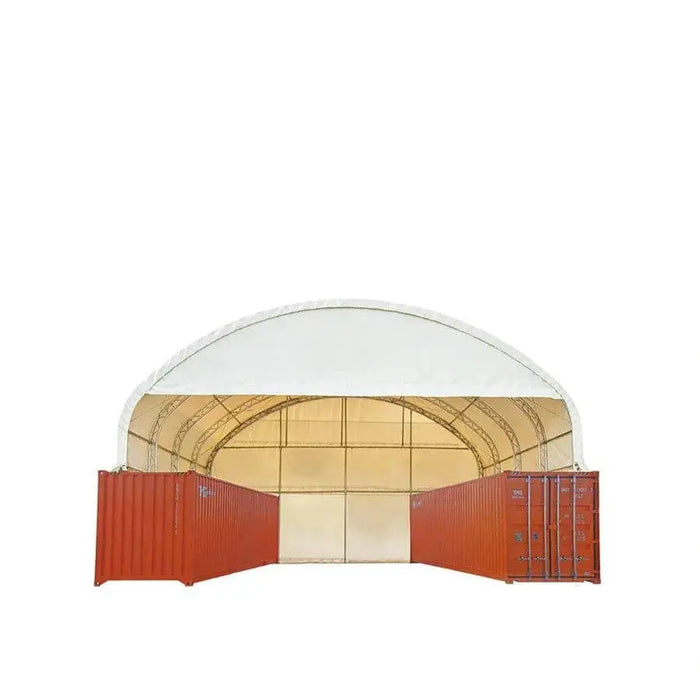

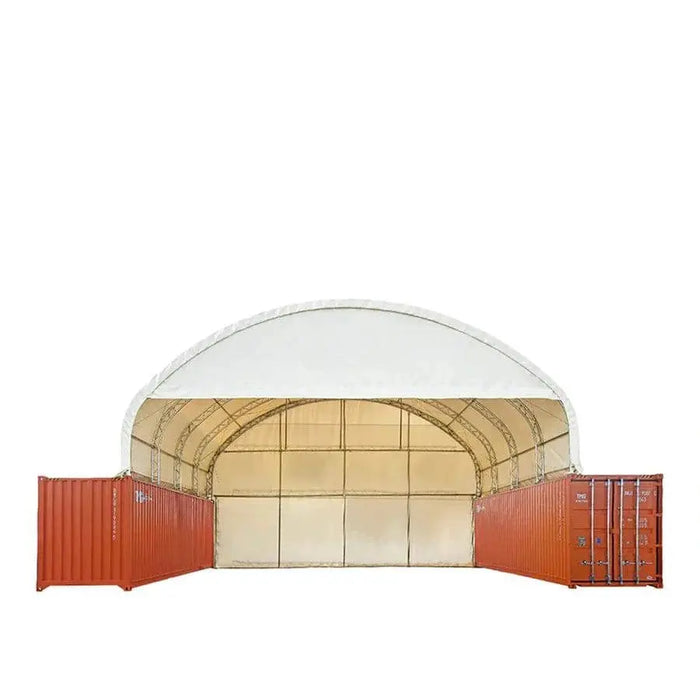

Approx. 40’ wide entry/exit space that allows for easy parking, machine operation and dynamic workflow to run throughout
Easy to assemble and dismantle for efficient set up/tear down if moving from one job to another; low cost storage solution all around
PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability

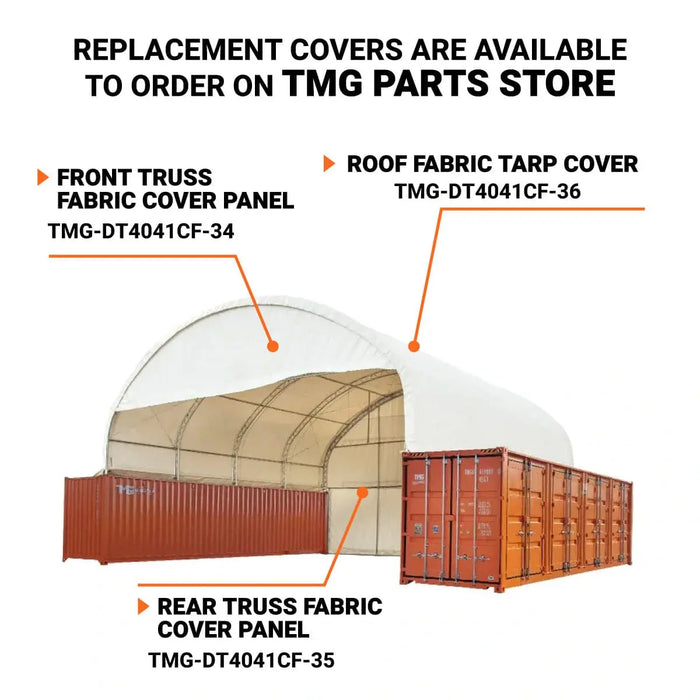

Replacement covers available for order here TMG PARTS STORE
Custom lengths available for 53’ containers or other dimensions upon request.

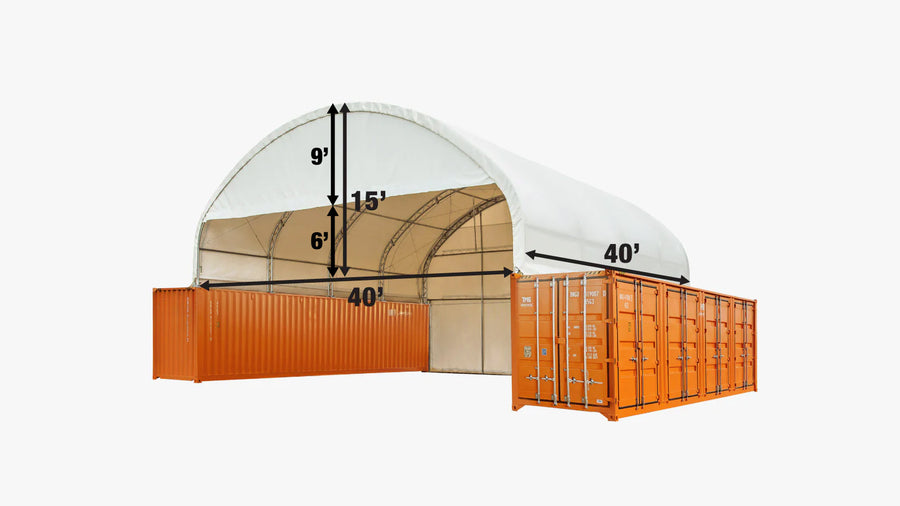

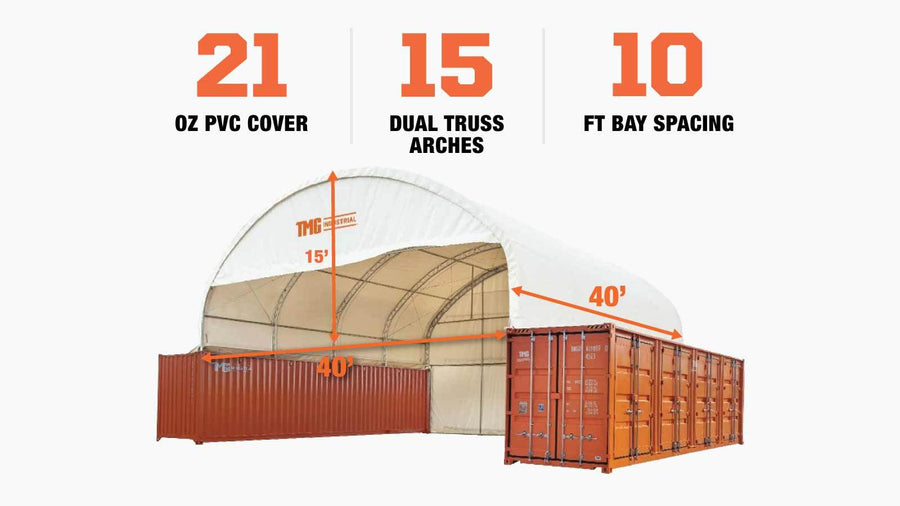

Exact floor footprint: 39’5” (W) x 39’5” (L)
Truss spacing: 10’

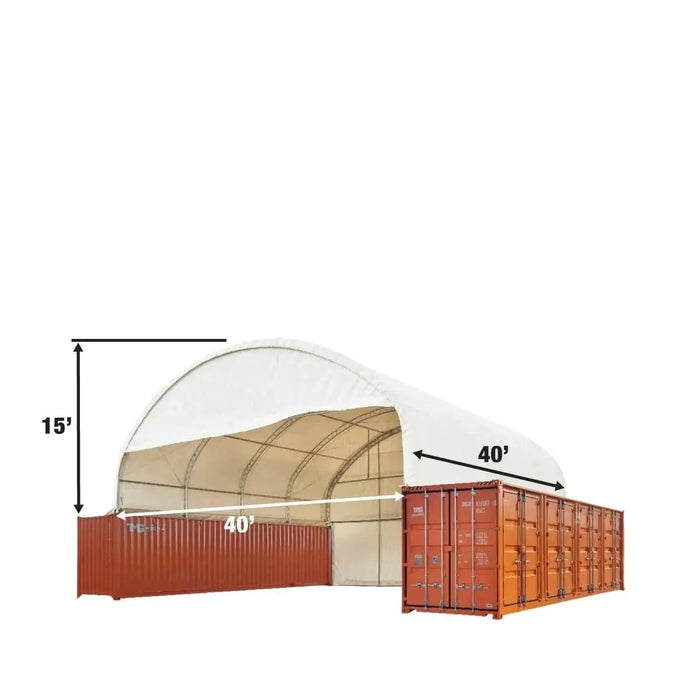

Peak ceiling height from the container top: 15'
Peak ceiling height from the ground: 23' (with standard container height)
Front drop height clearance: 15'
Sidewall rise above container top: 3’6” (approx.)
Truss tubes: 2-½” – 15 GA (approx.)
Purlin tubes: 2-½” – 15 GA (approx.)
Cover material: 21 oz PVC fabric (white color)

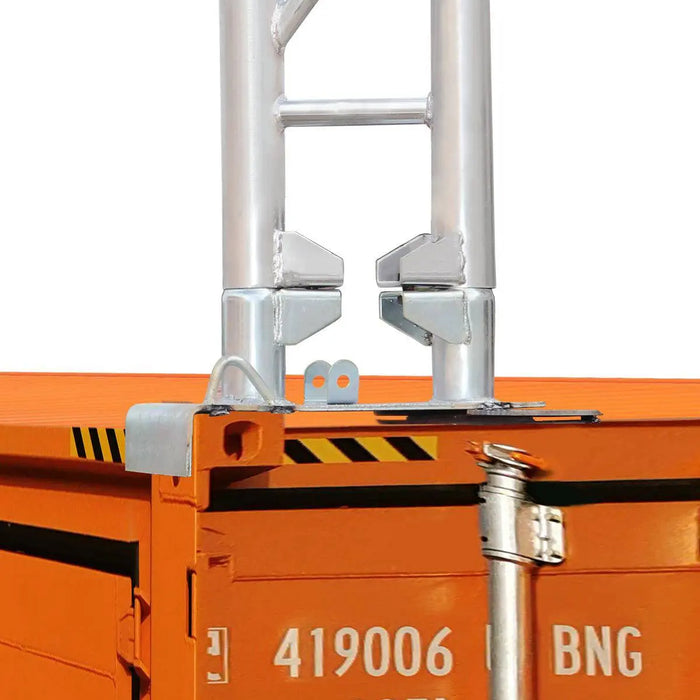

Welding required for all footplates
Containers not included

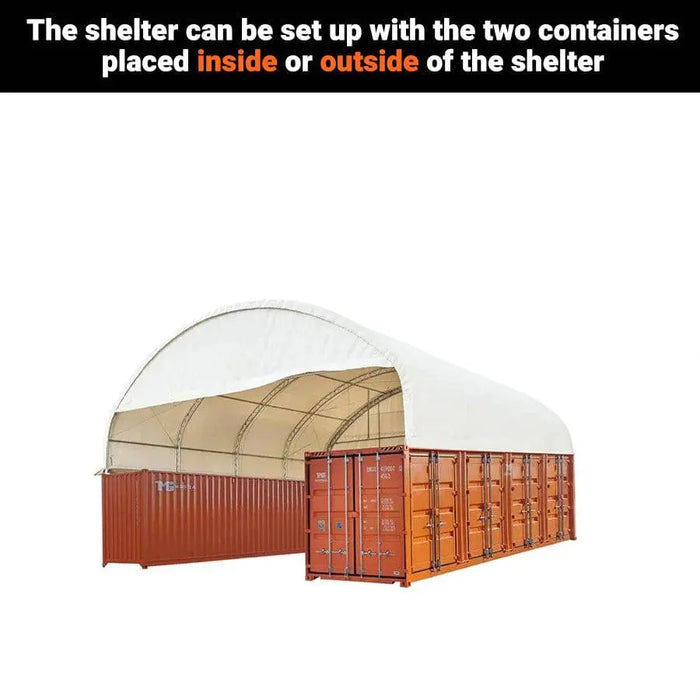

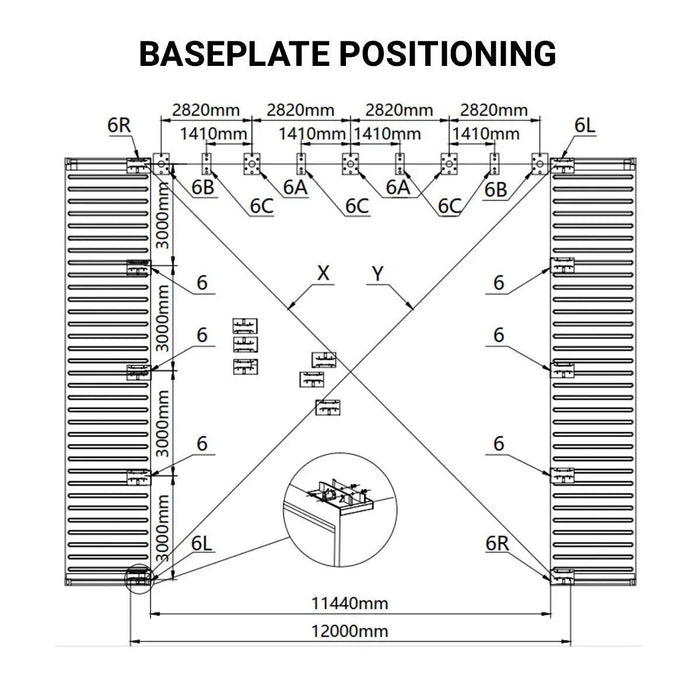

Baseplate Installation Positions (plan ahead for width):

Inner container edges to maximize interior clearance and usable square footage.
Outer container edges to allow snow runoff and prevent accumulation in high-load regions.

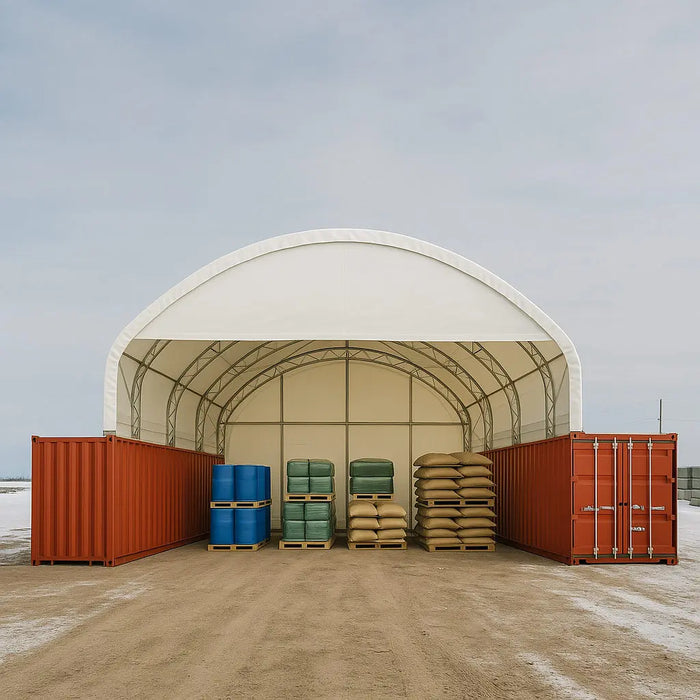

The TMG-DT4041CF (DT4040CF) Dual Truss PVC Fabric Container Storage Shelter provides an easy to assemble, durable outdoor storage solution or workshop for your farm, construction site, equipment dealership and more. Approximately 1600 square feet of covered space to stockpile materials, work on projects, park vehicles and accommodate all other needs big or small. Able to install on any standard containers for versatile usability whether you’re working in remote, rural or industrial locations.

Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing and provide a long-lasting shelter covering for many years to come. This fabric is a natural flame retardant, commonly used in large commercial structures such as sports stadiums and event halls. The enclosed endwall and front drop provide an extra layer of protection for your machinery and weather sensitive cargo. Endwall is designed for standard 40’ GP containers; a 14" base will need to be added if using HC containers.

Double trusses also run throughout the whole interior which reinforces it for exceptional durability and stability. This structure is designed for installation on the outer or inner edges of your containers. For harsh weather areas or places with insufficient space, it’s recommended to use the outer edges of the container (so it is fully enclosed) to prevent snow buildup outside the structure.

Custom-made front wall kits for the TMG-DT4041C container shelter are available for separate purchase: TMG-DT40CFB, TMG-DT40FW9V, TMG-DT40FW8V Parts and accessories of this product are compatible with Stanforge SF-DT4041CF.

Additional Info

TMG Industrial is a proud supplier of storage sheds, shelters, garages, and other portable structures around North America. These units are all sold as DIY installations. Due to varying regulations required by individual municipalities, TMG Industrial is not able to provide engineered drawings or any snow and wind load certifications. It is up to the purchaser to determine any local requirements before purchasing.

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

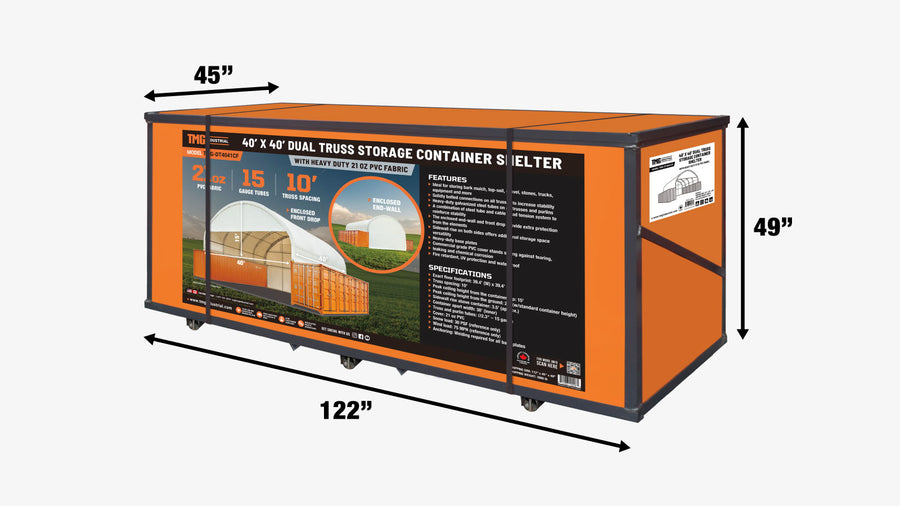

This product is packed in a metal crate shipping box
Shipping dimension: 122” x 45” x 49” (L x W x H)
Shipping weight: 3290 lb

Shipping from Richmond, BC, or Mississauga, ON

What happens after you place your order?

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Dimensions and capacity
	40' x 40' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT4041CF (Previously DT4040CF)$15,899.00 CAD	40' x 40' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Fully Enclosed front and back endwalls, TMG-DT4041CG$19,499.00 CAD	Heavy Series™ 50' x 40' Dual Truss Container Shelter with Heavy Duty 32 oz PVC Cover, 17' Height with Peak Roof, TMG-DT5040C$19,999.00 CAD	TMG Heavy Series™ 50' x 40' Dual Truss Container Shelter with Heavy Duty 32 oz PVC Cover, Enclosed End Wall and Front Drop, TMG-DT5040CF-PRO$24,999.00 CAD	TMG Heavy Series™ 50' x 40' Fully Enclosed Dual Truss Container Shelter with Heavy Duty 32 oz PVC Cover, Front Wall and Back Wall, TMG-DT5040CG$29,998.00 CAD	30' x 40' Dual Truss Container Shelter with Heavy Duty 17 oz PVC Cover, Enclosed End Wall & Front Drop TMG-DT3040CF$10,299.00 CAD	40' x 20' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Fully Enclosed Front & Back Walls, TMG-DT4022CG8$12,599.00 CAD	40' x 20' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT4022CF8$9,499.00 CAD	40' x 20' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, TMG-DT4022C-V2$5,999.00 CAD	TMG Heavy Series™ 20' x 40' Dual Truss Container Shelter with Heavy Duty 17 oz PVC Cover, TMG-DT2041CV (Previously DT2040CV)$5,699.00 CAD	40' x 20' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, TMG-DT4022C$5,399.00 CAD	60' x 70' Dual Truss Container Shelter with Heavy Duty 28oz PVC Cover, Enclosed End Wall and Front Drop, TMG-DT6070CF$48,999.00 CAD	30' x 20' Dual Truss Container Shelter with Heavy Duty 17 oz PVC Cover, Enclosed End Wall & Front Drop, TMG-DT3020CF$6,498.00 CAD
Exact Floor Footprint	39'5" (12.01 m) (W) x 39'5" (12.01 m) (L)	39'5" (12.01 m) (W) x 39'5" (12.01 m) (L)	50'4" (15.34 m) (W) x 40' (12.00 m) (L)	50'4" (15.34 m) (W) x 40' (12.00 m) (L)	50'4" (15.34 m) (W) x 40' (12.00 m) (L)	30' (W) x 39'5" (L) (9.14 m x 12.01 m)	40' (12.00 m) (W) x 20' (6.00 m) (L)	12 m (40') (W) x 6 m (20') (L)	12 m (40') (W) x 6 m (20') (L)	19'8" (5.99 m) (W) x 39'5" (12.01 m) (L)	12 m (40') (W) x 6 m (20') (L)	60' (18.29 m) (W) x 70' (21.34 m) (L)	30' (W) x 19'8" (L) (9.14 m x 5.99 m)
Covered Area	1,600 sq-ft	1,600 sq-ft	2,000 sq-ft	2,000 sq-ft	2,000 sq-ft	1,200 sq-ft	800 sq-ft	800 sq-ft	800 sq-ft	800 sq-ft	800 sq-ft	4,200 sq-ft	600 sq-ft
Truss Spacing	10' (3.05 m)	10' (3.05 m)	8' (2.40 m)	8' (2.40 m)	8' (2.40 m)	10' (3.05 m)	10' (3.05 m)	10' (3.05 m)	6' 7" (2 m)	8' (2.40 m)	10' (3 m)	9.8' (3.00 m)	10' (3.05 m)
Construction and materials
Cover Material	21 oz PVC fabric	21 oz PVC fabric	32 oz PVC fabric	32 oz PVC fabric	32 oz PVC fabric	17 oz PVC fabric	triple-layer 21 oz PVC fabric	triple-layer 21 oz PVC fabric	Triple-layer 21 oz (610 GSM) PVC fabric	17 oz PVC fabric	Triple-layer 21 oz (610 GSM) PVC fabric	28 oz PVC fabric	17 oz PVC fabric
