TMG-DT4041CG

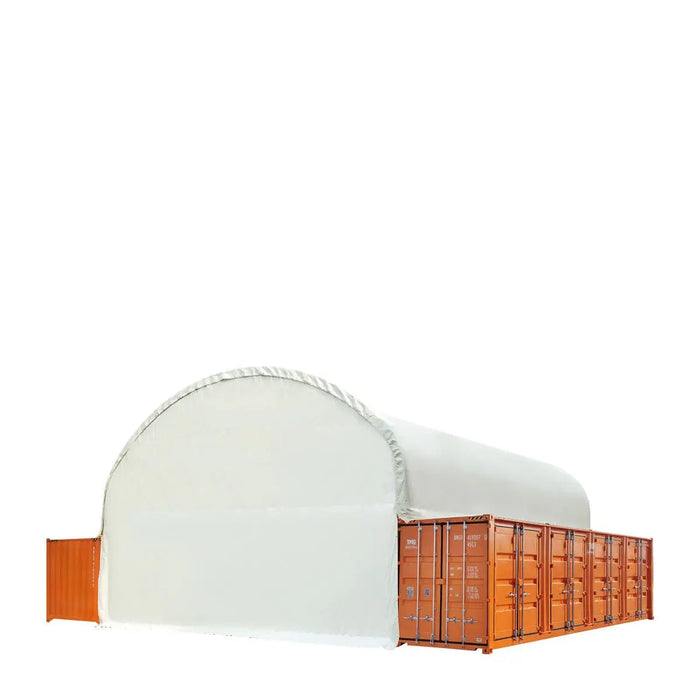

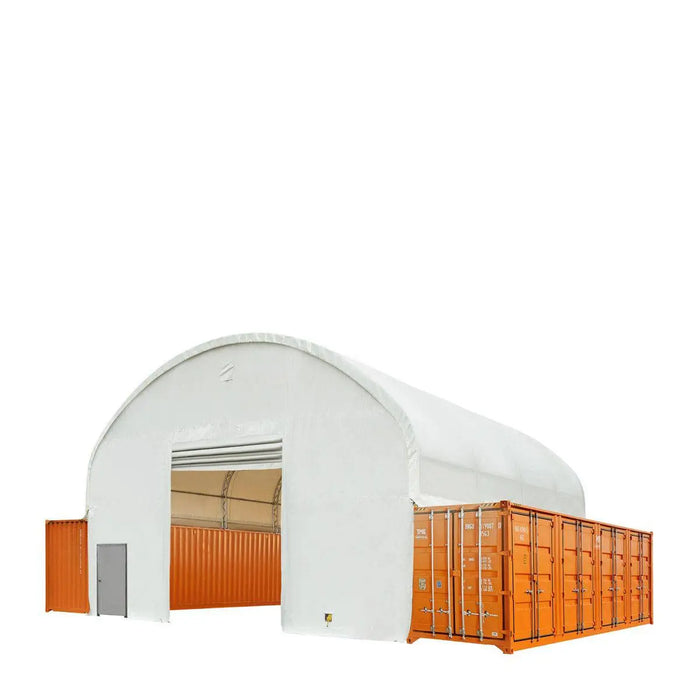

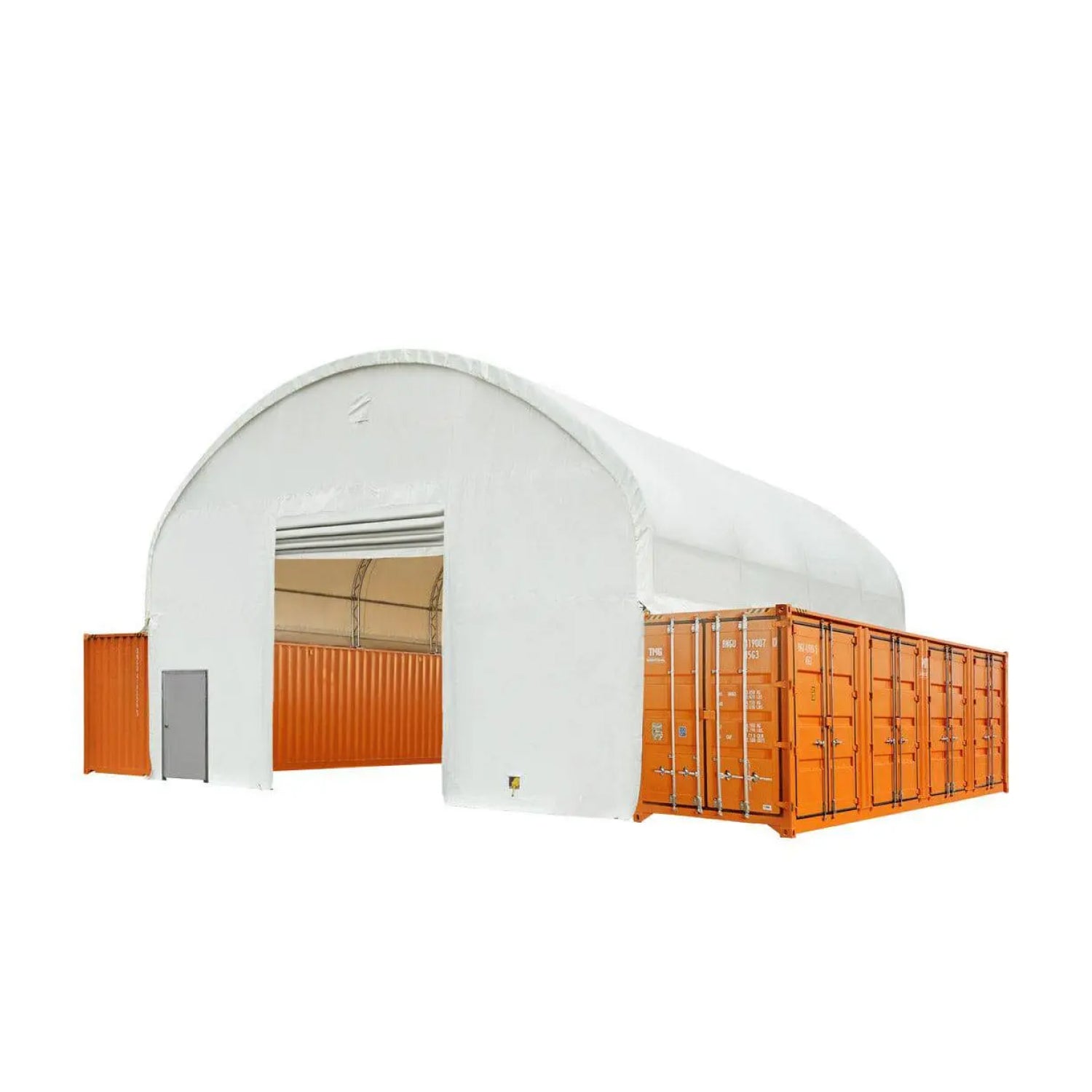

40' x 40' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Fully Enclosed front and back endwalls, TMG-DT4041CG

CURRENTLY IN STOCK
SKU TMG-DT4041CG
Original price MSRP: $20,699.00 CAD
Original price $20,699.00 CAD - Original price $20,699.00 CAD
Original price $20,699.00 CAD
Current price $19,599.00 CAD
$19,599.00 CAD - $19,599.00 CAD
Current price $19,599.00 CAD
$20,699.00 CAD Save $1,100.00 CAD
$19,599.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days Learn More

NFPA 701 test report

NFPA 701 test report — 40' x 40' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Fully Enclosed front and back endwalls, TMG-DT4041CG

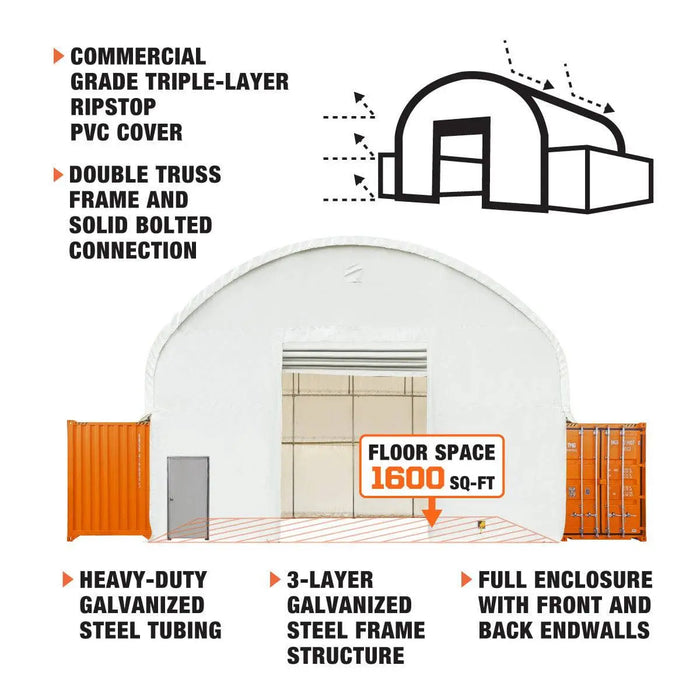

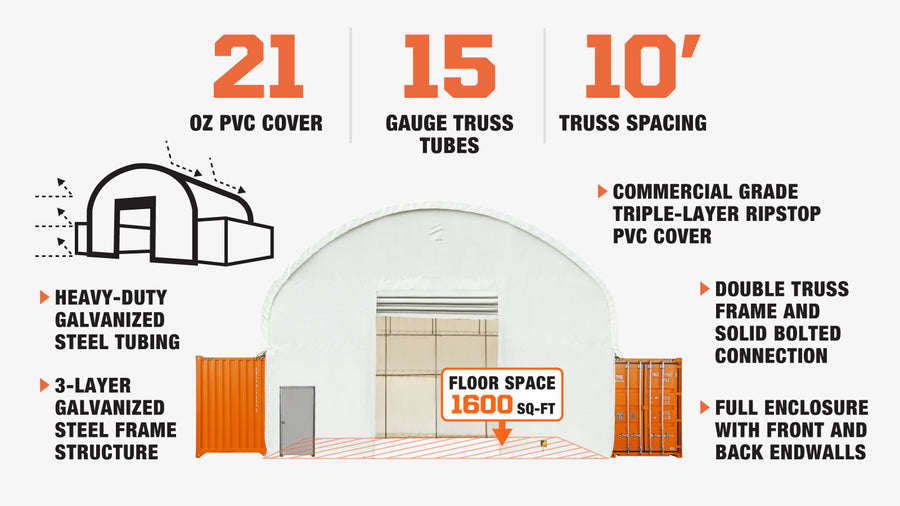

Features

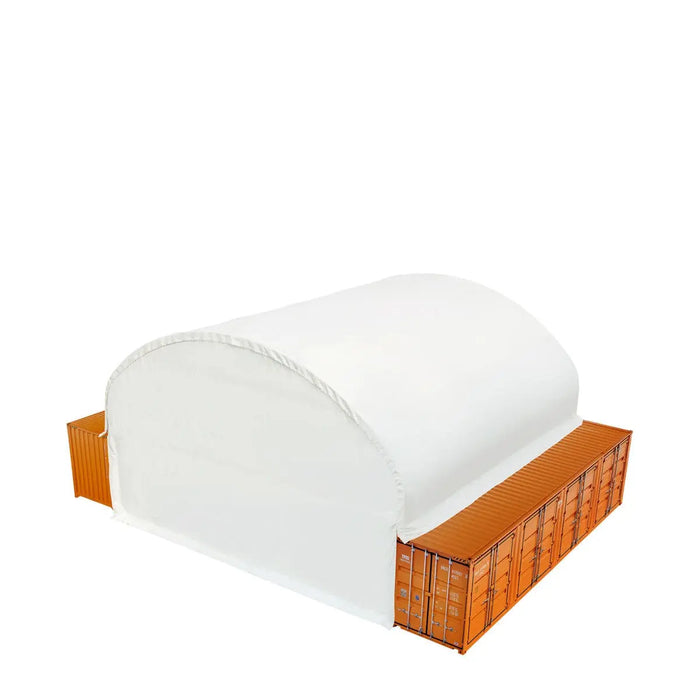

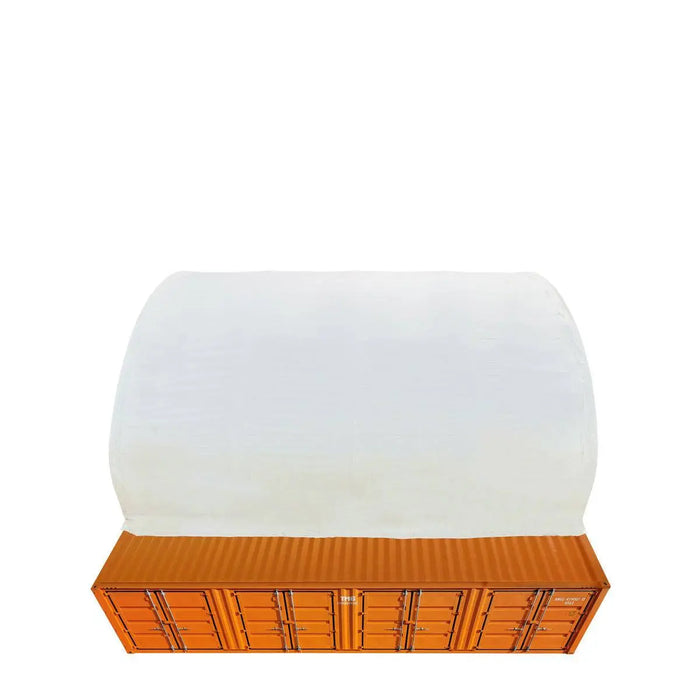

  • Mounted on containers or pony walls for maximum height, versatility and useability so that it can accommodate most job sites

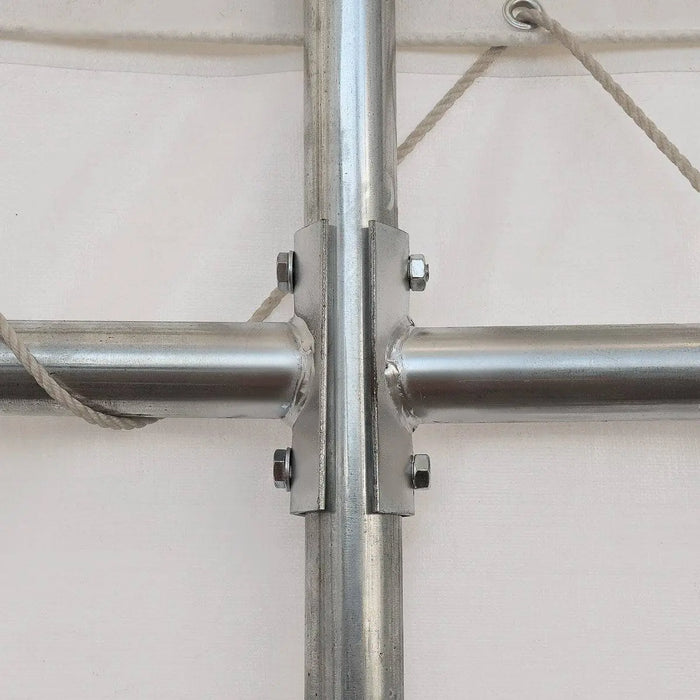

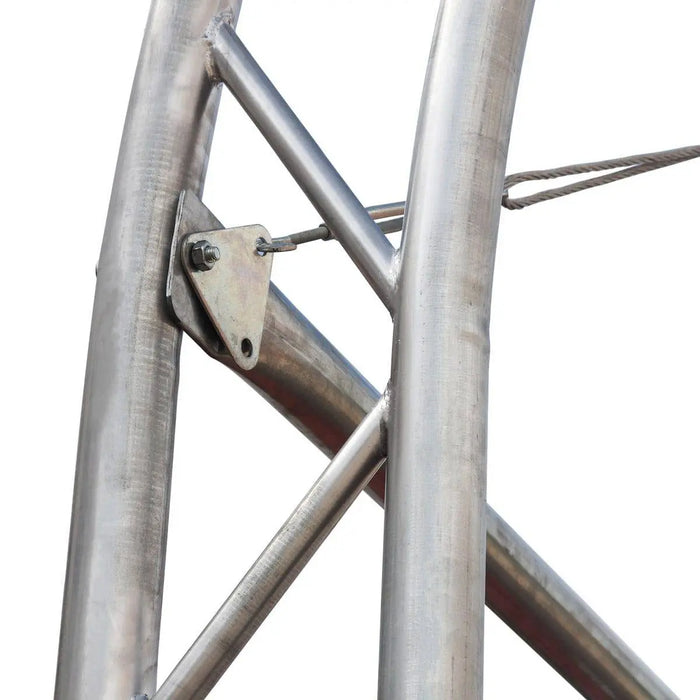

  • Double truss frame and solid bolted connection on all trusses which help to reinforce the structure by increasing the support strength and rigidity
  • Fully enclosed design provides year-round, all weather protection for your machinery, tools, materials and other sensitive cargo
  • Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
  • Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
    • Stands strong against tearing, leaking, and chemical corrosion
    • Natural flame retardant, resistant to chemicals and oil
    • UV protected and waterproof
    • Fabric color: White

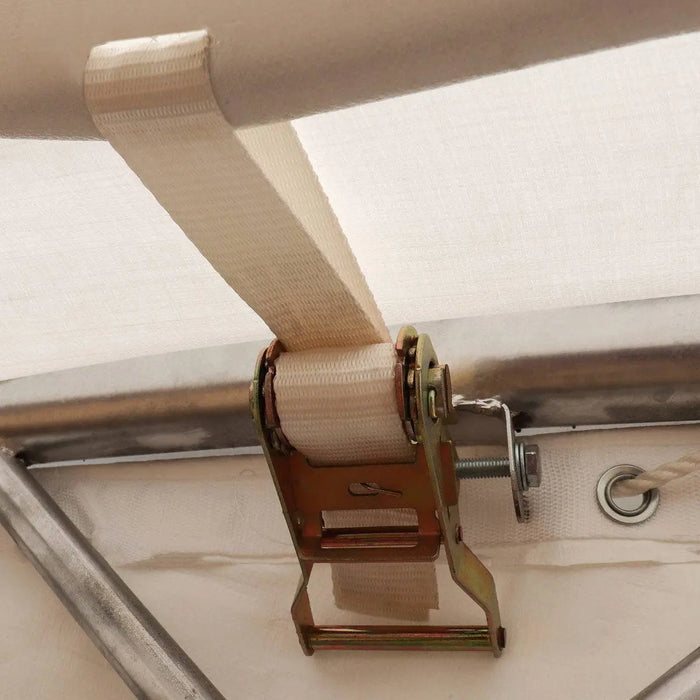

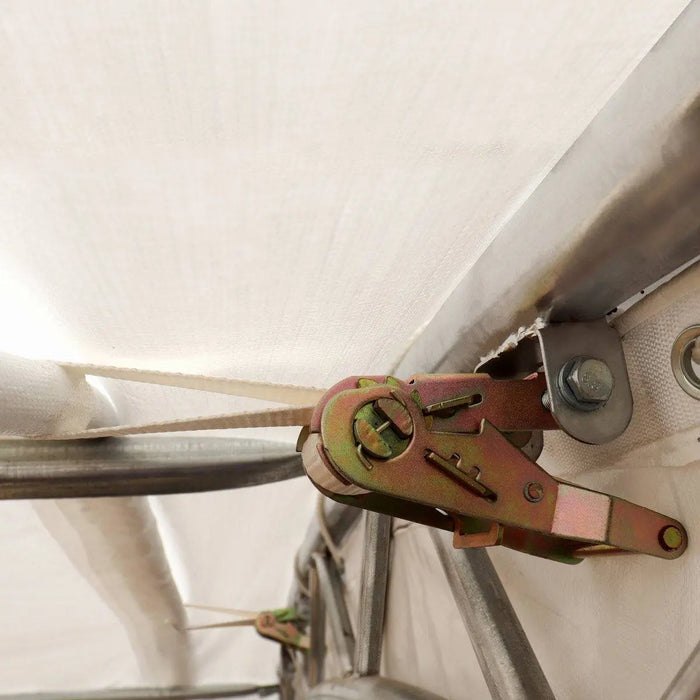

  • Designed with 10’ truss spacing, steel tubing and a quad tension cable system for maximum stability and reliability on your worksite

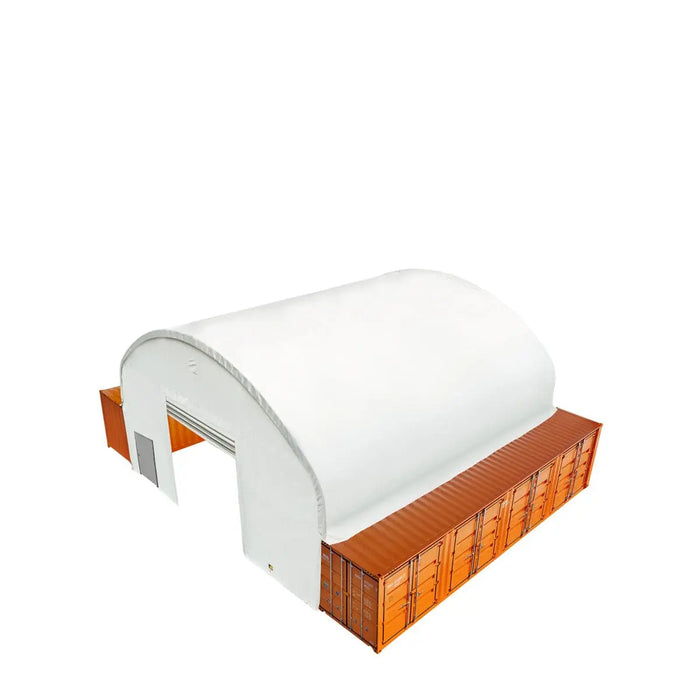

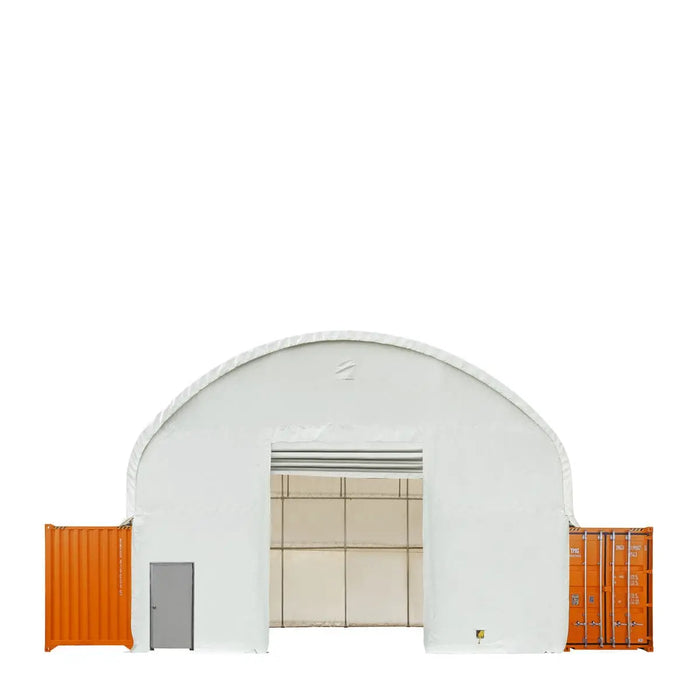

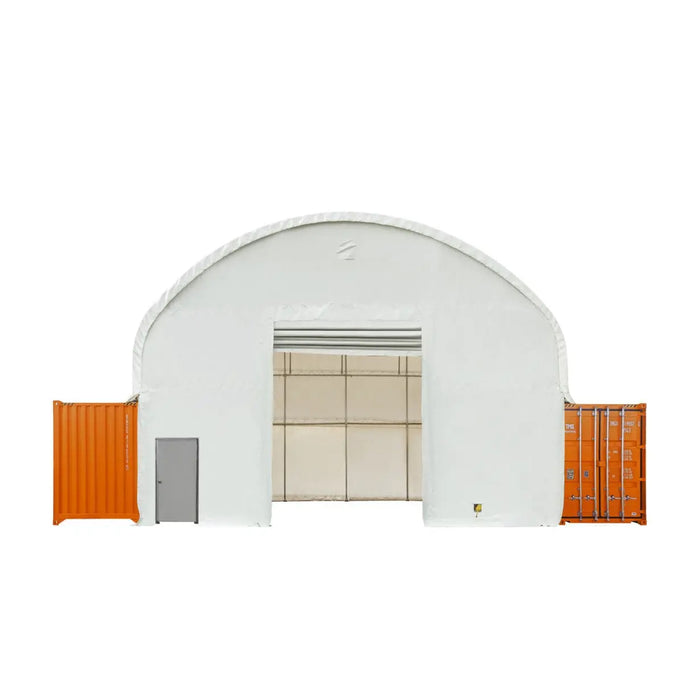

  • Wide open front wall winch roll up door allows for easy parking, machine operation and dynamic workflow to run throughout
  • Easy to assemble and dismantle for efficient set up/tear down if moving from one job to another; low cost storage solution all around
  • Steel man door offers convenient side entry, similar to the entrance of a house, that you can use instead of constantly opening the main door
  • PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability

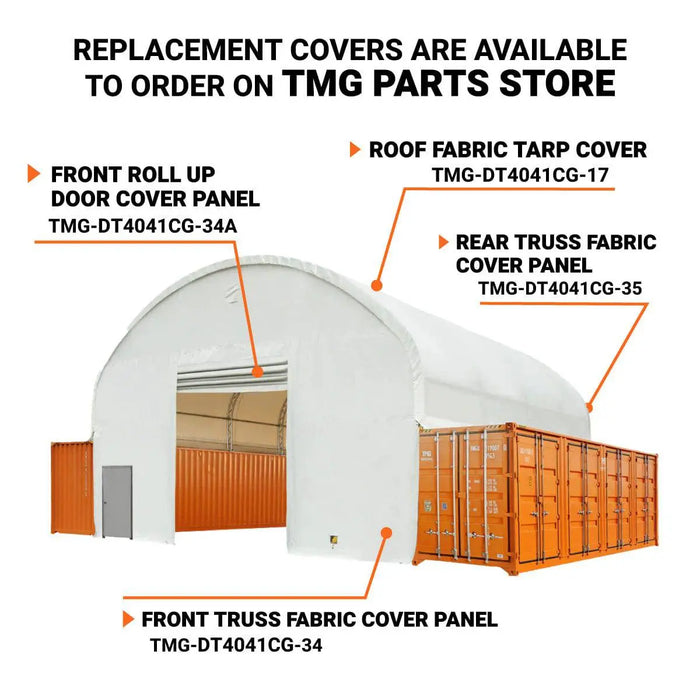

  • Replacement covers available for order here TMG PARTS STORE
  • Custom lengths available for 53’ containers or other dimensions upon request.
40' x 40' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Fully Enclosed front and back endwalls, TMG-DT4041CG

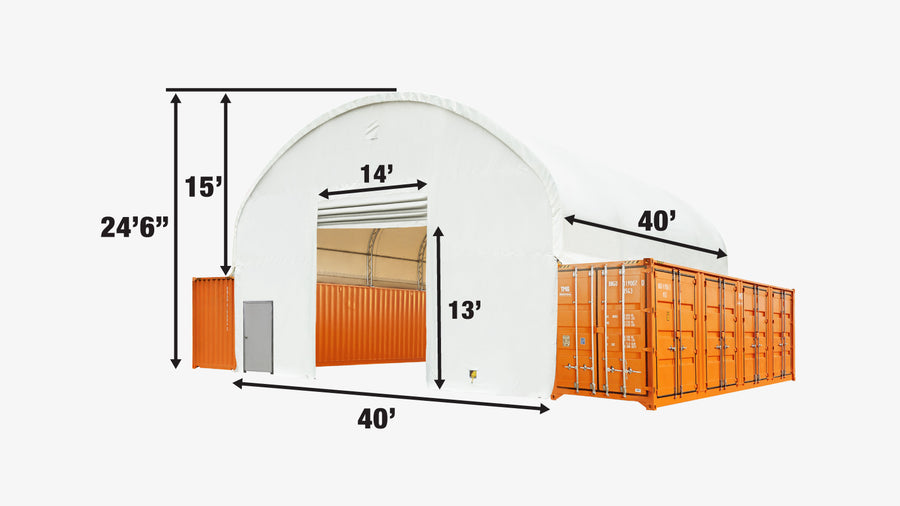

Specifications

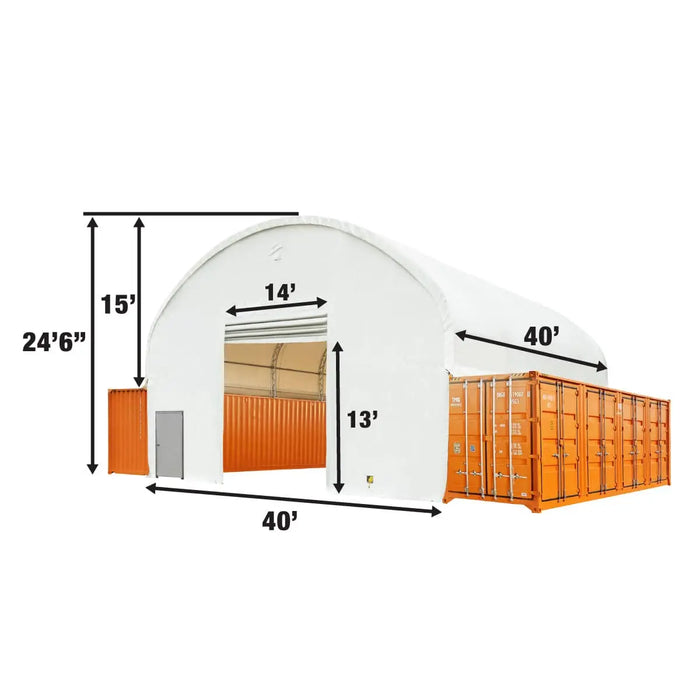

  • Exact floor footprint: 39’5” (W) x 39’5” (L)
  • Truss spacing: 10’
  • Truss tubes: 2-½” – 15 GA (approx.)
  • Purlin tubes: 2-½” – 15 GA (approx.)
  • Peak ceiling height from the container top: 15'
  • Peak ceiling height from the ground: 24' 6” (with 40’HC container height)
  • Sidewall rise above container top: 3’6” (approx.)
  • Front and back wall kit is designed for 40’HC (9'6") container:
  • Man door: 3’ x 6’6” (W x H)
  • Winch roll-up door with drive through clearance: 15'1" x 13'9" (W x H)
  • Cover material: 21 oz PVC fabric (white color)

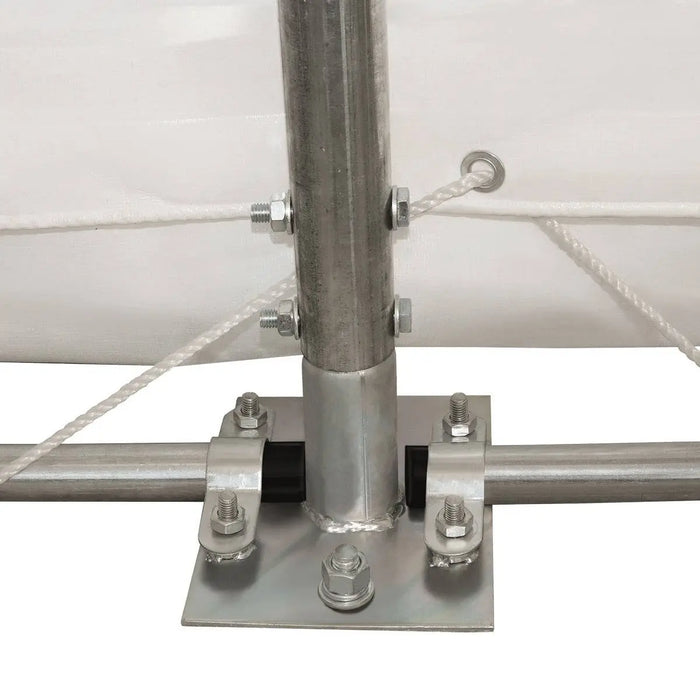

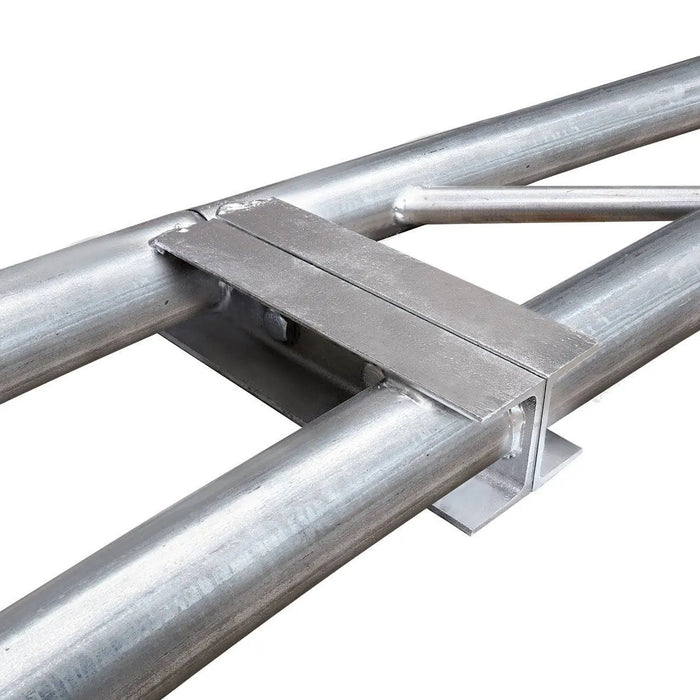

  • Welding required for all footplates
  • Containers not included

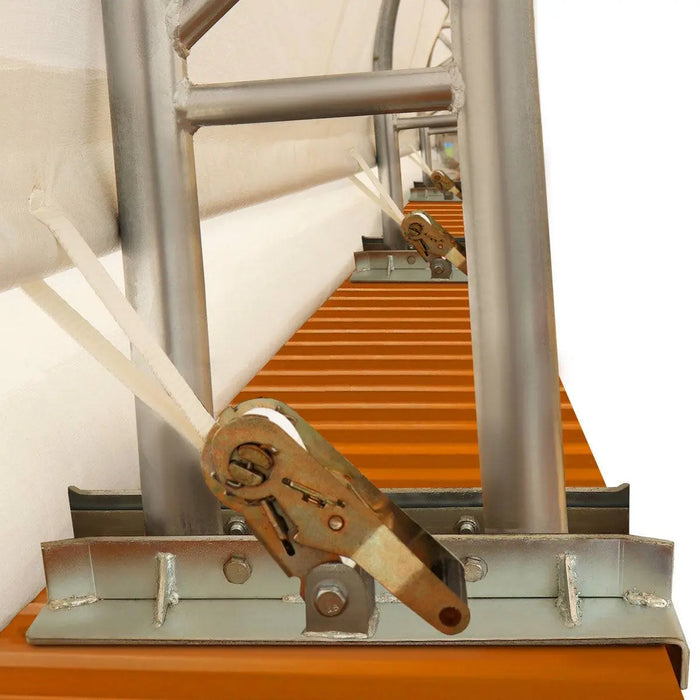

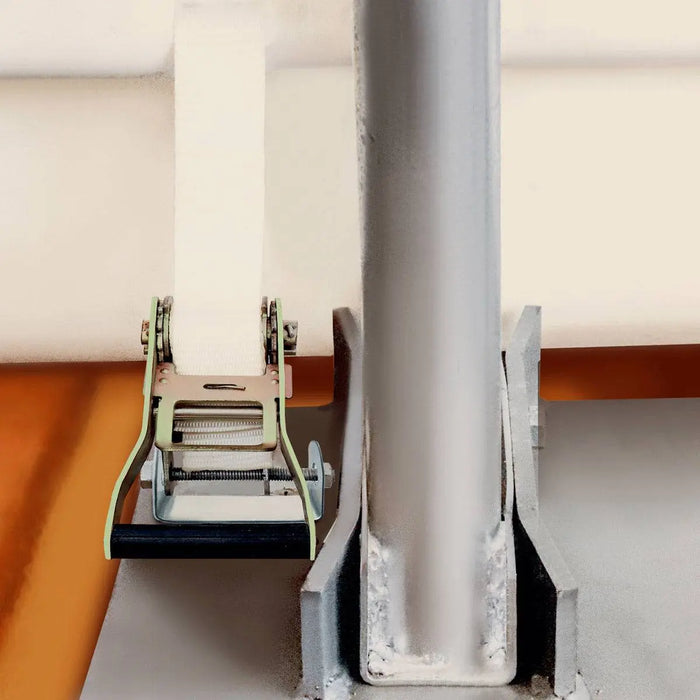

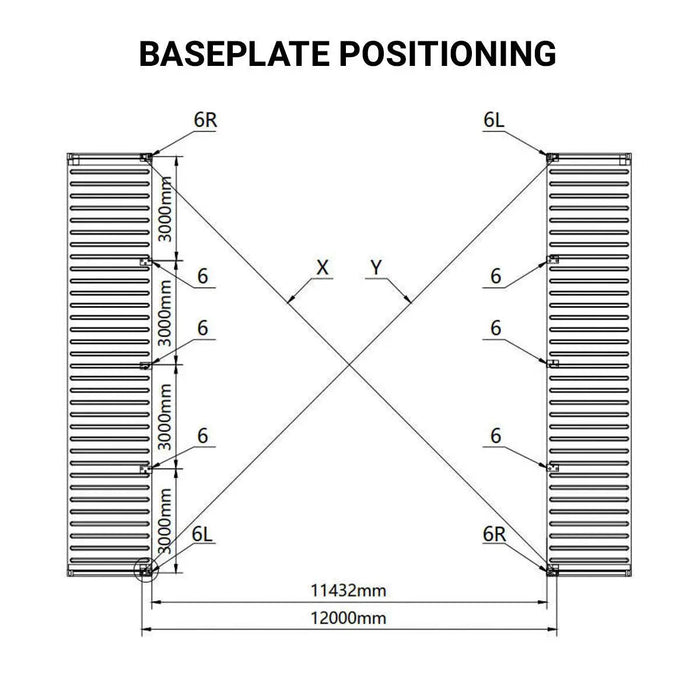

  • Baseplate Installation Positions (plan ahead for width):

  • Inner container edges to maximize interior clearance and usable square footage.
  • Outer container edges to allow snow runoff and prevent accumulation in high-load regions.
40' x 40' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Fully Enclosed front and back endwalls, TMG-DT4041CG

Product Description

The TMG-DT4041CG Dual Truss PVC Fabric Container Storage Shelter provides an easy to assemble, durable outdoor storage solution or workshop for your farm, construction site, equipment dealership and more. Approximately 1600 square feet of covered space to stockpile materials, work on projects, park vehicles and accommodate all other needs big or small. Able to install on any standard containers for versatile useability whether you’re working in remote, rural or industrial locations.

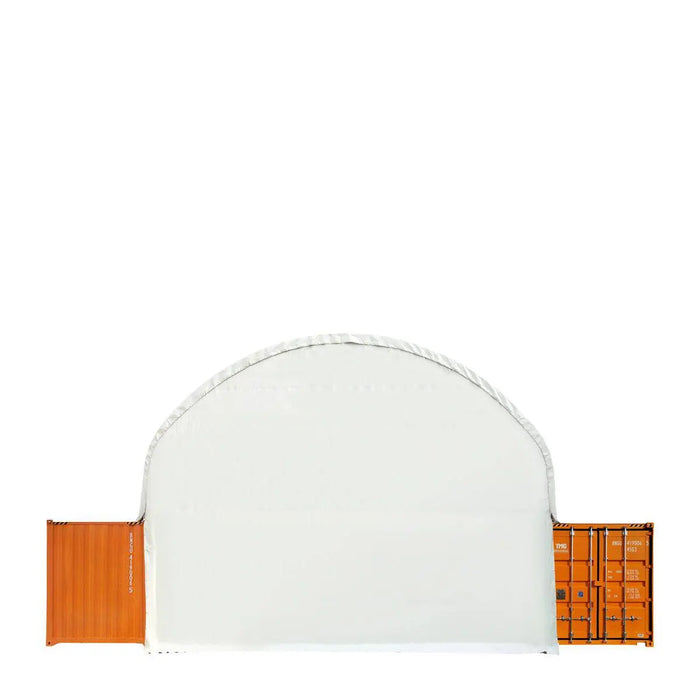

Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing and provide a long-lasting shelter covering for many years to come. This fabric is a natural flame retardant, commonly used in large commercial structures such as sports stadiums and event halls. Fully enclosed design provides year-round protection for your materials, machinery and any other weather sensitive cargo. Endwalls are designed for 40’ HC containers.

Double trusses also run throughout the whole interior which reinforces it for exceptional durability and stability. This structure is designed for installation on the outer or inner edges of your containers. For harsh weather areas or places with insufficient space, it’s recommended to use the outer edges of the container (so it is fully enclosed) to prevent snow buildup outside the structure.

TMG-DT4041CG = TMG-DT4041C + TMG-DT40FW9V(Front wall kit) + TMG-DT40BW9V(Back wall kit)

Additional Info

TMG Industrial is a proud supplier of storage sheds, shelters, garages, and other portable structures around North America. These units are all sold as DIY installations. Due to varying regulations required by individual municipalities, TMG Industrial is not able to provide engineered drawings or any snow and wind load certifications. It is up to the purchaser to determine any local requirements before purchasing.

Shipping Information

The order will ship from one of our warehouses in Canada. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

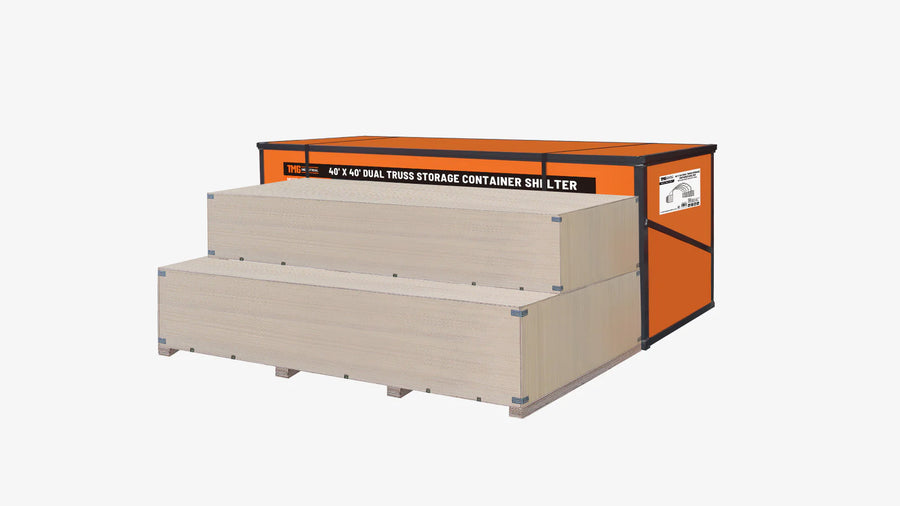

  • This product is packed in 3 shipping boxes
  • Box A (TMG-DT4041C): 122” x 45” x 45” (L x W x H), 2580 lb
  • Box B (TMG-DT40FW9V): 122” x 45” x 15.5” (L x W x H), 870 lb
  • Box C (TMG-DT40BW9V): 122” x 29.5” x 15” (L x W x H), 625 lb
  • Shipping weight: 4075 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
40' x 40' Dual Truss Container Shelter with Heavy Duty 21 oz PVC Cover, Fully Enclosed front and back endwalls, TMG-DT4041CG

Warranty

1. Steel Frame — 10-Year Limited Warranty

The steel frame of TMG Industrial Dual Truss shelters is covered by a 10-year limited warranty against defects in materials and manufacturing workmanship.

This warranty does not cover:

  • Normal wear and tear, rust, oxidation or corrosion.
  • Bending, deformation or damage caused by wind, snow, ice accumulation or other weather conditions.
  • Damage caused by improper assembly, inadequate foundations or anchoring, overloading, impacts, misuse, unauthorized modifications or insufficient maintenance.

2. PVC Fabric — 3-Year Limited Warranty

The PVC fabric supplied with TMG Industrial Dual Truss shelters is covered by a 3-year limited warranty against defects in materials and manufacturing workmanship.

This warranty does not cover:

  • Normal wear and tear, aging, fading, discoloration or UV deterioration.
  • Tears, punctures, abrasion or seam damage that do not result from a covered material or manufacturing defect.
  • Damage caused by wind, rain, snow, ice, hail, flooding or other weather conditions.
  • Damage caused by improper installation, incorrect fabric tension, contact with sharp objects, misuse, unauthorized modifications or insufficient maintenance.

3. Other Components — 1-Year Limited Warranty

All other components are covered by TMG Industrial’s standard 1-year limited warranty against defects in materials and manufacturing workmanship, subject to its applicable terms and exclusions.

4. Installation & Maintenance

Shelters must be assembled, anchored, used and maintained in accordance with the applicable TMG Industrial instructions. Damage resulting from failure to follow these instructions is not covered.

5. Additional Terms

These warranty periods do not guarantee product service life or protection against weather damage. Additional terms and conditions apply. Please refer to our full warranty policy.
