TMG-ACE65

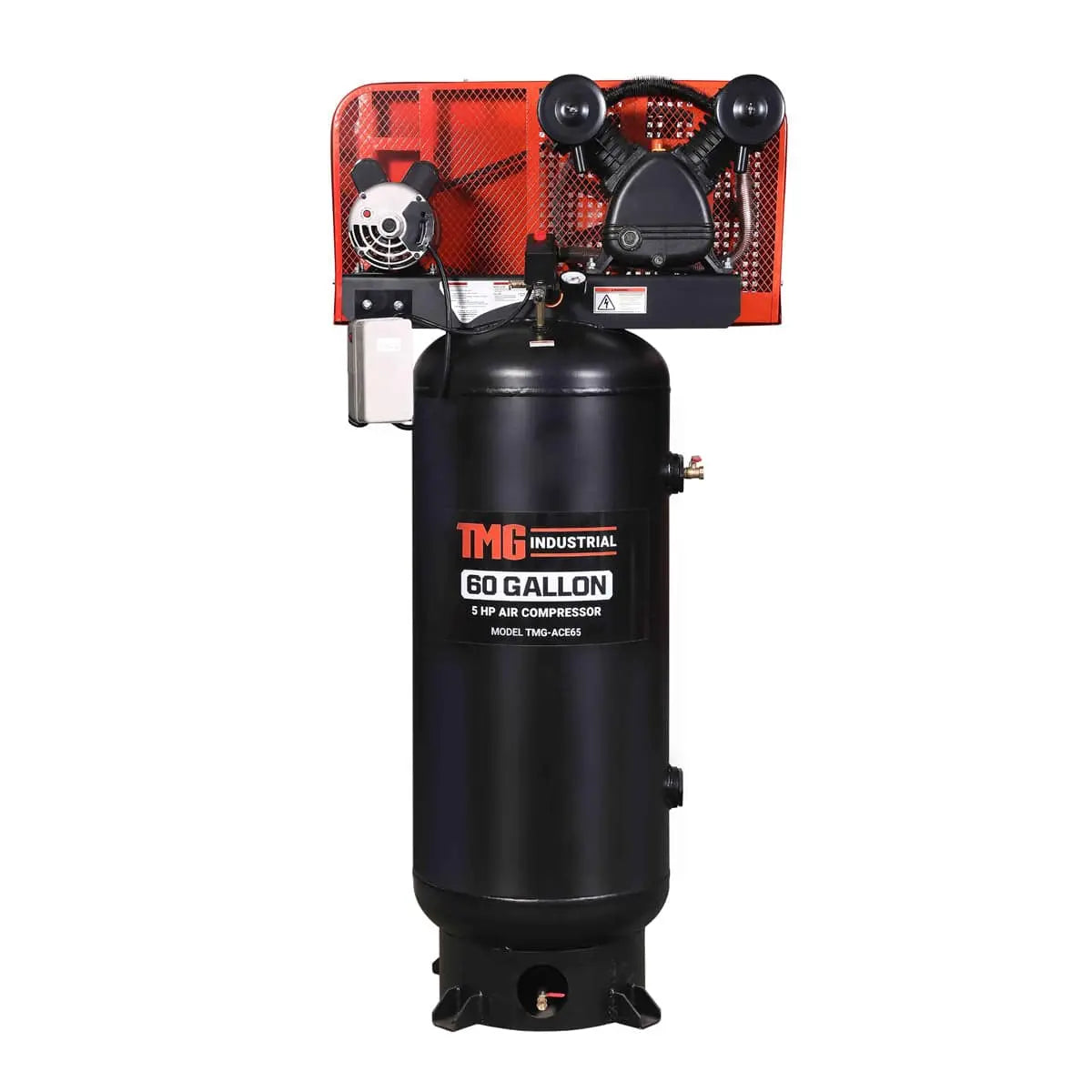

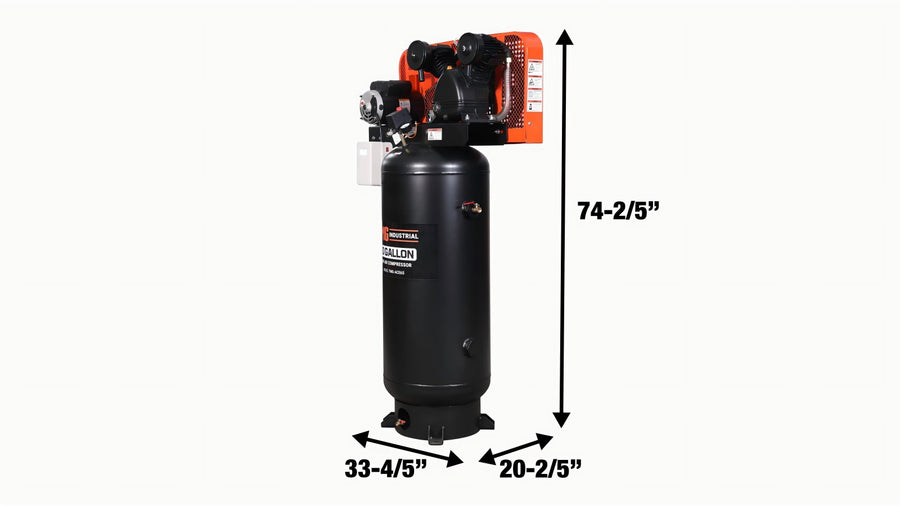

60 Gallon 5 HP Stationary Electric Air Compressor, 5 Min Fill Time, 230V Induction Motor, Single Stage, TMG-ACE65

TMG Industrial 60 Gallon 5 HP Stationary Electric Air Compressor, 5 Min Fill Time, 230V Induction Motor, Vertical Tank, TMG-ACE65
CURRENTLY IN STOCK
SKU TMG-ACE65
$1,999.00 CAD - $1,999.00 CAD
$1,999.00 CAD
$1,999.00 CAD - $1,999.00 CAD
$1,999.00 CAD
$1,999.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days Learn More
GRAB IT SOON - ONLY 5 LEFT IN STOCK
1-877-761-2819
Product Manual
Find Parts

Features

  • Excellent piece of equipment to power hoses and tools like sanders, sprayers, nail guns and more around an automotive garage, warehouse or machine shop
  • Equipped with a 60 gallon air tank that is filled by a single phase heavy-duty 230V induction motor that has a top operating speed of 3450 RPM
  • CSA-approved,5 HP, double cast iron, oil-lubricated motor that has a one-piece cast iron crankcase and full body cast iron cylinder body
  • 145 max. PSI air pressure for optimum tool performance
  • 1/4” and 1/2” NPT connectors for simultaneous multiple tool use and air output ports for manual draining to protect against rust and corrosion
  • Durable cast iron oil-lubricated pump has one-piece cast iron crankcase and full cast iron cylinder body
  • Finned tube intercooler for maximum cooling and increased valve life
60 Gallon 5 HP Stationary Electric Air Compressor, 5 Min Fill Time, 230V Induction Motor, Single Stage, TMG-ACE65

Specifications

  • Electric motor: AC230V/60hz, single phase, 5HP
  • Induction motor speed: 3450 RPM
  • Compression: single stage
  • Maximum working pressure: 145 PSI
    • 14.4 CFM at 40 PSI
    • 12.4 CFM at 90 PSI
  • Air tank size: 60 gal vertical tank
  • Tank fill time: <5 minutes
  • Noise level: 80 dB
  • (1) ¼” NPT quick connector
  • (1) ½” NPT valve
60 Gallon 5 HP Stationary Electric Air Compressor, 5 Min Fill Time, 230V Induction Motor, Single Stage, TMG-ACE65

Product Description

The TMG-ACE65 5 HP Stationary Electric Air Compressor is equipped with a 60 gallon air tank and operated by a CSA approved, double cast iron, oil-lubricated motor that houses a one-piece cast iron crankcase and full cast iron cylinder body. Excellent piece of equipment to power hoses and tools around an automotive shop, manufacturing warehouse or repair garage.

¼" and ½" quick connectors enable operators to use two tools at the same time, with an air outlet port for simple, rust-protective draining. This compressor is powered by a single phase heavy-duty 230V induction motor with a top operating speed of 3450 RPM so you never experience a drop in power.

Designed with a finned tube intercooler that offers maximum cooling action to prolong valve life, eliminate carbon buildup and contribute to better output and performance overall. Built to last in tough industrial settings long-term.

TMG Industrial also carries other air compressors: TMG-ACE10, TMG-ACE25, TMG-ACE60, TMG-ACE80, TMG-ACE85

Shipping Information

The order will ship from one of our main warehouse in North America. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

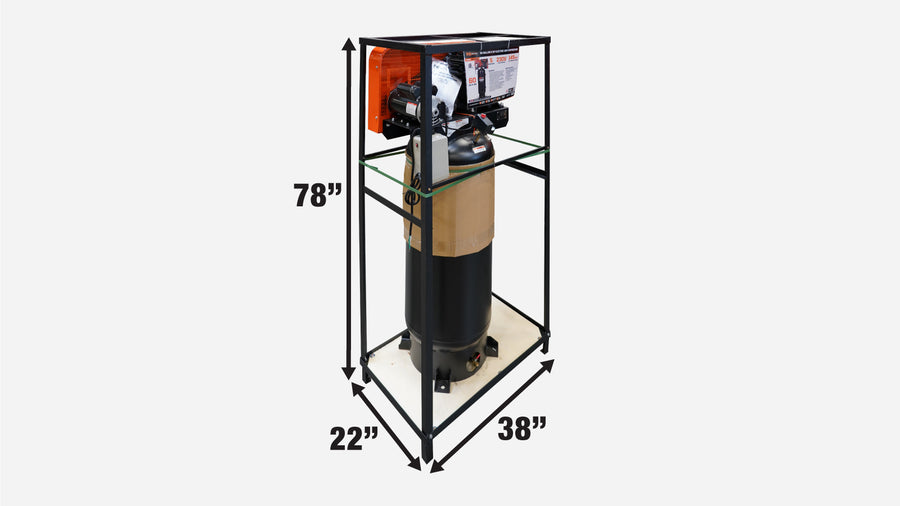

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 38” x 22” x 78” (L x W x H)
  • Shipping weight: 455 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
60 Gallon 5 HP Stationary Electric Air Compressor, 5 Min Fill Time, 230V Induction Motor, Single Stage, TMG-ACE65

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
