SKU TMG-MVE12

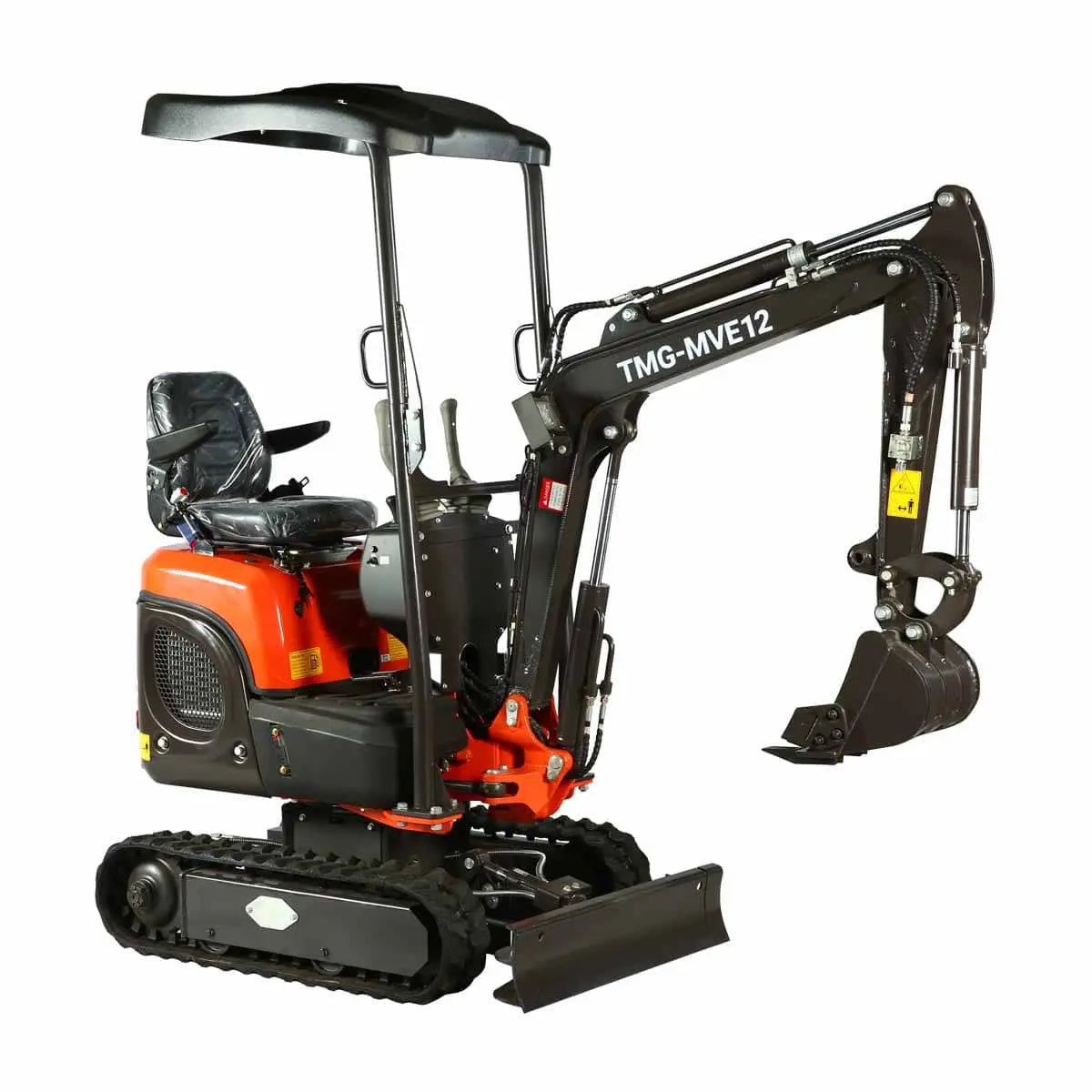

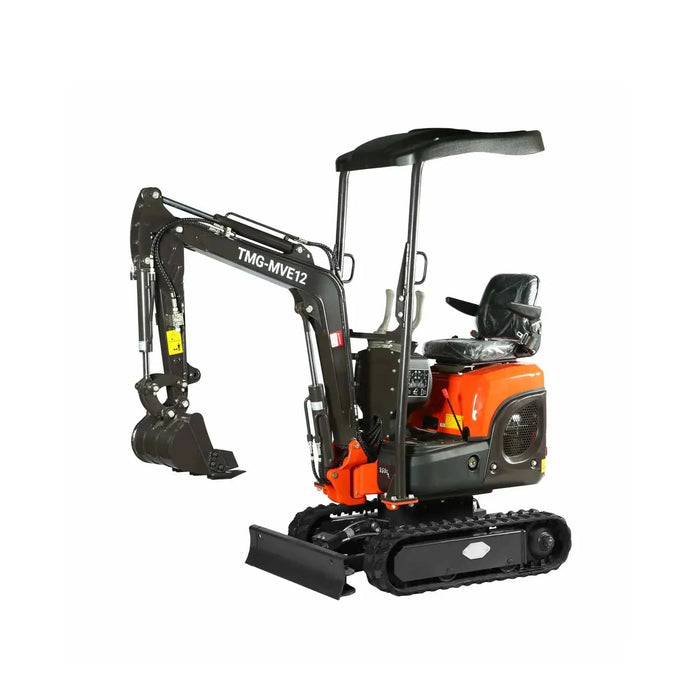

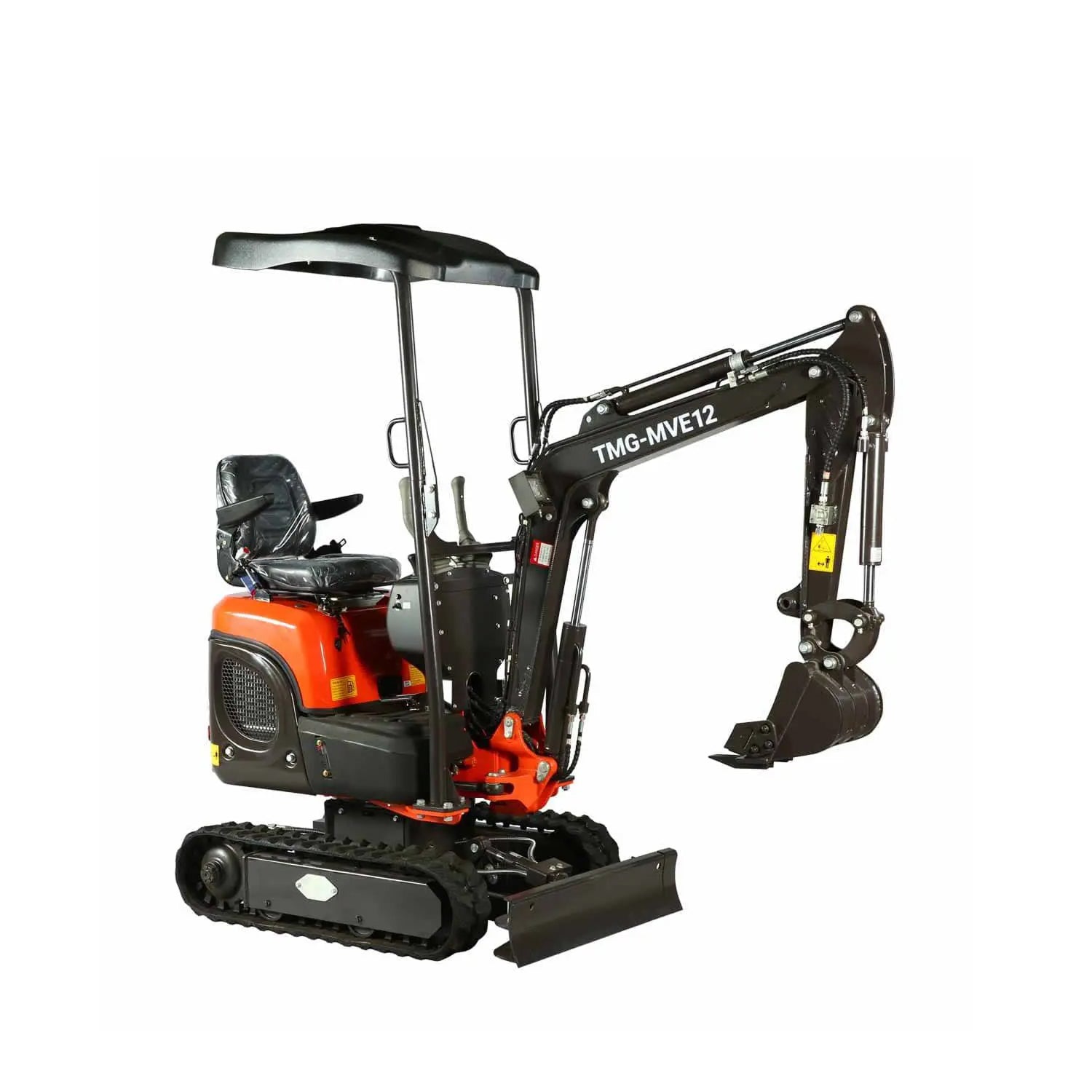

TMG Industrial 1200 KG Mini Compact Excavator, 14 HP Kubota Diesel, KDK Pump, Eaton Motor, Zero Tail Overhang, Adjustable Chassis Width, TMG-MVE12

Original price $0.00 CAD - Original price $0.00 CAD
Original price $0.00 CAD
$17,999.00 CAD
$17,999.00 CAD - $17,999.00 CAD
Current price $17,999.00 CAD
CURRENTLY OUT OF STOCK
FREE SHIPPING TO MOST LOCATIONS IN CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS

Other financial option:

2275.0 lb
85 x 37 x 86 inches
More Shipping Info
  • Powered by a reliable 14 HP Kubota D722-EF11 diesel engine
  • KDK hydraulic main pump & Eaton motor
  • Adjustable chassis width designed to accommodate drive-through paths: 31-½” to 37-½”
  • The boom can swing 50° to left and 55° to right while the cabin remains stationary
  • Max. digging depth of 62” & max. unloading height of 78”
  • Zero tail overhang design
Product Manual

Features

  • 14 HP Kubota 3-cycle water-cooled diesel engine, ensures a potent combination of reliable performance and fuel efficiency
  • KDK hydraulic main pump and Eaton motor work together to ensure smooth and precise operation, minimizing downtime and maximizing productivity
  • The operator area is thoughtfully designed for comfort and ease of operation, providing a spacious layout that reduces fatigue during long working hours
  • Standard auxiliary hydraulics open up a world of possibilities, empowering users to easily attach a variety of tools and attachments for different uses
  • Maximum travel speed of 1.5 km/h, maximum digging depth of 62”, and a maximum unloading height of 78” to accommodate a wide variety of tasks
  • Zero tail overhang: Eliminating tail swing concerns, regardless of your maneuvering, the tail consistently stays within the track width, freeing you from worries about obstacles or objects to the side or behind while you work.
TMG Industrial 1200 KG Mini Compact Excavator, 14 HP Kubota Diesel, KDK Pump, Eaton Motor, Zero Tail Overhang, Adjustable Chassis Width, TMG-MVE12-description-image

Specifications

  • Operating weight: 2260 lb
  • Standard bucket capacity: 0.7 cu-ft
  • Working device form: Backhoe
  • Max. travel speed: 1.5 km/h
  • Swing speed: 11 RPM
  • Max. gradeability: 30°
  • Track ground pressure: 32.8 kpa
  • Hydraulic oil tank capacity: 16 L
  • Fuel tank capacity: 11 L
  • Max. tractive force: 13.5 kN

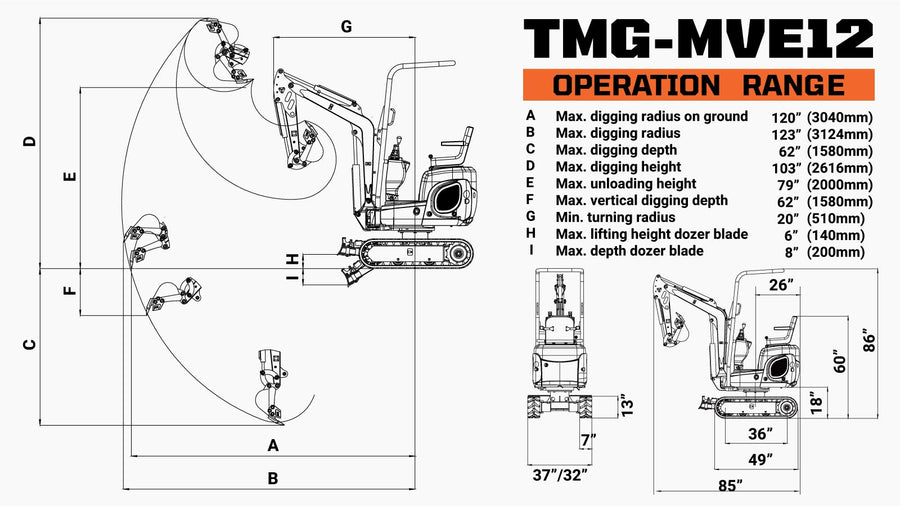

  • Operating Range

  • Max. digging depth: 62”
  • Overall operating height (fully raised): 103”
  • Max. digging radius: 123”
  • Max. unloading height: 78”
  • Max. vertical digging depth: 62”
  • Min. turning radius: 59”
  • Max. lifting height dozer blade: 5-½”
  • Max. depth dozer blade: 8”
  • Boom swing-left: 50°
  • Boom swing-right: 55°
  • Dipper boom digging force 6.1 kN
  • Bucket digging force 8.5 kN
  • Main Dimensions

  • Track length: 49”
  • Upper chassis ground clearance: 18”
  • Counterweight turning radius: 26”
  • Chassis width: 31-½”/37-½”
  • Track width: 7”
  • Track height: 13”
  • Transportation length: 85”
  • Height of seat to ground: 60”
  • Overall height: 87”
  • Engine

  • Powerful 14 HP Kubota vertical 3-cycle water-cooled diesel engine
  • Displacement: 0.719 L
  • Start type: Electric start w/battery included (12V/20A)
  • Rated power: 14 HP/2500 RPM
  • Max. torque: 42.9N.m
  • Engine oil capacity: 15.3 L
TMG Industrial 1200 KG Mini Compact Excavator, 14 HP Kubota Diesel, KDK Pump, Eaton Motor, Zero Tail Overhang, Adjustable Chassis Width, TMG-MVE12-specifications-image

Shipping Information

The order will ship from one of our warehouses in Canada or the United States Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

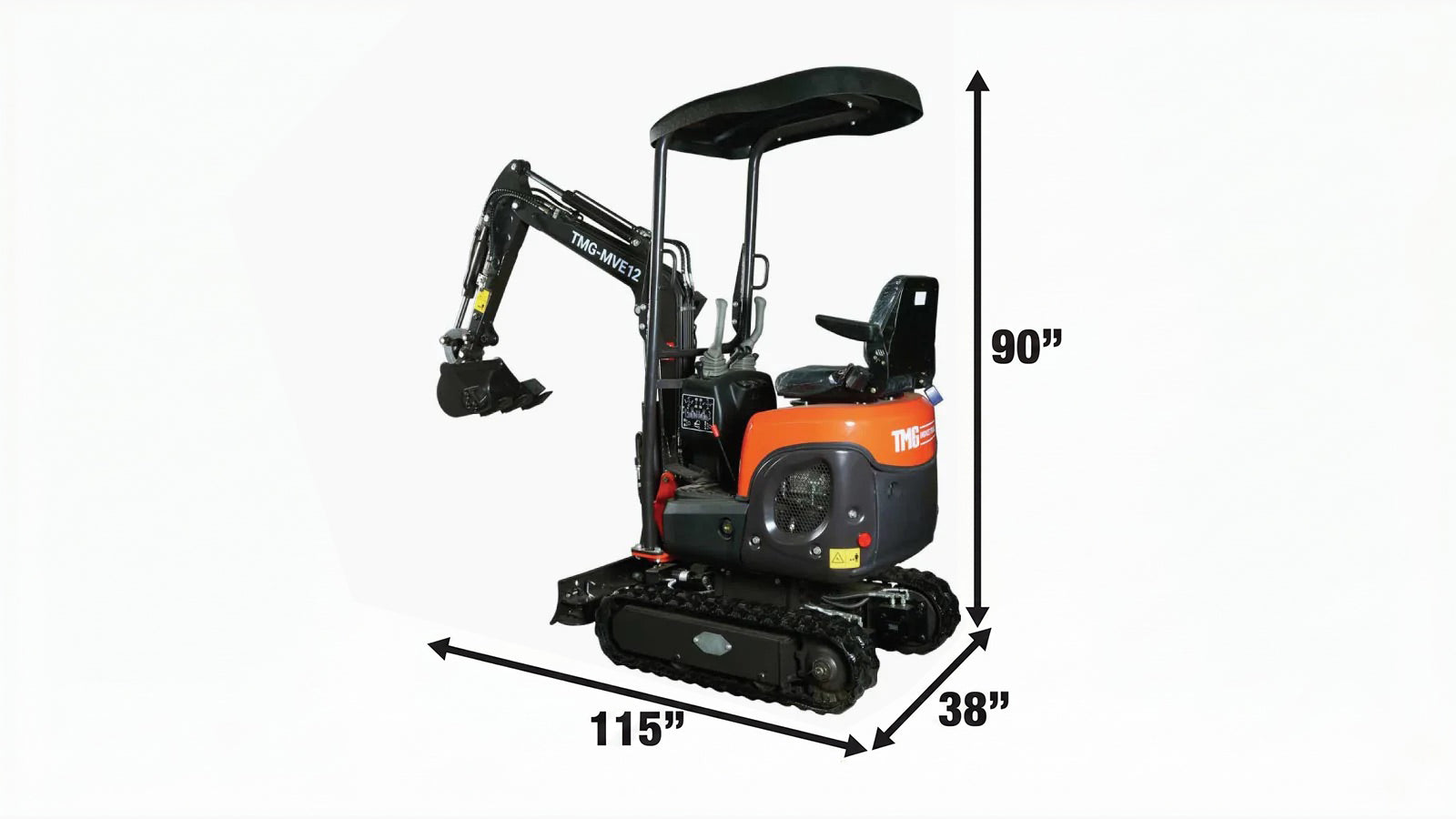

  • Shipping dimension: 85” x 37” x 86” (L x W x H)
  • Shipping weight: 2275 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
TMG Industrial 1200 KG Mini Compact Excavator, 14 HP Kubota Diesel, KDK Pump, Eaton Motor, Zero Tail Overhang, Adjustable Chassis Width, TMG-MVE12-shipping-info-image

Product Description

The TMG-MVE12 Mini Compact Excavator is a robust and reliable powerhouse machine designed for efficient excavation in tight spaces. Equipped with an industry-proven 14 HP vertical 3-cycle water-cooled Kubota diesel engine, this mini excavator offers optimal performance while meeting EPA standards. The KDK hydraulic main pump and Eaton motor contribute to its smooth operation and precise control.

With zero tail swing capability, the TMG-MVE12 offers unparalleled flexibility in navigating job sites while providing maximum protection against obstacles. The spacious operator area is thoughtfully laid out for comfort and ease of operation, ensuring productivity throughout the workday. Standard auxiliary hydraulics empower the use of various attachments, enhancing the machine's versatility.

This mini excavator has a max travel speed of 1.5 km/h, a digging depth of 62”, and a maximum unloading height of 78”, making it ideal for a wide range of excavation tasks and work environments. With a compact design and dimensions tailored for maneuverability, this excavator is the go-to solution for precision projects on your farm or commercial job site.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
