TMG-MT32DM

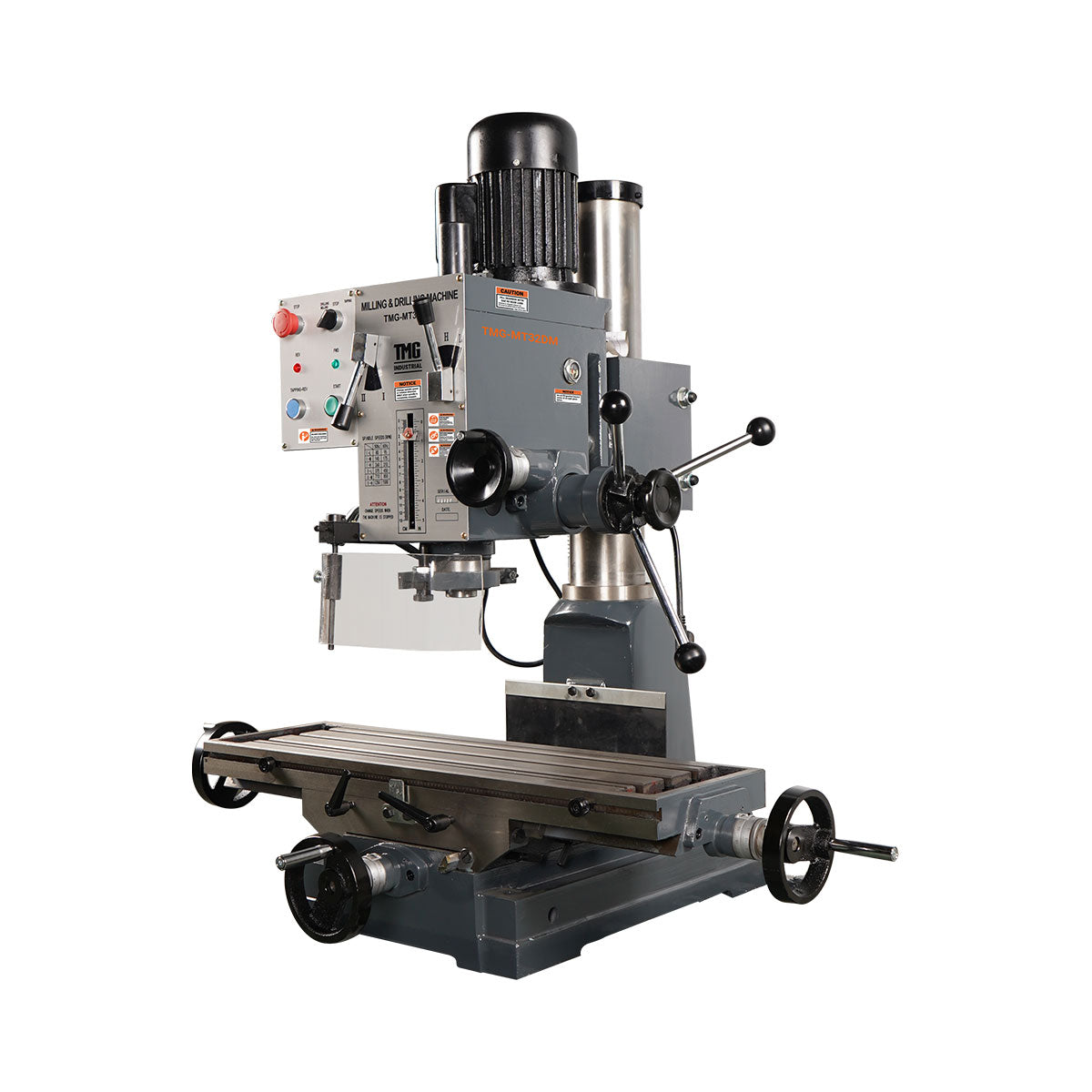

9"× 32" Drilling & Milling Machine, 110V, 0.75 kW Motor, Gear-Driven, Horizontal Swivel Head, TMG-MT32DM

Click to expand Tap to zoom

CURRENTLY IN STOCK

SKU TMG-MT32DM

Original price $3,499.00 CAD

Original price $3,499.00 CAD - Original price $3,499.00 CAD

Original price $3,499.00 CAD

Current price $3,099.00 CAD

$3,099.00 CAD - $3,099.00 CAD

Current price $3,099.00 CAD

| /

$3,499.00 CAD Save $400.00 CAD

$3,099.00 CAD

Total: $3,099.00 CAD $3,099.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days Learn More

1 2 3 4 5 6 7 8 9 10+ Quantity

Quantity

Add to Cart

1-877-761-2819

cs@tmgindustrial.ca

Product Manual

Find Parts

9"× 32" Drilling & Milling Machine, 110V, 0.75 kW Motor, Gear-Driven, Horizontal Swivel Head, TMG-MT32DM

(Accessories Incl.)

1 2 3 4 5 6 7 8 9 10+ Quantity

Quantity

Add to Cart

Features Specs Description Shipping Info Warranty Reviews

Features

• Precision-Ground Table: The precision-ground, one-piece cast iron table offers high rigidity and accuracy. Wide working surface with three 3/8" T-slots for fast fixture setup.
• Spindle Rotation Control: Dual control for spindle rotation allows switching direction by foot pedal or hand, perfect for efficient tapping operations that require quick direction changes.
• Micro Feed Knob: Micro feed knob for fine-tuning movements and a spindle travel scale for real-time progress, ensuring accuracy and convenience during every drilling pass.
• Powerful Motor: Powered by a 1 HP (0.75 kW) motor, providing quiet, vibration-free operation with a spindle speed range of 95–1500 RPM (@60Hz) across six steps.
• Depth Stop: Adjustable depth stop for consistent hole depth. X-axis limiters prevent overtravel during milling, and feed locks stabilize the cutting axis for better finish.
• Head Rotation: The head swivels 360° horizontally and 90° vertically, allowing beveling, angle drilling, or chamfering without repositioning the entire workpiece.
• Handwheel Markings: Graduated handwheels utilize precise scale markings for accurate adjustments essential for fine milling and depth control on X, Y, and Z axes.
• Dovetail Ways: Precision-ground dovetail ways are built with hand-scraped surfaces and adjustable tapered gibs, ensuring surface contact and wear resistance.
• Cutting Capacities: Supports 1-1/4" drilling, 2-1/2" face milling, and 3/4" end milling, making this compact machine highly capable for professional metalworking tasks.

See less ⌃

Specifications

• Motor power: 1 HP (0.75 kW)
• Voltage / Frequency / Phase: 110V / 60 Hz / Single phase
• Drilling capacity: 1-1/4" (32 mm)
• Face milling capacity: 2-1/2" (63 mm)
• End milling capacity: 3/4" (20 mm)
• Spindle taper: M.T.3
• Spindle speed steps: 6
• Spindle speed range @60Hz: 95–1500 RPM
• Spindle travel: 5.12" (130 mm)
• Table size (L x W): 31.5" x 9.5" (800 x 240 mm)
• Table travel (left/right): 20" (500 mm)
• Table travel (forward/backward): 6.89" (175 mm)
• Min. distance spindle axis to column: 10.73" (272.5 mm)
• Distance spindle nose to table: 17.32" (440 mm)
• Head swivel (horizontal/vertical): 360° / ±90°
• Net weight: 705 lb (320 kg)

Included Accessories:

• Tie rod
• Allen wrenches
• Wedge tool (for taper removal)
• Drill chuck and arbor
• Drill chuck protection cover

Optional Accessories (sold separately):

• Change sleeve
• Boring bar
• Milling cutter holder
• Mill chuck
• Power feed attachment
• Parallel vise 90 mm
• Working lamp
• Cooling system
• Machine stand & chip tray
• 58-piece clamping kit
• 2-axis or 3-axis DRO (Digital Readout)

See less ⌃

Product Description

The TMG-MT32DM Drilling & Milling Machine is a robust, gear-driven workhorse built for shops that demand precision, versatility, and long-lasting reliability. This 5-in-1 machine supports milling, drilling, tapping, boring, and reaming—all within a single compact footprint, making it a smart choice for professionals, educators, and light industrial operators.

Its gear-driven transmission delivers steady torque and cutting consistency across all six spindle speed settings, ranging from 95 to 1500 RPM. The 360° horizontal swivel head offers machining flexibility at virtually any angle, while the micro feed control allows you to make accurate, incremental adjustments when precision is critical.

Designed with a rigid round column and adjustable gibs, the TMG-MT32DM maintains positional accuracy and stability under load, ensuring clean, repeatable results. Whether you're crafting intricate parts or tackling day-to-day metalworking jobs, this machine brings both power and finesse to your shop floor.

See less ⌃

Shipping Information

The order will be shipped from one of our main warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you, based on where you are located and how accessible the location is.

• This product is packed in a wood crate shipping box
• Shipping dimension: 32" x 35" x 46" (L x W x H)
• Shipping weight: 775 lb

Shipping from Richmond, BC, or Mississauga, ON
