TMG Industrial 40' x 60' Dual Truss Storage Shelter with Heavy Duty 21 oz PVC Cover & Drive Through Doors, TMG-DT4061

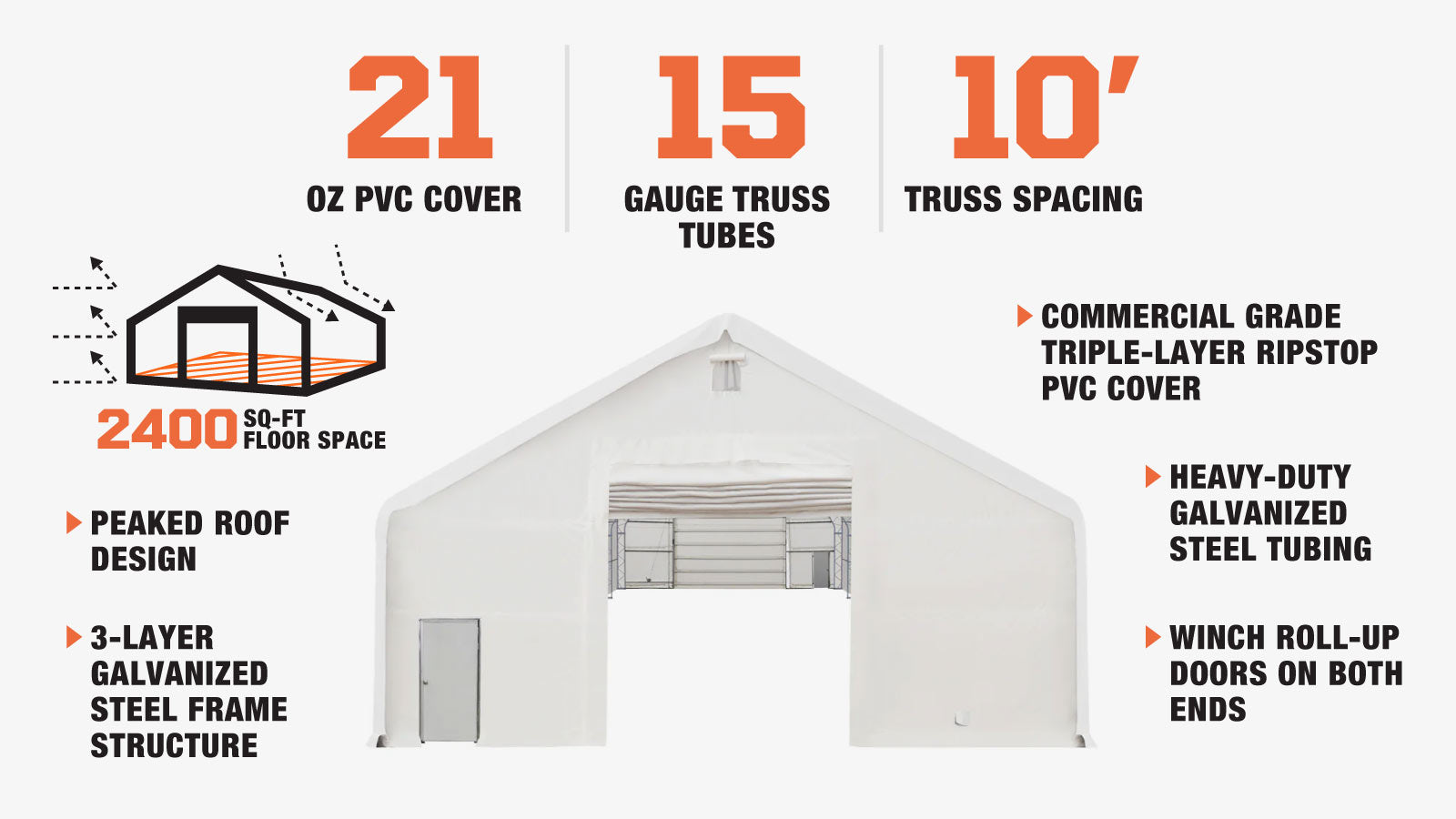

- Approx. 2400 sq-ft of covered storage or work space
- Double truss frame with solid bolted connections for superior strength
- Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover
- Heavy-duty galvanized steel tubing for rigidity and corrosion resistance
- Approx. 15’ wide front & 20’ wide rear mechanic roll up doors
- Double truss frame and solid bolted, U-shaped channel connection on all trusses to increase support strength and rigidity
- Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
- Use as a sawing shed, maintenance shop or for large equipment, materials and vehicle storage; adaptable to any kind of covered outdoor needs
- Easy to assemble and install while costing far less than a comparable commercial size building; 2400 sq-ft of covered storage space
- Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
- Stands strong against tearing, leaking, and chemical corrosion
- Natural flame retardant, resistant to chemicals and oil
- UV protected and waterproof
- Fabric color: White
- Double trusses run throughout the interior and reinforce the entire structure for long lasting maximum strength and stability
- Approx. 15’ wide front and 20’ wide rear mechanic roll up doors allow for easy parking and dynamic workflow to run throughout
- Peaked roof design prevents snow build up and allows moisture to be guided off the sides, protecting you and your equipment from the elements
- Side entry roll up door offers convenient side entry, similar to the entrance of a house, that you can use instead of constantly opening the main door
- PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability
- Replacement covers available for order here TMG PARTS STORE
- Custom lengths available for 53’ containers or other dimensions upon request.

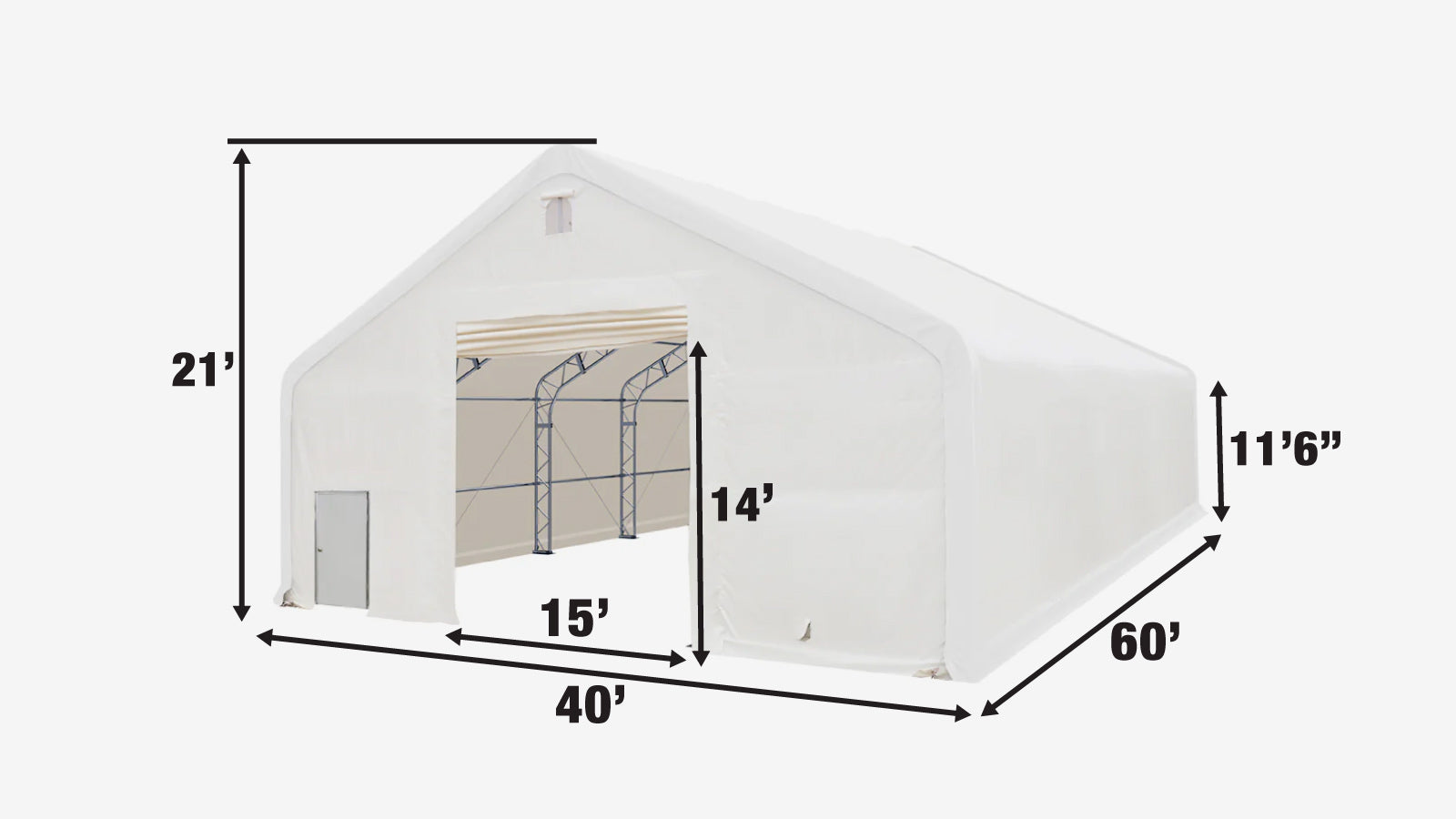

- Foundation size required: 18000mm(59') (W) x 12280mm (40.3') (L)
- Truss spacing: 10’
- Peak ceiling height: 21'
- Side-wall height: 11’6”
- Truss tubes: 2-½” – 15 GA (approx.)
- Purlin tubes: 2-½” – 15 GA (approx.)
- Entry roll up door: 3’ x 6’ 6” (W x H)
- Mechanic roll up doors on both ends with drive through clearance:
- Front door: 15’ (W) x 14’ (H)
- Rear door: 19’8” (W) x 12'6” (H)
- Cover material: 21 oz PVC fabric (white color)
- Air vents on both ends
- Footplates with pre-drilled holes (anchor bolts not included)
- Foundation required: Concrete slabs or equivalent
The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

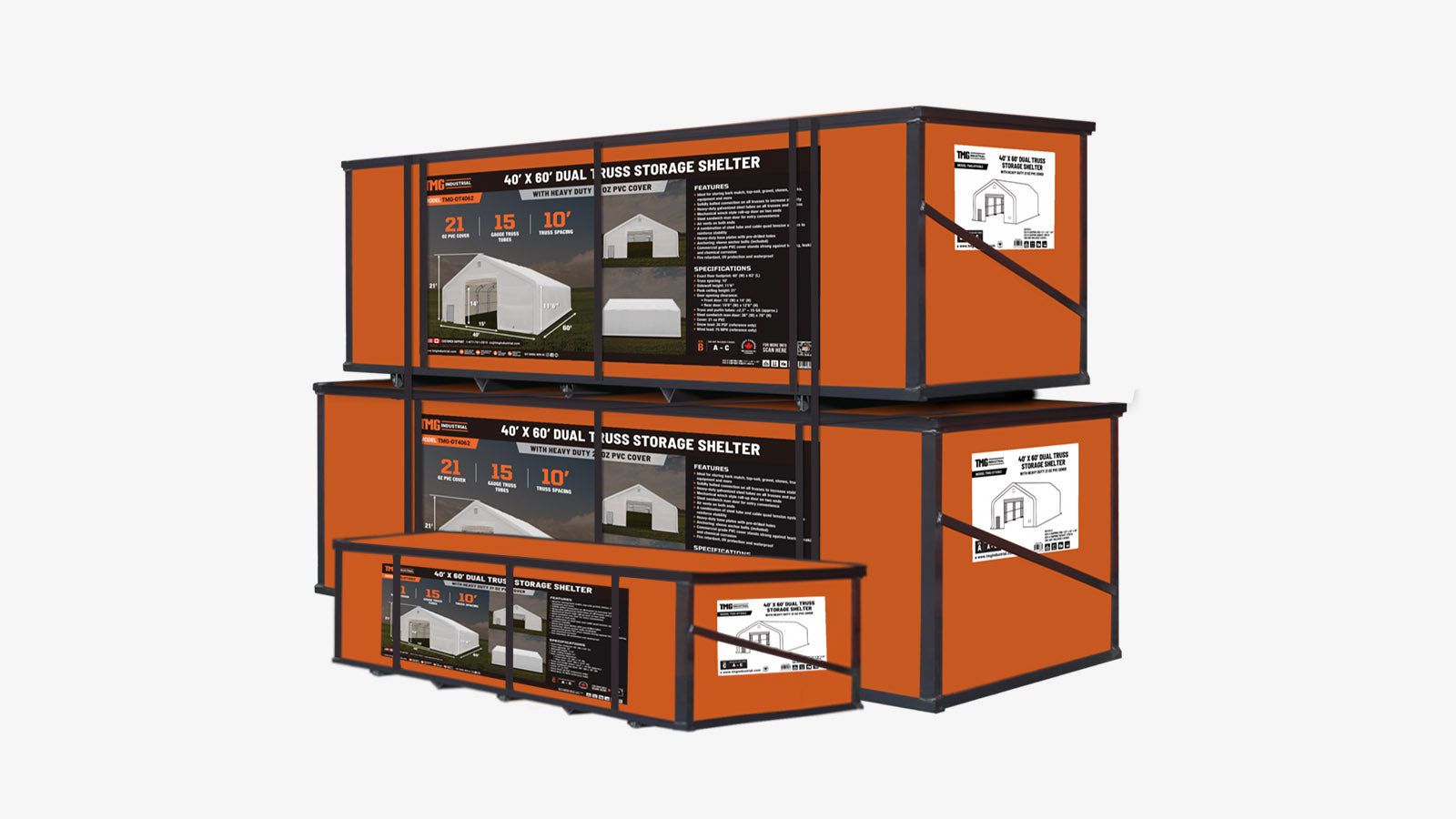

- This product is packed in two metal crate shipping boxes
- Box A shipping dimension: 122” x 45” x 51”
- Box B shipping dimension: 111” x 45” x 51”
- Shipping weight: 5950 lb
This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
The TMG-DT4061 PVC Fabric Peak Ceiling Storage Shelter provides an easy to assemble, durable outdoor storage solution or workshop for your farm, construction site, equipment dealership and more. Approximately 2400 square feet of covered space to stockpile materials, work on projects, park vehicles and accommodate all other needs big or small. Able to install on any concrete pad or equivalent for versatile useability whether you’re working in remote, rural or industrial locations.
Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing and provide a long lasting shelter covering for many years to come. This fabric is a natural flame retardant, commonly used in large commercial structures such as sports stadiums and event halls. The first 12 ft of each side is a straight wall which amplifies storage space along the edges. Double trusses also run throughout the whole interior of the structure which reinforces it for exceptional durability and stability.
Roughly 15’ wide front and 20’ wide rear mechanic roll up doors provide a huge opening to allow workflow coming in and out. The side entry door provides a convenient, houselike entry that is more secure than standard fabric cut out openings. Our PVC fabric comes in a vibrant white colour that reflects UV rays but allows light to permeate through. This natural illuminating quality will help you save on utility costs and provide all day use even when it’s cloudy.
We also carry a larger model of this storage shelter: TMG-DT4080
