TMG-DT2064-PRO

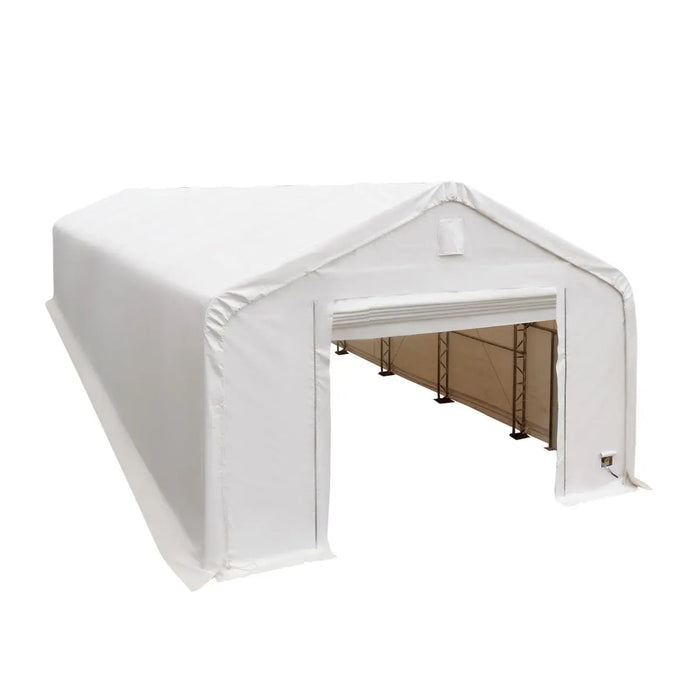

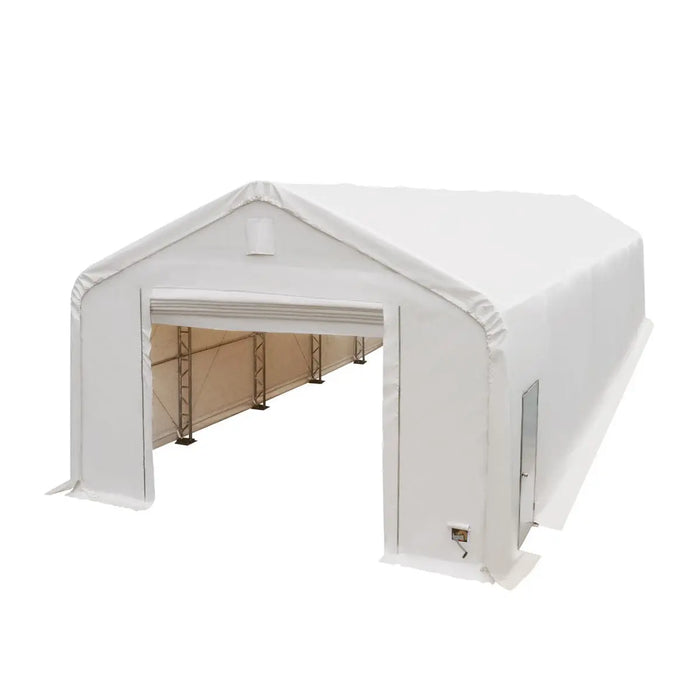

TMG Heavy Series™ 20' x 63' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors, TMG-DT2064-PRO

CURRENTLY IN STOCK

SKU TMG-DT2064-PRO

MSRP: $11,199.00 CAD

$11,199.00 CAD - $11,199.00 CAD

$11,199.00 CAD

$10,499.00 CAD

$10,499.00 CAD - $10,499.00 CAD

$10,499.00 CAD

$11,199.00 CAD Save $700.00 CAD

$10,499.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days

Learn More

Quantity

1-877-761-2819

cs@tmgindustrial.ca

Product Manual

Find Parts

TMG Heavy Series™ 20' x 63' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors, TMG-DT2064-PRO

Quantity

Ideal for storing bark mulch, top-soil, gravel, stones, trucks, equipment, and more

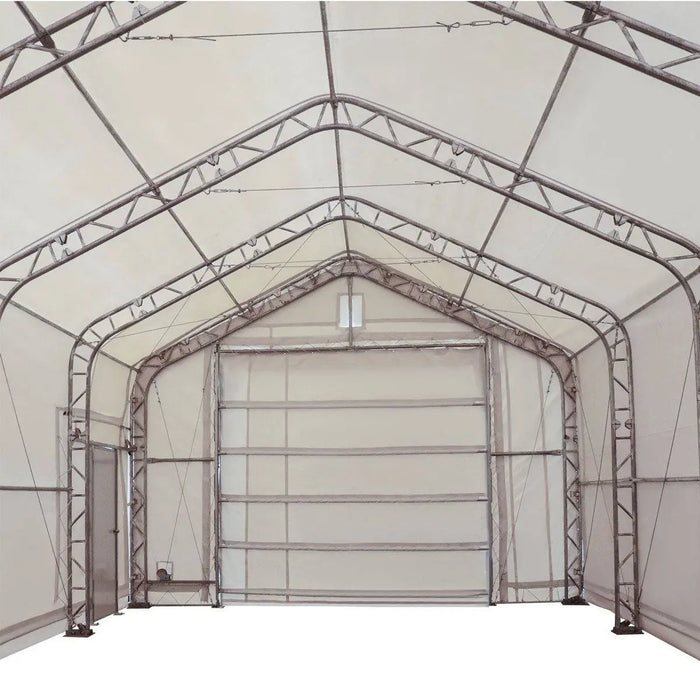

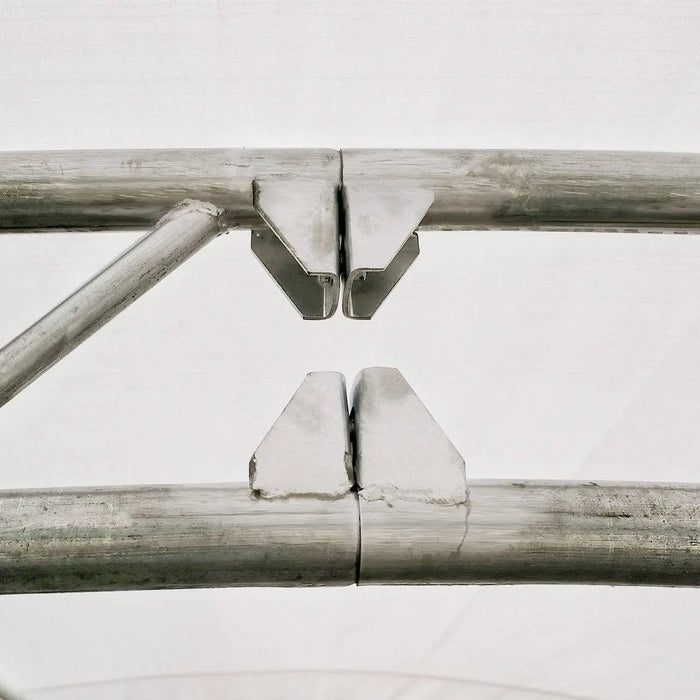

Solid bolted connection on all trusses for stability
Heavy-duty galvanized steel tubes on all trusses and purlins

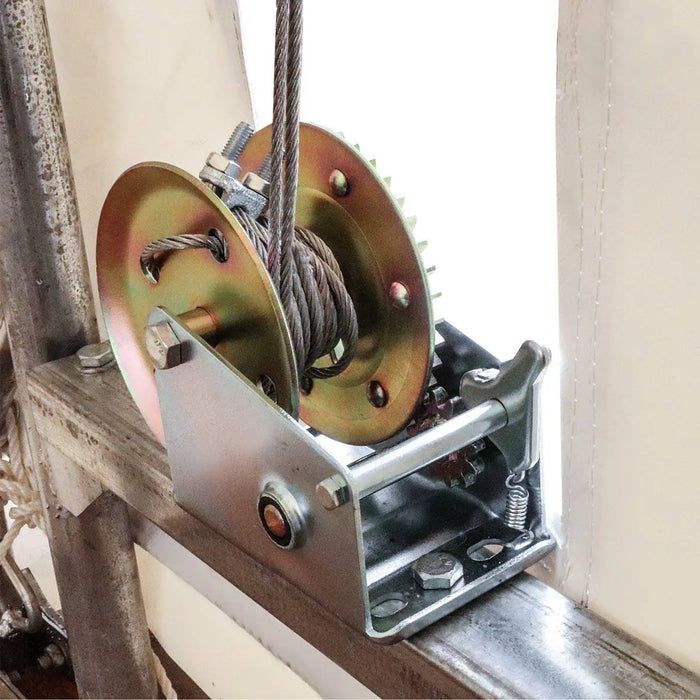

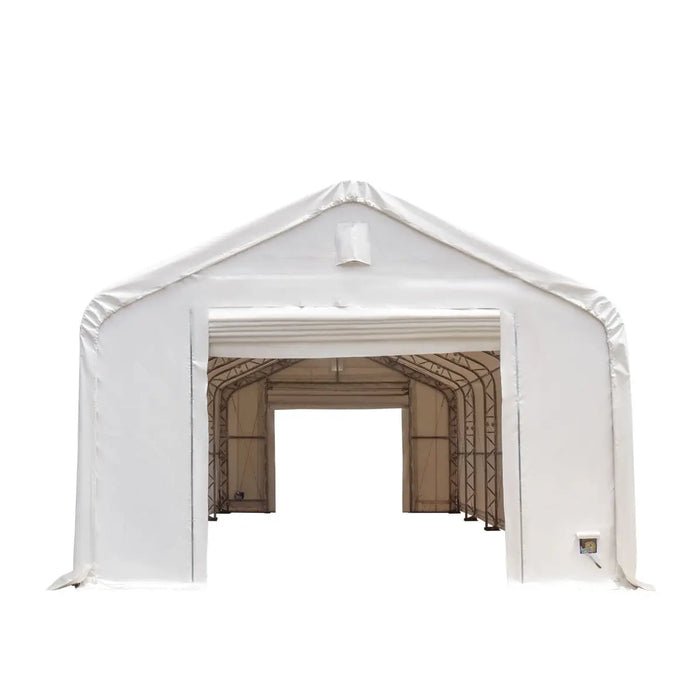

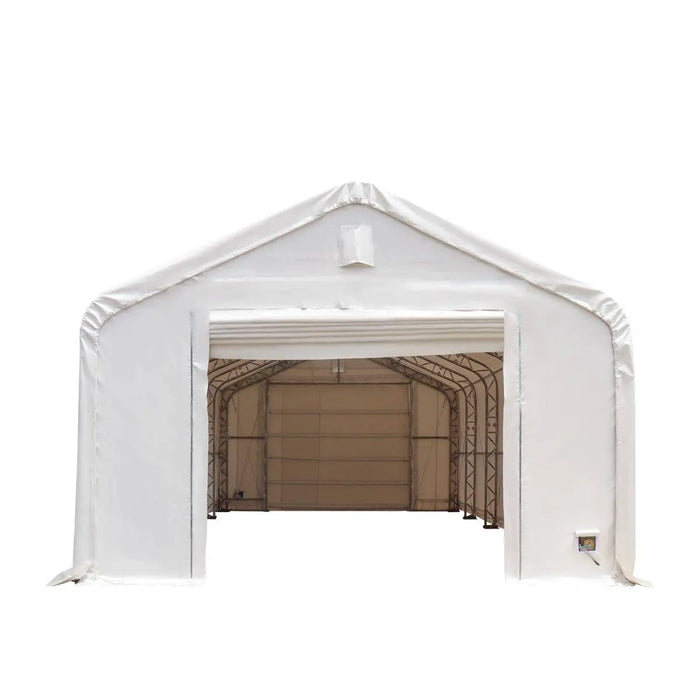

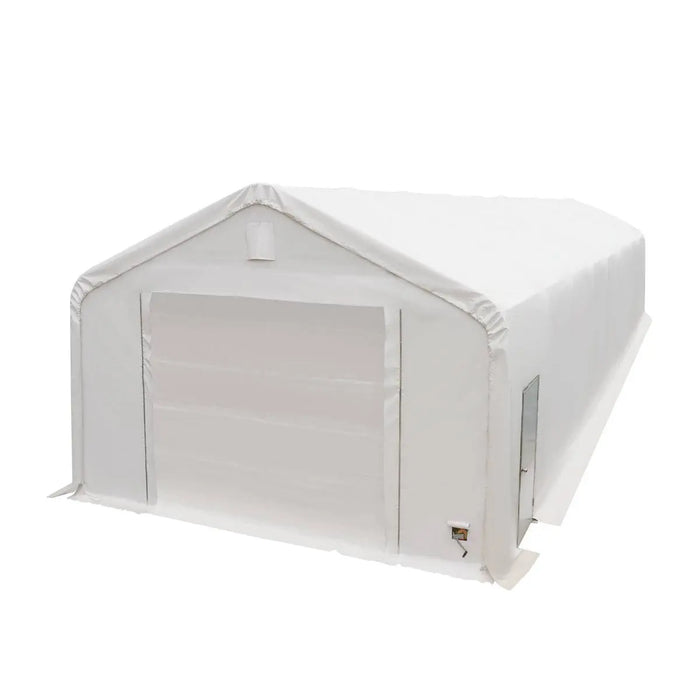

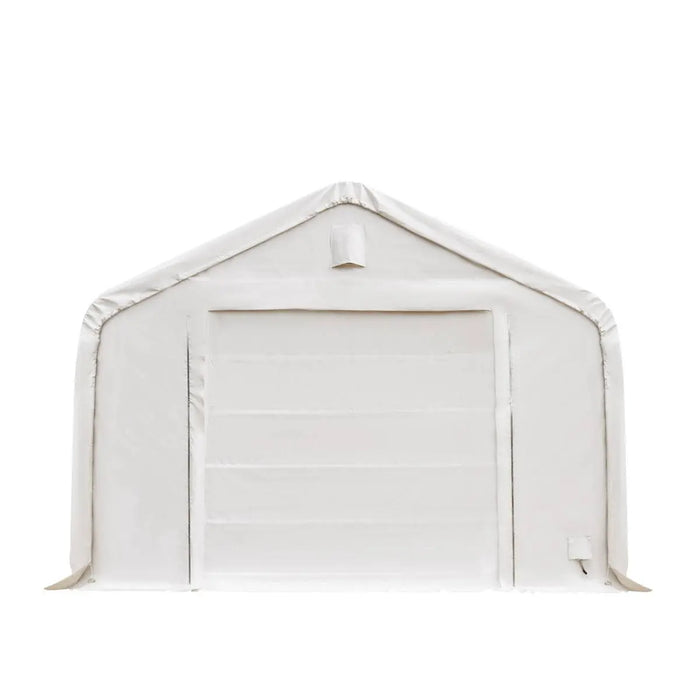

Mechanic roll up door on both ends
Steel sandwich side man door for entry convenience
Air vents on both ends

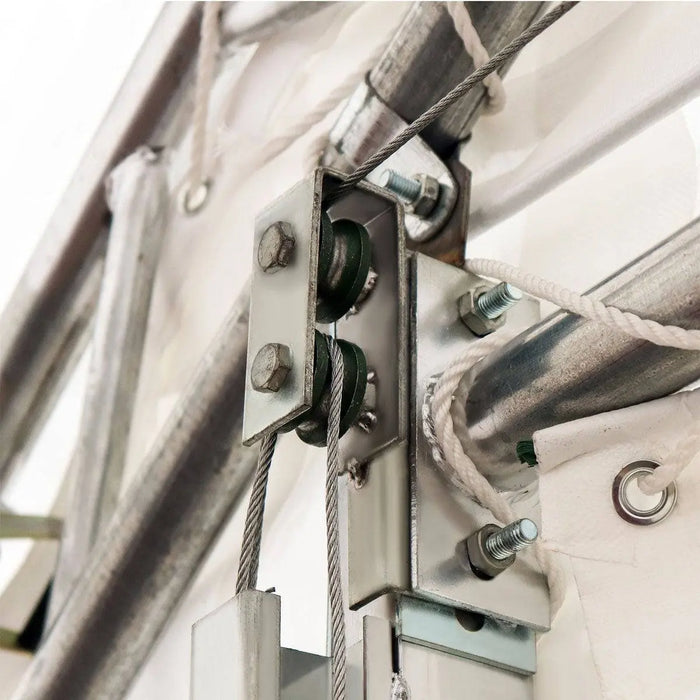

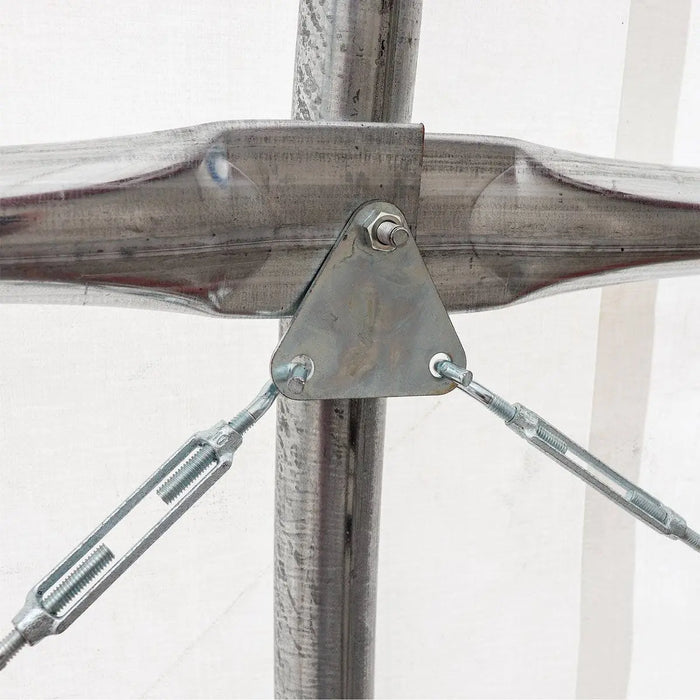

A combination of steel tube and cable quad tension system to reinforce stability

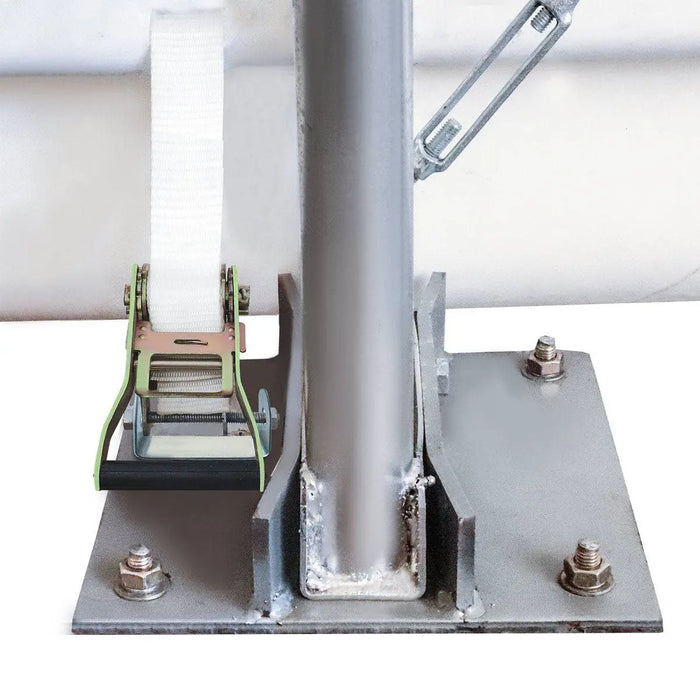

Heavy-duty base plates with pre-drilled holes
Anchoring: sleeve anchor bolts (included)
Commercial grade PVC cover stands strong against tearing, leaking, and chemical corrosion
Fire retardant, UV protection, and waterproof

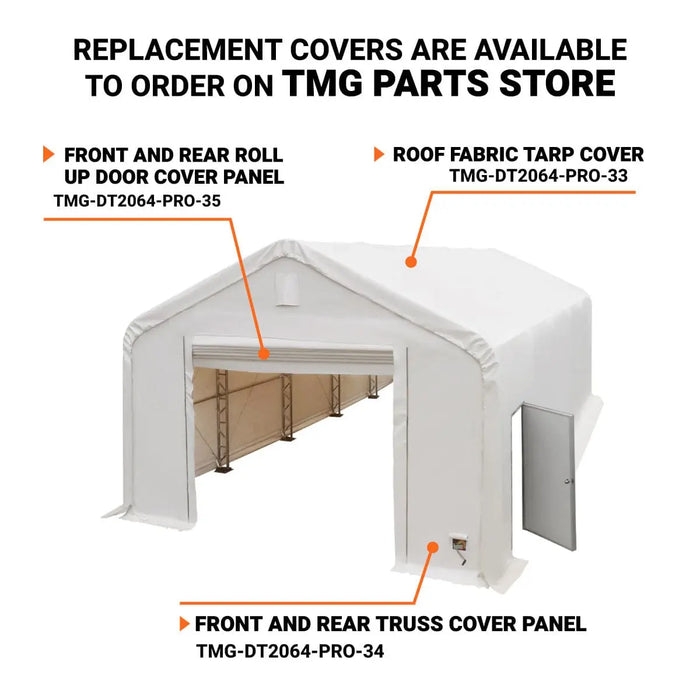

Replacement covers available for order here TMG PARTS STORE
Custom lengths available for 53’ containers or other dimensions upon request.

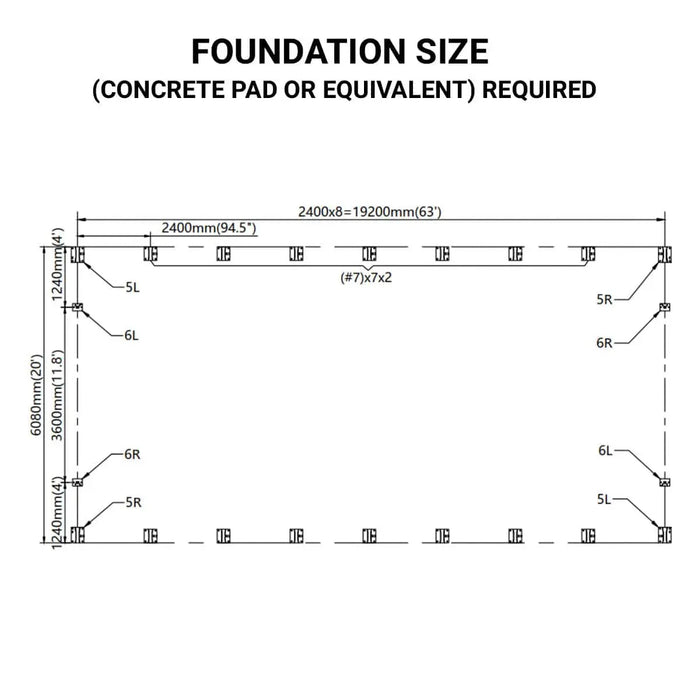

Foundation size required:: 19200mm(63’) (W) x 6080mm(20’) (L)
Truss spacing: 8'
Sidewall height: 10'
Peak height: 15'
Door opening clearance: 12' (W) x 10' (H)
Truss tubes: ?1.9” – 15 gauge (approx.)
Purlin tubes: ?1.65” – 16 gauge (approx.)
Man door: 3' (W) x 6.5' (H)
Cover: 17oz PVC
Snow load: 30PSF (reference only)
Wind load: 75MPH (reference only)

The TMG-DT2064-PRO Dual Truss PVC Fabric Storage Shelter provides an easy to assemble, durable outdoor storage solution or workshop for your farm, construction site, equipment dealership and more. Approximately 1200 square feet of covered space to stockpile materials, work on projects, park vehicles and accommodate all other needs big or small. It is an upgraded replacement model for TMG-DT2063-PRO. Parts and customer support are still available for the old model. Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing and provide a long lasting shelter covering for many years to come. This fabric is a natural flame retardant, commonly used in large commercial structures such as sports stadiums and event halls. The first 10' of each side is a straight wall which amplifies storage space along the edges. Double trusses with a reduced 8' truss spacing reinforce the entire DT TMG Heavy Series™ and give them all exceptional durability and stability. Roughly 12' wide winch roll-up doors on both endwalls provide a huge opening to allow workflow coming in and out. The steel man door provides a convenient, houselike entry that is more secure than standard fabric cut out openings. Our PVC fabric comes in a vibrant white colour that reflects UV rays but allows light to permeate through. This natural illuminating quality will help you save on utility costs and provide all day use even when it's cloudy. We also carry a smaller model of this storage shelter: TMG-DT2041-PRO.

Additional Info

TMG Industrial is a proud supplier of storage sheds, shelters, garages, and other portable structures around North America. These units are all sold as DIY installations. Due to varying regulations required by individual municipalities, TMG Industrial is not able to provide engineered drawings or any snow and wind load certifications. It is up to the purchaser to determine any local requirements before purchasing.

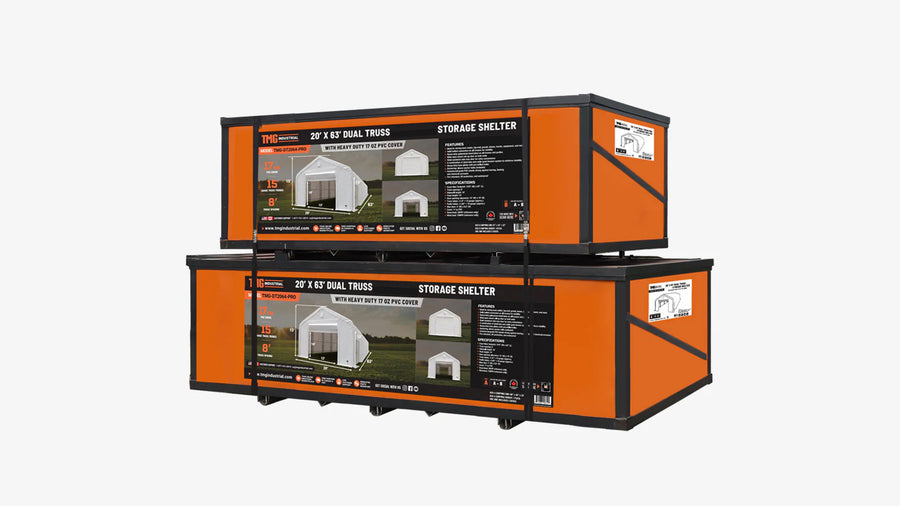

Packed in two metal crate shipping boxes
Box A shipping dimension: 99” x 45” x 32”
Box B shipping dimension: 87” x 45” x 32”
Shipping weight: 3413 lb

Shipping from Richmond, BC, or Mississauga, ON

What happens after you place your order?

1. Steel Frame — 10-Year Limited Warranty

The steel frame of TMG Industrial Dual Truss shelters is covered by a 10-year limited warranty against defects in materials and manufacturing workmanship.

This warranty does not cover:

Normal wear and tear, rust, oxidation or corrosion.
Bending, deformation or damage caused by wind, snow, ice accumulation or other weather conditions.
Damage caused by improper assembly, inadequate foundations or anchoring, overloading, impacts, misuse, unauthorized modifications or insufficient maintenance.

2. PVC Fabric — 3-Year Limited Warranty

The PVC fabric supplied with TMG Industrial Dual Truss shelters is covered by a 3-year limited warranty against defects in materials and manufacturing workmanship.

This warranty does not cover:

Normal wear and tear, aging, fading, discoloration or UV deterioration.
Tears, punctures, abrasion or seam damage that do not result from a covered material or manufacturing defect.
Damage caused by wind, rain, snow, ice, hail, flooding or other weather conditions.
Damage caused by improper installation, incorrect fabric tension, contact with sharp objects, misuse, unauthorized modifications or insufficient maintenance.

3. Other Components — 1-Year Limited Warranty

All other components are covered by TMG Industrial’s standard 1-year limited warranty against defects in materials and manufacturing workmanship, subject to its applicable terms and exclusions.

4. Installation & Maintenance

Shelters must be assembled, anchored, used and maintained in accordance with the applicable TMG Industrial instructions. Damage resulting from failure to follow these instructions is not covered.

5. Additional Terms

These warranty periods do not guarantee product service life or protection against weather damage. Additional terms and conditions apply. Please refer to our full warranty policy.

Dimensions and capacity
	TMG Heavy Series™ 20' x 63' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors, TMG-DT2064-PRO$10,499.00 CAD	30' x 40' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover TMG-DT3042(Previously TMG-DT3041)$12,999.00 CAD	40' x 40' Dual Truss Storage Shelter with Heavy Duty 21 oz PVC Cover & Drive Through Doors, TMG-DT4042 (Previously DT4041)$17,999.00 CAD	30' x 60' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors TMG-DT3062 (Previously TMG-DT3061)$17,999.00 CAD	TMG Heavy Series™ 20' x 40' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors TMG-DT2041-PRO$9,999.00 CAD	30' x 80' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors, TMG-DT3082$16,499.00 CAD	40' x 60' Dual Truss Storage Shelter with Heavy Duty 21 oz PVC Cover & Drive Through Doors, TMG-DT4062 (Previously TMG-DT4061)$21,799.00 CAD	33' x 80' Dual Truss Storage Shelter Workshop, (3) 19' Wide Drive-Through Openings, Scaffolding-Style Door Frame Support, TMG-DT3380$24,999.00 CAD	TMG Heavy Series™ 20' x 30' Dual Truss Storage Shelter with Heavy Duty 17oz PVC Cover, TMG-DT2031-PRO (Previously DT2030-PRO)$8,999.00 CAD	TMG Heavy Series™ 50' x 55' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT5055-PRO$24,999.00 CAD	40' x 80' Dual Truss Storage Shelter with Heavy Duty 21 oz PVC Cover & Drive Through Doors, TMG-DT4082 (Previously DT4081)$28,099.00 CAD	TMG Heavy Series™ 50' x 80' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT5080-PRO$39,999.00 CAD	TMG Heavy Series™ 50' x 100' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT50100-PRO$59,999.00 CAD	TMG Heavy Series™ 70' x 100' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT70100-PRO$79,999.00 CAD	TMG Heavy Series™ 50' x 150' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT50150-PRO$79,999.00 CAD	TMG Heavy Series™ 70' x 120' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT70120-PRO$89,999.00 CAD	TMG Heavy Series™ 70' x 150' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT70150-PRO$129,999.00 CAD
Size	20' x 63'	30' x 40'	40' x 40'	30' x 60'	20' x 40'	30' x 80'	40' x 60'	—	20' x 30'	50' x 55'	40' x 80'	50' x 80'	50' x 100'	70' x 100'	50' x 150'	70' x 120'	70' x 150'
Covered Area	1,200 sq-ft	1,200 sq-ft	1,600 sq-ft	1,800 sq-ft	800 sq-ft	2,400 sq-ft	2,400 sq-ft	—	600 sq-ft	2,750 sq-ft	3,200 sq-ft	4,000 sq-ft	5,000 sq-ft	7,000 sq-ft	7,500 sq-ft	8,400 sq-ft	10,500 sq-ft
Foundation Size Required	63' (19.20 m) (W) x 20' (6.08 m) (L)	9,230 mm(30.3') (W) x 12,000 mm(39.4') (L)	12 m (39'4") (W) x 12.3 m (40'3") (L)	18,000 mm(59') (W) x 9,230 mm(30.3') (L)	39.4' (12.00 m) (W) x 20' (6.08 m) (L)	24,000 mm(78.7') (W) x 9,230 mm(30.3') (L)	18,000 mm(59') (W) x 12,280 mm (40.3') (L)	24,500 mm(80.4') (W) x 10,360 mm(34') (L)	31.5' (9.60 m) (W) x 20' (6.08 m) (L)	50.3' (15.32 m) (W) x 56' (17.06 m) (L)	24,000 mm(78.7') (W) x 12,280 mm(40.3") (L)	50.3' (15.32 m) (W) x 79.6' (24.26 m) (L)	50.3' (15.32 m) (W) x 103.2' (31.46 m)	71.4' (21.76 m) (W) x 100' (30.58 m)	50.3' (15.32 m) (W) x 150.5' (45.86 m)	71.4' (21.76 m) (W) x 120' (36.58 m)	71.4' (21.76 m) (W) x 152.8' (46.58 m)
Peak Height	15'	20'	21'	20'	15'	20'	21'	20'	15'	23' (outer), 21' (inner)	21'	23' (outer), 21' (inner)	23' (outer), 21' (inner)	28' (outer), 26' (inner)	23' (outer), 21' (inner)	28' (outer), 26' (inner)	28' (outer), 26' (inner)
Side-wall Height	10'	12'	11'6"	12'	10'	12'	11'6"	—	10'	9'	11' 6"	9'	9'	12' (approx.)	9'	12' (approx.)	12' (approx.)
Door Clearance	12' (W) x 10' (H)	—	Front door: 15' (W) x 14' (H) Rear door: 19'8" (W) x 12'6" (H)	14' x 13' (W x H)	12' x 10' (W x H)	14' x 13' (W x H)	Front door: 15' (W) x 14' (H) Rear door: 19'8" (W) x 12'6" (H)	13'(W) x 13'(H)	12' x 10' (W x H)	15' (W) x 15' (H)	Front door: 15' (W) x 14' (H) Rear door: 19' 8" (W) x 12' 6" (H)	15' (W) x 15' (H)	15' (W) x 15' (H)	18' (W) x 15'8" (H)	15' (W) x 15' (H)	18' (W) x 15'8" (H)	18' (W) x 15'8" (H)
Truss Spacing	8'	10'	10'	10'	8'	10'	10'	10'	8'	8'	10'	8'	8'	6' (approx.)	8'	6' (approx.)	6'6" (approx.)
Construction and materials
Truss Tubes	1.9" - 15 GA (approx.)	2" - 15 GA (approx.)	2.3" - 15 GA (approx.)	2" - 15 GA (approx.)	2" - 15 GA (approx.)	2" - 15 GA (approx.)	2-1/2" - 15 GA (approx.)	⌀1.9" - 15 GA (approx.)	2" - 15 GA (approx.)	2-1/2" - 14 GA (approx.)	2-1/2" - 15 GA (approx.)	2-1/2" - 14 GA (approx.)	2-1/2" - 14 GA (approx.)	3" - 14 GA (approx.)	2-1/2" - 14 GA (approx.)	3" - 14 GA (approx.)	3" - 14 GA (approx.)
Purlin Tubes	1.65" - 16 GA (approx.)	2" - 15 GA (approx.)	2.3" - 15 GA (approx.)	2" - 15 GA (approx.)	1-1/2"- 16 GA (approx.)	2" - 15 GA (approx.)	2-1/2" - 15 GA (approx.)	⌀1.9" - 15 GA (approx.)	1-1/2" - 16 GA (approx.)	2-1/2" - 14 GA (approx.)	2-1/2" - 15 GA (approx.)	2-1/2" - 14 GA (approx.)	2-1/2" - 14 GA (approx.)	2-1/2" - 15 GA (approx.)	2-1/2" - 14 GA (approx.)	2-1/2" - 15 GA (approx.)	2-1/2" - 15 GA (approx.)
Cover Material	17 oz PVC	17 oz PVC fabric (white color)	triple-layer 21 oz PVC fabric (white color)	17 oz PVC fabric (white color)	17 oz PVC fabric (white color)	17 oz PVC fabric (white color)	21 oz PVC fabric (white color)	21 oz PVC, white w/grey trims	17 oz PVC fabric (white color)	32 oz PVC fabric (white color)	21 oz PVC fabric (white color)	32 oz PVC fabric (white color)	32 oz PVC fabric (white color)	32 oz PVC fabric (white color)	32 oz PVC fabric (white color)	32 oz PVC fabric (white color)	32 oz PVC fabric (white color)
