EST. 4-8 WEEKS DELIVERY

TMG-DT70150-PRO

TMG Heavy Series™ 70' x 150' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT70150-PRO

EST. 4-8 WEEKS DELIVERY

SKU TMG-DT70150-PRO

$129,999.00 CAD - $129,999.00 CAD

$129,999.00 CAD

$129,999.00 CAD - $129,999.00 CAD

$129,999.00 CAD

FREE

shipping to most locations in

Canada

Quantity

1-877-761-2819

cs@tmgindustrial.ca

Product Manual

Find Parts

TMG Heavy Series™ 70' x 150' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT70150-PRO

Quantity

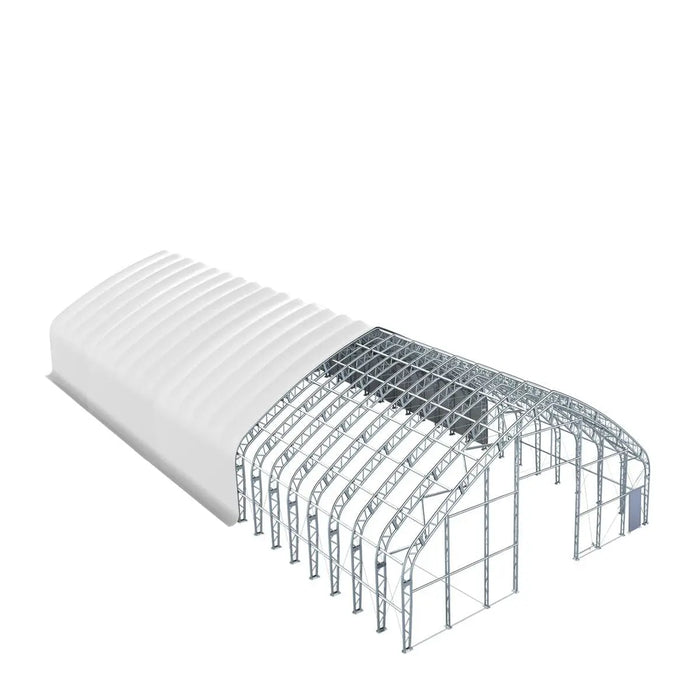

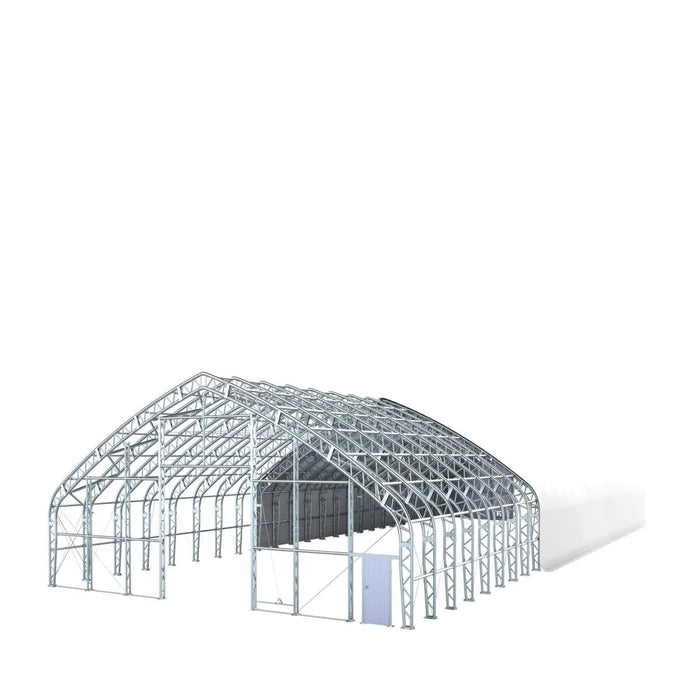

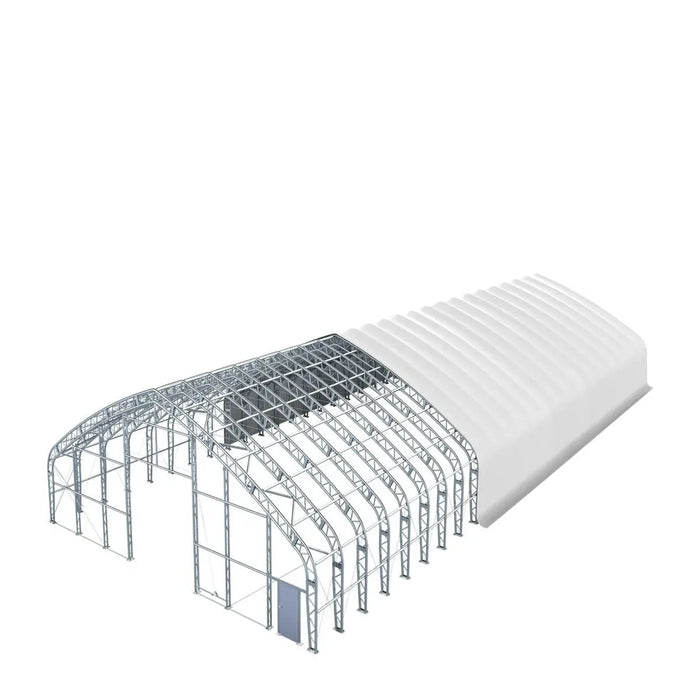

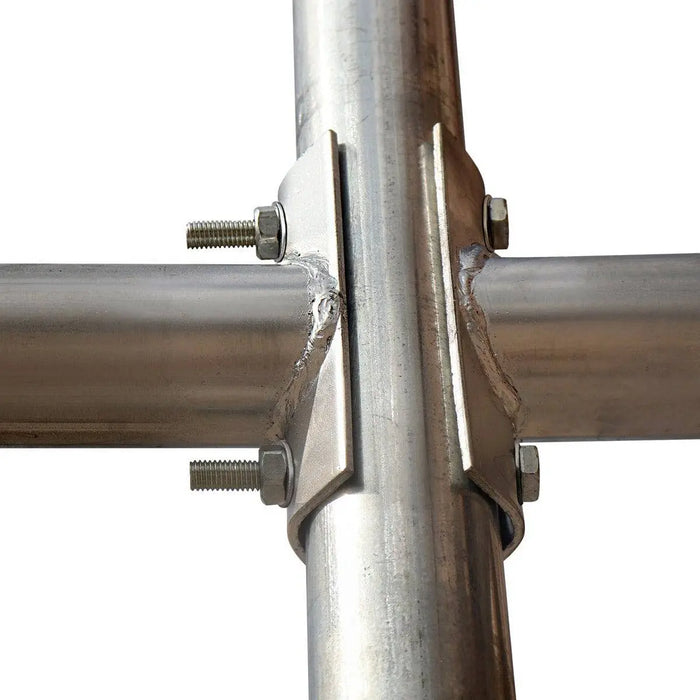

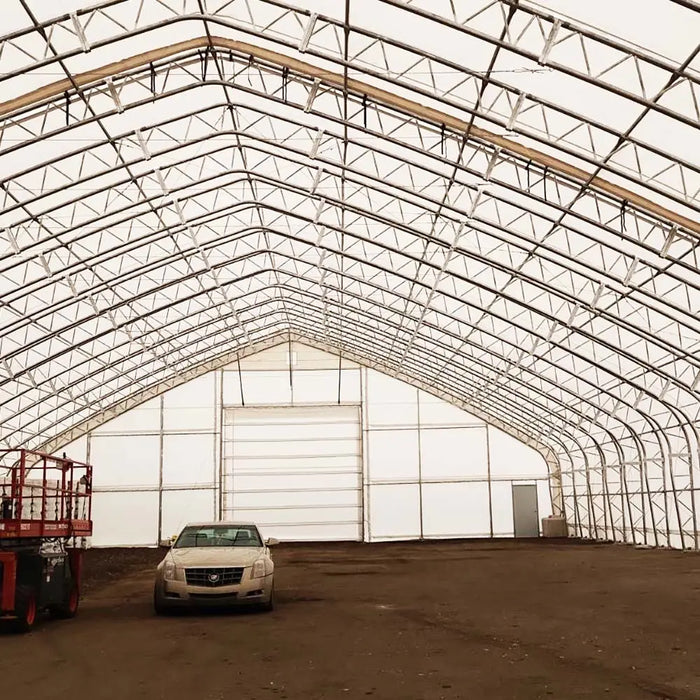

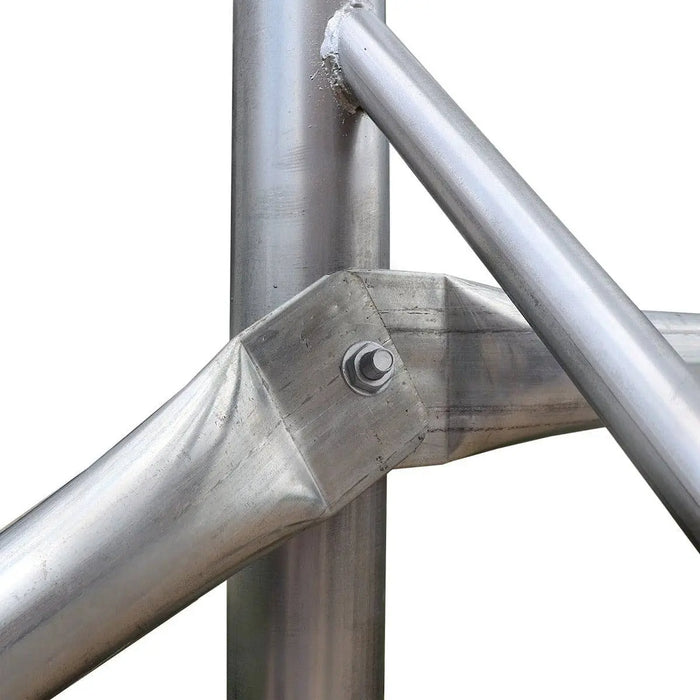

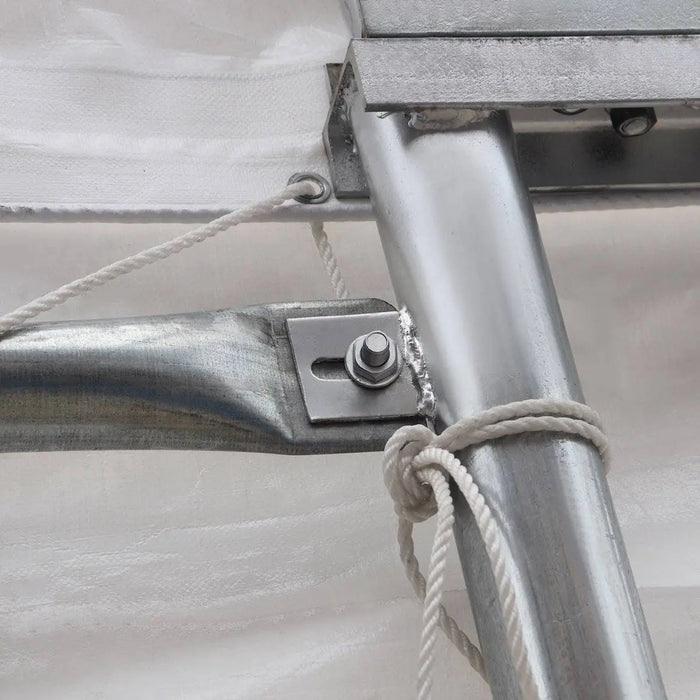

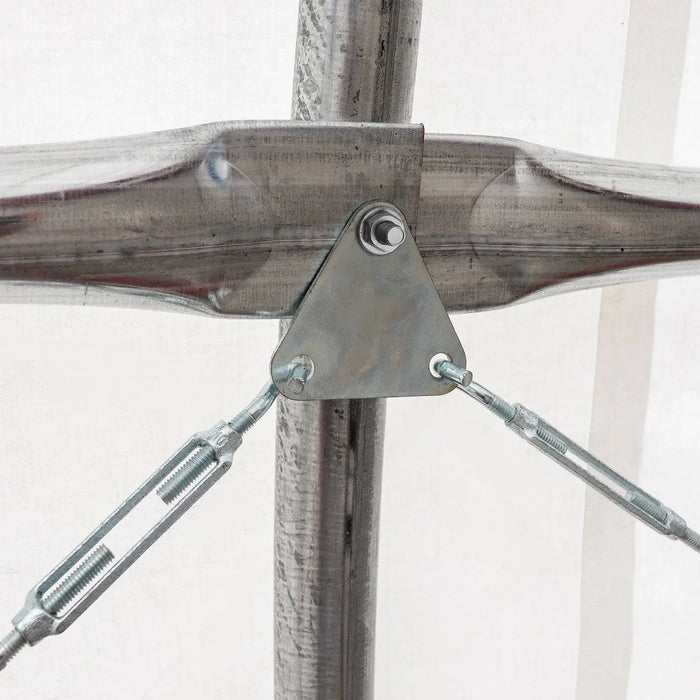

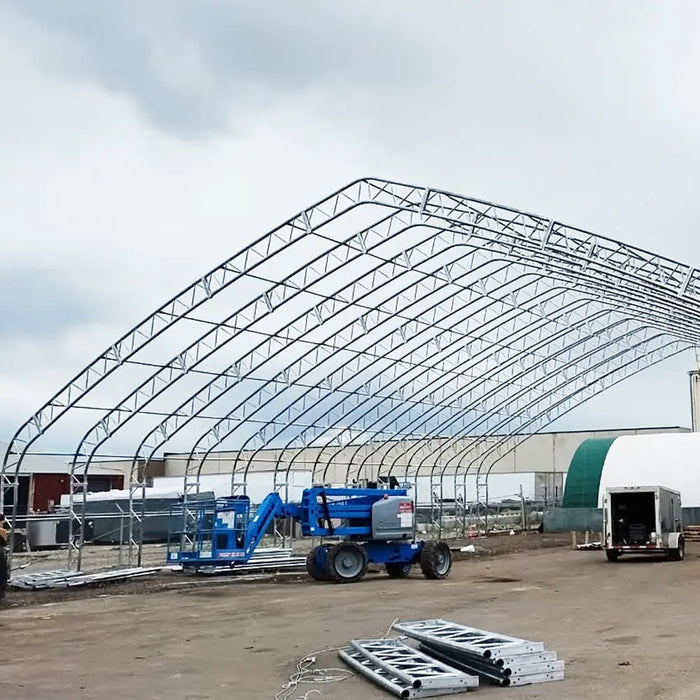

Double truss frame and solid bolted, U-shaped channel connection on all trusses to increase support strength and rigidity
Can install on any concrete pad or equivalent for a clean, professional covered space

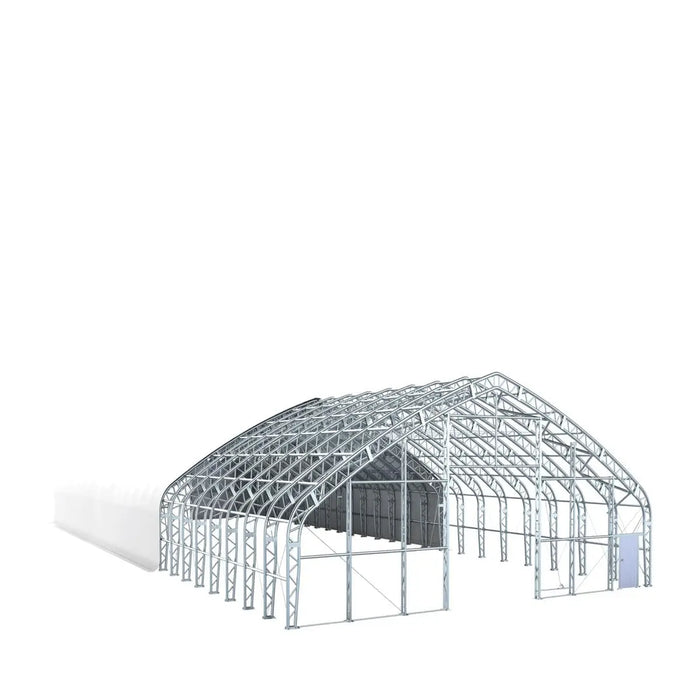

Commercial grade, 3-layer galvanized steel frame structure is long lasting, dependable and resistant to rust, wear and corrosion
Easy to assemble and install while costing far less than a comparable commercial size building; 10500 sq-ft of covered storage space
Commercial grade, triple-layer ripstop polyvinyl chloride (PVC) tarpaulin cover:
- Stands strong against tearing, leaking, and chemical corrosion
- Natural flame retardant, resistant to chemicals and oil
- UV protected and waterproof
- Fabric color: White

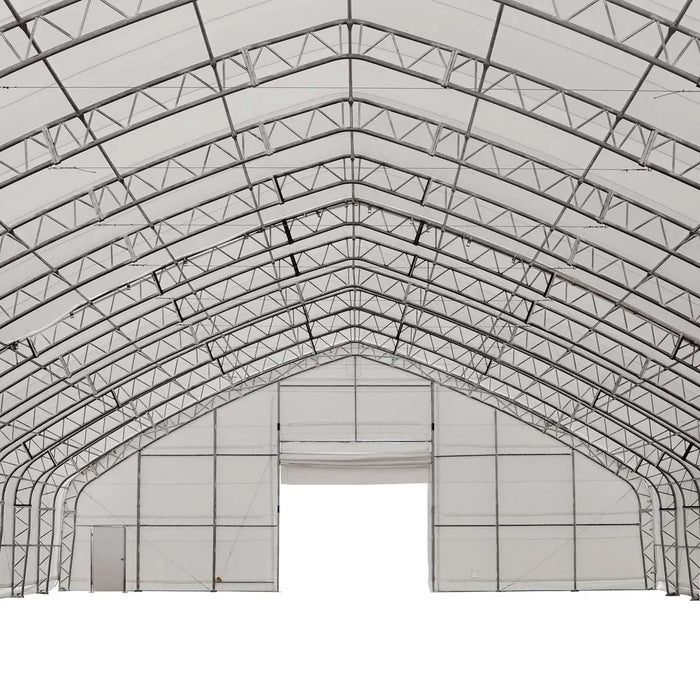

DT TMG Heavy Series™ is reinforced with a specially designed reduced truss spacing of ’ for maximum strength and stability

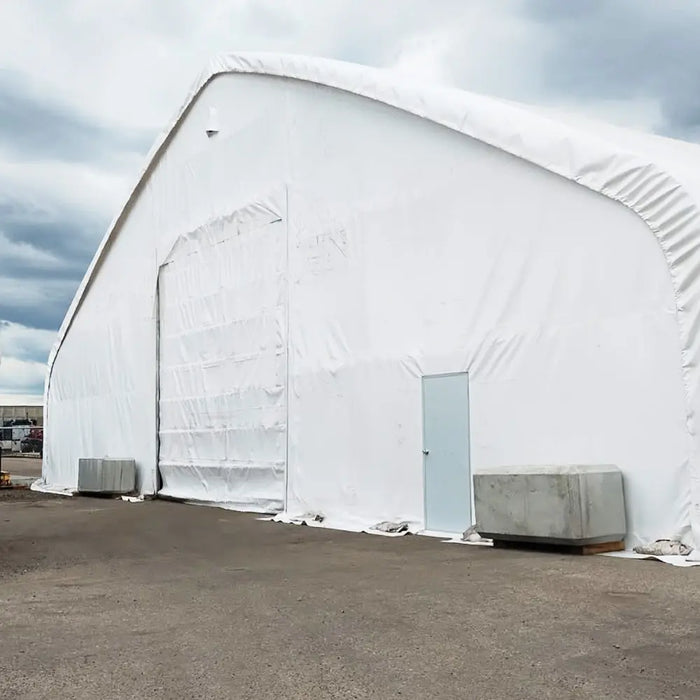

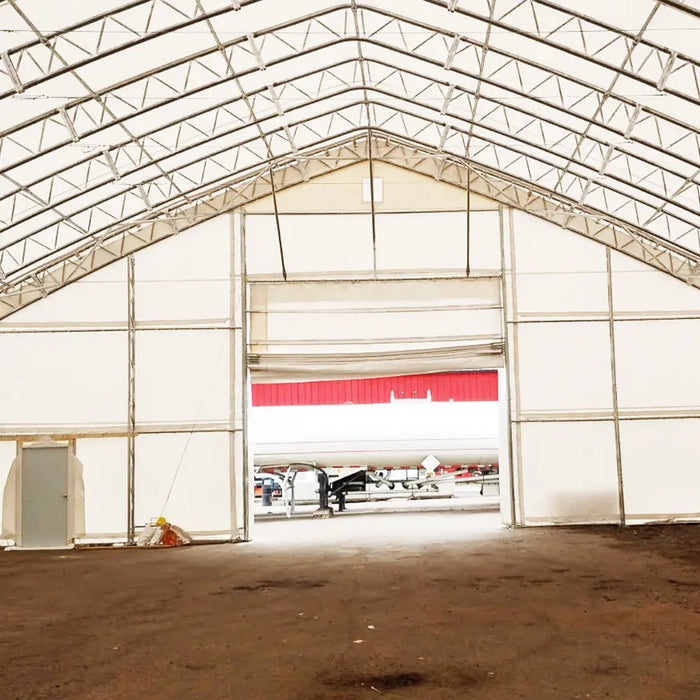

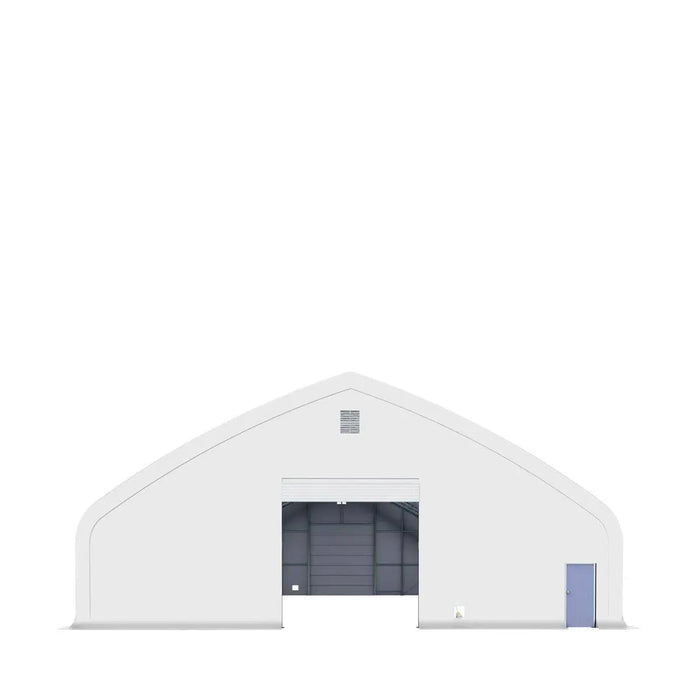

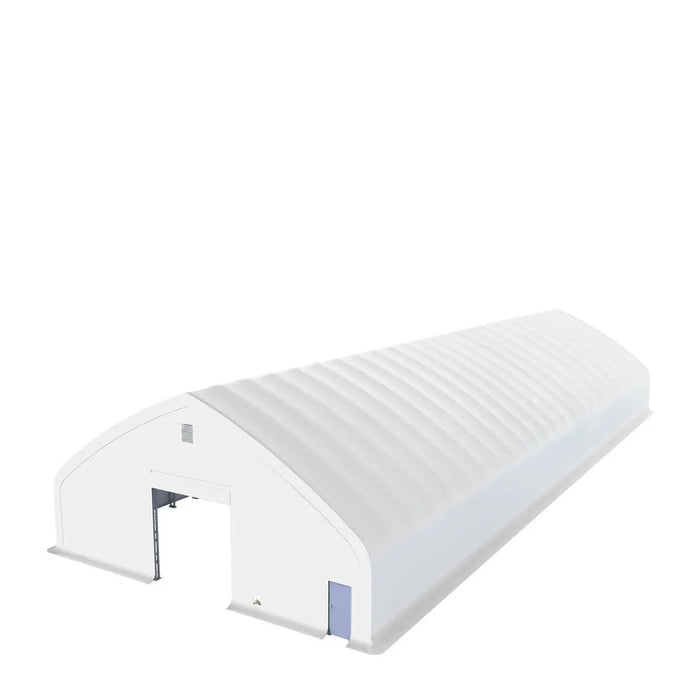

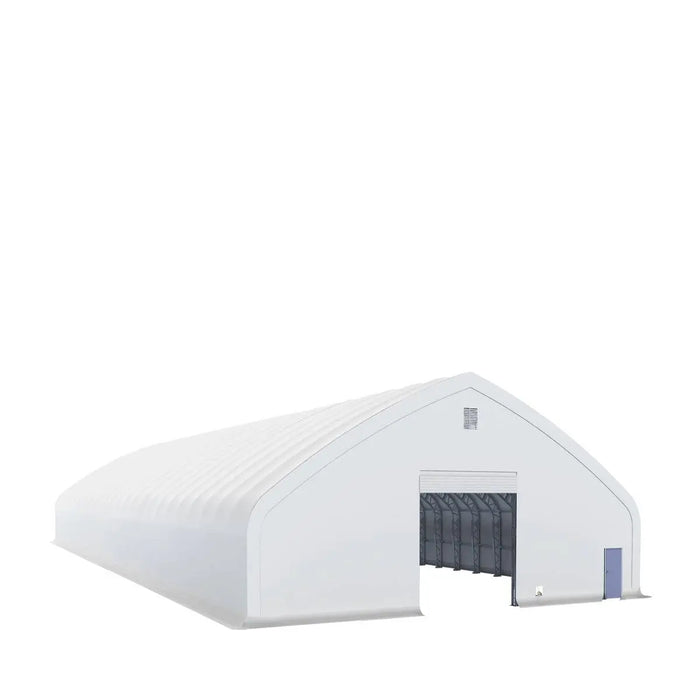

Approx. 18’ wide winch roll-up doors on both endwalls that allow for easy parking and dynamic workflow to run throughout

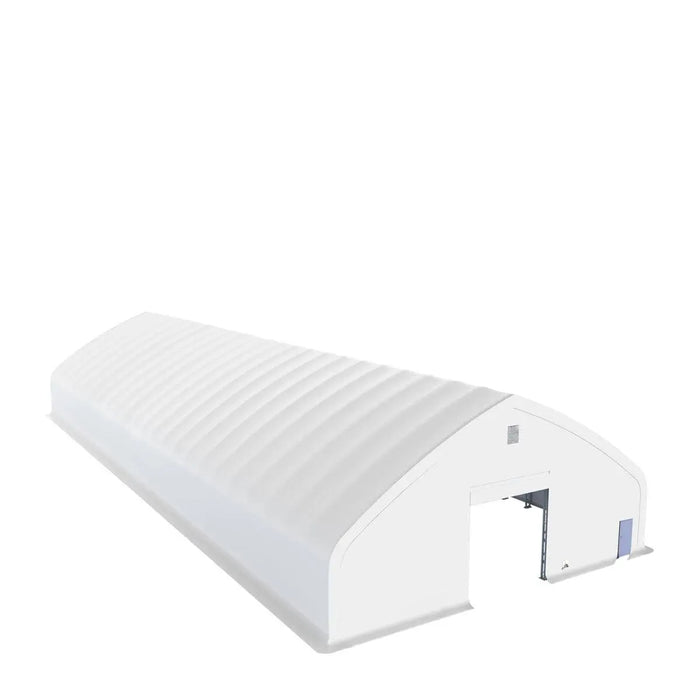

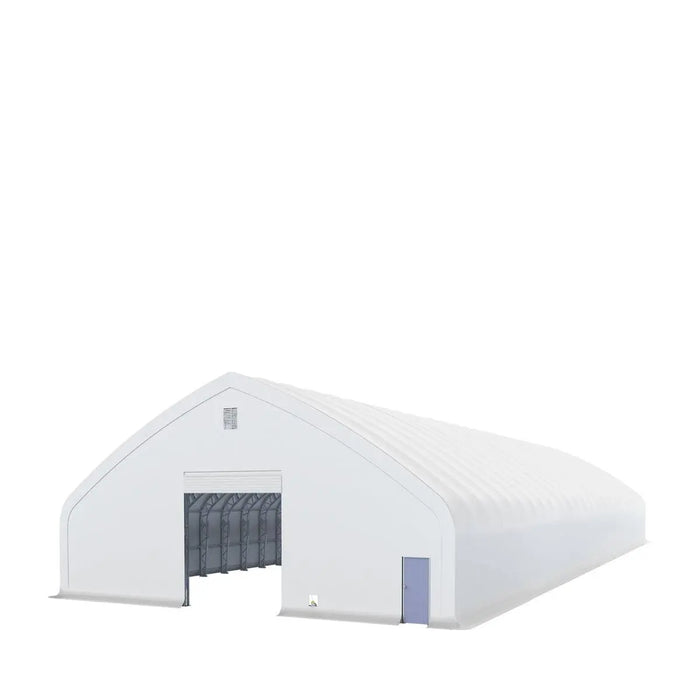

Peaked roof design prevents snow build up and allows moisture to be guided off the sides, protecting you and your equipment from the elements
Steel man doors offer convenient side entry, similar to the entrance of a house, that you can use instead of constantly opening the main doors
PVC fabric is used in the construction of large commercial structures like sports stadiums and is known for its thickness and reliability

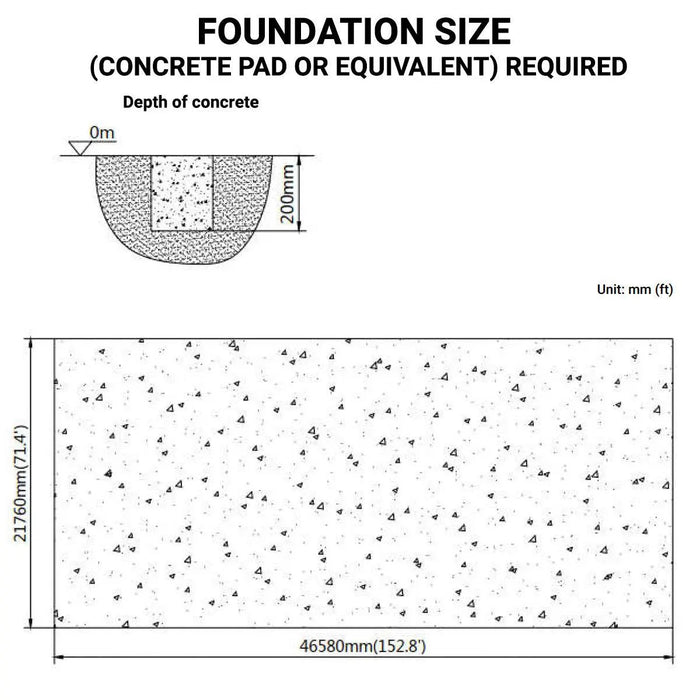

Foundation size required: 21760mm(71.4')(W) x 46580mm(152.8')
Truss spacing: 6‘6” (approx.)
Peak ceiling height: 28' (outer), 26’ (inner)
Side-wall height: 12’ (approx.)
Truss tubes: 3” – 14 GA (approx.)
Purlin tubes: 2-½” – 15 GA (approx.)
Man Doors: 3’ x 6’6” (W x H)
Door frame opening: 18’ (W) x 17’ (H)
Winch roll-up door on both ends with drive through clearance: 18’ (W) x 15’8” (H)
Cover material: 32 oz PVC fabric (white color)
Air vents on both ends
Footplates with pre-drilled holes (anchor bolts not included)
Foundation required: Concrete slabs or equivalent

The TMG-DT70150-PRO PVC Fabric Peak Ceiling Storage Shelter provides an easy to assemble, durable outdoor storage solution or workshop for your farm, construction site, equipment dealership and more. Approximately 10500 square feet of covered space to stockpile materials, work on projects, park vehicles and accommodate all other needs big or small. Able to install on any concrete pad or equivalent for versatile useability whether you're working in remote, rural or industrial locations. Made of strong, heavy-duty commercial grade polyvinyl chloride (PVC) fabric that is triple layered to prevent tearing and provide a long lasting shelter covering for many years to come. This fabric is a natural flame retardant, commonly used in large commercial structures such as sports stadiums and event halls. The first 12 ft of each side is a straight wall which amplifies storage space along the edges. Double trusses with a reduced 6' truss spacing reinforce the entire DT TMG Heavy Series™ and give them all exceptional durability and stability. Roughly 18' wide winch roll-up doors on both endwalls provide a huge opening to allow workflow coming in and out. The steel man doors provide a convenient, houselike entry that is more secure than standard fabric cut out openings. Our PVC fabric comes in a vibrant white colour that reflects UV rays but allows light to permeate through. This natural illuminating quality will help you save on utility costs and provide all day use even when it's cloudy. We also carry other models of this storage shelter: TMG-DT7080-PRO, TMG-DT70100-PRO, TMG-DT70150-PRO

Additional Info

TMG Industrial is a proud supplier of storage sheds, shelters, garages, and other portable structures around North America. These units are all sold as DIY installations. Due to varying regulations required by individual municipalities, TMG Industrial is not able to provide engineered drawings or any snow and wind load certifications. It is up to the purchaser to determine any local requirements before purchasing.

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

This product is packed in 14 metal crate shipping boxes
Box A shipping dimensions: 136’’ x 45’’ x 49’’
Box B-F shipping dimensions: 125’’ x 45’’ x 49’’
Box G-H shipping dimensions: 103’’ x 45’’ x 49’’
Box I-J shipping dimensions: 88’’ x 45’’ x 49’’
Box K-L shipping dimensions: 125’’ x 45’’ x 49’’
Box M shipping dimensions: 136’’ x 45’’ x 49’’
Box N shipping dimensions: 88’’ x 45’’ x 49’’
Total shipping weight: 36,000 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Richmond, BC, or Mississauga, ON

What happens after you place your order?

1. Steel Frame — 10-Year Limited Warranty

The steel frame of TMG Industrial Dual Truss shelters is covered by a 10-year limited warranty against defects in materials and manufacturing workmanship.

This warranty does not cover:

Normal wear and tear, rust, oxidation or corrosion.
Bending, deformation or damage caused by wind, snow, ice accumulation or other weather conditions.
Damage caused by improper assembly, inadequate foundations or anchoring, overloading, impacts, misuse, unauthorized modifications or insufficient maintenance.

2. PVC Fabric — 3-Year Limited Warranty

The PVC fabric supplied with TMG Industrial Dual Truss shelters is covered by a 3-year limited warranty against defects in materials and manufacturing workmanship.

This warranty does not cover:

Normal wear and tear, aging, fading, discoloration or UV deterioration.
Tears, punctures, abrasion or seam damage that do not result from a covered material or manufacturing defect.
Damage caused by wind, rain, snow, ice, hail, flooding or other weather conditions.
Damage caused by improper installation, incorrect fabric tension, contact with sharp objects, misuse, unauthorized modifications or insufficient maintenance.

3. Other Components — 1-Year Limited Warranty

All other components are covered by TMG Industrial’s standard 1-year limited warranty against defects in materials and manufacturing workmanship, subject to its applicable terms and exclusions.

4. Installation & Maintenance

Shelters must be assembled, anchored, used and maintained in accordance with the applicable TMG Industrial instructions. Damage resulting from failure to follow these instructions is not covered.

5. Additional Terms

These warranty periods do not guarantee product service life or protection against weather damage. Additional terms and conditions apply. Please refer to our full warranty policy.

Dimensions and capacity
	TMG Heavy Series™ 70' x 150' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT70150-PRO$129,999.00 CAD	TMG Heavy Series™ 70' x 120' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT70120-PRO$89,999.00 CAD	TMG Heavy Series™ 50' x 150' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT50150-PRO$79,999.00 CAD	TMG Heavy Series™ 70' x 100' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT70100-PRO$79,999.00 CAD	TMG Heavy Series™ 50' x 100' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT50100-PRO$59,999.00 CAD	TMG Heavy Series™ 50' x 80' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT5080-PRO$33,999.00 CAD	40' x 80' Dual Truss Storage Shelter with Heavy Duty 21 oz PVC Cover & Drive Through Doors, TMG-DT4082 (Previously DT4081)$28,099.00 CAD	TMG Heavy Series™ 50' x 55' Dual Truss Storage Shelter with Heavy Duty 32 oz PVC Cover & Drive Through Doors, TMG-DT5055-PRO$24,999.00 CAD	33' x 80' Dual Truss Storage Shelter Workshop, (3) 19' Wide Drive-Through Openings, Scaffolding-Style Door Frame Support, TMG-DT3380$24,999.00 CAD	40' x 60' Dual Truss Storage Shelter with Heavy Duty 21 oz PVC Cover & Drive Through Doors, TMG-DT4062 (Previously TMG-DT4061)$21,799.00 CAD	30' x 80' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors, TMG-DT3082$16,499.00 CAD	30' x 60' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors TMG-DT3062 (Previously TMG-DT3061)$17,999.00 CAD	40' x 40' Dual Truss Storage Shelter with Heavy Duty 21 oz PVC Cover & Drive Through Doors, TMG-DT4042 (Previously DT4041)From $13,849.00 CAD	TMG Heavy Series™ 20' x 63' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors, TMG-DT2064-PRO$10,499.00 CAD	30' x 40' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover TMG-DT3042(Previously TMG-DT3041)$12,499.00 CAD	TMG Heavy Series™ 20' x 40' Dual Truss Storage Shelter with Heavy Duty 17 oz PVC Cover & Drive Through Doors TMG-DT2041-PRO$9,999.00 CAD	TMG Heavy Series™ 20' x 30' Dual Truss Storage Shelter with Heavy Duty 17oz PVC Cover, TMG-DT2031-PRO (Previously DT2030-PRO)$8,999.00 CAD
Size	70' x 150'	70' x 120'	50' x 150'	70' x 100'	50' x 100'	50' x 80'	40' x 80'	50' x 55'	—	40' x 60'	30' x 80'	30' x 60'	40' x 40'	20' x 63'	30' x 40'	20' x 40'	20' x 30'
Covered Area	10,500 sq-ft	8,400 sq-ft	7,500 sq-ft	7,000 sq-ft	5,000 sq-ft	4,000 sq-ft	3,200 sq-ft	2,750 sq-ft	—	2,400 sq-ft	2,400 sq-ft	1,800 sq-ft	1,600 sq-ft	1,200 sq-ft	1,200 sq-ft	800 sq-ft	600 sq-ft
Foundation Size Required	71.4' (21.76 m) (W) x 152.8' (46.58 m)	71.4' (21.76 m) (W) x 120' (36.58 m)	50.3' (15.32 m) (W) x 150.5' (45.86 m)	71.4' (21.76 m) (W) x 100' (30.58 m)	50.3' (15.32 m) (W) x 103.2' (31.46 m)	50.3' (15.32 m) (W) x 79.6' (24.26 m) (L)	24,000 mm(78.7') (W) x 12,280 mm(40.3") (L)	50.3' (15.32 m) (W) x 56' (17.06 m) (L)	24,500 mm(80.4') (W) x 10,360 mm(34') (L)	18,000 mm(59') (W) x 12,280 mm (40.3') (L)	24,000 mm(78.7') (W) x 9,230 mm(30.3') (L)	18,000 mm(59') (W) x 9,230 mm(30.3') (L)	12 m (39'4") (W) x 12.3 m (40'3") (L)	63' (19.20 m) (W) x 20' (6.08 m) (L)	9,230 mm(30.3') (W) x 12,000 mm(39.4') (L)	39.4' (12.00 m) (W) x 20' (6.08 m) (L)	31.5' (9.60 m) (W) x 20' (6.08 m) (L)
Peak Height	28' (outer), 26' (inner)	28' (outer), 26' (inner)	23' (outer), 21' (inner)	28' (outer), 26' (inner)	23' (outer), 21' (inner)	23' (outer), 21' (inner)	21'	23' (outer), 21' (inner)	20'	21'	20'	20'	21'	15'	20'	15'	15'
Side-wall Height	12' (approx.)	12' (approx.)	9'	12' (approx.)	9'	9'	11' 6"	9'	—	11'6"	12'	12'	11'6"	10'	12'	10'	10'
Door Clearance	18' (W) x 15'8" (H)	18' (W) x 15'8" (H)	15' (W) x 15' (H)	18' (W) x 15'8" (H)	15' (W) x 15' (H)	15' (W) x 15' (H)	Front door: 15' (W) x 14' (H) Rear door: 19' 8" (W) x 12' 6" (H)	15' (W) x 15' (H)	13'(W) x 13'(H)	Front door: 15' (W) x 14' (H) Rear door: 19'8" (W) x 12'6" (H)	14' x 13' (W x H)	14' x 13' (W x H)	Front door: 15' (W) x 14' (H) Rear door: 19'8" (W) x 12'6" (H)	12' (W) x 10' (H)	—	12' x 10' (W x H)	12' x 10' (W x H)
Truss Spacing	6'6" (approx.)	6' (approx.)	8'	6' (approx.)	8'	8'	10'	8'	10'	10'	10'	10'	10'	8'	10'	8'	8'
Construction and materials
Truss Tubes	3" - 14 GA (approx.)	3" - 14 GA (approx.)	2-1/2" - 14 GA (approx.)	3" - 14 GA (approx.)	2-1/2" - 14 GA (approx.)	2-1/2" - 14 GA (approx.)	2-1/2" - 15 GA (approx.)	2-1/2" - 14 GA (approx.)	⌀1.9" - 15 GA (approx.)	2-1/2" - 15 GA (approx.)	2" - 15 GA (approx.)	2" - 15 GA (approx.)	2.3" - 15 GA (approx.)	1.9" - 15 GA (approx.)	2" - 15 GA (approx.)	2" - 15 GA (approx.)	2" - 15 GA (approx.)
Purlin Tubes	2-1/2" - 15 GA (approx.)	2-1/2" - 15 GA (approx.)	2-1/2" - 14 GA (approx.)	2-1/2" - 15 GA (approx.)	2-1/2" - 14 GA (approx.)	2-1/2" - 14 GA (approx.)	2-1/2" - 15 GA (approx.)	2-1/2" - 14 GA (approx.)	⌀1.9" - 15 GA (approx.)	2-1/2" - 15 GA (approx.)	2" - 15 GA (approx.)	2" - 15 GA (approx.)	2.3" - 15 GA (approx.)	1.65" - 16 GA (approx.)	2" - 15 GA (approx.)	1-1/2"- 16 GA (approx.)	1-1/2" - 16 GA (approx.)
Cover Material	32 oz PVC fabric (white color)	32 oz PVC fabric (white color)	32 oz PVC fabric (white color)	32 oz PVC fabric (white color)	32 oz PVC fabric (white color)	32 oz PVC fabric (white color)	21 oz PVC fabric (white color)	32 oz PVC fabric (white color)	21 oz PVC, white w/grey trims	21 oz PVC fabric (white color)	17 oz PVC fabric (white color)	17 oz PVC fabric (white color)	triple-layer 21 oz PVC fabric (white color)	17 oz PVC	17 oz PVC fabric (white color)	17 oz PVC fabric (white color)	17 oz PVC fabric (white color)
