TMG-MSE2030D-SR35

20' x 30' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, 11'10" Large Front Door, Side Entry, 13' Peak Height, Engineering Drawing, TMG-MSE2030D-SR35

20' x 30' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, 11'10" Large Front Door, Side Entry, 13' Peak Height, Engineering Drawing, TMG-MSE2030D-SR35
EST. 8-12 WEEKS DELIVERY
SKU TMG-MSE2030D-SR35
$11,999.00 CAD - $11,999.00 CAD
$11,999.00 CAD
$11,999.00 CAD - $11,999.00 CAD
$11,999.00 CAD
$11,999.00 CAD

FREE

shipping to most locations in

Canada

1-877-761-2819
Product Manual
Find Parts

Features

  • 600 sq ft Footprint: Offers 600 sq ft of usable interior space, ideal for general storage, agricultural applications, or outdoor workshops.
  • Generous and Easy Access: Equipped with one large front door and a side entry door for convenient access to vehicles, equipment, and materials.
  • 9' 4" Door Clearance: The 9' 4" door clearance makes parking trucks, tractors, and ride-on mowers easy and convenient.

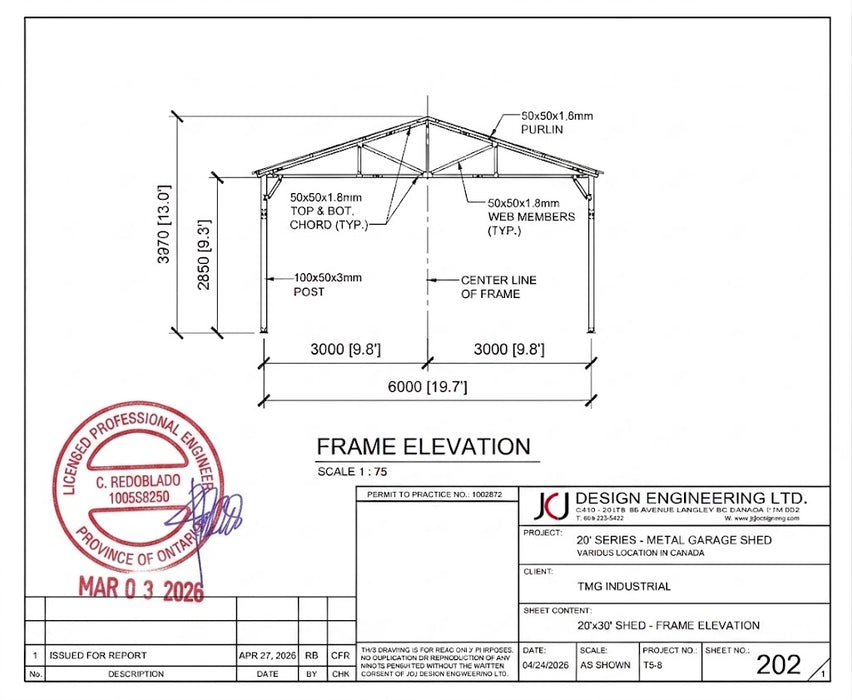

  • 35 PSF Snow Load Rated: Engineered for a 35 PSF snow load and 100 km/h wind load, and includes engineering drawings from a registered Canadian engineer.
  • Window and Louvers: One window and two louvers (front and rear) provide natural lighting, continuous airflow, moisture control, and improved air circulation.
  • Robust Structure: Industrial-grade 11 GA steel structure covered with durable 27 GA metal sheets for enhanced durability and corrosion resistance.
  • Sloped Roof Design: The vertical gable roof design helps prevent water, snow, and debris buildup throughout the year.
  • Simple Assembly: Slip-fit square tubing base frame with sleeve anchor bolts allows easy installation on solid wood platforms, concrete slabs, or equivalent foundations.

Specifications

  • Assembled Size: 19' 8" (W) x 30' (L) x 13' (H)
  • Floor Space: 590 sq ft (55 m²)
  • Peak Height: 13' (3970 mm)
  • Eave Height: 9.4' (2850 mm)
  • Roof Pitch: 4/12
  • Steel Frame Tube: 100 x 50 x 3 mm (11 GA) - Q235
  • Purlin Tube: 50 x 50 x 1.8 mm (15 GA) - Q235
  • Metal Cover Sheet: 0.3 mm (27 GA)
  • Truss Spacing: 3' 11" / 1200 mm
  • Snow Load Rating: 1.68 kPa / 35 PSF
  • Wind Speed Rating: 100 km/h
  • Load Report and Engineering Drawings available upon request
  • Front Door Opening: 11' 10" x 9' 4" (W x H) / 3620 x 2845 mm
  • Side Entry Door: 3' x 6.5' (W x H) / 925 x 2000 mm
  • Glass Window: 3.6' x 3' (W x H) / 1090 x 920 mm
  • Number of Windows: 1
  • Louvers / Vents: 300 x 300 mm
  • Number of Louvers / Vents: 2 (front and rear)
  • Anchoring: Sleeve anchor bolts
  • Foundation Required: Concrete slabs, solid wood, or equivalent
  • Colour: Charcoal Grey

Product Description

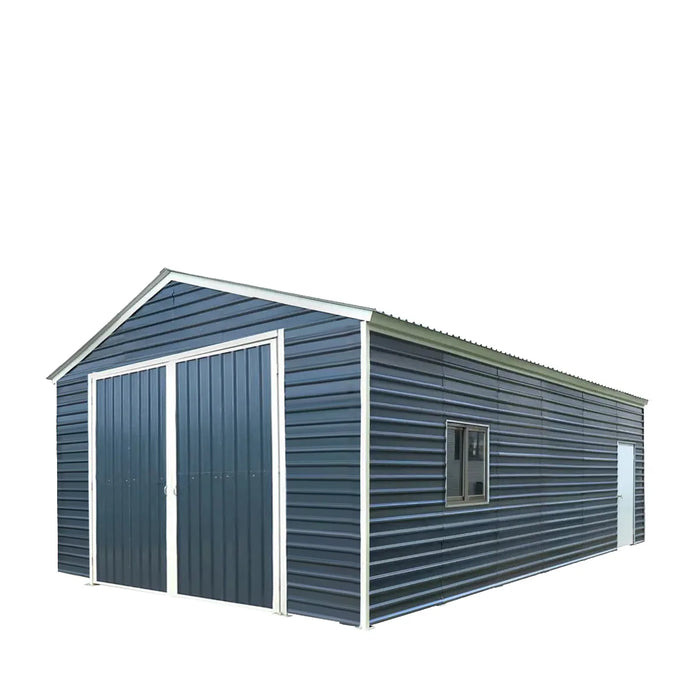

The TMG-MSE2030D-SR35 Metal Garage Shed Steel Building with a large front door is a heavy-duty steel structure designed for spacious and secure outdoor storage. Fully enclosed for year-round protection, it is ideal for storing boats, RVs, pickups, off-road vehicles, farm equipment, and other valuable assets. Specifically engineered for demanding Canadian climates, this pre-engineered structure is rated for a 35 PSF snow load and 100 km/h wind load, and includes stamped drawings from a licensed structural engineer.

One large front swinging door with an 11' 10" x 9' 4" opening provides ample clearance for driving vehicles in and out or moving large materials with ease. The included side entry door can be installed on either side, allowing you to customize the layout to suit your acreage, farm, or commercial property. A large window provides natural light and creates a brighter, more open interior, while front and rear louver vents improve airflow and help control moisture buildup.

Built for durability, this metal garage features reinforced roof supports, wall bracing, and anchor points to provide dependable structural strength. Electro-galvanized steel sheets with a polyester-coated finish offer resistance against corrosion, rust, and wear for long-lasting performance.

The sloped gable roof helps shed rain and snow efficiently, while the slip-fit base frame with sleeve anchor bolts allows for quick installation on wood or concrete foundations. The open-span interior design maximizes usable storage space and provides flexible organization options.

TMG Industrial also offers models with the same width in different lengths and door configurations, including the TMG-MSE2020-SR35, TMG-MSE2030-SR35, TMG-MSE2040-SR35, TMG-MSE2040D-SR35, and TMG-MSE2040DS-SR35.

Shipping Information

Your order will be shipped from one of our main warehouses in Canada. Orders are typically processed and shipped within 2 to 3 business days under normal circumstances. Delivery usually takes 10 to 15 business days, depending on location and accessibility.

  • This product is packed in a wooden shipping crate.
  • Shipping Dimensions: 87" x 69" x 39" (L x W x H)
  • Total Weight: 2,494 lb
Shipping from Richmond, BC, or Mississauga, ON
