CURRENTLY OUT OF STOCK
TMG-LPG21-PRO

10' × 20' (3 × 5.8 m) Aluminum Louver Roof Slatted Pergola with Motorized Retractable Side Screens, TMG-LPG21-PRO (Discontinued – No Longer Available)

10′ × 20′ (3 × 5.8 m) Aluminum Louver Roof Slatted Pergola with Motorized Retractable Side Screens, TMG-LPG21-PRO TMG Industrial
CURRENTLY OUT OF STOCK
SKU TMG-LPG21-PRO
$12,999.00 CAD - $12,999.00 CAD
$12,999.00 CAD
$12,999.00 CAD - $12,999.00 CAD
$12,999.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days Learn More
1-877-761-2819
Product Manual
Find Parts

Features

Feature image

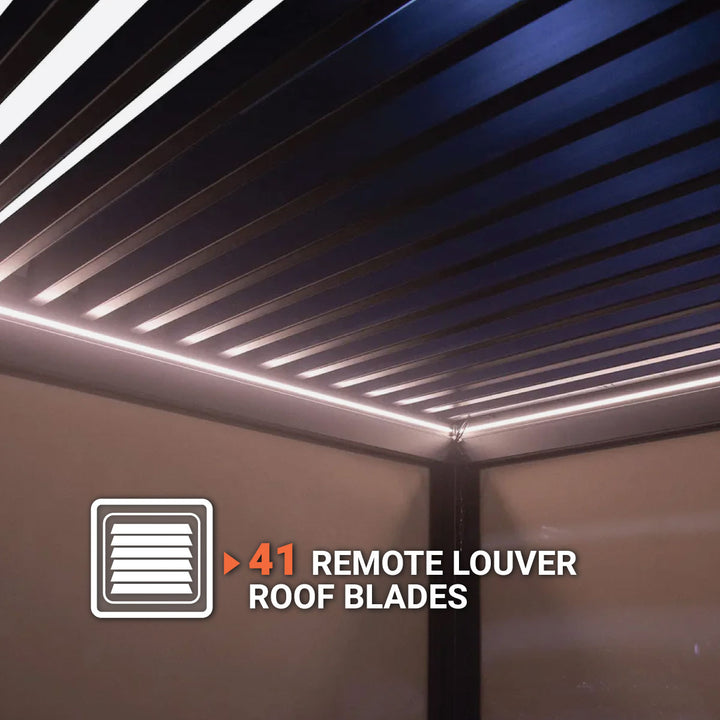

41 remote controlled louver roof blades that rotate up to 100° for customized sunshade and airflow
Feature image

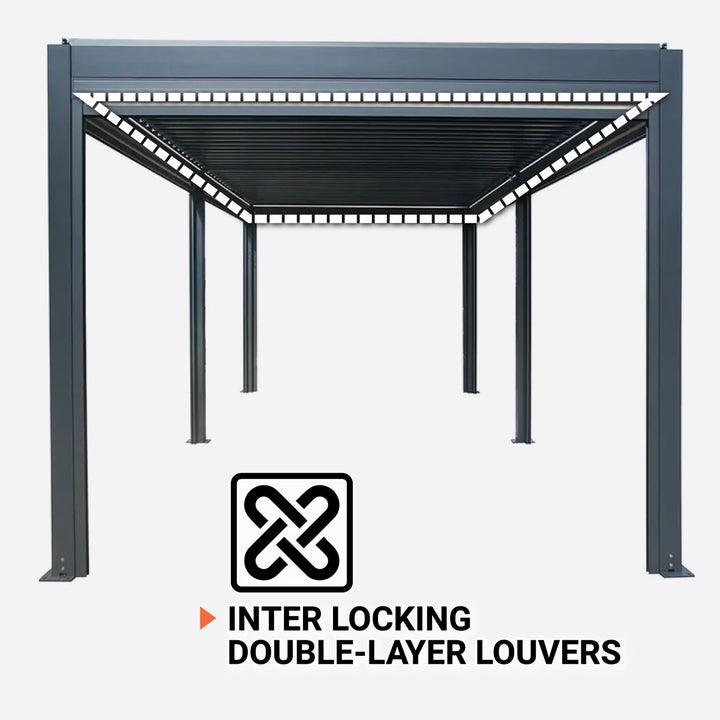

Interlocking and double-layer louver blades for strength, water resistance and insulation
Feature image

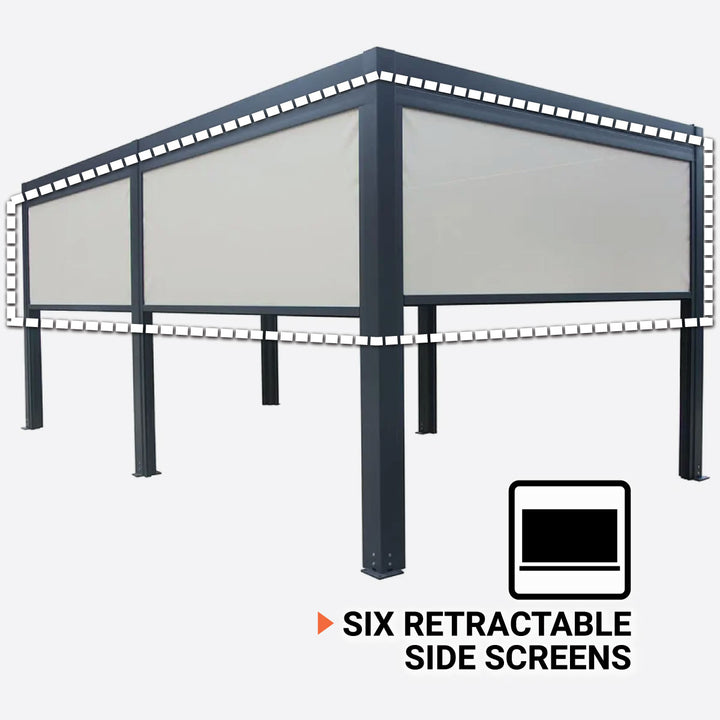

Six remoted controlled and retractable side screens UV coating provides shading
Feature image

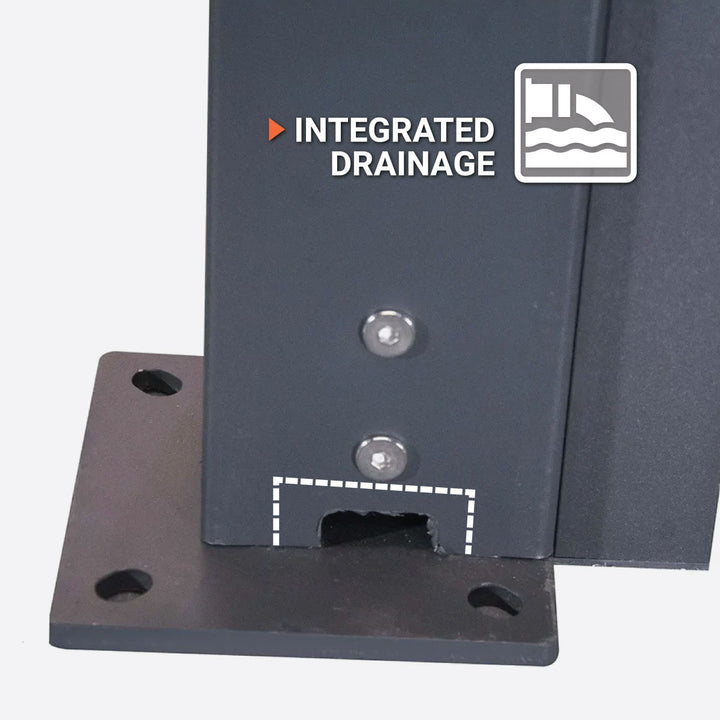

Integrated drainage system with built-in gutters inside support columns
Feature image

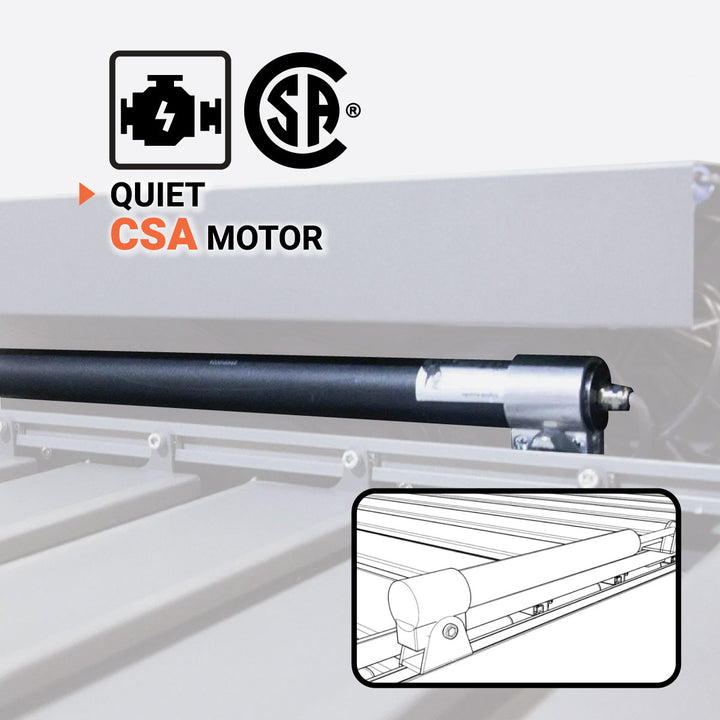

Quiet CSA certified electric motor with low-noise cylinder and IP67 water-proof rating
Feature image

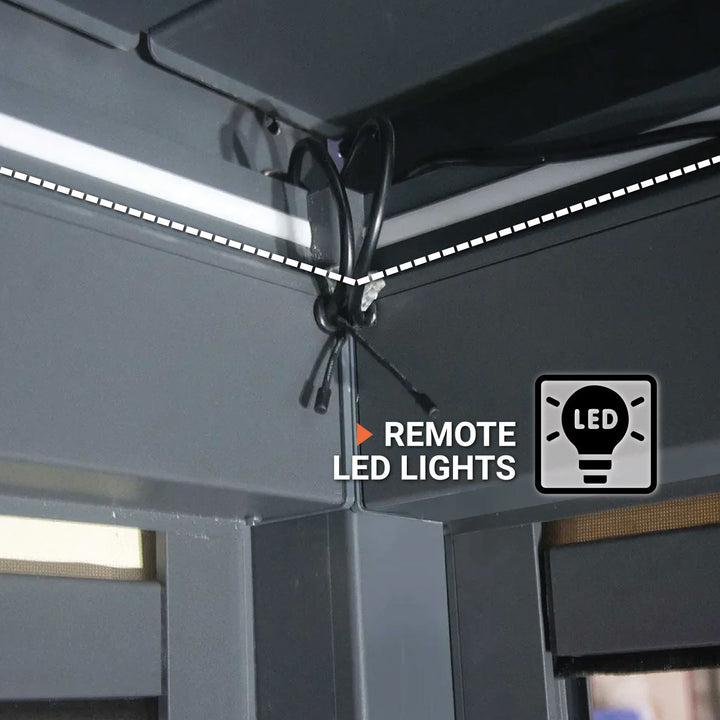

Remote controlled and hidden LED lights inside the beams for glare-free lighting

Specifications

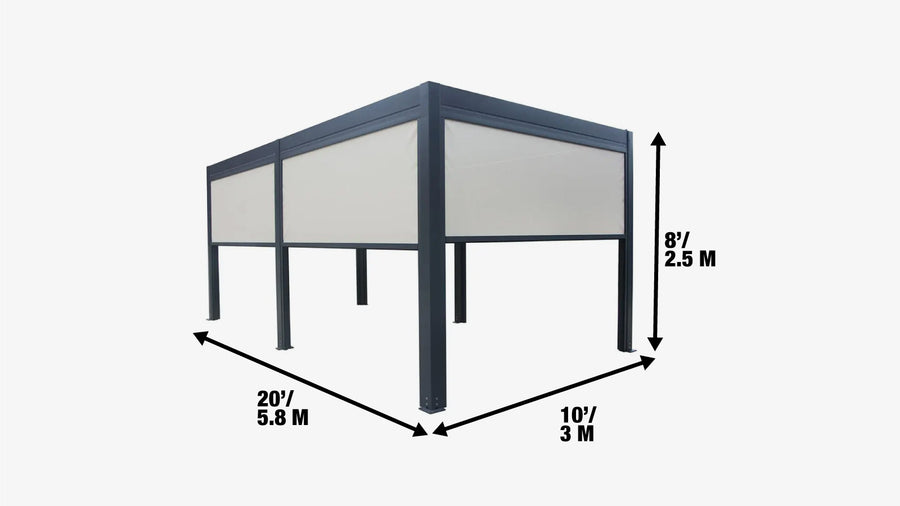

  • Overall Size: 10' × 20' × 8' (L × W × H) (3 × 5.8 × 2.5 m)
  • Electric Motor: 120V AC, 60 Hz, CSA certified
  • Column Profile: 4.3" × 4.3", 15 GA (110 × 110 × 1.5 mm)
  • Crossbeam Profile: 5.9" × 3.2", 15 GA (150 × 80 × 1.5 mm)
  • Under Crossbeam Height: 93"
  • Louver Blades: 6" × 1.65", 15 GA (150 × 42 × 1.5 mm)
  • Number of Louver Blades: 41
  • Louver Blade Maximum Rotation: 100°
  • Drainage Channels: 6" × 3.2", 15 GA (150 × 82 × 1.5 mm)
  • Retractable Side Screens (L × H): 108" × 93" (2.7 × 2.36 m)
  • Number of Side Screens: 6
  • Side Screen Material: Eco-friendly polyester with PVC coating
  • Colour: Charcoal Grey
  • Light Transmittance: 5%
  • Wind Resistance: Grade 5
  • Assembling Hardware: Stainless steel
  • Product Weight: 1,330 lb (605 kg)
10' × 20' (3 × 5.8 m) Aluminum Louver Roof Slatted Pergola with Motorized Retractable Side Screens, TMG-LPG21-PRO (Discontinued – No Longer Available)

Product Description

The TMG-LPG21-PRO transforms any outdoor space into a luxurious and functional retreat. At 10' × 20' (3 × 5.8 m), its powder-coated aluminum frame offers solid, corrosion-resistant construction that stays beautiful and durable in all seasons. Adjust the motorized louvers up to 100° using the included remote control to instantly customize sunlight, ventilation, or enjoy complete rain protection with a watertight seal.

Enhance comfort further with six retractable PVC mesh side screens that shield against wind, insects, and harmful UV rays. The hidden gutter and column drainage system keeps your space dry and inviting throughout the year. Built to withstand snow, strong winds, and daily use, the TMG LPG21-PRO is the ultimate upgrade for patios, decks, or any outdoor entertainment area.

Also available: TMG Industrial carries a smaller version of this motorized louver pergola: TMG-LPG11-PRO.

Shipping Information

The order will ship from one of our warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. Delivery typically takes 10 to 15 business days, depending on your location and how accessible the location is.

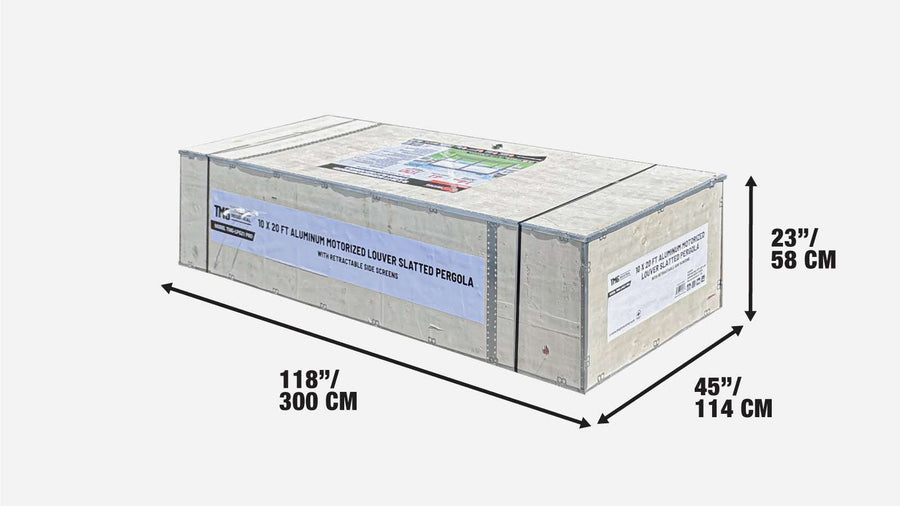

  • This product is packed in a wood crate shipping box
  • Shipping Dimension: 118" × 45" × 23" (L × W × H)
  • Shipping Weight: 1,450 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
10' × 20' (3 × 5.8 m) Aluminum Louver Roof Slatted Pergola with Motorized Retractable Side Screens, TMG-LPG21-PRO (Discontinued – No Longer Available)

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
