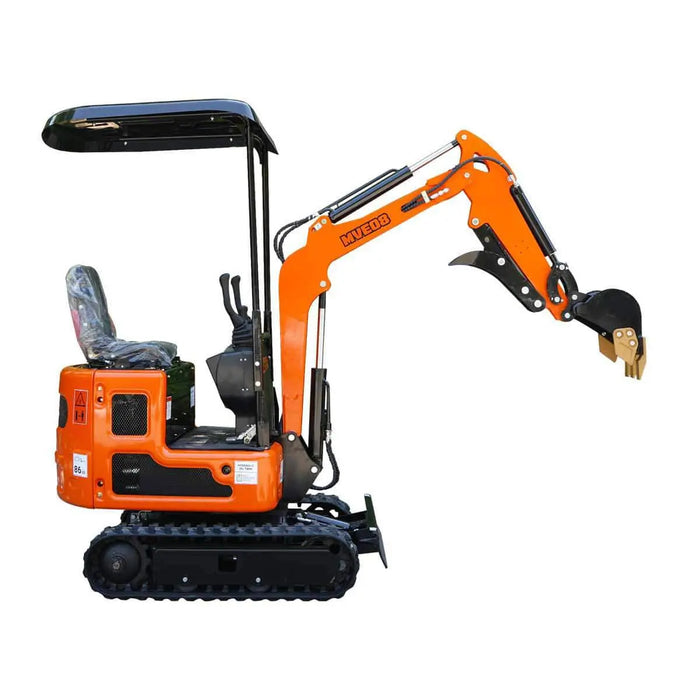

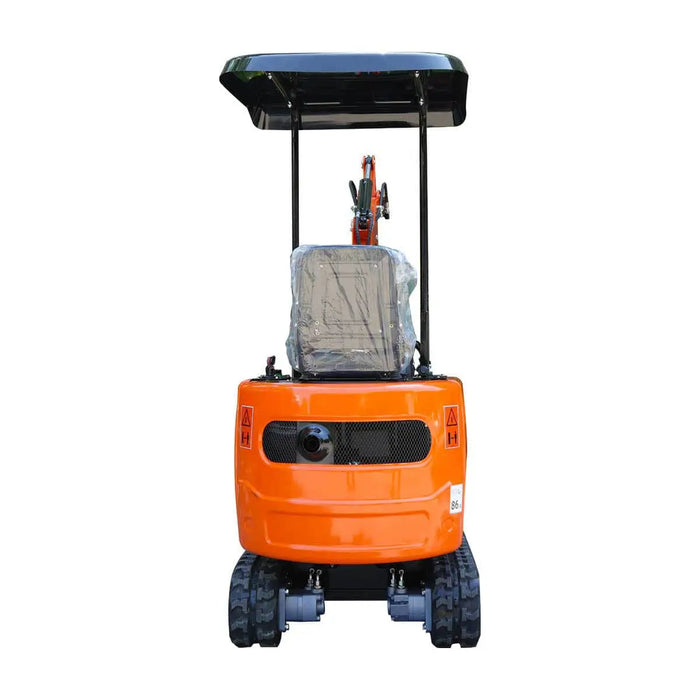

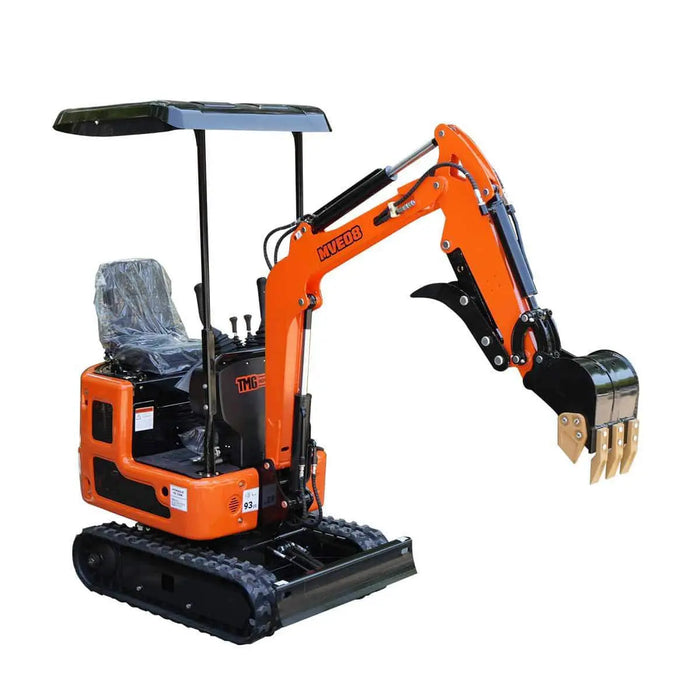

Compact Mini Excavator, 15 HP EPA Certification Engine, 61-½" Max. Digging Depth, 1900 Lb Operating Weight TMG-MVE08
- Powerful 15 HP air-cooled engine w/EPA certification
- Maximum digging depth of 61-½”
- Intuitive user control panel
- Reduced dead angles for enhanced worker safety
- Included dozer blade

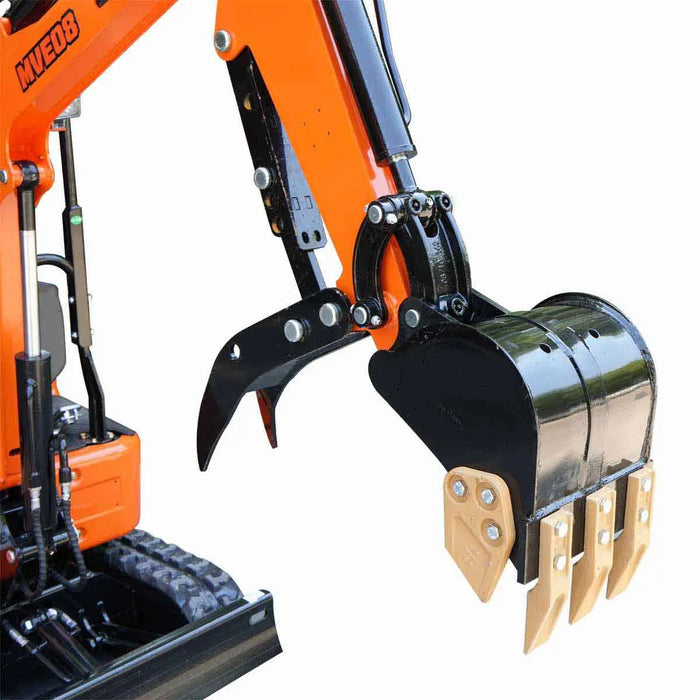

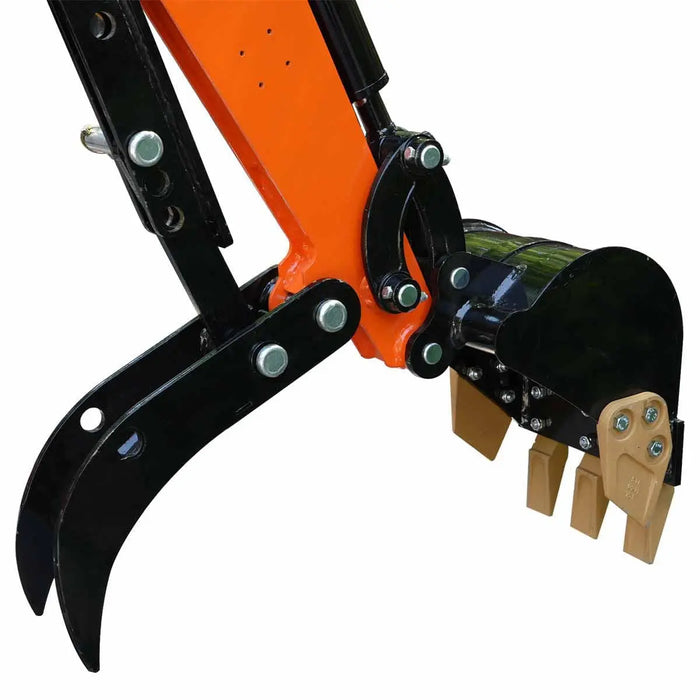

- Mechanical Thumb sold separately
- Powered by a reliable 15 HP air-cooled engine with EPA certification

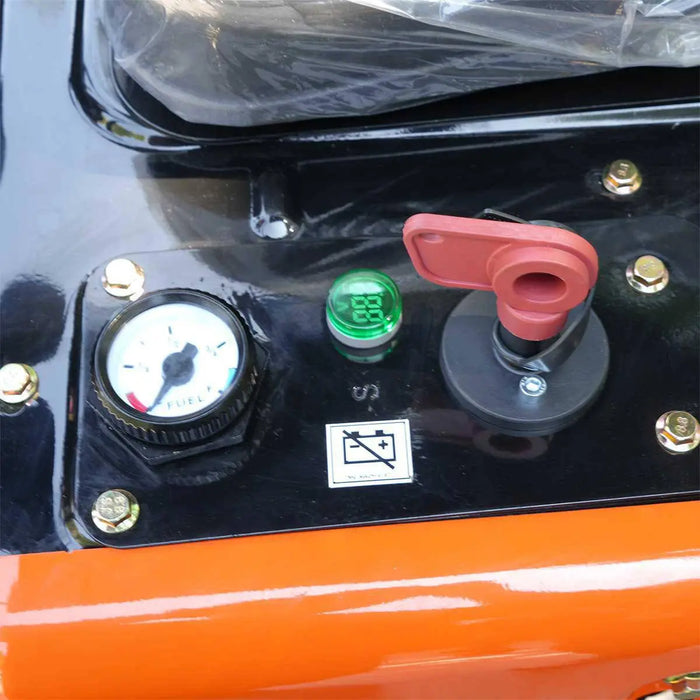

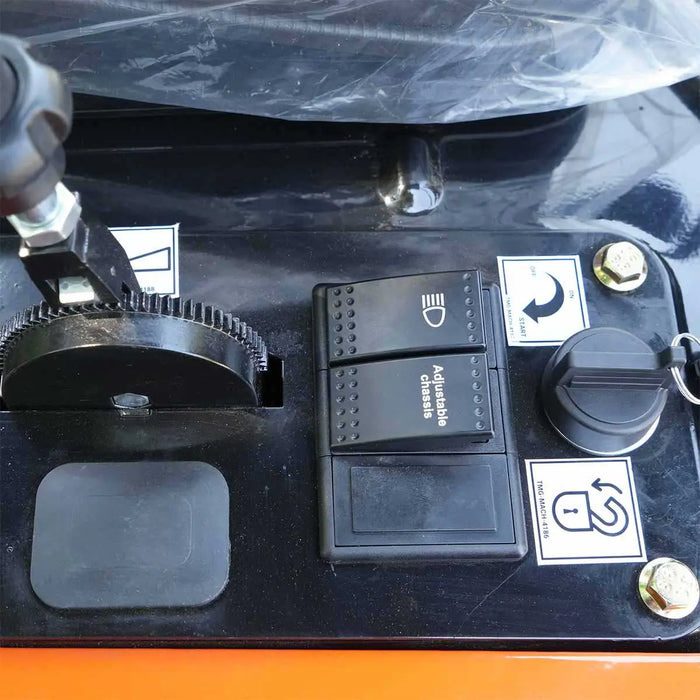

- Equipped with a convenient and simple-to-use operation panel; minimal training required
- Safety is prioritized with reduced dead angles to protect workers and prevent accidents
- Spacious operator area is ergonomically designed for maximum comfort

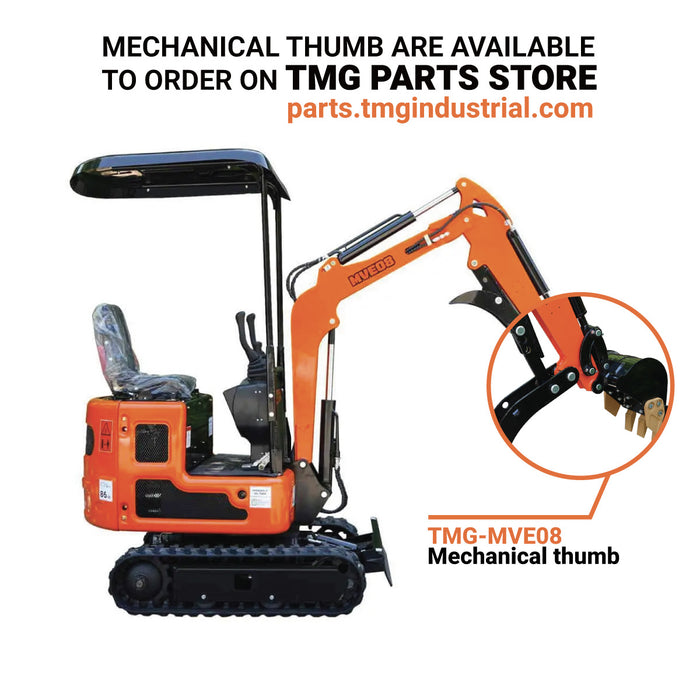

- Includes a standard dozer blade with the option for a mechanical thumb attachment
- Operating weight: 1900 lb
- Standard bucket capacity: 0.5 cu-ft
- Working device form: Backhoe
- Max. travel speed: 1.8 km/h
- Max. gradability: 30°
- Track ground pressure: 25.53 kpa
- Hydraulic oil tank capacity: 12.5 L
- Fuel tank capacity: 5.5 L
- Max. tractive force: 6.8 kN
- Product net weight: 1900 lb
- The name of the manufacturer of the hydraulic pump is Parker, with a flow rate of 21.6L/min.
- Max. digging depth: 61-½”
- Overall operating height(fully raised): 100”
- Max. digging radius: 114”
- Max. unloading height: 75”
- Min. turning radius: 61”
- Max. lifting height dozer blade: 6”
- Max. depth dozer blade: 6”
- Dipper boom digging force: 6.1 kN
- Bucket digging force: 9.2 kN
- Track length: 47”
- Upper chassis ground clearance: 15”
- Counterweight turning radius: 32”
- Chassis width: 36”
- Track width: 7”
- Track height: 12”
- Transportation length: 85”
- Height of seat to ground: 40-½”
- Overall height: 87”
- Single cylinder, air-cooled, 4-stroke, OHV
- Displacement: 420 cc
- Max. out power: 8.6kw/3600 RPM
- Start type: Electric start w/battery included
- Oil capacity: 1.16 US Qt (1.2 L)
- Engine oil type: 10W-30

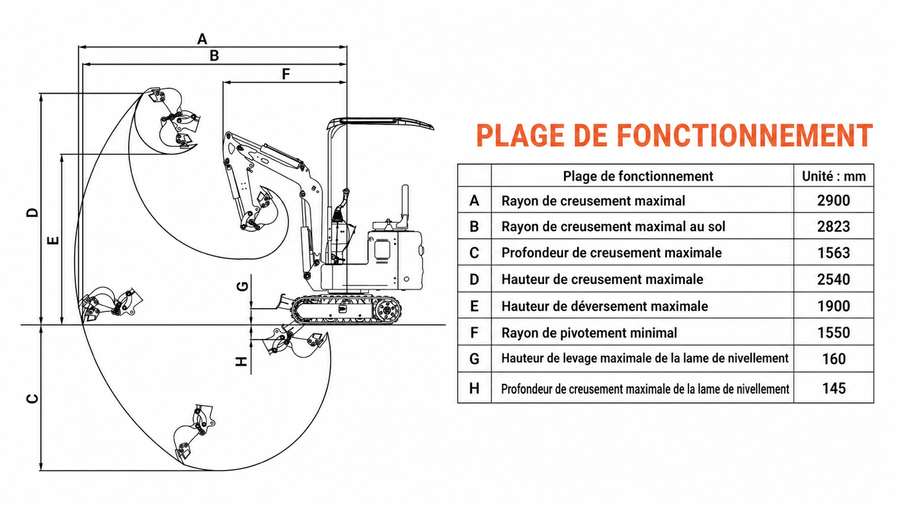

Operating Range
Main Dimensions
Engine
The order will ship from one of our main warehouses in North America. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

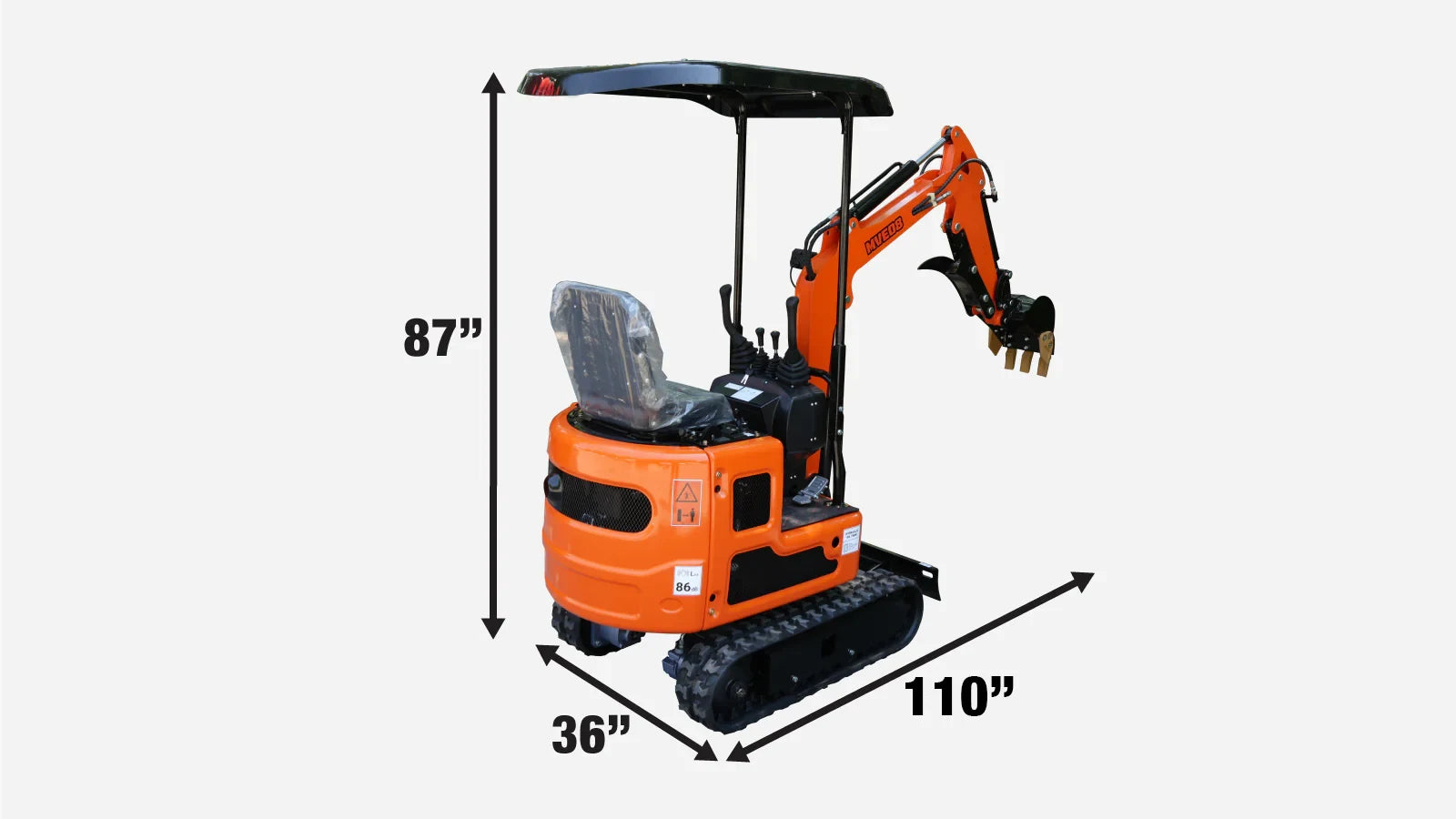

- Shipping dimension: 85” x 36” x 87” (L x W x H)
- Shipping weight: 1905 lb
The TMG-MVE08 Mini Compact Excavator is a heavy-duty powerhouse packed into a small, easy-to-use package. Featuring a 15 HP air-cooled engine with EPA certification, this excavator is designed for both flexibility and safety.
The user-friendly operation panel makes for a quick learning curve, and the spacious operator area enhances comfort for all users. With an operating weight of 1900 lb and a maximum digging depth of 61-½”, this backhoe-type excavator is perfect for tasks of all shapes and sizes.
Auxiliary hydraulics come standard, providing power for multiple attachments. The compact design ensures reduced dead angles, enhancing worker safety during operation. Ideal for tight spaces and versatile projects. Includes a dozer blade and optional mechanical thumb.
