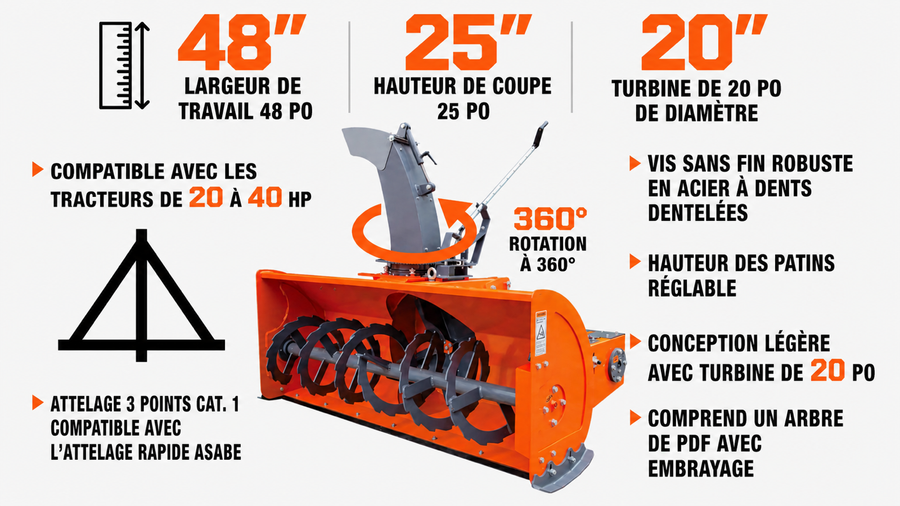

TMG Industrial 48” 3-Point Hitch Snow Blower, 20-40 HP, 20” Diameter Impeller, 360° Snow Chute, CAT 1 Suspension, TMG-TBS48
- 48” working width & Compatible w/20-40 HP tractors
- Rugged steel auger w/serrated teeth
- 20” diameter impeller & 360° snow chute
- CAT 1 suspension & ASABE quick hitch compatibility
- PTO drive shaft w/clutch protects gearbox from freezing damaged
- A rugged steel auger with serrated teeth effortlessly drills through snow of any kind, eliminating the need for laborious shoveling
- With CAT 1 suspension and ASABE AD730 quick hitch integration, this attachment can be easily attached and detached from your tractor
- Hardened snow shovel blades and boots ensure high level, long-lasting, and reliable use, reducing maintenance and replacement costs
- The adjustable skid shoe height allows you to match it to various road conditions for a cleaner finish while preventing damage to your equipment
- A rotatable snow chute, operable through hand crank handle from the driver's seat, to direct snow exactly where desired
- Its lightweight, 20” diameter impeller design outperforms traditional disk-shaped fans, making snow removal easier and more efficient
- A splined connection between the fan and gearbox offers a more reliable connection than traditional flat key connections; Includes one PTO drive shaft with clutch
- Overall width: 51”
- Cutting width: 48”
- Overall length: 43”
- Overall height: 60”
- Cutting height: 25”
- Number of blades on impeller: 4
- Impeller diameter: 20”
- Impeller housing depth: 8”
- Auger diameter: 16”
- Discharge chute diameter: 9”
- Chute rotation degrees: 360°
- Chute rotation: Hand crank from driver seat
- PTO input: 540 RPM
- Auger speed: 180 RPM
- Horsepower requirement: 20-40 HP
- Operating weight: 595 lb
- Adjustable chute deflector: Yes
- Adjustable skid shoes: Yes
- Replaceable cutting edge: Yes
- Hitch system: Quick hitch system (ASABE)
- 3 point hitch: CAT 1
The order will ship FREE from one of our main warehouses in Canada. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
- This product is packed in a metal crate shipping box
- Shipping dimension: 56” x 44” x 32” (L x W x H)
- Shipping weight: 850 lb
The TMG-TBS48 3-Point Hitch Snow Blower Attachment is your ultimate solution for conquering winter's heavy snowfalls with ease. This robust attachment has a 48” working width and is engineered to tackle any snow clearing job. It features a rugged steel auger with serrated teeth to effortlessly carve through snow, crush compacted layers, and eliminate slush. All done for you without even breaking a sweat.
This attachment is built with durability in mind, featuring hardened snow shovel blades and boots to ensure long-lasting and reliable performance. You can easily adjust the skid shoe height to match various road conditions, and the large 20” diameter impeller throws snow far away from the path you’re clearing. With its CAT 1 suspension and ASABE AD730 quick hitch compatibility, assembly and hookup is a breeze, saving you precious time to help get ahead of the storm.
The rotatable and adjustable snow chute offers dynamic snow discharge in any direction. Its lightweight impeller design outshines traditional disk-shaped fans, while the splined connection between the fan and gearbox offers best in class reliability. This blower is compatible with 20-40 HP tractors and has a PTO drive shaft with clutch that protects against freezing damage.
We also carry this snow blower in other sizes: TMG-TBS72, TMG-TBS84
