TMG 63" Hydraulic Rotating Excavator Grapple, 360 Degree Rotation, 10-18 Ton Excavators, Dual Moving Jaws Aller au contenu
CURRENTLY OUT OF STOCK
TMG-ERG63

63" Hydraulic Rotating Excavator Grapple, 360 Degree Rotation, 10-18 Ton Excavators, Dual Moving Jaws, TMG-ERG63

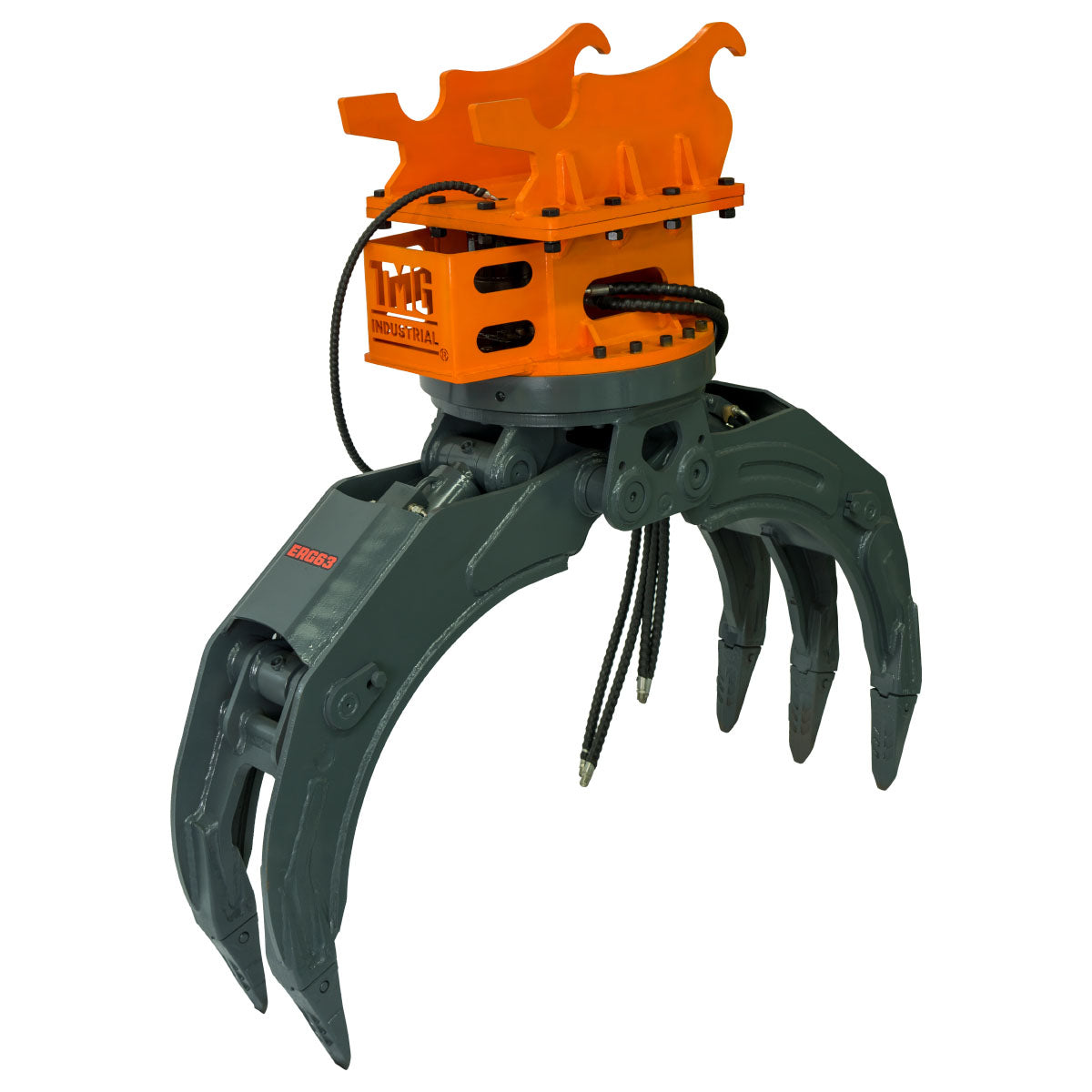

TMG-ERG63 63" hydraulic rotating excavator grapple with 360 degree rotation for 10-18 ton excavators - image 1
CURRENTLY OUT OF STOCK
SKU TMG-ERG63
$9,999.00 CAD - $9,999.00 CAD
$9,999.00 CAD
$9,999.00 CAD - $9,999.00 CAD
$9,999.00 CAD
$9,999.00 CAD

FREE

shipping to most locations in

Canada
Delivered in 10 to 15 business days Learn More
1-877-761-2819
Find Parts

Features

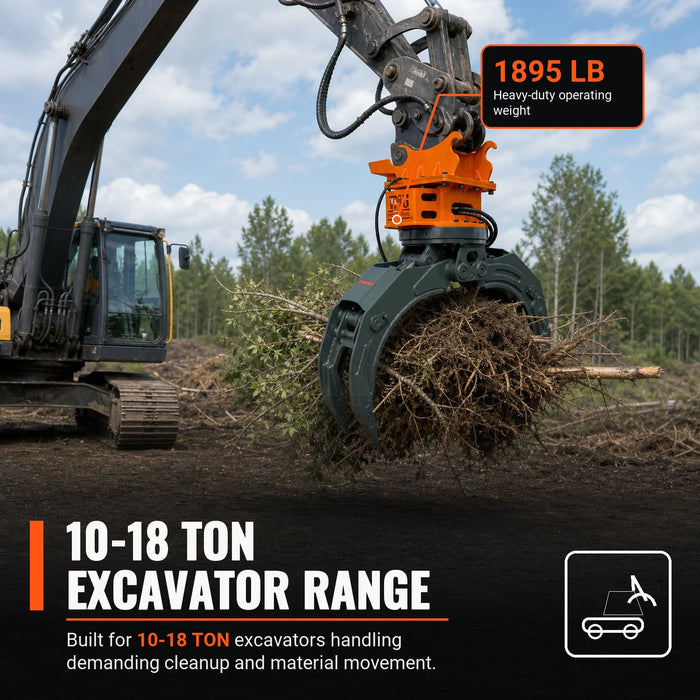

  • 10-18 Ton Excavator: Designed for mid-size excavators requiring stronger grapple control for demanding jobsite cleanup and material movement.
  • 63" Grapple Opening: Wide jaw opening gives operators greater capacity when grabbing larger material with steady, balanced clamping force.
  • Dual Jaw Closing: Dual moving jaws close evenly around material, providing more secure pickup than a one-arm static grapple design.
  • 360 Degree Rotation: Full rotation in both directions gives operators precise grapple positioning when loading, sorting and placing material.
  • Oversized Slewing Bearings: Oversized slewing bearings generate strong rotational torque for smoother turning under regular excavation and cleanup work.

Specifications

  • Excavator weight: 10-18 ton
  • Operating weight: 1895 lb (861 kg)
  • Opening length: 63" (1600 mm)
  • Rotation: 360 degrees in both directions
  • Teeth configuration: 3-tooth front / 2-tooth rear, dual-row
  • Working pressure: 1740-2610 PSI (12-18 MPa)
  • Working flow: 16-32 gal/min (60-120 L/min)

Product Description

The TMG-ERG63 Hydraulic Rotating Excavator Grapple is a heavy-duty attachment designed for controlled material handling, cleanup and sorting work. Built for 10-18 ton excavators, it gives operators a practical way to grab and position larger or irregular material around active jobsites.

The 63" jaw opening provides strong grabbing capacity, while the dual moving jaws close evenly around material for a more secure hold than one-arm static grapple designs. Full 360 degree rotation in both directions gives operators flexible positioning when loading, sorting and placing material.

Oversized slewing bearings generate strong rotational torque for smoother grapple movement under regular use. With a dual-row 3-tooth front and 2-tooth rear configuration and a rugged construction, the TMG-ERG63 is built for excavator operators who need reliable gripping performance in demanding work conditions.

Shipping Information

The order will ship from one of our main warehouses in Canada. Under normal circumstances, it will take 2 to 3 business days to process and ship your order. Delivery typically takes 10 to 15 business days, depending on your location and site accessibility.

  • This product is packed in a wood crate shipping box.
  • Shipping dimensions: 69" x 22" x 77" (L x W x H), 175x56x195 cm
  • Shipping weight: 2075 lb (941 kg)
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?

Warranty

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy
