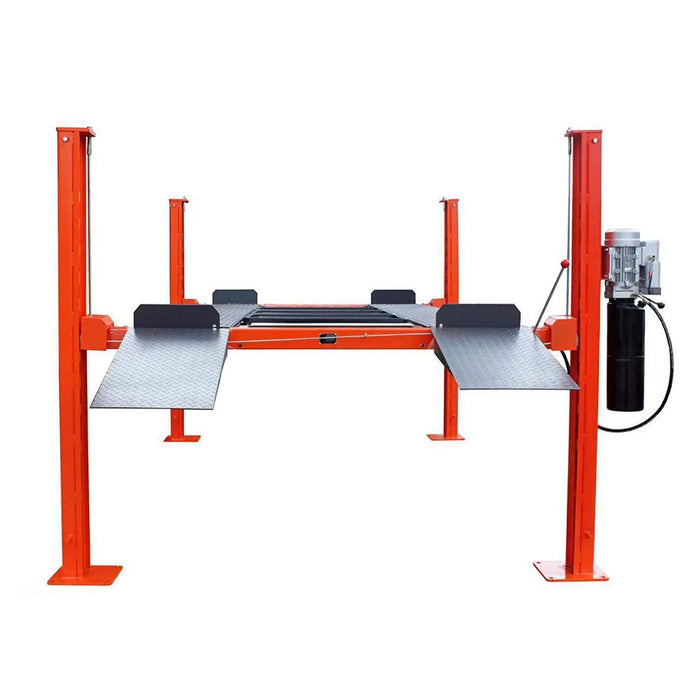

TMG Industrial 4-Post Auto Lift, capacité de levage de 9 000 lb, hauteur de 77 po, rampe amovible, bloc d'alimentation certifié CETL, TMG-ALF90

Original price $0.00 CAD - Original price $0.00 CAD
Original price $0.00 CAD
$5,499.00 CAD
$5,499.00 CAD - $5,499.00 CAD
Current price $5,499.00 CAD

Other financial option:

1874.0 lb
167 x 20 x 29 inches
More Shipping Info
  • For repairs, fluid changes, mechanics work & vehicle storage
  • 9000 lb lifting capacity & 77” max. lift height
  • Single hydraulic cylinder powered by 220 VAC motor for smooth lifting action
  • Lock ladder column design is one of the safest & most trusted on the market
  • Removable long approach ramps for low ground clearance vehicles


  • Great for classic car repairs, fluid checks/changes, commercial garages, home projects and increased vehicle storage space
  • 9000 lb lift capacity and 77” lift height easily handles most cars, trucks and SUVs for dynamic storage and work possibilities
  • Single hydraulic cylinder mounted underneath runway and powered by a 220 VAC, 3 HP, ETL Certified motor for smooth, steady lifting operation
  • Lock ladder column design allows you to easily adjust the height of each column; widely considered the safest column design on the market
  • Non-skid surface runway and anti-sway slider blocks in each column keep your vehicle in place during loading/unloading, work and storage
  • Durable, industrial strength construction and manual safety release keeps you in control of any lowering action and reduces the risk of accidents
  • Long approach ramps for low ground clearance vehicles that can be removed to further increase storage height underneath
  • Mobile caster system available (sold separately in TMG parts store)
TMG Industrial 4-Post Auto Lift, capacité de levage de 9 000 lb, hauteur de 77 po, rampe amovible, bloc d'alimentation certifié CETL, TMG-ALF90-description-image

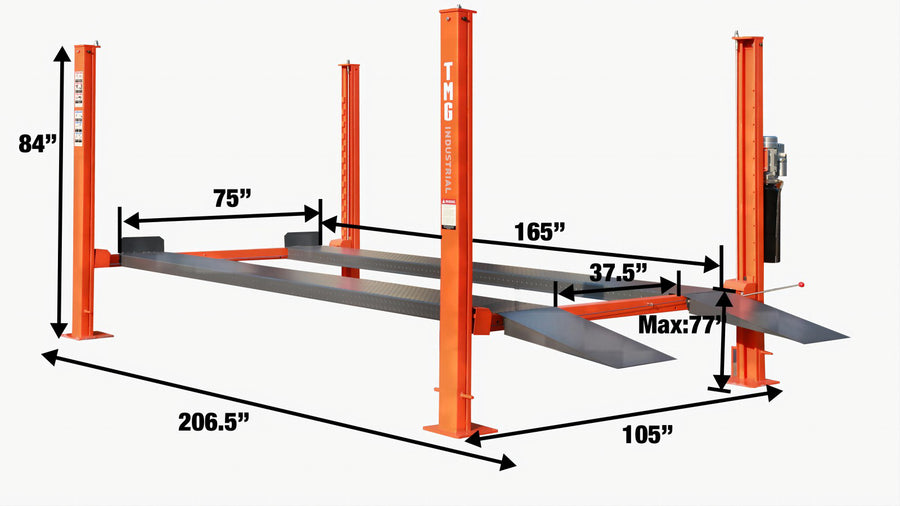

  • Max. lift capacity: 9,000 lb
  • Max lift height: 77"
  • Max lift clearance under runways: 73”
  • Overall length: 207" (with ramps), 175’’ (w/o ramps)
  • Outside column width: 105"(without motor), 117" (with motor)
  • Length clearance between columns: 160’’
  • Width clearance between columns: 92"
  • Column height: 84"
  • Column frame size: 6” x 2.75”
  • Column base: 12” x 12”
  • Column steel thickness: 8 gauge
  • Runway length: 165”
  • Runway width: 18.5”
  • Runway thickness: 2’’
  • Runway height on the ground: 4.5"
  • Width between runways(outside): 75"
  • Width between runways(inside): 37.5"
  • Runway thickness: ½’’
  • Steel cable diameter: 3/8“

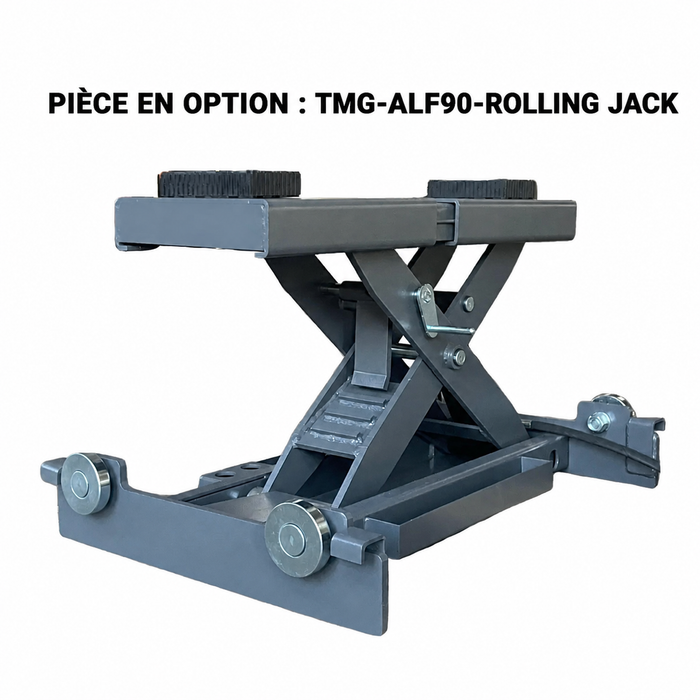

  • Optional parts: rolling jack
    • Width range: 690-1175mm, Max height: 455mm, including connector

Hydraulic Pump Power Unit:

  • 220VAC, 3HP, single phase
  • No-load speed: 3360 RPM
  • Working pressure: 2600 PSI
  • Tank capacity: 2.5 US gallons
  • Pump oil required: AW32/AW46
  • ETL certified for Canada and the USA
TMG Industrial 4-Post Auto Lift, capacité de levage de 9 000 lb, hauteur de 77 po, rampe amovible, bloc d'alimentation certifié CETL, TMG-ALF90-specifications-image

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

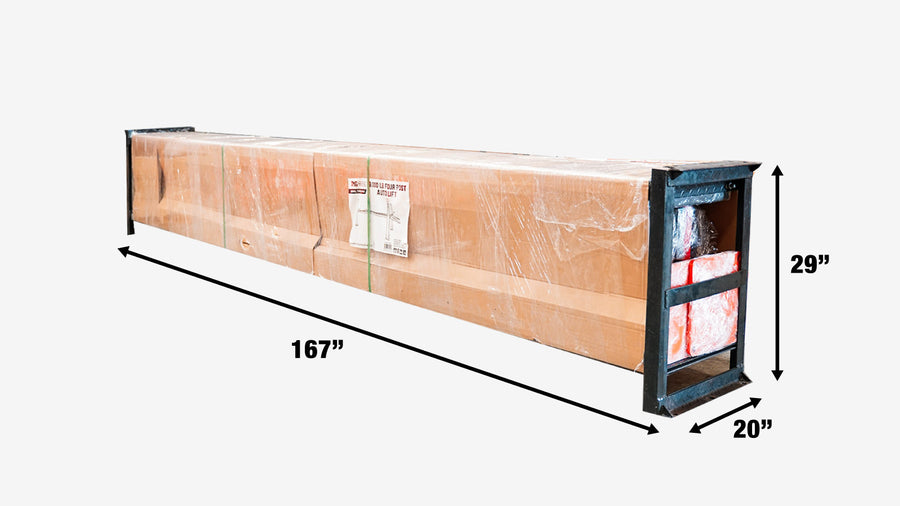

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 167” x 20” x 29” (L x W x H)
  • Shipping weight: 1700 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
TMG Industrial 4-Post Auto Lift, capacité de levage de 9 000 lb, hauteur de 77 po, rampe amovible, bloc d'alimentation certifié CETL, TMG-ALF90-shipping-info-image

Product Description

L'élévateur automatique à 4 montants TMG-ALF90 est un excellent choix pour les garages personnels, les petits magasins ou les départements d'entretien automobile général. Avec une capacité de levage de 9 000 lb et une hauteur de levage de 77 po, vous pouvez facilement soulever la plupart des voitures, camions et VUS pour en installer un autre en dessous ou pour des travaux mécaniques de toutes sortes. Plusieurs éléments de sécurité ont été intégrés pour garantir une solution de travail et de stockage automobile sécurisée et fiable, robuste et conçue pour durer.

Cet élévateur est doté d'une conception de colonne d'échelle verrouillable qui vous permet de régler facilement la hauteur à l'intérieur de chaque colonne. C'est l'une des colonnes les plus sûres du marché et le même système auquel font confiance les concessionnaires automobiles professionnels et les grands centres de service automobile. Une piste de surface antidérapante et des blocs coulissants anti-balancement dans chaque colonne aident à maintenir votre véhicule en place pendant le chargement/déchargement, le travail et le stockage.

Un seul vérin hydraulique est monté sous la piste et est alimenté par un moteur de 220 VAC, 3 HP pour une opération de levage régulière et régulière. Cet élévateur est polyvalent et peut être utilisé dans n'importe quel magasin ou environnement domestique avec trois bacs d'égouttage inclus pour les vérifications, les changements et les réparations des fluides. Expédié gratuitement depuis notre entrepôt à Richmond, en Colombie-Britannique.


We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
