SKU TMG-PC90

Compacteur à plaque vibrante industriel TMG, capacité compacte de 3400 lb, moteur Loncin de 6,5 HP, TMG-PC90

Prix d'origine $0.00 CAD - Prix d'origine $0.00 CAD
Prix d'origine $0.00 CAD
$1,299.00 CAD
$1,299.00 CAD - $1,299.00 CAD
Prix actuel $1,299.00 CAD
CURRENTLY IN STOCK
FREE SHIPPING TO MOST LOCATIONS IN CANADA* Learn More
DELIVERED IN 10-15 BUSINESS DAYS

Other financial option:

220.0 lb
26 x 19 x 30 inches
More Shipping Info
  • Entry level model ideal for working in confined areas on lighter commercial and residential job sites, available at a price that makes the investment better than renting a similar machine

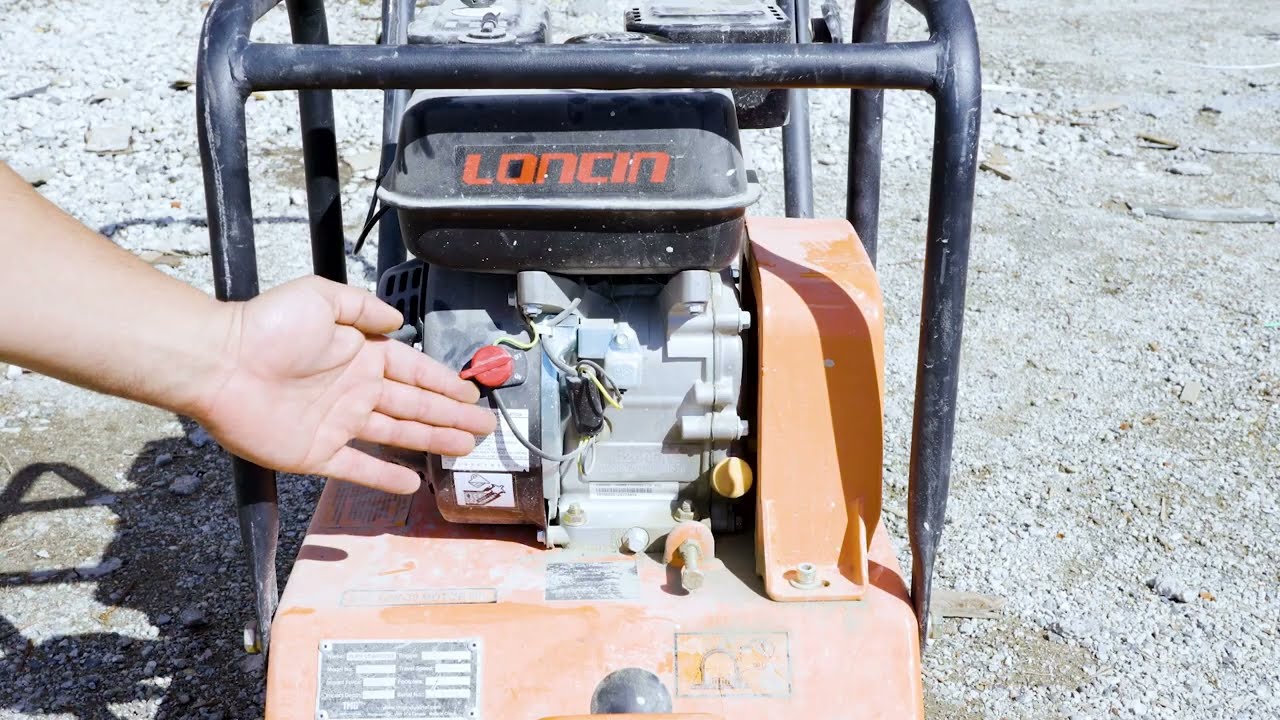

  • Powered by an air-cooled, single cylinder LONCIN G200F gas engine that can produce up to 6.5 HP at 3600 RPM
  • Can travel up to 72 ft/min (depending on hardness and depth of material) while compacting with a force of 3400 lbs at 4200 VPM, creating a total work capacity of up to 4320 square feet per hour
  • Belt driven exciter, sealed belt cover and centrifugal clutch assembly create a safe, durable and efficient transmission of power from the engine to the compactor
  • Self-cleaning, tapered bottom edge, 22" x 17" base plate design minimizes dirt and rock build-up
  • Rubber shock absorbers attached to the vibrating plate allow for increased accuracy around concrete forms, footings, gas lines and sewer pipes, as well as minimal wear and tear and sustained comfort for long-term, all-day use
  • Protective frame/cage surrounds engine and keeps the compactor safe and shielded from falling debris or other tools on the job site
  • Simple on/off switch and throttle lever controls are easy to use and can shut off the machine quickly in the case of an emergency
  • The vibratory motion provides a self propelling action allowing the operator to guide the machine smoothly along firmer surfaces
  • Wheel kit with two wheels included for smooth portability around the job site or loading/unloading onto or off of a trailer, also has a foldable handle assembly for easy transport and storage
  • Able to compact all types of granular soils, crushed aggregate, asphalt, paving stones, bricks and other materials up to 12” in depth
  • Environmentally friendly; low noise and low emissions, meets EPA standards
Product Manual

Features

  • Entry level model ideal for working in confined areas on lighter commercial and residential job sites, available at a price that makes the investment better than renting a similar machine
  • Powered by an air-cooled, single cylinder LONCIN G200F gas engine that can produce up to 6.5 HP at 3600 RPM
  • Can travel up to 72 ft/min (depending on hardness and depth of material) while compacting with a force of 3400 lbs at 4200 VPM, creating a total work capacity of up to 4320 square feet per hour
  • Belt driven exciter, sealed belt cover and centrifugal clutch assembly create a safe, durable and efficient transmission of power from the engine to the compactor
  • Self-cleaning, tapered bottom edge, 22" x 17" base plate design minimizes dirt and rock build-up
  • Rubber shock absorbers attached to the vibrating plate allow for increased accuracy around concrete forms, footings, gas lines and sewer pipes, as well as minimal wear and tear and sustained comfort for long-term, all-day use
  • Protective frame/cage surrounds engine and keeps the compactor safe and shielded from falling debris or other tools on the job site
  • Simple on/off switch and throttle lever controls are easy to use and can shut off the machine quickly in the case of an emergency
  • The vibratory motion provides a self propelling action allowing the operator to guide the machine smoothly along firmer surfaces
  • Wheel kit with two wheels included for smooth portability around the job site or loading/unloading onto or off of a trailer, also has a foldable handle assembly for easy transport and storage
  • Able to compact all types of granular soils, crushed aggregate, asphalt, paving stones, bricks and other materials up to 12” in depth
  • Environmentally friendly; low noise and low emissions, meets EPA standards
Compacteur à plaque vibrante industriel TMG, capacité compacte de 3400 lb, moteur Loncin de 6,5 HP, TMG-PC90-description-image

Specifications

  • Frequency: 4200 VPM
  • Compaction depth: 12”
  • Compaction force: 3400 lb
  • Work capacity: 6534 sq-ft/hr
  • Travel speed: 72’/min, varies with hardness and depth of material
  • Plate size: 22” x 17”
  • Operation weight: 195 lb

Engine Specifications:

  • 6.5 HP LONCIN G200F engine
  • Air-cooled 4 stroke OHV gasoline engine
  • Max power: 6.5 HP @ 3600 RPM
  • Max torque: 9.15 lb/ft @ 3600 RPM
  • Displacement: 196 cc
  • Air cleaner: Dual element
  • Cast iron cylinder sleeve
  • Fuel tank capacity: 3.8 US qt
  • Engine oil type: 10W-30
  • Emissions compliance: EPA
Compacteur à plaque vibrante industriel TMG, capacité compacte de 3400 lb, moteur Loncin de 6,5 HP, TMG-PC90-specifications-image

Shipping Information

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

  • This product is packed in a wood crate shipping box
  • Dimension: 26" x 19" x 30"
  • Shipping weight: 220 lb
Shipping from Richmond, BC, or Mississauga, ON
What happens after you place your order?
Compacteur à plaque vibrante industriel TMG, capacité compacte de 3400 lb, moteur Loncin de 6,5 HP, TMG-PC90-shipping-info-image

Product Description

Le compacteur à plaque vibrante TMG-PC90 est une centrale électrique capable de compacter les sols et les graviers pour les projets nécessitant des sols étroits et solides pour travailler et construire. Tous les types de matériaux bitumineux ou granulaires ne sont tout simplement pas à la hauteur des plus de 3400 lb de force produites par cette machine.

En tant que modèle d'entrée de gamme, c'est la solution idéale pour manœuvrer facilement autour des semelles, des coffrages, de la construction de bâtiments, des conduites de gaz, des égouts, des fossés de drainage et de toute autre zone confinée. Avoir ce produit à portée de main garantit que vous n'aurez plus jamais à louer et que vous serez toujours prêt sur votre chantier résidentiel ou commercial léger.

Propulsé par un moteur à essence monocylindre LONCIN G200F refroidi par air pouvant produire jusqu'à 6,5 CV à 3 600 tr/min. Ce moteur dispose également d'une alerte d'huile automatique spéciale qui l'arrête de fonctionner et avertit l'utilisateur lorsque l'huile tombe en dessous d'un certain niveau. Cela signifie une protection intégrée et un moteur durable malgré le travail difficile que vous exigerez de cette machine. Le mouvement vibratoire fournit une action autopropulsée qui peut couvrir jusqu'à 4320 pieds carrés par heure selon le matériau de surface, et la plaque vibrante de 22 "x 17" a des amortisseurs en caoutchouc intégrés pour une précision et un confort soutenu. Le TMG-PC90 travaille dur comme vous et n'arrêtera pas tant que le travail n'est pas terminé.

Pour les artisans et les ouvriers qualifiés, le démarreur à rappel, le levier d'accélérateur, l'interrupteur marche/arrêt, le kit de roues et l'ensemble de poignée pliable rendent ce compacteur facile à apprendre, à utiliser, à transporter et à ranger. Une cage de protection entoure tous les composants vitaux du compacteur, et sa conception industrielle robuste globale est solide et durable. Il est respectueux de l'environnement et répond aux normes d'émission de l'EPA, vous pouvez donc être sûr que vous recevez un produit moderne et efficace qui utilise moins d'énergie pour faire plus de travail.

Warranty

We're here to support you. This product is backed with our 1-year manufacturer warranty. Customer support and spare parts are offered from our headquarters located in Richmond, BC.
