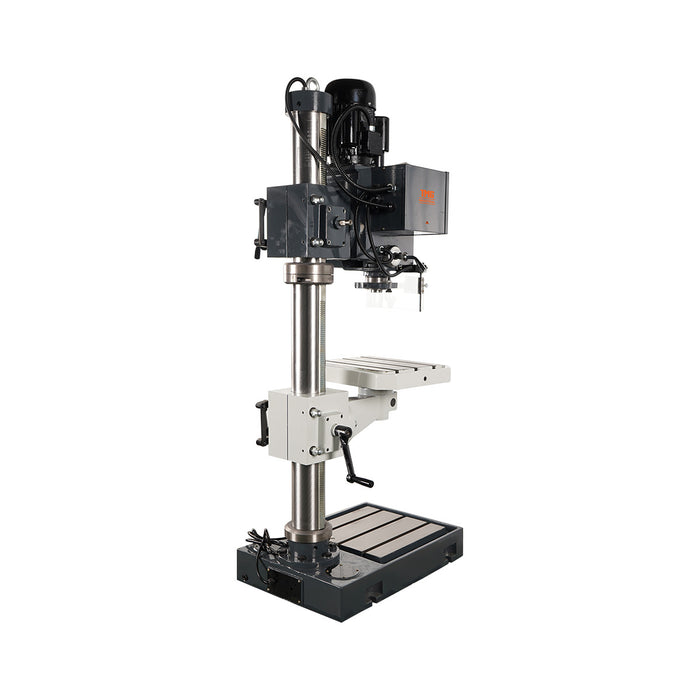

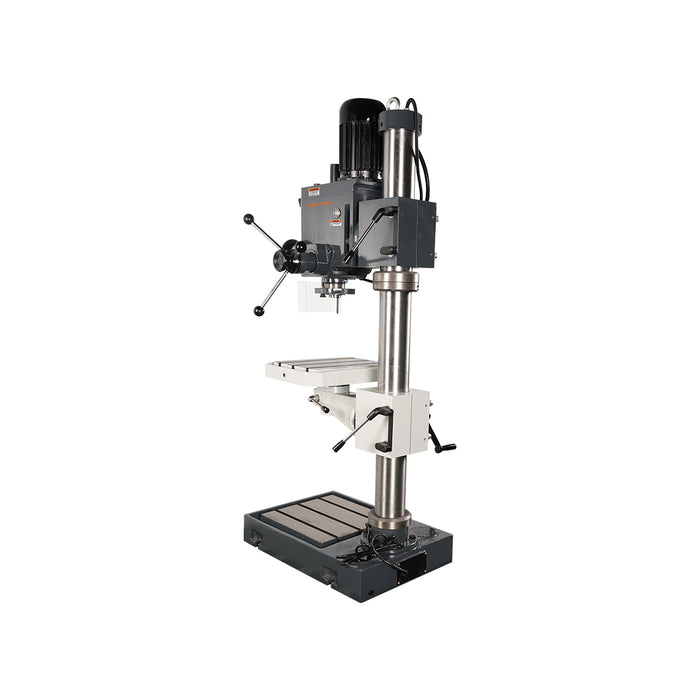

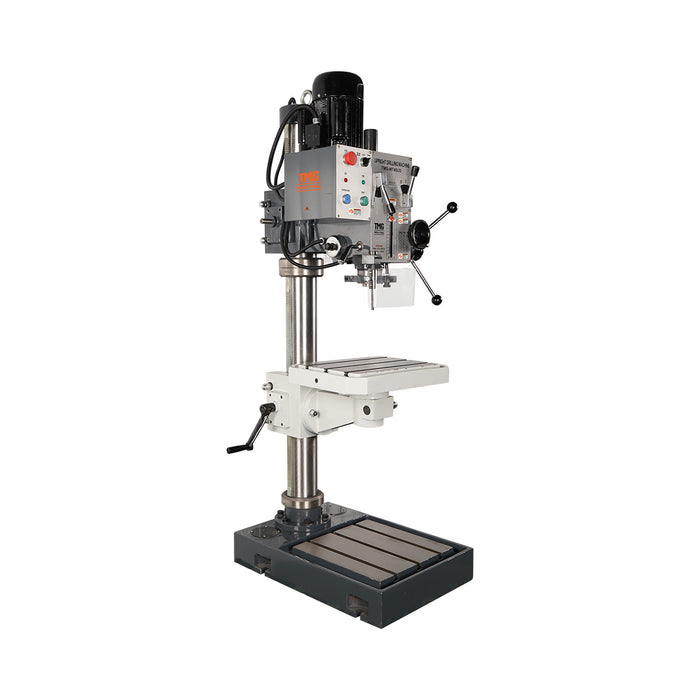

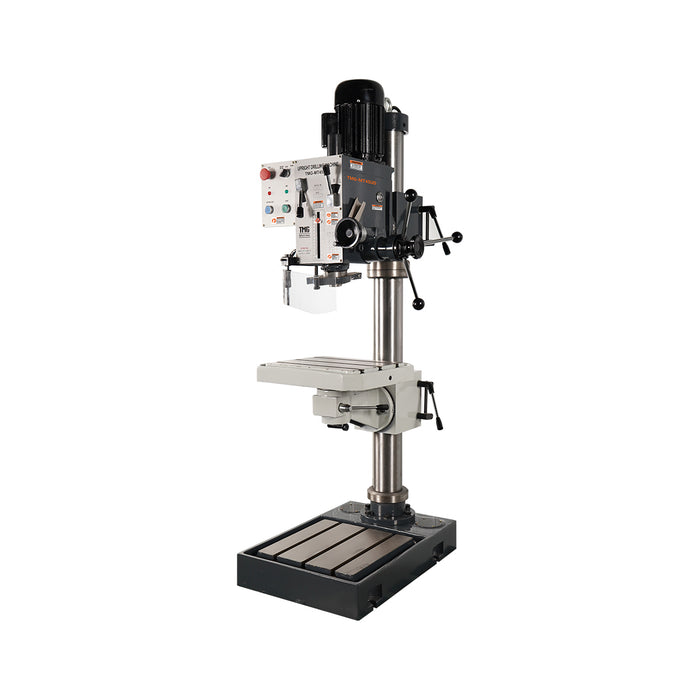

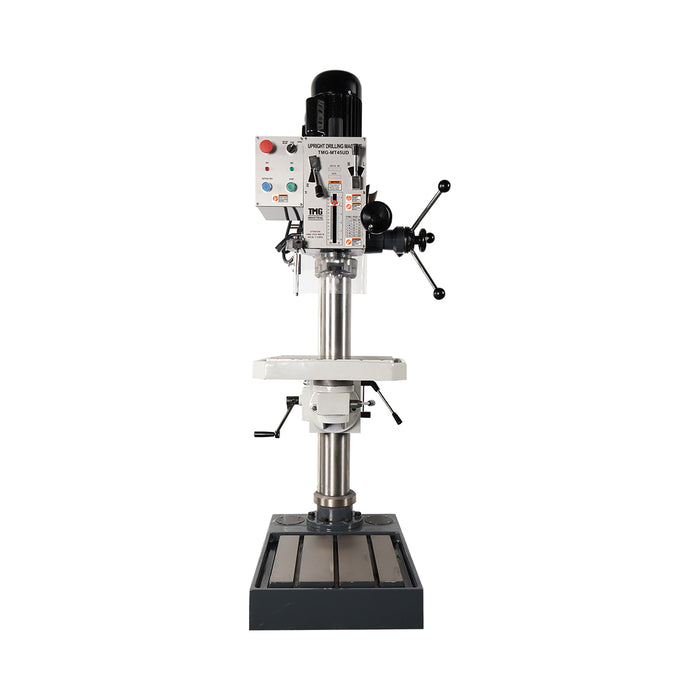

15" × 12" Drilling Tapping Milling Machine, 2 HP Motor 220V, Extra-Tall Column, 360° Swivel Head with ±90° Tilt, TMG-MT45UD
FREE
shipping to most locations in
Canada
Learn More
Features
Features
- Versatile 3-in-1 Functionality: This robust machine supports drilling, tapping, and light-duty milling applications in a single, space-saving platform.
- 360° Horizontal Swivel Head: The spindle head offers full 360° horizontal rotation and ±90° vertical tilting, facilitating angled drilling and complex machining operations.
- Vertical Travel of Headstock and Table: Both the headstock and the worktable can be independently adjusted up and down for superior height and operational flexibility.

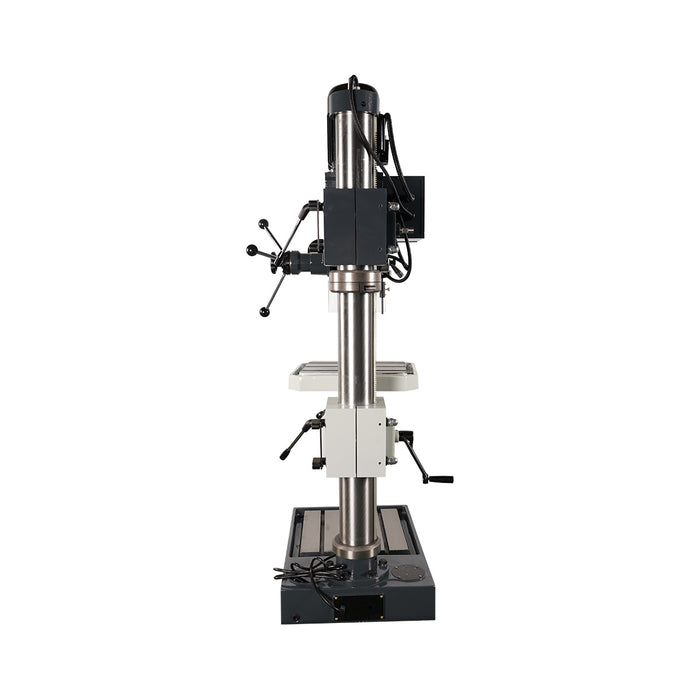

- Spindle-to-Table Clearance: The extra-tall column design accommodates large workpieces, delivering a maximum spindle nose to worktable distance of 28.5".

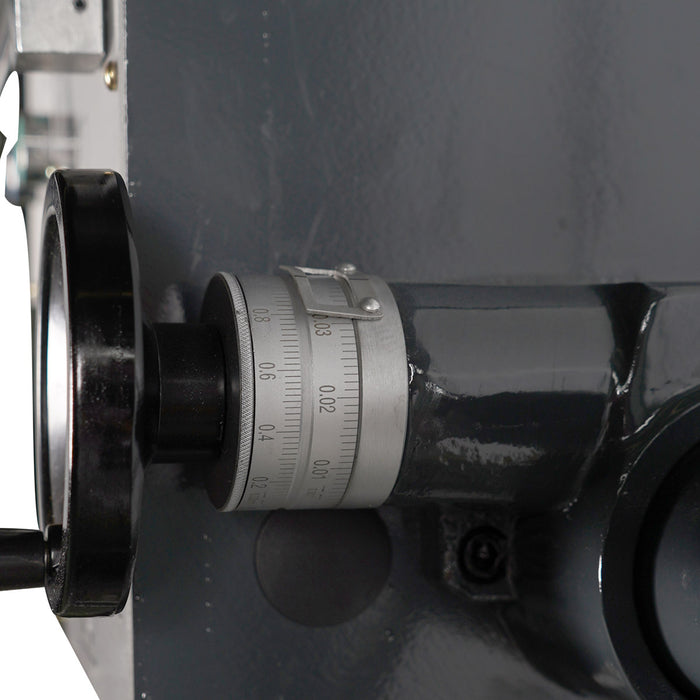

- Precise Feed and Spindle Control: Features a micro feed mechanism for smooth, controlled spindle advancement, along with a secure mechanism for lockable spindle positioning.
- Convenient Tool Changes: Equipped with an automatic ejector for fast, convenient tool changes, complementing the M.T.4 spindle taper and 6 available spindle speeds.

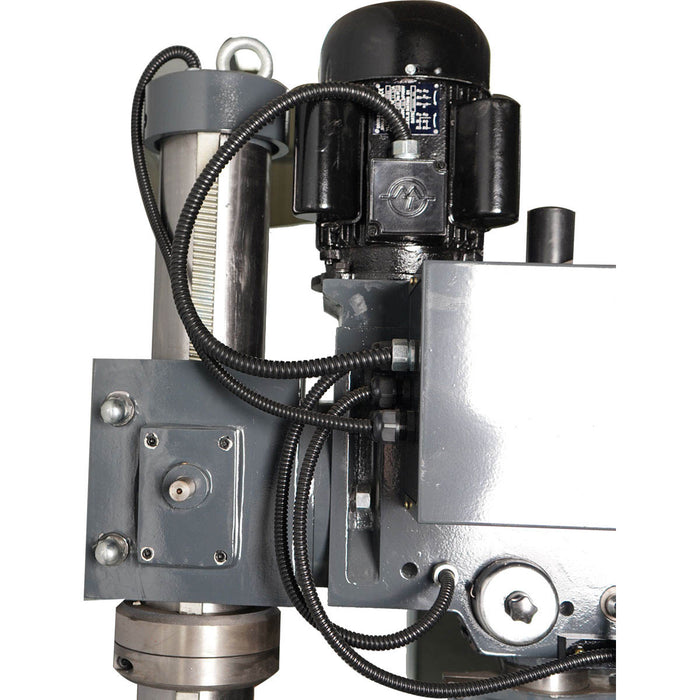

- Quiet Gear Drive: The industrial-grade gear transmission provides reliable power and speed while maintaining reduced noise levels for comfortable operation.
Specifications
Specifications

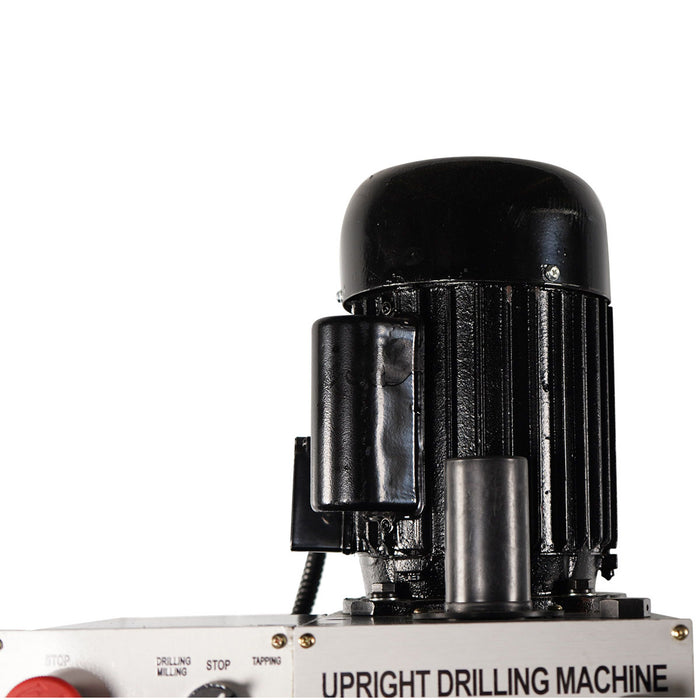

- Motor power: 2 HP (1.5 kW)
- Voltage / Frequency / Phase: 220V / 60 Hz / Single phase
- Motor speed: 1400 RPM
- Max. drilling capacity: 1-3/4" (45 mm)
- Spindle taper: M.T.4
- Spindle travel (quill): 5.12" (130 mm)

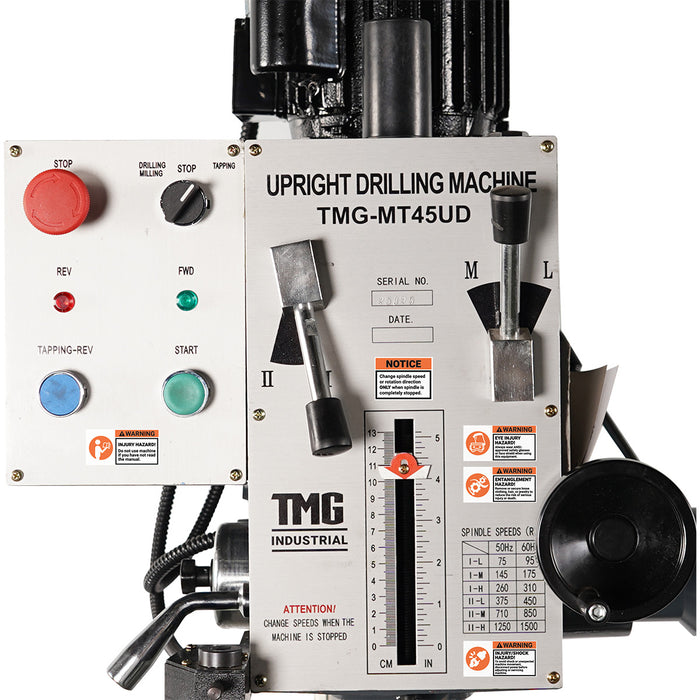

- Spindle speed steps: 6
- Spindle speed range @60Hz: 95–1500 RPM
- Min. spindle axis to column: 11.14" (283 mm)
- Max. spindle nose to worktable: 28.54" (725 mm)
- Max. spindle nose to base table: 44.29" (1125 mm)
- Max. headstock travel: 9.84" (250 mm)

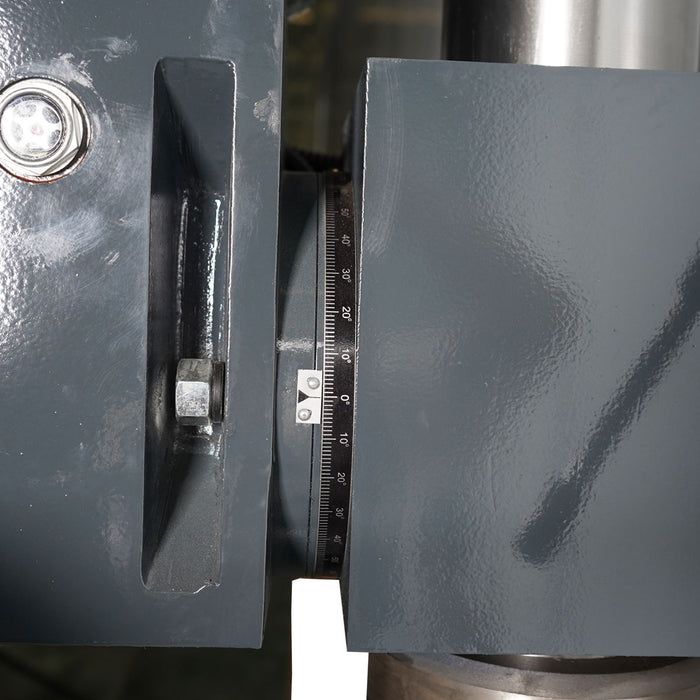

- Headstock swivel (H/V): 360° / ±90°
- Max. worktable bracket travel: 23.62" (600 mm)
- Worktable size (overall): 18" x 15" (460 x 380 mm)
- Effective worktable area: 15" x 12" (380 x 300 mm)
- Worktable swivel angle: 360°
- Worktable tilt angle: ±45°

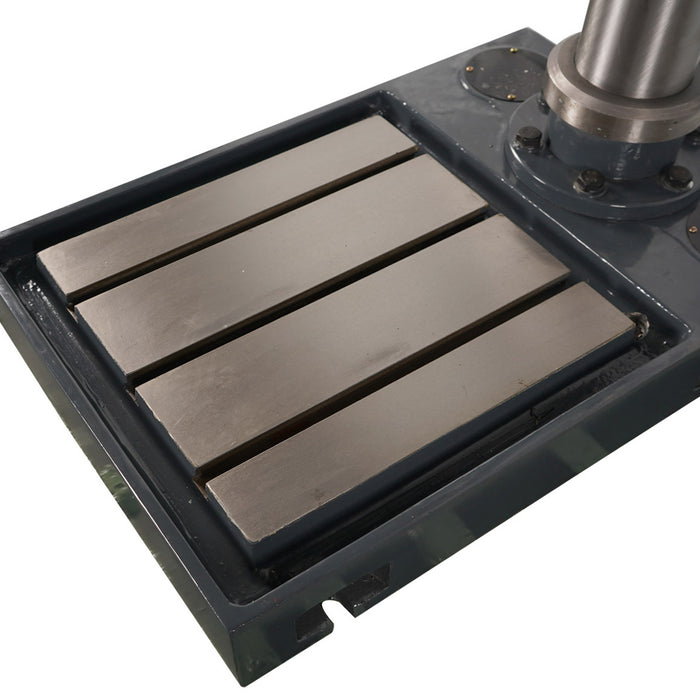

- Base table size: 29" x 20" (730 x 500 mm)
- Effective base table area: 16.5" x 16.5" (417 x 416 mm)
- Net weight: 960 lb (435 kg)
Included Accessories:
- Tie rod
- Allen wrenches
- Automatic tool ejector
Optional Accessories (sold separately):
- Drill chuck
- End mill holder
- Mill chuck
- Power feed attachment
- Auto-tapping electrical unit
- Parallel vise
- Working lamp
- Cooling system
- Machine stand & chip tray
- Clamping kits
- Rotary table
- Digital readout (2-axis or 3-axis)
Shipping Information
Shipping Information
The order will be shipped from one of our main warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

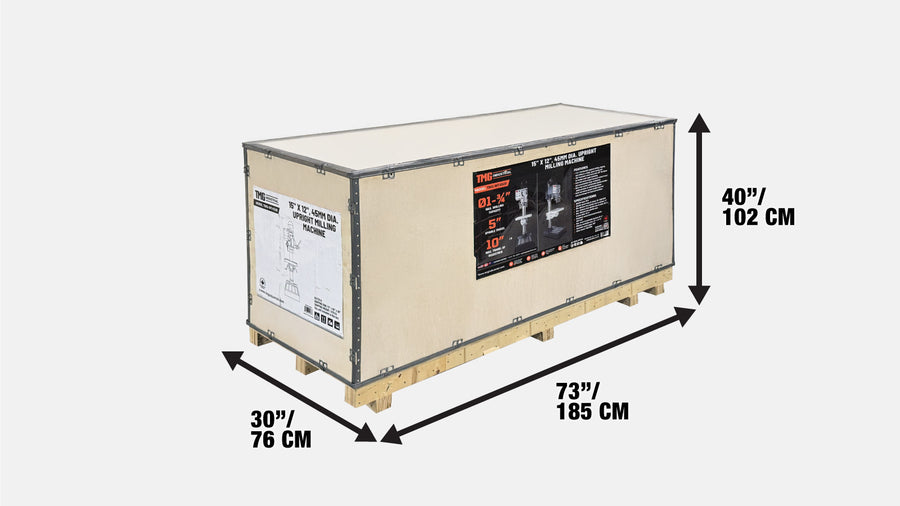

- This product is packed in a wood crate shipping box
- Shipping dimension: 73" x 30" x 40" (L x W x H)
- Shipping weight: 1070 lb
Product Description
Product Description
The TMG-MT45UD Upright Milling & Drilling Machine is a heavy-duty tool engineered for precise drilling, tapping, and milling in professional workshops, maintenance departments, and light manufacturing environments. With a 2 HP motor and a robust gear-driven transmission, this machine offers dependable power and reduced noise for comfortable, all-day operation.
Its 360° horizontal swivel head features ±90° vertical tilt, allowing for complex multi-angle operations, while the micro feed control ensures precise tool advancement for delicate machining tasks. The independent vertical travel of both the headstock and worktable provides unmatched flexibility when working with oversized or irregularly shaped parts.
With an ultra-high column, quick tool release, and a wide worktable with multiple adjustments, the TMG-MT45UD supports a broad range of fabrication tasks. It’s a smart investment for any shop looking to boost capability, accuracy, and production efficiency.
