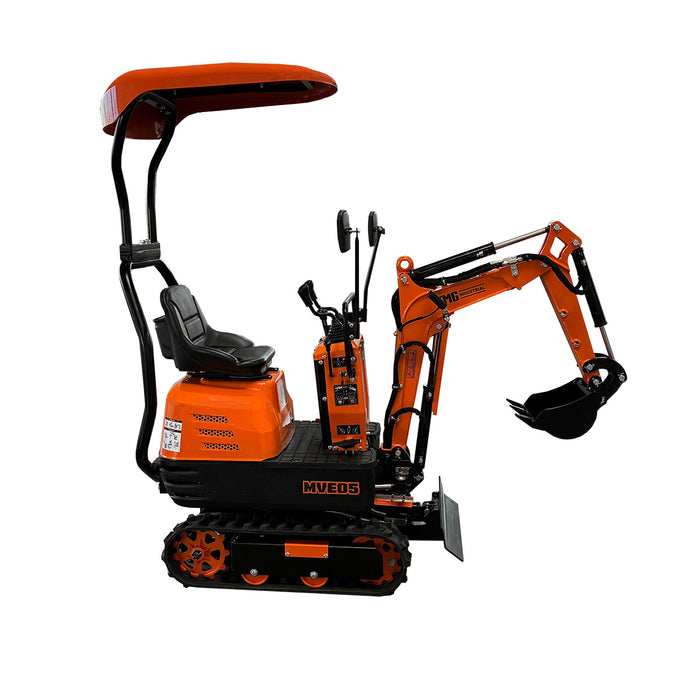

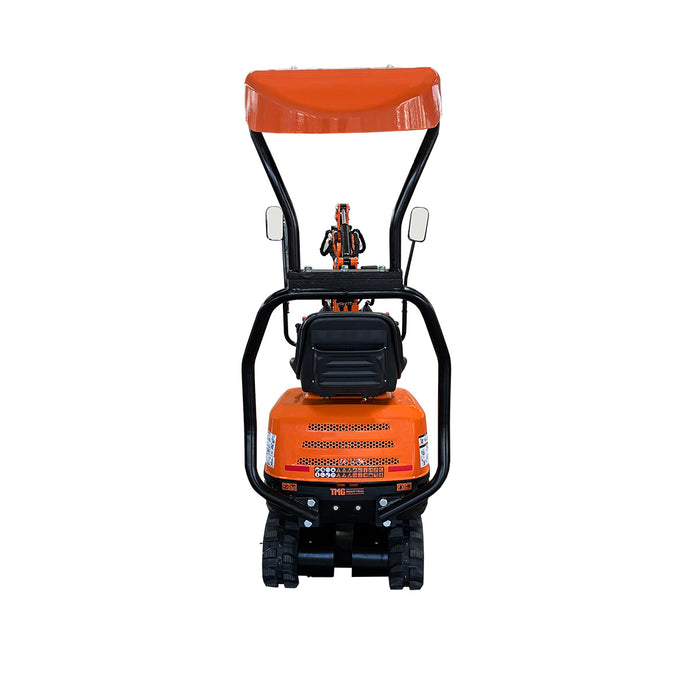

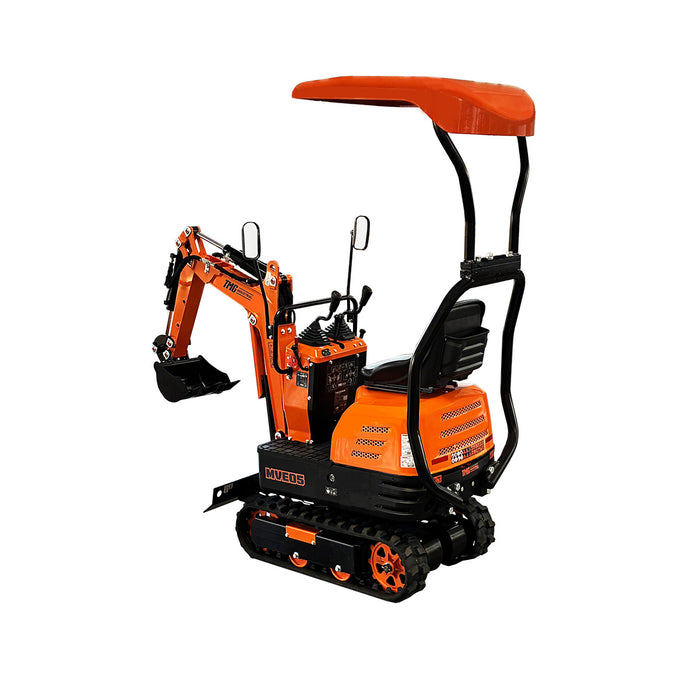

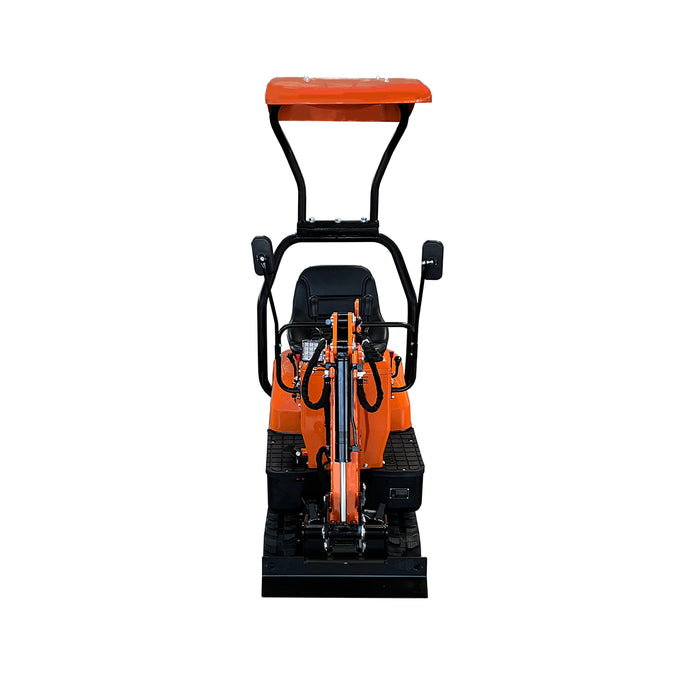

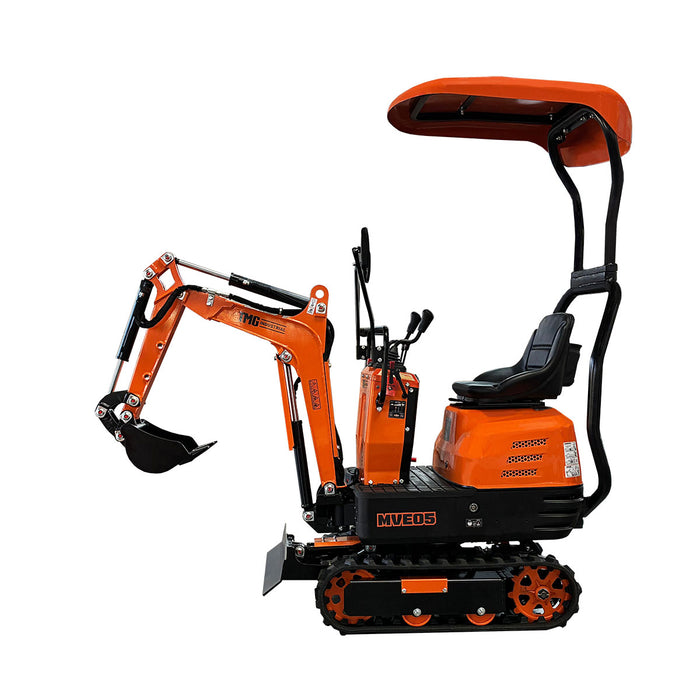

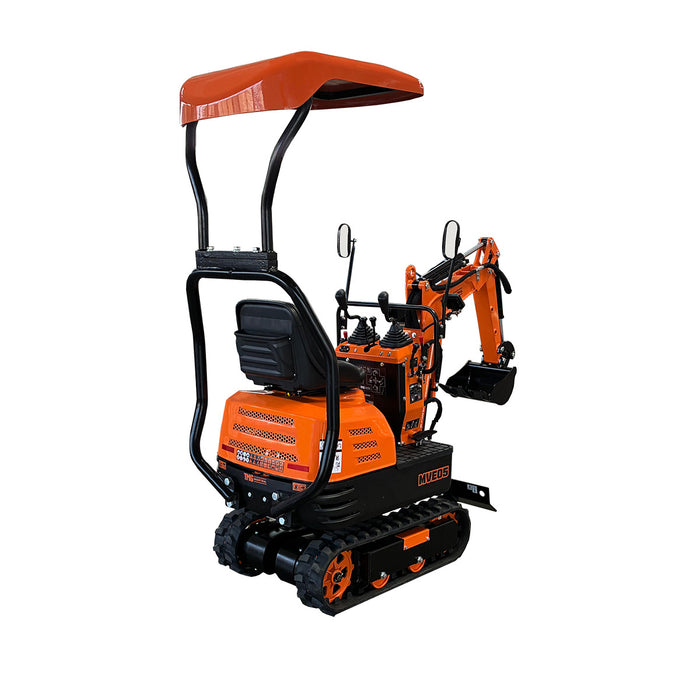

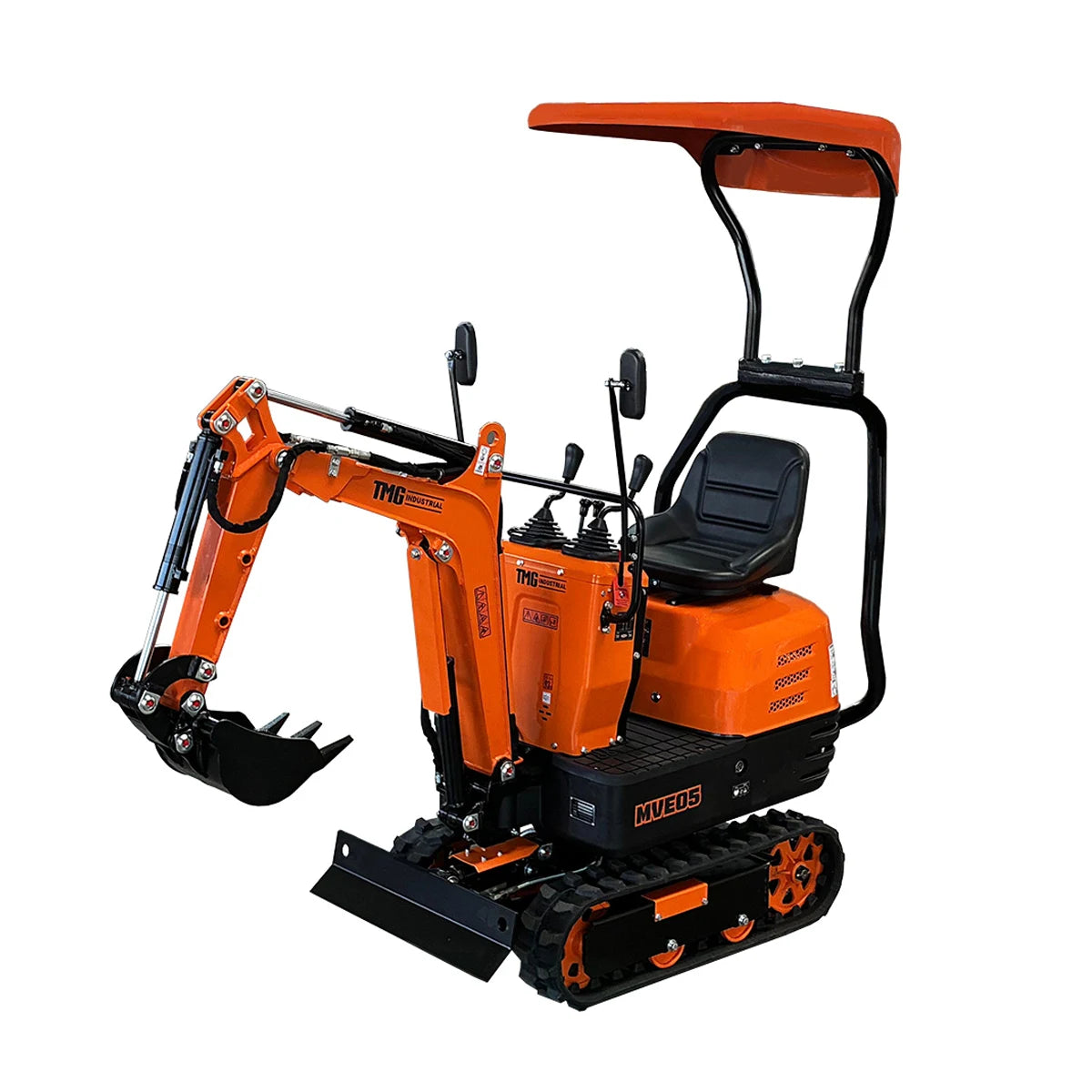

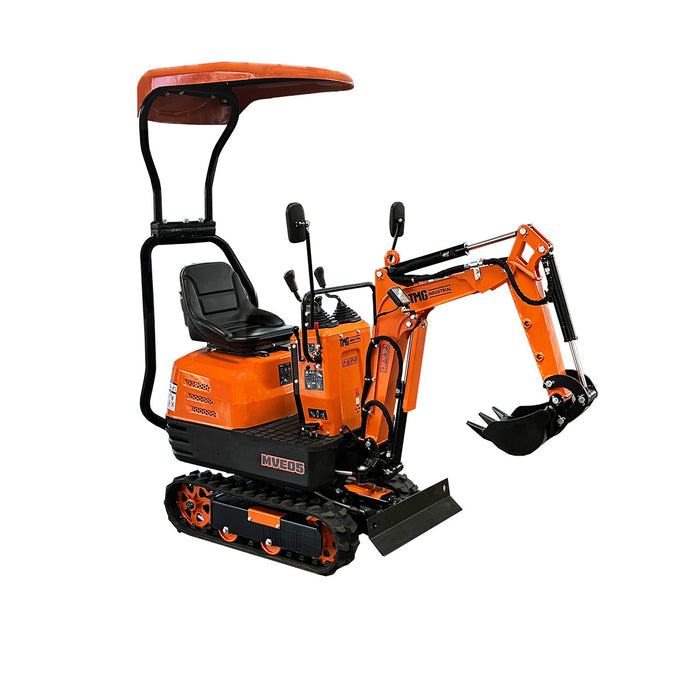

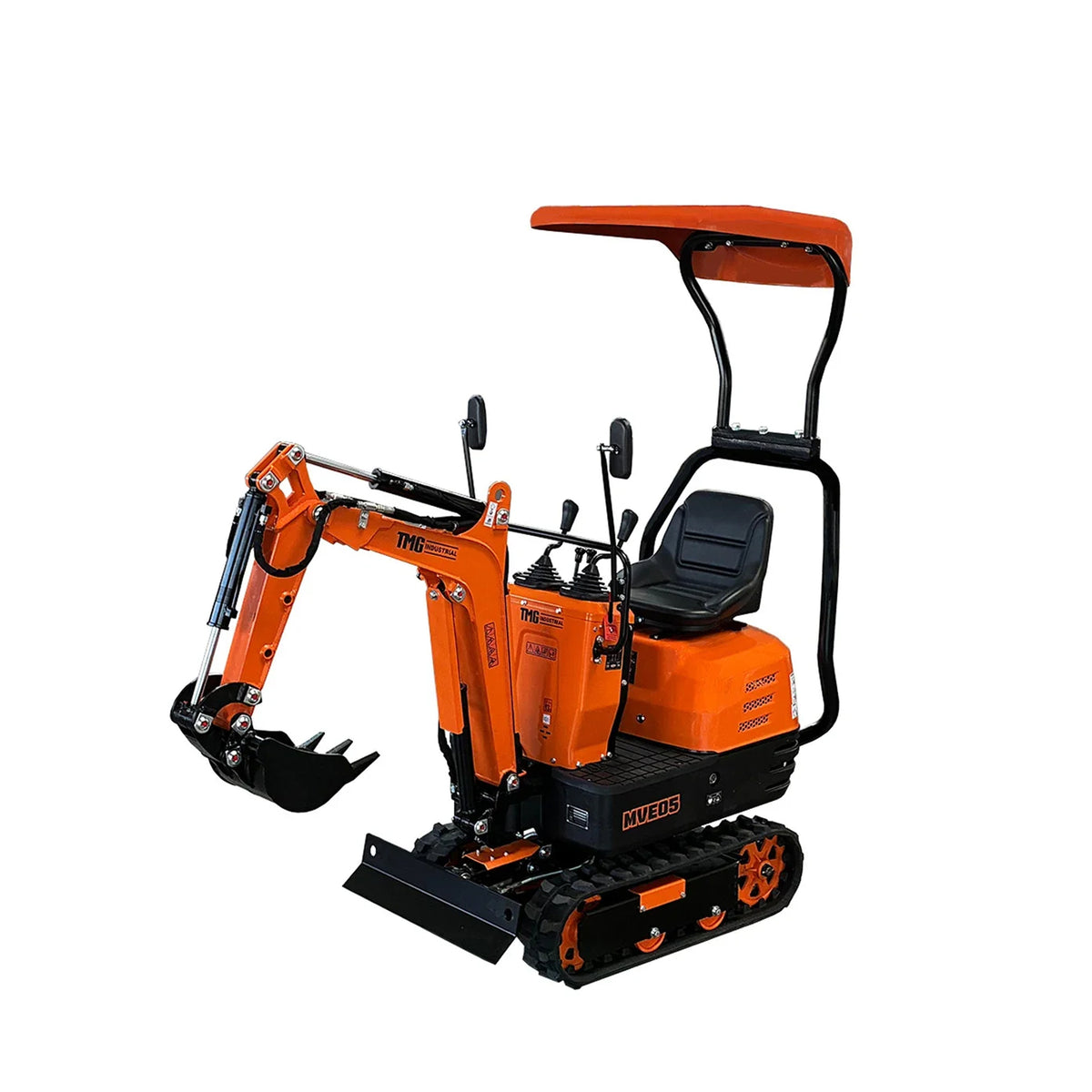

1365 LB Mini Compact Excavator, 306cc/8.5HP Gas Engine, 11-½" Bucket Width, 2000 Lb Digging Force, TMG-MVE05

• Durable 306cc Gas Engine: Specially designed for excavation tasks, delivering powerful output, fuel efficiency, and long-lasting durability.

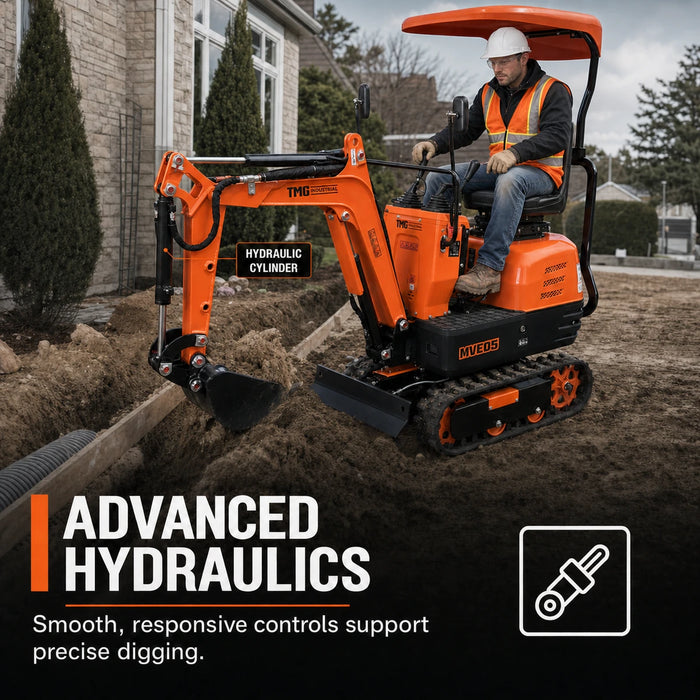

• Advanced Hydraulics: Smooth, responsive controls ensure precise digging and effortless operation.
• 360° Rotation: Work seamlessly from any angle without repositioning, improving maneuverability in confined areas.

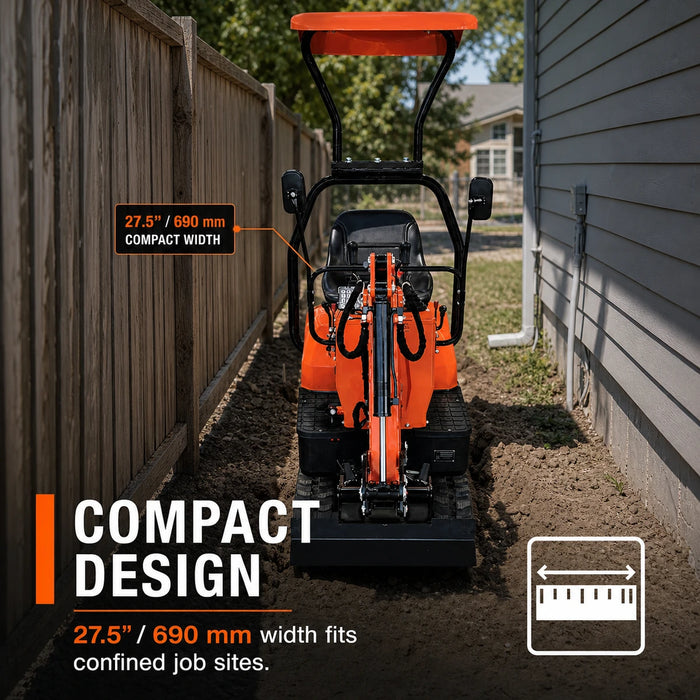

• Compact Design: With a slim 27.5" width, this excavator fits easily into tight spaces and confined job sites, making it ideal for urban and residential projects.
• Rugged Durability: Constructed with high-quality materials to withstand tough environments and heavy-duty applications.
• Engineered Stability: Advanced construction delivers exceptional durability in the swing motor, ensuring smooth and stable rotation performance.
• Powerful Digging Force: Delivers efficient excavation with 2000 lb of digging force for a variety of materials.
• Convenient Maintenance: Strategically placed lubrication points allow quick and easy access for hassle-free upkeep and optimal machine performance.

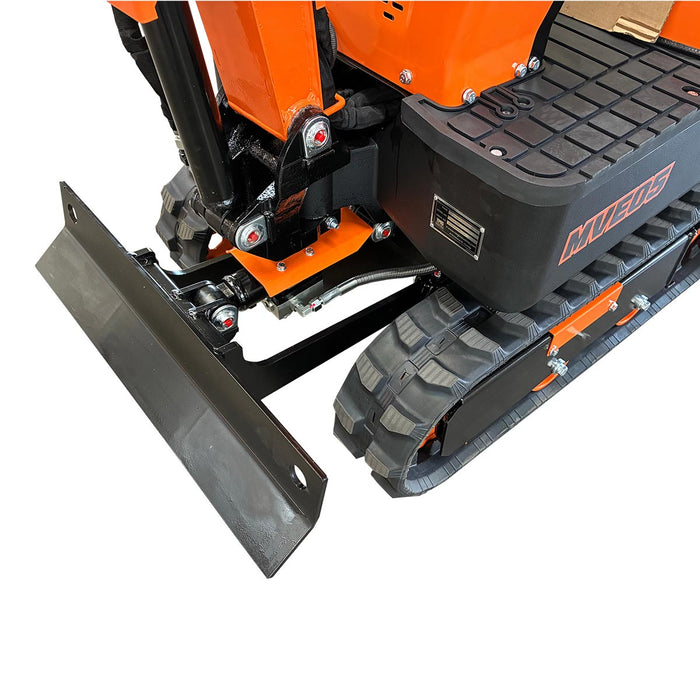

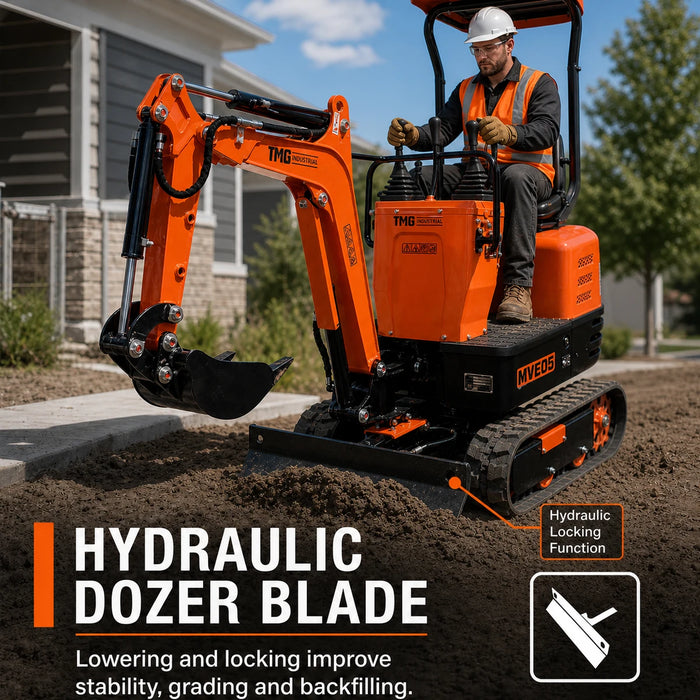

• Hydraulic Dozer Blade: Equipped with lowering and locking functions to improve stability and leveling while enabling efficient backfilling and grading.
• Built-In TOPS (Tip-Over Protection Structure) and Canopy: Provides enhanced operator safety, while the durable canopy offers shade, weather resistance, and improved visibility throughout the workday.

Specifically engineered attachments are available as options to ensure peak performance for intended applications.

• TMG-MVE05-BK: 20" (500 mm) Grading Bucket
• TMG-MVE05-CLW: 10 1/4" (260 mm) Claw

• Operating Weight: 1365 lb (620 kg)

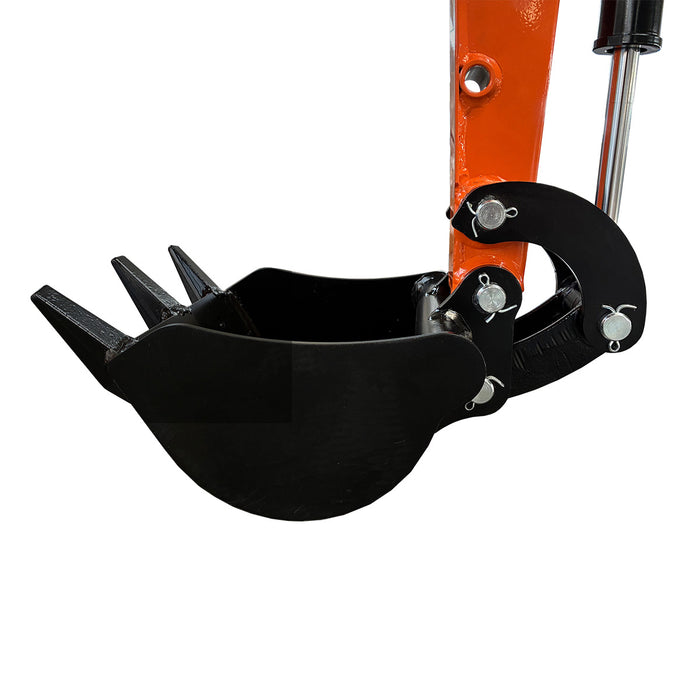

• Bucket Width: 11-1/2" (290 mm)
• Bucket Capacity: 0.4 cu ft (0.011 m³)
• Working Device Form: Backhoe

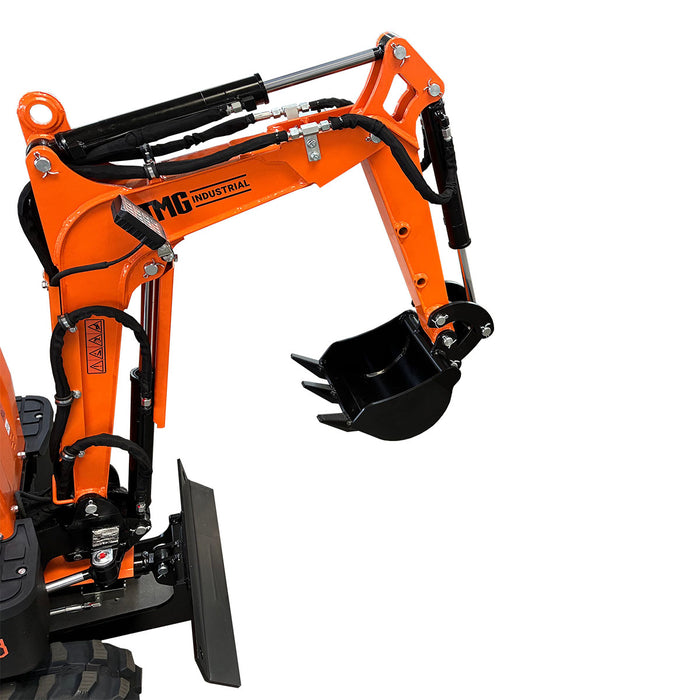

• Bucket Digging Force: 2000 lb (8.8 kN)
• Max Travel Speed: 1.8 km/h
• Max Gradeability: 15°

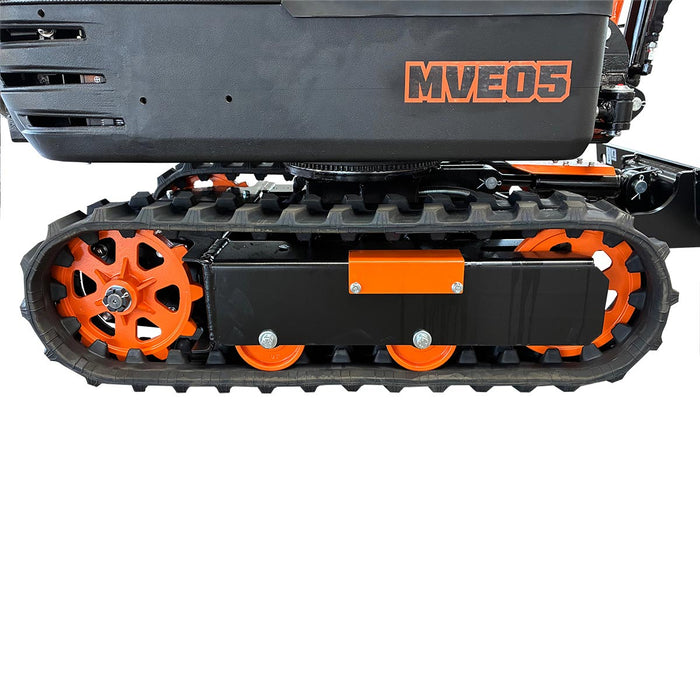

• Track Type: Rubber crawler
• Track Ground Pressure: 4 PSI (26.5 kPa)
• Hydraulic Tank Capacity: 3.2 gal (12 L)

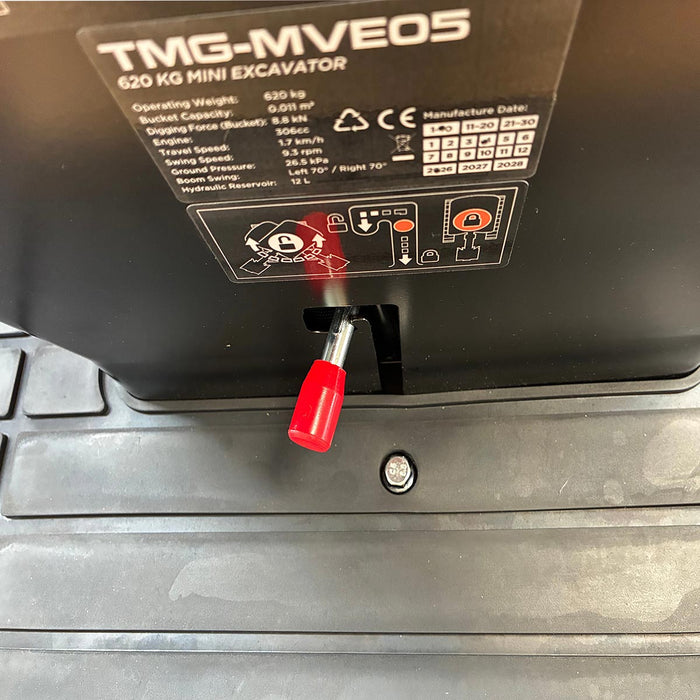

• Parking Brake: Hydraulic lock
• Max Tractive Force: 6.2 kN
• Swing Speed: 9.3 RPM

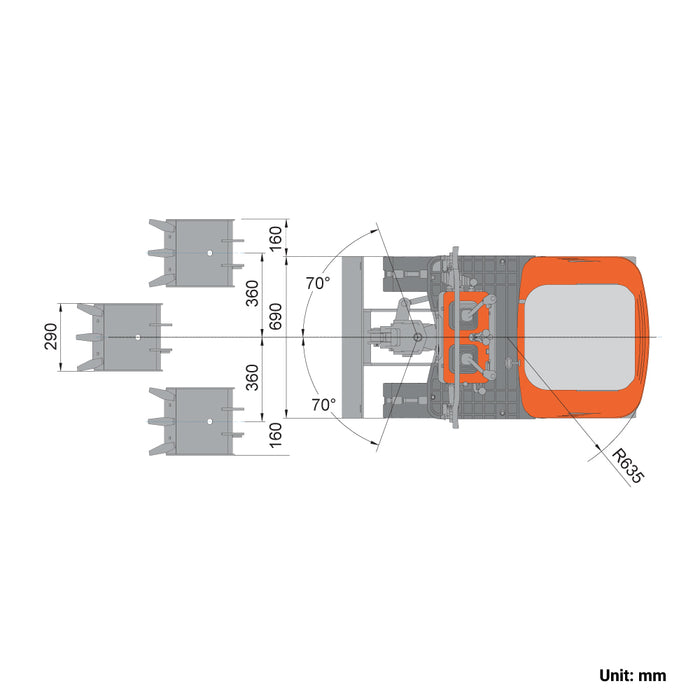

• Boom Swing: Left 70° / Right 70°
• Pump Capacity: 2.2 GPM (8.3 L/min)
• Tip-Over Protection Structure (TOPS)

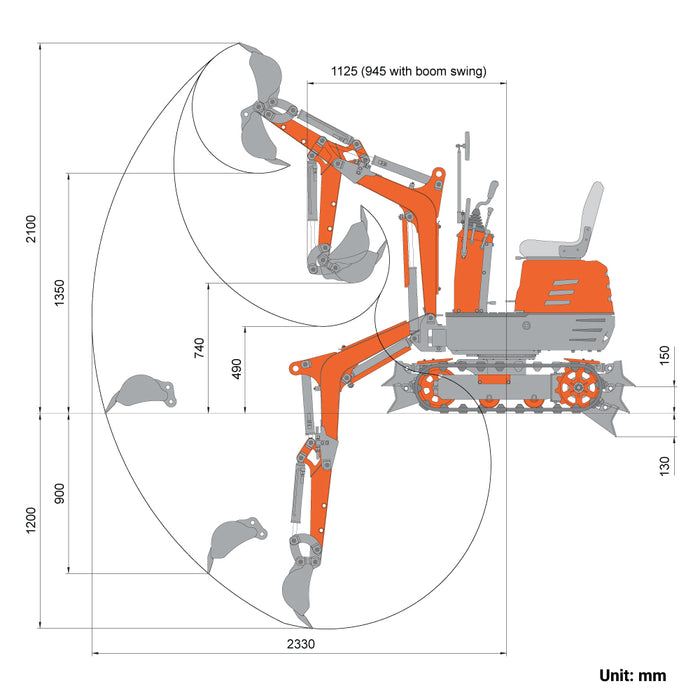

Operating Range

• Max Digging Depth: 47-1/4" (1200 mm)
• Overall Operating Height (Fully Raised): 82-5/8" (2100 mm)
• Max Digging Radius: 91-3/4" (2330 mm)
• Max Unloading Height: 53-1/8" (1350 mm)
• Min Turning Radius: 44-1/4" (1125 mm) or 37-1/4" (945 mm with boom swing)
• Max Lifting Height Dozer Blade: 6" (150 mm)
• Max Depth Dozer Blade: 5-1/8" (130 mm)

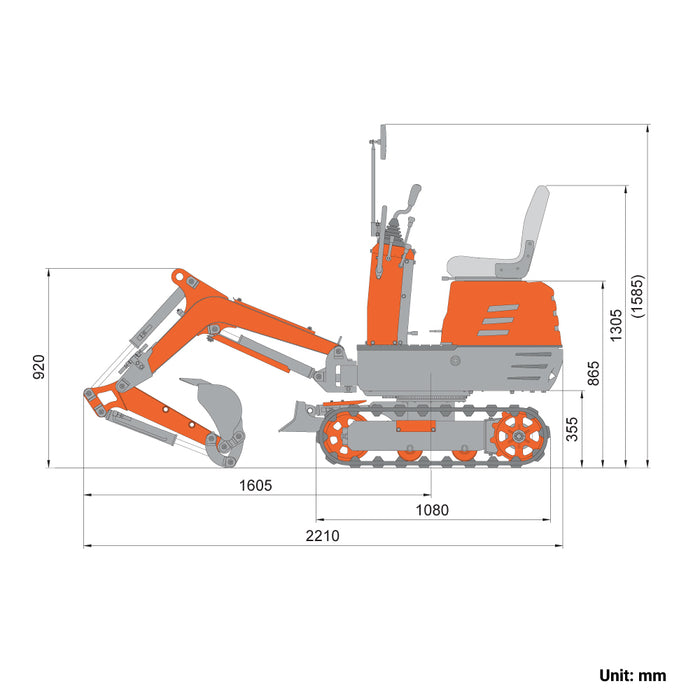

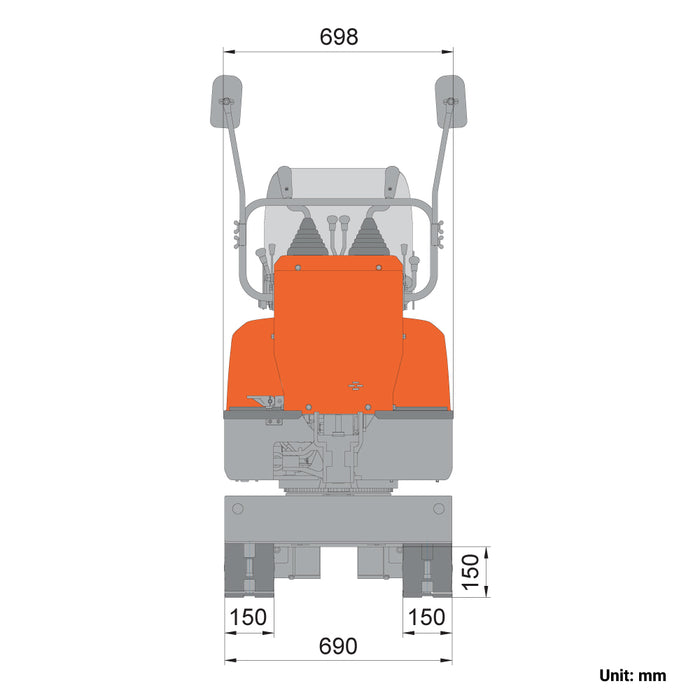

Main Dimensions

• Track Length: 42-1/2" (1080 mm)
• Track Width: 6" (150 mm)
• Track Height: 6" (150 mm)
• Upper Chassis Ground Clearance: 14" (355 mm)
• Chassis Width: 27-1/8" (690 mm)
• Transportation Length: 87" (2210 mm)
• Height of Seat to Ground: 62-1/2" (1585 mm)
• Overall Height: 78-3/8" (1990 mm), with canopy

Engine

• Single-cylinder, air-cooled, 4-stroke, OHV
• Displacement: 306 cc
• Max Output Power: 8.5 HP @ 3600 RPM
• Start Type: Electric start
• Fuel Tank Capacity: 5 L
• Oil Capacity: 1.2 US qt (1.1 L)
• Engine Oil Type: 10W-30
