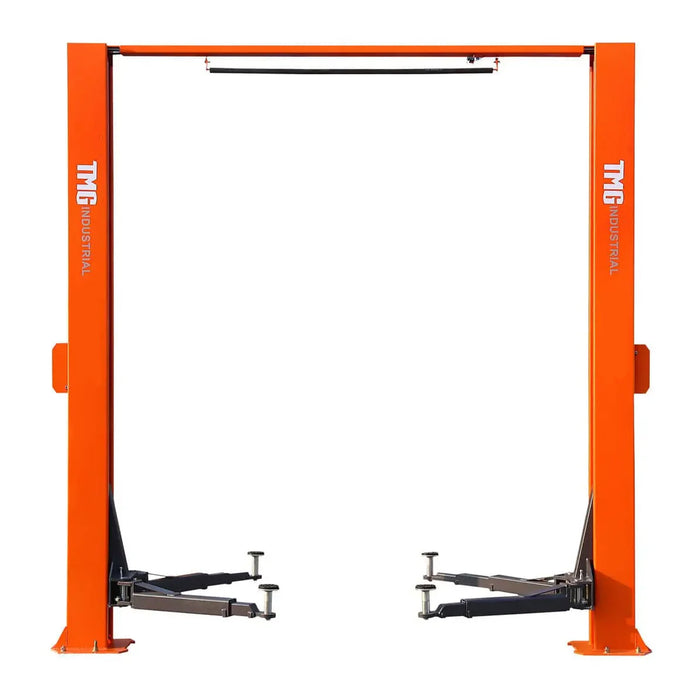

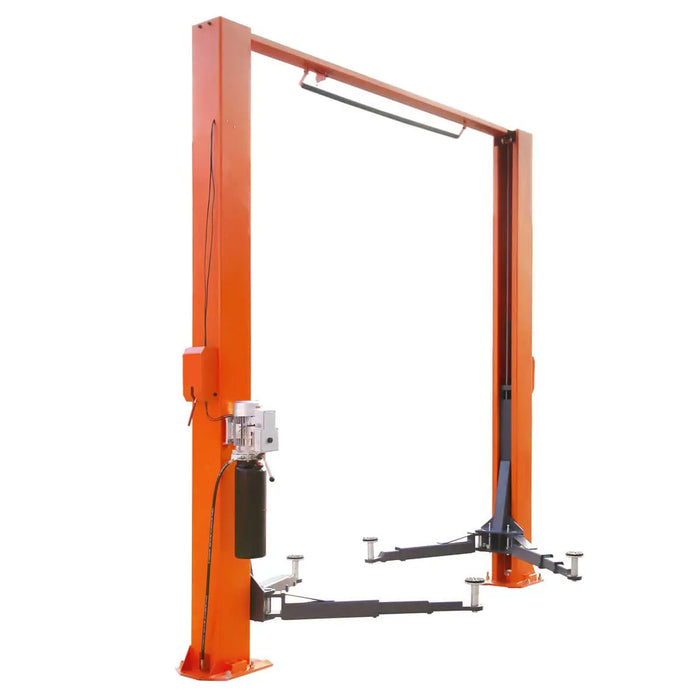

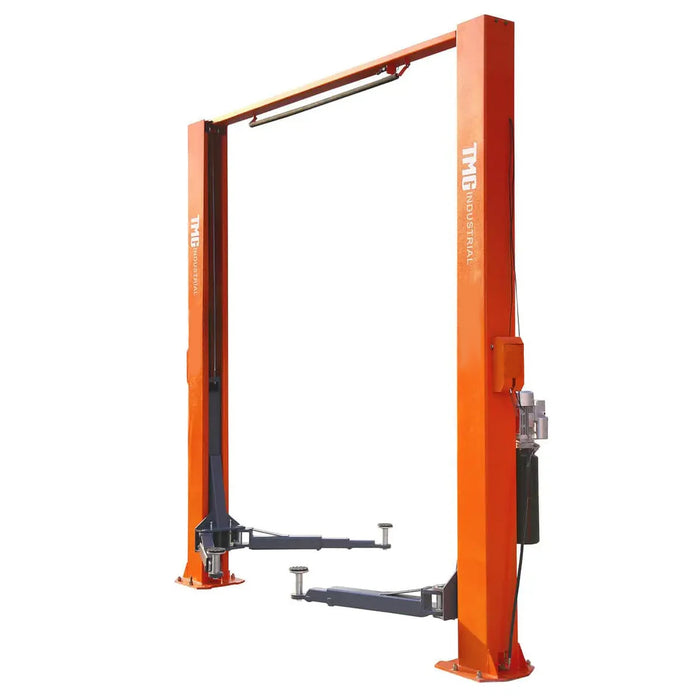

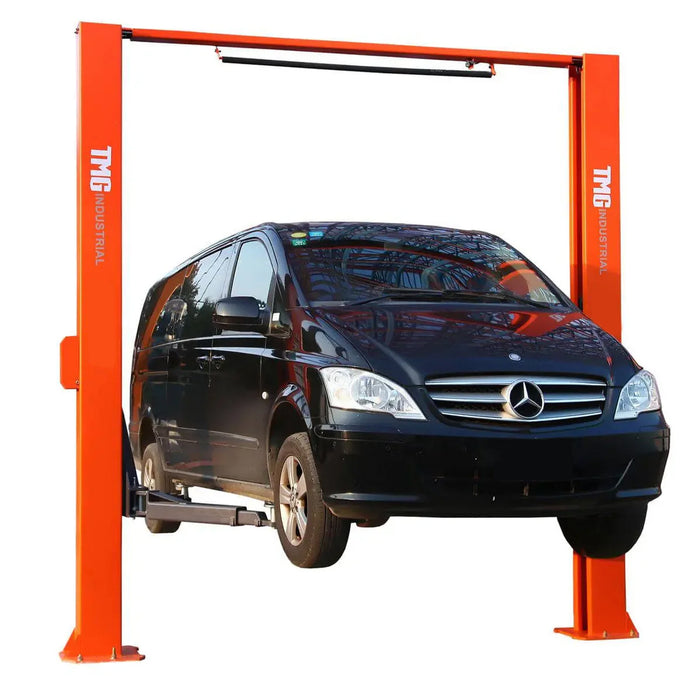

TMG Industrial 10 000 lb à deux colonnes de levage automatique, bras symétriques, hauteur de levage de 72 po, déverrouillage à double point, TMG-ALT100

• Load capacity: 10,000 lb
• Overall height: 145”
• Overall width: 146”
• Overhead stop switch: 140”
• Column width: 137” (outsides), 118” (insides)
• Column size: 10” x 9-½”
• Column base: 19” x 17”
• Column steel thickness: 5 mm
• Max. lift height: 69” (without pads), 72” (with pads)
• Min. height with pad from the ground: 3”
• Drive through clearance: 107”
• Adapter height: 3” (4 pieces), 6” (4 pieces)
• Steel cable:
  • Length: 365”
  • Thickness: ⅜”
• Retractable front arm: 30” - 49”
• Retractable rear arm: 34” - 49”
• Arm steel thickness: 8 mm/6 mm
• Travel speed:
  • Rise up at 90% load: 45 to 55 seconds
  • Lower down: 30 to 40 seconds
• Max. load capacity per arm: 2,500 lb
• Automatic arm restraints
• Dual point lock release
• Mounting hardware included

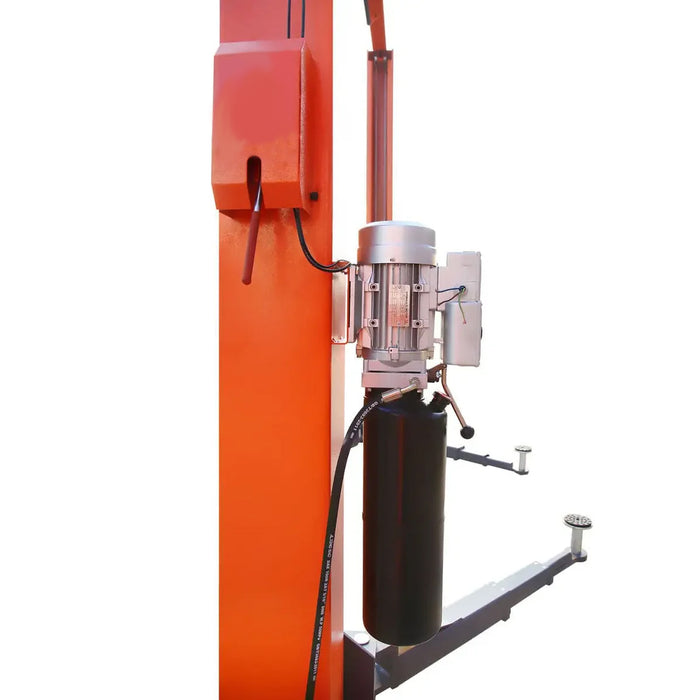

Hydraulic Motor Pump Power Unit:

• 220 VAC, 3 HP, single phase
• No-load speed: 3360 RPM
• Working pressure: 2600 PSI
• Tank capacity: 2.5 US gal
• Pump oil required: AW32/AW46
• CETL certified

The order will ship from one of our warehouses in Canada or the United States. Under normal circumstances it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

• This product is packed in a metal crate shipping box
• Shipping dimension: 150” x 30” x 21”
• Shipping weight: 1630 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
