13" x 30" Precision Metal Lathe with Stand, 1.1 kW Motor, 60 - 1800 RPM, 12 Spindle Speeds, Imperial & Metric Threading, TMG-MT13BL
FREE
shipping to most locations in
Canada
Learn More
Features
Features
- Gear-Driven Headstock: Provides reliable power transmission with quick-change spindle speeds for efficient setup across a wide range of machining operations.
- MT5 Spindle Taper: Features an MT5 spindle taper and 38 mm spindle bore for secure tooling compatibility and machining larger workpieces.
- Hardened V-Guideways: Two precision V-guideways are hardened and ground for improved wear resistance, smooth carriage movement, and long-term accuracy.
- Wear-Resistant Slideways: Soft wear strips reduce friction along the slideways, supporting smooth, responsive movement during precision turning and adjustment.
- 12 Spindle Speeds: Offers 12 selectable speeds from 60 to 1800 RPM for machining different materials, workpiece diameters, and cutting requirements.
- Dual Automatic Feed: Supports both longitudinal and cross automatic feeding, helping produce smoother cuts and more consistent results during machining operations.
- Feed Control Lever: A large operating lever allows convenient switching between longitudinal and cross feeds for efficient setup and operation.
- Quick-Change Gearbox: Simplifies feed and threading adjustments, allowing operators to change settings efficiently for imperial and metric thread cutting.
- Two-Piece Cabinet Stand: Provides a stable machine base with enclosed storage compartments for tooling, accessories, and commonly used workshop supplies.
- 1.1 kW Motor: Delivers dependable power for turning, threading, facing, drilling, and general metal fabrication in compact workshops and environments.
Specifications
Specifications
- Main Motor Power: 1.1 kW
- Swing Over Bed: 13" (330 mm)
- Swing Over Cross Slide: 8.66" (220 mm)
- Distance Between Centers: 29.53" (750 mm)
- Spindle Taper: MT5
- Bed Width: 6.30" (160 mm)
- Spindle Bore Diameter: 1.50" (38 mm)
- Spindle Speed Steps: 12
- Spindle Speed Range: 60 - 1800 RPM
- Longitudinal Automatic Feed Range: 0.010-1.5 mm/rev
- Cross Automatic Feed Range: 0.025-0.6 mm/rev
- Imperial Threads: 8 - 40 TPI
- Metric Threads: 0.5- 4 mm
- Compound Slide Travel: 3.15" (80 mm)
- Tool Section: 16 x 16 mm
- Cross Slide Travel: 6.30" (160 mm)
- T-Slot Size: 90 x 10 mm x 2
- Tailstock Quill Travel: 3.15" (80 mm)
- Tailstock Quill Taper: MT3
- Machine Net Weight: 540 lb (245 kg)
- Left Stand Net Weight: 55 lb (25 kg)
- Right Stand Net Weight: 44 lb (20 kg)
Product Description
Product Description
The TMG-MT13BL Precision Metal Lathe is designed for turning, threading, facing, drilling, and general metal fabrication in workshops, training environments, and light industrial settings. Its gear-driven headstock provides reliable power transmission, while two hardened and precision-ground V-guideways support smooth carriage travel and dependable machining accuracy. Wear-resistant slideway strips help reduce friction for responsive operation.
Twelve spindle speeds ranging from 60 to 1800 RPM provide flexibility for different materials, workpiece diameters, and cutting conditions. Automatic longitudinal and cross feeds help produce smooth, consistent cuts, while the large feed control lever allows convenient switching between feed directions. A quick-change gearbox also simplifies setup for imperial threads from 8 to 40 TPI and metric threads from 0.5 to 4 mm.
With a 13" swing over the bed, 29.5" between centers, and a 1.1 kW motor, the TMG-MT13BL provides a useful capacity for precision metalworking. Its MT5 spindle, 38 mm spindle bore, MT3 tailstock, and sturdy two-piece cabinet stand create a practical setup for demanding workshop applications.
TMG Industrial also carries similar models: TMG-MT08BL, TMG-MT10BL, TMG-MT12BL, TMG-MT14BL.
Shipping Information
Shipping Information
The order will be shipped from one of our main warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

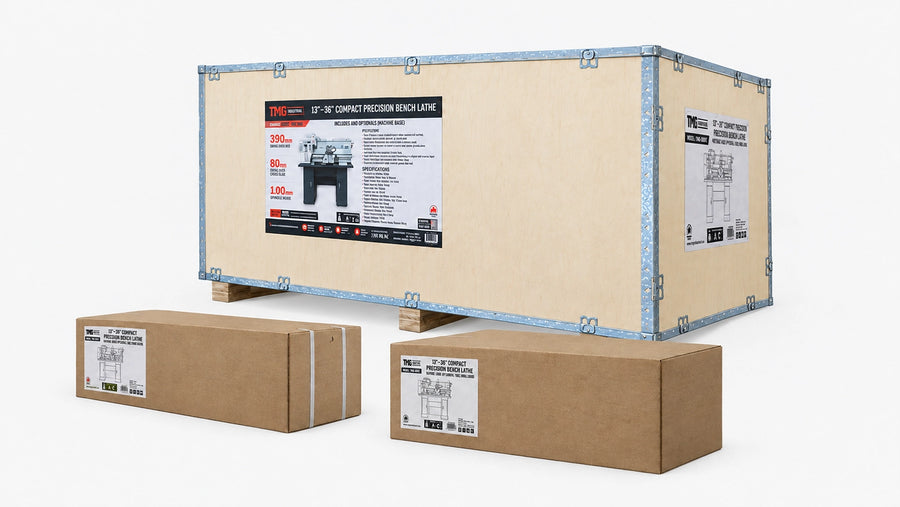

Box A, Main Unit in Plywood Crate:
- Shipping Dimensions: 58" x 30" x 28" (L x W x H),
147 x 76 x 72 cm - Shipping Weight: 595 lb (270 kg)
Box B, Right Stand in Cardboard Box:
- Shipping Dimensions: 11" x 15" x 30" (L x W x H),
28 x 39 x 77 cm - Shipping Weight: 46 lb (21 kg)
Box C, Left Stand in Cardboard Box:
- Shipping Dimensions: 12" x 15" x 30" (L x W x H),
31 x 39 x 77 cm - Shipping Weight: 57 lb (26 kg)
