10" x 28" Compact Bench Lathe, 750 W Motor, 105-1650 RPM, Automatic Feed, Metric & Imperial Threading, TMG-MT10BL
FREE
shipping to most locations in
Canada
Learn More
Features
Features

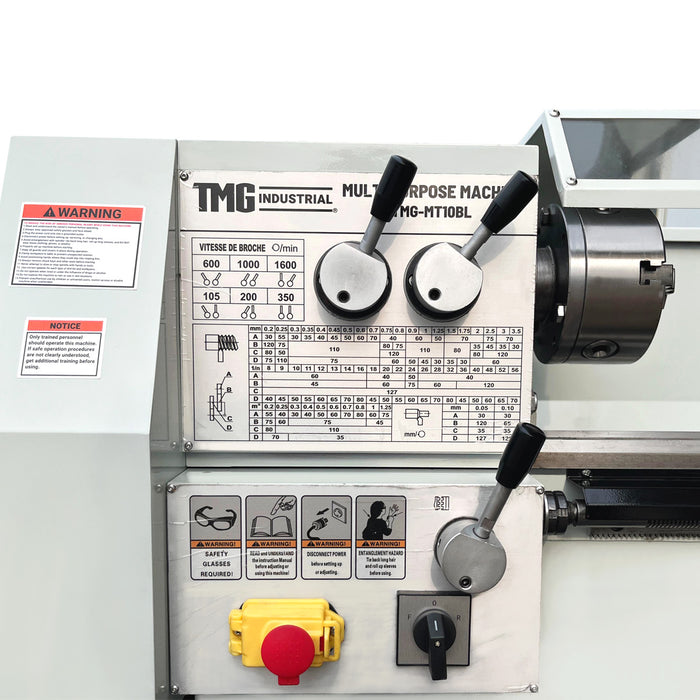

- Geared Headstock: Features a large geared headstock with quick-change spindle speeds for efficient setup across different turning and machining applications.
- Hardened V-Guideways: Two precision V-guideways are hardened and ground for improved wear resistance, smooth carriage travel, and consistent machining accuracy.
- Rigid Cast Bed: High-strength web-reinforced cast construction provides excellent rigidity and stability, helping reduce vibration during demanding turning and threading operations.

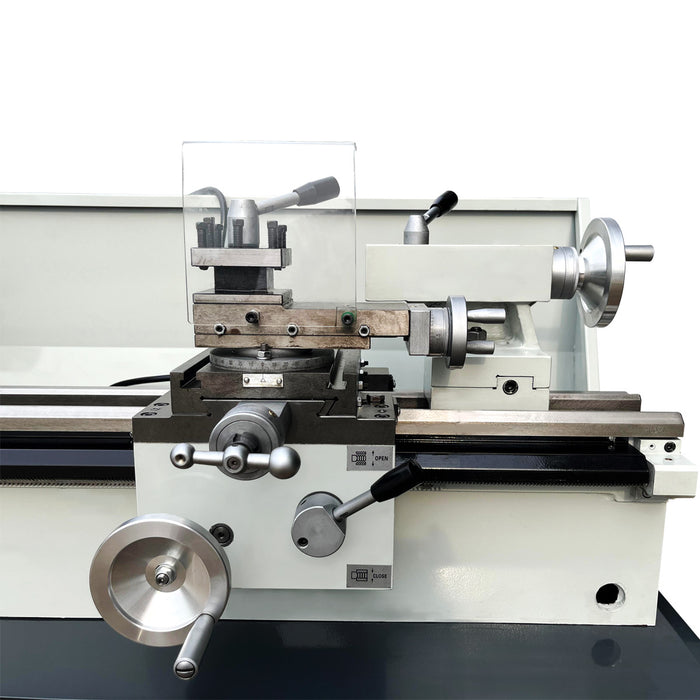

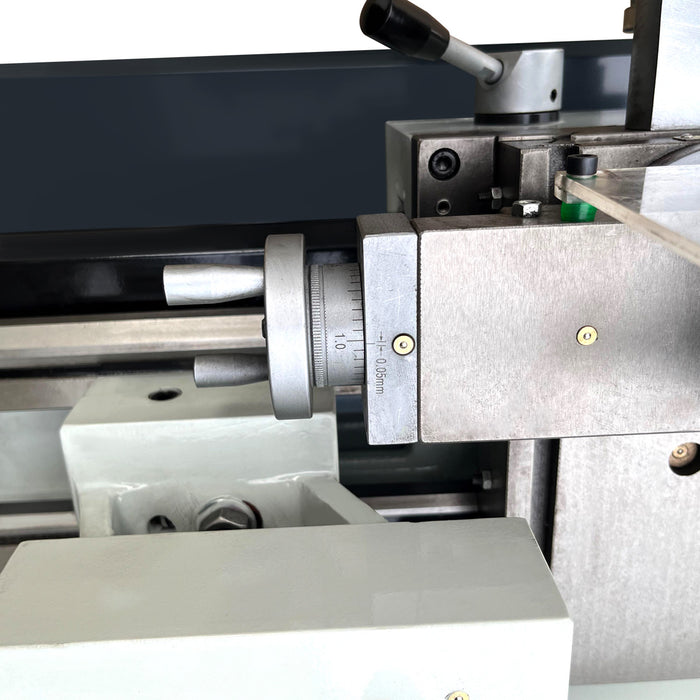

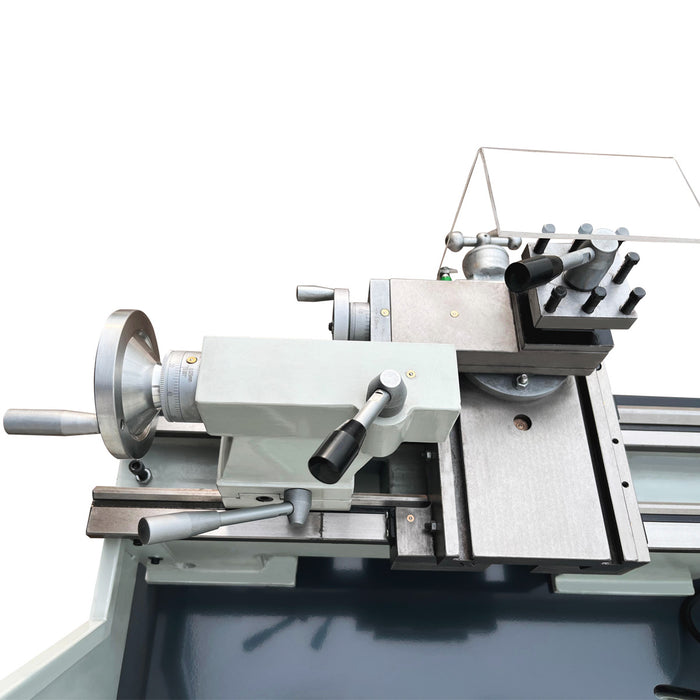

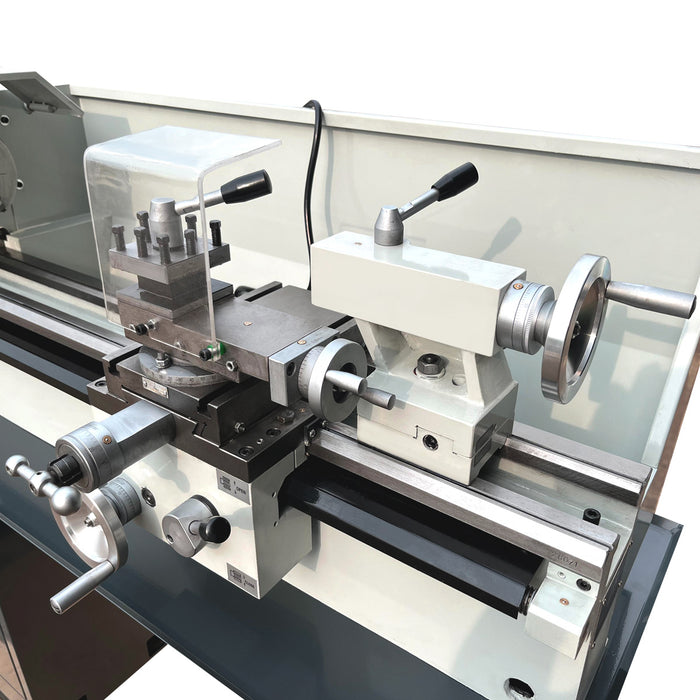

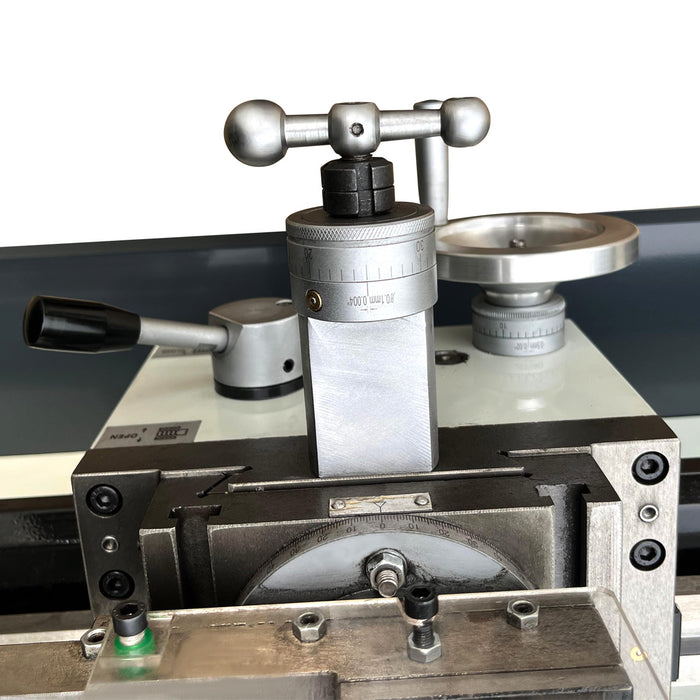

- Adjustable Dovetail Slides: Dovetailed cross and compound slides offer adjustable movement for smooth positioning, controlled tool travel, and accurate machining setup.
- Automatic Longitudinal Feed: Provides automatic longitudinal feeding at a minimum rate of 0.05 mm/rev for smoother, more consistent turning operations.
- Metric Thread Cutting: Supports metric threading from 0.2 to 3.5 mm, providing flexibility for fabrication, maintenance, repair, and general machining work.
- Imperial Thread Cutting: Cuts imperial threads from 8 to 56 TPI, allowing operators to produce a broad range of inch-standard threaded components.
- MT4 Spindle Taper: The MT4 spindle taper supports compatible tooling and provides secure alignment for general turning, drilling, and precision machining applications.

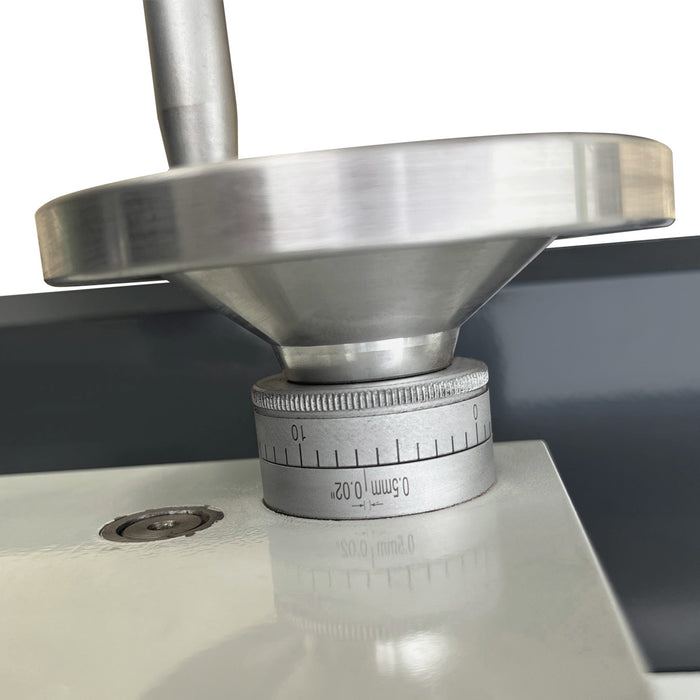

- MT2 Tailstock: Features an MT2 quill taper with 2.8" travel for drilling, centering, and supporting longer workpieces during machining operations.

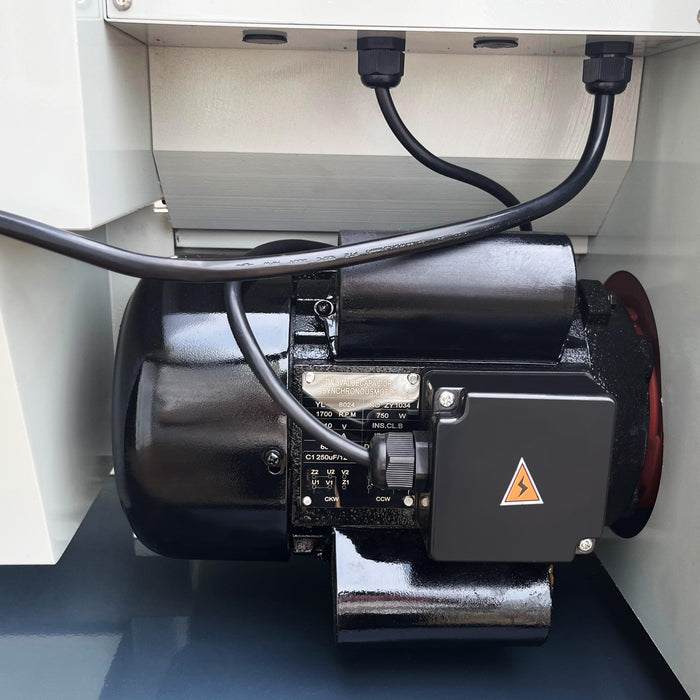

- 750 W Motor: Delivers reliable power for precision turning, threading, maintenance, and fabrication while maintaining footprint for compact workshop spaces.
Specifications
Specifications
- Main Motor Power: 750 W
- Swing Over Bed: 9.84" (250 mm)
- Swing Over Cross Slide: 5.12" (130 mm)
- Distance Between Centers: 27.56" (700 mm)
- Spindle Taper: MT4
- Bed Width: 4.92" (125 mm)
- Spindle Bore Diameter: 1.06" (27 mm)
- Spindle Speed Range: 105-1650 RPM
- Minimum Automatic Longitudinal Feed: 0.05 mm/rev
- Imperial Threads: 8 - 56 TPI
- Metric Threads: 0.2 - 3.5 mm
- Compound Slide Travel: 2.76" (70 mm)
- Tool Section: 12 x 12 mm
- T-Slot Size: 2 x 10 x 110 mm
- Cross Slide Travel: 4.53" (115 mm)
- Tailstock Quill Travel: 2.76" (70 mm)
- Tailstock Quill Diameter: 1.18" (30 mm)
- Tailstock Quill Taper: MT2
- Machine Net Weight: 386 lb (175 kg)
- Left Stand Net Weight: 49 lb (22 kg)
- Right Stand Net Weight: 40 lb (18 kg)
Product Description
Product Description

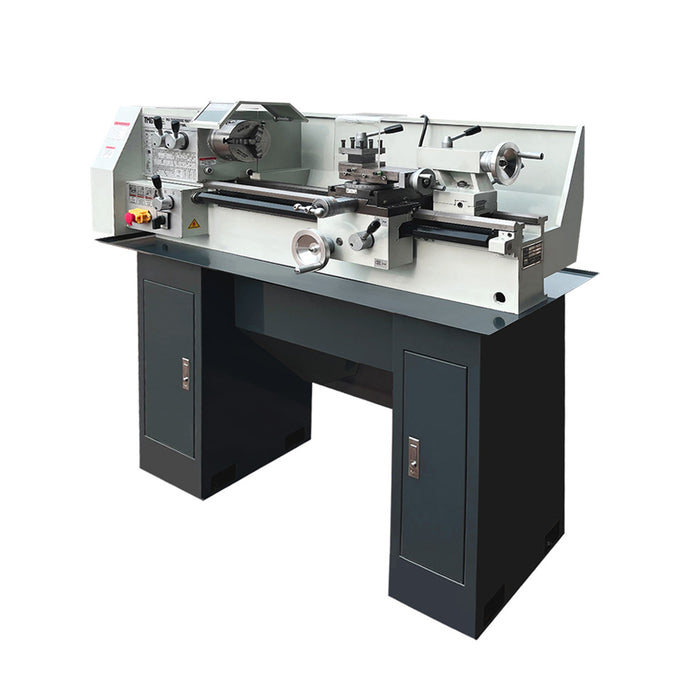

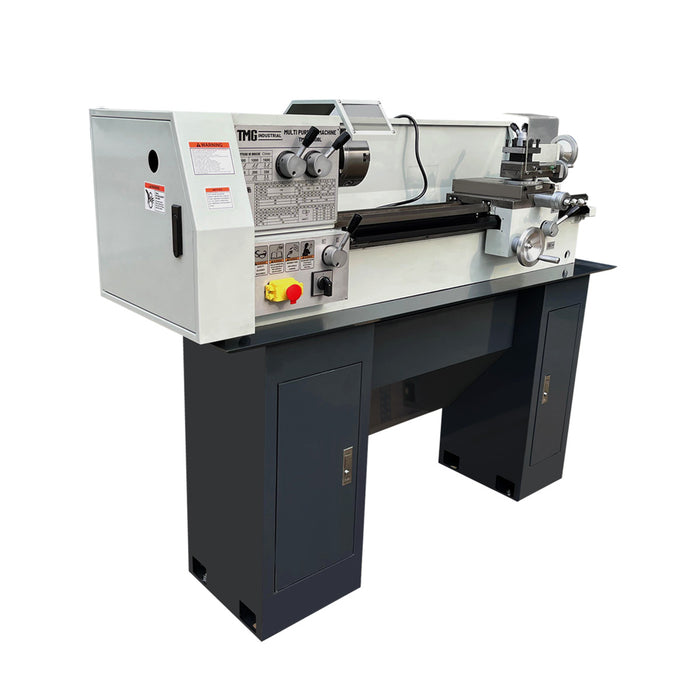

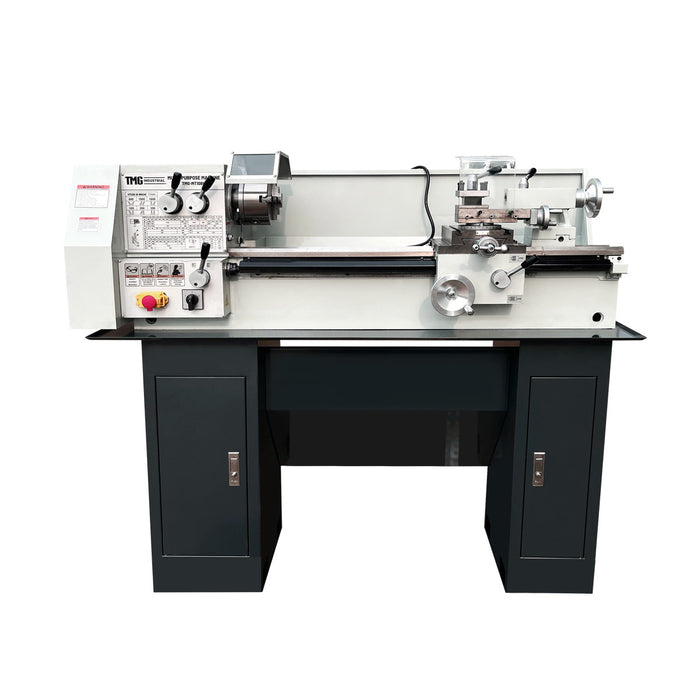

The TMG-MT10BL Precision Compact Bench Lathe is built for accurate metal turning, threading, maintenance, and fabrication in home shops, training environments, and light industrial settings. Its reinforced one-piece cast bed provides excellent rigidity, while two hardened and precision-ground V-guideways help maintain smooth carriage movement and dependable machining accuracy.
A large geared headstock with quick-change spindle speeds provides a working range from 105 to 1650 RPM for different materials and cutting requirements. Automatic longitudinal feed supports smoother, more consistent turning, while adjustable dovetail cross and compound slides allow precise tool positioning. The machine also cuts both metric threads from 0.2 to 3.5 mm and imperial threads from 8 to 56 TPI.
With a 10" swing over the bed, 28" between centers, and a 750 W motor, the TMG-MT10BL combines useful capacity with a compact footprint. Its MT4 spindle taper and MT2 tailstock support common turning, drilling, centering, and workpiece-support operations.
TMG Industrial also carries similar models: TMG-MT08BL, TMG-MT12BL, TMG-MT13BL, TMG-MT14BL.
Shipping Information
Shipping Information
The order will be shipped from one of our main warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.
Box A, Main Unit in Plywood Crate:
- Shipping Dimensions: 54" x 23" x 22" (L x W x H),
138 x 58 x 57 cm - Shipping Weight: 430 lb (195 kg)
Box B, Right Stand in Cardboard Box:
- Shipping Dimensions: 14" x 11" x 28" (L x W x H),
35 x 29 x 71 cm - Shipping Weight: 42 lb (19 kg)
Box C, Left Stand in Cardboard Box:
- Shipping Dimensions: 14" x 9" x 28" (L x W x H),
35 x 23 x 71 cm - Shipping Weight: 51 lb (23 kg)
