12" x 37" Precision Lathe with 1.5 HP Motor, 64–1500 RPM, ASA D1-4 Spindle, Metric & Imperial Threading, TMG-MT12BL
FREE
shipping to most locations in
Canada
Learn More
Features
Features
- 3-Jaw Chuck: Includes a 3-jaw chuck for quick, secure gripping of round workpieces. Perfect for a variety of machining tasks with a 1.5" spindle bore for larger stock.
- Speed Control: Featuring 9 speed ranges and a wide spindle speed range from 64 to 1500 RPM, the lathe offers flexible and precise control for soft metals or tougher materials.
- Hardened Bed Ways: Ultra-high frequency induction-hardened bed ways ensure exceptional surface hardness, wear resistance, and long-term geometric accuracy.
- High Precision Roller Bearings: The main spindle is supported by high-precision roller bearings, guaranteeing high rigidity and minimal runout—essential for precision machining and heavy cuts.
- Spindle Head: The spindle head interior uses high-grade steel, precision-ground and hardened for longevity and accuracy of internal gearing and components.
- Gearbox: The gearbox provides simple and quick shifting, enabling easy changes of speeds and feeds for various machining tasks.
- Powerful Motor:
Specifications
Specifications
- Main motor power: 110V 1.5 HP (1.1 kW)
- Coolant pump power: 0.055 HP (0.04 kW)
- Swing over bed: 12" (305 mm)
- Swing over carriage/cross slide: 7" (173 mm)
- Swing over gap: 17.32" (440 mm)
- Bed width: 7.17" (182 mm)
- Distance between centers: 37" (940 mm)
- Spindle taper: M.T.5
- Spindle bore diameter: 1-1/2" (38 mm)
- Spindle speed steps: 9
- Spindle speed range: 64–1500 RPM
- Spindle nose: D1-4
- Metric threads: 26 kinds (0.4–7 mm)
- Imperial threads: 34 kinds (4–56 TPI)
- Longitudinal feeds: 0.002–0.0548 in/rev (0.052–1.392 mm/rev)
- Cross feeds: 0.0007–0.0187 in/rev (0.014–0.38 mm/rev)
- Lead screw diameter/pitch: 7/8", 8 TPI (22 mm, 3 mm pitch)
- Saddle/carriage travel: 31.89" (810 mm)
- Cross slide travel: 5.91" (150 mm)
- Compound slide travel: 3.54" (90 mm)

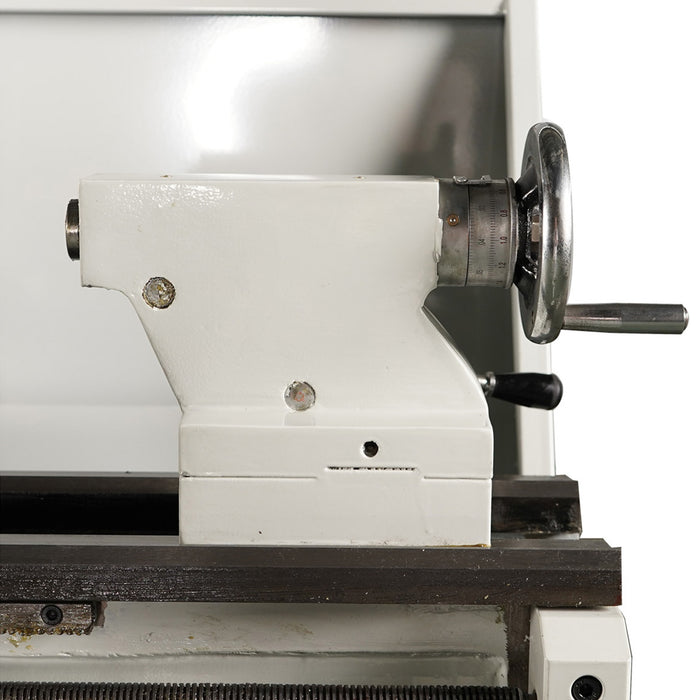

- Tailstock quill travel: 3.94" (100 mm)
- Tailstock quill diameter: 1.26" (32 mm)
- Tailstock taper: M.T.3
- Machine net weight: 1014 lb (460 kg)
- Left stand net weight: 95 lb (43 kg)
- Right stand net weight: 84 lb (38 kg)
Included Accessories:
- SANOU K11-160 3-jaw chuck (max. 2500 RPM)
- Steady rest & follow rest
- Tool post with splash guard
- MT3 live center
- Coolant system (pump + reservoir)
- Emergency stop foot pedal
- Control panel with manual & automatic feed controls

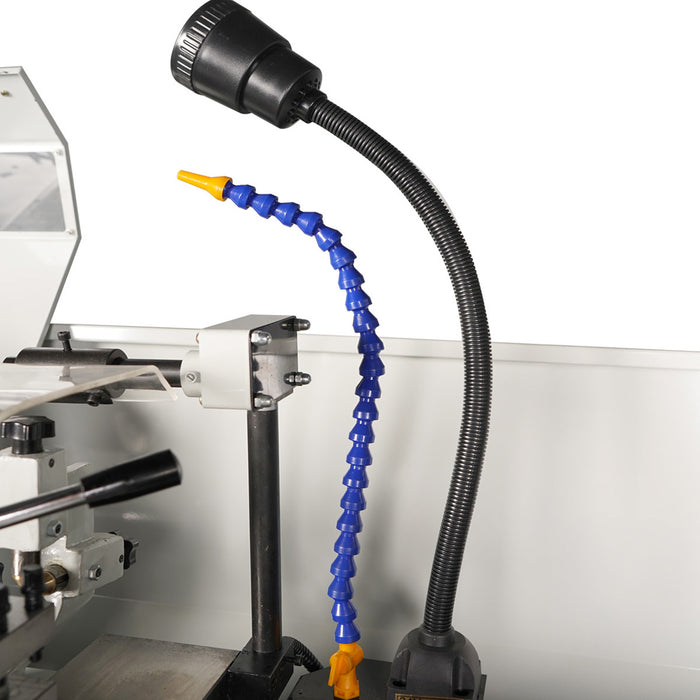

- LED work light
Shipping Information
Shipping Information
The order will be shipped from one of our main warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

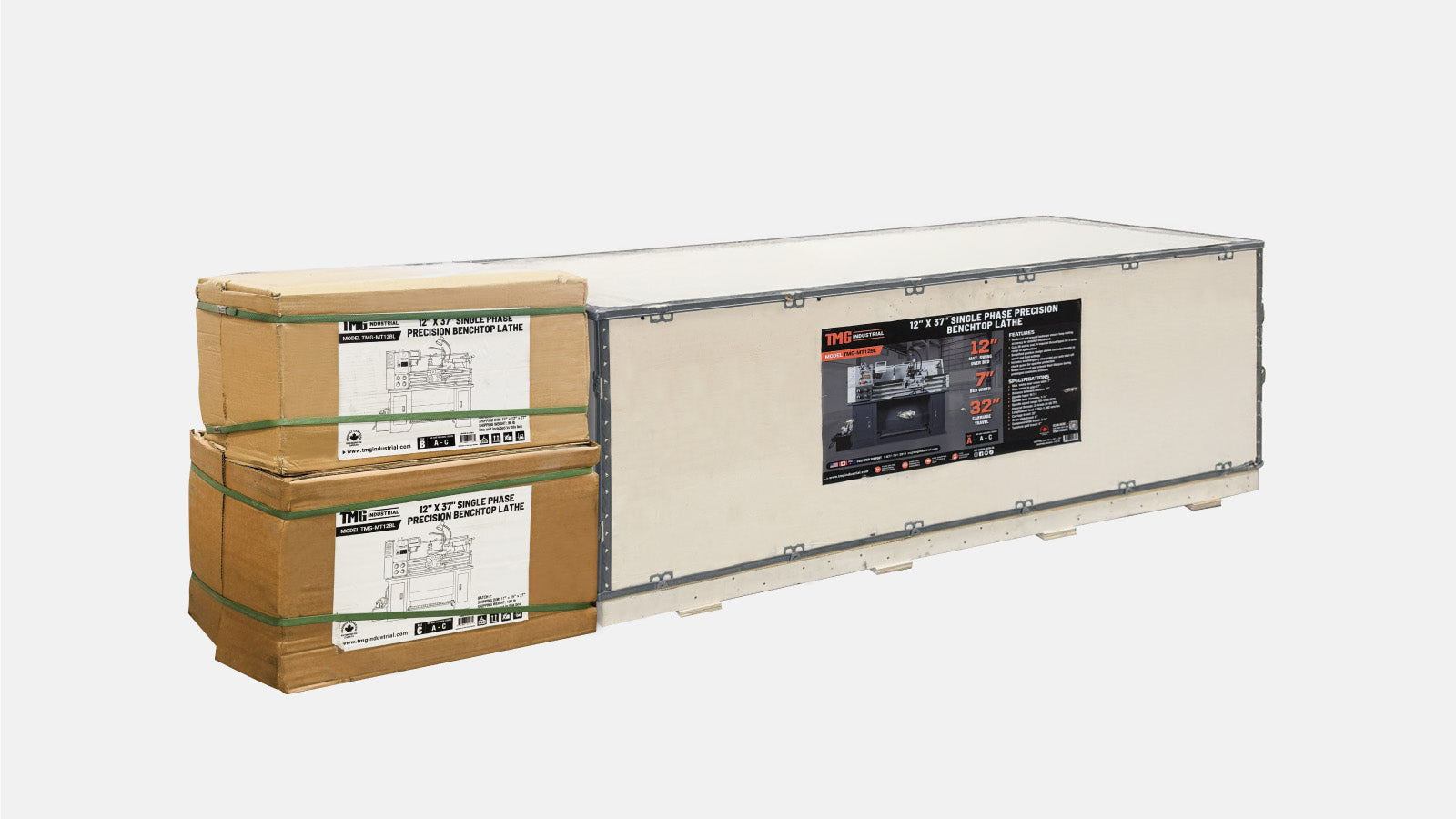

- Box A (main unit, in plywood crate):
- Shipping dimension: 70" × 30" × 30" (L × W × H)
- Shipping weight: 1125 lb
- Box B (right stand, in cardboard box):
- Shipping dimension: 15" × 12" × 27" (L × W × H)
- Shipping weight: 100 lb
- Box C (left stand, in cardboard box):
- Shipping dimension: 17" × 15" × 27" (L × W × H)
- Shipping weight: 90 lb
This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
Product Description
Product Description
The TMG-MT12BL High Precision Benchtop Lathe is engineered for serious metalworkers who need compact power and accuracy. Ideal for home shops, training labs, and light industrial use, this lathe features hardened bed ways, a high-precision spindle, and heat-treated gears for long-term durability.
It cuts 26 types of metric and 34 types of imperial threads with ease, and includes dual safety systems, an integrated coolant pump, and LED task lighting. Featuring 9 speed ranges and a wide spindle speed range from 64 to 1500 RPM, the lathe offers flexible and precise control for soft metals or tougher materials.
With a swing over bed of 12", 37" between centers, and a robust 1.5 HP motor, it delivers reliable performance for precision turning, threading, and fabrication.
TMG Industrial also carries a larger version of benchtop lathe: TMG-MT14BL.
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
