14" x 40" Precision Lathe with 2 HP Motor, 70–2000 RPM, ASA D1-4 Spindle, Metric & Imperial Threading, TMG-MT14BL

• 3-Jaw Chuck: Includes a 3-jaw chuck for quick, secure gripping of round workpieces, complementing the 1-1/2" (38 mm) spindle bore for handling larger stock.
• Speed Control: Featuring 8 speed steps and a wide spindle speed range from 70 to 2000 RPM, the lathe offers flexible and precise control for soft metals or tougher materials.
• Hardened Bed Ways: Ultra-high frequency induction-hardened bed ways ensure exceptional surface hardness, wear resistance, and long-term geometric accuracy.
• High Precision Roller Bearings: The main spindle is supported by high-precision roller bearings, guaranteeing high rigidity and minimal runout—essential for precise machining and heavy cuts.
• Spindle Head: The spindle head interior utilizes high-grade steel, precision-ground and hardened to ensure long-term durability and accuracy of the internal gearing.
• Gearbox: The gearbox provides quick shifting, allowing easy speed and feed changes across the wide range of longitudinal and cross feeds.
• Powerful Motor: Equipped with a robust 2 HP (1.5 kW) main drive motor capable of maintaining cutting performance under heavy load.
• Tool Interface: Uses an ASA D1-4 Camlock spindle nose for fast, secure, and highly accurate mounting of chucks and faceplates.
• Thread Cutting: Offers comprehensive threading capabilities, including 26 metric thread types and 34 imperial thread types for maximum versatility.
• Safe Stop with Foot Pedal: An emergency stop foot pedal instantly cuts power to the motor and controls, allowing the operator to safely stop all machine movement immediately.
• Auto Shut-Off Chuck Guard: The motor automatically shuts off if the chuck guard is opened or not properly positioned, preventing accidental contact with rotating components.

• Main motor power: 110V, 2 HP (1.5 kW)
• Coolant pump power: 0.055 HP (0.04 kW)
• Swing over bed: 14" (355 mm)
• Swing over carriage/cross slide: 8.66" (220 mm)
• Swing over gap: 20" (500 mm)
• Bed rail width: 7.32" (186 mm)
• Distance between centers: 40" (1000 mm)
• Spindle taper: M.T.5
• Spindle bore diameter: 1.5" (38 mm)
• Spindle speed steps: 8
• Spindle speed range: 70–2000 RPM
• Spindle nose: D1-4 Camlock
• Metric threads: 26 kinds (0.4–7 mm)
• Imperial threads: 34 kinds (4–56 TPI)
• Longitudinal feed rate range: 0.002–0.0548 in/rev (0.052–1.392 mm/rev)
• Cross feed rate range: 0.00055–0.015 in/rev (0.014–0.38 mm/rev)
• Lead screw diameter/pitch: 7/8", 8 TPI (22 mm, 3 mm pitch)
• Carriage travel: 39.37" (1000 mm)
• Cross slide travel: 6.69" (170 mm)
• Compound slide travel: 2.91" (74 mm)
• Tailstock quill travel: 3.74" (95 mm)
• Tailstock quill diameter: 1.26" (32 mm)
• Tailstock taper: M.T.3
• Main unit dimensions (L x W x H): 76" x 30" x 30" (1920 x 750 x 760 mm)
• Main unit net weight: 1400 lb (635 kg)
• Main unit gross weight: 1466 lb (665 kg)
• Left stand dimensions (L x W x H): 17" x 16" x 27" (430 x 400 x 680 mm)
• Left stand net weight: 150 lb (68 kg)
• Left stand gross weight: 155 lb (70 kg)
• Right stand dimensions (L x W x H): 16" x 15" x 27" (400 x 370 x 680 mm)
• Right stand net weight: 95 lb (43 kg)
• Right stand gross weight: 100 lb (45 kg)

Included Accessories:

• SANOU K11-160 3-jaw chuck (max. 2500 RPM)
• Steady rest & follow rest
• Tool post with splash guard
• MT3 live center
• Coolant system (pump + reservoir)
• Emergency stop foot pedal
• Control panel with manual & automatic feed controls
• LED work light

The order will be shipped from one of our main warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

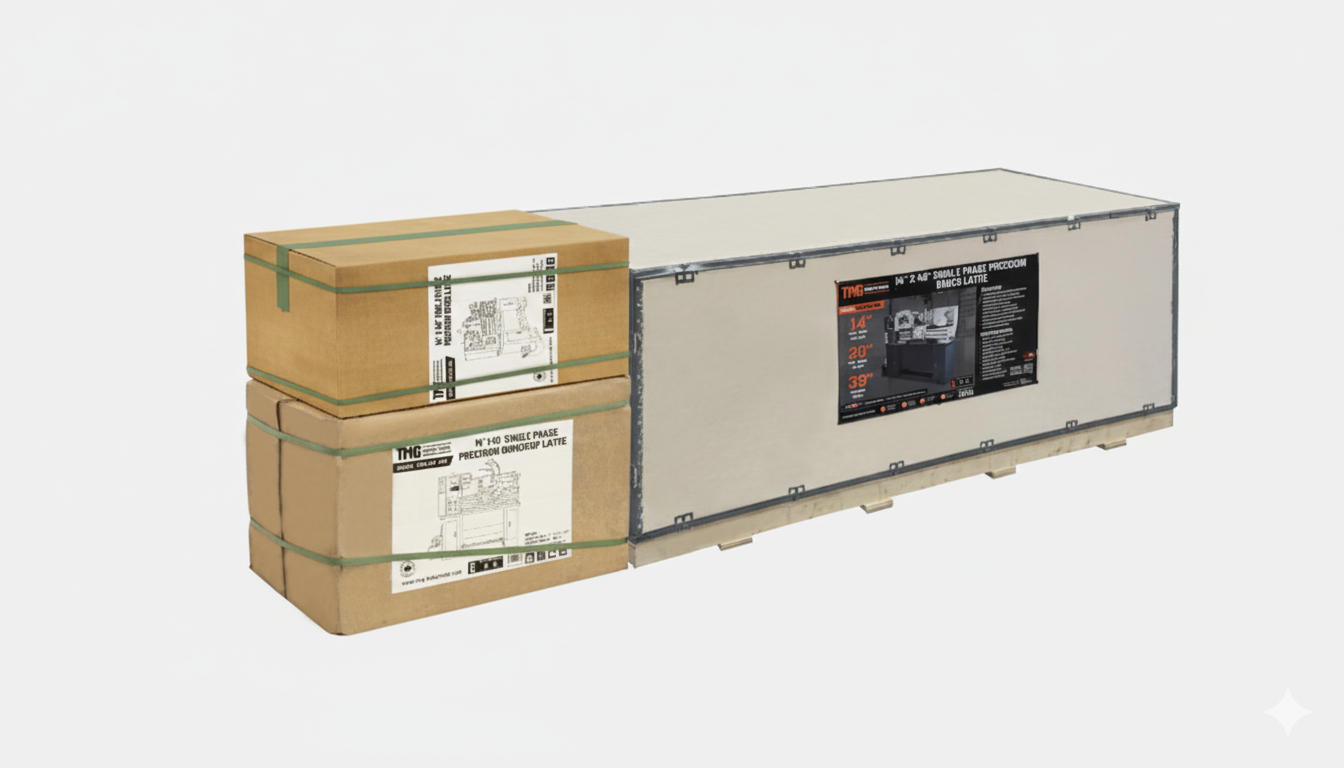

• Box A (main unit, in plywood crate):
  • Shipping dimension: 76" × 30" × 30" (L × W × H)
  • Shipping weight: 1400 lb
• Box B (right stand, in cardboard box):
  • Shipping dimension: 16" × 15" × 27" (L × W × H)
  • Shipping weight: 100 lb
• Box C (left stand, in cardboard box):
  • Shipping dimension: 17" × 16" × 27" (L × W × H)
  • Shipping weight: 155 lb

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.
