CURRENTLY IN STOCK

TMG-FHF30

Forklift Tilt Carriage Attachment, Class III Mount, 35° Up Tilt and 51° Down Tilt, 6600 Lb Capacity, TMG-FHF30

Name: Forklift Tilt Carriage Attachment, Class III Mount, 35° Up Tilt and 51° Down Tilt, 6600 Lb Capacity, TMG-FHF30
Brand: TMG Industrial CA
SKU: TMG-FHF30
Price: 2299.0 CAD
Availability: InStock
Rating: 4.66666666666667 (3 reviews)

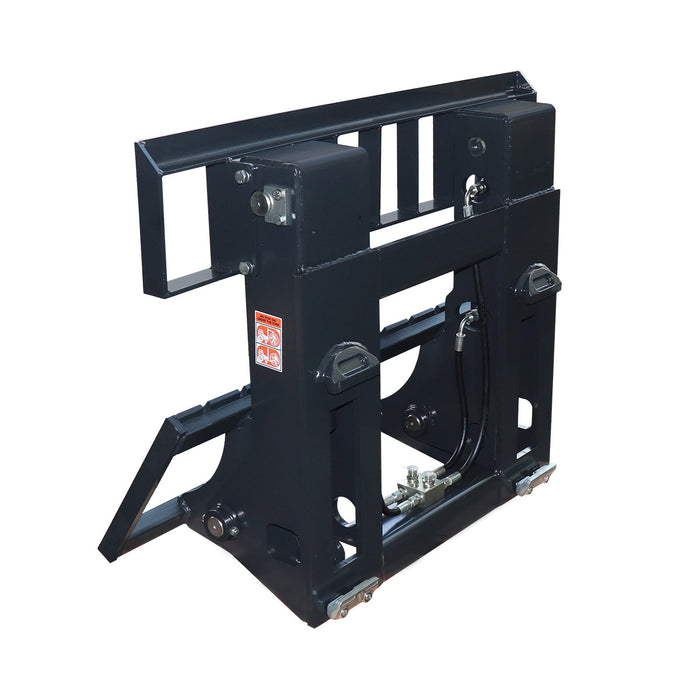

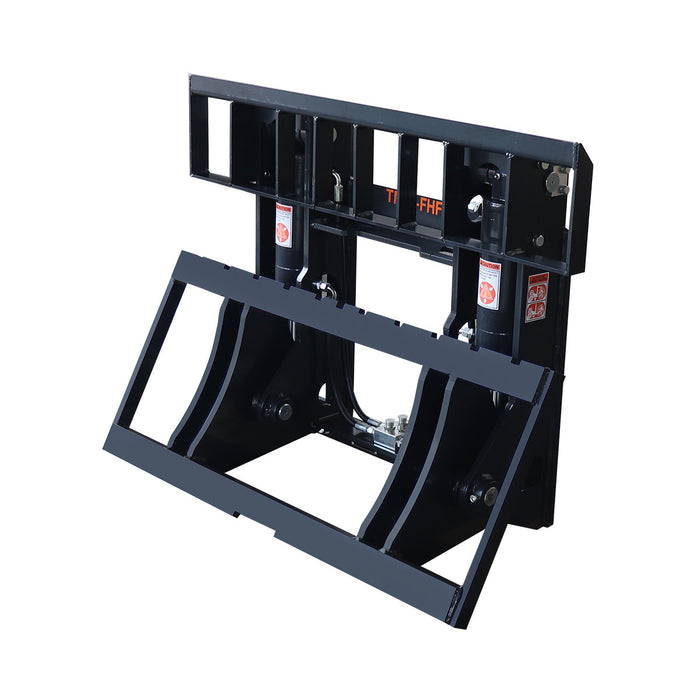

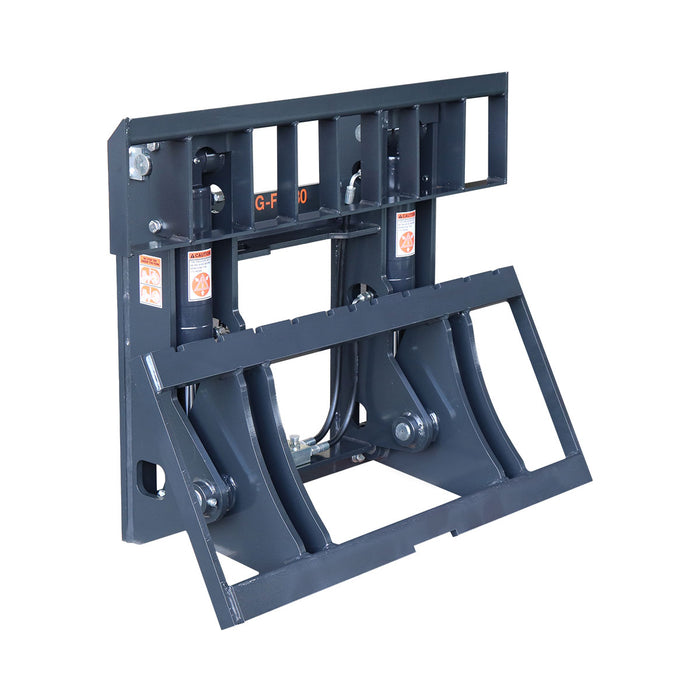

Angled three-quarter view showing tilted carriage and cylinders, Forklift Tilt Carriage Attachment.

CURRENTLY IN STOCK

SKU TMG-FHF30

$2,699.00 CAD

$2,699.00 CAD - $2,699.00 CAD

$2,699.00 CAD

$2,299.00 CAD

$2,299.00 CAD - $2,299.00 CAD

$2,299.00 CAD

$2,699.00 CAD Save $400.00 CAD

$2,299.00 CAD

FREE

shipping to most locations in

Canada

Delivered in 10 to 15 business days

Learn More

Quantity

1-877-761-2819

cs@tmgindustrial.ca

Product Manual

Find Parts

Forklift Tilt Carriage Attachment, Class III Mount, 35° Up Tilt and 51° Down Tilt, 6600 Lb Capacity, TMG-FHF30

Quantity

6600 Lb Capacity: Rated to handle loads up to 6600 lb, making it suitable for medium-duty tipping, dumping, and material handling applications.
Tilt Angle + 35° to - 51°: Offers a wide tilting range for controlled material dumping, pouring, and unloading in industrial and agricultural work environments.
Class III Mount: Designed for forklifts with Class III carriage mounting, making it suitable for many common mid-size forklifts.
Reinforced Structure: Built with heavy-duty steel construction for reliable durability and long-lasting performance under repeated tipping cycles.
Improved Dumping Efficiency: Ideal for unloading sand, gravel, scrap metal, grain, industrial parts, and other bulk materials from non-tiltable containers.
Enhanced Pouring Accuracy: Provides controlled tilt movement, allowing operators to pour materials into smaller receivers or specific unloading areas.

Installation Grade: Class III Mount
Load Capacity: 6600 lb (3000 kg)
Frame Dimension: 16.3"- 43.3" (415 - 1100 mm)
Up Tilt Angle: 35°
Down Tilt Angle: 51°
Fork Spacing: 0"-36.6" (0 - 930 mm)
Effective Thickness: 14.9" (378 mm)
Horizontal Center of Gravity: 7.5" (190 mm)
Hydraulic Pressure: 2000 - 3300 PSI (14 - 23 MPa)
Hydraulic Flow: 1.1 - 3.2 GPM (4 - 12 L/min)

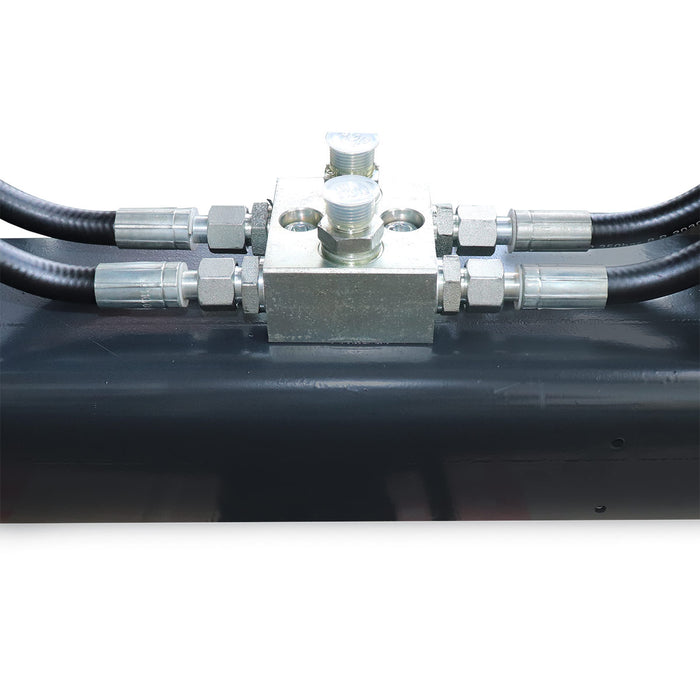

Hydraulic Fittings: 1BH-06-16 (M16 to G3/8")
Hydraulic hoses are not included.
Net Weight: 629 lb (286 kg)

The TMG-FHF30 Power Tilt Carriage Attachment is a hydraulic forklift attachment designed to improve dumping, tipping, and unloading efficiency. Designed for Class III forklift carriage mounting, it is built with heavy-duty steel construction for reliable durability and long-lasting performance in demanding material handling environments.

With a rated capacity of 6600 lb, this attachment provides controlled tilt movement for emptying boxes, bins, hoppers, skips, and non-tiltable containers. The 35° up tilt and 51° down tilt range helps operators unload bulk materials such as sand, gravel, scrap metal, grain, and industrial parts with better control.

The TMG-FHF30 helps transform a standard forklift into a more versatile dumping machine for warehouses, recycling plants, agricultural facilities, foundries, yards, and industrial work environments. Its controlled tilting function also improves pouring accuracy when unloading materials into smaller receivers or specific drop-off areas.

TMG Industrial also carries a similar model of the tile carriage attachment: TMG-FHF20.

Your order will be shipped from one of our main warehouses in Canada. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

This product is packed in a wooden shipping box
Shipping dimension: 45" x 36" x 25" (L x W x H), 115x92x63(cm)
Shipping weight: 700 lb (317 kg)

Shipping from Richmond, BC, or Mississauga, ON

What happens after you place your order?

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Dimensions and capacity
	Forklift Tilt Carriage Attachment, Class III Mount, 35° Up Tilt and 51° Down Tilt, 6600 Lb Capacity, TMG-FHF30$2,299.00 CAD	Forklift Tilt Carriage Attachment, Class II Mount, 35° Up Tilt and 51° Down Tilt, 4400 Lb Capacity, TMG-FHF20$1,799.00 CAD
Load Capacity	6,600 lb (3,000 kg)	4,400 lb (2,000 kg)
Net Weight	629 lb (286 kg)	551 lb (250 kg)
Construction and materials
Installation Grade	Class III Mount	Class II Mount
