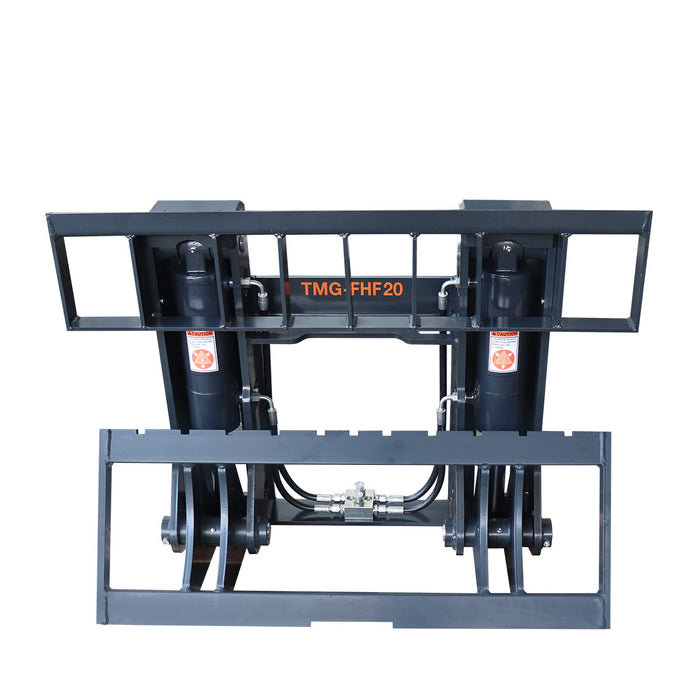

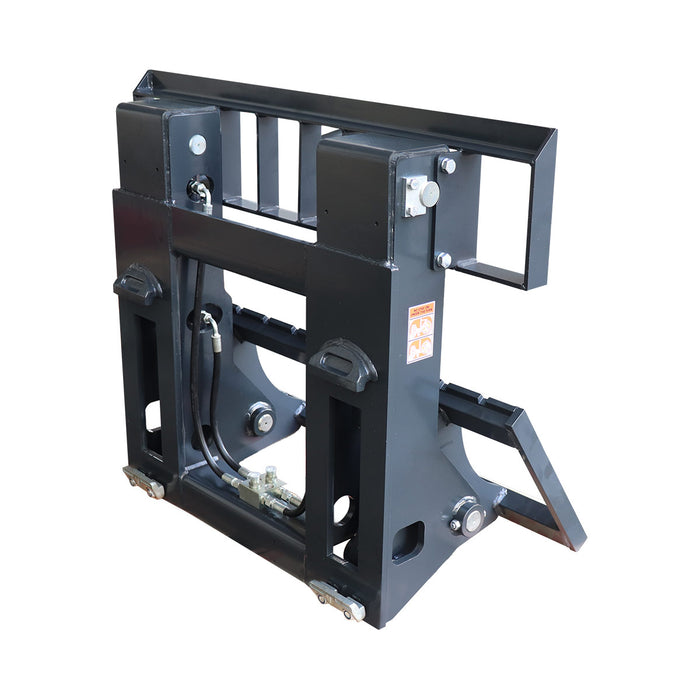

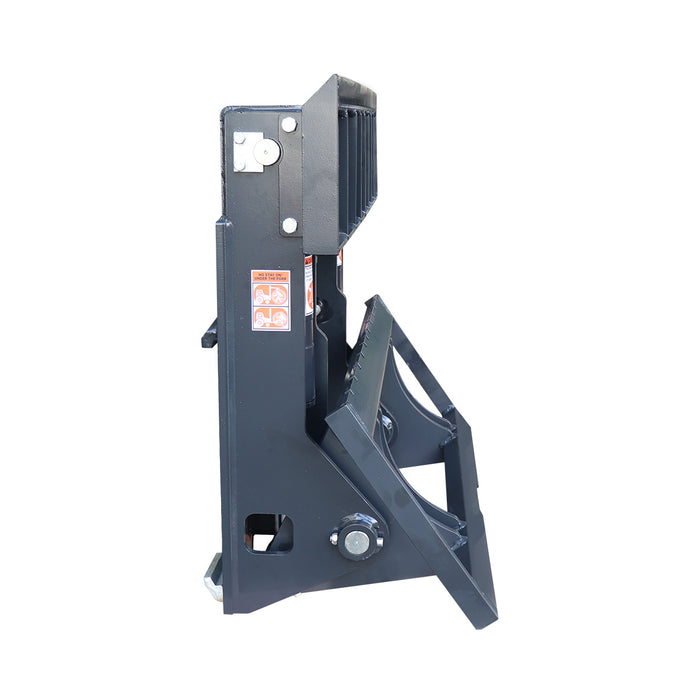

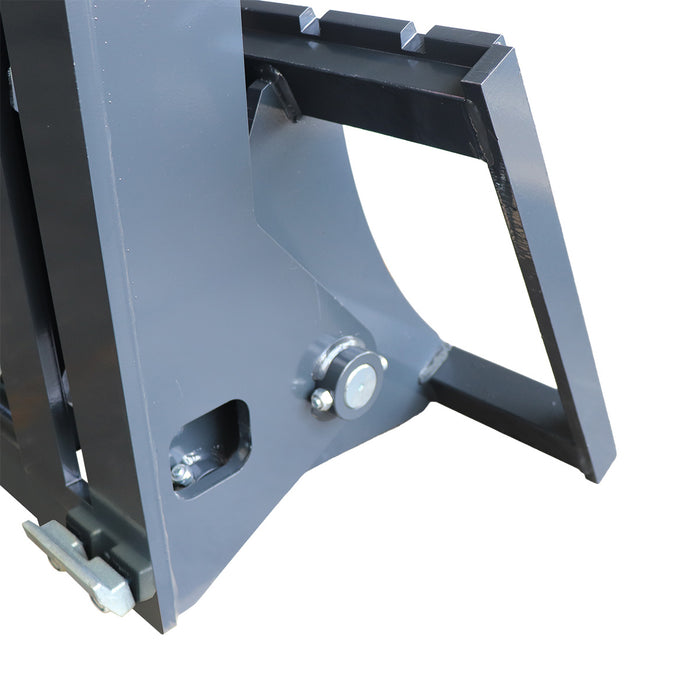

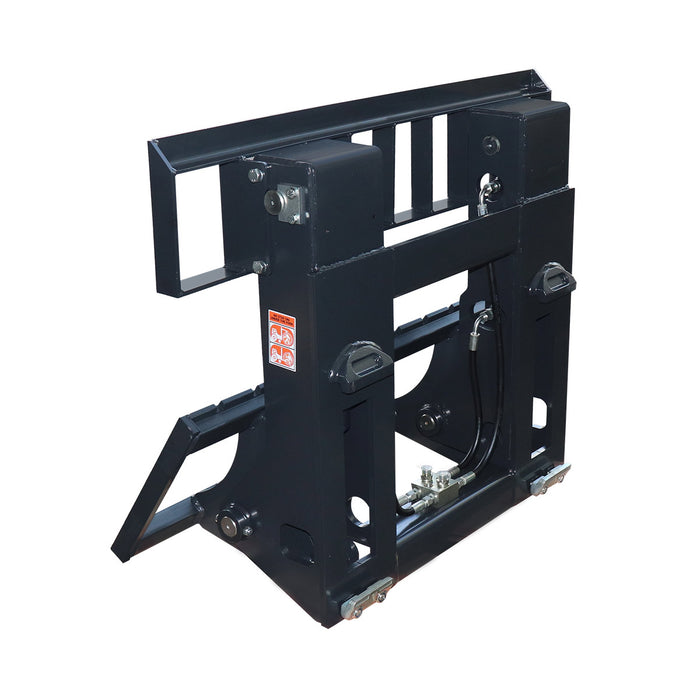

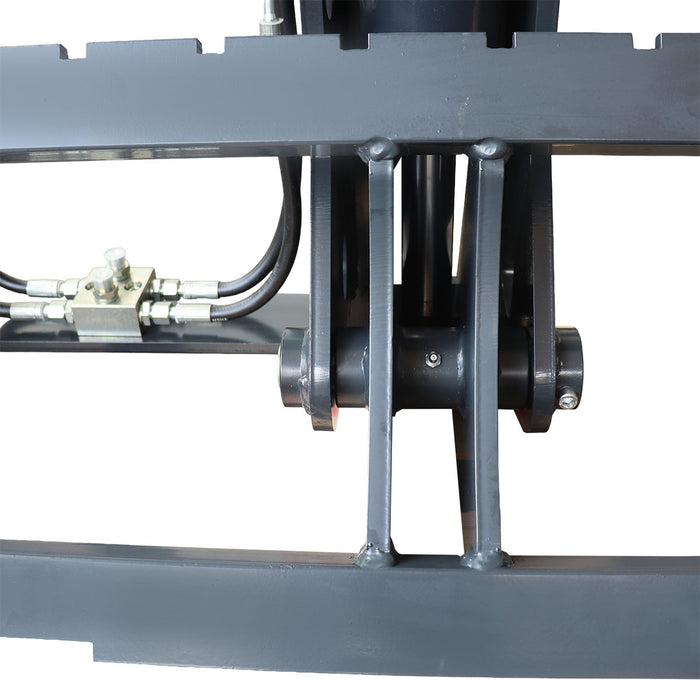

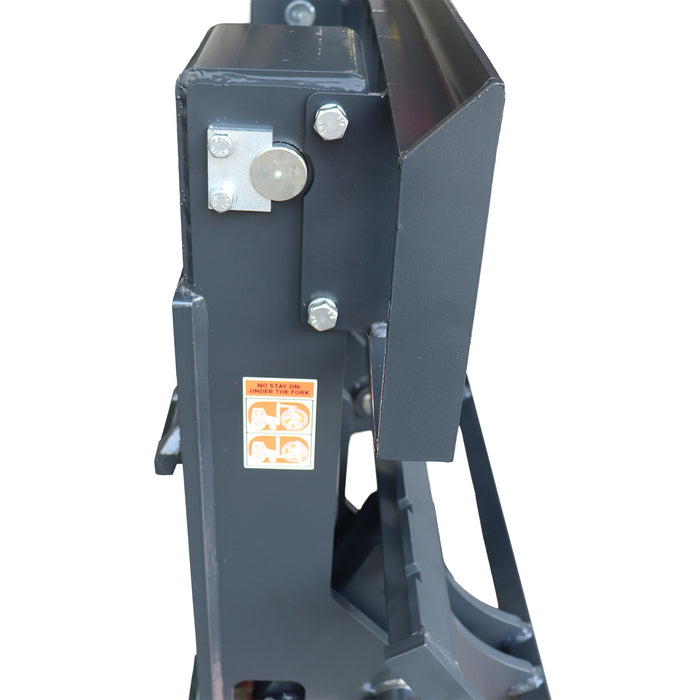

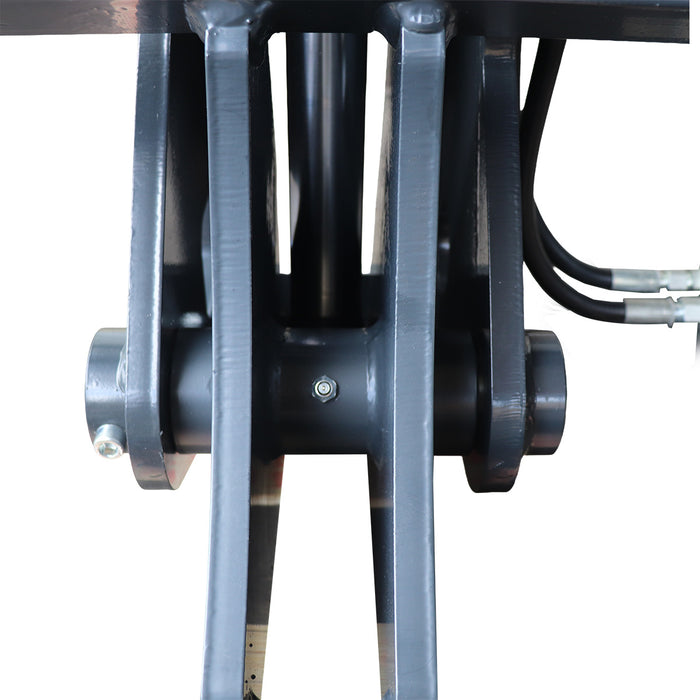

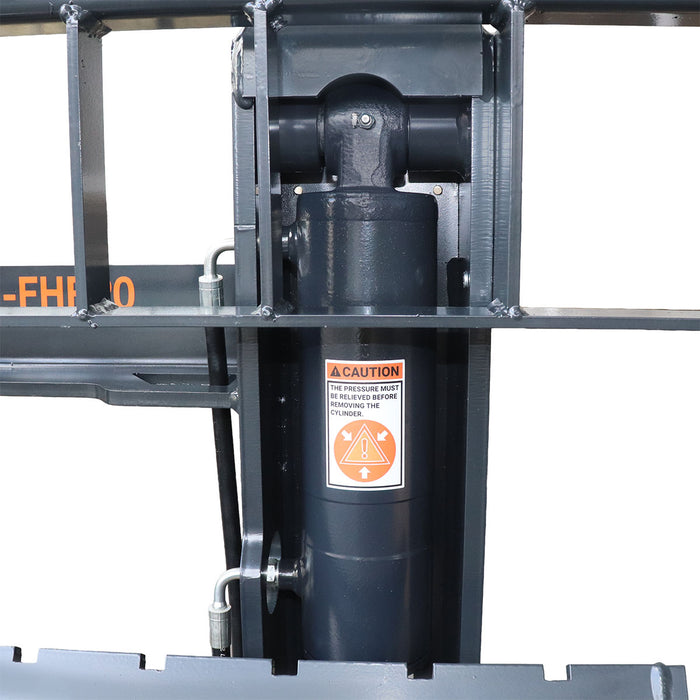

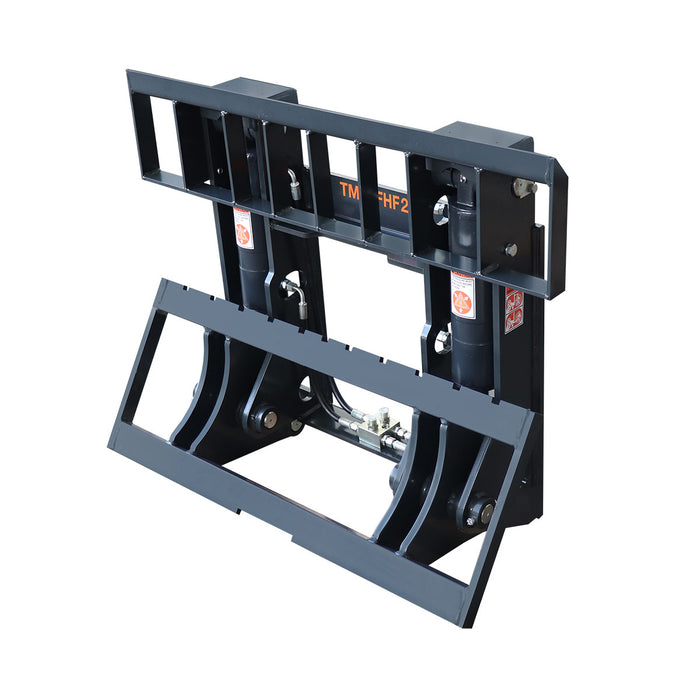

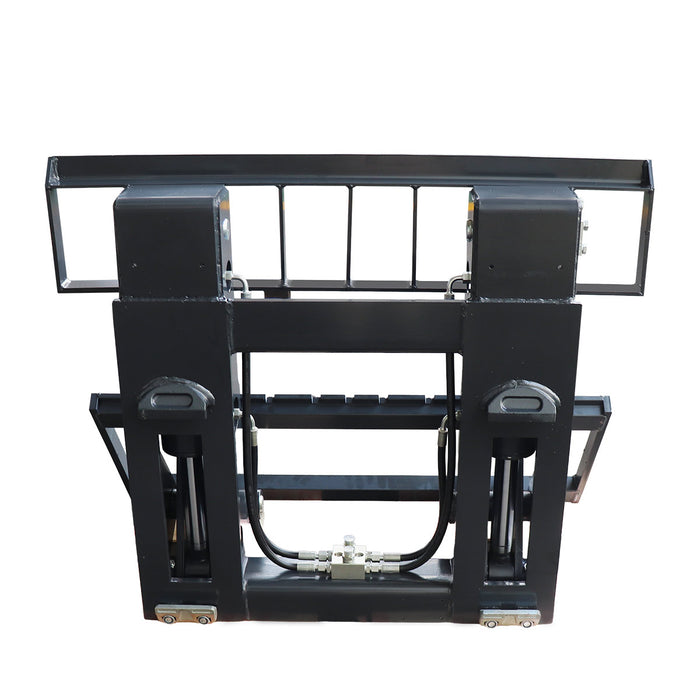

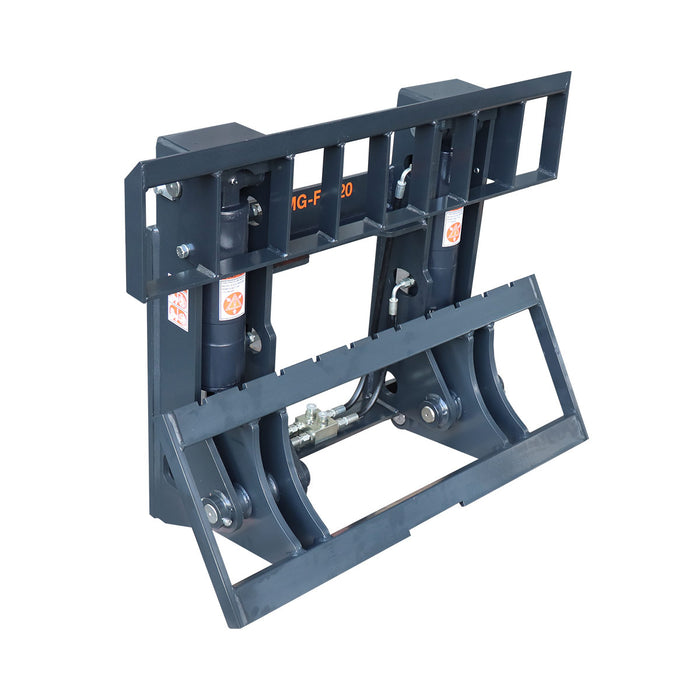

Forklift Tilt Carriage Attachment, Class II Mount, 35° Up Tilt and 51° Down Tilt, 4400 Lb Capacity, TMG-FHF20
FREE
shipping to most locations in
Canada
Learn More
Product Manual
Features
Features
- 4400 Lb Capacity: Rated to handle loads up to 4400 lb, making it suitable for medium-duty tipping, dumping, and material handling applications.
- Tilt Angle + 35° to - 51°: Offers a wide tilting range for controlled material dumping, pouring, and unloading in industrial and agricultural work environments.
- Class II Mount: Designed for forklifts with Class II carriage mounting, making it suitable for many common light to mid-size forklifts.
- Reinforced Structure: Built with heavy-duty steel construction for reliable durability and long-lasting performance under repeated tipping cycles.
- Improved Dumping Efficiency: Ideal for unloading sand, gravel, scrap metal, grain, industrial parts, and other bulk materials from non-tiltable containers.
- Enhanced Pouring Accuracy: Provides controlled tilt movement, allowing operators to pour materials into smaller receivers or specific unloading areas.
Specifications
Specifications
- Installation Grade: Class II Mount
- Load Capacity: 4400 lb (2000 kg)
- Frame Dimension: 15.6" x 40.9" (395 x 1040 mm)
- Up Tilt Angle: 35°
- Down Tilt Angle: 51°
- Fork Spacing: 0"-33.9" (0 - 860 mm)
- Effective Thickness: 14.1" (358 mm)
- Horizontal Center of Gravity: 7.1" (180 mm)
- Hydraulic Pressure: 2000 - 3300 PSI (14 - 23 MPa)
- Hydraulic Flow: 1.1 - 3.2 GPM (4 - 12 L/min)

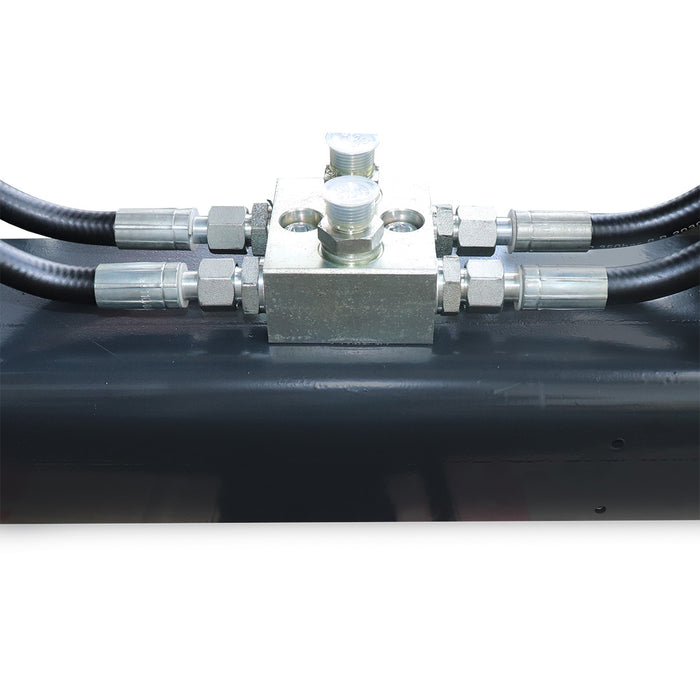

- Hydraulic Fittings: 1BH-06-16 (M16 to G3/8")
- Hydraulic hoses are not included.
- Net Weight: 551 lb (250 kg)
Product Description
Product Description
The TMG-FHF20 Tilt Carriage Attachment is a hydraulic forklift attachment designed to improve dumping, tipping, and unloading efficiency. Designed for Class II forklift carriage mounting, it is built with heavy-duty steel construction for reliable durability and long-lasting performance in demanding material handling environments.
With a rated capacity of 4400 lb, this attachment provides controlled tilt movement for emptying boxes, bins, hoppers, skips, and non-tiltable containers. The 35° up tilt and 51° down tilt range helps operators unload bulk materials such as sand, gravel, scrap metal, grain, and industrial parts with better control.
The TMG-FHF20 helps transform a standard forklift into a more versatile dumping machine for warehouses, recycling plants, agricultural facilities, foundries, yards, and industrial work environments. Its controlled tilting function also improves pouring accuracy when unloading materials into smaller receivers or specific drop-off areas.
TMG Industrial also carries a larger size model of the tile carriage attachment: TMG-FHF30.
Shipping Information
Shipping Information
Your order will be shipped from one of our main warehouses in Canada. Typically, we process and ship orders within 2 to 3 business days. Delivery time varies based on your location and accessibility, with most orders arriving within 10 to 15 business days.

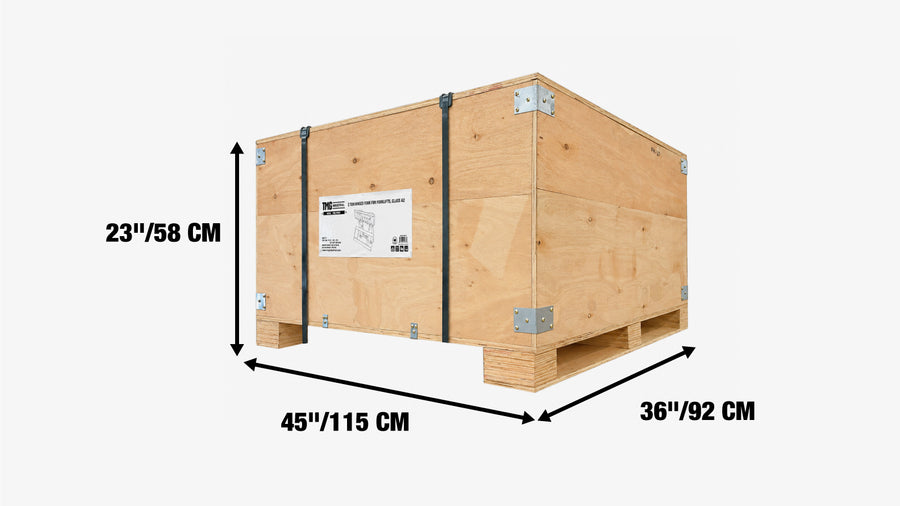

- This product is packed in a wooden shipping box
- Shipping dimension: 45" x 36" x 23" (L x W x H), 115x92x58(cm)
- Shipping weight: 626 lb (284 kg)
