EST. 8-12 WEEKS DELIVERY

TMG-MSE2030-SR35

20' x 30' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, Two 8'4" Double Doors, Side Entry Door, 13' Peak Height, Engineering Drawing TMG-MSE2030-SR35

Name: 20' x 30' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, Two 8'4" Double Doors, Side Entry Door, 13' Peak Height, Engineering Drawing TMG-MSE2030-SR35
Brand: TMG Industrial CA
SKU: TMG-MSE2030-SR35
Price: 13999.0 CAD
Availability: InStock

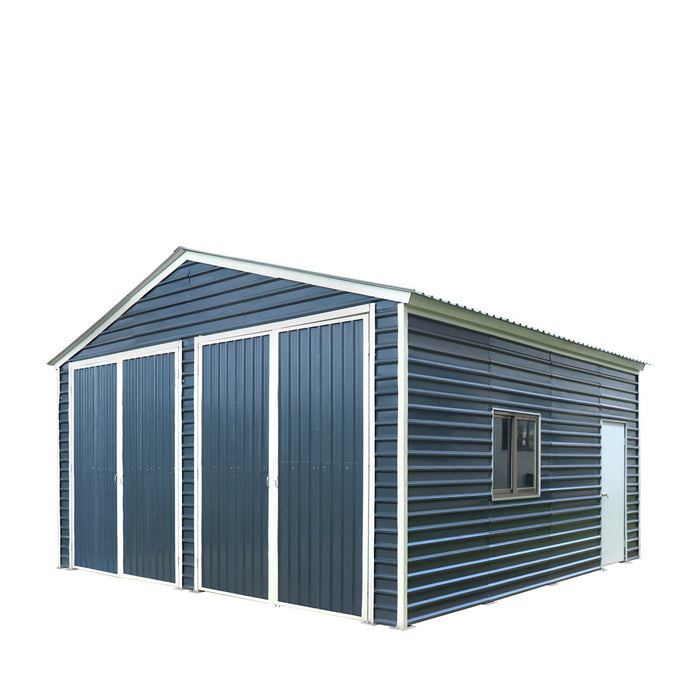

Blue Metal Garage Shed with closed double front doors and side entry.

EST. 8-12 WEEKS DELIVERY

SKU TMG-MSE2030-SR35

$13,999.00 CAD - $13,999.00 CAD

$13,999.00 CAD

$13,999.00 CAD - $13,999.00 CAD

$13,999.00 CAD

FREE

shipping to most locations in

Canada

GRAB IT SOON - ONLY 5 LEFT IN STOCK

Quantity

1-877-761-2819

cs@tmgindustrial.ca

Product Manual

Find Parts

20' x 30' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, Two 8'4" Double Doors, Side Entry Door, 13' Peak Height, Engineering Drawing TMG-MSE2030-SR35

Quantity

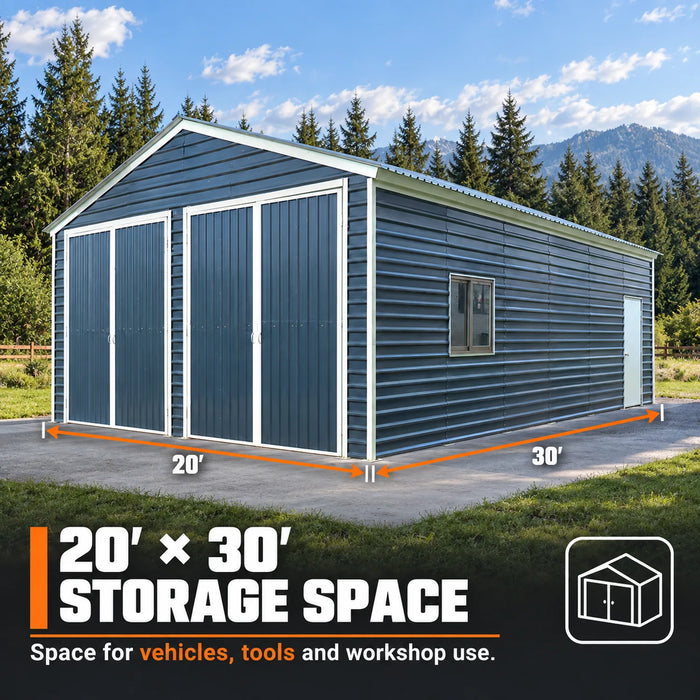

600 sq-ft Footprint: Offers 600 sq-ft of usable interior space, ideal for general storage, agricultural applications, or outdoor workshops.
Easy Access: Equipped with two large front doors and a side entry providing generous access, facilitating easy entry for vehicles and people.
9'4" Door Clearance: The 9’4” door clearance makes parking your truck or bringing out the ride-on mower effortless and worry-free.

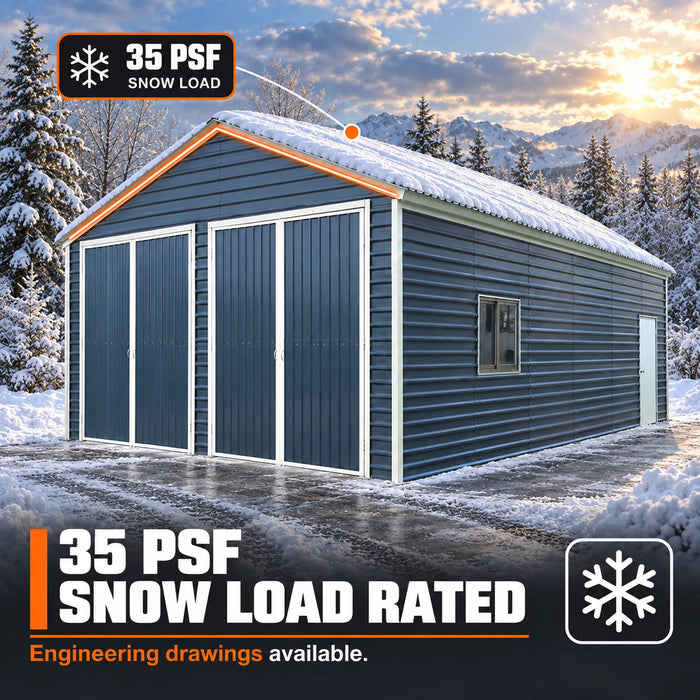

35 PSF Snow Load Rated: The structure is rated for a 35 PSF snow load and 100 km/h wind load and includes engineering drawings from registered Canadian engineer.
Window and Louvers: One Window and two louvers (front and rear) provide natural lighting, continuous airflow, moisture control, and better air circulation.

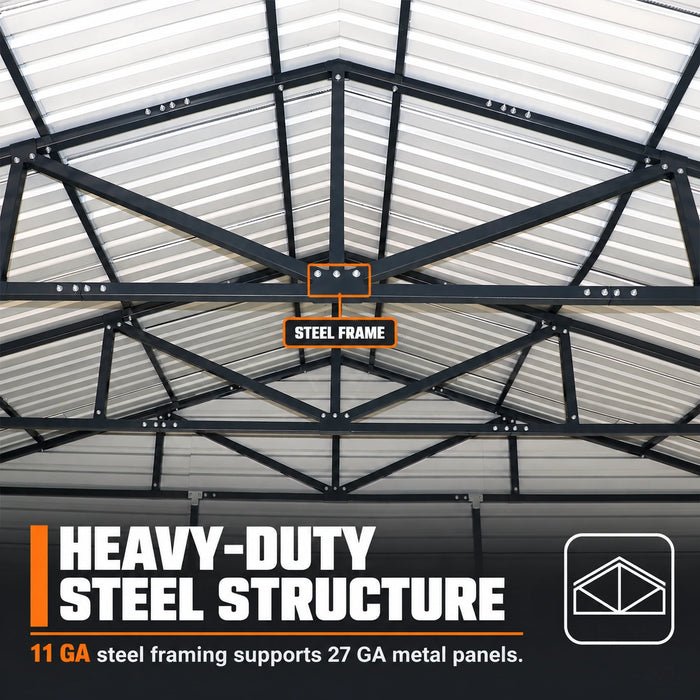

Robust Structure: Industrial-grade 11 GA steel structure covered with durable 27 GA metal sheets for maximum durability and rust resistance.

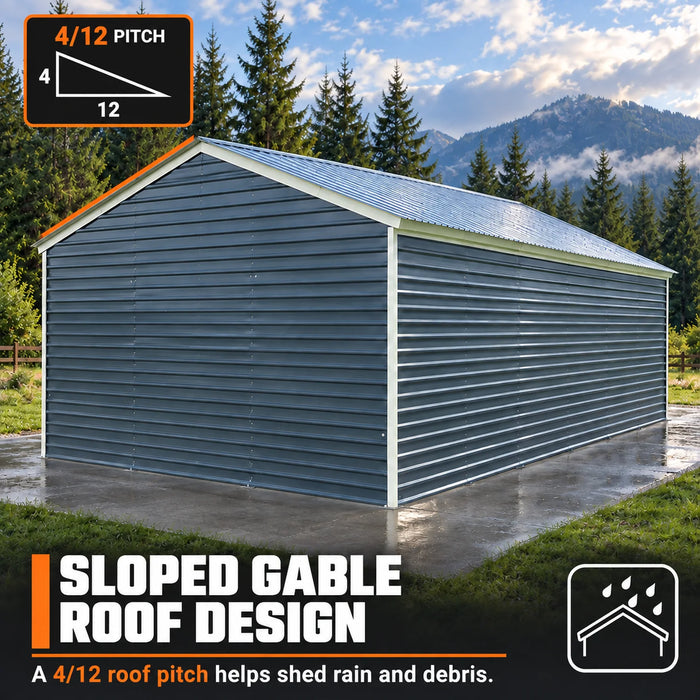

Sloped Roof Design: Sloped, vertical gable roof to help prevent water, snow or any debris build-up across all seasons.
Simple Assembly: Slip-fit square tubing base frame with sleeve anchor bolts for easy installation on any solid wood platform, concrete slab, or equivalent.

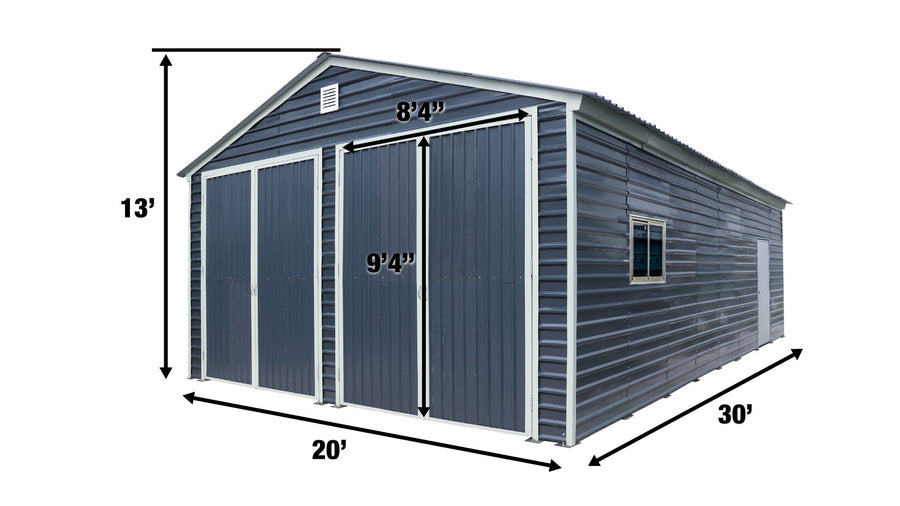

Assembled Size: 19' 8” (W) x 30' (L) x 13' (H)
Floor Space: 590 sq-ft (55 m²)
Peak Height: 13' (3970 mm)
Eave Height: 9.4' (2850 mm)
Roof Pitch: 4/12"
Steel Frame Tube: 100 x 50 x 3 mm (11 GA) - Q235
Purlin Tube: 50 x 50 x 1.8 mm (15 GA) - Q235
Metal Cover Sheet: 0.3 mm (27 GA)
Truss Spacing: 3' 11” / 1200 mm
Snow Load Rating: 1.68 kPa / 35 PSF
Wind Speed Rating: 100 km/h
Load Report and Engineering Drawings available upon request
Double Front Doors (W x H): 8'4" x 9'4" / 2550 x 2850 mm
Number of Front Doors: 2
Side Entry Door: 3' x 6.5' (W x H) / 925 x 2000 mm
Glass Window: 3.6' x 3' (W x H) / 1090 x 920 mm
Number of Windows: 1
Louvers / Vents: 300 x 300 mm
Number of Louvers / Vents: 2 (front and rear)
Anchoring: Sleeve anchor bolts
Foundation Required: Concrete slabs, solid wood or equivalent
Colour: Charcoal Grey

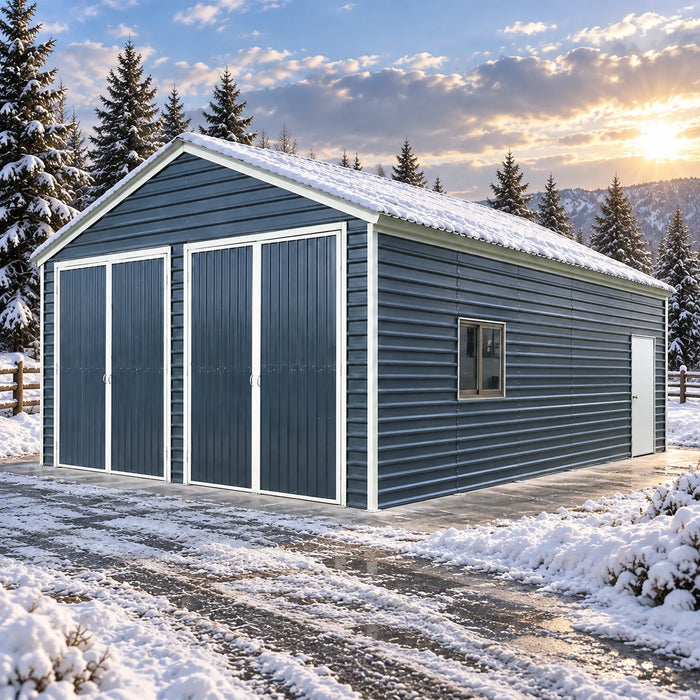

The TMG-MSE2030-SR35 Metal Garage Shed Steel Building with two double open front doors is a heavy-duty, spacious, robust steel structure that can be used as an outdoor storage facility. Fully enclosed for year-round protection of your boat, RV, pickup, off-road vehicles and farm equipment. Specifically engineered for demanding Canadian climates, this pre-engineered structure is rated for a 35 PSF snow load as well as 100 km/h wind load and includes stamped drawings from a licensed structural engineer.

Two large front swinging doors give you ample space to drive into or bring materials in and out of. Included side door entry is installable on either side, so you can customize this enclosure to fit the needs of your acreage, farm or commercial property. A large window provides natural light and creates a more pleasant, open ambiance. 2 louver vents (front and rear) provide continuous airflow, help control moisture, and maintain better air circulation. 

Our metal garage has reinforced roof support, wall bracings and anchors making it a dependable structure for the housing of all your valuable goods. Fitted with electro-galvanized steel sheets and polyester paint that offer protective resistance against corrosion, rust and wear.

The sloped gable roof helps shed snow and rain, while the slip-fit base frame with sleeve anchor bolts allows for quick installation on wood or concrete foundations. The open-span design inside provides maximum interior space and flexible storage options.

TMG Industrial also carries some models with the same width but at different lengths or with different door configurations: TMG-MSE2020-SR35, TMG-MSE2030D-SR35, TMG-MSE2040-SR35, TMG-MSE2040D-SR35, TMG-MSE2040DS-SR35.

The order will be shipped from one of our main warehouses in Canada. Under normal circumstances, it will take us 2 to 3 business days to process the order and ship it. It will take up to 10 to 15 business days for the order to get to you based on where you are located and how accessible the location is.

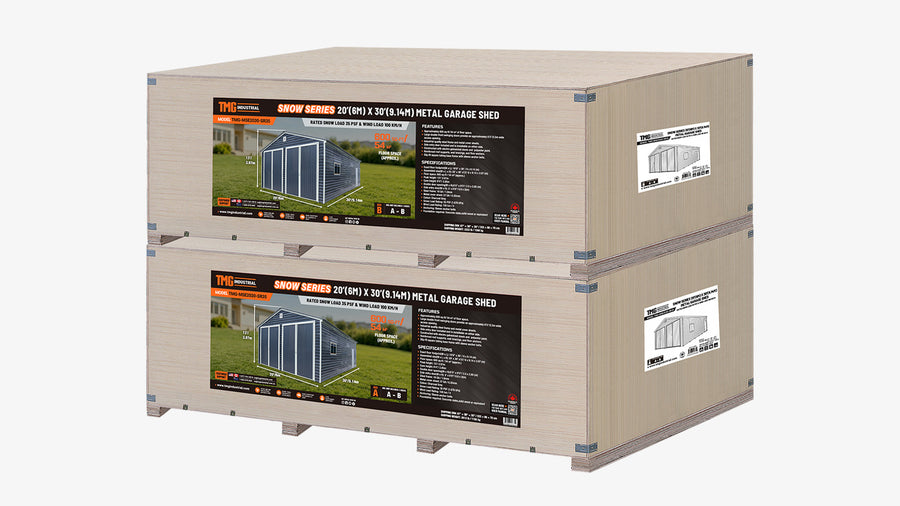

This product is packed in two wood crate shipping boxes.
Box A
Shipping dimensions (L x W x H): 87" x 39" x 28" (221 x 99 x 71 cm)
Shipping weight: 2,612 lb (1,185 kg)
Box B
Shipping dimensions (L x W x H): 87" x 39" x 28" (221 x 99 x 71 cm)
Shipping weight: 2,222 lb (1,008 kg)
Total shipping weight: 4,835 lb (2,193 kg)

This product is too large for tailgate delivery. A forklift or equivalent will be required to receive the order.

Shipping from Richmond, BC, or Mississauga, ON

What happens after you place your order?

We know that when you invest in equipment, you're counting on it to perform day in and day out. At TMG Industrial, that trust means everything to us. That’s why we include a 1-year Warranty with every product we sell—because you deserve confidence with every purchase.

Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.

More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.

For full warranty terms, please see our warranty policy

Dimensions and capacity
	20' x 30' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, Two 8'4" Double Doors, Side Entry Door, 13' Peak Height, Engineering Drawing TMG-MSE2030-SR35$13,999.00 CAD	20' x 20' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, Two 8'4" Double Doors, Side Entry Door, 13' Peak Height, Engineering Drawing TMG-MSE2020-SR35$9,999.00 CAD	20' x 30' Metal Garage Shed Steel Building, 35 PSF Snow Load Rated, 11'10" Large Front Door, Side Entry, 13' Peak Height, Engineering Drawing, TMG-MSE2030D-SR35$14,999.00 CAD
Assembled Size	19'8" (W) x 30' (L) x 13' (H)	19'8" (W) x 19'8" (L) x 13' (H)	19'8" (W) x 30' (L) x 13' (H)
Floor Space	590 sq-ft (55 m²)	386 sq-ft (36 m²)	590 sq-ft (55 m²)
Front Door Size	8'4" x 9'4"	8'4" x 9'4"	11'10" x 9'4"
Truss Spacing	3'11" (1.2 m)	3'11" (1.2 m)	3'11" (1.2 m)
Construction and materials
Side Entry Door	3' x 6.5' (925 mm x 2,000 mm) (W x H)	3' x 6.5' (925 mm x 2,000 mm) (W x H)	3' x 6.5' (925 mm x 2,000 mm) (W x H)
Number of Front Doors	2	2	One
Glass Window	3.6' x 3' (1,090 mm x 920 mm) (W x H)	3.6' x 3' (1,090 mm x 920 mm) (W x H)	3.6' x 3' (1,090 mm x 920 mm) (W x H)
