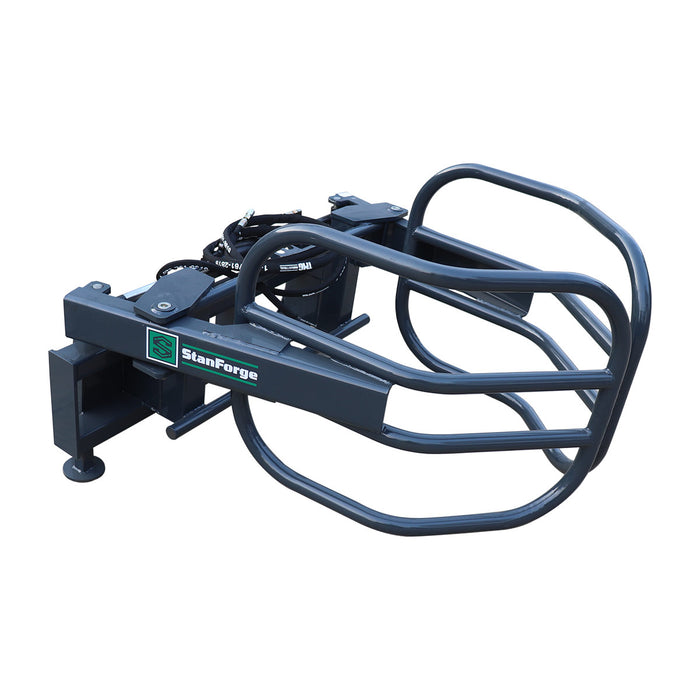

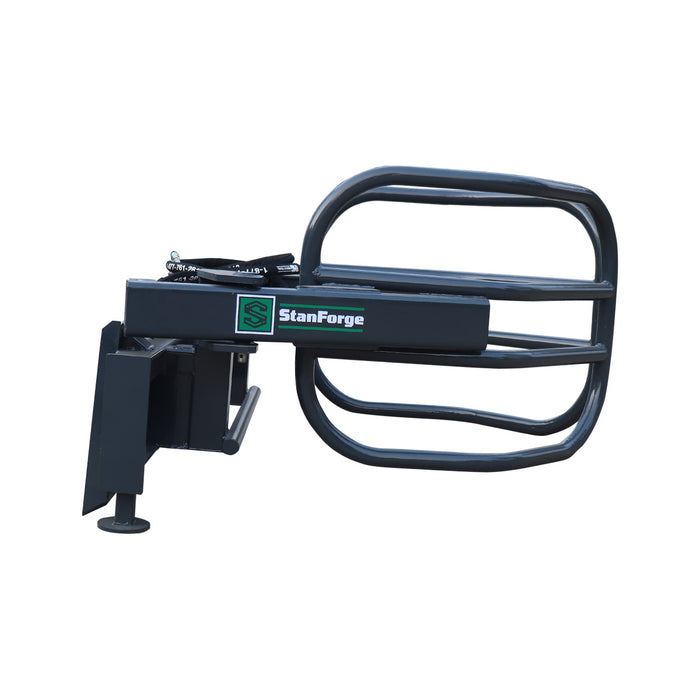

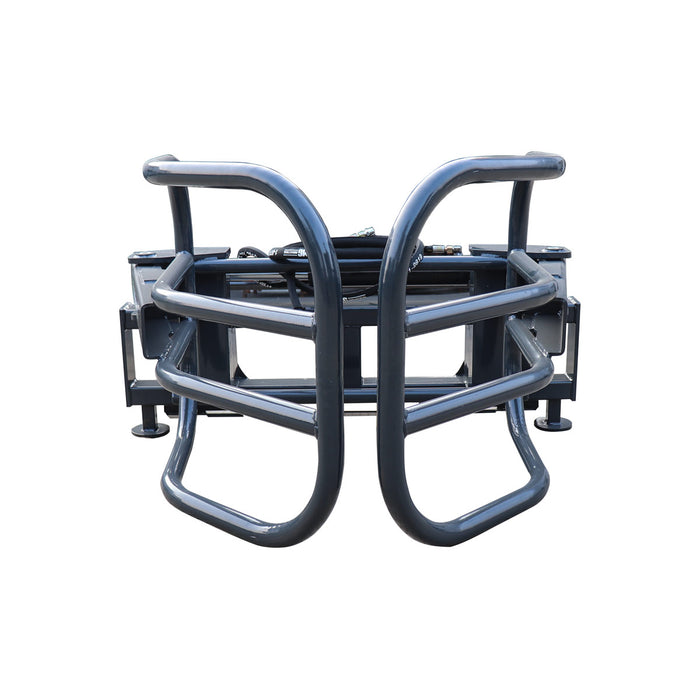

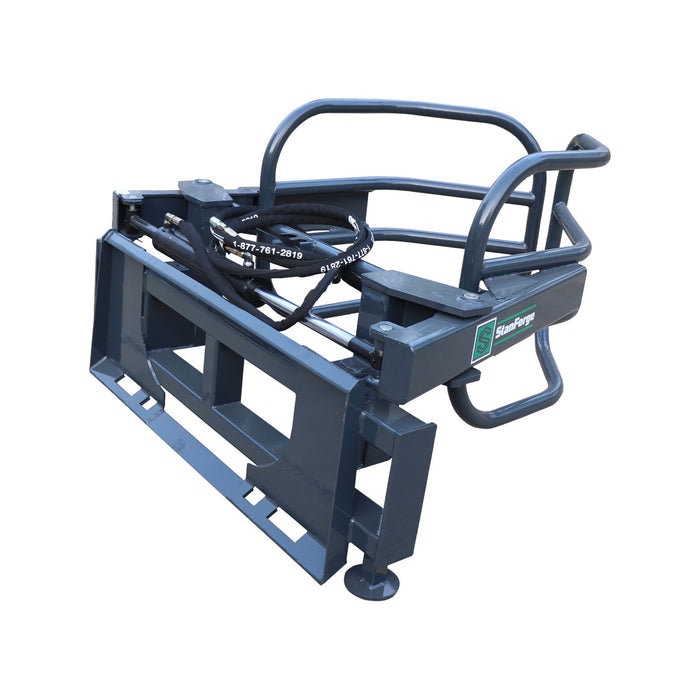

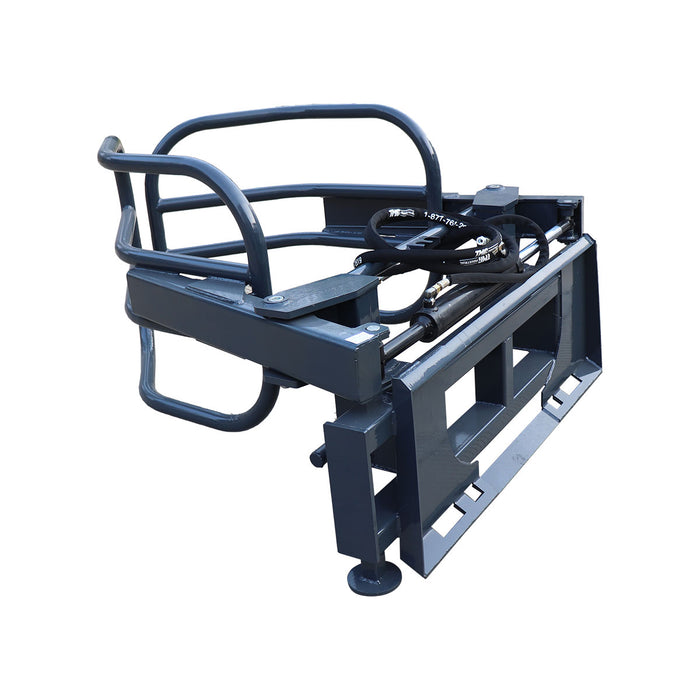

Stanforge 70" Skid Steer Hydraulic Round Bale Gripper/Squeeze Grapple, 2500 lb Capacity, 52" Depth, Universal Quick-Mount, SF-SBG70
FREE
shipping to most locations in
Canada
Learn More
Features
Features
- Wide 70" Grapple Opening: Designed for handling hay bales, silage, and bulky agricultural materials.
- High-Capacity Grapple Arms: Rated up to 2500 lb for secure lifting and transport.
- Heavy-Duty Tubular Arms: Built with ∅48 mm reinforced steel for long-term durability.

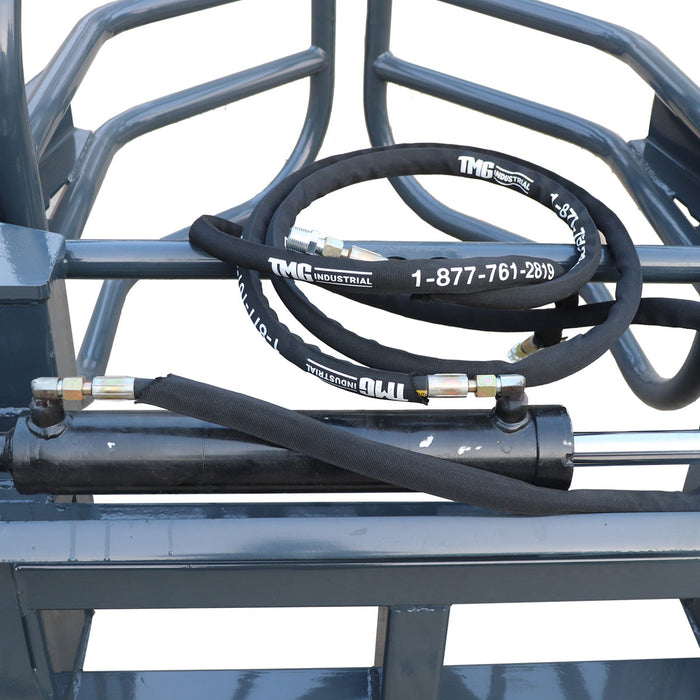

- Precision Hydraulic Cylinder: Provides strong, consistent clamping force under demanding workloads.
- Dual-Layer Hydraulic Hoses: Two high-pressure hoses ensure reliable operation and extended service life.
- Universal Skid Steer Compatibility: Allows fast hookup and broad support across skid steer equipment.
Specifications
Specifications
- Compatible equipment: Skid steer loaders
- Required power: 30–60 HP
- Maximum grapple opening: 70" (1780 mm)
- Working width: 74" (1876 mm)
- Working depth: 52" (1320 mm)
- Maximum grapple load: 2500 lb (1134 kg)
- Hydraulic arms: ∅48 x 3 mm reinforced steel
- Hydraulic flow rate: 3–8 GPM (10–30 L/min)
- Operating pressure: 16–25 MPa (2300–3600 PSI)

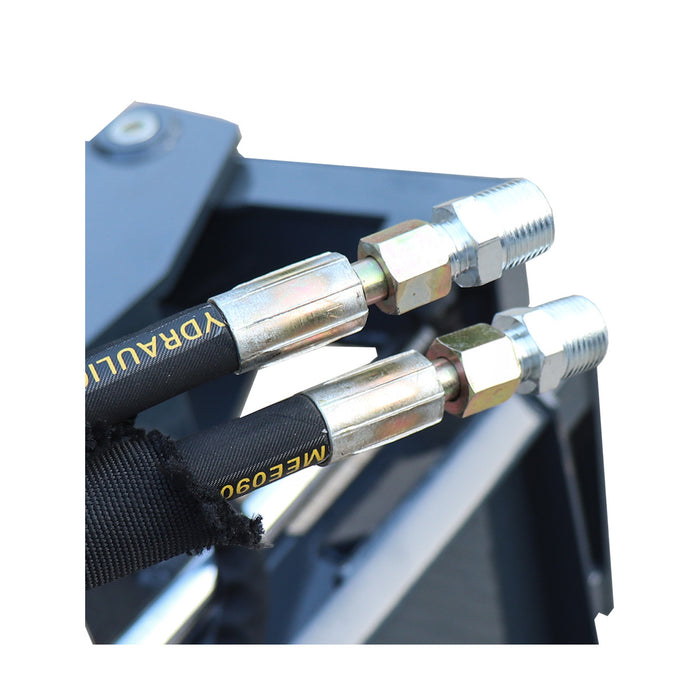

- Hydraulic hoses: ∅20 x 1900 mm, dual-layer, 2 pcs

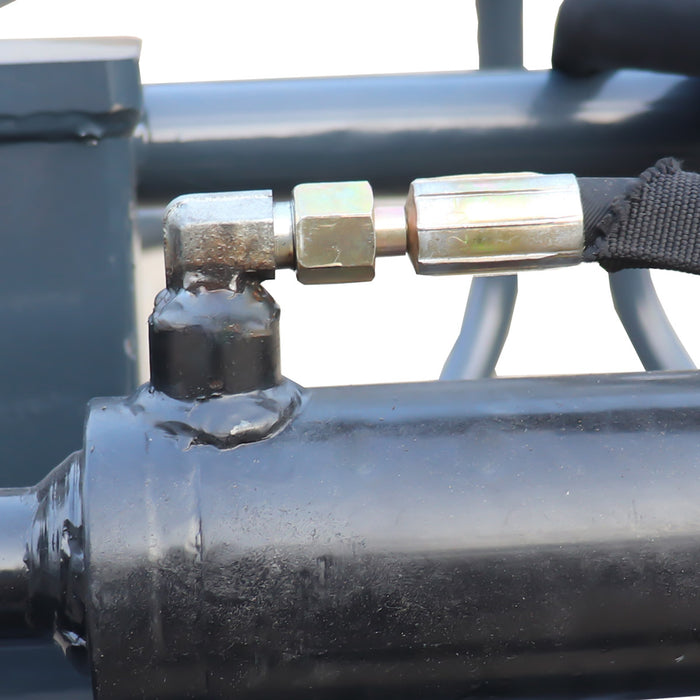

- Hydraulic fittings: M18 x 1.5 to 1/2" NPT, 2 pcs
-
Overall dimensions (L x W x H):
- Product size: 54.3" x 52" x 34.5" (1380 x 1320 x 878 mm)
- Opening size: 55" x 74" x 34.5" (1395 x 1876 x 878 mm)
- Net weight: 406 lb (184 kg)
Product Description
Product Description

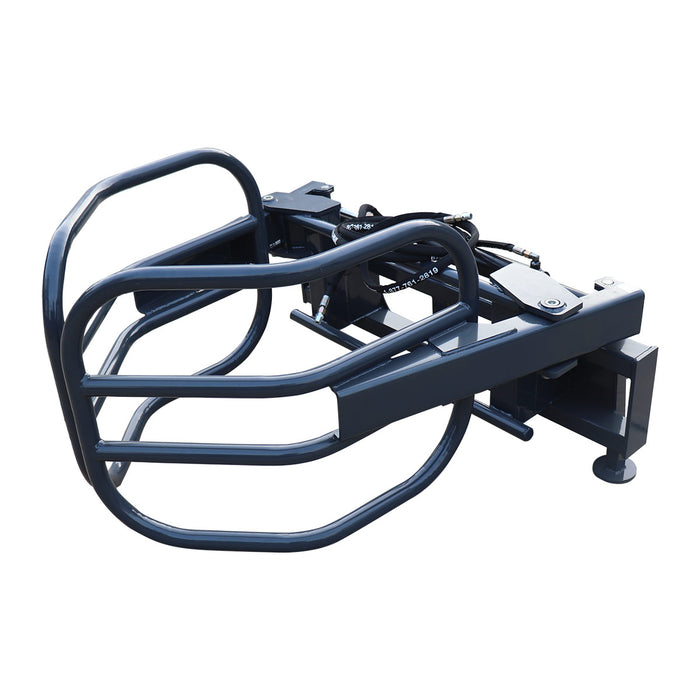

The Stanforge SF-SBG70 Skid Steer Hydraulic Round Bale Gripper/Squeeze is an excellent alternative to traditional bale spears or other forms of bale collection that rough up and damage your bales. Heavy-duty hydraulic tubular arms open to a maximum 70" width to accommodate bales of all shapes and sizes up to 2500 lb. Perfect attachment for your agricultural operations to keep your hard grown investments safe and secure during the collection and transport process.
If you’re looking to stack hay bales in your barn or maneuver them around to different flocks of livestock, this bale gripper will help you do so in an economical fashion that reduces wasted product from tearing and spillage. Made with a single hydraulic cylinder arm to reduce unnecessary components and prolong the lifespan of the unit. Overall, industrial construction is built to last and work hard for you for many years to come.

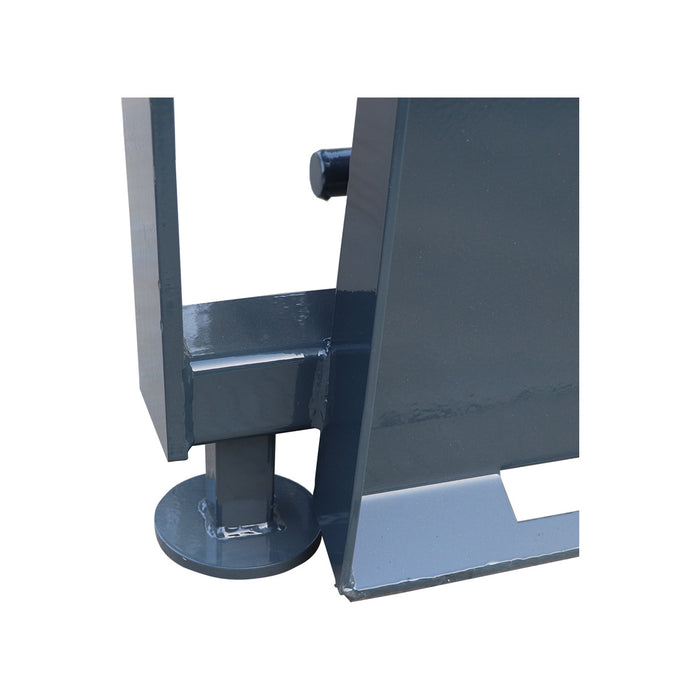

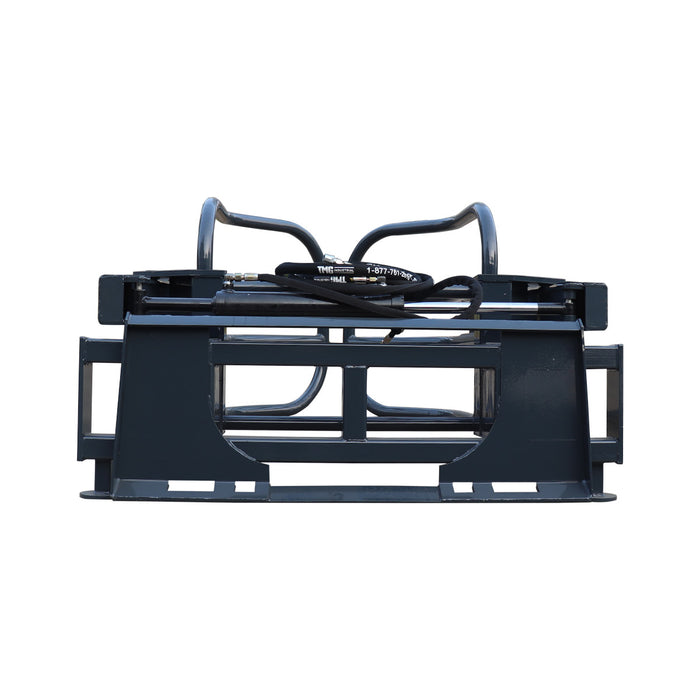

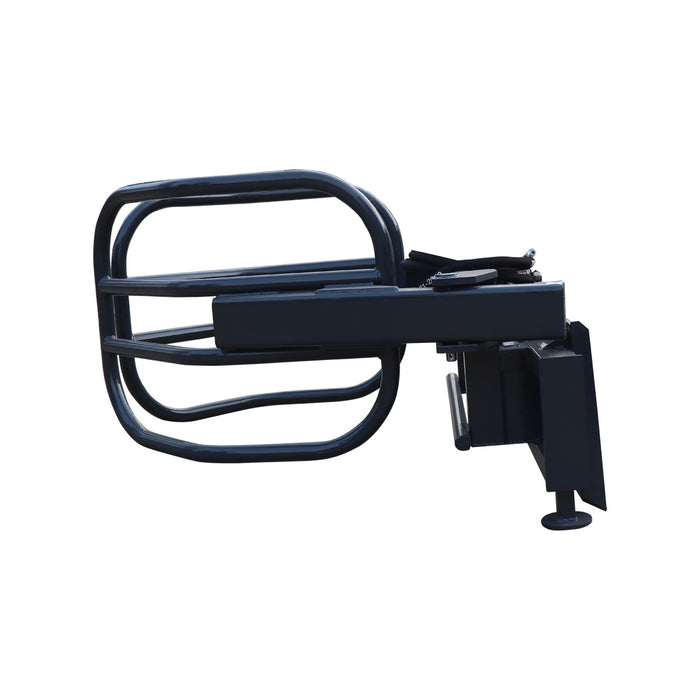

This attachment is fitted with a universal quick-mount that easily hooks up to your skid steer with 30–60 HP and transitions quickly between other attachments. The 1/2" NPT quick coupler fittings are also included for quick and seamless hydraulic connection. Dual kickstands have also been equipped for level storage when not in use.
Shipping Information
Shipping Information
- Packaging: This product is packed in a steel crate
- Shipping dimensions: 59" x 33" x 32" (L x W x H), 1500 x 850 x 820 mm
- Shipping weight: 503 lb (228 kg)
Warranty
Warranty
Our warranty is there to make sure your equipment stays reliable across the seasons, covering any issues caused by manufacturing defects in materials or workmanship. From fieldwork to property maintenance, you can count on your TMG equipment to deliver.
More than just warranty coverage, we’re committed to supporting you throughout the life of your machine. Our customer service team is here to help, whether you need technical advice, troubleshooting, or parts support.
For full warranty terms, please see our warranty policy
